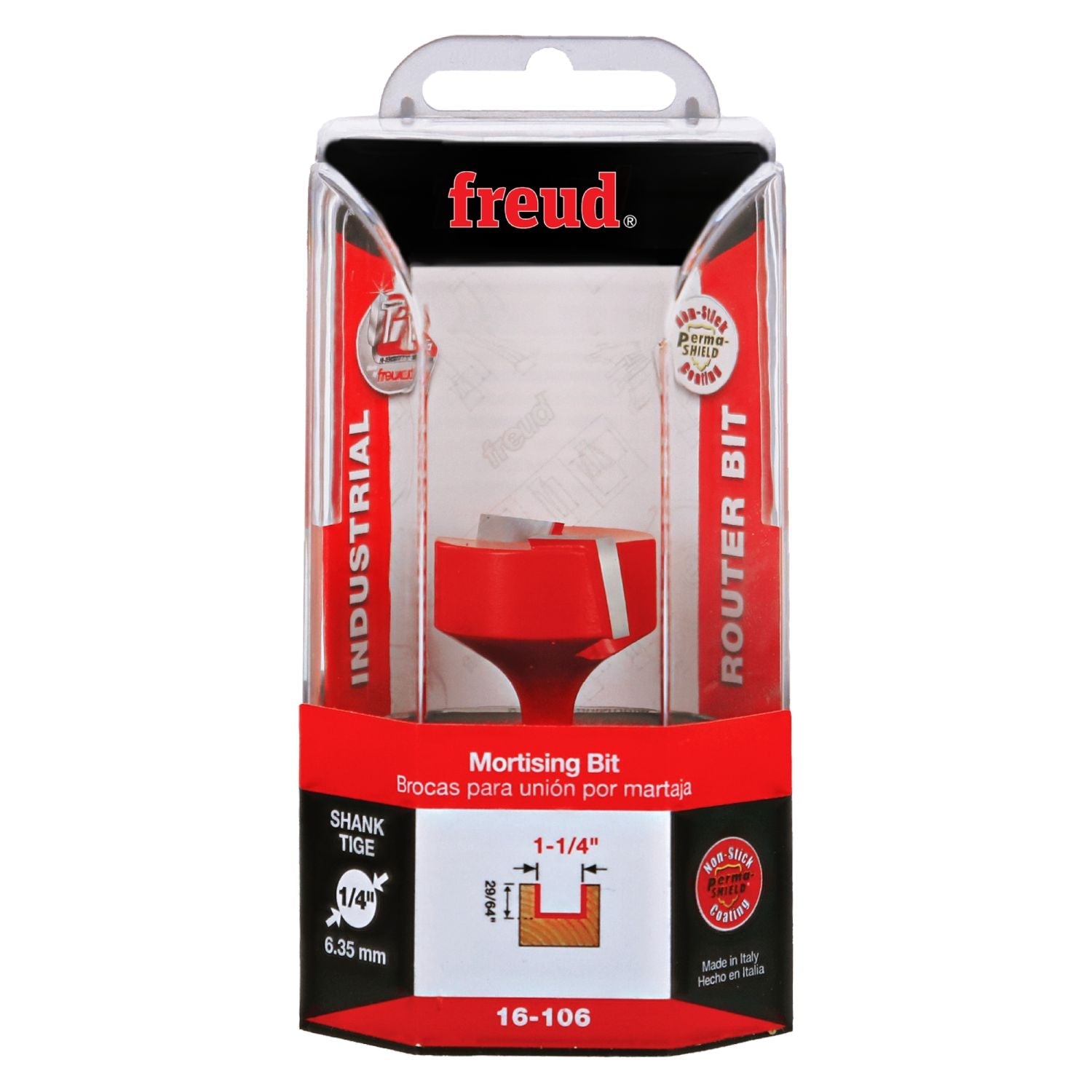

The Freud 16-106 1-1/4 Spoilboard Surfacing & Mortising Router Bit is a carbide-tipped router bit made for spoilboard flattening, mortising, dadoes, and hinge or hardware recess work. This is a router bit designed for wide, clean cuts in wood and composite sheet goods. Model Number 16-106. If you need one bit that can handle CNC spoilboard surfacing and general mortising work without constantly swapping setups, this one earns its keep.

The big selling point here is coverage. With a 1-1/4 inch cutting diameter, this bit removes material across a wider path than a standard straight bit, which helps speed up flattening passes and makes short work of hinge pockets and shallow recesses. Freud also lists deep center gullets for fast chip removal, and that matters because wide cuts can pack chips fast if the bit is not designed to clear them.

Freud positions this bit in its mortising category, but the use case is broader than the name suggests. It is built for mortising hinges and hardware, cutting grooves and dadoes, and surfacing CNC spoilboards to keep the machine bed flat and accurate. That makes it useful for cabinet shops, fixture builders, and woodworkers running CNC programs as well as guys using a hand-held or table-mounted router for install and bench work.

The carbide-tipped construction is there for edge life and clean cutting across common shop materials. Source data calls out use in composition materials, plywood, hardwood, softwood, veneered plywood, composites, and melamine. That range matters because spoilboard work and mortising are not always done in solid wood. If you are bouncing between MDF spoilboards, plywood jigs, and finished sheet goods, a bit that can handle mixed materials is the smarter buy.

Freud also notes a down shear design on most bits in this family for cleaner top surfaces. In practical terms, that helps when you are routing plywood face veneers, melamine, or any panel where top-edge tear-out ruins the part. Add the Perma-SHIELD non-stick coating and you get less drag, plus better resistance to pitch build-up and corrosion, which is a nice real-world benefit if the bit spends time cutting resinous material or sitting in a busy shop drawer.

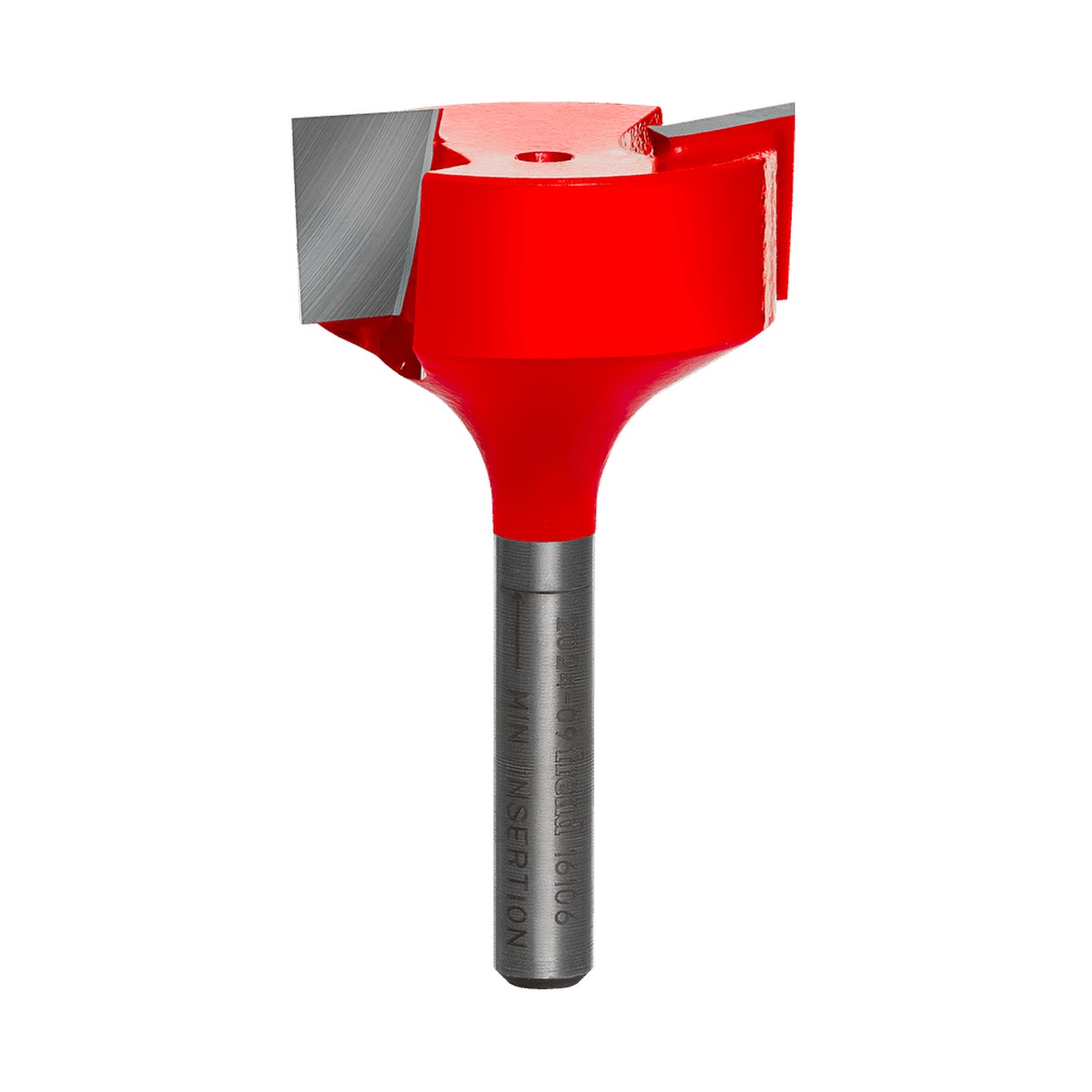

Size-wise, the bit uses a 1/4 inch shank, has a 29/64 inch carbide height, and an overall length of 2-1/8 inches. That puts it in the range for lighter routers and trim-router-compatible setups that accept 1/4 inch shank tooling, while still giving you the wider cutting head needed for surfacing and recessing tasks. Max speed is listed at 18,000 RPM, so it is built for controlled router speeds rather than all-out top-end RPM chasing.

Compatibility is one of the stronger reasons to buy this bit. Freud states it can be used on CNC routers, hand-held portable routers, and table-mounted routers. That flexibility is useful if you want the same cutter profile available for both machine work and manual routing, instead of stocking separate bits for each station.

Who should buy it? This is a good fit for woodworkers, cabinet installers, CNC users, and serious DIYers who need a wide mortising or spoilboard surfacing bit with a 1/4 inch shank. If your work includes hinge gains, hardware recesses, dadoes, spoilboard flattening, or cleaning up shallow pockets in sheet goods, the Freud 16-106 makes a lot more sense than trying to force a narrow straight bit to do wide-area work.

Freud 16-106 1-1/4 Spoilboard Surfacing & Mortising Router Bit for clean, wide routing work

This is a smart bit for guys who need one cutter that can flatten a spoilboard, cut a hinge recess, and still leave a cleaner top edge in sheet goods than a rougher general-purpose option.

• Who it's for: CNC users, cabinet shops, woodworkers, and serious DIYers doing spoilboard maintenance, mortising, dadoes, or hardware recesses.
• Why it stands out: The 1-1/4 inch diameter speeds up wide passes, the 1/4 inch shank fits common router setups, and the chip-clearing gullets plus Perma-SHIELD coating make it more than just a basic wide cutter.
• Worth knowing: This is a specialized router bit, not an all-purpose edge-profile cutter. It shines when you need flat-bottom routing and broad shallow cuts, especially in sheet goods and spoilboards.

• What is this bit mainly used for? It is designed for spoilboard surfacing, mortising hinges and hardware, and cutting grooves or dadoes.
• Can it be used in a CNC router? Yes. Freud lists it for CNC routers as well as hand-held and table-mounted portable routers.
• What shank size does it use? This bit uses a 1/4 inch shank.
• What materials can it cut? Source data lists composition materials, plywood, hardwood, softwood, composites, veneered plywood, and melamine.
• What is the maximum rated speed? The maximum speed is 18,000 RPM.
