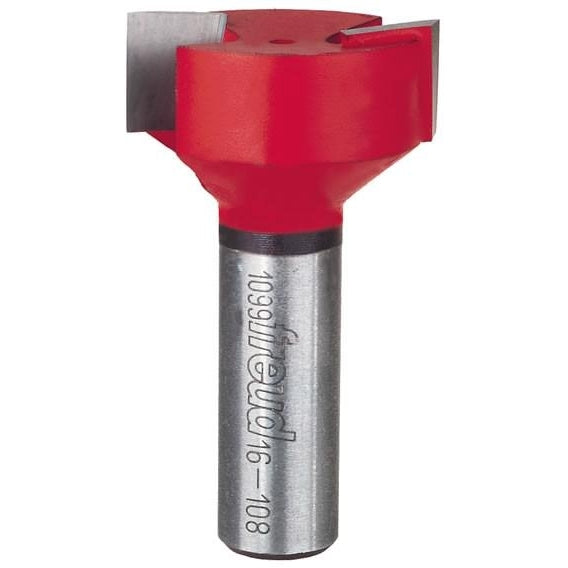

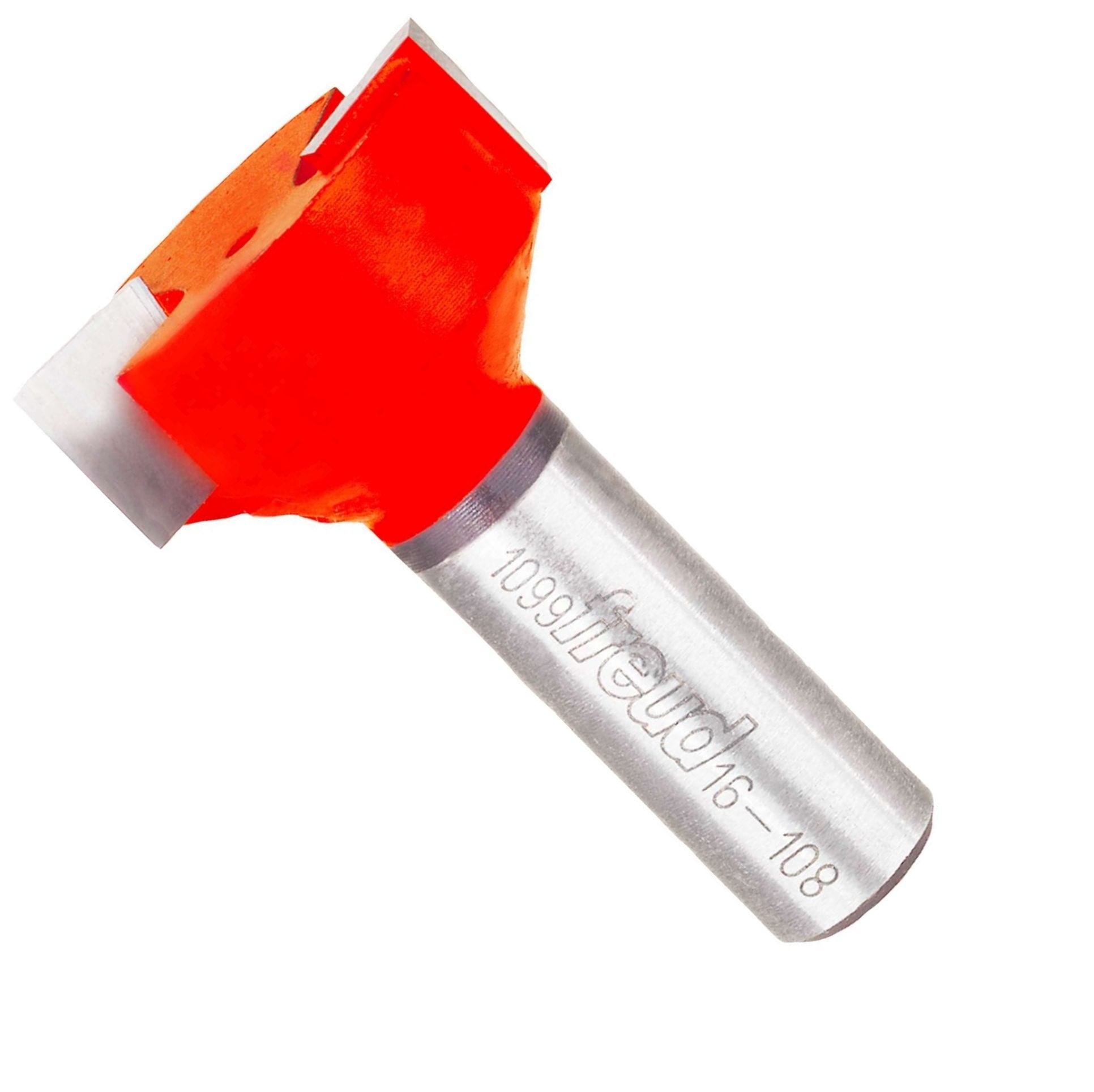

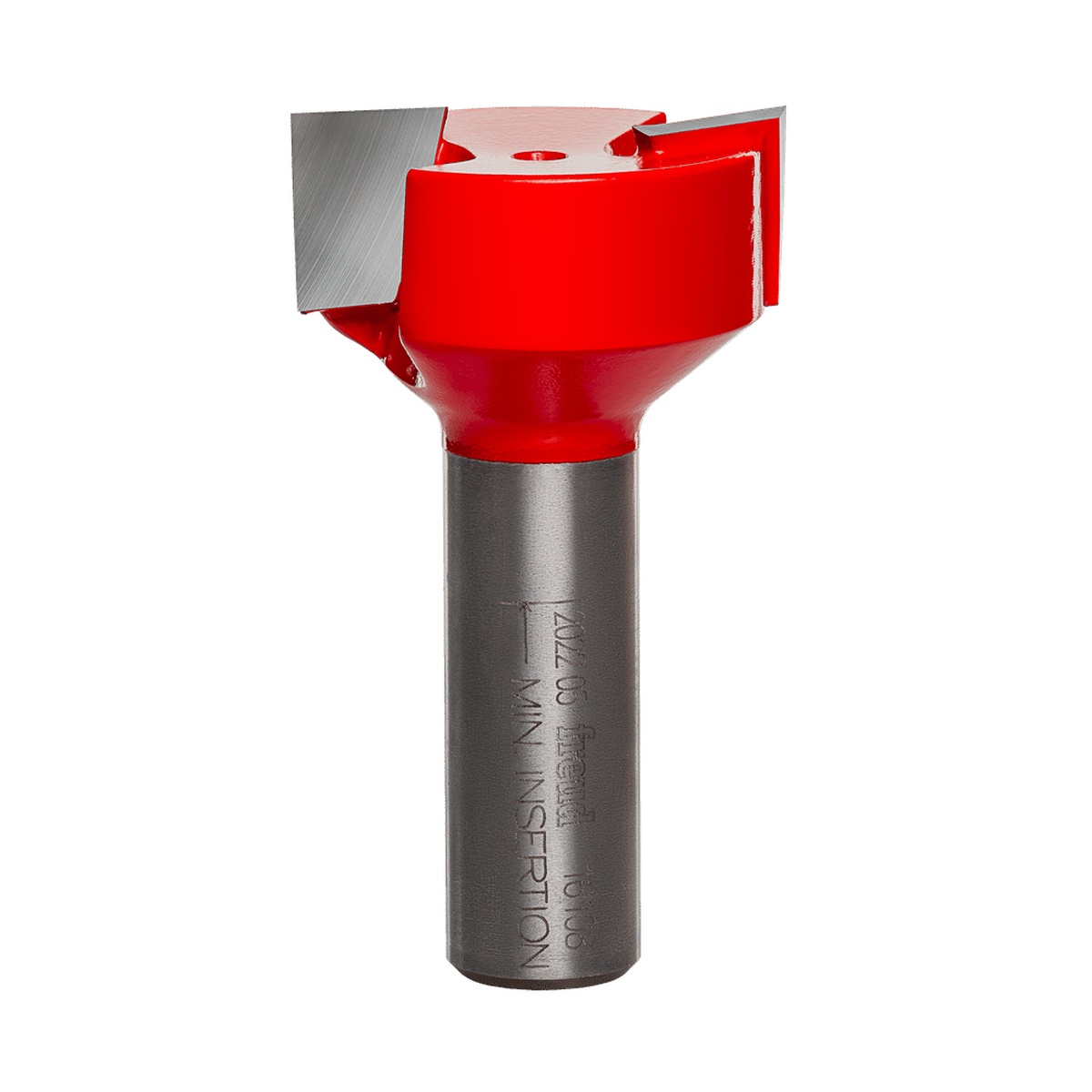

The Freud 16-108 1-1/4 in. Spoilboard Surfacing & Mortising Bit is a carbide-tipped router bit built for flattening spoilboards, cutting mortises, and routing grooves or dadoes in wood-based materials. This is a router bit designed for spoilboard surfacing and mortising work. Model Number: 16-108. If you run a CNC router or a 1/2 inch collet router and want a wide, flat-bottom cut without stepping up to a specialty cutter head, this bit is aimed right at that job.

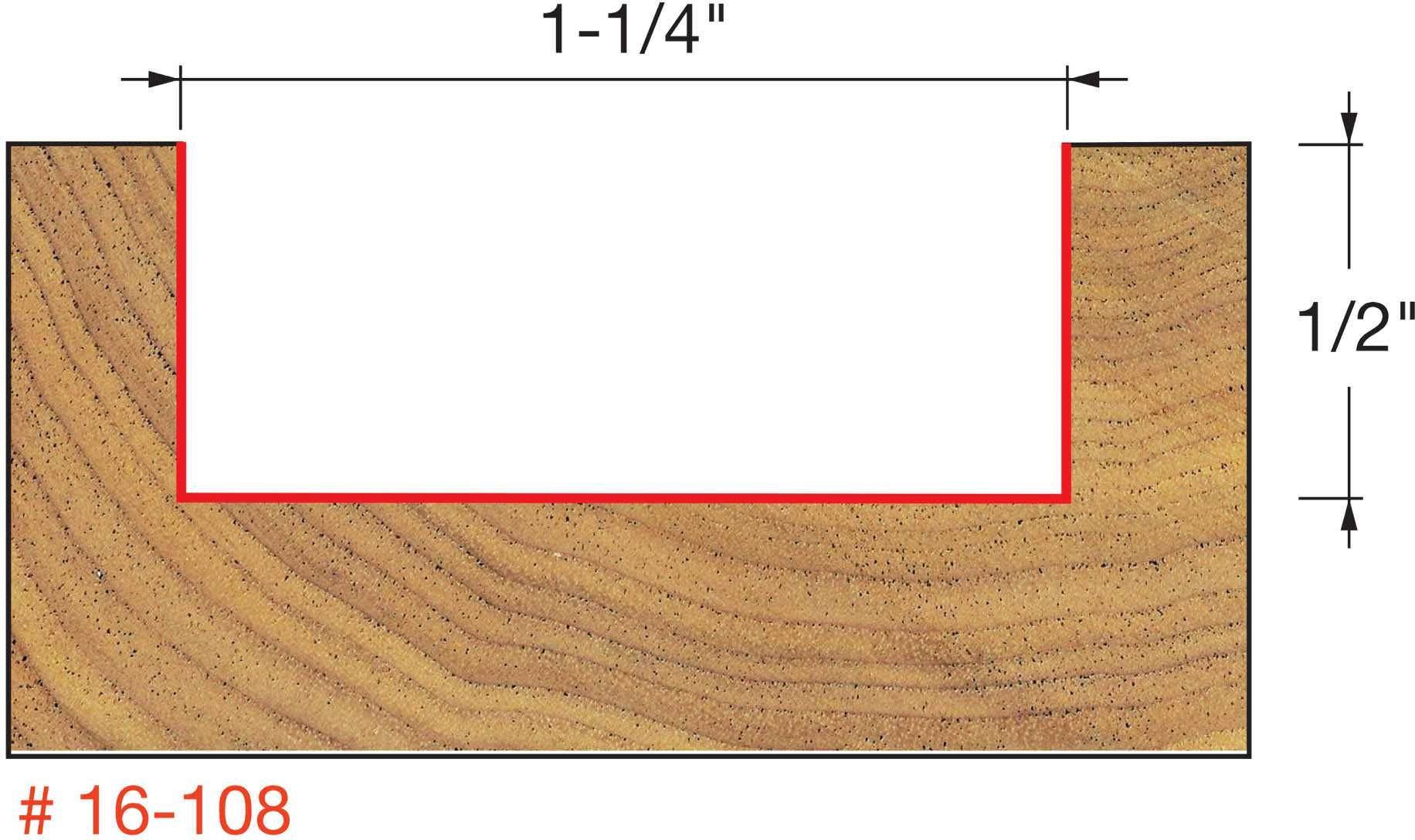

The big selling point here is coverage. With a 1-1/4 inch overall diameter and a 1/2 inch carbide height, this bit removes material over a wide path while still keeping the setup simple. That matters when you are resurfacing a CNC spoilboard, cutting hinge mortises, or opening up dadoes because wider passes mean less time spent overlapping cuts and less chance of leaving ridges behind.

Freud lists a down shear design on most bits in this line, and the benefit is straightforward: cleaner top surfaces. Instead of lifting fibers and chipping fragile faces, the cutting action helps push fibers down during the cut. That makes this spoilboard surfacing and mortising bit a strong fit for veneered plywood, melamine, composites, hardwood, and softwood where edge quality matters and cleanup time costs you money.

Deep center gullets are another practical feature that matters more than it sounds on paper. When you are making shallow but wide cuts, chip packing is what slows you down and heats the bit up. The gullets on the Freud 16-108 are built to move waste out of the cut efficiently, which helps maintain cut quality and reduces chip loading during mortising and surfacing passes.

Build-wise, this is a two-cutter carbide-tipped bit with a 1/2 inch shank, so it is meant for routers that can properly support a larger cutter. The 1/2 inch shank gives the bit a more stable footing than a smaller shank when you are swinging a 1-1/4 inch diameter cutter. That added rigidity helps with smoother passes, better control, and less chatter, especially on CNC work where consistency across the full spoilboard matters.

Freud also includes its Perma-SHIELD non-stick coating, which is there for a reason. Resin, pitch, and heat build-up are common problems when cutting plywood, softwood, and composite materials. A coated bit stays cleaner, runs with less drag, and is easier to maintain. In day-to-day use, that means less scrubbing between jobs and more consistent cutting performance over time.

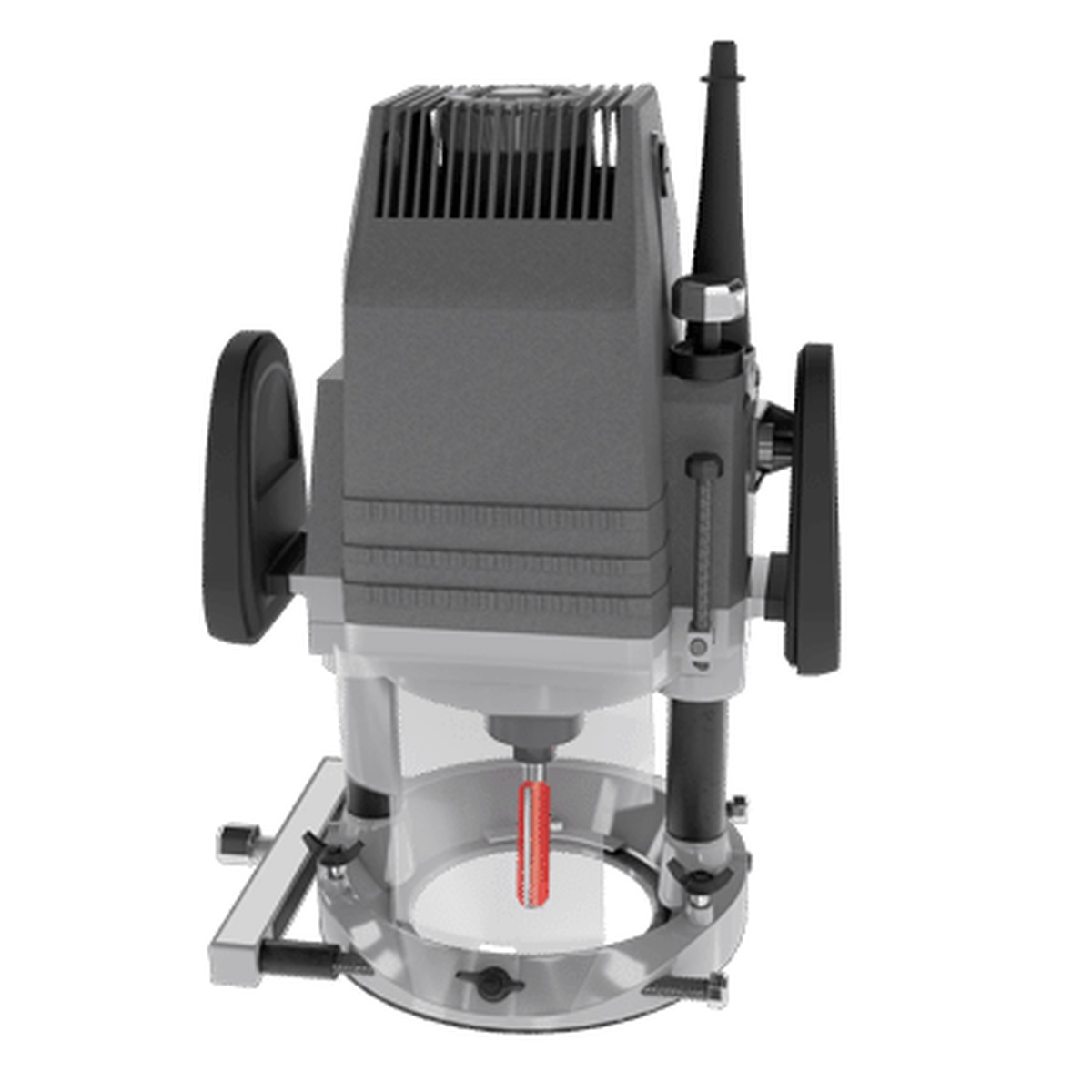

On compatibility, this bit is designed for CNC routers, hand-held routers, and table-mounted portable routers that accept a 1/2 inch shank. It is a good fit for woodworkers, cabinet installers, CNC users, and anyone doing hinge mortises or hardware recesses who wants a flat-bottom cut from a single bit instead of piecing the job together with narrower tooling.

If your work leans toward sign making, cabinet parts, jigs, fixtures, or keeping a CNC bed dead flat, this is the kind of router bit that earns its drawer space. It is not a general-purpose trim bit. It is a purpose-built cutter for users who need width, flat-bottom results, clean top edges, and stable performance in wood, plywood, and composite materials.

A smart pick when you want one bit to handle surfacing and mortising

The Freud 16-108 1-1/4 in. Spoilboard Surfacing & Mortising Bit hits a nice middle ground: wide enough to save time flattening a spoilboard, but still practical for hinge work, dadoes, and general mortising.

• Who it's for: CNC users, cabinet shops, woodworkers, and serious DIY users running routers with a 1/2 inch collet.
• Why it stands out: The wide 1-1/4 inch cutter, 1/2 inch shank, deep gullets, and clean-cutting design make it more useful than a basic narrow mortising bit.
• Worth knowing: This is a router bit for bigger-router territory. Make sure your router or spindle is set up for a 1/2 inch shank and keep the speed within the 18,000 RPM limit.

• What kind of router does this bit fit? It fits routers and CNC spindles that accept a 1/2 inch shank bit.
• Can this bit be used for spoilboard surfacing? Yes. Freud specifically lists it as ideal for spoilboard surfacing in CNC applications.
• What materials can it cut? It is intended for plywood, veneered plywood, hardwood, softwood, composites, and melamine.
• What is the maximum operating speed? The listed maximum speed is 18,000 RPM.
