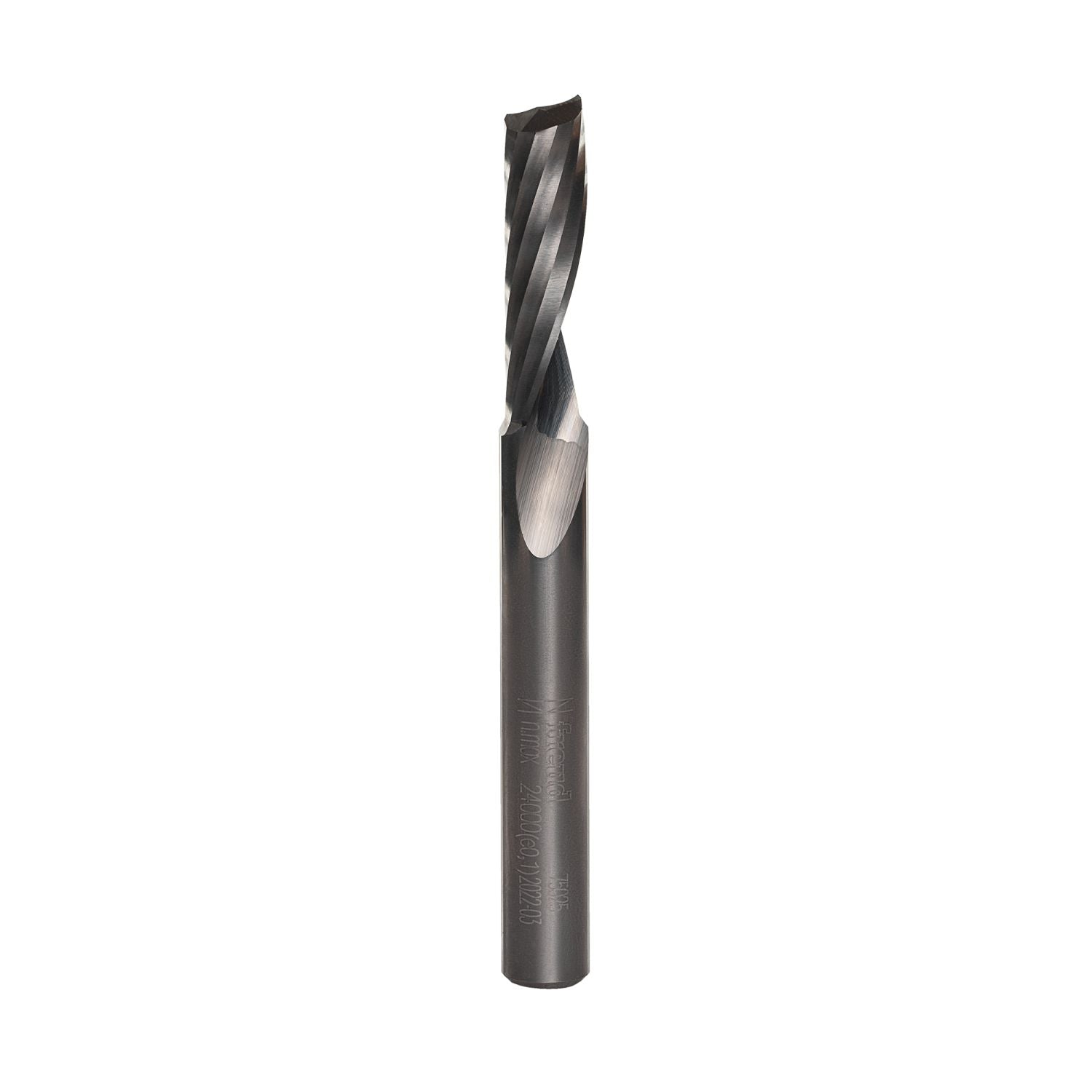

The Freud 75-025 1/4-Inch O-Flute Up Spiral Router Bit is a solid carbide router bit built for cutting plastics and solid surface material with a cleaner finish and better chip evacuation. This is a router bit designed for smooth cutting in plastic, solid surface, and fine wood applications. Model Number: 75-025. If you are working with acrylic, ABS, UHMW, nylon, polycarbonate, or similar materials, this bit is built to help you cut without loading up the groove or overheating the edge.

What matters here is the combination of O-flute geometry and an up-shear spiral. In practical terms, that means the bit is made to cut cooler in plastic so the material is less likely to melt or smear, while also pulling chips up and out of the cut fast. That chip clearance is a big deal in CNC routing and handheld trimming because packed chips create heat, and heat is what ruins edge quality on plastic jobs.

The single-cutter design is paired with a 1/4 inch cutting diameter, 7/8 inch carbide height, 2-1/2 inch overall length, and a 1/4 inch shank. Those dimensions put it in the sweet spot for detail work, trimming, slotting, and controlled material removal where you want precision more than brute-force stock removal. With a maximum speed of 24,000 RPM, it is suited for modern router setups that need a compact bit capable of a clean finish at high spindle speeds.

Freud lists this bit as Premier Solid Carbide, and that matters because plastics and solid surface materials are not forgiving when a bit starts to dull or run hot. A quality carbide body helps the edge stay consistent, especially when you are making repeated passes in sheet goods or fabricated countertop material. The up-shear design also makes this bit a strong fit when the bottom-side finish is the priority.

On the machine side, this bit is intended for use in CNC routers, hand-held routers, and table-mounted routers. That gives it good flexibility if your work moves between shop production and on-site fitting. The 1/4 inch shank also makes setup straightforward in routers that accept standard 1/4 inch tooling, so it is easy to slot into common routing workflows without chasing specialty holders.

Freud also notes this is a good choice for fine wood cuts, but the main reason to buy it is plastic and solid surface performance. If your work involves acrylic panels, fabricated tops, plastic components, or clean edge routing in synthetic material, this bit makes more sense than a general-purpose straight bit. The geometry is specific to the material, and that usually shows up in better finish quality and less cleanup.

Who is this for? Cabinet shops, sign makers, countertop fabricators, CNC users, and serious DIYers working with plastic sheet goods will get the most from it. If you need a small-diameter spiral router bit for controlled cuts, cooler cutting, and fast waste removal, this one earns its place. If you mainly cut thick hardwood all day, there are better choices for that job. But for plastic routing and solid surface work, this is the right kind of bit.

Freud 75-025 1/4-Inch O-Flute Up Spiral Router Bit for Plastic Work Done Right

If you cut plastics or solid surface with any regularity, this is the kind of specialty bit that saves rework and leaves a cleaner edge from the start.

• Who it's for: CNC users, fabricators, sign makers, cabinet shops, and DIY users who need cleaner routing in plastic and solid surface materials.
• Why it stands out: The O-flute geometry cuts cooler, the up-shear clears chips fast, and the 1/4 inch size is easy to fit into common router setups.
• Worth knowing: This is not a do-everything router bit. It is a more specialized cutter, and that is exactly why it works so well in plastics where general-purpose bits can leave a mess.

• What materials is this bit designed to cut? It is designed for solid surface and plastics such as ABS, UHMW, acrylic, nylon, and polycarbonate. Freud also notes it can be used for fine wood cuts.
• What type of router can use this bit? It can be used in CNC routers, hand-held routers, and table-mounted routers that accept a 1/4 inch shank bit.
• Why use an O-flute router bit for plastic? The O-flute design cuts cooler to help avoid melting, while the up-shear spiral clears chips quickly for a cleaner cut.
• What is the maximum speed rating? The listed maximum speed is 24,000 RPM.
