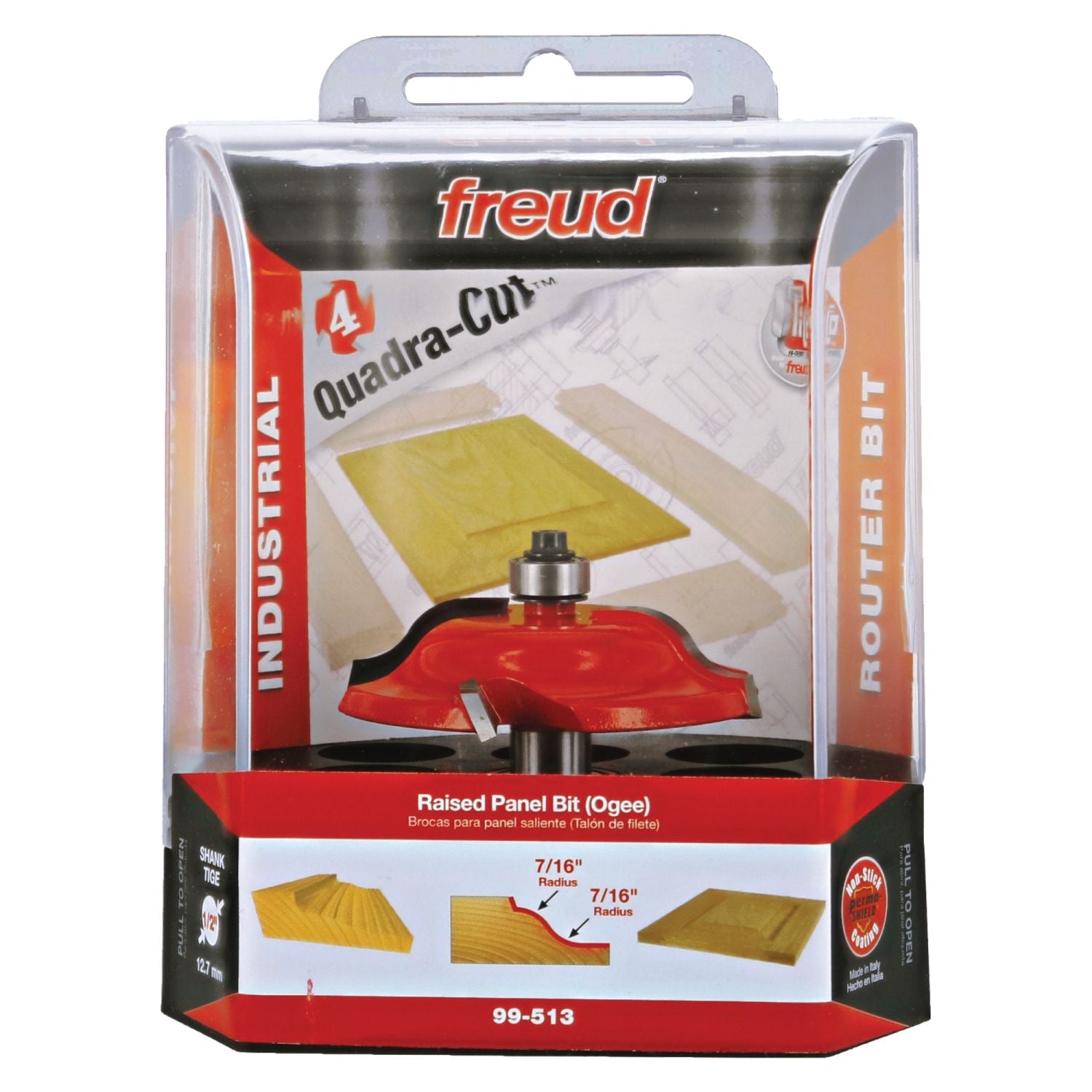

Freud 2-3/4-in. Raised Panel Router Bit (Quadra-Cut) (99-513)
Freud 2-3/4-in. Raised Panel Router Bit (Quadra-Cut) (99-513)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Freud 99-513 Quadra-Cut Raised Panel Bit is a carbide-tipped router bit made for producing raised panels on cabinet doors, drawer fronts, paneling, plaques, and other decorative woodworking parts. This is a raised panel router bit designed for shaping panel stock in a table-mounted router with a fence. Model Number: 99-513. If you build doors or want a clean ogee-style panel profile without spending extra time fixing torn grain, this bit is built for that job.
What matters here is the cutting geometry. Freud uses its Quadra-Cut design with 4 cutters instead of the more common 2-cutter layout. Two cutters shear downward to help keep the top edge cleaner, while two shear upward to smooth the panel face. In practical terms, that means cleaner edge quality on cross-grain work and less sanding after the cut. For woodworkers making multiple doors or drawer fronts, that time savings adds up fast.
The size is right in the sweet spot for many raised panel jobs. This bit has a 2-3/4 inch cutting diameter, 5/8 inch carbide height, 2-1/2 inch overall length, 7/16 inch large radius, and a 1/2 inch shank. Freud lists it for 3/4 inch stock with the 5/8 inch carbide height. That makes it a solid match for common cabinet door work where you want a strong, visible profile but do not need the extra diameter of a larger panel raiser.
Build quality is another big reason people buy Freud router bits. The 99-513 uses carbide-tipped cutting edges and Freud's Perma-SHIELD non-stick coating to reduce heat, corrosion, and pitch buildup. That matters when you are cutting hardwood or veneered plywood and want the bit to stay consistent over time. Less drag also helps the cut feel more controlled, especially when you are making multiple passes to bring the profile in gradually.
This bit is meant for real furniture and cabinet materials, not just one narrow use. Freud states that it can rout hardwood, softwood, composite panels, and plywood. That gives it good range for shop work, from painted cabinet doors in composite stock to stained hardwood doors where edge quality matters more. Because raised panel bits remove a lot of material, the table-mounted router requirement is important here. This is not the kind of bit you want to treat like a small edge-profile bit in a handheld setup.
Compatibility is straightforward. The Freud 99-513 Quadra-Cut Raised Panel Bit fits routers that accept a 1/2 inch shank, and Freud specifically calls for use in a table-mounted router with a fence. If your work leans toward cabinetmaking, built-ins, furniture panels, or decorative wood panels, this is a purpose-built cutter that earns its keep. It is best for woodworkers who care about finish quality and want fewer passes of cleanup after routing, not just the lowest-cost bit on the shelf.
Cleaner Panels with Less Rework
The whole point of a raised panel bit like this is getting a clean profile without fighting splintered edges and washboard-looking cuts. Freud's four-edge Quadra-Cut pattern is built to leave a smoother surface right off the router table.
- 4-cutter Quadra-Cut design helps reduce tear-out on panel edges and faces
- Rated for a maximum speed of 12,000 RPM
- Use on hardwood, softwood, plywood, and composite panels
What's in the Box
- (1) Freud 99-513 Quadra-Cut Raised Panel Bit
Key Specifications
| Tool Type | Raised Panel Router Bit |
|---|---|
| Cutting Diameter | 2-3/4 in |
| Carbide Height | 5/8 in |
| Overall Length | 2-1/2 in |
| Large Radius | 7/16 in |
| Shank Diameter | 1/2 in |
| Number of Cutters | 4 |
| Max Speed | 12,000 RPM |
| Recommended Stock | 3/4 in |
| Bit Material | Carbide Tipped |
| Made In | Italy |
| Weight | 12 oz |
Compatibility
Built For
Pro Tip
Do not try to take the full profile in one shot. On a raised panel bit this size, make multiple passes and raise the bit a little each time. You will get a cleaner edge, put less strain on the router, and make the most of the Quadra-Cut finish.
Warranty & Support
Tool Nut's Take
Freud 99-513 Quadra-Cut Raised Panel Bit for Clean Cabinet Work
This is a smart buy for anyone building cabinet doors and wants a cleaner profile straight off the router table instead of sanding away mistakes.
- Who it's for: Cabinetmakers, furniture builders, and serious hobby woodworkers making raised panels in 3/4 inch stock.
- Why it stands out: The 4-cutter Quadra-Cut layout is the real story here. It is designed to leave a smoother finish than basic 2-cutter panel raisers, especially on tricky grain.
- Worth knowing: This is a table-router bit, not a casual handheld-router profile bit. Run it in a proper table setup with a fence, keep the speed in range, and take multiple passes.
Common Questions
- What kind of tool is this? This is a raised panel router bit designed for shaping raised panels for doors, drawer fronts, paneling, and similar woodworking parts.
- What router does it fit? It uses a 1/2 inch shank and is intended for use in a table-mounted router with a fence.
- What stock thickness is it meant for? Freud lists this 99-513 version with a 5/8 inch carbide height for use with 3/4 inch stock.
- What materials can it cut? Freud states it is suitable for hardwood, softwood, plywood, and composite panels.
