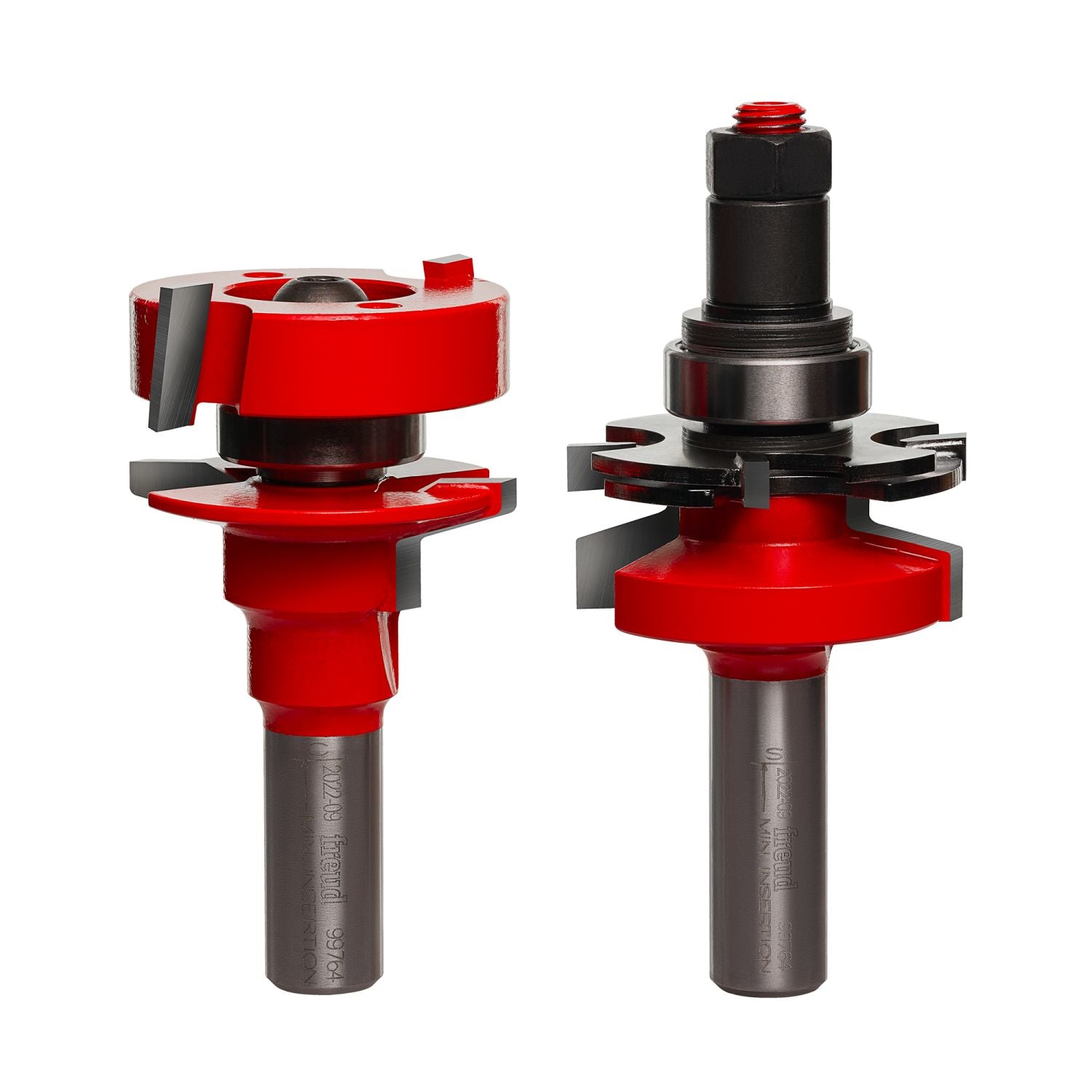

The Freud 99-764 Premier Adjustable Rail & Stile Bit is a table-mounted router bit system for making rail and stile doors with a bevel profile. This is a router bit designed for building frame-and-panel doors and strong long-tenon joinery. Model Number 99-764. With a 1-11/16 inch overall diameter, 1/2 inch shank, and 3-3/4 inch overall length, it is aimed at woodworkers, cabinet builders, and serious DIY users who want one setup that can cover a wide range of door thicknesses.

What makes this bit matter is adjustability. The Freud 99-764 Premier Adjustable Rail & Stile Bit works on material from 5/8 inch to 1-1/4 inch thick, which gives you a lot more flexibility than a fixed-profile door bit. If you build cabinet doors one week and thicker furniture or architectural doors the next, that range saves setup changes and keeps you from buying separate cutters for every thickness.

Freud also includes adjustable shims so you can tune the panel groove from 7/32 inch up to 3/8 inch. That is a practical feature, not fluff. It means you can fit thinner plywood panels or thicker solid wood raised panels without forcing a compromise. When you are trying to dial in door fit and panel float, that adjustability is what keeps the job moving instead of sending you back to the bench to rework parts.

The extended tenon capability is another big reason people buy this set. Freud's patented design lets you produce extra-strong long tenon joints, which matters when you are building larger doors or anything expected to hold up over time. Stronger joinery means less chance of the frame working loose later, especially on heavier doors or in environments with seasonal wood movement.

Cut quality is where the bit earns its keep. Freud calls out a unique cutter geometry to reduce tearout, and that is exactly what you want in a rail and stile application where profile crispness shows. A chipped edge or fuzzy shoulder stands out immediately on a finished door. The TiCo Hi-Density Carbide cutting edges are there to keep the profile sharp longer, while the Perma-SHIELD coating helps reduce heat and pitch buildup that can drag down cut quality over a long run.

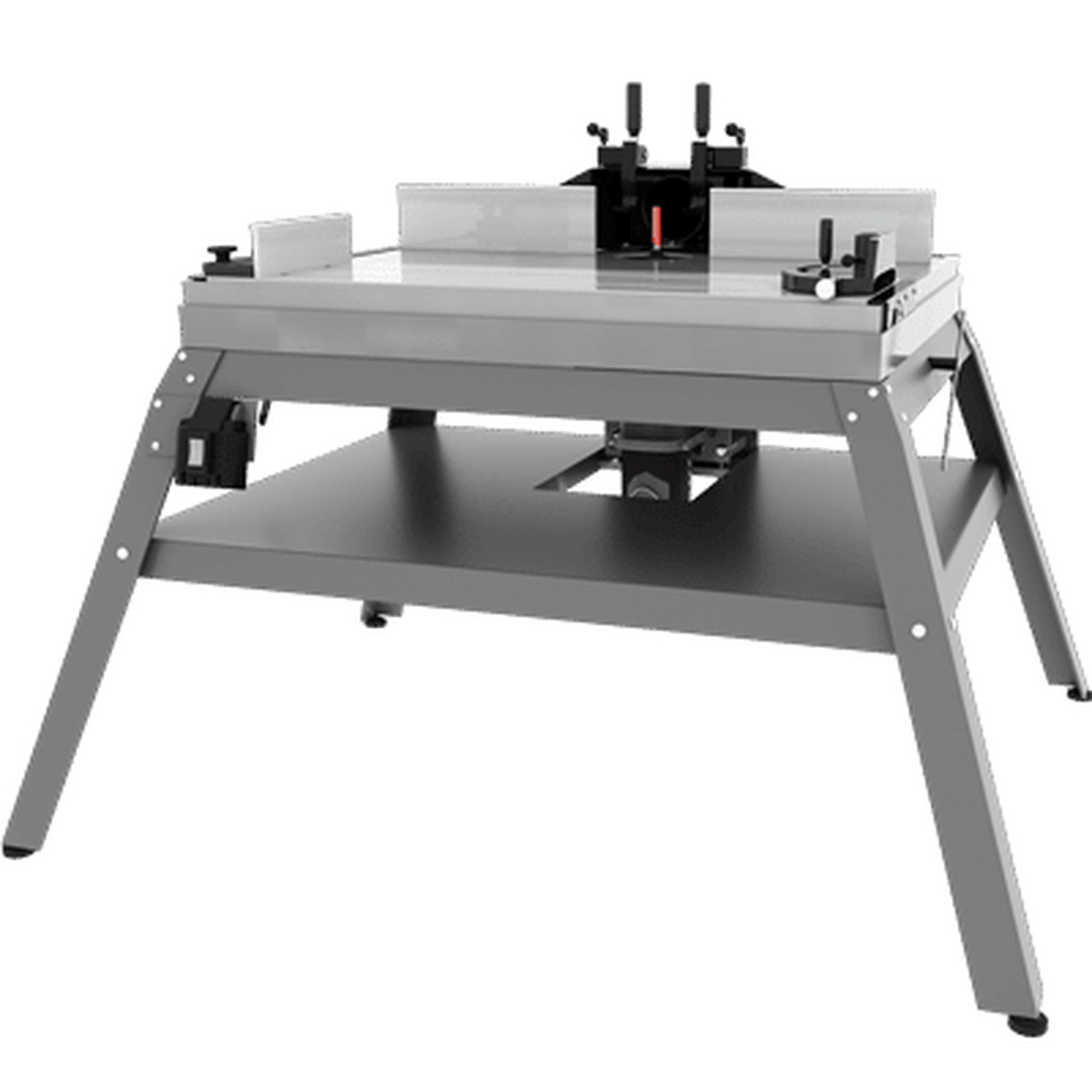

This bit is intended for use in table-mounted routers, not freehand routing. That is the right call for a cutter of this size and purpose. In a router table, you get the control needed to feed rails and stiles consistently, keep the profile square, and manage repeatability across a batch of parts. The 16,000 max RPM rating gives you a clear operating limit, and the 1/2 inch shank is what you want here for better rigidity with a larger profile bit.

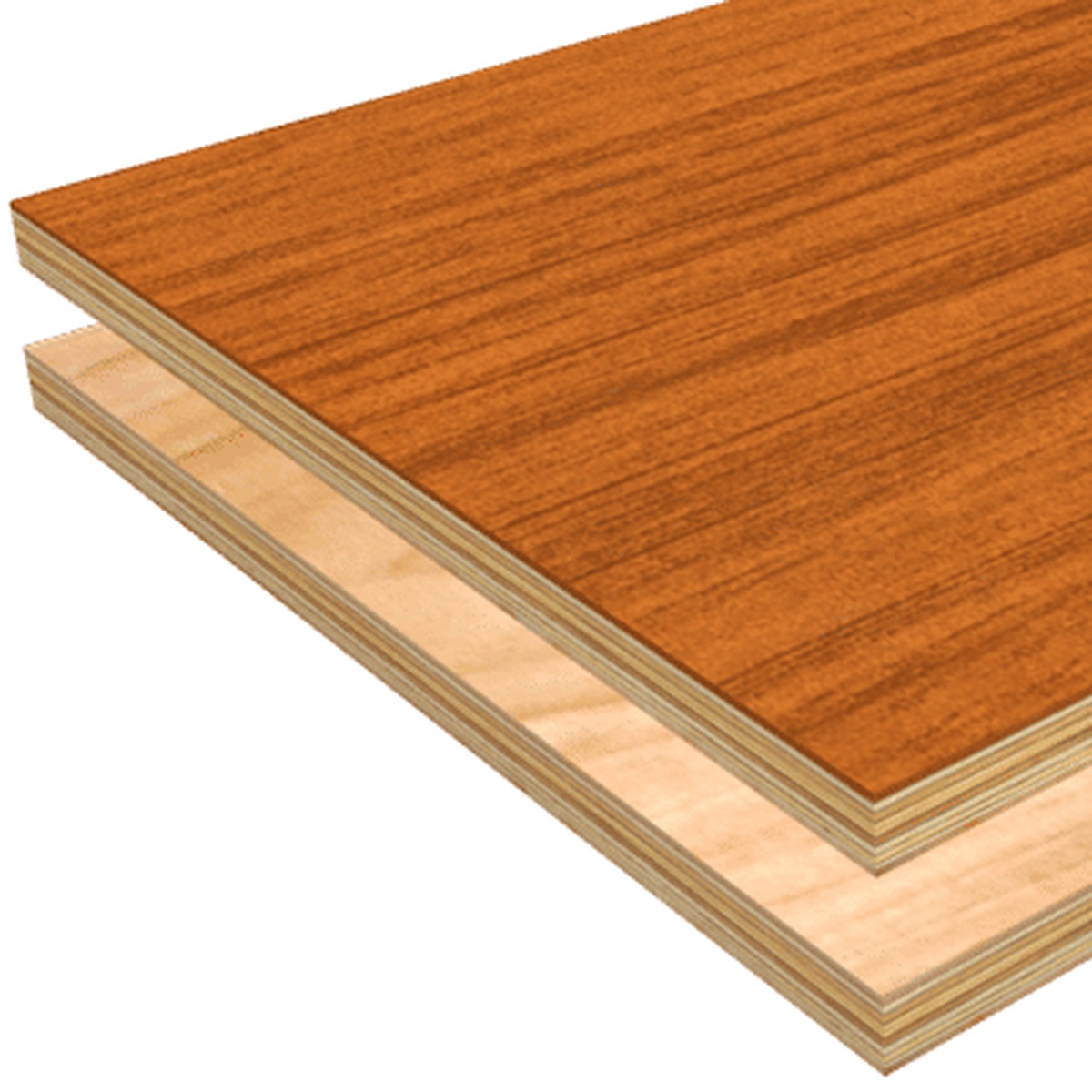

Material coverage is broad enough for real shop use. Freud lists hardwood, softwood, and veneered plywood as suitable materials, so this is not a niche cutter limited to one type of stock. Whether you are building painted cabinet doors from stable sheet goods or stained hardwood doors where edge quality matters more, this bit is set up for both.

Who should buy it? If you make doors often enough to care about fit, finish, and joint strength, this is the kind of router bit system worth stepping up to. It is especially well suited for cabinet shops, furniture builders, remodelers doing custom millwork, and home shop woodworkers who want one adjustable rail and stile cutter that covers common door work without cutting corners on strength or finish.

Freud 99-764 Premier Adjustable Rail & Stile Bit is the smart buy for door builders who want one setup that actually covers real shop work

This one earns its spot by combining broad thickness adjustability, strong long-tenon capability, and the kind of clean-cut performance that matters when the profile is front and center.

• Who it's for: Woodworkers, cabinet makers, and remodelers building frame-and-panel doors on a router table.
• Why it stands out: The adjustable groove setup and extended tenon feature make it more versatile and more serious than a basic fixed rail and stile set.
• Worth knowing: This is a table-router bit system with a 1/2 inch shank and 16,000 RPM max rating, so it is meant for a proper router table setup, not casual freehand use.

• What stock thickness can this bit handle? It is designed for material from 5/8 inch to 1-1/4 inch thick.
• Can the panel groove be adjusted? Yes. With the included shims, the groove can be adjusted from 7/32 inch to 3/8 inch.
• What type of router should be used with this bit? Freud specifies use in a table-mounted router, and the bit uses a 1/2 inch shank.
• What materials is it intended to cut? It is suited for hardwood, softwood, and veneered plywood.
• Is there an option for glass or screen door work? Yes. An optional add-on cutter is available for glass and screen door construction.
