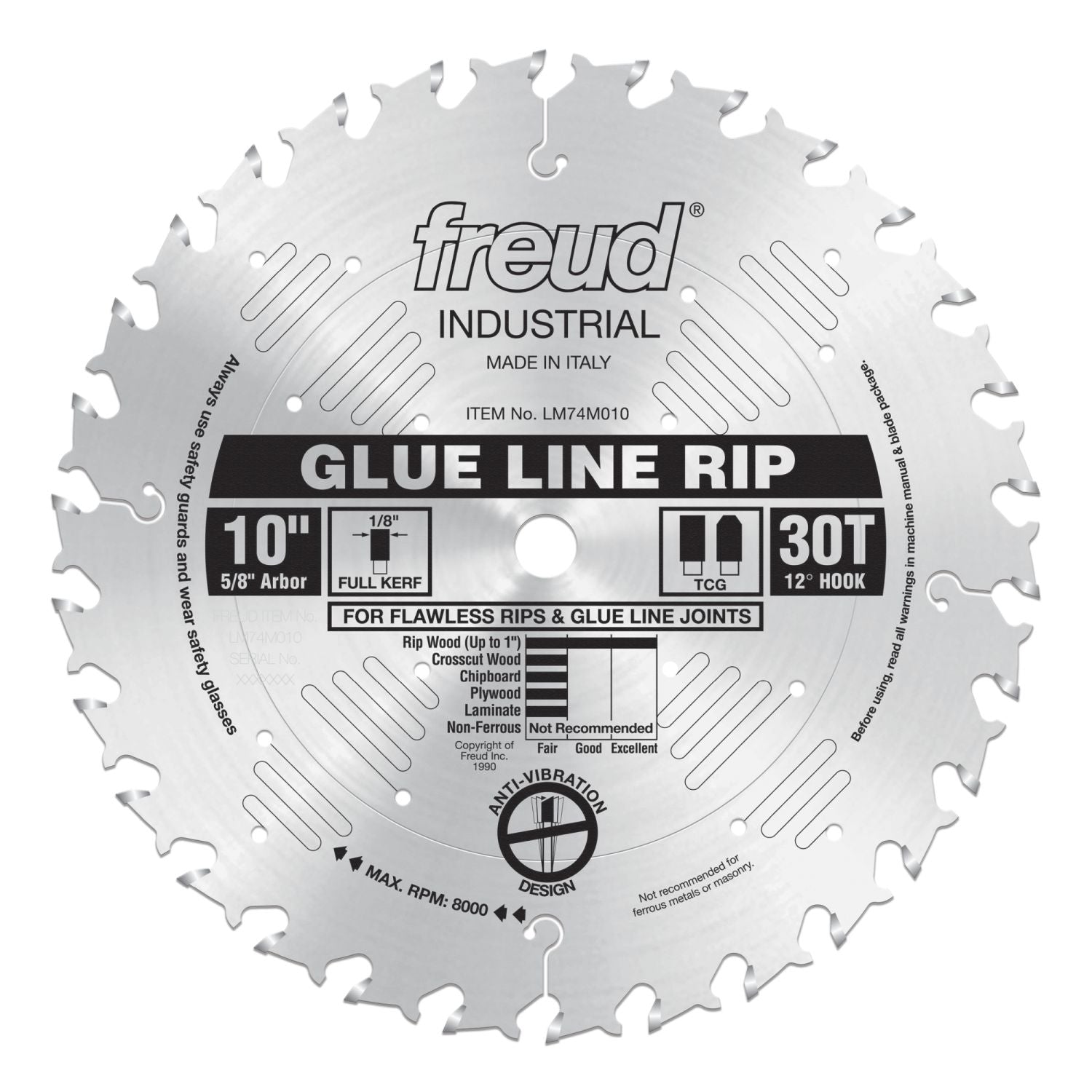

Freud LM74M010 10 in. Glue Line Ripping Blade
Freud LM74M010 10 in. Glue Line Ripping Blade
Out of Stock - Available to Order - Usually ships in 5-7 days
Product Details
Product Details
Key Features
Overview
The Freud LM74M010 10 in. Glue Line Ripping Blade is a 10-inch glue line ripping blade built for woodworkers who want rip cuts clean enough for glue-up and finish work. This is a ripping saw blade designed for heavy-duty wood ripping and glue-ready edge preparation. Model number LM74M010 uses a 5/8 inch arbor, a 30-tooth layout, and a triple chip grind to produce smooth, straight cuts in wood stock from 1/8 inch to 1 inch thick.
What makes this blade different from a general-purpose table saw blade is the cut quality it is chasing. Freud built it specifically to reduce the cleanup work after the rip. The triple chip grind tooth pattern is there for a reason: it helps leave a more refined surface, which matters when you are preparing parts for edge gluing, panel work, cabinet parts, or finish-grade ripping where a rough sawn edge just slows the job down.
The body of the blade is set up for stability. A .118 inch kerf paired with a .098 inch plate gives the blade a heavy-duty feel in the cut, which helps it stay flat and resist deflection. On the saw, that translates into more confidence when feeding hardwood or long stock through a rip fence. You get less wandering, better edge consistency, and a cut that is easier to trust when the next step is assembly instead of more machining.
Freud also adds laser-cut anti-vibration slots to cut down on the chatter and sideways movement you get with lighter or less stable blades. That matters for both finish quality and blade life. When vibration is reduced, the cut edge stays cleaner and the blade is not getting beat up the same way over long runs. The Silver I.C.E. coating is another practical feature. It helps resist pitch buildup and corrosion, which makes cleanup easier and helps the blade stay working like it should between sharpenings.
In real shop use, this blade is aimed at rip work in wood rather than mixed-material cutting. It is not recommended for non-ferrous metal, and it is best used within its stated working range of 1/8 inch to 1 inch material thickness. Maximum rated speed is 8,000 RPM, so it fits well into properly matched table saw setups that can take a 10 inch blade with a 5/8 inch arbor.
If you are building furniture, cabinetry, panels, face frames, or doing any glue line ripping where the edge quality affects the next step, this blade makes sense. It is especially good for woodworkers who care about reducing secondary prep work. If you just need one blade to do everything, this is more specialized than that. If your goal is fast, clean ripping with a finish-ready edge, this is exactly the kind of blade you buy for that job.
Cleaner Rips With Less Follow-Up Work
This blade is built for the kind of ripping where the edge quality matters after the cut, not just during it. For glue-ups and finish work, that can save real time at the bench.
- Triple chip grind tooth pattern for smoother, truer rip cuts
- Ideal working range is 1/8 inch to 1 inch thick stock
- Designed for wood cutting, including hardwood, softwood, plywood, laminate, and OSB applications
Stable Blade Body For Finish-Grade Results
The heavy plate and full kerf design help this ripping blade stay planted in the cut. That is a big deal when you are trying to hold a straight line through long boards or dense material.
- .118 inch kerf and .098 inch plate for a stable, flat cutting body
- Laser-cut anti-vibration slots help reduce chatter and sideways movement
- No stabilizers needed according to the product design intent

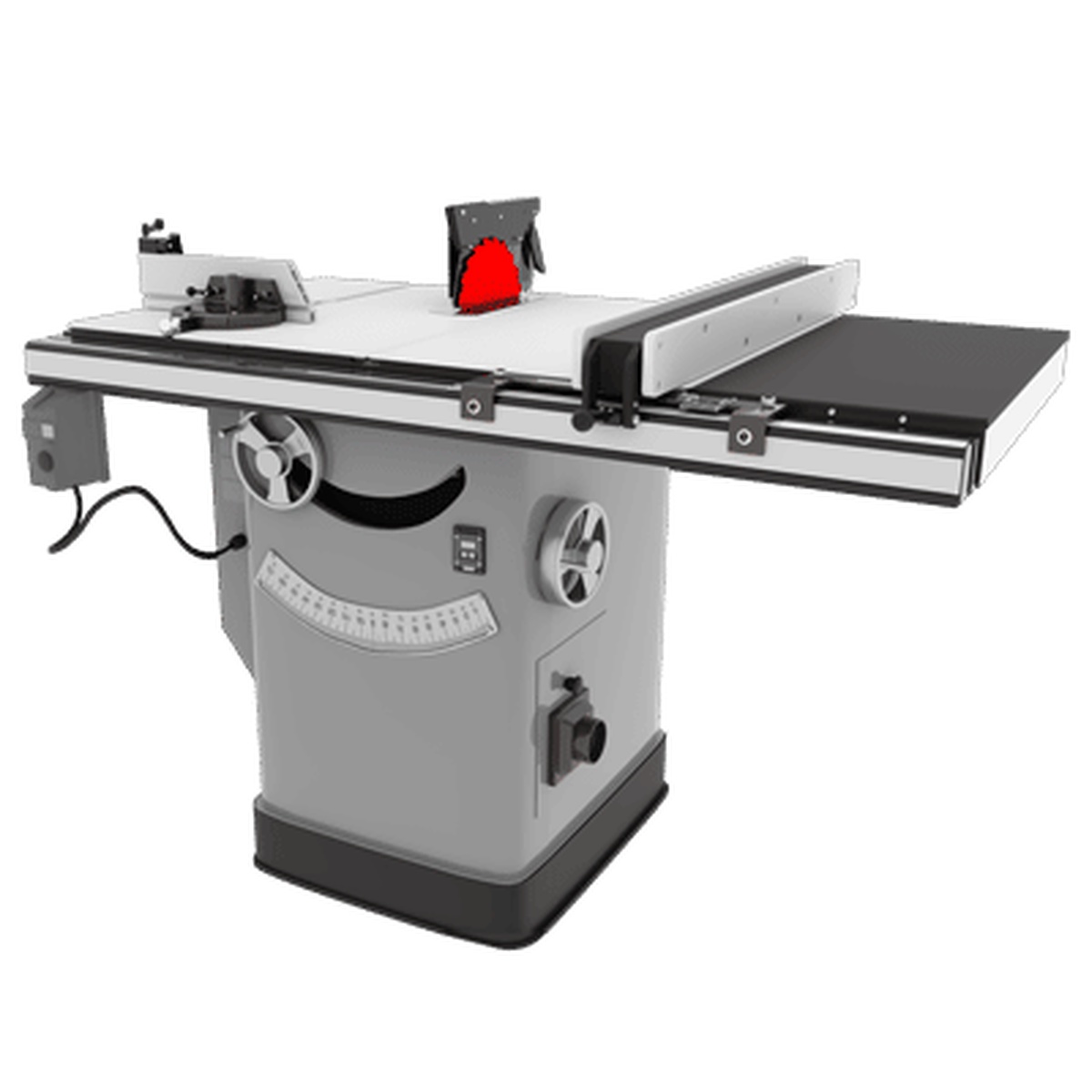

Built For Proper Table Saw Setup
Match this blade to the right saw and material, and it does exactly what it is supposed to do: make clean ripping cuts in wood at production-friendly speed without beating up the edge.
- 10 inch blade diameter with 5/8 inch arbor fits common table saw configurations
- Maximum speed rating of 8,000 RPM
- Not recommended for non-ferrous metal cutting
What's in the Box
- (1) Freud LM74M010 10 in. Glue Line Ripping Blade
Key Specifications
| Diameter | 10 in. |
|---|---|
| Arbor Size | 5/8 in. |
| Tooth Count | 30 |
| Tooth Grind | Triple Chip Grind (TCG) |
| Kerf | 0.118 in. |
| Plate Thickness | 0.098 in. |
| Hook Angle | 12° |
| Maximum Speed | 8,000 RPM |
| Blade Material | Carbide |
| Material Cut | Wood |
| Recommended Stock Thickness | 1/8 in. to 1 in. |
| Made In | Italy |
Compatibility
Built For
Pro Tip
If you are chasing true glue-line results, keep your stock in the blade's 1/8 inch to 1 inch working range and make sure your fence is dialed in dead parallel. This blade is built to leave a clean edge, but a saw that is out of tune will still show up in the cut.
Warranty & Support
Tool Nut's Take
Freud LM74M010 10 in. Glue Line Ripping Blade Means Business
This is the kind of ripping blade you buy when you are tired of making a cut and then spending extra time fixing the edge.
- Who it's for: Woodworkers, cabinet guys, and shop users doing rip cuts that need to be clean enough for glue-ups or finish-grade parts.
- Why it stands out: The triple chip grind, heavy plate, full kerf body, and anti-vibration slots are all aimed at one thing: stable ripping with a noticeably cleaner edge.
- Worth knowing: This is a specialized wood ripping blade, not an all-around every-material option. Use it where clean rip quality matters, and it earns its spot fast.
Common Questions
- What kind of cuts is this blade designed for? It is designed for glue line ripping in wood, where you want a smooth, true edge for gluing and finish work.
- What stock thickness is this blade best for? Freud lists the ideal working range as 1/8 inch to 1 inch thick.
- What arbor size does it use? This blade uses a 5/8 inch arbor.
- Can it be used on non-ferrous metal? No. The product data specifically says non-ferrous cutting is not recommended.
