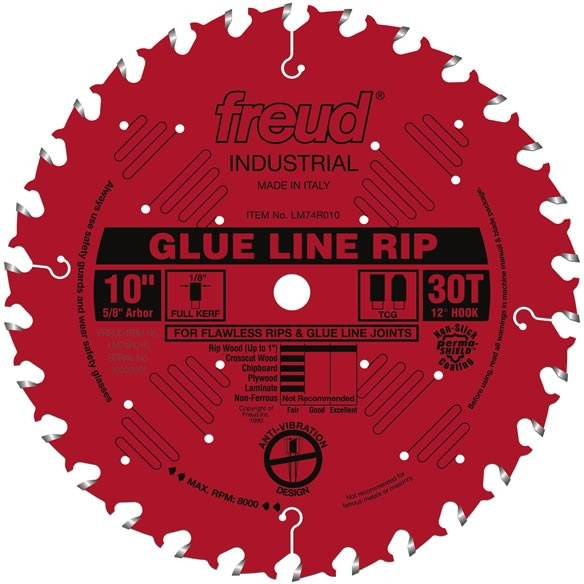

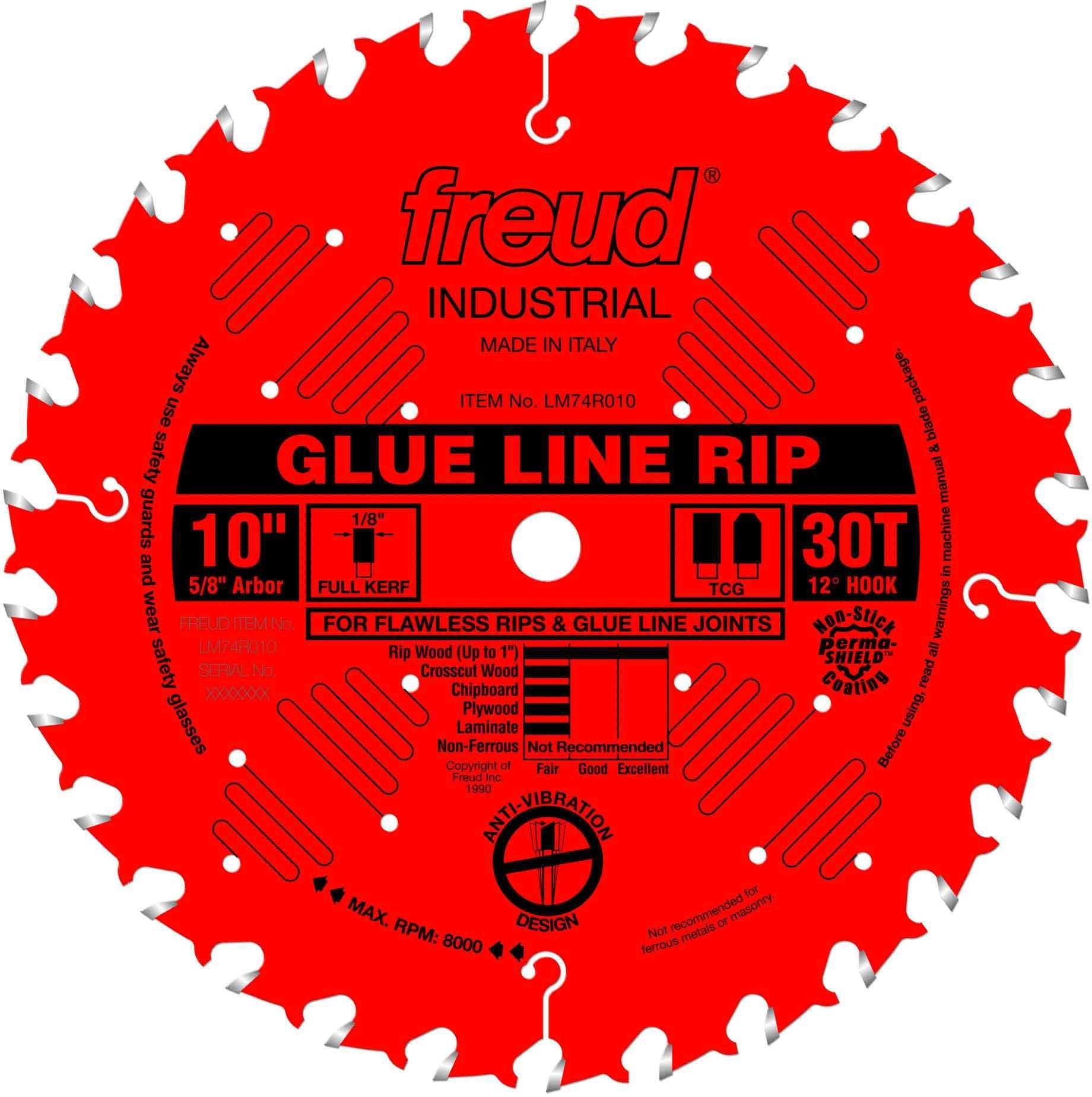

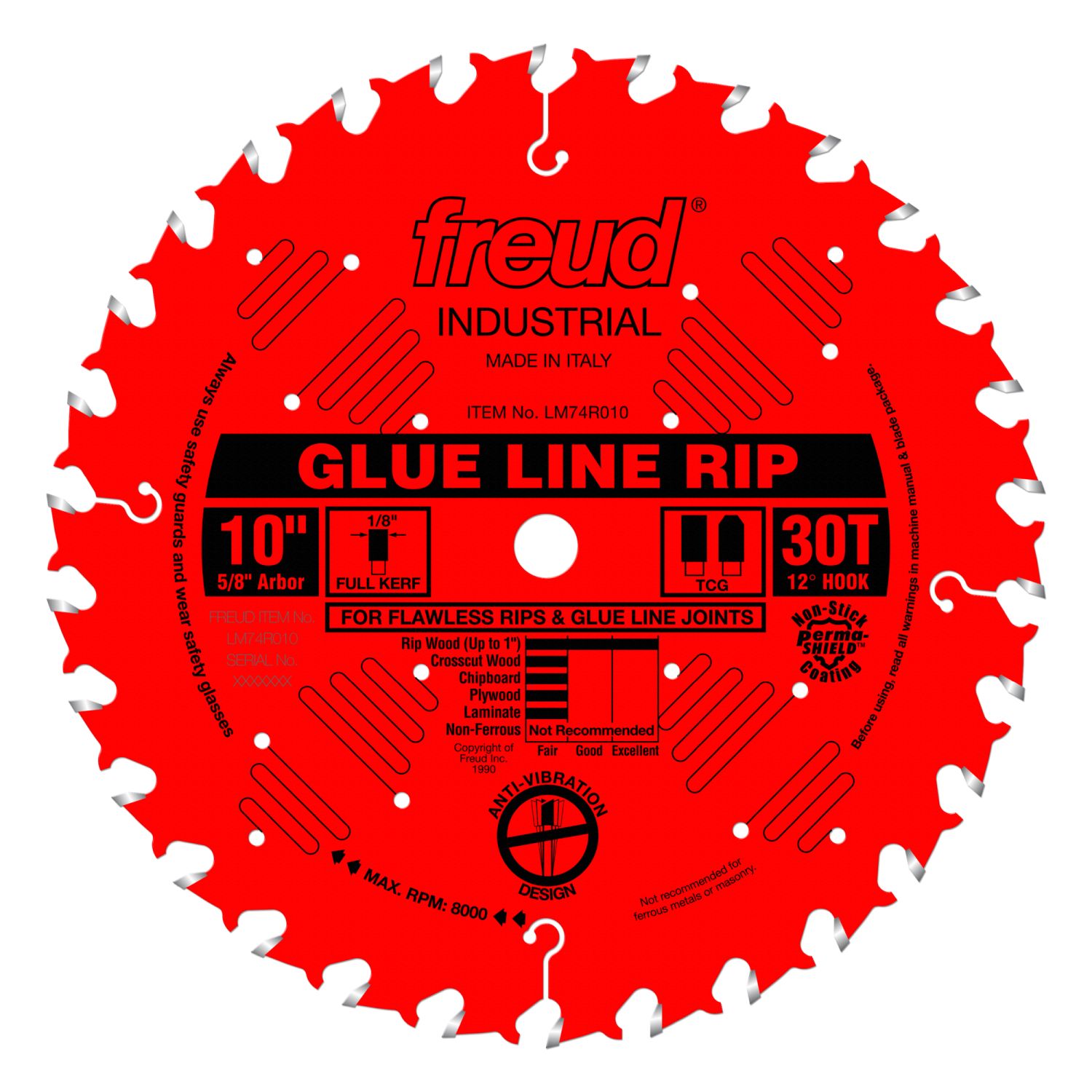

Freud LM74R010 10 in. Industrial Glue Line Ripping Blade
Freud LM74R010 10 in. Industrial Glue Line Ripping Blade
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Freud LM74R010 10 in. Industrial Glue Line Ripping Blade is a carbide-tipped table saw blade made for heavy-duty ripping in wood. This is a table saw ripping blade designed for glue-line ripping and finish-ready edge work. Model Number: LM74R010. If you want rip cuts that come off the saw clean enough for glue joints without stopping for jointing or sanding, this is the whole point of this blade.

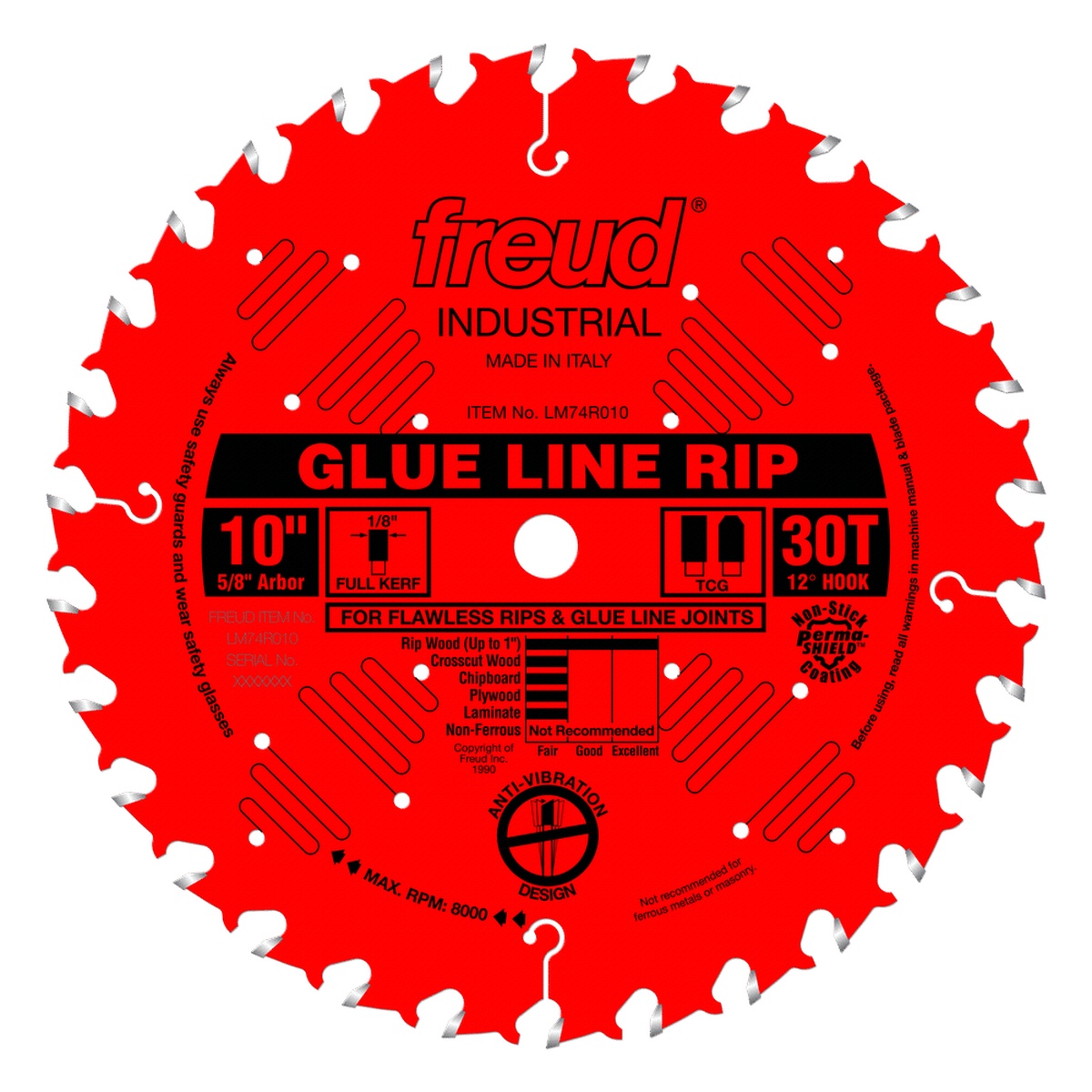

Freud uses a 30-tooth triple chip grind on this blade, and that matters because it is tuned for smooth, true surfaces instead of rough production ripping. On the job or in the shop, that means cleaner edges on hardwood, softwood, plywood, laminate, chipboard, and similar sheet goods where a rough edge costs you time later. Freud lists the ideal working range at 1/8 in. to 1 in. thick, so this blade is aimed at precision ripping in common stock thicknesses rather than brute-force demolition work.
The blade body is built with a .118 in. kerf and a .098 in. plate, which gives it the heavier, more stable feel you want when the goal is a flat, controlled cut. A flimsy blade can wander, vibrate, or telegraph marks into the workpiece. This one is designed to stay planted, which is why Freud specifically positions it as a glue line ripping blade instead of just another general-purpose 10 inch saw blade.
Freud also adds laser-cut anti-vibration slots. That is not filler. Reduced vibration helps keep the cut crisp, limits sideways movement in the kerf, and makes it easier to maintain a cleaner edge across the full length of the rip. For anyone building panels, doing cabinet work, or prepping stock for edge gluing, that extra control shows up in the final fit.
The carbide blend is Freud's TiCo high-density carbide ripping blend, and the blade is finished with Perma-Shield non-stick coating. In practical terms, the carbide is there for edge life and consistent performance, while the coating helps reduce drag and slows down pitch buildup and corrosion. Less drag means the blade stays cutting cleaner with less heat, especially during repeated rips in resinous woods or sheet goods.
Fitment is straightforward. This blade has a 10 in. diameter, a 5/8 in. arbor, and a maximum speed of 8,000 RPM. It is intended for table saw use and is not recommended for non-ferrous metals. If your saw accepts a 10 inch blade with a 5/8 inch arbor, and your work leans toward finish-quality ripping rather than all-purpose cutting, this blade makes sense.
Who should buy it? Cabinet installers, furniture builders, finish carpenters, millwork shops, serious woodworkers, and anyone who edge-glues stock on a regular basis. If your current rip blade leaves an edge that still needs cleanup before glue-up, this blade is aimed directly at that problem. If you mainly want one blade to do every job poorly enough to get by, this is not that blade. It is a purpose-built ripping blade for users who care what the edge looks like when the cut is done.
Cleaner Rips with Less Cleanup
This blade is built for the kind of ripping where edge quality matters right away. The triple chip grind is designed to leave a smoother, truer surface so your next step is assembly or glue-up, not cleanup.
- 30-tooth triple chip grind for smooth glue-line ripping
- Ideal working range of 1/8 in. to 1 in. thick material
- Made for wood, not non-ferrous metal cutting
Stable Blade Body for Accurate Work
Freud backs up the tooth geometry with a thick plate and full-kerf construction, so the blade stays flatter through the cut. That helps when you're ripping stock for visible joints and you do not want the blade wandering or leaving chatter marks.
- .118 in. full kerf supports stability in the cut
- .098 in. plate helps the blade track flatter
- Laser-cut anti-vibration slots reduce vibration and sideways movement
What's in the Box
- (1) Freud LM74R010 10 in. Industrial Glue Line Ripping Blade
Key Specifications
| Blade Diameter | 10 in. |
|---|---|
| Tooth Count | 30 |
| Arbor Size | 5/8 in. |
| Kerf | 0.118 in. |
| Plate Thickness | 0.098 in. |
| Tooth Grind | Triple Chip Grind |
| Maximum RPM | 8,000 RPM |
| Made In | Italy |
Compatibility
Built For
Pro Tip
Stay inside the blade's ideal 1/8 in. to 1 in. stock range when you want the cleanest glue-line edge. That is where this blade is meant to earn its keep, especially when you are ripping parts that go straight to glue-up.
Warranty & Support
Tool Nut's Take
Freud LM74R010 10 in. Industrial Glue Line Ripping Blade Means Business
If you are tired of rip cuts that still need cleanup before glue-up, this blade is the fix.
- Who it's for: Woodworkers, cabinet shops, and finish-focused table saw users who want smoother rip edges in hardwood, softwood, and sheet goods.
- Why it stands out: The triple chip grind, thick full-kerf body, anti-vibration slots, and non-stick coating all work toward the same goal: a cleaner, more stable rip.
- Worth knowing: This is a purpose-built ripping blade, not a do-everything blade, and Freud does not recommend it for non-ferrous metals.
Common Questions
- What type of saw is this blade designed for? It is a table saw blade with a 10 in. diameter and 5/8 in. arbor.
- What kind of cut is it designed to make? It is designed for glue-line ripping, meaning smooth rip cuts that are suited for gluing and finish work.
- What material thickness is this blade best suited for? Freud lists the ideal working range as 1/8 in. to 1 in. thick.
- Can this blade be used for non-ferrous metals? No. Freud specifically lists non-ferrous cutting as not recommended.
