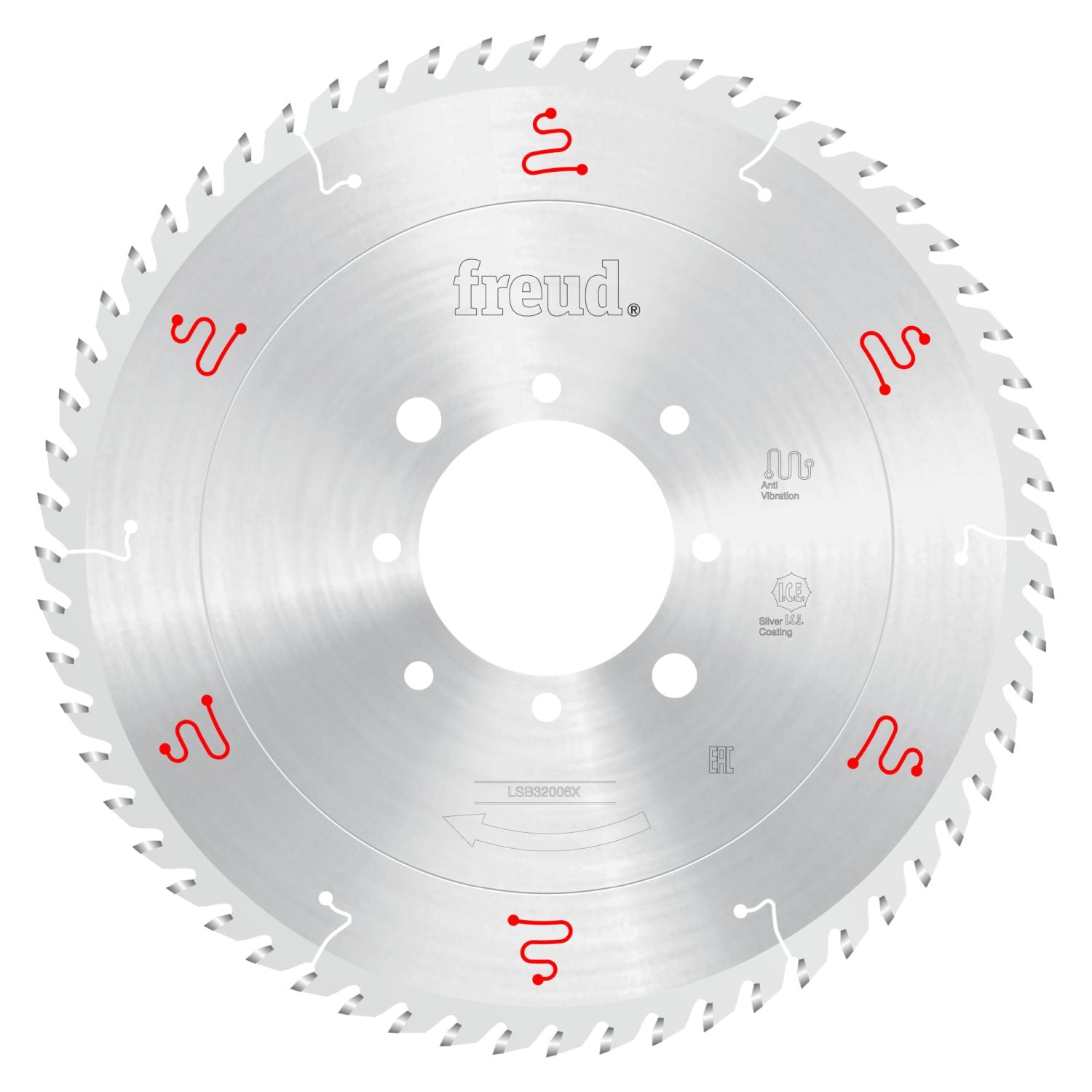

The Freud LSB32006X 320mm Extended Life Panel Sizing Blade for Horizontal Beam Saw is a 12-5/8" (320 mm) panel sizing blade built for horizontal beam saw applications. This is a circular saw blade designed for sizing single or multiple panels with clean, accurate cuts and long service life. Model Number: LSB32006X. If you run a shop cutting sheet stock all day, this is the kind of blade that matters because cut quality, consistency, and time between sharpenings directly affect output.

On the numbers that matter, this blade uses a 12-5/8" (320 mm) diameter, 60 teeth, an 80 mm arbor, and a 10 degree hook angle. Freud also specifies a flat triple chip grind, which is a strong fit for laminate, melamine, veneered panels, plywood, MDF, OSB, chipboard, particle board, and fiber board. In practical terms, that tooth geometry is built to control edge quality on abrasive sheet materials where a rough cut can turn into extra sanding, chipping, or wasted parts.

Freud's X-series extended life design is aimed at shops that need more than just basic cutting. The TiCo high-density micro-grain carbide is there for edge retention, so the blade holds a sharper edge with less wear. The Silver I.C.E. coating reduces heat and drag on the blade body, which helps when you're feeding large panels or running repeated cuts through demanding man-made materials. Less heat and less friction usually mean better cut stability and longer usable blade life, especially in production settings.

The blade body itself is built around precision and control. Freud calls out an anti-vibration design, advanced plate design, and high plate flatness. That combination matters because panel saw work is all about repeatable accuracy. A blade that tracks true and stays rigid is easier on the machine, easier on the material, and easier on the operator trying to hold quality over a long shift. Freud also notes an ultimate precision grinding process, which is one of those details that sounds small until you see the difference in cut finish and reduced rework.

From a jobsite or shop-floor standpoint, this is not a general-purpose framing blade trying to do everything. It is purpose-built for horizontal beam saw use and sheet-good processing. The 80 mm arbor and beam saw application make that clear. If your workflow centers around breaking down panel stock for cabinets, closets, fixtures, casework, or production woodworking, a dedicated panel sizing blade like this is the right move because it is designed around finish quality and machine compatibility rather than broad, catch-all use.

This blade makes the most sense for cabinet shops, architectural millwork, production woodworking, commercial fixture work, and serious panel processing operations. It is also a smart pick for shops regularly cutting laminated or melamine-faced stock where edge cleanliness matters. If you're looking for a blade to live on a horizontal beam saw and spend its time on sheet materials instead of mixed jobsite lumber, this Freud is aimed right where it should be.

Freud LSB32006X 320mm Extended Life Panel Sizing Blade for Horizontal Beam Saw

This is a purpose-built production blade for shops that care about panel finish, accuracy, and getting more life out of every sharpening cycle.

• Who it's for: Cabinetmakers, millwork shops, and panel-processing operations running horizontal beam saws on laminate, melamine, plywood, MDF, and similar sheet goods.
• Why it stands out: The combination of TiCo carbide, Silver I.C.E. coating, anti-vibration design, and a flat triple chip grind gives you the kind of stability and edge quality that matters in real production work.
• Worth knowing: This is not a general-purpose site blade. It is a specific beam saw blade with an 80 mm arbor, so make sure your machine and application match what this blade is built to do.

• What type of saw is this blade designed for? It is designed for use on a horizontal beam saw.
• What materials is it intended to cut? Freud lists laminate, melamine, double-sided laminate, double-sided melamine, veneered plywood, double-sided veneers, plywood, MDF, OSB, chipboard, particle board, and fiber board.
• What tooth style does it use? It uses a flat triple chip grind, commonly chosen for clean cuts in sheet goods and abrasive panel materials.
• What are the key fitment specs? The blade has a 12-5/8" (320 mm) diameter, 80 mm arbor, and 60 teeth with a 10 degree hook angle.
