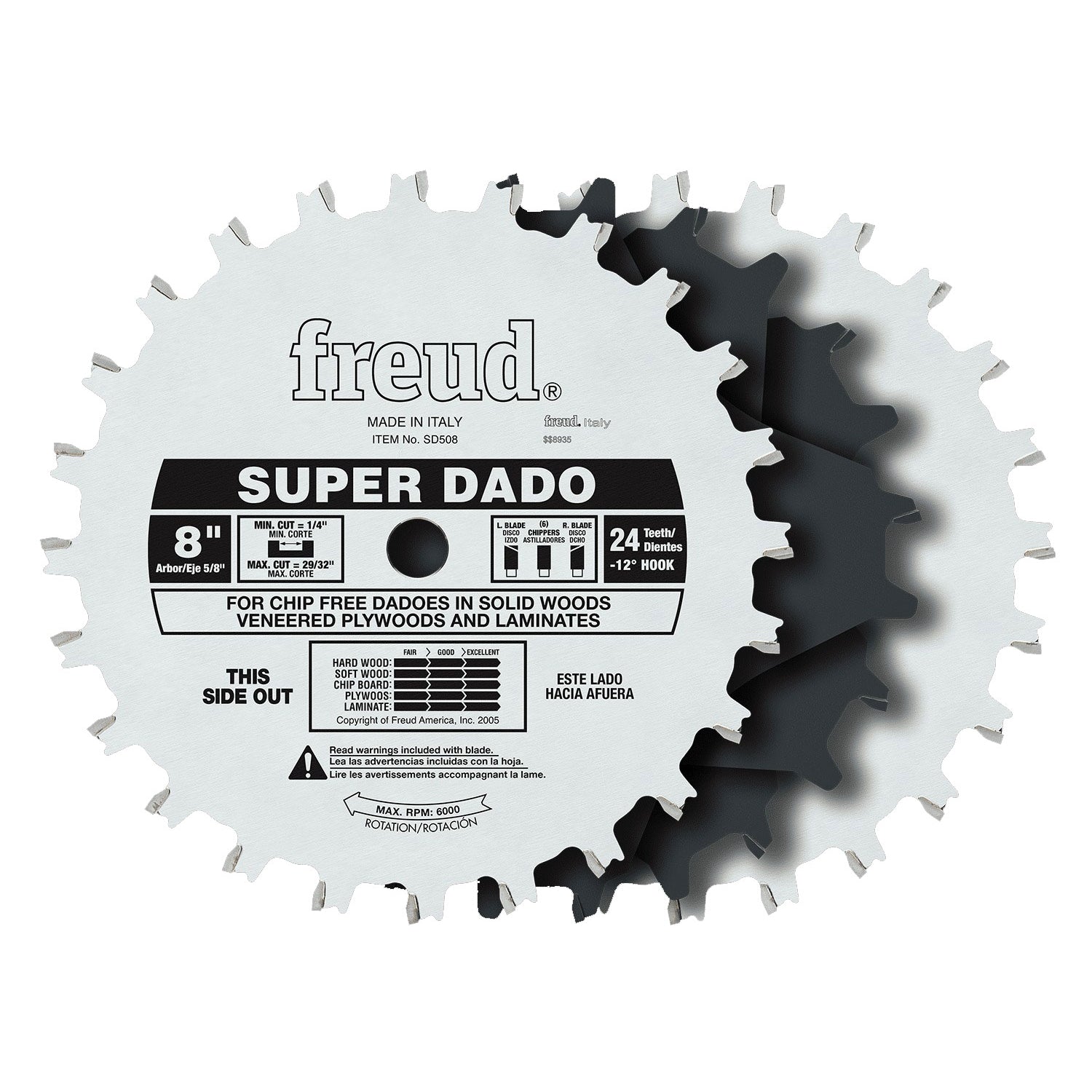

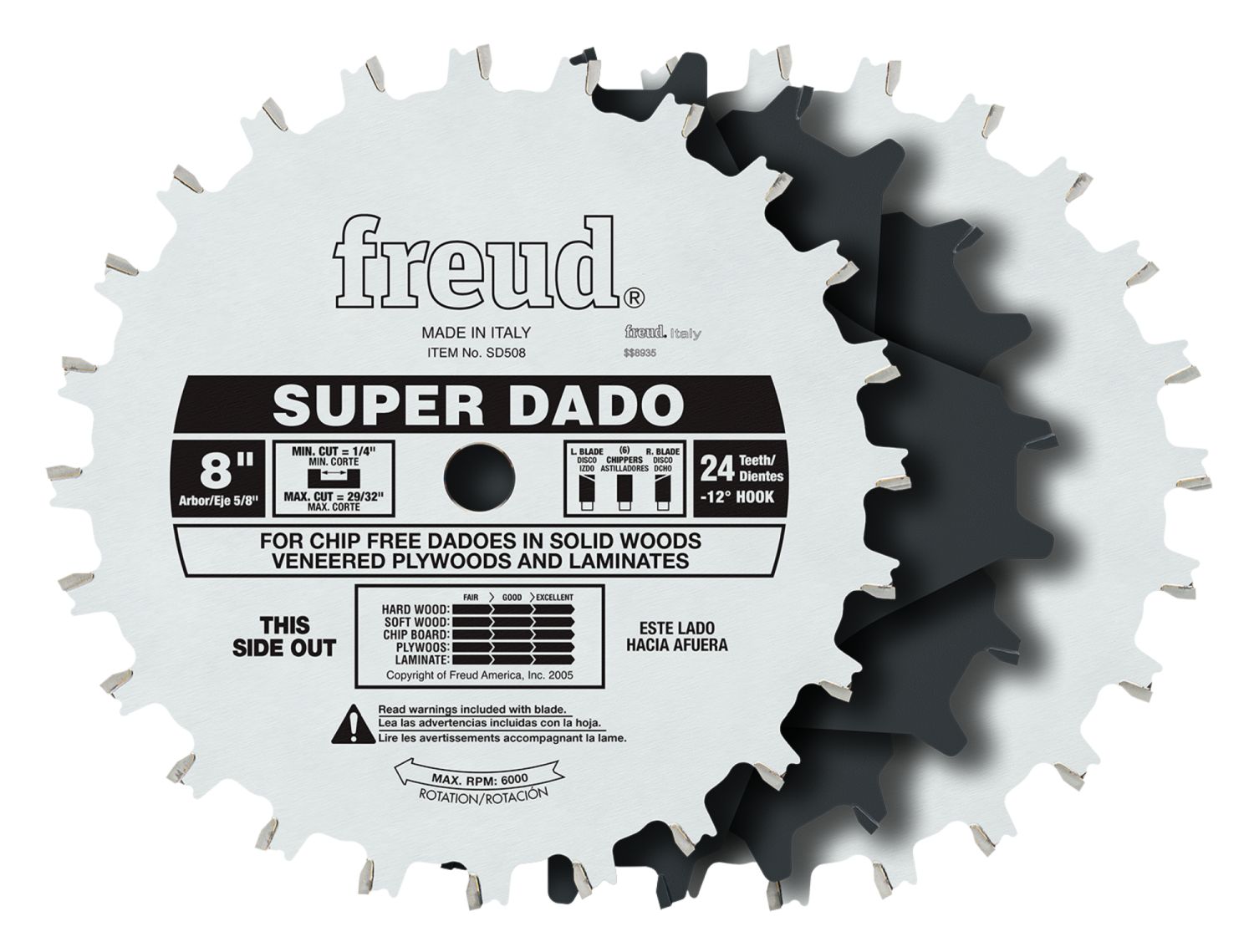

Freud SD508 8-Inch Super Dado Sets
Freud SD508 8-Inch Super Dado Sets
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Freud SD508 8-Inch Super Dado Sets is a stacked dado blade set for table saws, built for woodworkers and finish carpenters who need clean, accurate grooves, dados, rabbets, and joinery cuts. This is a dado set designed for cutting flat-bottom grooves and square-shouldered joinery in wood sheet goods and solid stock. Model Number: SD508.
What separates a good dado set from a frustrating one is how much cleanup it leaves behind and how easy it is to tune the fit. Freud built this set to create clean edges, square shoulders, and virtually splinter-free cuts. The included shim set allows adjustment in very small increments, with Freud listing .004 inch steps, so you can sneak up on the right fit for plywood shelves, cabinet backs, drawer bottoms, and face-frame joinery instead of fighting sloppy cuts.
The cutter stack uses two outside blades and six chippers, including four one-eighth inch chippers, one three-thirty-seconds inch chipper, and one one-sixteenth inch chipper. That layout gives you a practical range of width combinations without turning setup into a guessing game. For anyone cutting repeated cabinet dados or shelf housings, that means faster dial-in and more repeatable results once the stack is set.
Freud also uses its TiCo high-density carbide crosscutting blend here, which matters because dado work puts a lot of material in front of the teeth at once. Good carbide helps the set stay sharper longer, especially when you move between hardwood, softwood, veneered plywood, laminate, and OSB. The grind and tooth configuration are built around clean shoulders and flat bottoms, which is exactly what you want when parts need to fit together without rocking or leaving gaps.
The Silver I.C.E. coating is not just there for looks. It helps reduce pitch and resin buildup on the blade body and keeps the set running cooler and cleaner. On long cutting sessions, especially in sheet goods or resin-heavy stock, that can mean less drag and easier feeding. Freud also includes an anti-kickback design on the blades and chippers, which is a real-world safety and control benefit when you're making wider joinery cuts on a table saw.
In terms of fit, this is an 8-inch dado set with a 5/8 inch arbor, intended for table saw use. That makes it relevant for many portable and stationary table saws that accept stacked dado sets, but arbor size and dado capacity on the saw always need to match before you buy. If your work revolves around cabinetry, built-ins, shelving, casework, or general woodworking where clean joinery matters, this kind of set earns its keep fast.
The Freud SD508 8-Inch Super Dado Sets is best for users who care more about cut quality and setup control than just getting through rough work. If you are building cabinets, bookcases, shop furniture, or fitted trim components, this is the kind of table saw dado blade set that gives you cleaner results with less trial and error. If you only cut an occasional rough groove, a cheaper set may get by. If you want accurate fit and cleaner shoulders, this is where spending more actually shows up in the finished work.
Built for Clean Joinery Work
A stacked dado set only matters if it leaves a cut you can use. This one is made for grooves and joinery that need to be flat on the bottom and clean on the shoulders, so parts fit with less trimming and less sanding after the cut.
- Designed for clean edges, square shoulders, and flat bottom grooves
- Suitable for solid wood, veneered plywood, laminate, and OSB
Fits Common Table Saw Setups

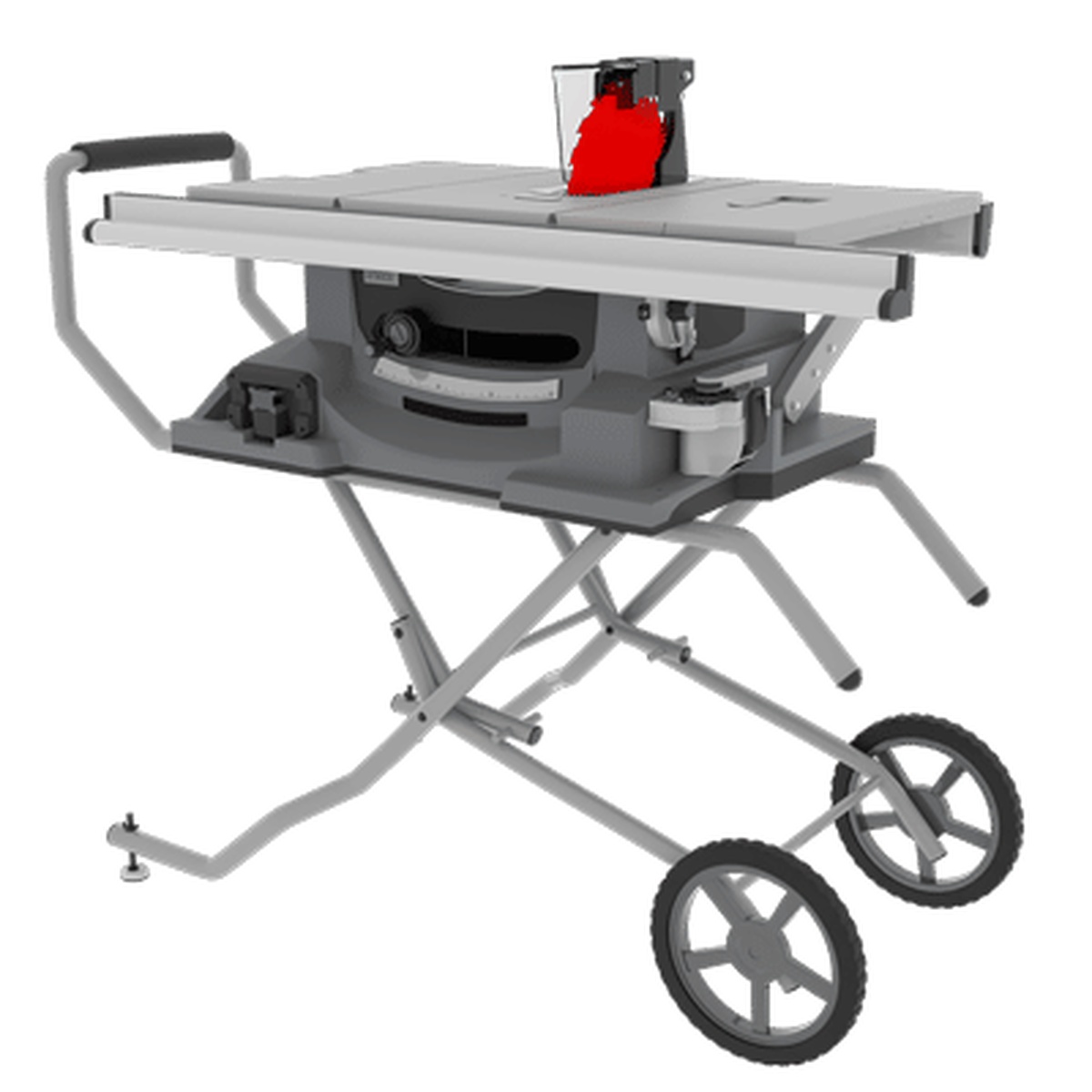

For contractors and serious DIY users working off a portable saw, arbor fit matters just as much as cut quality. The 5/8 inch arbor size makes this set relevant for many table saws that accept stacked dado blades.
- 8 inch diameter stacked dado set
- 5/8 inch arbor for table saw use
Made for Repeatable Shop Results

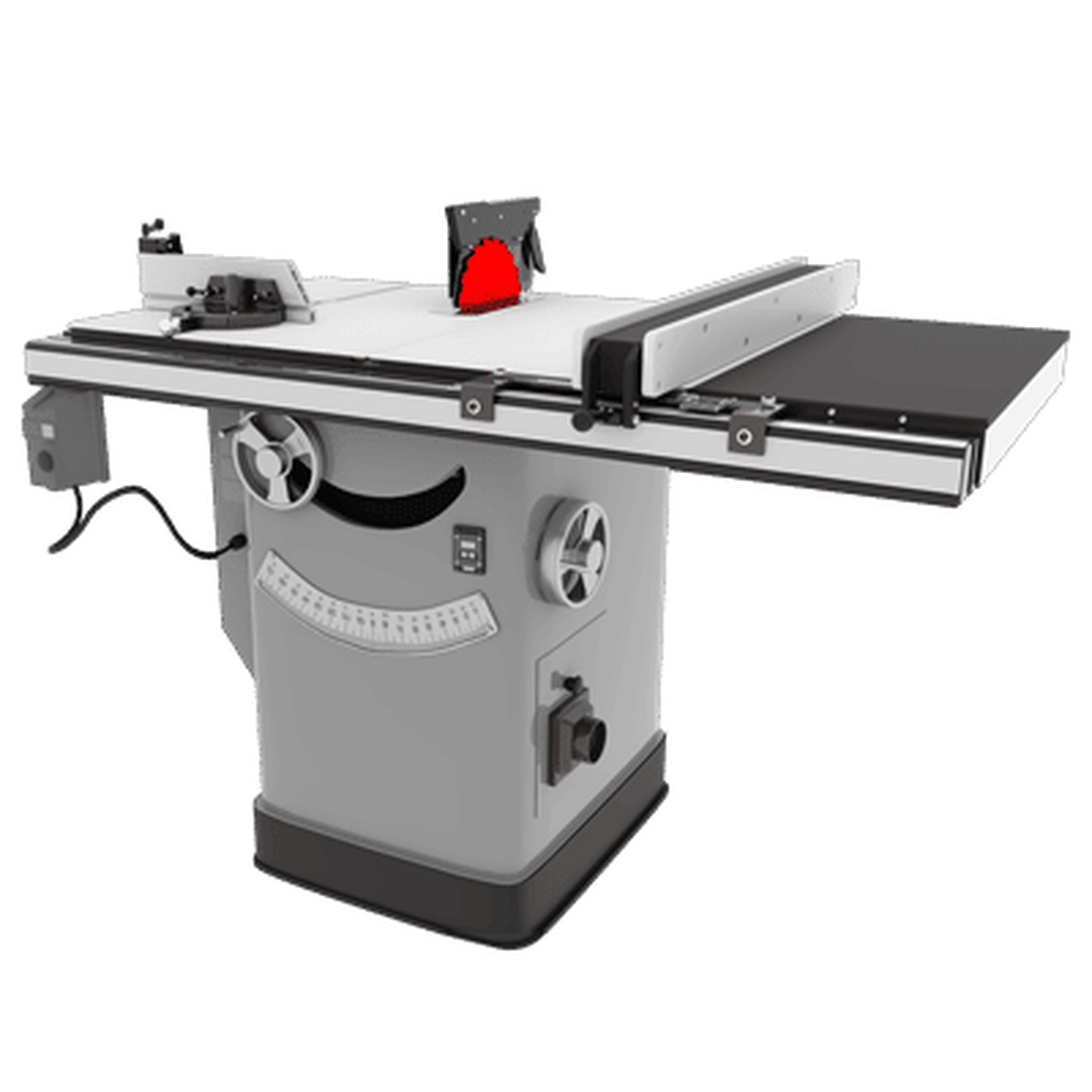

On a cabinet saw or other stationary setup, the value is in repeatability. Once the stack is tuned, this set is built to keep producing consistent grooves across parts, which is exactly what you want for casework, shelving, and production-style woodworking.
- Includes two blades, six chippers, and a shim set
- Anti-kickback design on blades and chippers helps improve control
What's in the Box
- (2) Outside blades
- (6) Chippers
- (1) Shim set
Key Specifications
| Diameter | 8 in |
|---|---|
| Tooth Count | 24 |
| Arbor Hole Size | 5/8 in |
| Blade Material | Carbide |
| Tooth Configuration | Alternate Top Bevel and Flat Top (ATAF) |
| Kerf | 0.1 in |
| Material Cut | Wood |
| Made In | Italy |
Compatibility
Built For
Pro Tip
When you're fitting plywood shelves, use the shim set to sneak up on the final width instead of forcing a nominal size. Plywood thickness varies more than the label says, and this set gives you the adjustment range to cut a cleaner, tighter fit.
Warranty & Support
Tool Nut's Take
Freud SD508 8-Inch Super Dado Sets for woodworkers who actually care about fit
This is the kind of dado set you buy when you are done messing around with ragged shoulders and loose shelf joints.
- Who it's for: Cabinetmakers, trim carpenters, furniture builders, and serious DIY users cutting repeatable joinery on a table saw.
- Why it stands out: Fine shim adjustment, quality carbide, anti-kickback design, and a cut profile aimed at flat bottoms and clean shoulders.
- Worth knowing: Make sure your saw is rated for stacked dado use and has the right arbor and capacity. This is a dedicated joinery blade set, not an all-purpose table saw blade.
Common Questions
- What kind of saw is this dado set made for? It is intended for table saw use and uses a 5/8 in arbor.
- What materials can it cut? It is built for wood, including hardwood, softwood, plywood, laminate, and OSB.
- Can the cut width be fine-tuned? Yes. The set includes shims for precise width adjustment, with Freud listing .004 in increment adjustment.
