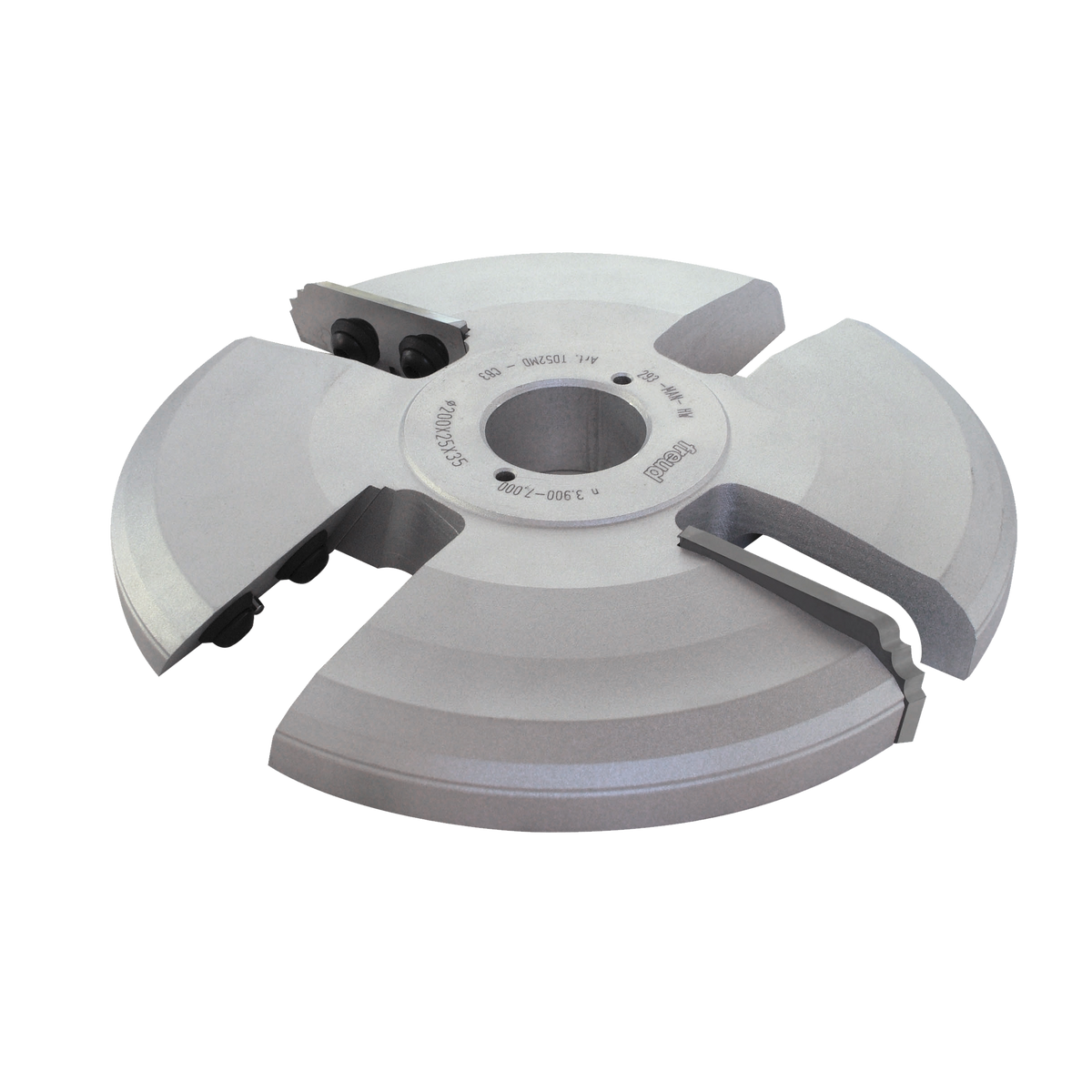

Freud TD52MDCB3 200mm Diameter Raised panels cutterheads
Freud TD52MDCB3 200mm Diameter Raised panels cutterheads
Out of Stock - Available to Order - Usually ships in 5-7 days
Product Details
Product Details
- The items TD52M CB3 and TD52MD CB3 are supplied with knives. (2) The items TD52M HB3 and TD52MD HB3 are supplied without knives.
- This item is supplied with knives.
- Size shown between brackets is the max. rebore possible
- Right and Left hand rotation
This tool is designed to perfectly cut softwood or hardwood with two knives, with both along the grain or end grain feeding. This result has been achieved by choosing different cutting angles according to the type of wood to be machined. Only two knives are to be fitted on the tool at one time, in opposite direction. The dimensions of the knives for cutting hardwood and softwood are different but the same profile is achieved.
Specifications:
| Bore Diameter | 35mm |
|---|---|
| Carbide Height (h) | 25mm |
| Cutter Type | Insert Shaper Cutter |
| Number of Teeth (Z) | 2+2 |
| Overall Dia. (D) | 200mm |
