Jet 16-1/2-in. Drill Press (354169)
Jet 16-1/2-in. Drill Press (354169)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview

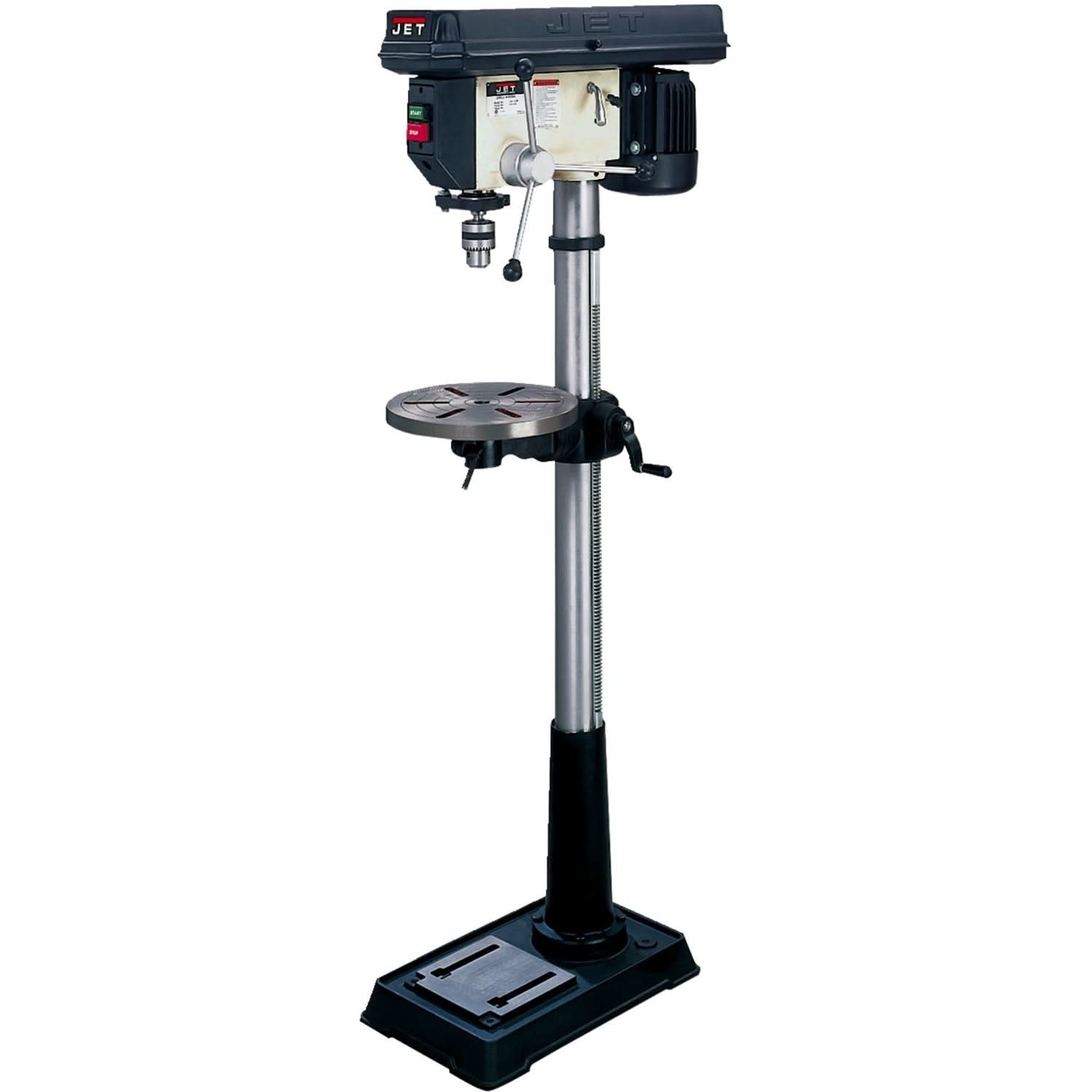

The JET JDP-17MF 16-1/2 In. Floor Drill Press is a stationary floor drill press built for accurate hole drilling in wood and other shop materials. This is a drill press designed for precise, repeatable hole drilling in woodworking, fabrication, and general shop work. Model Number: 354169 / JT9-354169. If you need more control than a handheld drill can give you, this machine is the step up that makes clean, straight, repeatable drilling a lot easier.
What makes this machine useful on the job is the speed range and the control that comes with it. You get 16 spindle speeds from 200 to 3,630 RPM, which gives you the flexibility to match speed to bit size and material instead of forcing one setup to do everything. That matters when you are drilling hardwood, running larger twist bits, or working through repeated holes where feed rate and heat buildup can ruin the result.
The 3/4 HP, 9 Amp motor gives this drill press the muscle for serious shop use without pushing into oversized industrial territory. For a lot of contractors, cabinet shops, serious DIY users, and maintenance departments, that is the sweet spot. It has enough power for regular production work, but it is still a practical fit for a dedicated shop corner. The high-quality ball bearing spindle construction also points to what this machine is really about: long-term smooth operation and consistent drilling accuracy.
JET also got the setup details right. The worktable uses a quick-release, crank-operated height adjustment, and it tilts 45 degrees left and right for angled drilling. The X-pattern grooves in the table give you more ways to mount a fence or accessories, which is useful when you are trying to stabilize awkward stock or set up repeat operations. That is the kind of feature that sounds small on paper but saves time once the machine is actually in use.

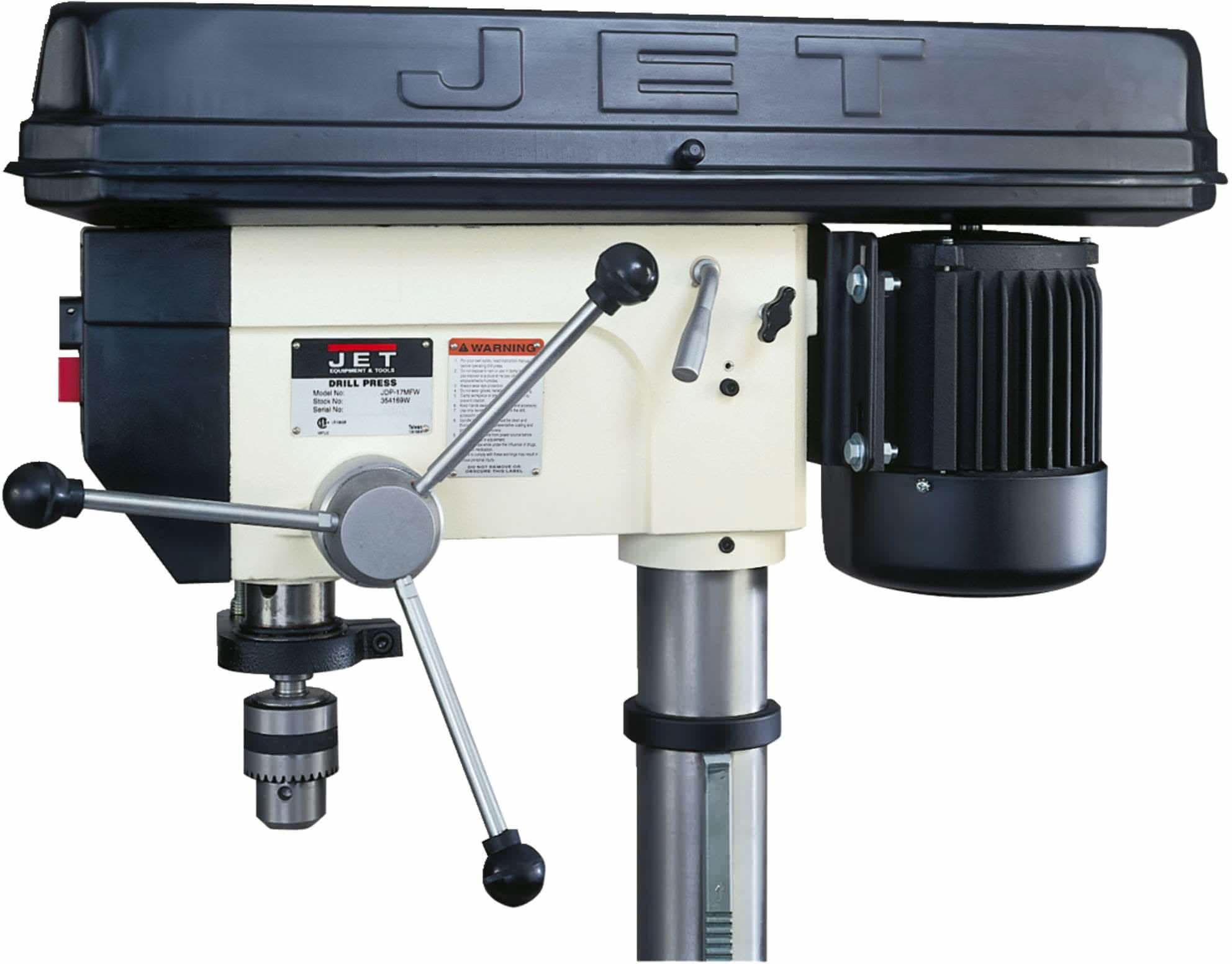

For repeat drilling, the adjustable depth stop is one of the better practical features on this machine. It is marked in both standard and metric, and the quick-set bolt makes it faster to dial in than the old trial-and-error approach. JET also includes an adjustable tension spindle return spring, which helps when you are doing repetitive drilling at the same depth and want more controlled return feel.

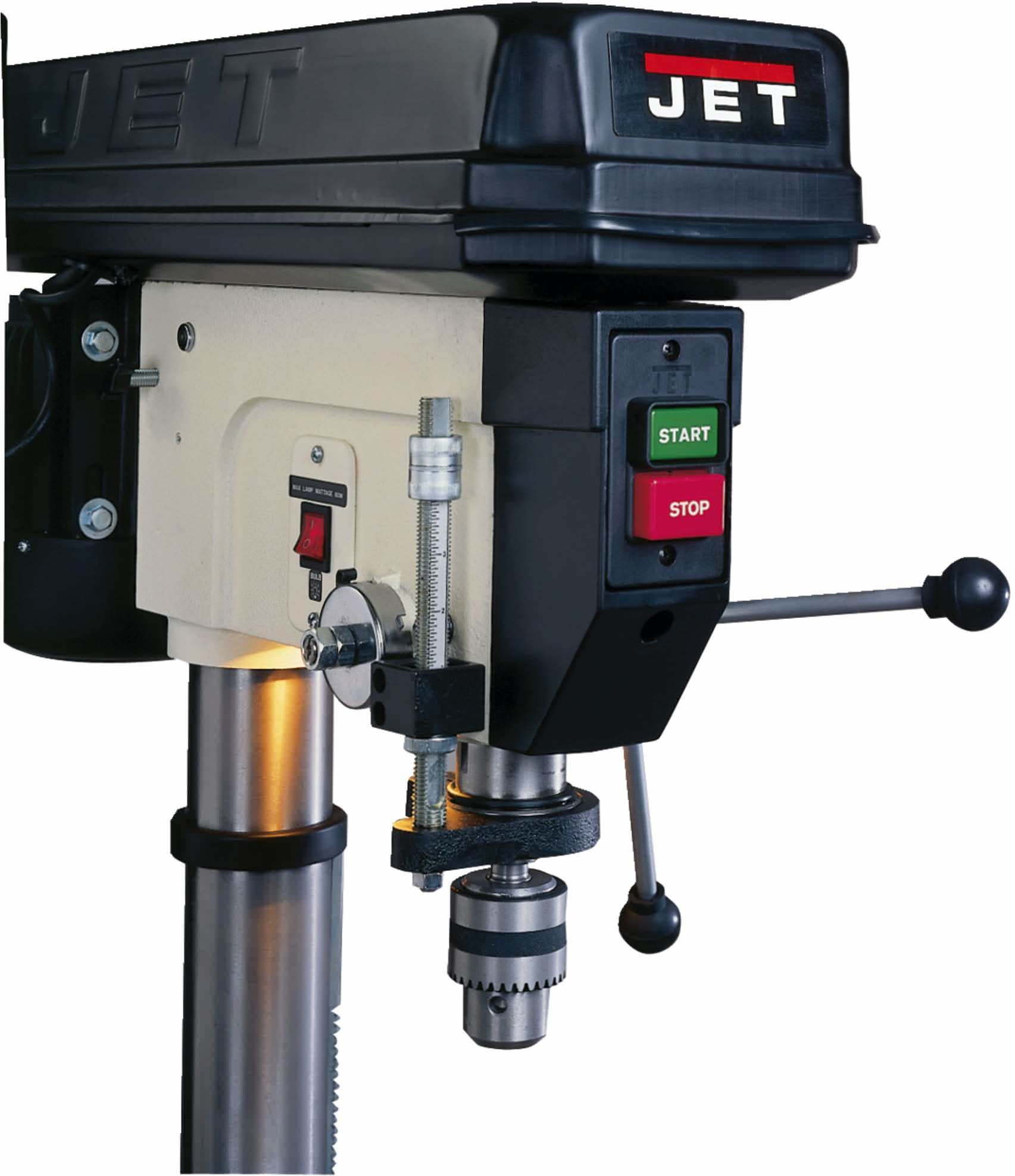

Real shop usability matters just as much as raw specs, and this machine covers that well. A front-mounted power switch is easier to reach when you need to stop or start the machine quickly. The hinged metal belt and pulley cover gives straightforward access for speed changes, and the built-in worklight helps keep your drilling line visible when overhead lighting is not enough. On a floor machine that weighs in the neighborhood of 189 to 209 lbs depending on source listing, that solid build is part of the value. A heavy drill press stays planted and tends to work smoother.
The keyed 5/8 in. chuck capacity, 4-3/8 in. spindle travel, and 16-1/2 in. swing put this machine in a very usable range for furniture work, jig building, maintenance drilling, and general fabrication tasks. It is not a portable jobsite tool and it is not trying to be. This is the right pick for someone who wants a dedicated shop drill press that offers better control, better repeatability, and better capacity than a bench-top unit or a handheld drill setup.
If you are a woodworker, remodeler with a permanent shop, school shop, maintenance crew, or serious DIY user who values straight holes and repeatability, this JET drill press makes sense. If you only drill a few casual holes a month, it is more machine than you need. But if you regularly use Forstner bits, hole saws, larger twist bits, or depth-controlled drilling for joinery and fixtures, this kind of floor drill press pays for itself in cleaner work and less frustration.
Set the Right Speed for the Material
A drill press earns its keep when it gives you control, and this one does. With a wide speed range and a belt-and-pulley setup that is easy to access, you can tune the machine to the bit and the material instead of settling for a one-speed compromise.
- 16 spindle speeds from 200 to 3,630 RPM

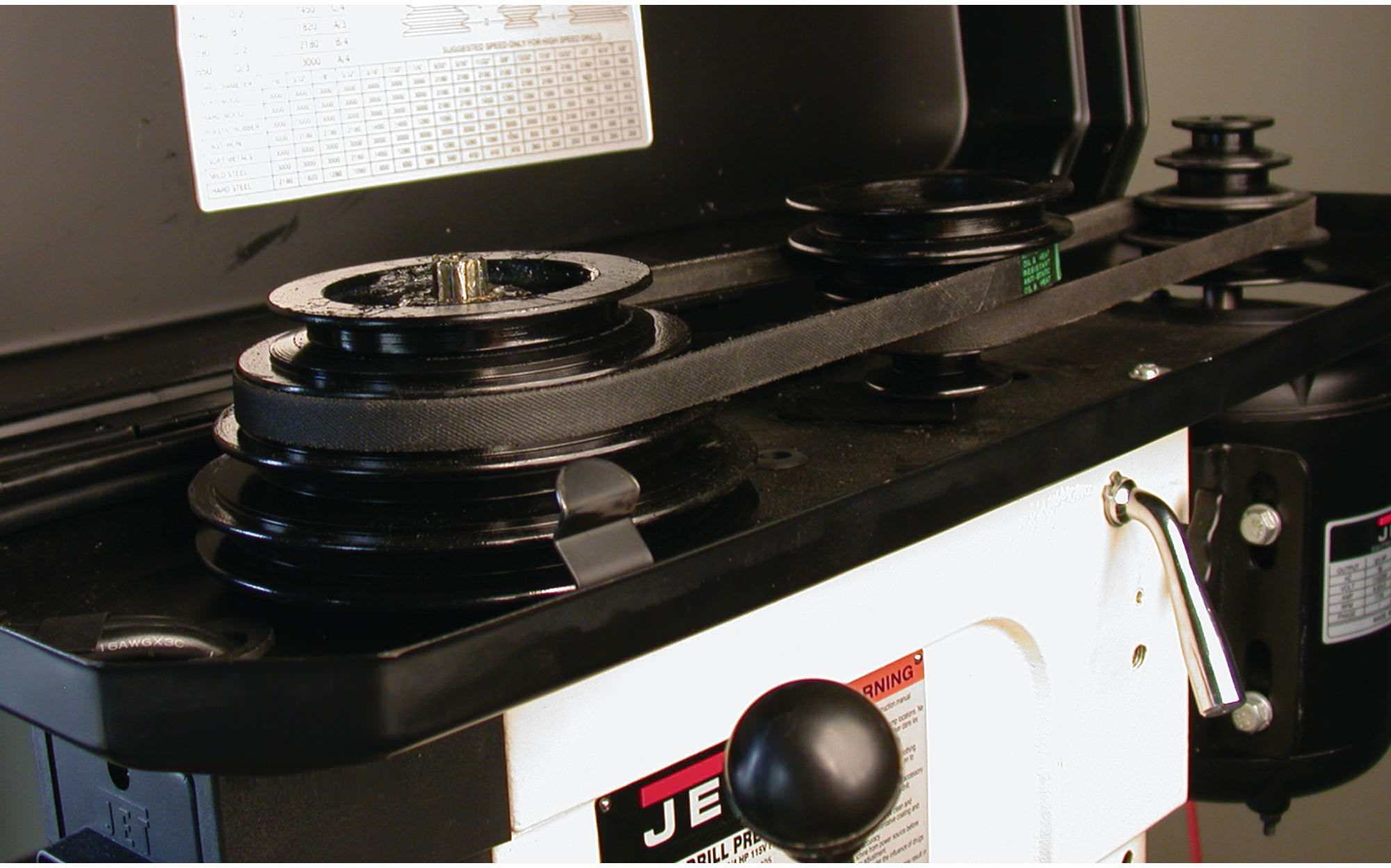

- Hinged metal belt and pulley cover for easier speed changes
- 3/4 HP motor for regular shop drilling in wood and similar materials
Built for Repeatable Shop Work
This machine is set up for repeat accuracy, not just raw drilling. The depth stop, spindle travel, table adjustment, and worklight all work together to make repetitive holes more consistent and less fussy.
- Depth stop marked in inch and metric with quick-set adjustment
- 4.375 in. spindle travel for deeper drilling capacity
- Crank-operated table height adjustment with 45 degree left and right tilt
Key Specifications
| Tool Type | Floor Drill Press |
|---|---|
| Swing | 16.5 in. |
| Motor Output | 3/4 HP |
| Amperage | 9 A |
| Voltage (V) | 115/230 V, 1 Ph |
| Number of Speeds | 16 |
| Speed Range | 200 to 3,630 RPM |
| Chuck Capacity | 5/8 in. |
| Chuck Type | Keyed |
| Spindle Travel | 4.375 in. |
| Table Tilt | 45 degrees left / right |
| Cord Length | 8 ft. |
| Material | Cast Iron |
| Product Dimensions | 19.125 in. W x 11.625 in. D x 66 in. H |
Built For
Pro Tip
On a drill press like this, take advantage of the full speed range instead of leaving it in one setting. Slower speeds help with larger bits and cleaner control, while the depth stop is the move when you need a whole run of holes to land at the exact same depth.
Warranty & Support
Tool Nut's Take
JET JDP-17MF 16-1/2 In. Floor Drill Press is the kind of shop machine you buy once
This is a solid floor drill press for users who care more about accuracy, repeatability, and long-term shop value than shaving a few bucks on a lighter machine.
- Who it's for: Woodworkers, maintenance departments, school shops, and serious DIY users who want cleaner holes and more control than a handheld drill can deliver.
- Why it stands out: The 16-speed range, adjustable depth stop, crank-up tilting table, and heavy cast iron build make it practical for real drilling work instead of occasional hobby use.
- Worth knowing: This is a floor-standing shop tool, not something you move around, and the belt speed changes are part of the setup. If you want stability and precision, that tradeoff is usually worth it.
Common Questions
- Is this a bench-top or floor model drill press? It is a floor drill press designed as a stationary shop machine.
- What is the speed range? The spindle speed range is 200 to 3,630 RPM across 16 speed settings.
- How much spindle travel does it have? It has 4.375 inches of spindle travel.
- Does the table tilt? Yes. The worktable tilts 45 degrees in either direction.
- What size chuck does it use? It has a keyed chuck with 5/8 inch capacity.
