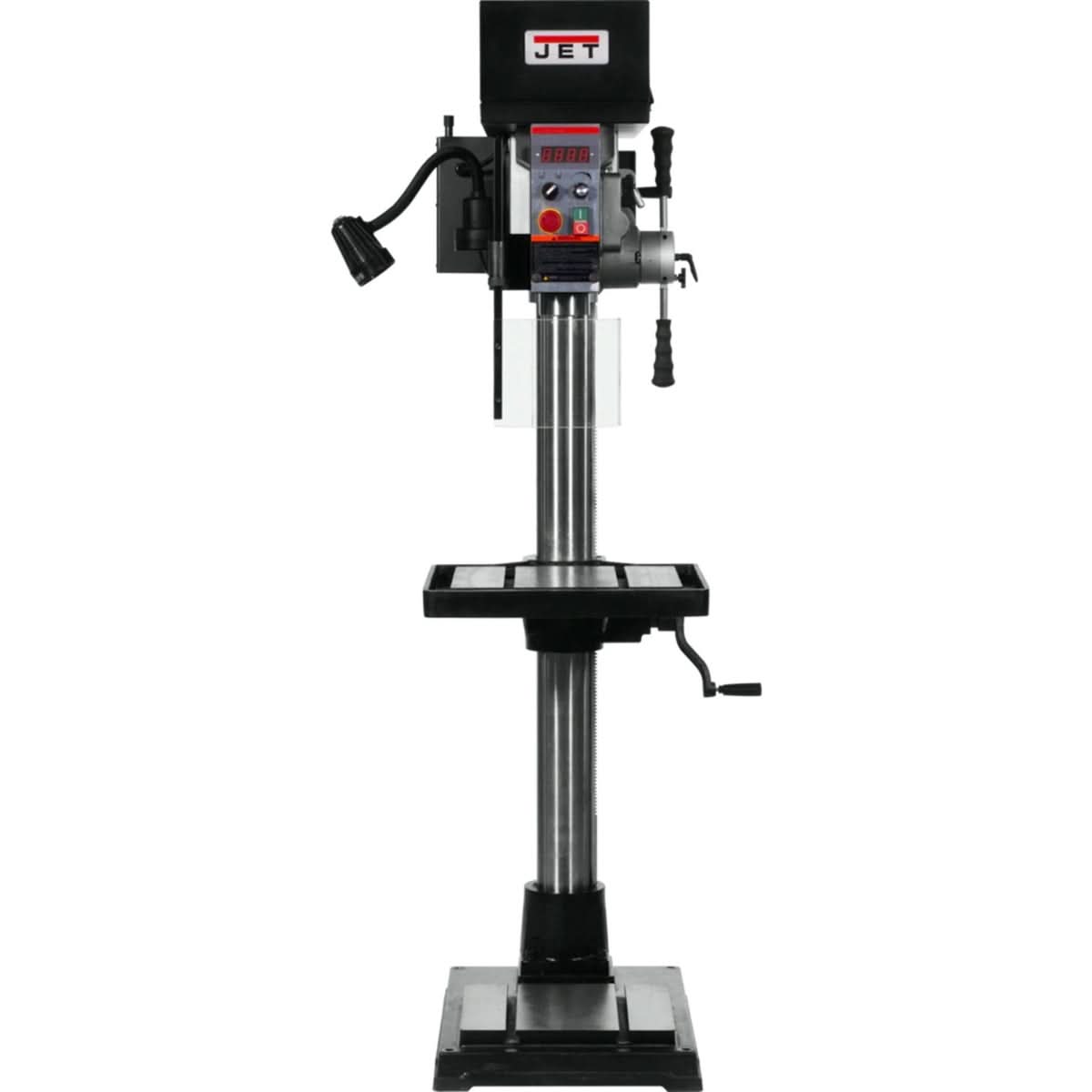

JET 354250 JDPE-20EVS-PDF 1-1/4-Inch Drilling Capacity, 2HP, 115V, 1Ph Electronic Variable Speed Drill with Power Downfeed
JET 354250 JDPE-20EVS-PDF 1-1/4-Inch Drilling Capacity, 2HP, 115V, 1Ph Electronic Variable Speed Drill with Power Downfeed
Regular price
$3,699.00
Sale price
$3,699.00
Regular price
$5,169.00
(Save $1,470.00)
+ Free Delivery
In Stock - Ships from Manufacturer
Product Details
Product Details
DESCRIPTION
The 20'' JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Engineered to maximize output the 20’’ EVS drill press includes a three speed power down feed for heavy drilling applications and is capable of running from 50 to 2000 RPMs.
FEATURES
- Heavy casted column prevents failures prolonging the life of the machine
- Casted head for more accuracy and rigidity

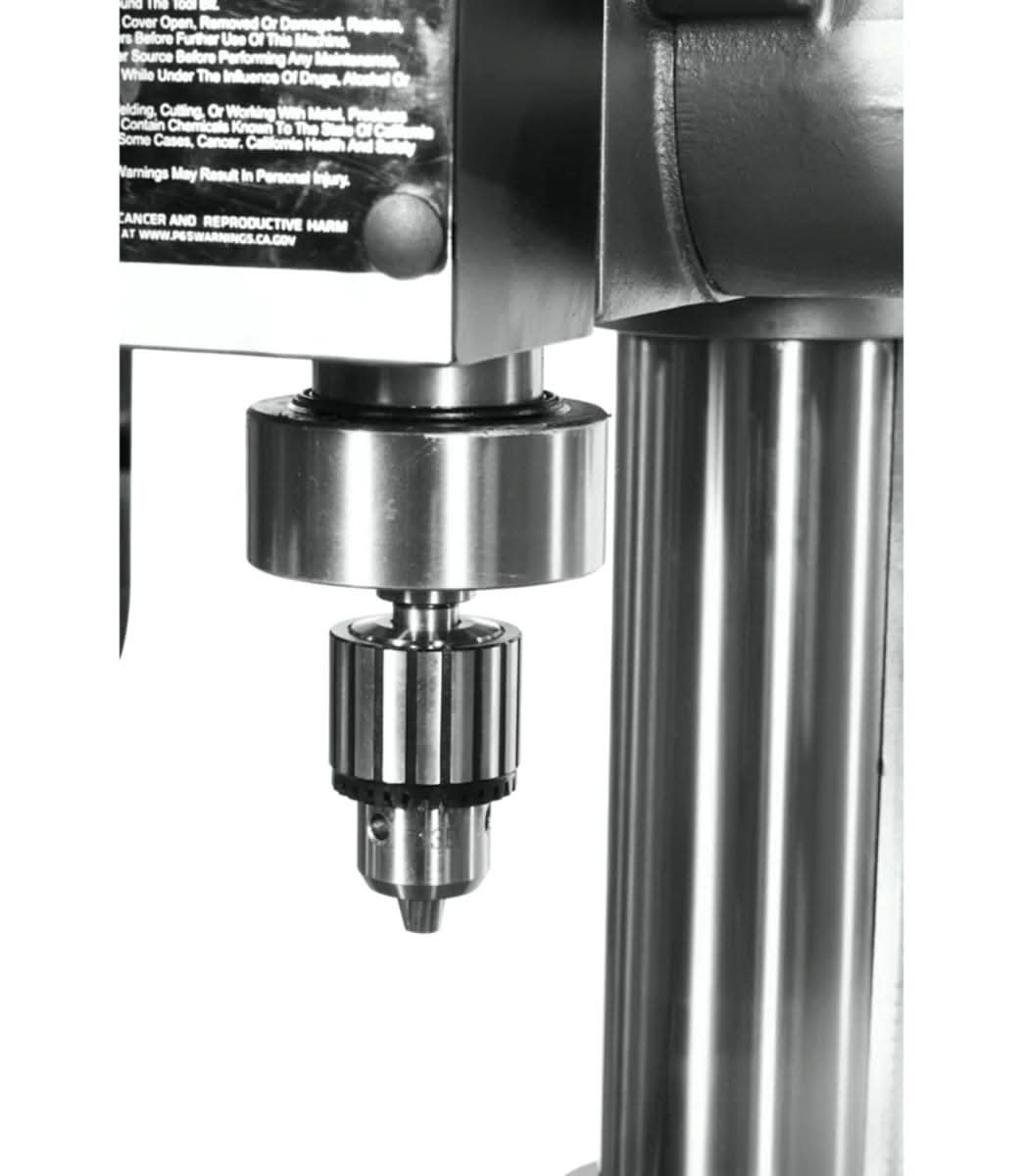

- Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support
- Large precison ground t-slot production table
- CSA/US Certified
- LED machine lamp delivers extra light for more precise drilling
- Spindle guard protects user from flying debris
- Emergency stop allows for immediate shut off
- Various spindle speeds from 50-2000 RPM's

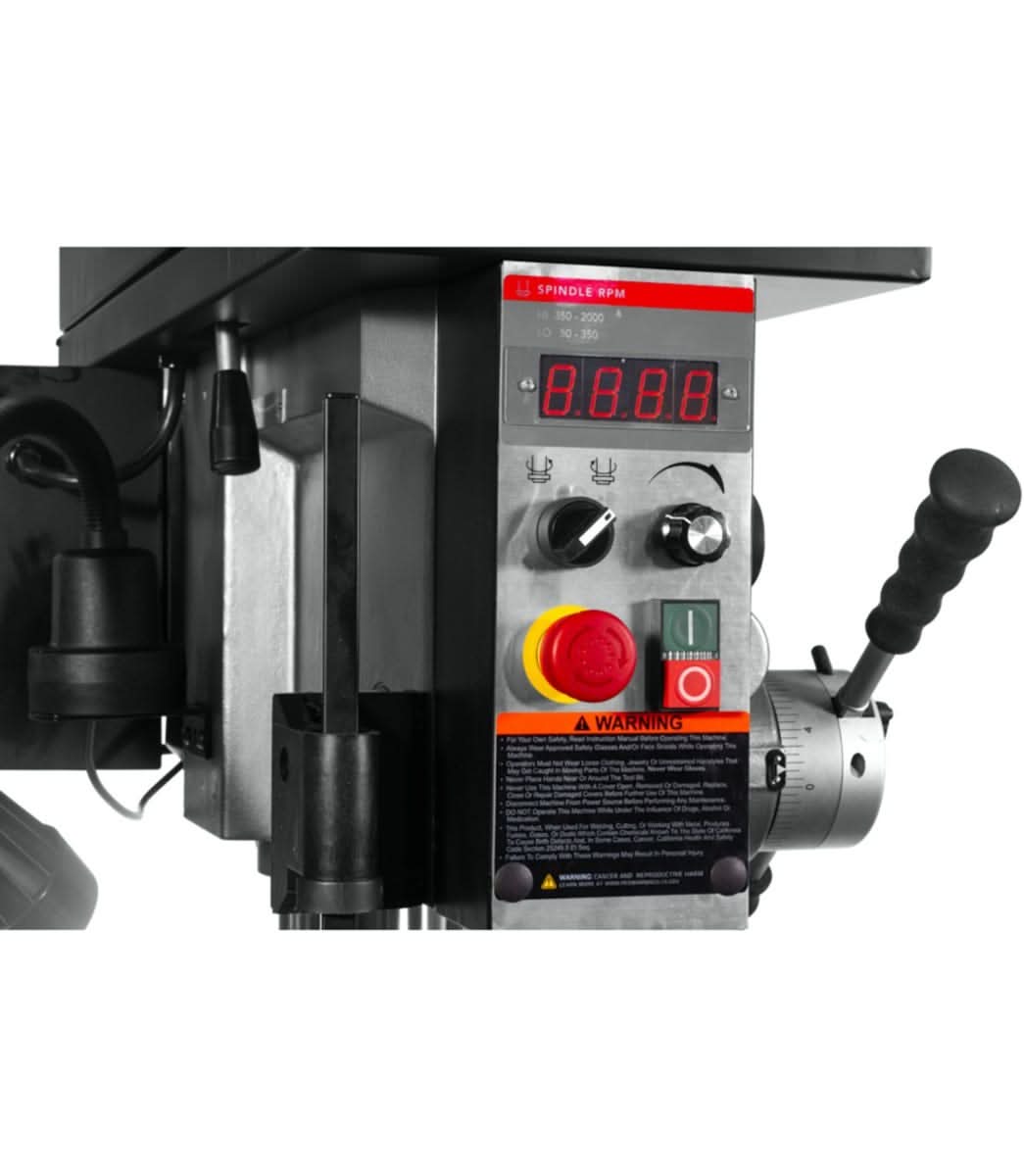

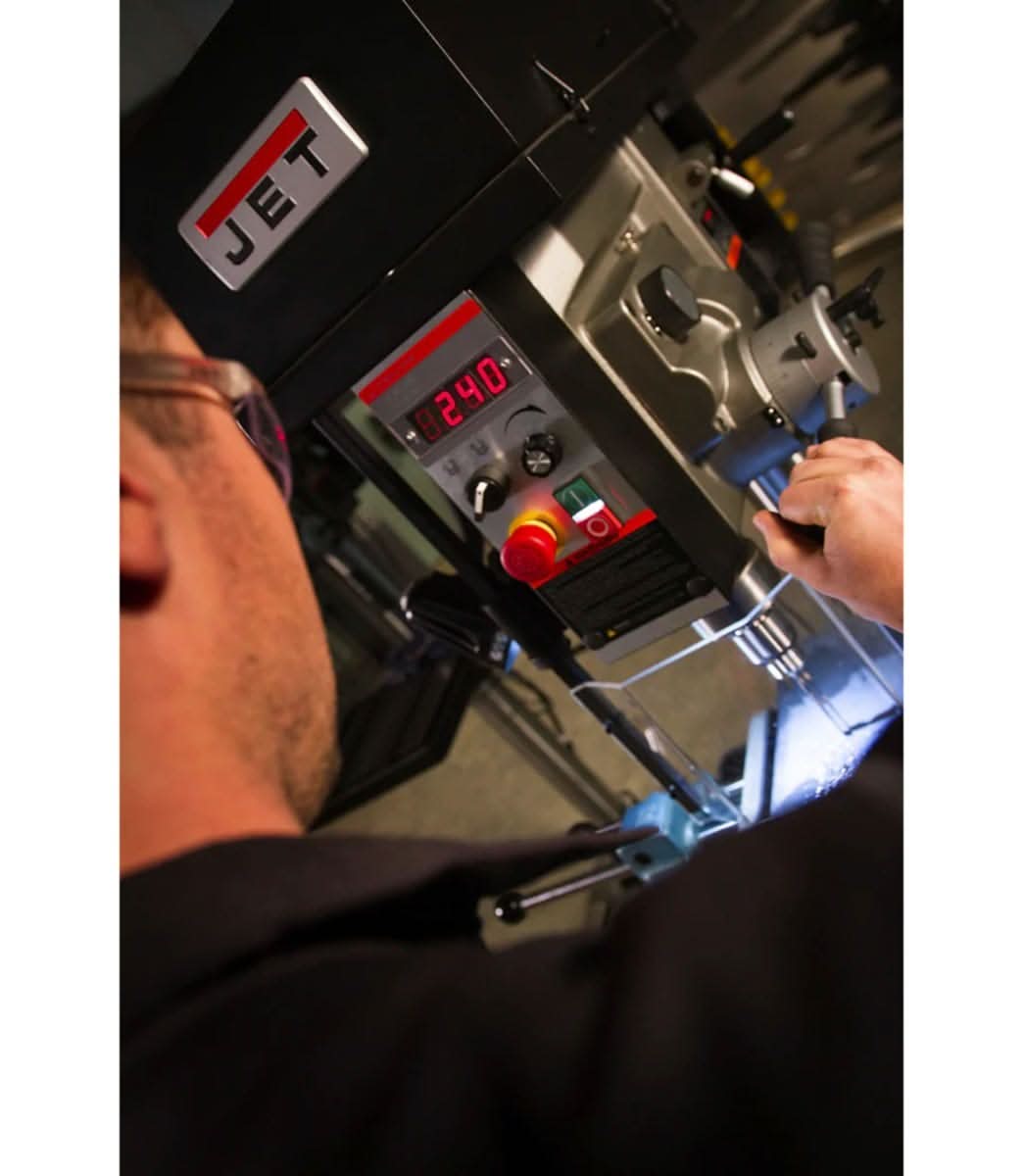

- Front mounted LED spindle RPM readout
- 3-Speed power downfeed
- High torque at all speeds both forward and reverse
- Large hand grips designed with the user in mind
- Speeds changes pulley
- Speed changes using a clutch system
- Forward and reverse switch for instant tapping mode
- STANDARD EQUIPEMENT
- Tapping function
- Spindle power down feed system
- Electronic variable speed
- Large torque inverter
- Speeds changes pulley
- Spindle Guard
- LED Lamp
SPECIFICATIONS
- Quill Diameter (In.)2.16
- Drills to Center of Circle (in)10
- Drilling Capacity Cast Iron (In.)1-1/4
- Drilling Capacity Mild Steel (In.)1-1/8
- Tapping Capacity Mild Steel (In.)3/4
- Distance Column to Spindle (In.)26-1/2
- Quill Down Feed Rate (Number & RPM's)No.3/ 0.005”/0.007”/0.010"
- Number of Spindle SpeedsVariable
- Range of Spindle Speeds (RPM)Low: 50 - 390, High 270 - 2000
- Column Diameter (In.)4
- Spindle Taper (In. x TPI)MT-3
- Spindle Travel, Manual (In.)5
- Spindle Travel Auto (In.)4-1/4
- Spindle Distance to Base (In.)48.85
- Spindle Distance to Table (Max.) (In.)32.6
- Table T-Slots, Number & Size (In.)2 Slots for 5/8 bolts
- Table Size (L x W) (In.)16-1/2 x 18-1/2
- Base Dimensions (In.)17.7 x 25-1/2
- Base Work Table (In.)14-3/16 x 13
- Base Slots Number & Size (In.)2, 5/8
- Motor (HP)1.5HP, 230V, 3PH
- Inverter Type / Power Source2HP/115V/1PH
- Overall Dimensions (L x W x H) (In.)32-3/5 x 22-2/3 x 70-25/64
