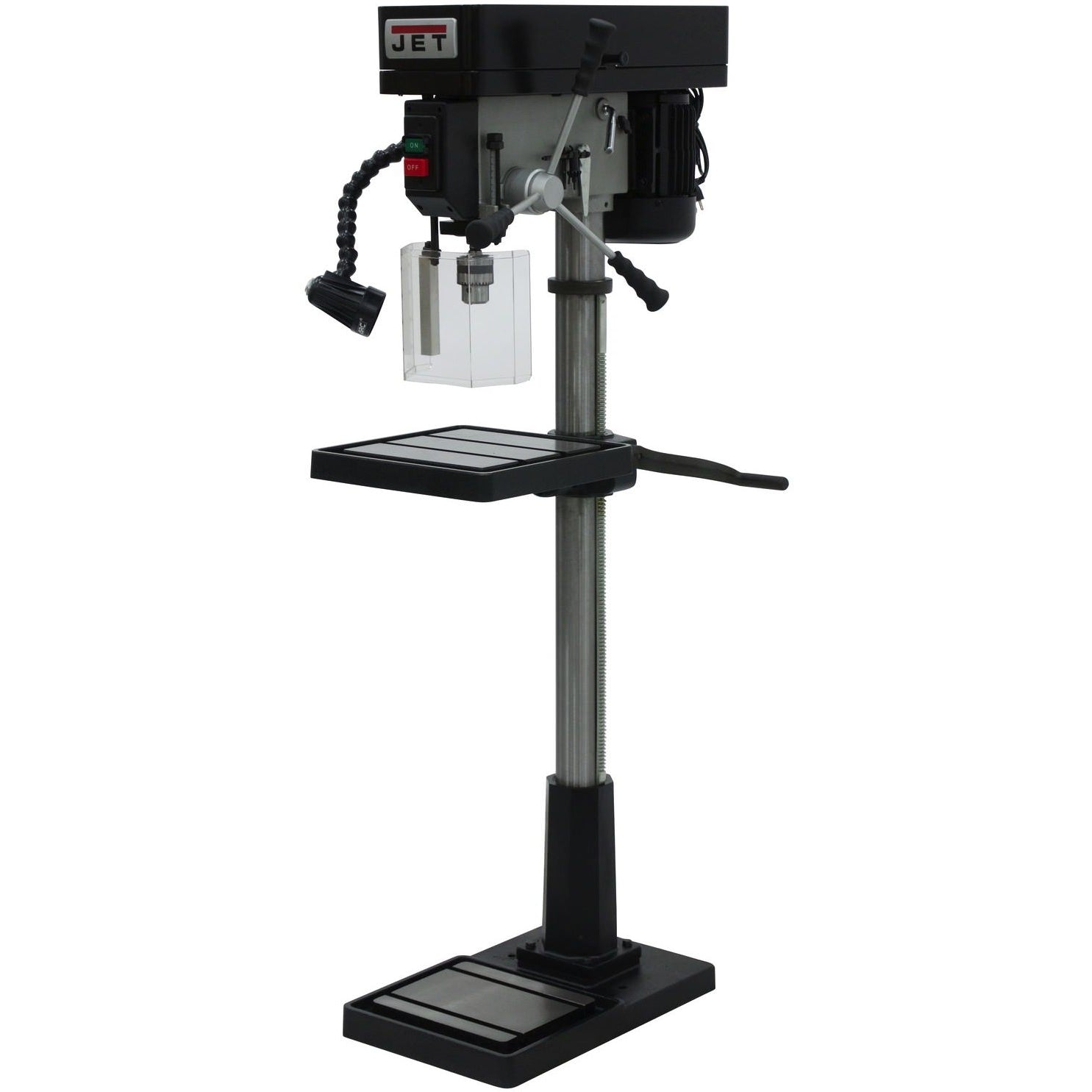

Jet 354300 IDP-17, 17" Industrial Floor Model Drill Press

Product Details

For added Safety, the IDP-17, 17" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
Spindle is supported by high quality ball bearings
Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
Large Hand Grips designed with the users comfort in mind
Rotating, 45° tilting, crank-operated worktable with quick release clamp
A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Drill chuck and key attach to the side of the drill press always within reach of the operator
On/off switch located on front of the drill press head
Heavy Duty construction
Cast Iron table and base
Table ground for accuracy
STANDARD EQUIPMENT
LED Machine Lamp
Ground Table
Spindle Safety Guard
Drill Chuck and Key

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Specifications

Style (Type)
Belt Drive
Drills to Center of Circle (in)
17
Drilling Capacity Cast Iron (In.)
3/4
Drilling Capacity Mild Steel (In.)
5/8
Tapping Capacity Cast Iron (In.)
Tapping Capacity Mild Steel (In.)
Distance Column to Spindle (In.)
8-3/8
Number of Spindle Speeds
12
Range of Spindle Speeds (RPM)
350 - 2,800
Column Diameter (In.)
Spindle Taper (In. x TPI)
MT-2
Spindle Travel (In.)
3-5/16
Spindle Distance to Base (In.)
50
Spindle Distance to Table (Max.) (In.)
30-1/2
Table Size (L x W) (In.)
14 x 14
Table Travel (In.)
T-Slots Number and Size (In.)
2 and 1/2
T-Slot Centers (In.)
9/16
Work Table Weight Capacity (Lbs.)
Base Dimensions (In.)
21-3/4 x 13-3/4
Base Work Table (In.)
16-15/16 x 10-13/16
Base Slots Number & Size (In.)
2 and 1/2
Motor (HP)
1 HP, 115/230V, 1Ph
Overall Dimensions (H x W x D) (In.)
Overall Dimensions (L x W x H) (In.)
Weight (Lbs.)
276
