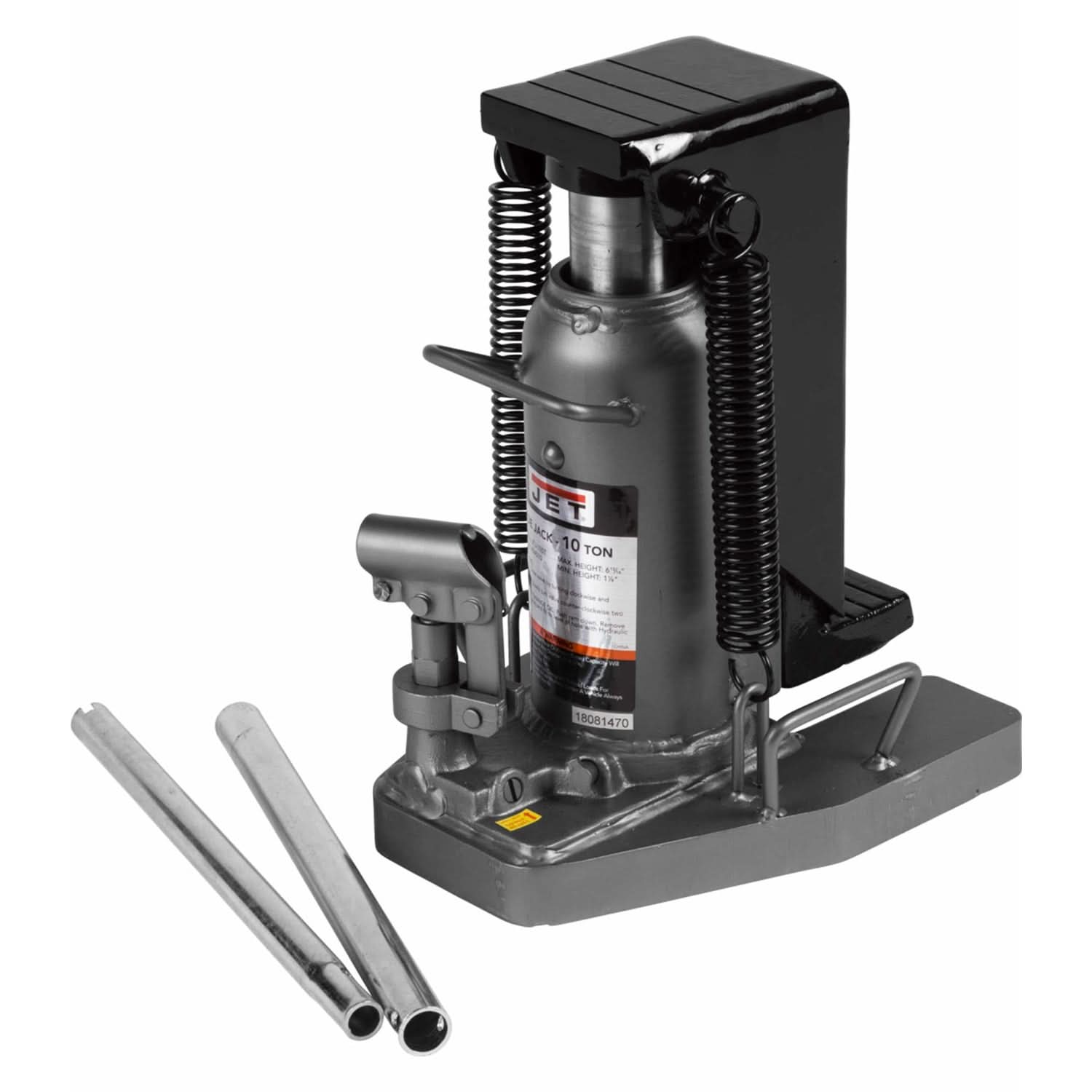

The Jet Tools JTJ-10ST 10 Ton Hydraulic Toe Jack is a heavy-duty hydraulic toe jack built for lifting industrial loads where access is tight and a standard jack will not fit. This is a hydraulic toe jack designed for lifting heavy machinery and structural loads from low clearances. Model Number JTJ-10ST. With a rated toe capacity of 10 tons and a rated head capacity of 14 tons, it is aimed at rigging crews, maintenance departments, contractors, and serious shop users who need controlled lifting in places where inches matter.

The big reason to buy this style of jack is simple: the toe gives you a lifting point close to the floor. On this model, the minimum height is listed at 1-7/32 inches, which makes it useful for getting under equipment bases, machine frames, and other low-slung loads. Once positioned, the hydraulic system lets you lift with more control than trying to improvise with pry bars, blocking, or a jack that starts too tall. For higher lifting points, the jack can also work from the head, which gives you more flexibility on mixed jobs.

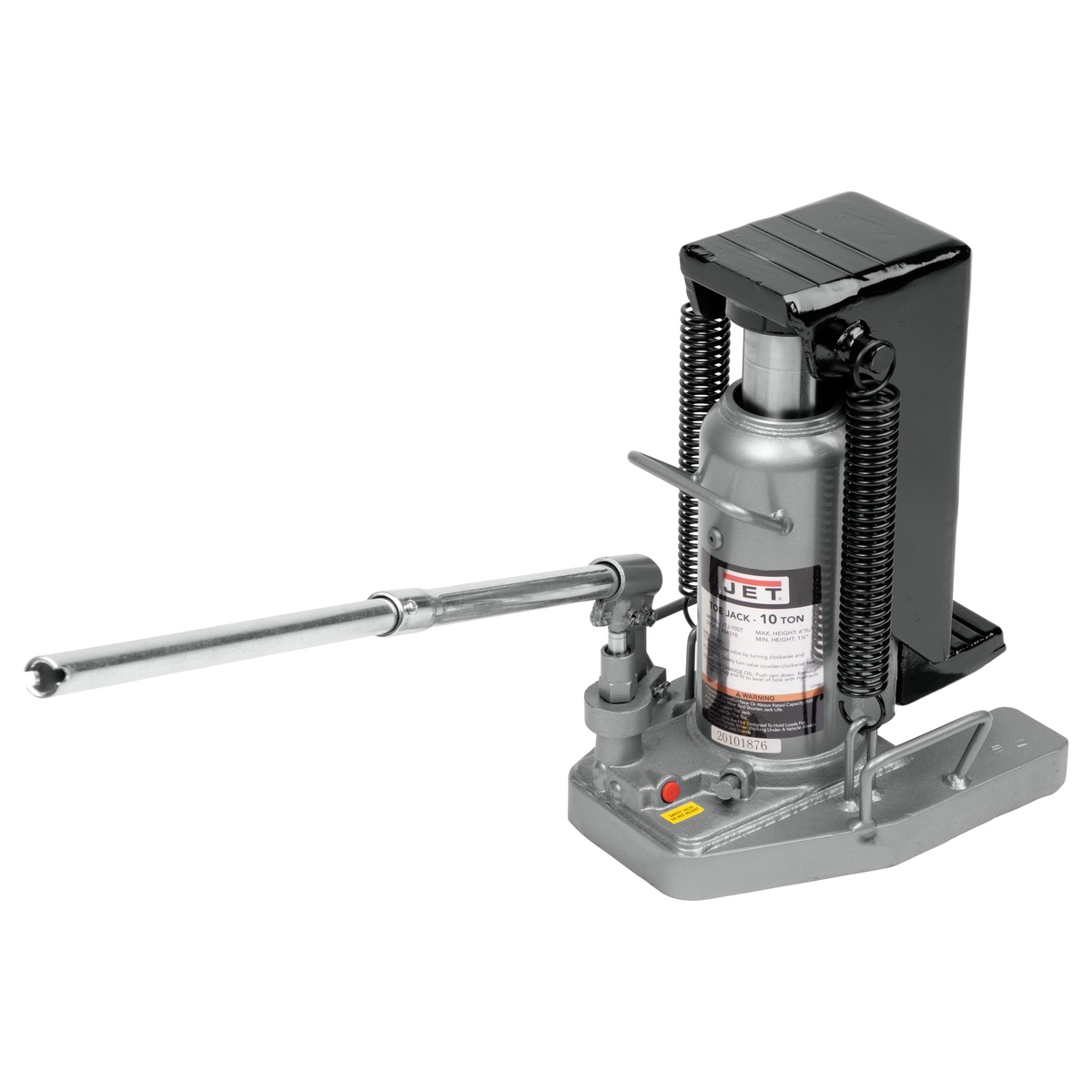

JET built the JTJ-10ST as a dual purpose industrial jack, not a light shop accessory. The electric welded base and cylinder construction is there for one reason: fewer leak-prone joints and better long-term reliability under repeated use. The heat treated piston helps resist corrosion, which matters if the jack is going in and out of service trucks, plant floors, or damp work areas. There is also a convenient swivel socket for multi-directional use, which makes handle positioning easier when you are working around equipment, walls, or other obstructions.

On the job, that translates into a jack that is more useful in the real world than a basic vertical-only design. The JTJ-10ST is built for lifting, pushing, spreading, bending, pressing, or straightening tasks, so it is not limited to one kind of work. That makes it a good fit for machinery installation, house moving, shipyard work, bridge and building work, and general plant construction where odd lifting situations come up all the time. If you use machinery rollers, this is the kind of companion tool that helps you get the load up safely enough to place them correctly.

Safety and load control are a major part of the value here. The overload protection valve helps prevent lifting beyond maximum rated capacity, which is exactly the kind of safeguard you want on a jack working around expensive equipment and heavy loads. The unit also complies with ANSI/ASME B30.1 standards, giving buyers a clear benchmark for the type of lifting work it is built to handle. That does not replace proper rigging practice, but it does tell you this is a purpose-built lifting tool rather than a generic hydraulic jack.

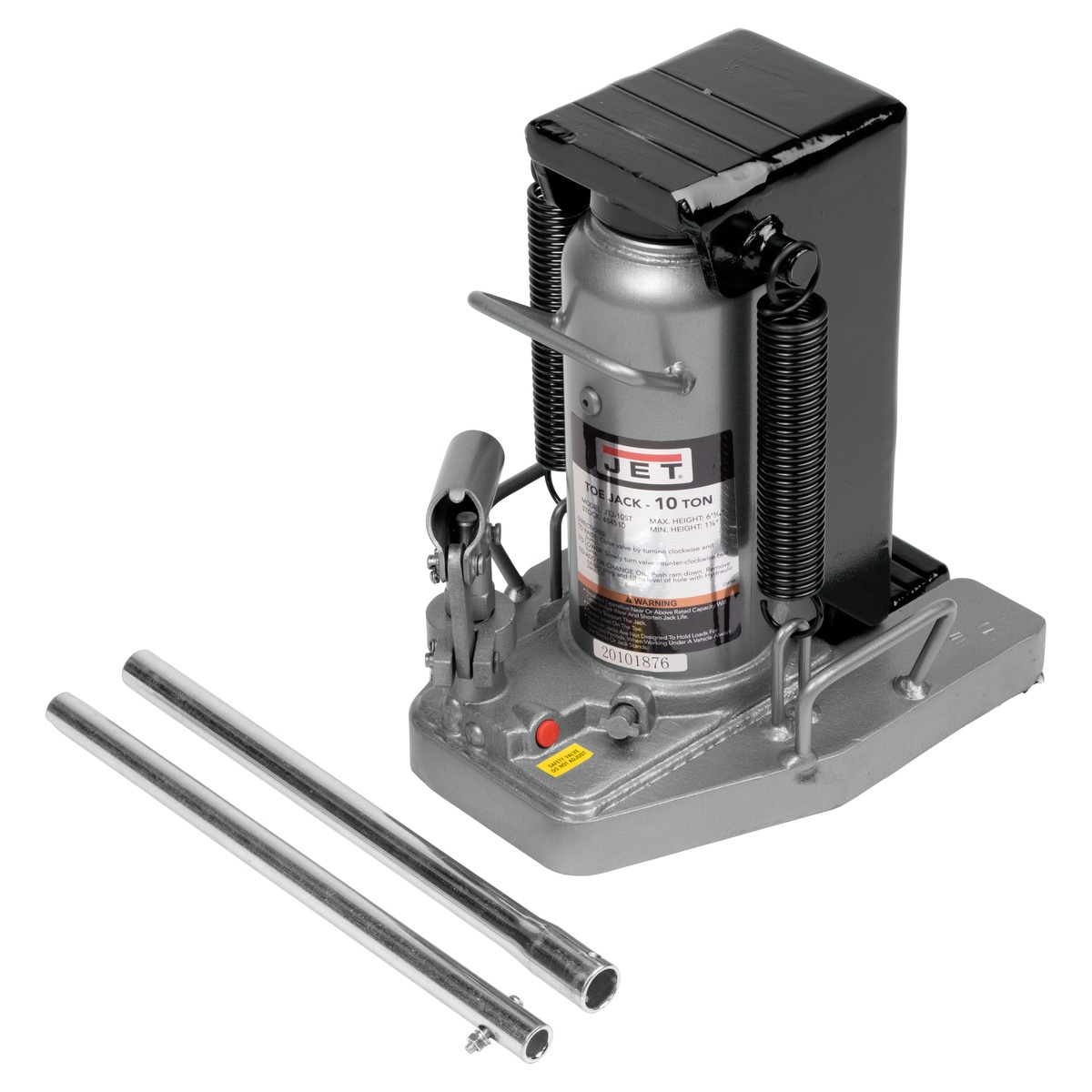

At 85.1 pounds, the Jet Tools JTJ-10ST 10 Ton Hydraulic Toe Jack is substantial. That weight is part of the tradeoff with industrial lifting gear: it is not especially portable compared to a small bottle jack, but the mass and construction are what make it suitable for demanding applications. The pump handle is included, so you have what you need to put the jack into service right away. Base dimensions are listed at about 11-1/4 by 9-1/2 inches, giving it a broad enough footprint for stability while still staying compact enough to work around machinery bases and crowded install areas.

Who should buy it? This jack makes sense for millwrights, machinery movers, industrial maintenance teams, general contractors handling equipment placement, and fabricators who regularly deal with heavy awkward loads. If your work involves lifting from low clearances, setting machinery on rollers, or making controlled corrections under load, this is the right kind of tool. If you just need to raise a passenger vehicle in a home garage, it is more jack than you need and the toe-jack design is not the point. For industrial lifting and positioning, though, this is exactly the kind of specialized tool that earns its keep.

Jet Tools JTJ-10ST 10 Ton Hydraulic Toe Jack for jobs where a regular jack is useless

This is the kind of specialized lifting tool that makes a tough machinery move feel planned instead of improvised.

• Who it's for: Millwrights, machinery movers, industrial maintenance crews, and contractors dealing with heavy loads and low clearances.
• Why it stands out: The toe lift, 14 ton head rating, welded construction, overload protection, and swivel socket make it more job-ready than a basic hydraulic jack.
• Worth knowing: It weighs 85.1 lbs, so this is a serious piece of lifting gear, not something you toss in a homeowner toolbox.

• What is the lifting capacity of this jack? The rated toe capacity is 10 tons, and the rated head capacity is 14 tons.
• What kind of work is this hydraulic toe jack designed for? It is designed for lifting heavy loads in low or high clearance situations, including machinery installation, house moving, shipyard work, bridge work, and plant construction.
• Does it include overload protection? Yes. JET lists an overload protection valve that helps prevent lifting loads past maximum capacity.
• Does it meet a recognized lifting standard? Yes. The JTJ-10ST complies with ANSI/ASME B30.1 standards.
