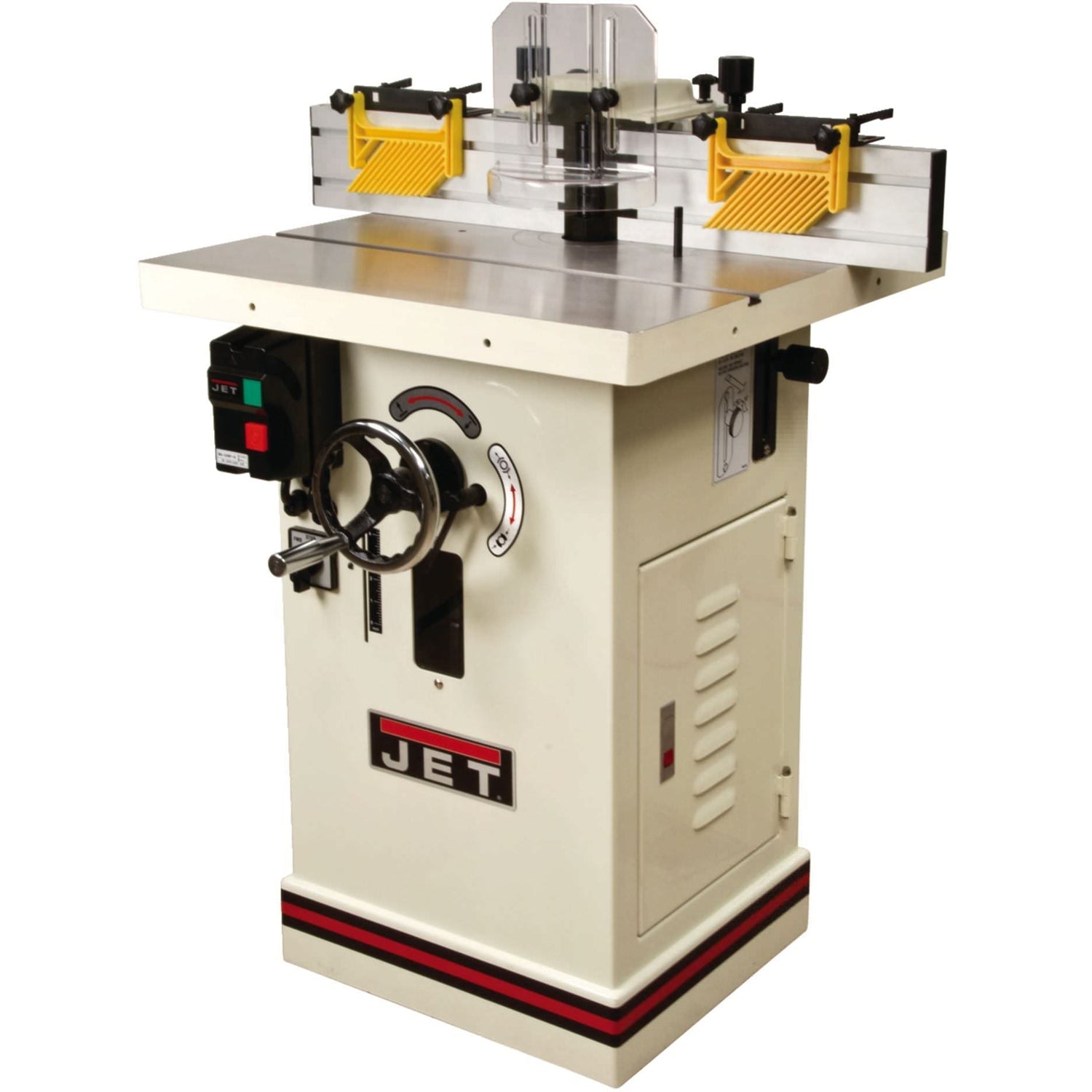

Jet 708309 JWS-25X, JET Shaper, 3HP, 1PH

Product Details

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25"x 25-1/2" precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4" dust port.

Two-speeds let you select the best speed and torque for different cutter diameters
Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
Large 25" X 25-1/2" precision ground cast iron table provides a durable work area
V-belt transfers maximum power to the spindle
Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
Reversible spindle speeds for diverse shaping jobs
Powerful 3HP, 1Ph motor with magnetic controls
Starting pins for irregular shaping
Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust collection system
Spindle lock for safe and easy cutter set up
Spindle height scale

Specifications

Spindle Speed (RPM)
7500/10000
Maximum Spindle Diameter (In.)
1/2, 3/4
Spindles Included
No
Spindle Size Under Nut (In.)
2-13/64, 3-3/16
Spindle Travel (In.)
3-1/2
Reversible
Yes
Maximum Diameter Cutter Above Table (In.)
7
Maximum Diameter Cutter Below Table (In.)
6
Table Opening Diameter (In.)
6-9/32
Table Inserts (In.)
2
Table Insert Opening Diameter (In.)
2-9/16, 4-21/64
Table Size (L x W) (In.)
25-1/2 x 25
Table T-Slot (In.)
3/4 x 3/8
Table Height from Floor (In.)
33
Fence Size (L x H) (In.)
14-1/2 x 4-3/4
Fence Travel (Major and Minor) (In.)
4-1/4, 15/16
Dust Port Outside Diameter (In.)
4
Dust Collection Minimum CFM Required (CFM)
600
Electrical Controls
Yes
Motor Power (HP)
3
Motor Phase (PH)
1
Motor Voltage (V.)
230
Prewired Voltage (V.)
230
Motor Amps
16
Height
23.0000
Length
43.0000
Weight
381.0000
Width
25.0000

Jet 708309 JWS-25X, JET Shaper, 3HP, 1PH

Name: Jet 708309 JWS-25X, JET Shaper, 3HP, 1PH
Brand: Jet Tools
SKU: 708309
Price: 3217.99 USD
Availability: InStock

Visit our Jet Tools store

708309

$3,217.99

$3,217.99 ~~$3,217.99~~

+ Free Delivery

Ships from manufacturer

Product Details

Two-speeds let you select the best speed and torque for different cutter diameters
Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
Large 25" X 25-1/2" precision ground cast iron table provides a durable work area
V-belt transfers maximum power to the spindle
Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
Reversible spindle speeds for diverse shaping jobs
Powerful 3HP, 1Ph motor with magnetic controls
Starting pins for irregular shaping
Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust collection system
Spindle lock for safe and easy cutter set up
Spindle height scale

Specifications
