Jet 716200 JDP-15B, 15" Benchtop Drill Press, 3/4HP 1PH 115V

Product Details

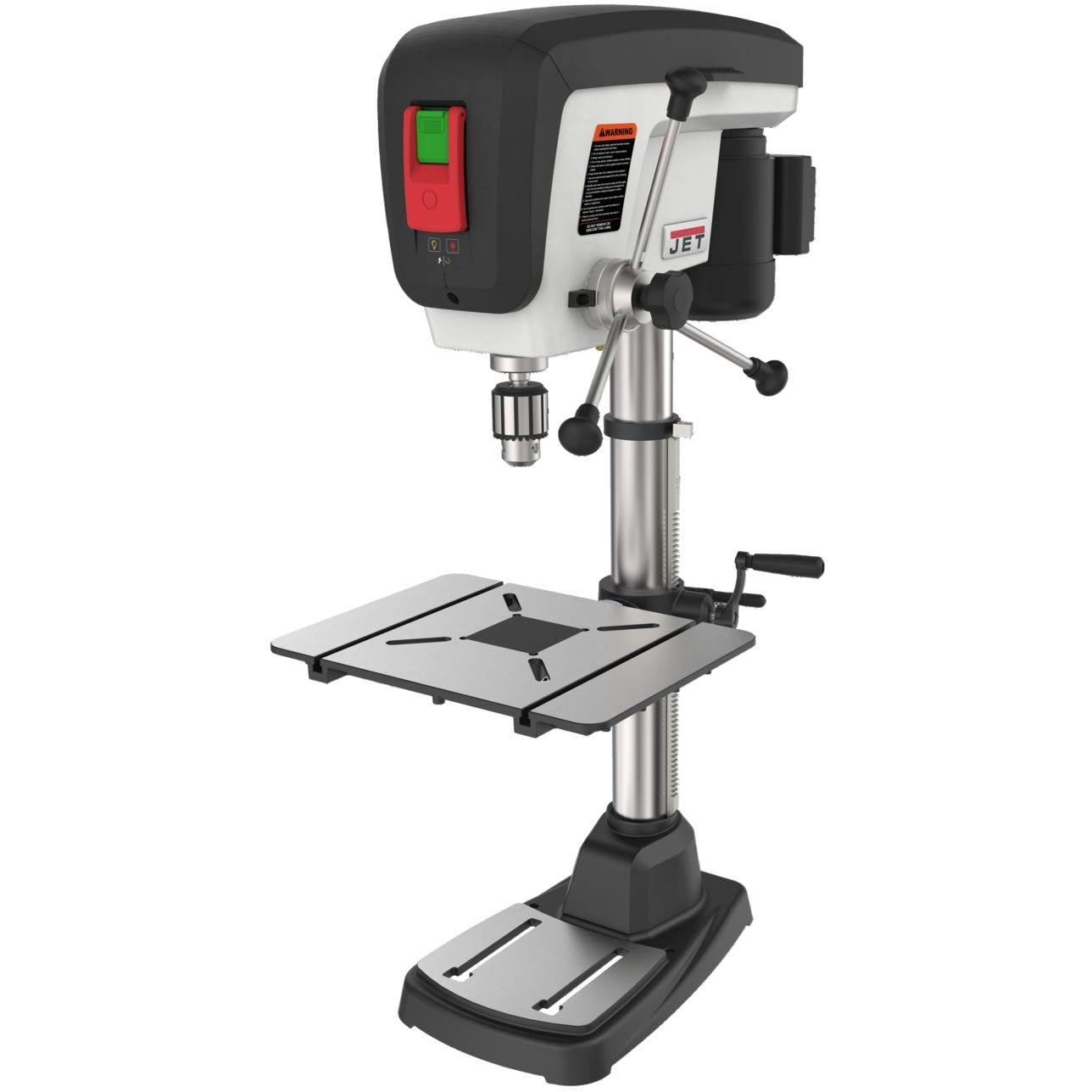

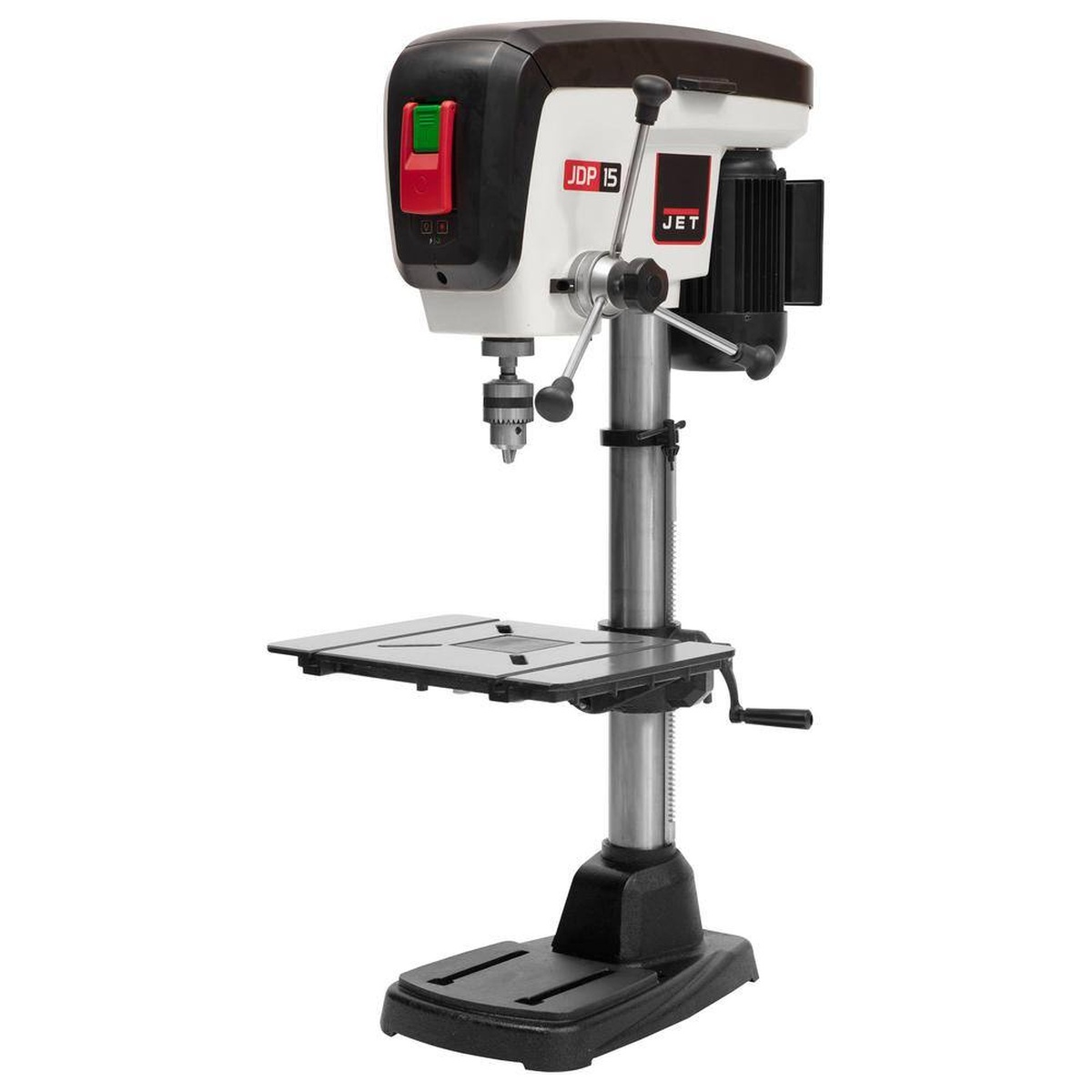

The new JET JDP-15B, 15” Benchtop Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.

Spindle travels a full 3-1/8” with one revolution of the handle
Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Integrated depth stop makes repetitive drilling quick and easy
Xacta-X laser system easily identifies the drill center
Long-lasting, built-in LED work light reduces shadows
Table edge lip designed to make clamping easy
Replaceable MDF table insert
Large cast iron base provides stability
Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
CSA Certified

Specifications

Style (Type)
Benchtop
Swing (In.)
15
Spindle Travel (In.)
3-1/8
Number of Spindle Speeds
16
Spindle Taper (In. x TPI)
Spindle Taper
MT2/JT3
Spindle Speed Range (RPM)
210 - 3500
Spindle Distance to Table (Max.) (In.)
18-5/16
Table Size (L x W) (In.)
12-1/2 x 17
Table Size Fully Extended (L x W) (In.)
Table Tilt (Deg.)
45 Left and Right
Fence Size (L x H) (In.)
Chuck Distance to Base (In.)
Chuck Distance to Table (In.)
Chuck Size (In.)
5/8
Column Diameter (In.)
2-3/4
Base Size (In.)
18 x 11-3/8
Motor Power (HP)
3/4
Motor Phase (PH)
1
Motor Voltage (V)
115
Prewired Voltage (V)
115 only
Wiring Remarks
Motor Amps
9
Recommended Circuit Size (Amps.)
Weight (Lbs.)
154

Jet 716200 JDP-15B, 15" Benchtop Drill Press, 3/4HP 1PH 115V

Name: Jet 716200 JDP-15B, 15" Benchtop Drill Press, 3/4HP 1PH 115V
Brand: Jet Tools
SKU: 716200
Price: 1429.00 USD
Availability: InStock

Visit our Jet Tools store

716200

(3)

$1,429.00

$1,429.00 ~~$1,429.00~~

+ Free Delivery

Ships from manufacturer

Product Details

Spindle travels a full 3-1/8” with one revolution of the handle
Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Integrated depth stop makes repetitive drilling quick and easy
Xacta-X laser system easily identifies the drill center
Long-lasting, built-in LED work light reduces shadows
Table edge lip designed to make clamping easy
Replaceable MDF table insert
Large cast iron base provides stability
Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
CSA Certified

Specifications
