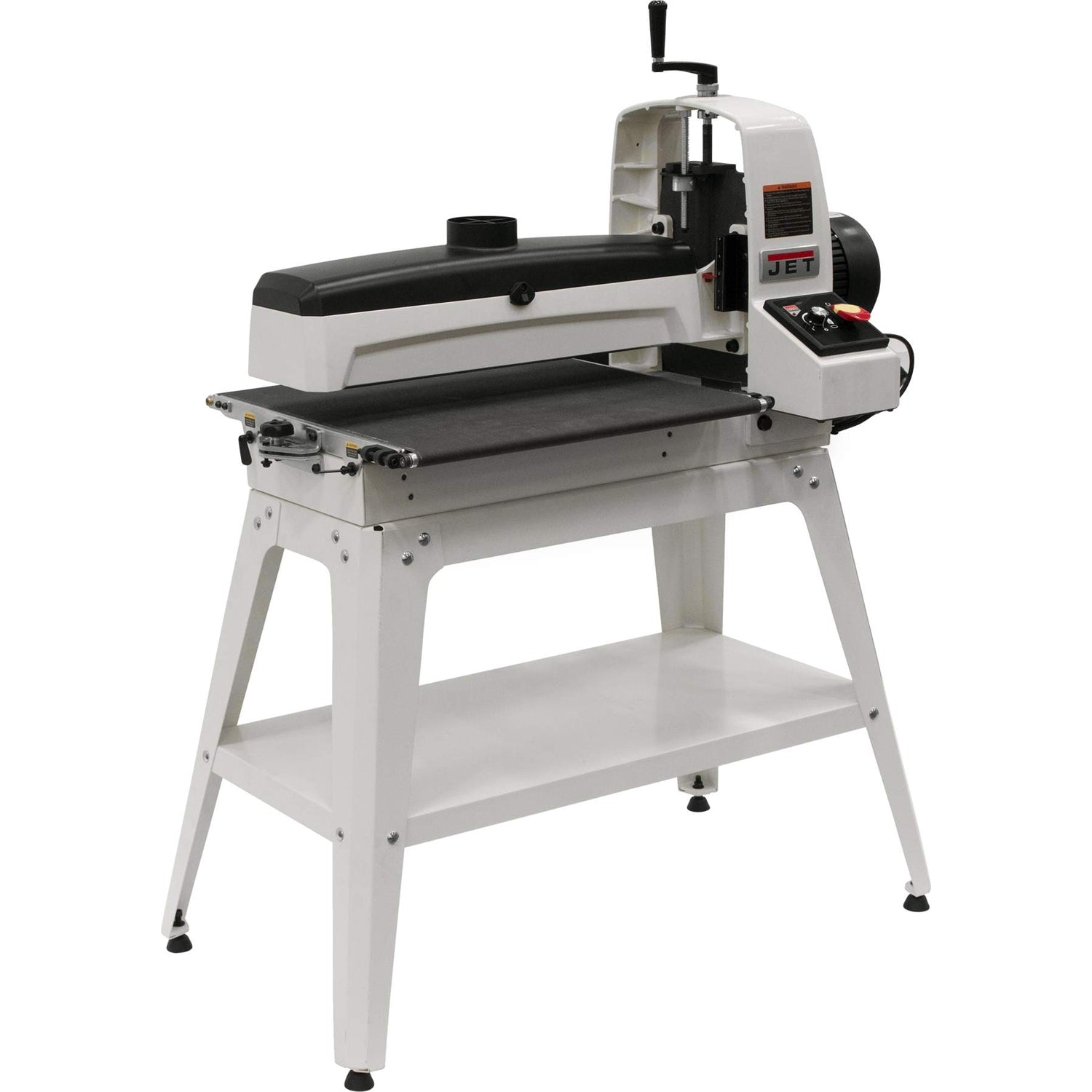

Jet 723540OSK JWDS-2244 Drum Sander With Stand is a floor-standing drum sander built for woodworkers who need consistent thickness control and cleaner finish sanding on boards, panels, and glued-up work. This is a drum sander designed for flattening and finish sanding wood stock with controlled feed and repeatable depth settings. Model Number 723540OSK. With a 1-3/4 horsepower, 15-amp motor, a 22 inch drum, and variable feed speed up to 10 feet per minute, it is aimed at the shop user who wants smoother results than handheld sanding can deliver.

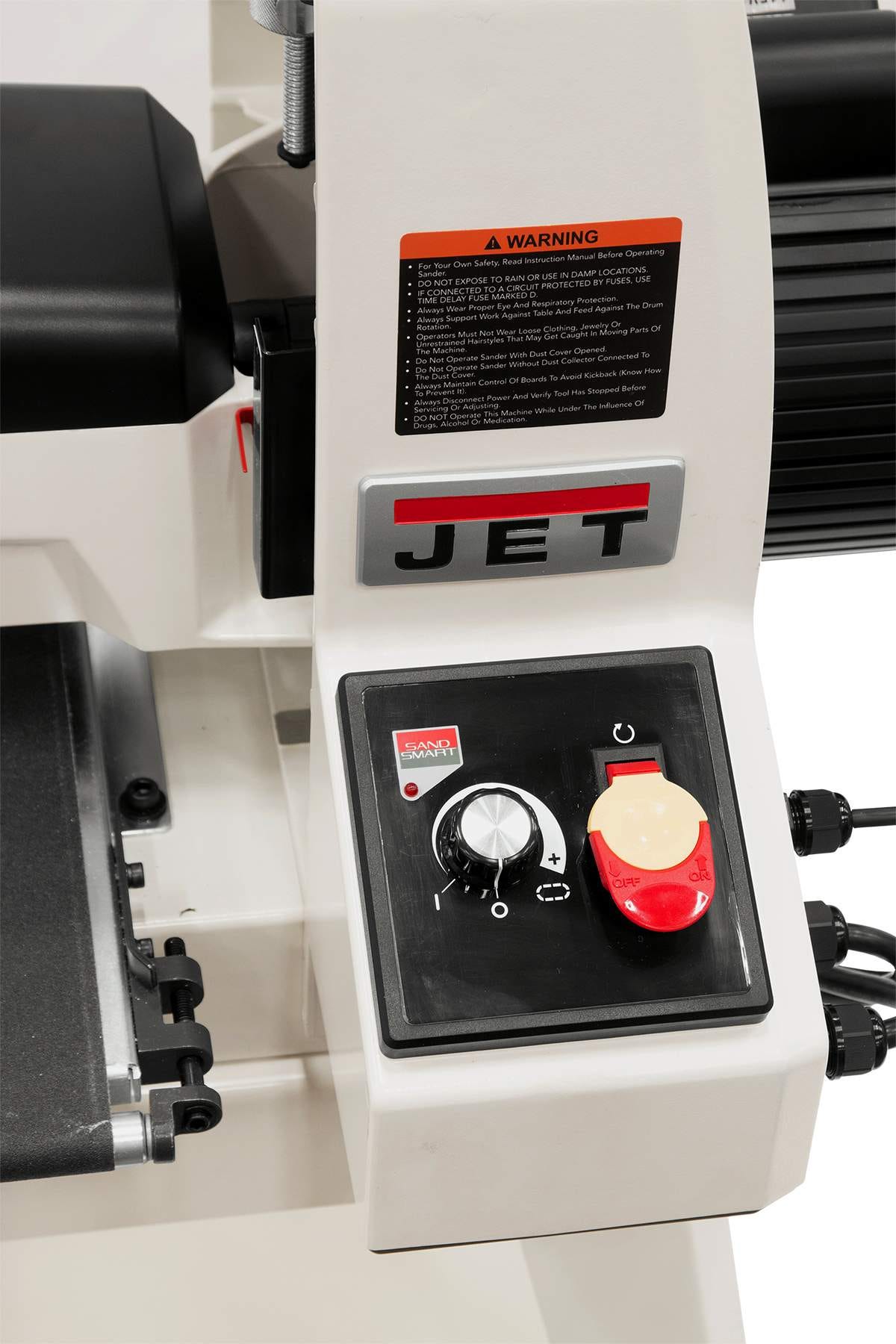

The big selling point here is control. JET's Sandsmart system continuously monitors drum load and automatically adjusts conveyor speed to maintain feed rate without pushing the machine into overload. In real use, that matters because drum sanders work best with measured, repeatable passes, not brute force. Instead of guessing and risking burn marks, stalling, or inconsistent finish quality, the machine helps keep the cut steady as material density changes across the board.

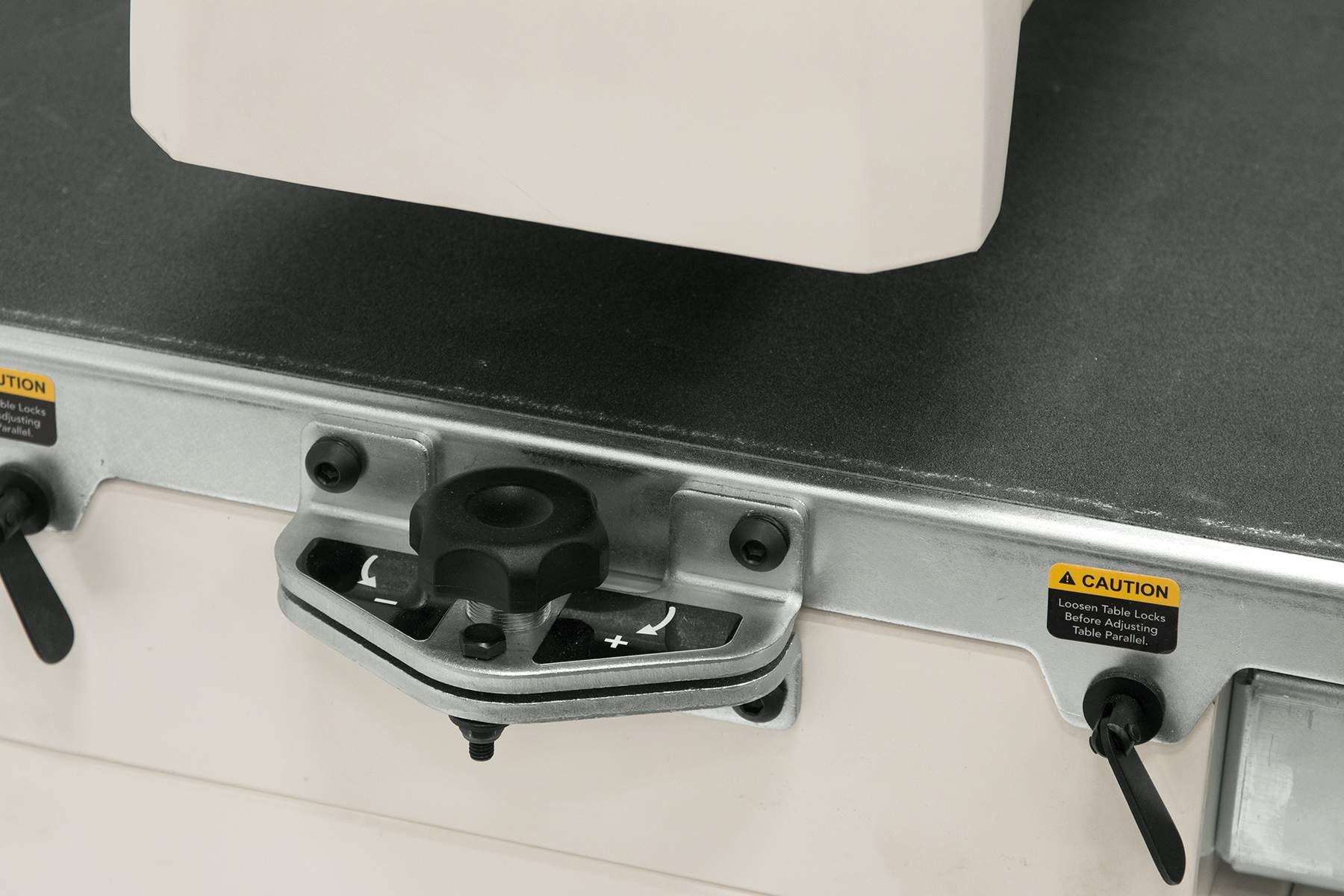

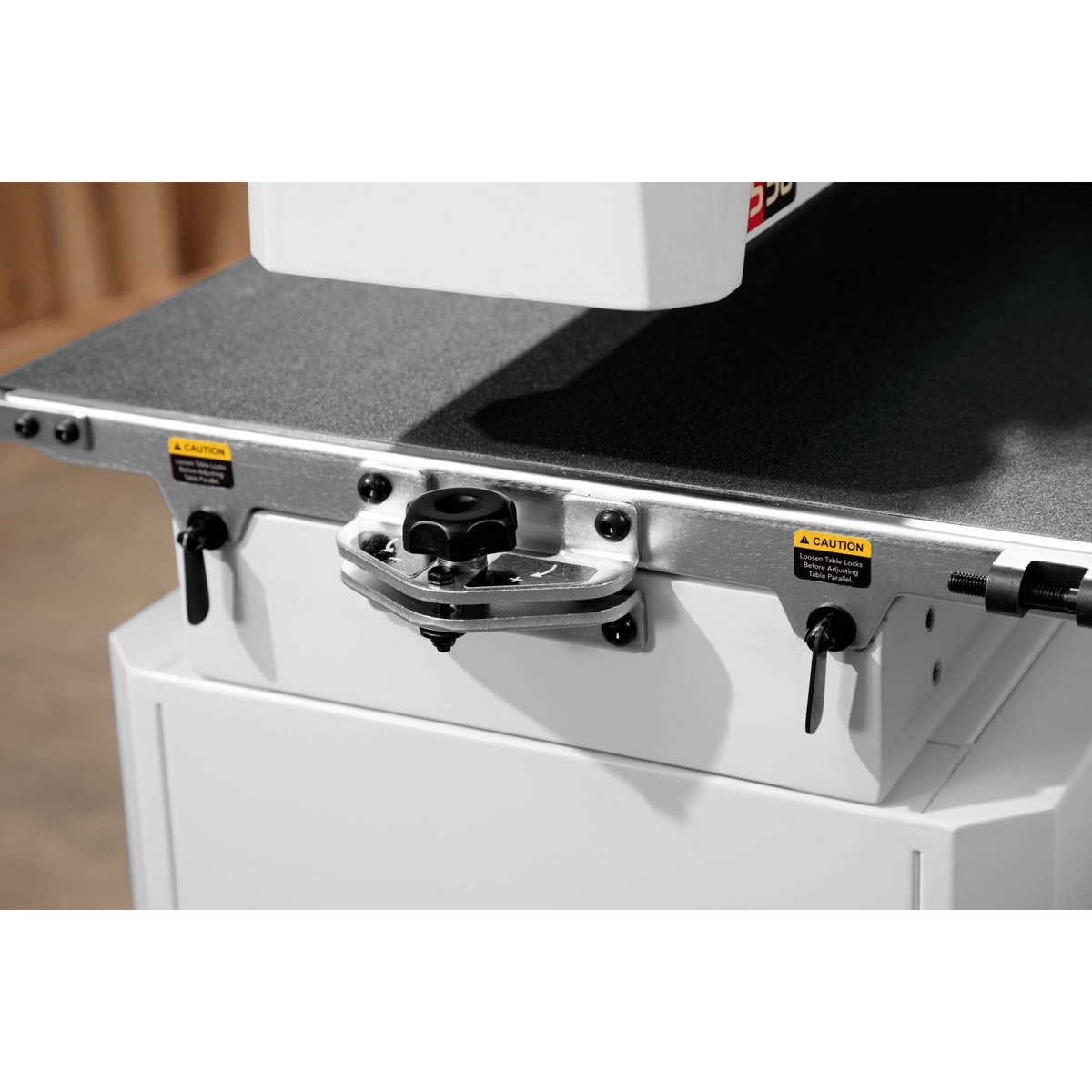

The parallelism setup is also better thought out than on many machines in this class. The conveyor bed parallelism is adjusted by an external dial, so you are not digging around with tools every time you need to fine-tune the bed. There is also a stop on the parallelism adjust dial that lets you return the conveyor bed to a flat position quickly. If you do repeat work, or you swap between stock widths and need to verify your setup often, that saves real time.

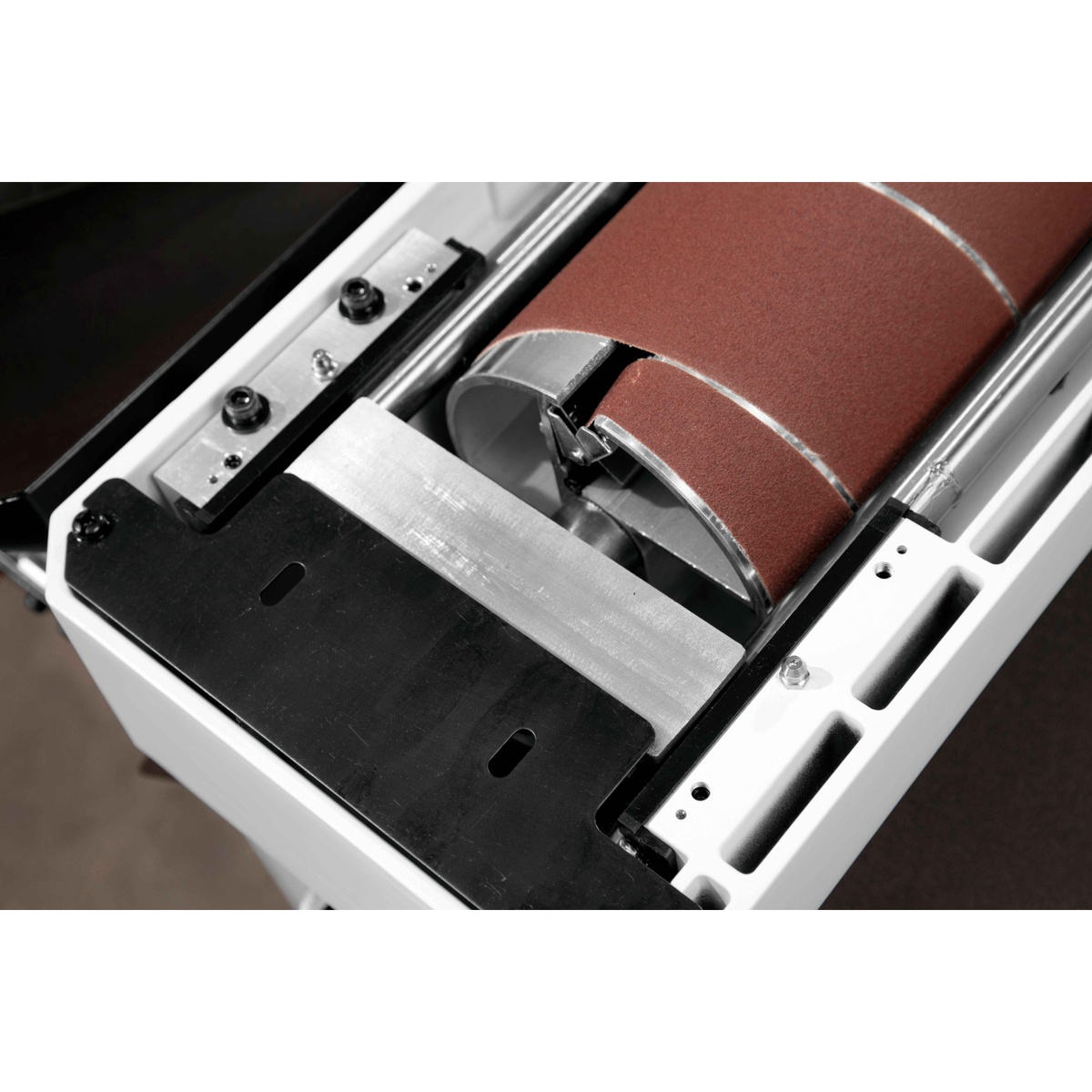

JET gave this machine the kind of construction details that matter in a stationary woodworking tool. The conveyor bed is precision-flattened and reinforced steel for a solid platform under the workpiece. The drum is precision-machined, dynamically balanced, and made from extruded aluminum to dissipate heat better and help protect the work surface from heat damage. That is not just brochure talk. Heat management and drum balance both play a direct role in finish quality, abrasive life, and how much cleanup sanding you need afterward.

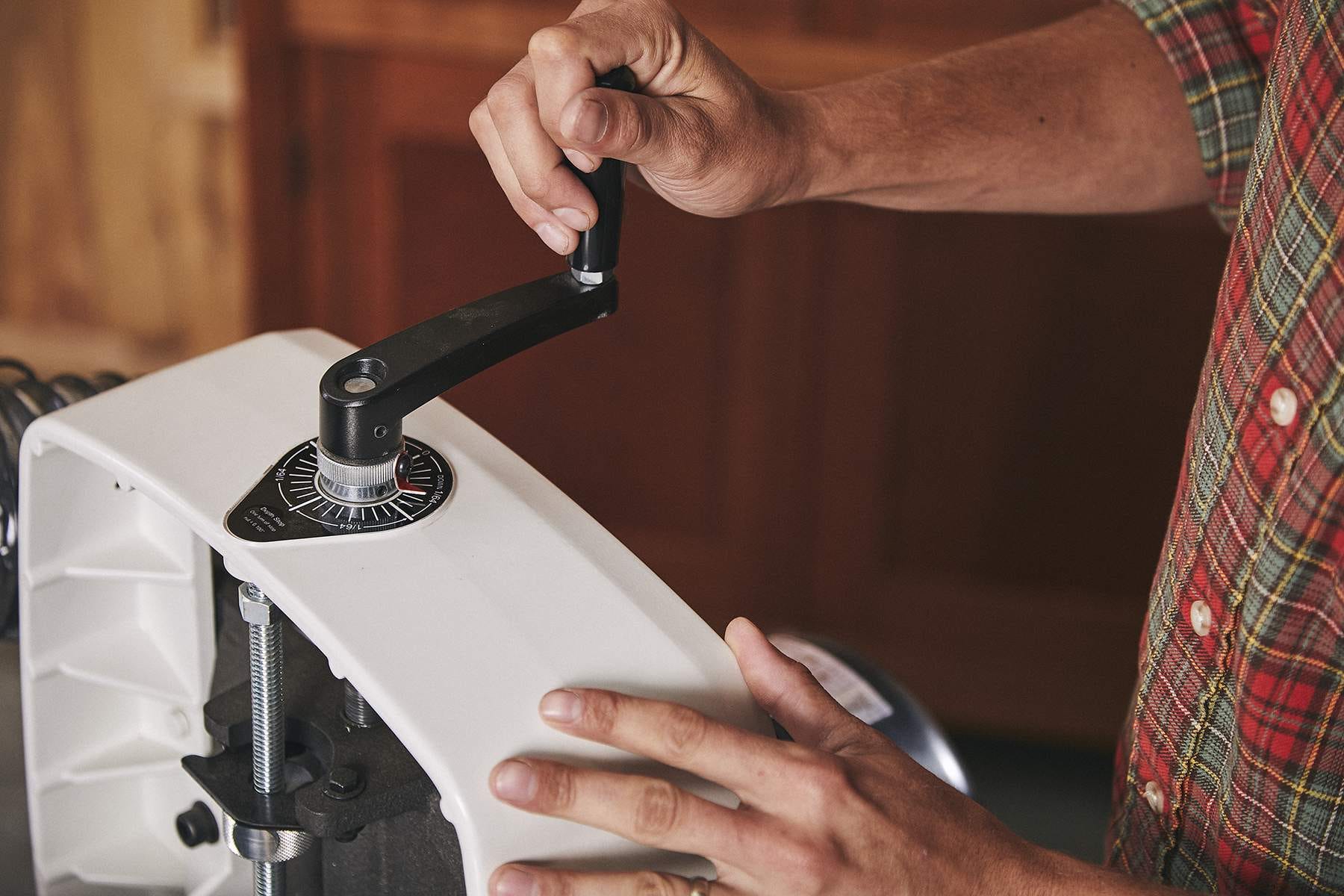

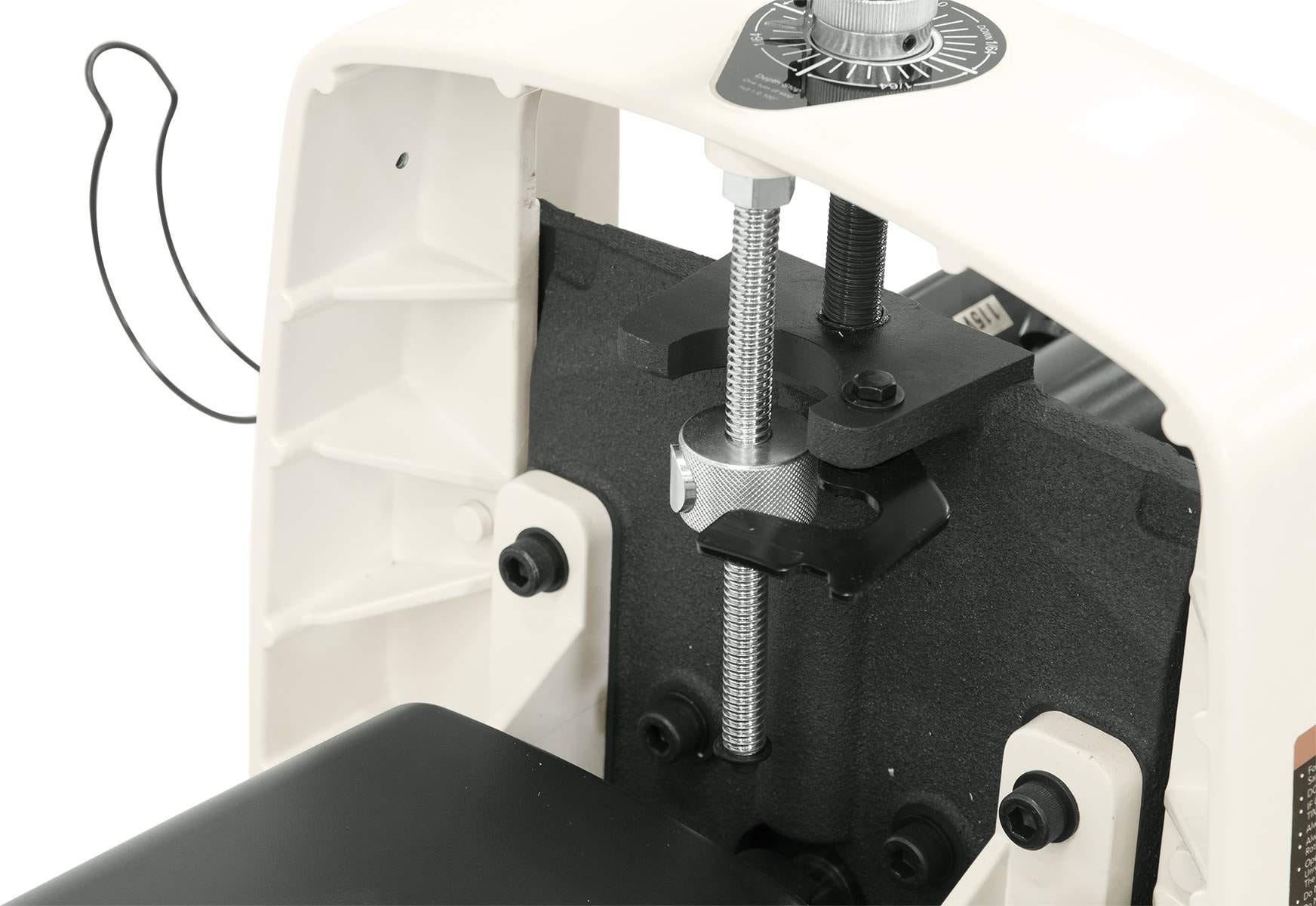

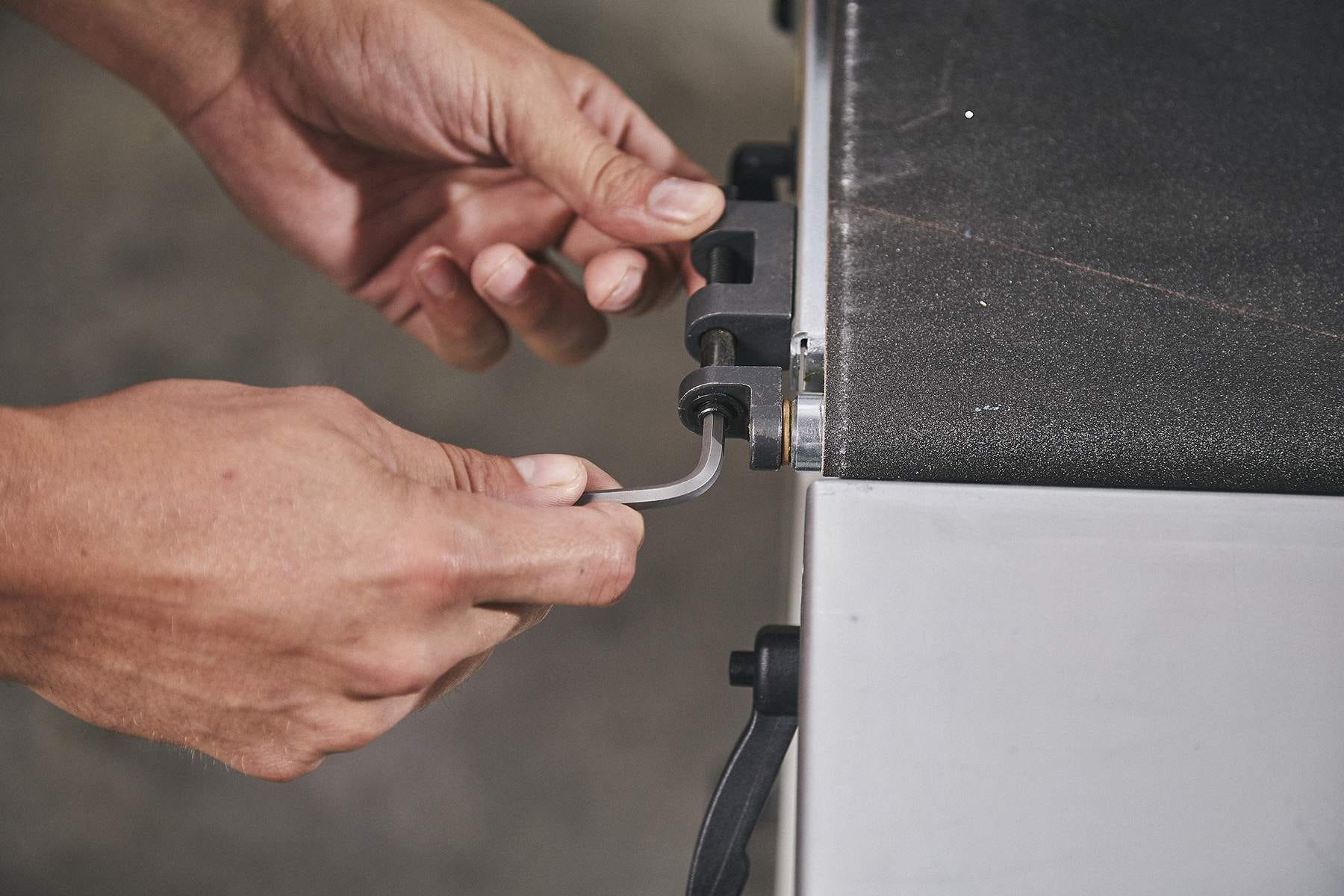

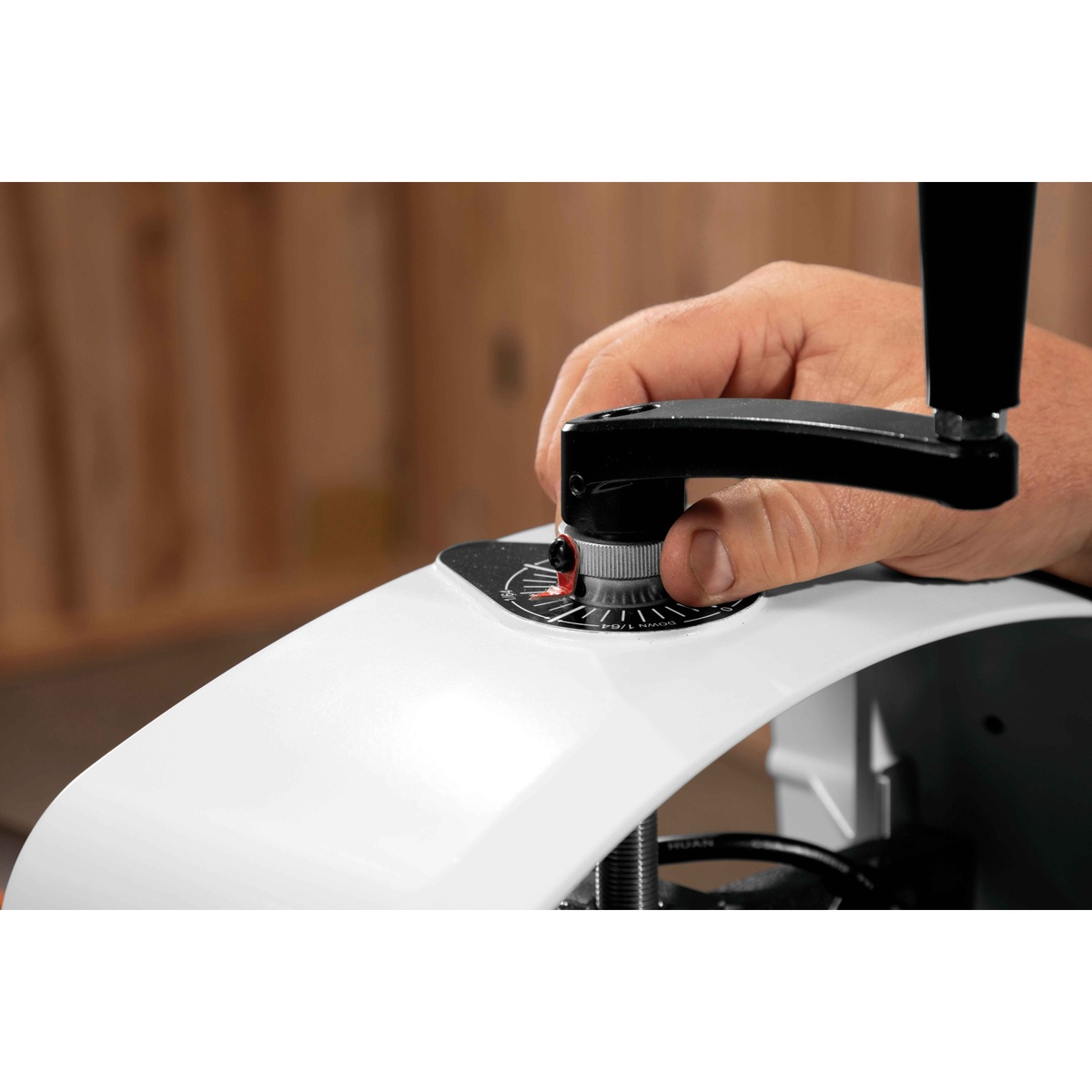

Jobsite portability is not the point here, but shop practicality definitely is. The redesigned conveyor system pulls the workpiece through the sander instead of pushing it, which helps keep stock moving more predictably. Adjustable tension rollers help virtually eliminate snipe by applying downward pressure to the workpiece. Conveyor belt trackers reduce how often you need to mess with belt alignment. One full rotation of the top-mounted handwheel changes drum height by 1/16 inch, and the relative depth scale helps you reset settings from project to project without starting from scratch.

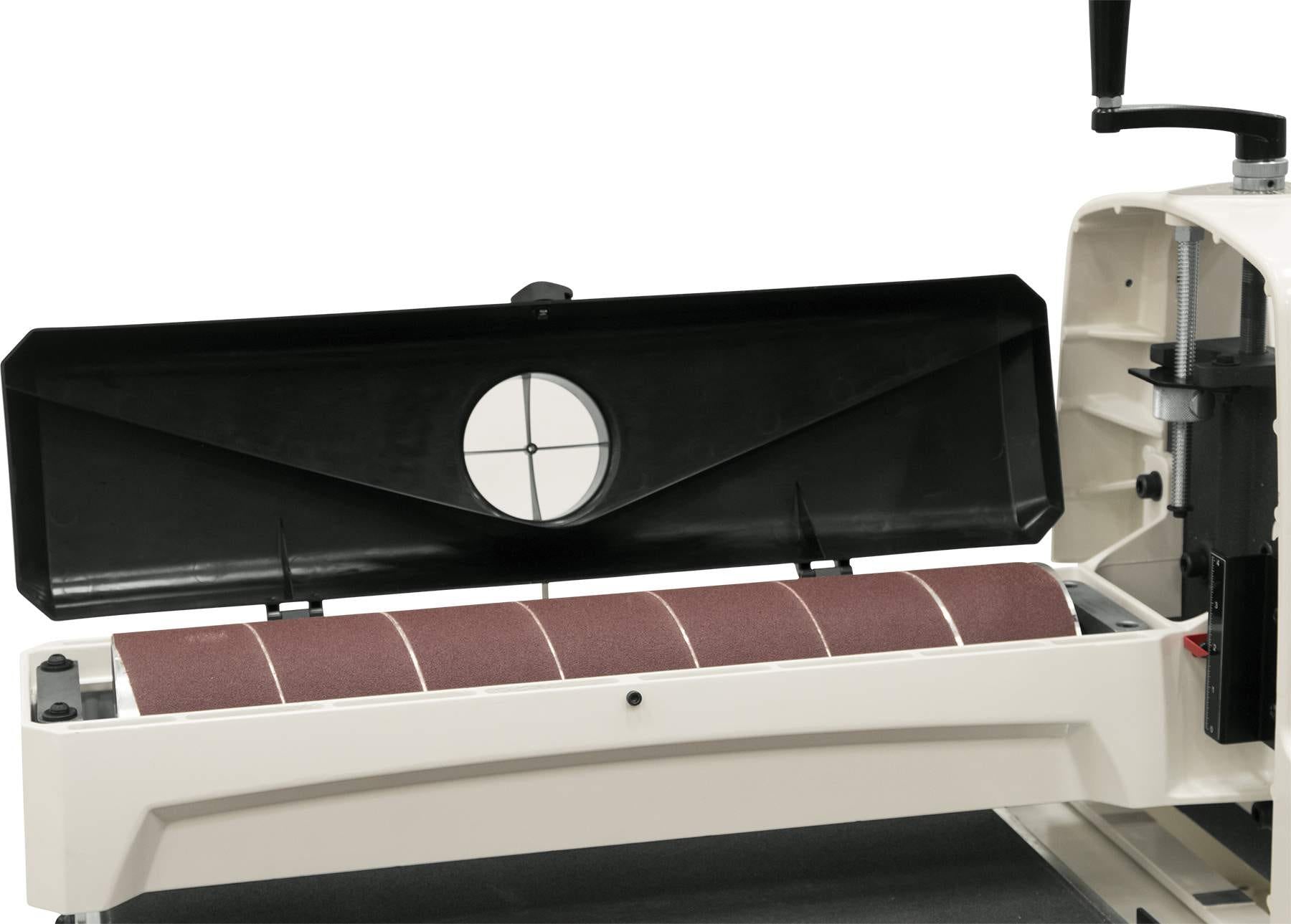

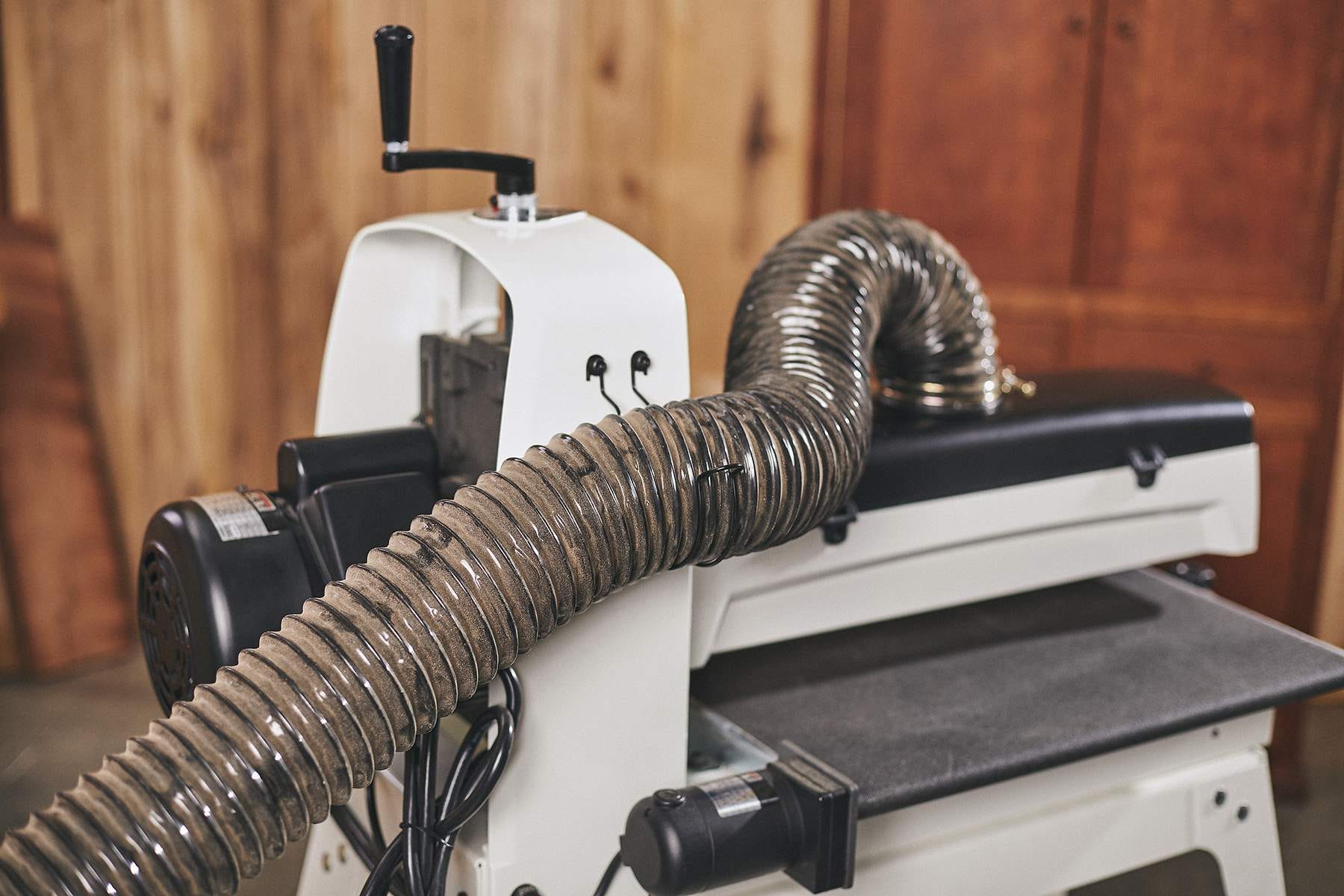

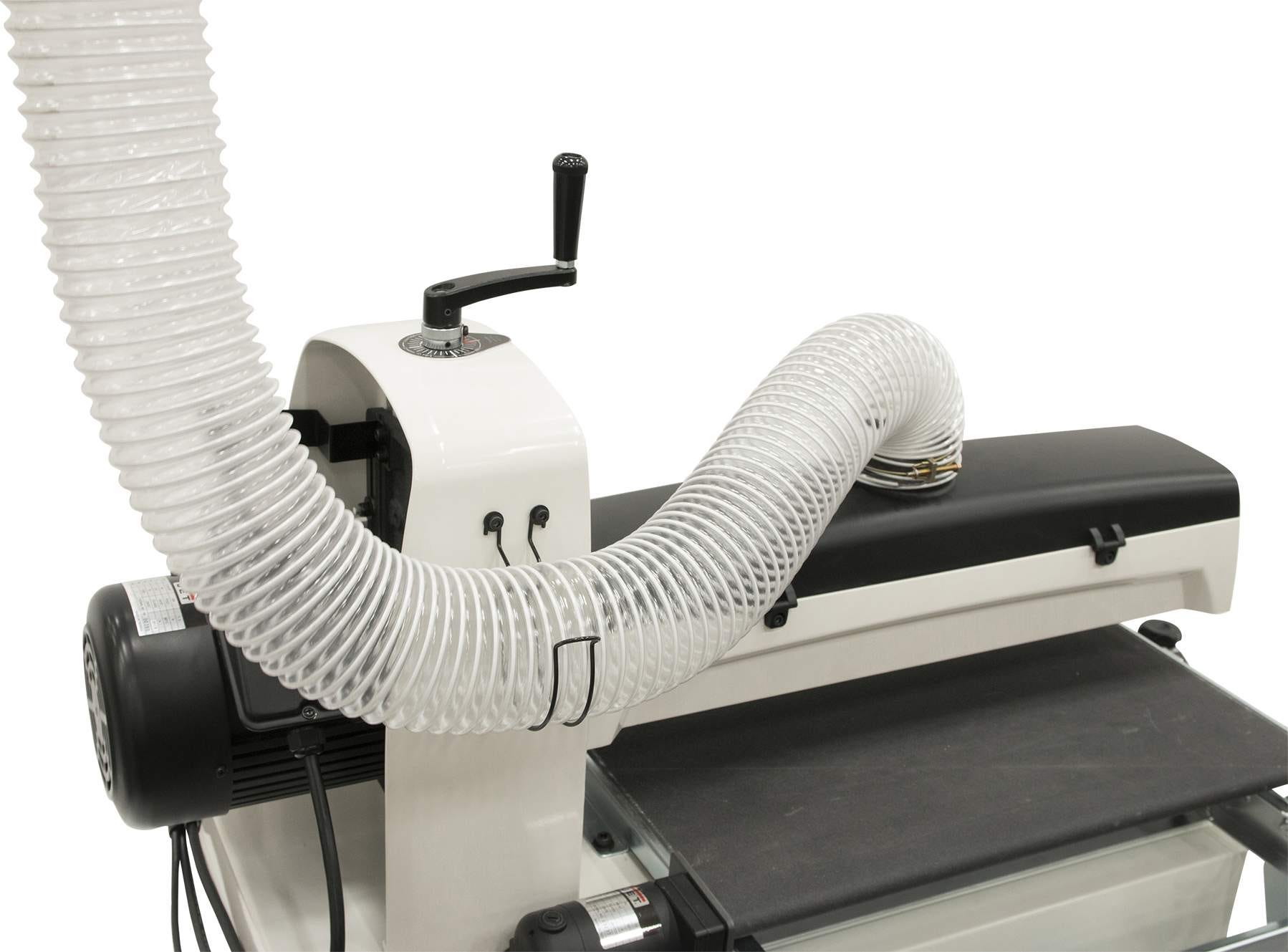

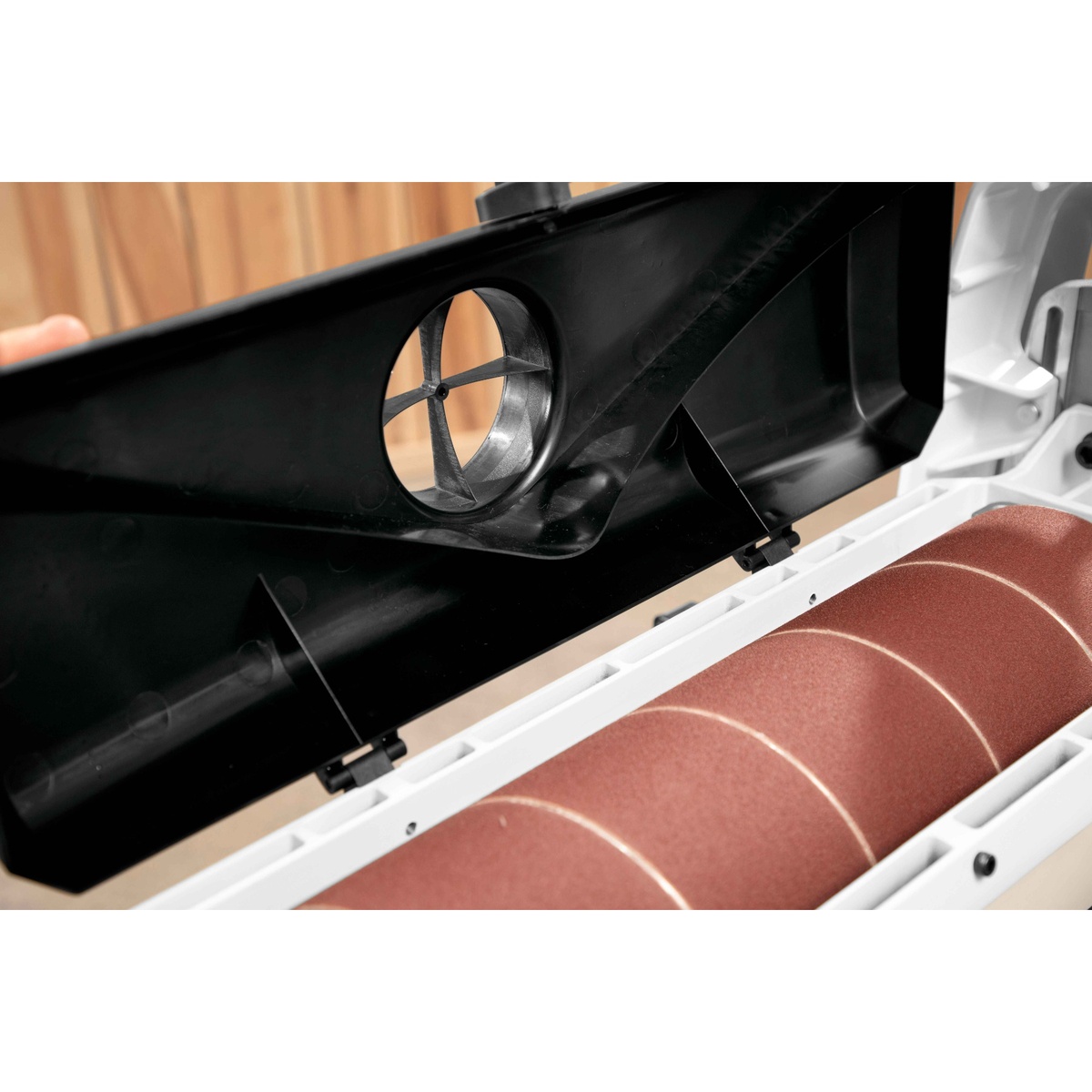

Dust collection is another strong part of this machine. The mirrored dust hood is shaped to direct chips and fine sanding dust toward the 4 inch collection port instead of letting buildup ride between the drum and the workpiece. On a drum sander, good dust pickup is not just about keeping the shop cleaner. It helps surface quality too, because trapped debris can leave marks that force extra passes or extra hand sanding later.

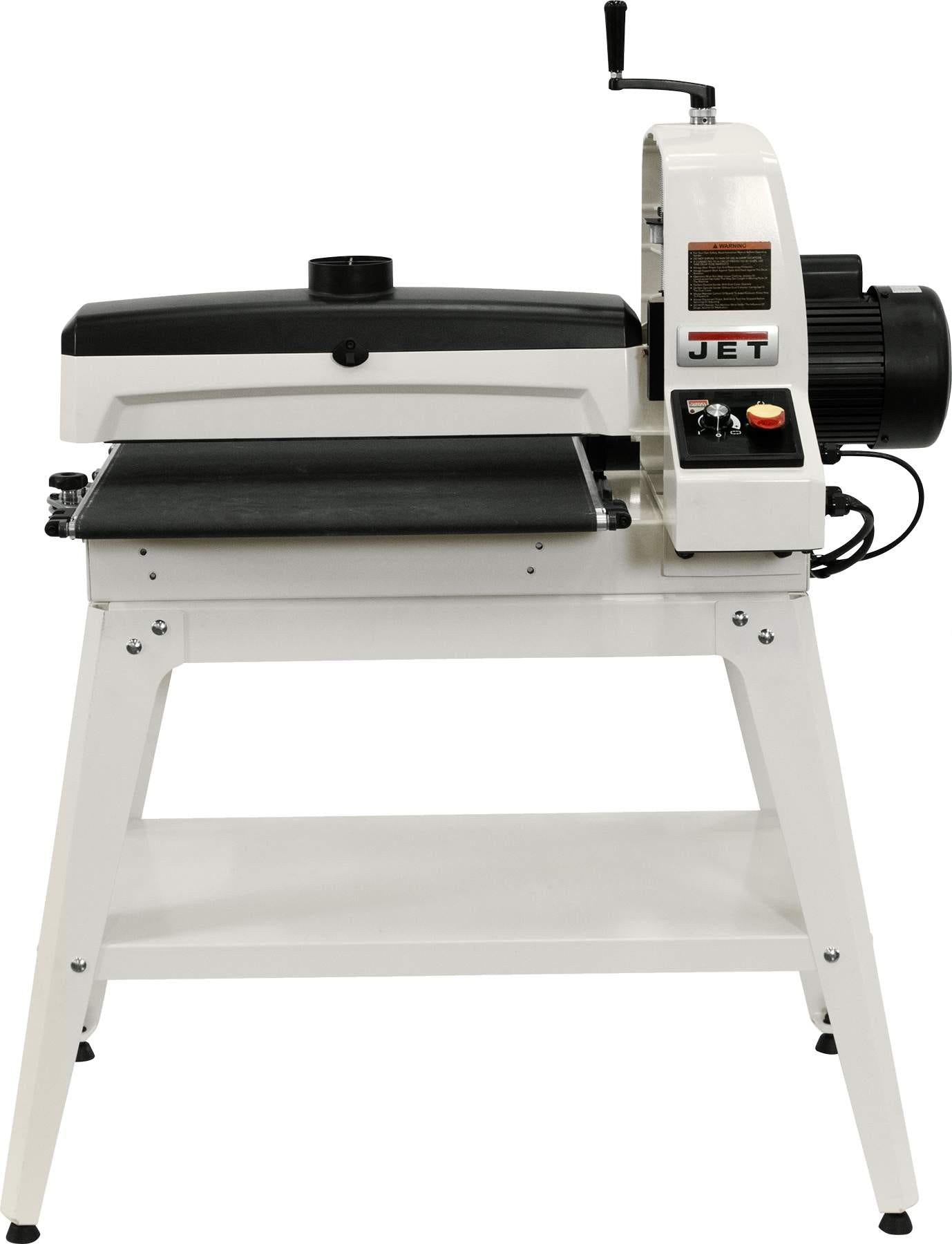

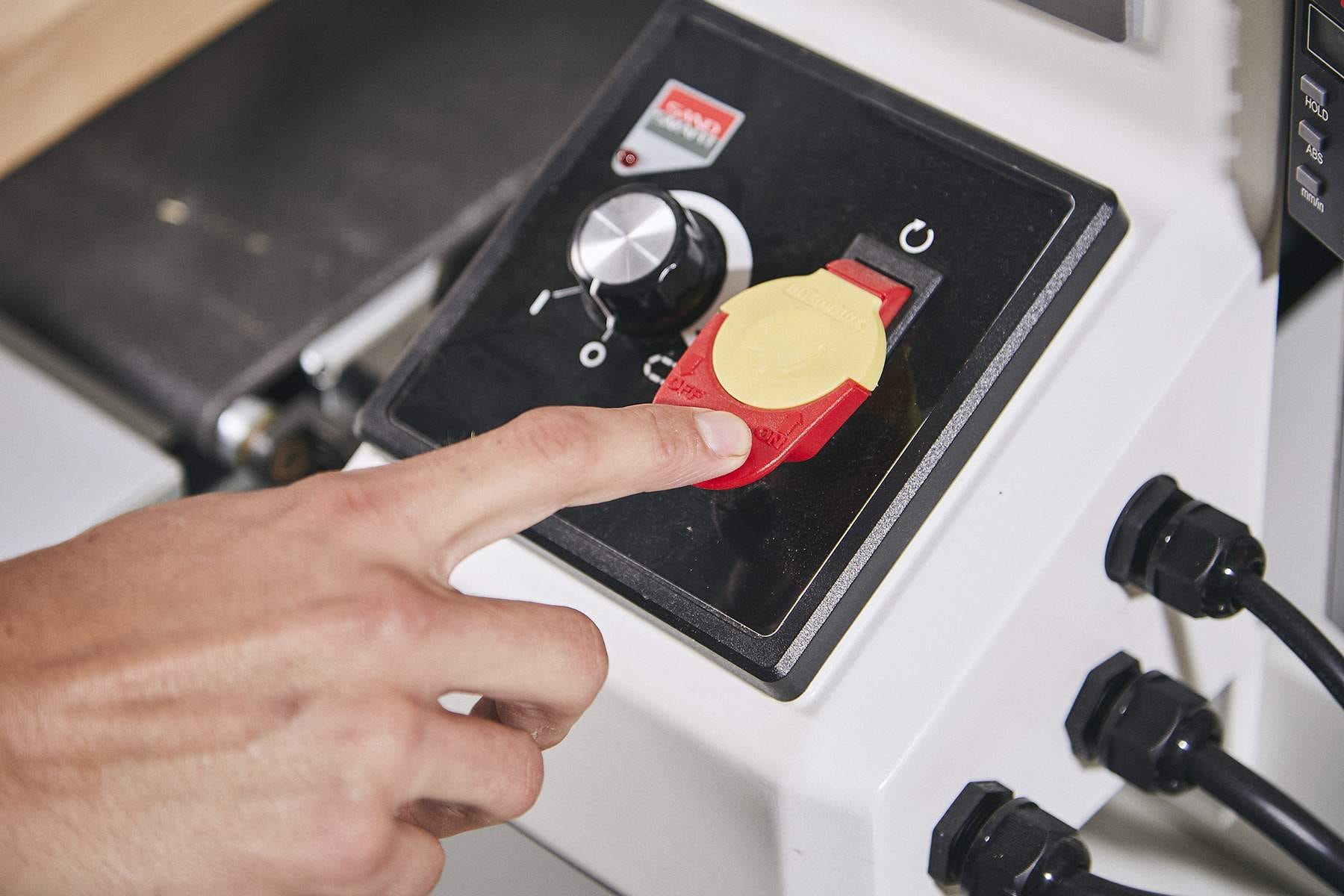

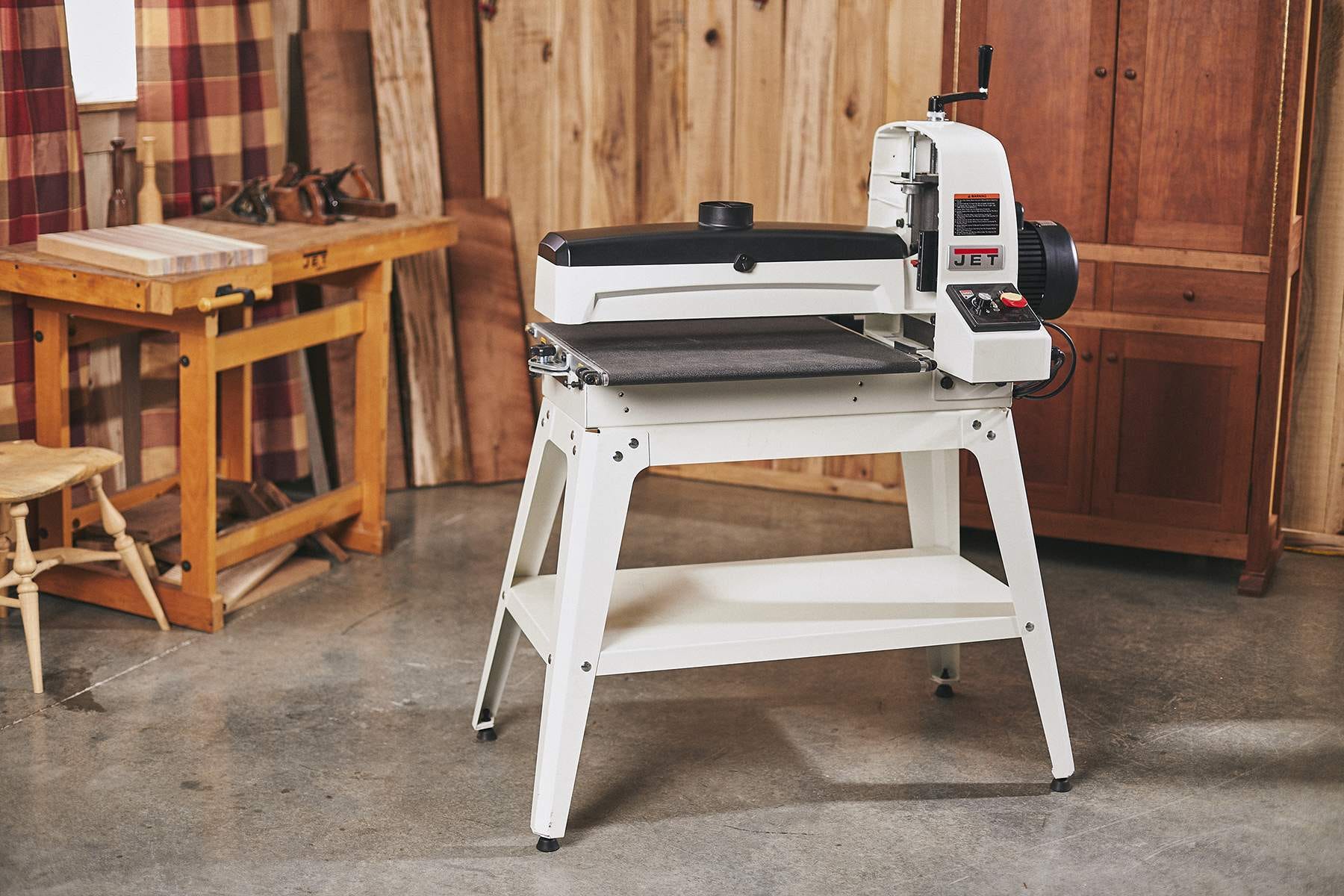

The included stand makes this a complete floor-standing setup rather than a benchtop compromise. It has a 23-1/4 inch by 41-3/4 inch footprint for stability, plus a storage shelf and pre-drilled holes for casters if you want to build in mobility around the shop. Separate feed and drum motors allow independent control, which is one of those details that makes the whole machine feel more deliberate and better tuned for actual woodworking instead of simply being powered enough.

If you are building furniture, flattening cutting boards, sanding panels, or bringing glued-up material to a more uniform thickness before final finishing, this JET sander makes a lot of sense. It is especially well suited for serious hobbyists, custom furniture builders, cabinet shops, and small professional woodworking operations that want better consistency, less hand sanding, and a machine that is easier to dial in than older drum sanders.

Why the Jet 723540OSK JWDS-2244 Drum Sander With Stand Earns Its Floor Space

This is the kind of machine that makes sense the minute you are tired of trying to get thickness consistency and finish quality out of a random orbit sander.

• Who it's for: Woodworkers, cabinet makers, and furniture builders who need flatter stock, more consistent thickness, and less cleanup sanding.
• Why it stands out: The Sandsmart load control, tool-free parallelism adjustment, balanced aluminum drum, and well-designed dust hood all solve real drum sander headaches.
• Worth knowing: This is a stationary shop machine at 216 pounds, so plan your space around it. The stand helps, and the pre-drilled caster holes are a smart touch if your layout changes often.

• What type of tool is this? This is a floor-standing drum sander for sanding and thickness control on wood boards, panels, and similar workpieces.
• How much material can it handle? The JWDS-2244 has a maximum board thickness of 4 inches and a minimum board thickness of 1/32 inch.
• Does it have variable feed speed? Yes. Feed speed is infinitely variable up to 10 feet per minute.
• What size dust collection connection does it use? It uses a 4 inch dust port outside diameter.
• Does it help prevent motor overload? Yes. Sandsmart monitors drum motor load and automatically regulates conveyor speed to maintain feed rate without overload.
