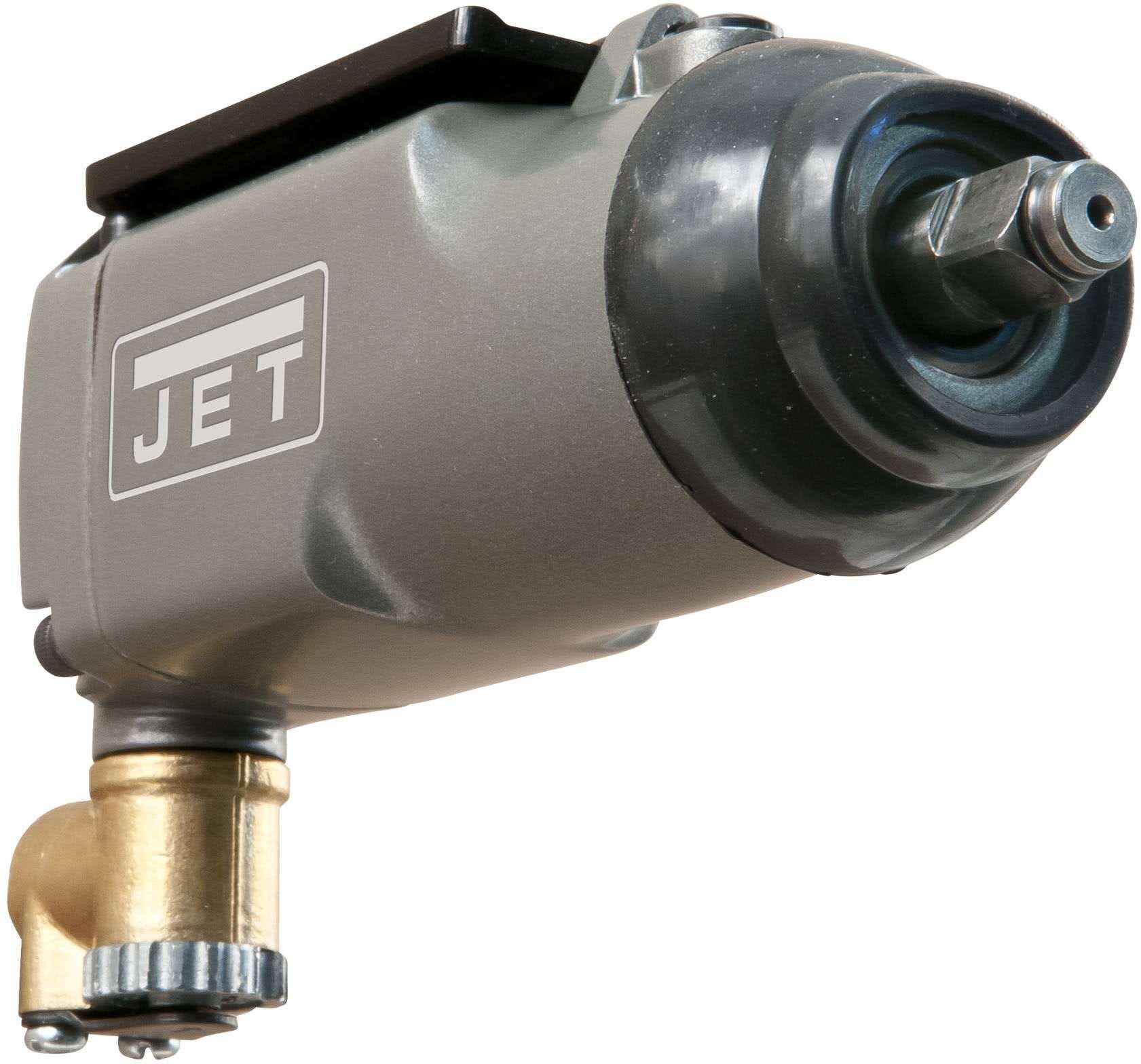

Jet Tools 505100 JAT-100, 3/8" Butterfly Impact Wrench

Product Details

Durable, quality tools that can withstand frequent and rigorous applications, the R6 Series can handle 6 hour workdays and get the job done.

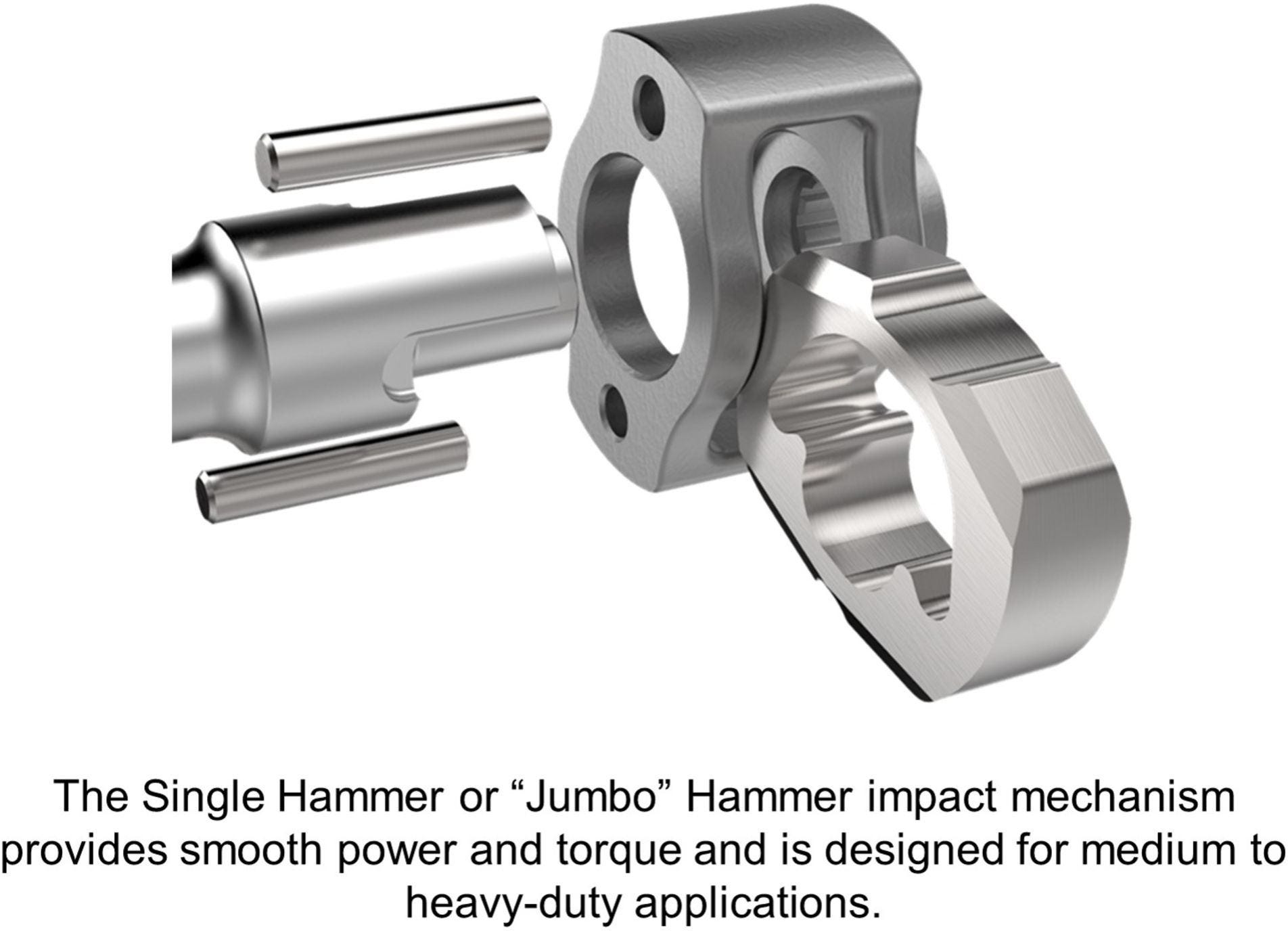

Single Hammer impact mechanism for smooth power and torque
Compact design for cramped spaces
Variable-speed throttle lets you adjust speed smoothly
Lightweight aluminum construction reduces weight
360° swivel brass air inlet
Built-in multi-position regulator
Performace @ 90 PSI. Air Inlet NPT 1/4". Min Hose Size 3/8"

Specifications

Classification
R 6
Square Drive (In.)
3/8
Working Torque (Ft.) (Lbs.)
5-50
Max Torque @ 5 Seconds (Ft.) (Lbs.)
Max Torque (Ft.) (Lbs.)
75
Maximum Break Away Torque (Ft.) (Lbs.)
Free Speed (RPM)
12,000
Blows Per Minute (BPM)
700
Impact Mechanism / Clutch Type
Single Hammer
Bolt Capacity (In.)
3/8
Anvil Retainer Type
Ring
Air Inlet (NPT/In.)
1/4
Air Hose (ID/In.)
3/8
Air Pressure (PSI)
90
Air Consumption (CFM)
3
Sound Pressure (db) (A)
110
Sound Power (db) (A)
114
Vibration Value (m/s)
13.4
Overall Length (In.)
5-7/8
Weight (Lbs.)
2

Jet Tools 505100 JAT-100, 3/8" Butterfly Impact Wrench

Name: Jet Tools 505100 JAT-100, 3/8" Butterfly Impact Wrench
Brand: Jet Tools
SKU: 505100
Price: 126.99 USD
Availability: InStock

Visit our Jet Tools store

505100

$126.99

$126.99 ~~$126.99~~

Ships from manufacturer - Christmas Delivery Map

Product Details

Durable, quality tools that can withstand frequent and rigorous applications, the R6 Series can handle 6 hour workdays and get the job done.

Single Hammer impact mechanism for smooth power and torque
Compact design for cramped spaces
Variable-speed throttle lets you adjust speed smoothly
Lightweight aluminum construction reduces weight
360° swivel brass air inlet
Built-in multi-position regulator
Performace @ 90 PSI. Air Inlet NPT 1/4". Min Hose Size 3/8"
