Klein KNECT Quad-4 Heavy-Duty Impact Flip Socket, SAE, 2 Pieces (6513QS)
Klein KNECT Quad-4 Heavy-Duty Impact Flip Socket, SAE, 2 Pieces (6513QS)
Out of Stock - Available to Order - Usually ships in 15-20 days
Product Details
Product Details
Key Features
Overview
The Klein Tools KNECT Quad-4 Heavy-Duty Impact Flip Socket, SAE, 2-Piece (6513QS) combines four large SAE sizes in one socket. This is a heavy-duty impact flip socket designed for driving 3/4", 13/16", 7/8" and 1" fasteners, sizes that come up constantly on utility, structural and equipment hardware.

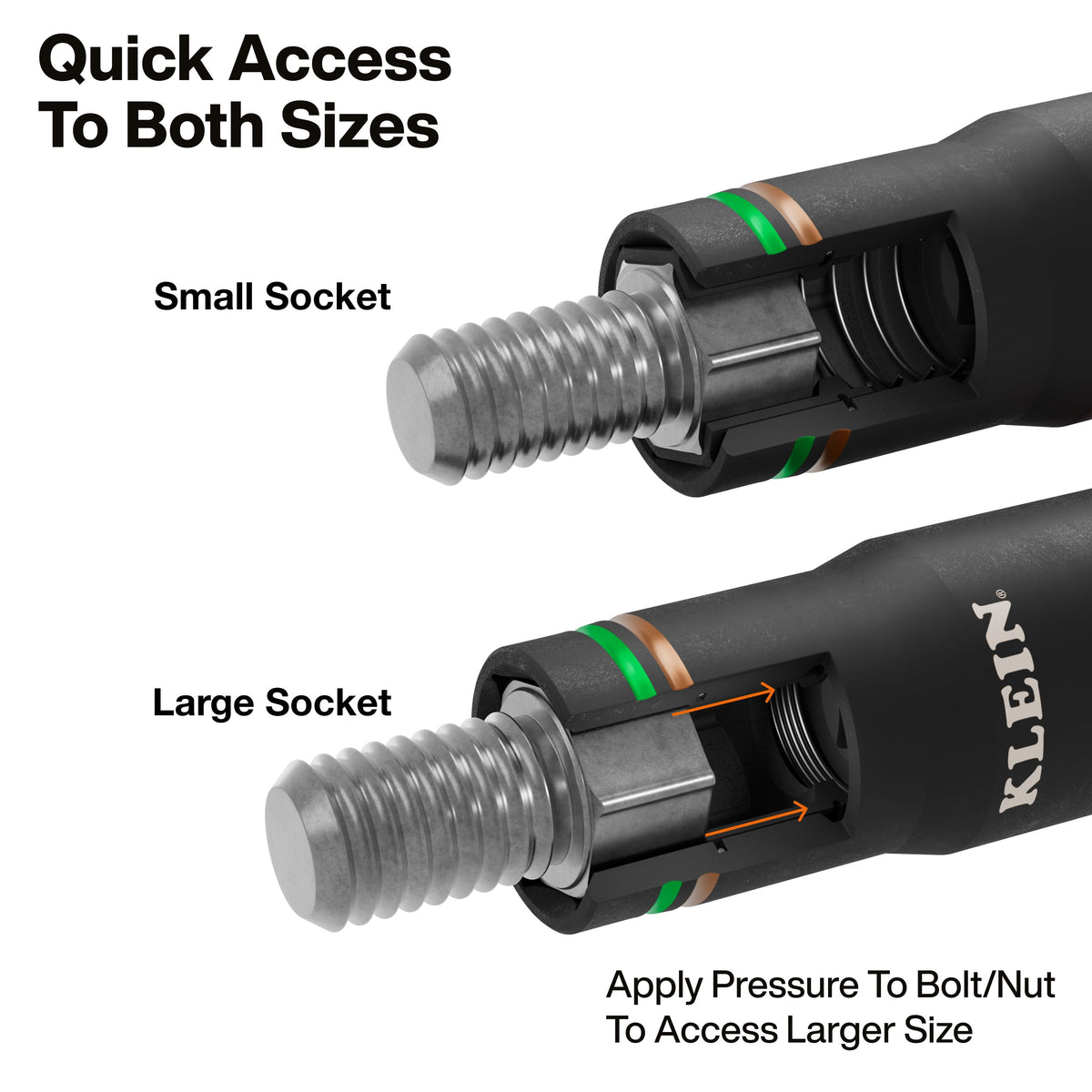

Access 3/4" and 7/8" on one end, then flip to use 13/16" and 1". The smaller socket of each pair is spring-loaded and compresses out of the way under pressure, so the larger hex engages without swapping sockets.
A multi-purpose adapter is included for Klein's KNECT (M) system, so the socket can run on a KNECT pass-through socket wrench or screwdriver as well as an impact. Use the impact where you have room and the pass-through wrench where you need to work down a long threaded rod.
The 3/8" drive socket is heat-treated cold forged steel with a manganese phosphate finish and a deep well that reaches over extended threads. Industry-standard painted color rings mark each size. It measures about 1-3/8" (3.5 cm) across and 4-1/2" (11.4 cm) tall.
Who should buy it: linemen, utility crews, mechanical contractors and anyone who reaches for 3/4" through 1" sockets daily.

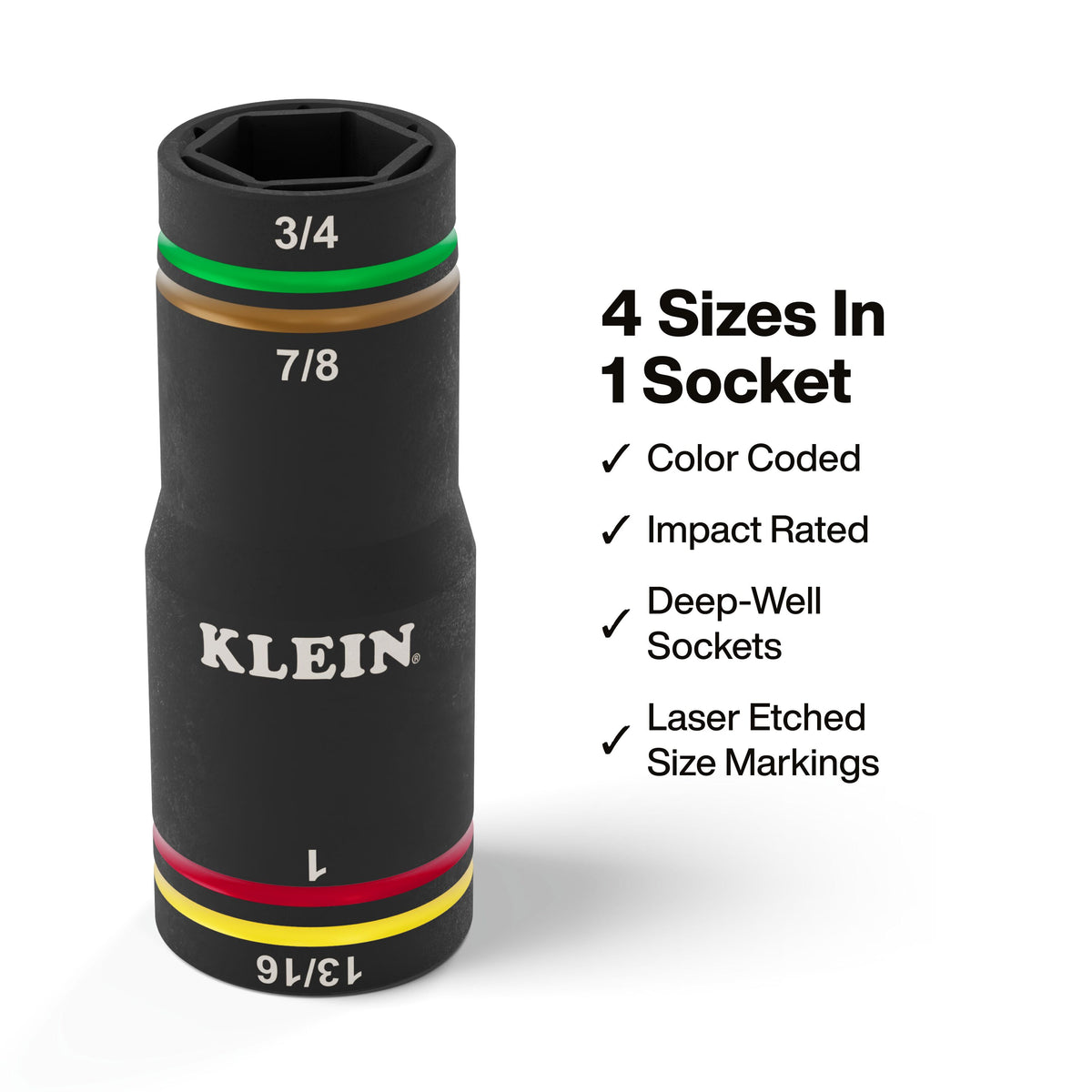

Four Big SAE Sockets in One
Four of the most-used large SAE sizes on one forging.
- 3/4" and 7/8" on one end
- 13/16" and 1" on the other
No Stopping to Swap
Spring action moves the smaller socket aside on contact.
- Spring-loaded nested design
- 6-point hex
Reaches Long Threads
The deep well clears extended threads and recessed bolts.
- Deep well design
- Manganese phosphate finish
Runs on KNECT Tools

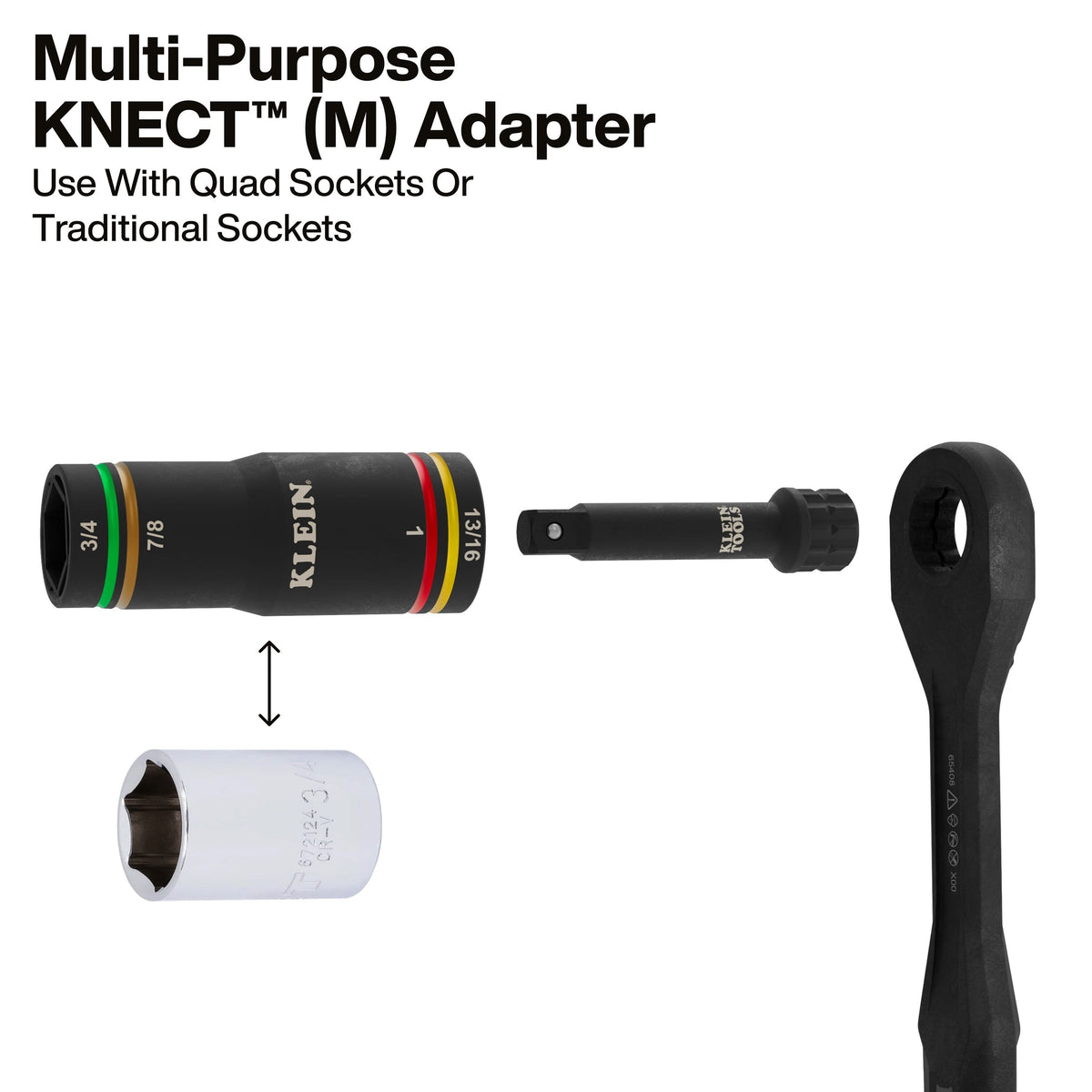

The included adapter moves the socket onto KNECT (M) pass-through tools.
- Multi-purpose KNECT (M) adapter
- 3/8" drive

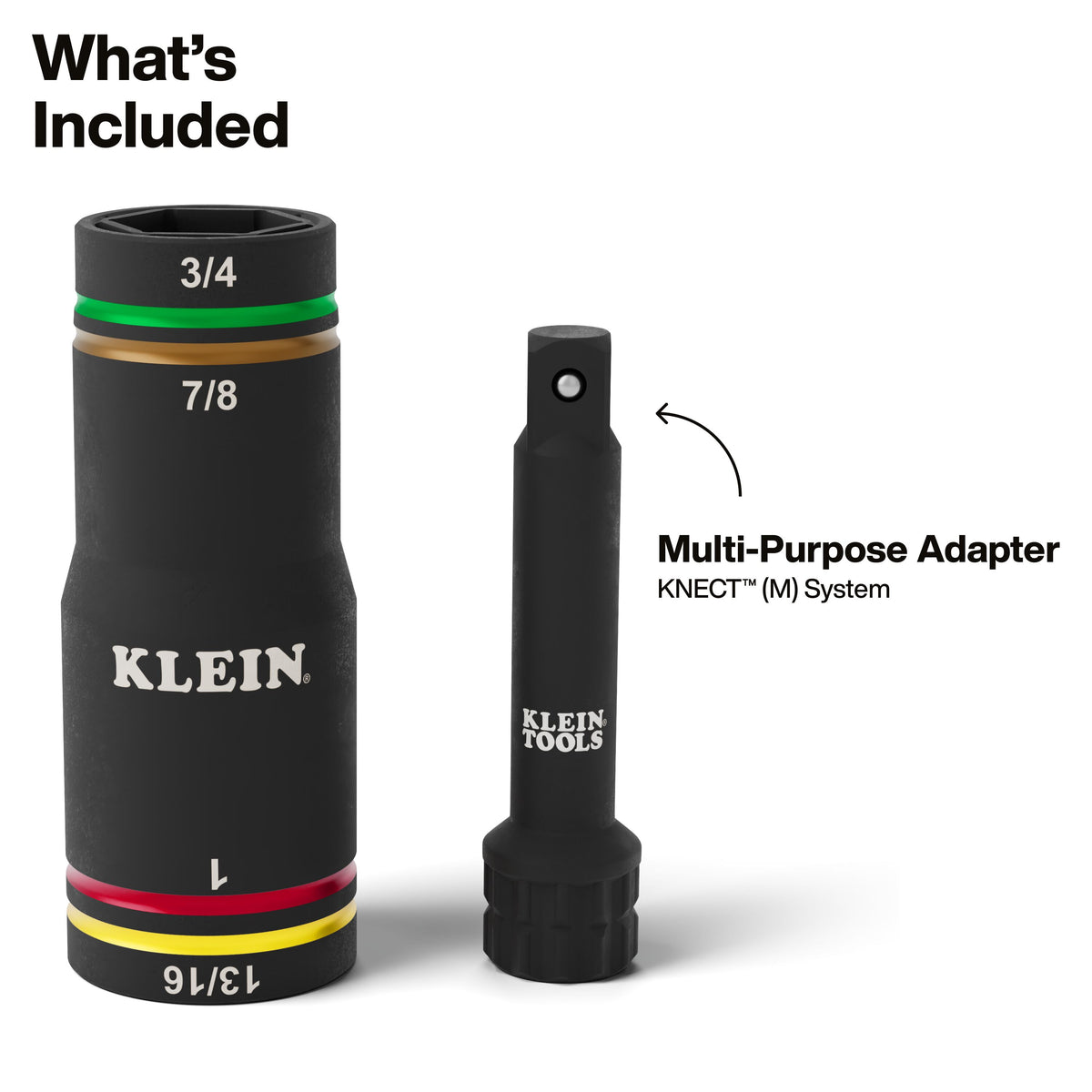

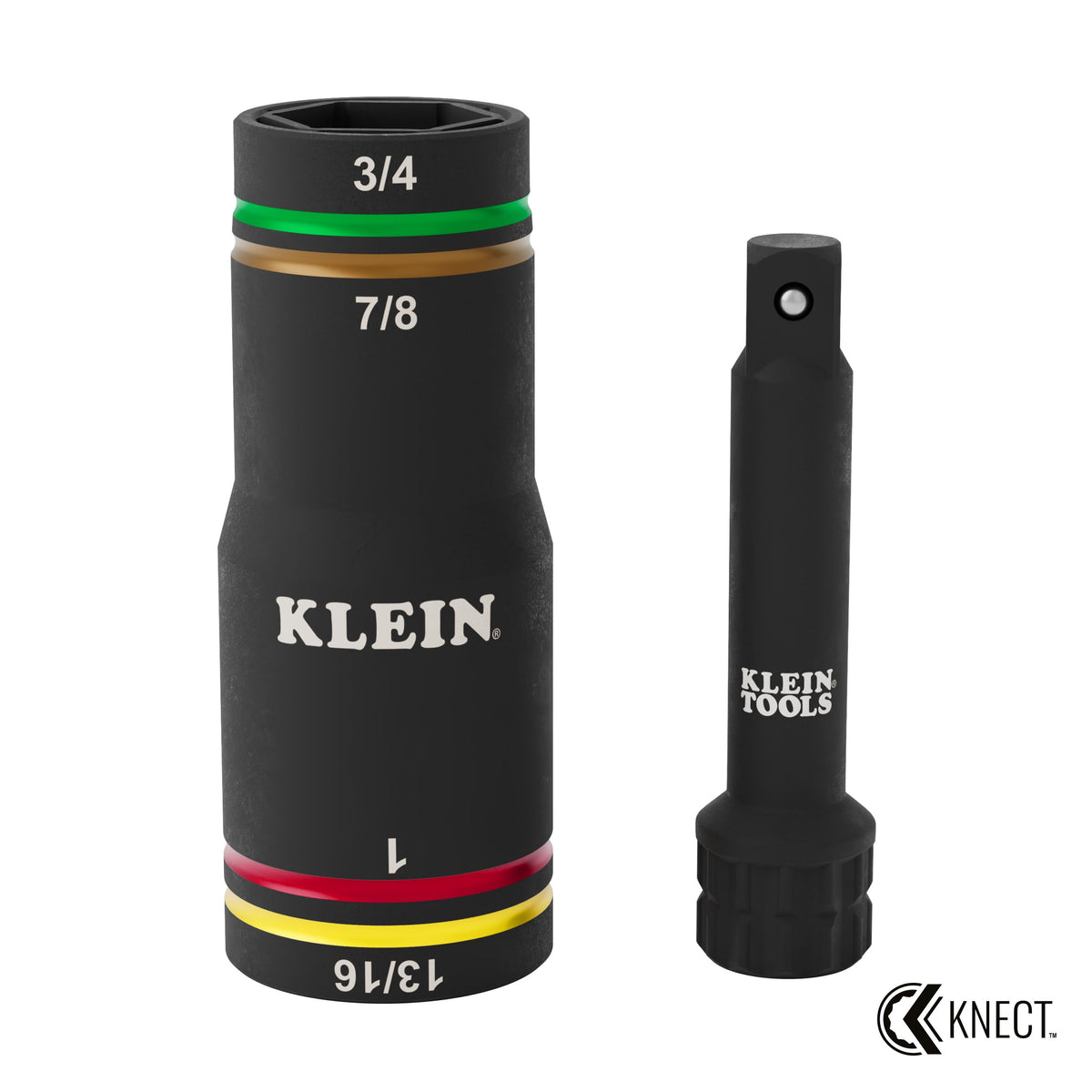

What's in the Box
- KNECT Quad-4 impact flip socket (3/4", 13/16", 7/8", 1")
- Multi-purpose adapter
Key Specifications
| Hex Sizes | 3/4", 13/16", 7/8", 1" |
|---|---|
| Points | 6 |
| Drive Size | 3/8" |
| System | KNECT (M) |
| Material | Heat-treated cold forged steel |
| Finish | Manganese phosphate |
| Pieces | 2 |
| Socket Diameter | 1-3/8" (3.5 cm) |
| Overall Height | 4-1/2" (11.4 cm) |
Compatibility
Built For
Tool Nut's Take
The Big SAE Sizes, Consolidated
The Klein Tools KNECT Quad-4 Heavy-Duty Impact Flip Socket, SAE (6513QS) packs 3/4" through 1" into one impact socket with a KNECT adapter.
- Who it's for: Linemen and mechanical crews running large SAE hardware.
- Why it stands out: Four heavy sizes in one forging that also works on KNECT pass-through tools.
- Worth knowing: It is a 3/8" drive socket. Match it to an impact or adapter with the right drive.
Common Questions
- What sizes does the Klein 6513QS cover? 3/4", 13/16", 7/8" and 1".
- Does it work with KNECT tools? Yes. The included adapter works with the KNECT (M) pass-through socket wrench or screwdriver.

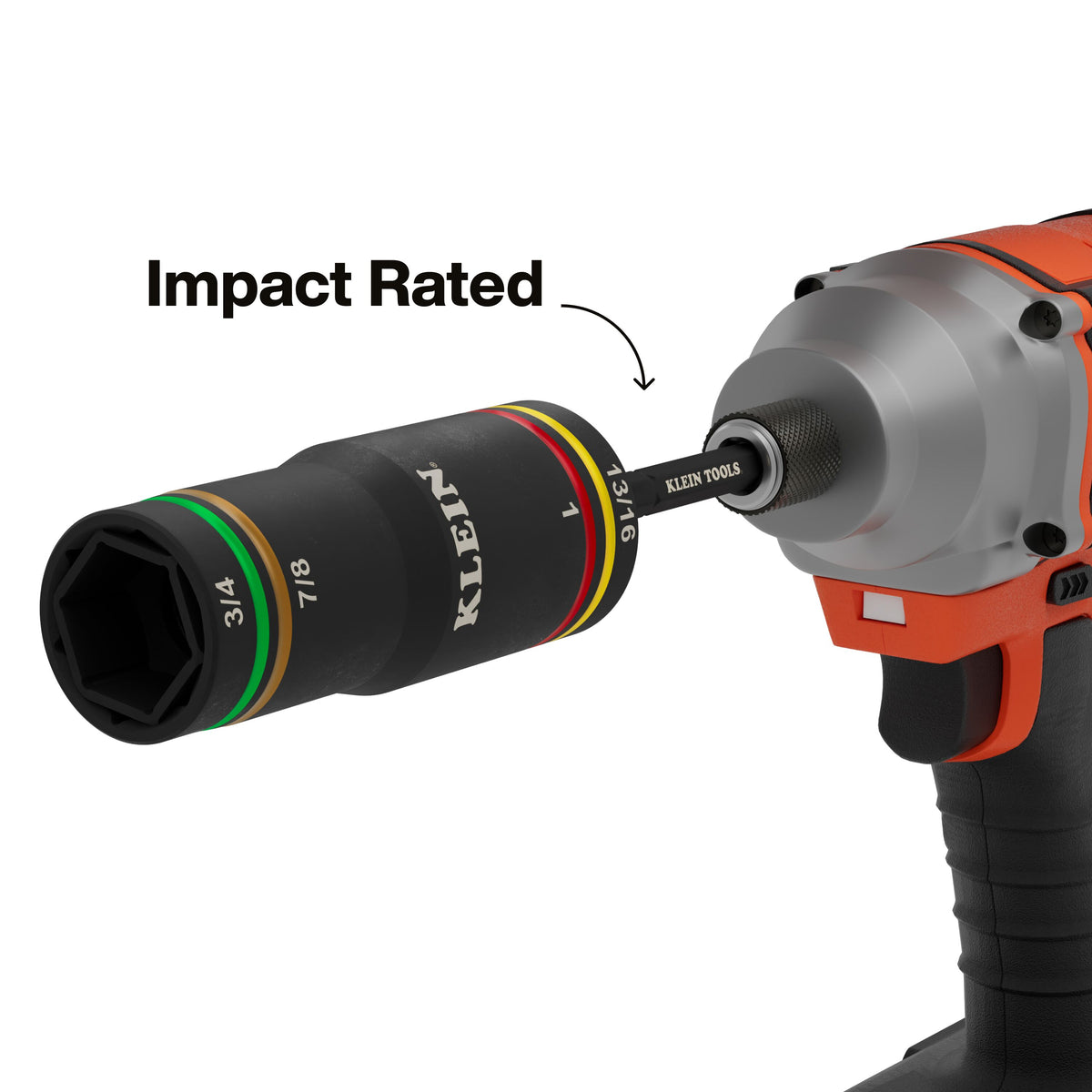

- Is it impact rated? Yes. It is heat-treated cold forged steel for high-torque impact use.
