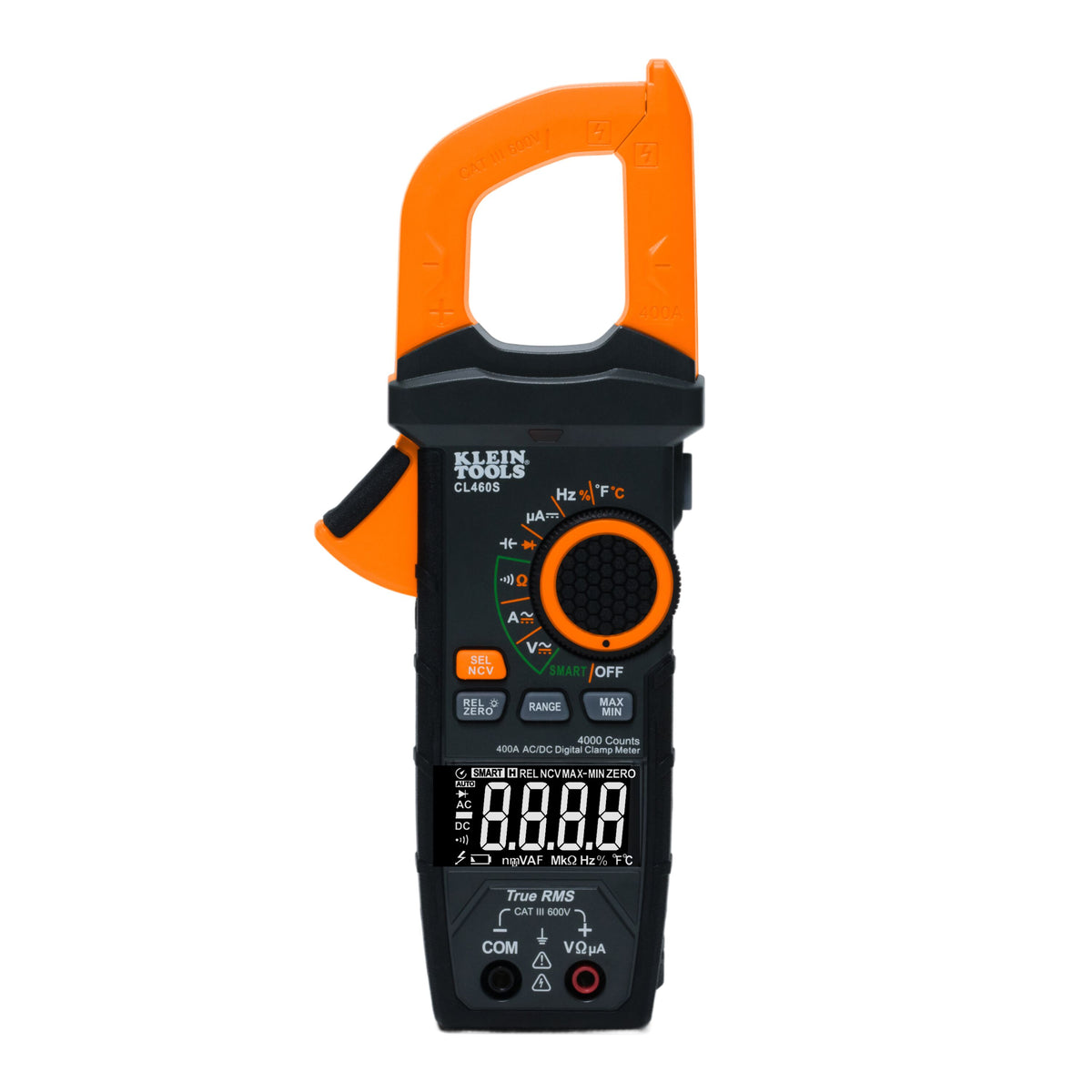

Klein 400A AC/DC Auto-Ranging Smart Digital Clamp Meter (CL460S)
Klein 400A AC/DC Auto-Ranging Smart Digital Clamp Meter (CL460S)
Out of Stock - Available to Order - Usually ships in 15-20 days
Product Details
Product Details
Key Features
Overview
The Klein Tools 400A AC/DC Auto-Ranging Smart Digital Clamp Meter (CL460S) is a true RMS clamp meter that pairs automatic measurement detection with a traditional rotary dial. This is a digital clamp meter designed for electricians and HVAC/R technicians troubleshooting residential, commercial and light industrial systems. It measures up to 400A AC/DC current, 600V AC/DC voltage and 40MΩ resistance, and carries a CAT III 600V safety rating.

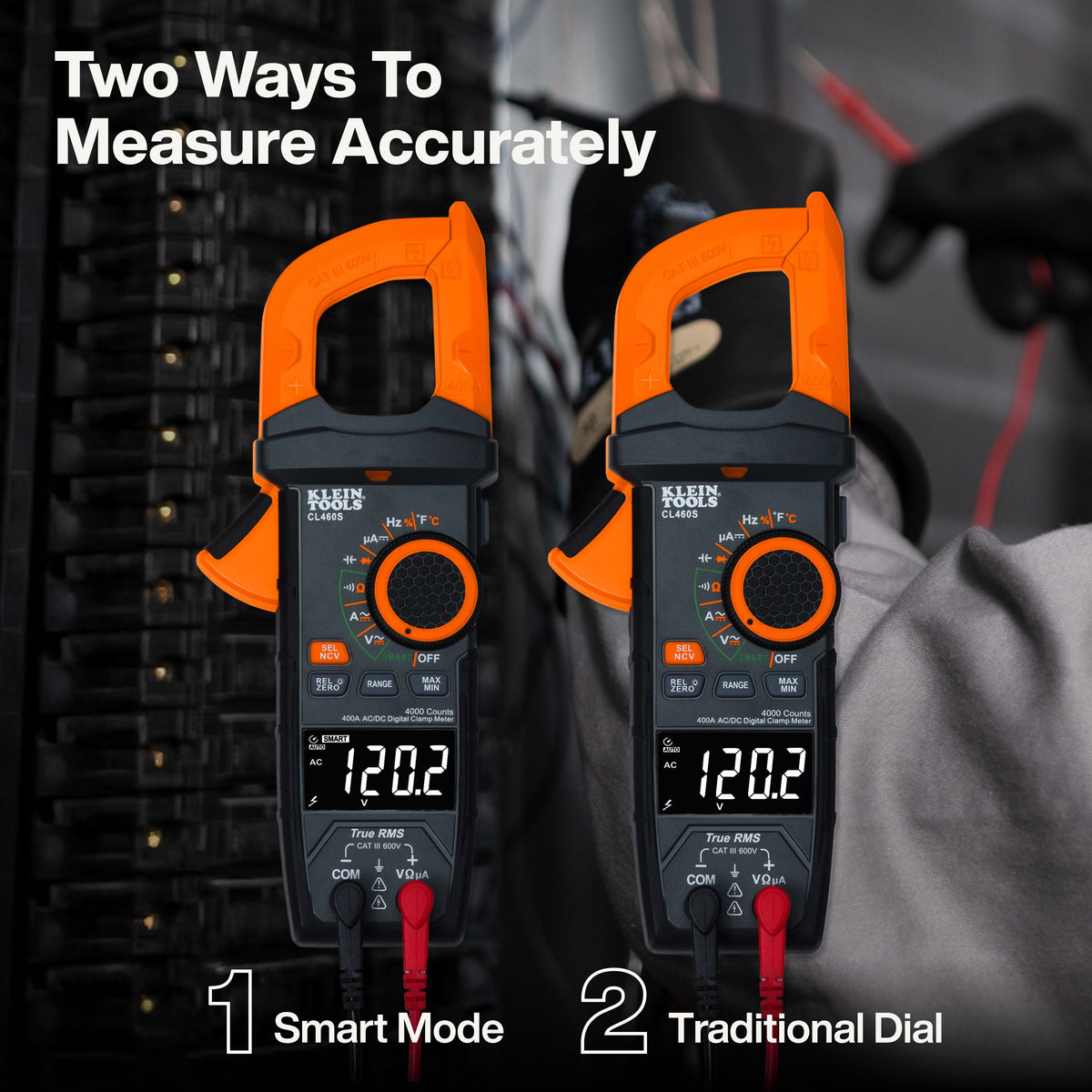

Smart mode is the headline. Set the dial to Smart and the meter detects whether you are measuring voltage, current, resistance or continuity and switches on its own. That saves dial clicks during routine checks and helps prevent the classic mistake of probing voltage in the wrong mode. When you need a specific function, the rotary dial is still there.
The function list goes well beyond basics: AC/DC voltage and current, DC microamps to 400µA, resistance, audible continuity, diode test, capacitance to 4,000µF, frequency (10Hz to 60kHz) and duty cycle, temperature from -40°F to 1,832°F (-40°C to 1,000°C) with the included thermocouple, non-contact voltage detection, min/max, relative/zero and data hold. True RMS and auto-ranging keep readings accurate and fast.

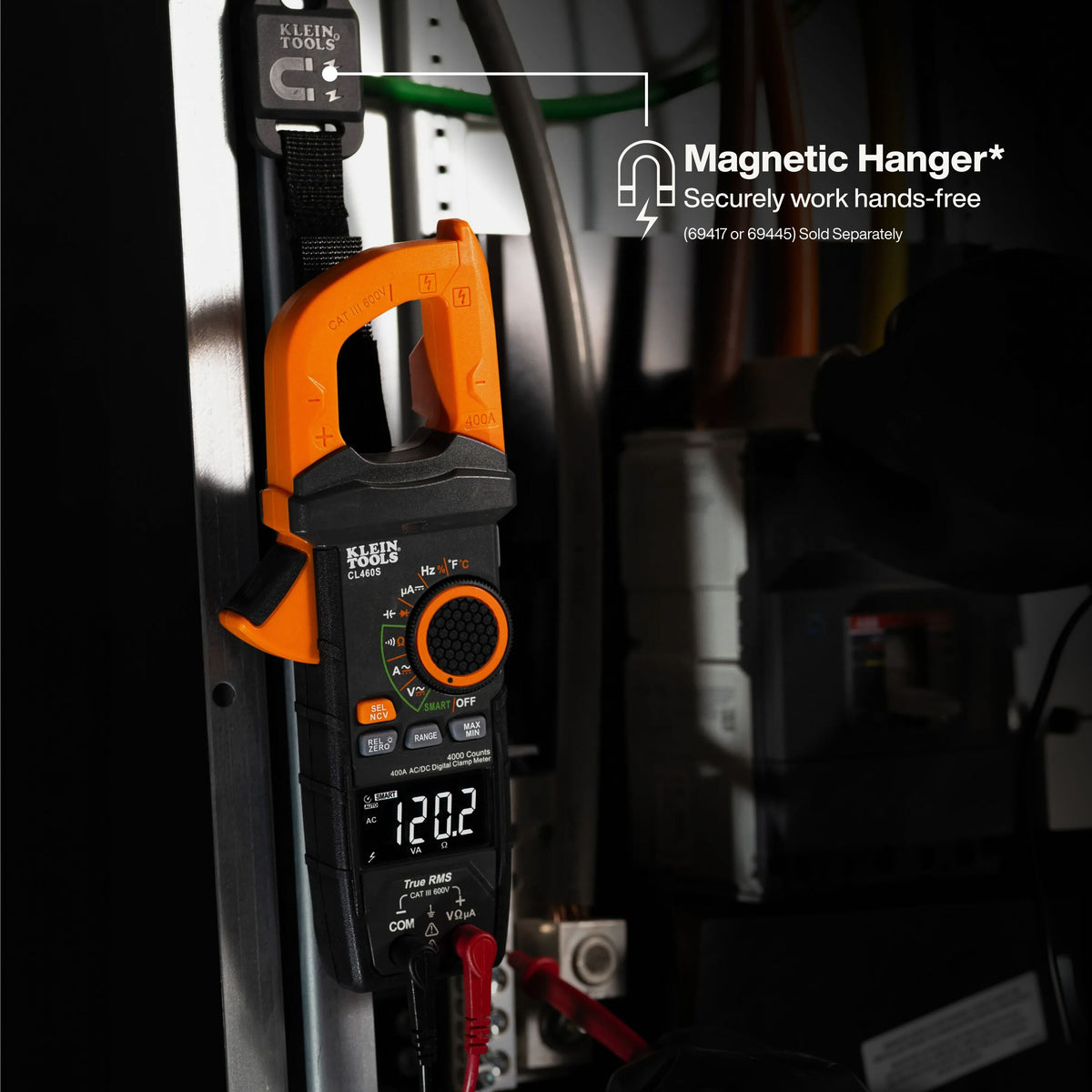

The display is a 1-1/2" 4,000-count LCD with a backlit reverse-contrast layout for readability in any lighting. A test lead holder on the back keeps a probe in place for one-handed testing, and Klein's optional magnetic hangers (Cat. No. 69445 or 69417, sold separately) let you hang the meter on a panel door.

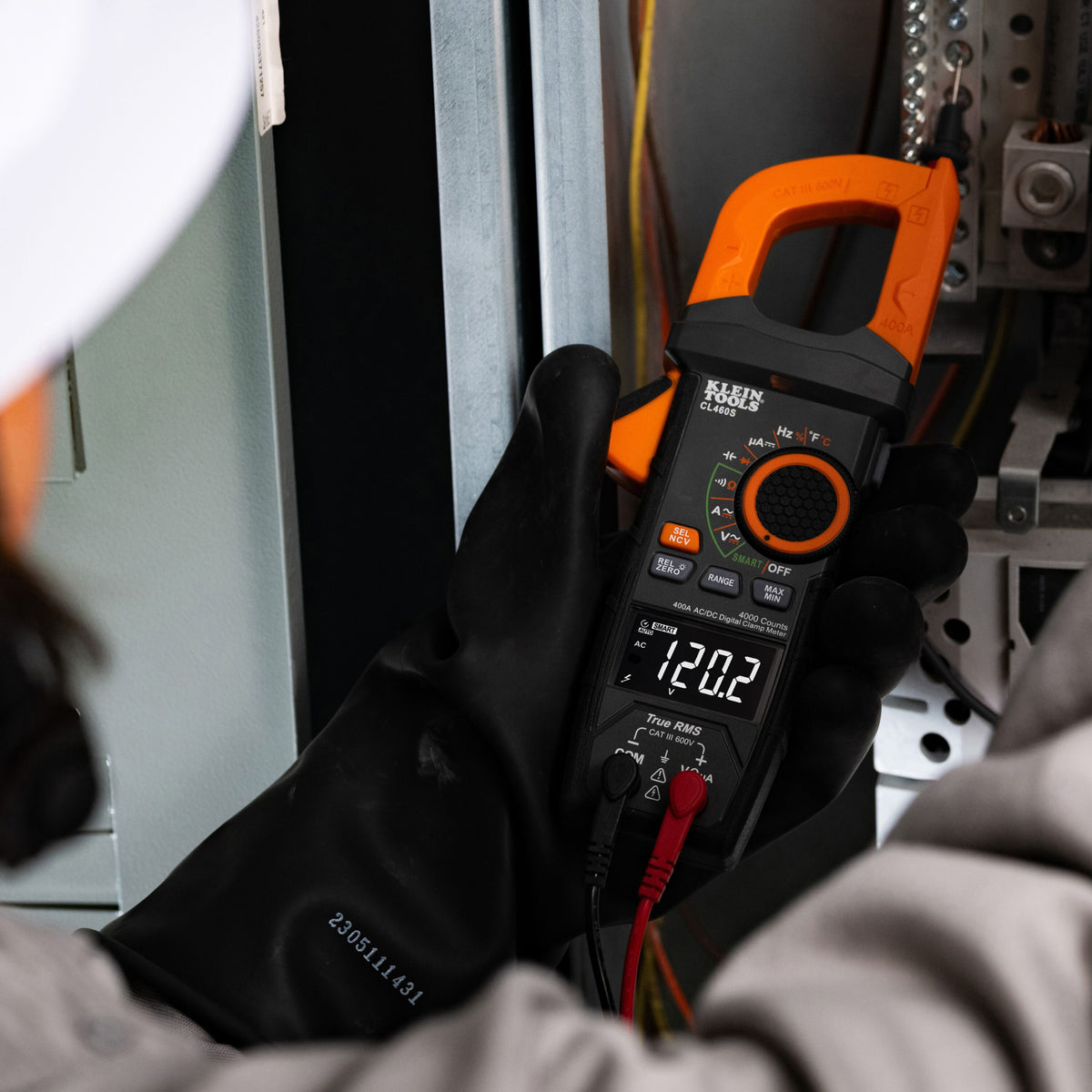

The slim, rugged body measures about 3-1/2" x 1-1/2" x 8-11/16" (8.9 x 3.8 x 22.1 cm), weighs 11.9 oz (338 g), and is drop-rated to 6.6 ft (2 m). It runs on 3 AAA batteries (included) for about 22 hours, with auto power-off. It is Class 2 double insulated and CE certified.
Who should buy it: electricians who want a fast, all-in-one meter for daily service, HVAC/R techs who need DC microamps, temperature and capacitance in one tool, and maintenance techs troubleshooting motors and controls.

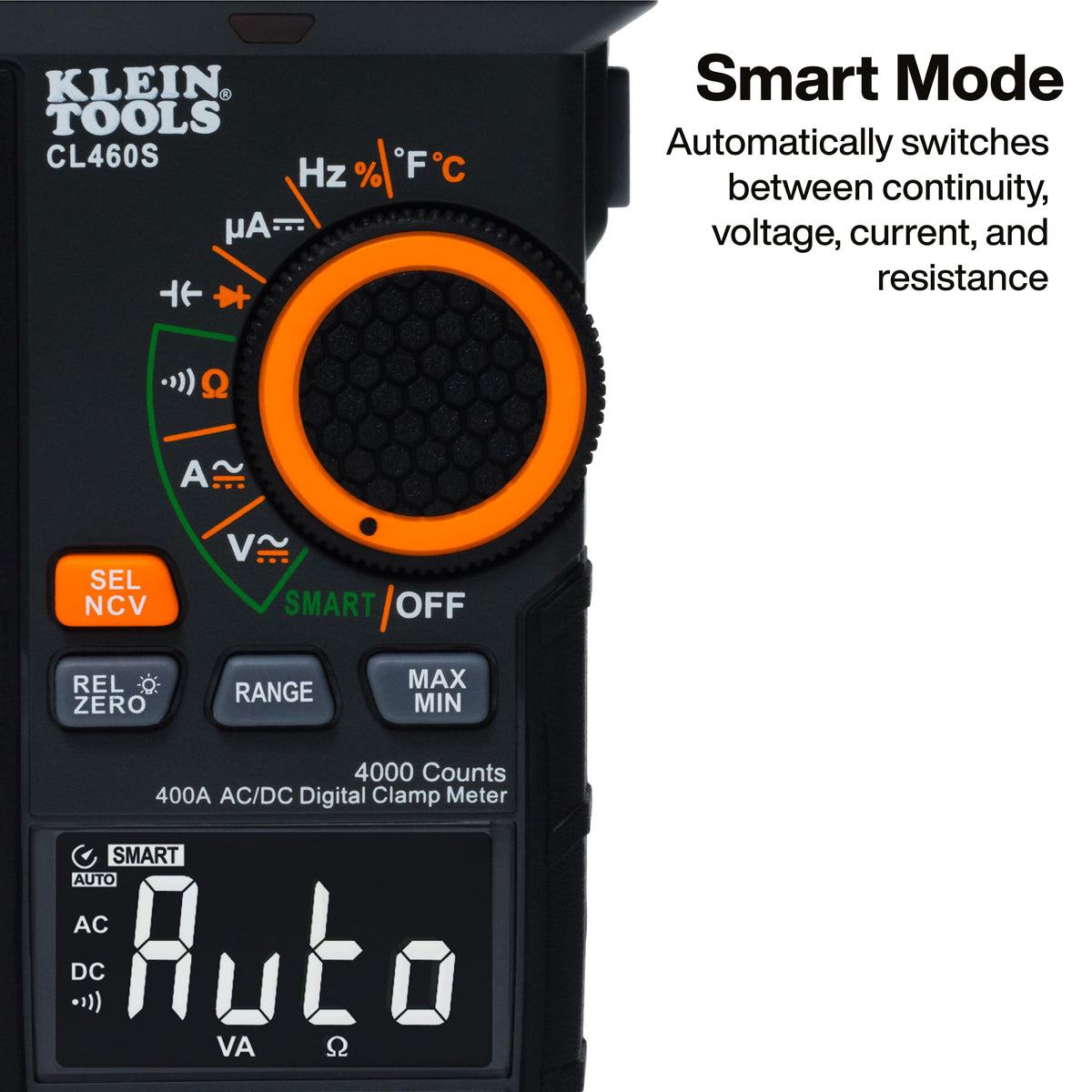

Let the Meter Pick the Mode
Smart mode reads what you are connected to and switches between voltage, current, resistance and continuity automatically.
- Automatic measurement detection
- Traditional dial for manual function selection
- Auto-ranging TRMS
400A Through the Jaw
Clamp a conductor to read AC or DC current up to 400A without breaking the circuit.
- 400A AC/DC current
- 1-1/4" (3.2 cm) jaw
- 400µA DC microamps
Readable in Any Light
The reverse-contrast LCD with optimized backlighting stays readable from a dark crawlspace to a bright rooftop unit.
- 4,000-count LCD
- 1-1/2" display
- Backlit reverse contrast
Free Up Your Hands
The lead holder on the back holds a probe so you can test one-handed.
- Built-in test lead holder
- Optional magnetic hangers 69445 or 69417 (sold separately)

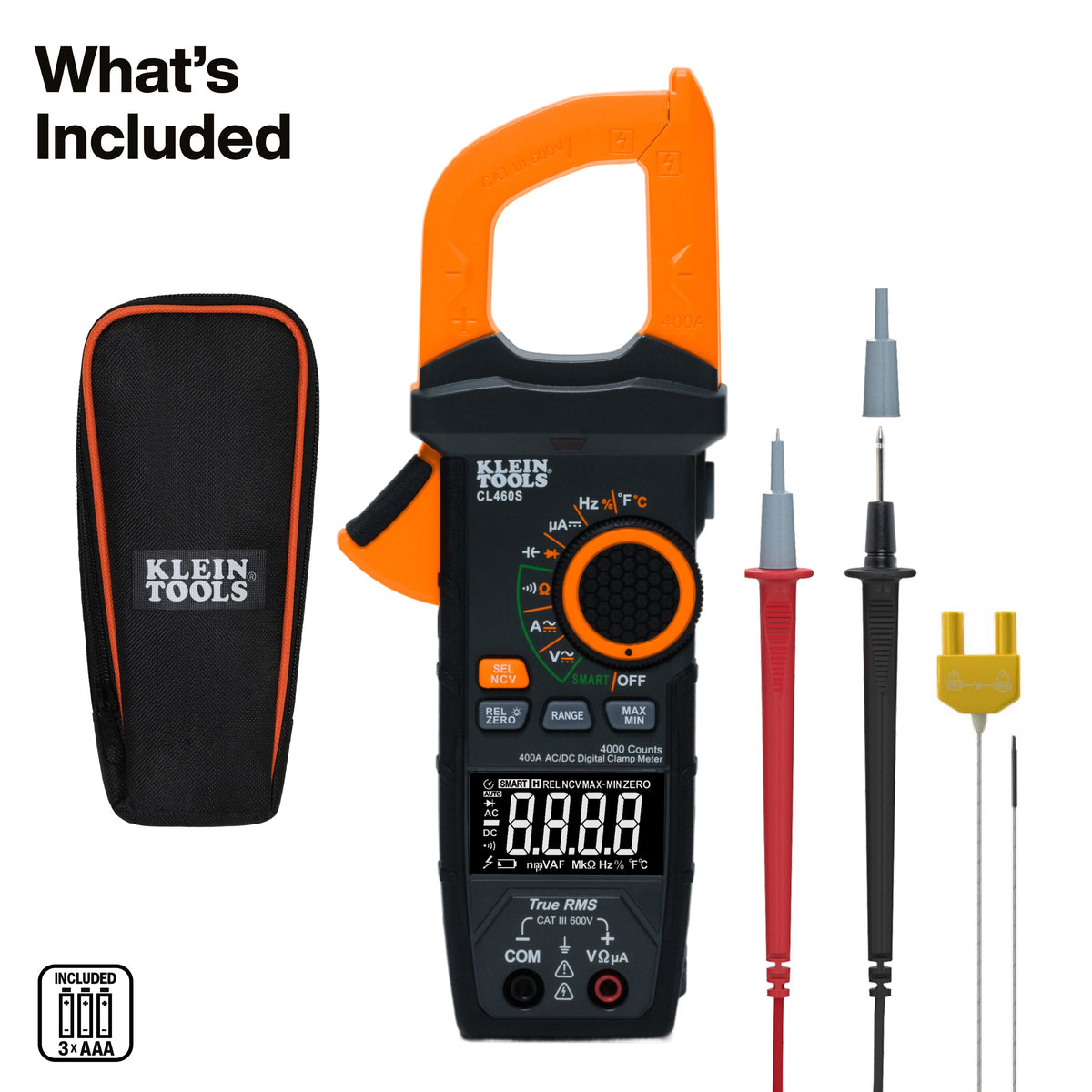

What's in the Box
- (1) CL460S clamp meter
- (1) Set of right-angle input test leads
- (1) Thermocouple
- (1) Carrying case
- (3) AAA batteries
- (1) Instruction manual
Magnetic hangers (Cat. No. 69445 or 69417) are sold separately.
Key Specifications
| AC/DC Current | 400A |
|---|---|
| AC/DC Voltage | 600V |
| Resistance | 40MΩ |
| DC Microamps | 400µA |
| Capacitance | 4,000µF |
| Frequency | 10Hz to 60kHz |
| Temperature | -40°F to 1,832°F (-40°C to 1,000°C) |
| Jaw Size | 1-1/4" (3.2 cm) |
| Display | 4,000-count backlit reverse-contrast LCD, 1-1/2" |
| TRMS / Auto-Ranging | Yes / Yes |
| Safety Rating | CAT III 600V, Class 2 double insulation, CE |
| Drop Protection | 6.6 ft (2 m) |
| Batteries | 3 x AAA (included), about 22 hr life |
| Weight | 11.9 oz (338 g) |
Compatibility
Built For
Pro Tip
Use Smart mode for walk-up checks, then switch to a dedicated dial position when you need min/max, capacitance or microamps. Smart mode handles the four everyday measurements; the dial gets you the specialty functions.
Tool Nut's Take
A Clamp Meter That Thinks Ahead
The Klein Tools 400A AC/DC Smart Digital Clamp Meter (CL460S) automates the routine readings and still packs the specialty functions service techs need.
- Who it's for: Electricians and HVAC/R techs who want one meter for current, voltage, microamps, temperature and capacitance.
- Why it stands out: Smart mode auto-detection, DC current capability and a reverse-contrast backlit display.
- Worth knowing: CAT III 600V is the rating; for CAT IV work, look at a higher-rated meter. Magnetic hangers are sold separately.
Common Questions
- Does the Klein CL460S measure DC current? Yes. It measures up to 400A AC and DC, plus DC microamps to 400µA.
- What does Smart mode do? It automatically detects and switches between voltage, current, resistance and continuity without turning the dial.
- Is it true RMS? Yes. It is TRMS and auto-ranging.
- What is the safety rating? CAT III 600V, Class 2 double insulation, CE certified.
- Does it include a temperature probe? Yes. A thermocouple is included.
