Klein 2000A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight (CL910)
Klein 2000A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight (CL910)
Out of Stock - Available to Order - Usually ships in 15-20 days
Product Details
Product Details
Key Features
Overview
The Klein Tools 2000A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight (CL910) is a professional clamp meter built for high-voltage electrical work. This is a CAT IV clamp meter designed for troubleshooting solar panel installations, wind turbines and power distribution networks, where 600V and 1000V meters run out of range. Klein model CL910 measures up to 2000V AC/DC and 2000A AC/DC with True RMS auto-ranging accuracy.
The current side handles 2000A AC or DC through a 2" (5.1 cm) jaw, with AC inrush capture through the clamp for motor and transformer startup readings. DC current measurement through the jaw matters on PV strings and battery systems, where you cannot open the conductor to put a meter in series. A DC polarity indicator and a 200µA DC micro-amp range cover flame-sensor and control-circuit checks too.
This is far more than a voltage-and-amps meter. The CL910 also covers resistance to 60MΩ, capacitance to 6000µF, frequency and duty cycle from 10Hz to 60kHz, temperature from -14°F to 1000°F (-26°C to 538°C) with the included thermocouple, diode test, audible continuity, low impedance (LoZ) mode for ghost-voltage checks and non-contact voltage detection. Min/Max, Rel/Zero and Data Hold round out the function list.
Visibility gets real attention. The display is a backlit, reverse-contrast (transflective) 6000-count LCD, the dial itself is lit, and a built-in worklight illuminates the connection point. Inside a combiner box or a dim switchgear room, that saves juggling a flashlight while you hold the clamp.
On safety and durability, Klein rates the CL910 CAT III 2000V and CAT IV 600V, Class 2 double insulated, with CE and UKCA marks, in an IP40 ABS housing rated for a 6.6 ft (2 m) drop. Two AA batteries deliver about 40 hours of use, and auto power-off protects them when you forget.
For hands-free work, a test lead holder mounts on the clamp so you can probe without a third hand, and the meter is compatible with Klein's optional magnetic hangers (Cat. No. 69445 or 69417). Who should buy it: solar and renewable energy installers, utility and distribution electricians, industrial maintenance techs and anyone whose work regularly goes past 1000V.
Range for High-Voltage Systems

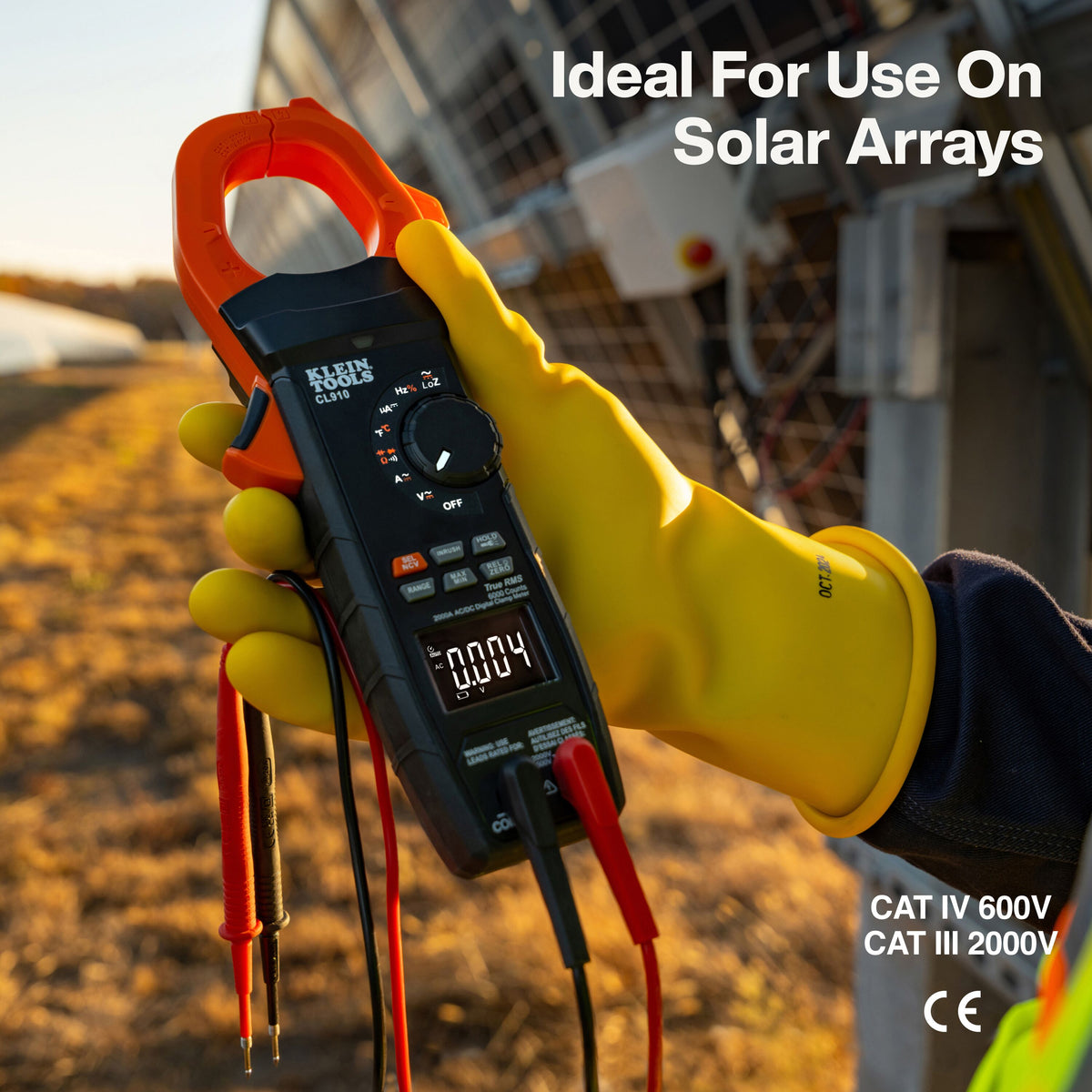

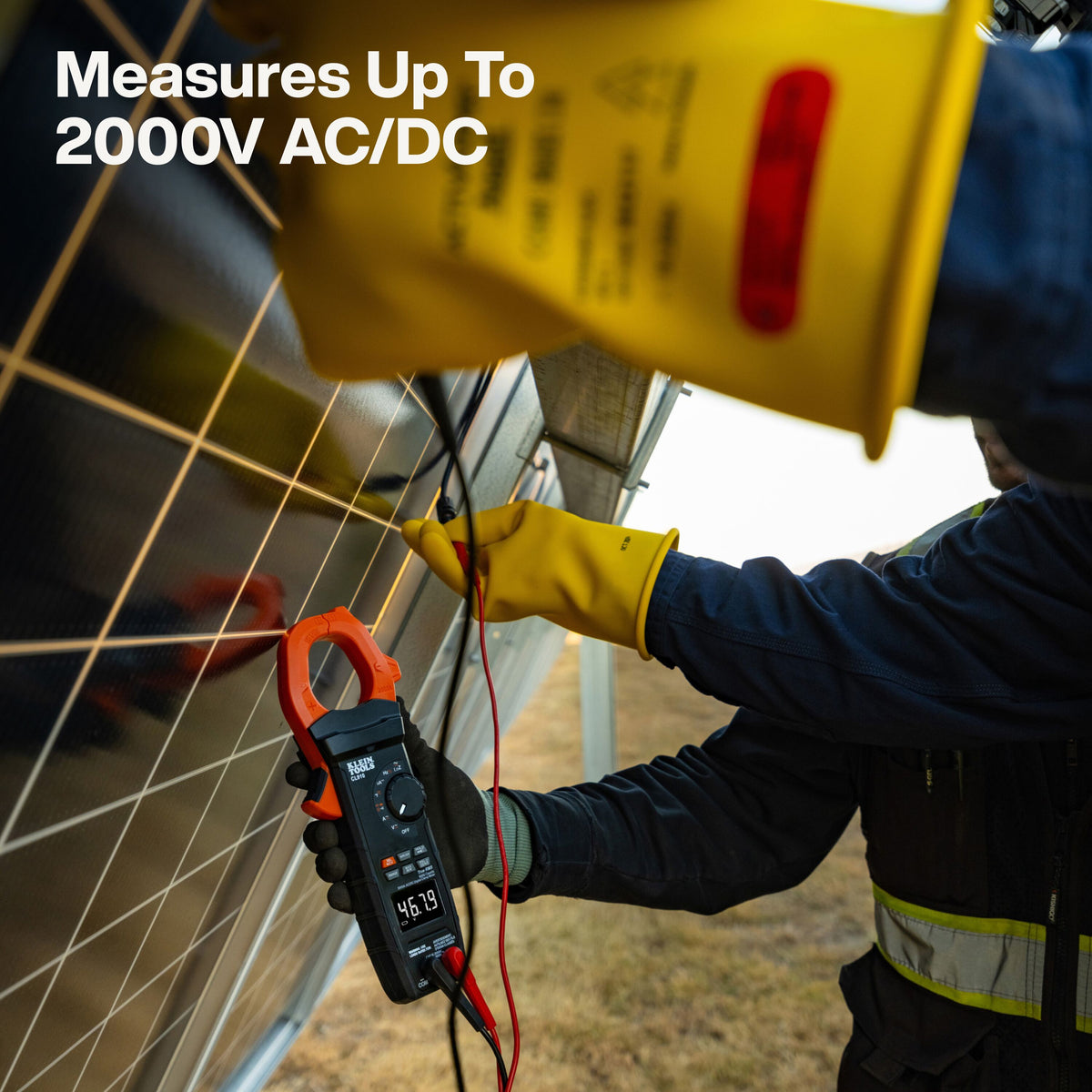

Most clamp meters top out at 600V or 1000V. The CL910 reads to 2000V AC and DC, which puts utility-scale PV strings and distribution work inside its range.
- 2000V AC and 2000V DC
- CAT III 2000V and CAT IV 600V rated
- DC polarity indicator
Big Current Without Breaking the Circuit

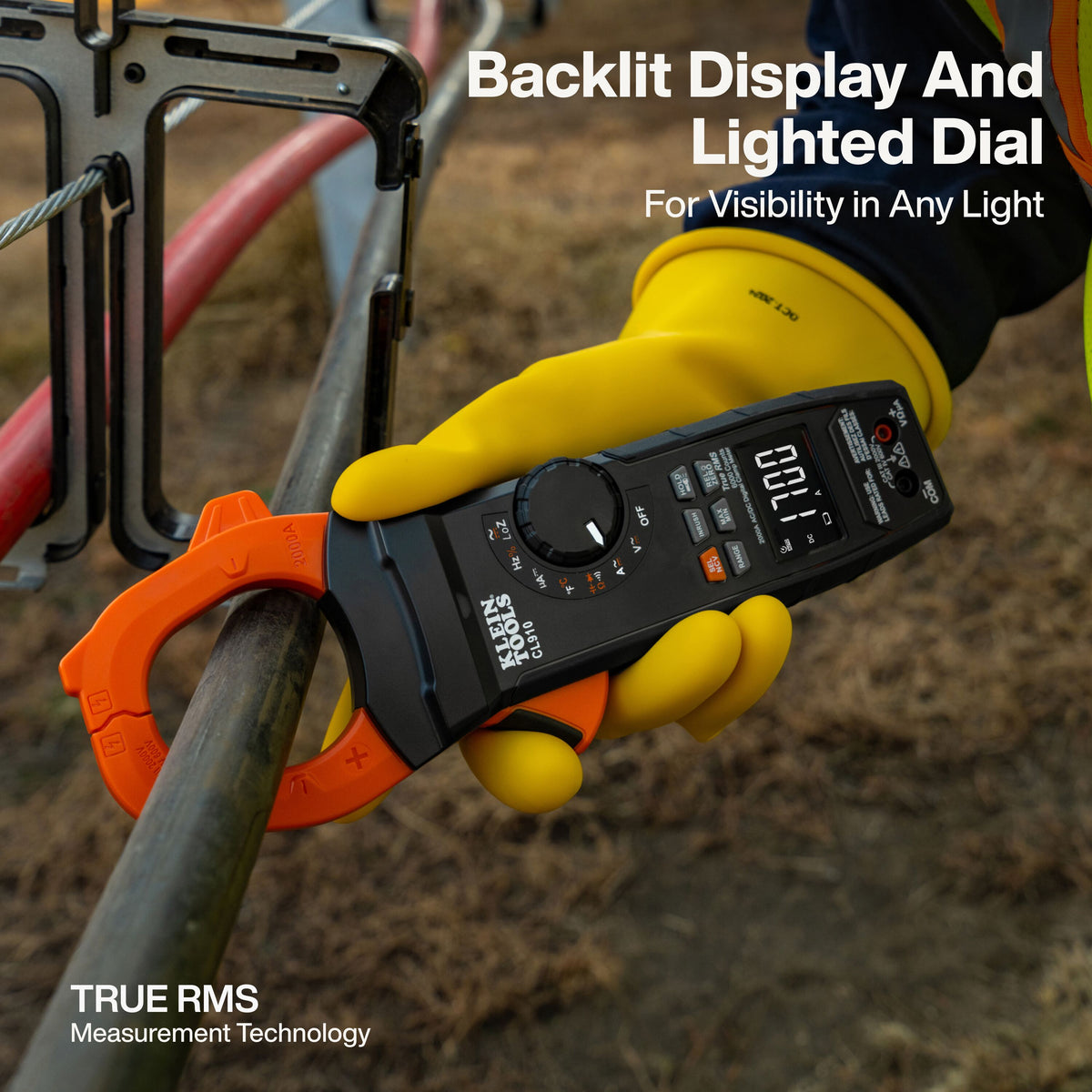

The 2" jaw clamps around large conductors to read up to 2000A AC or DC, and captures AC inrush on startup.
- 2000A AC/DC current
- AC inrush through the clamp
- Jaw size: 2" (5.1 cm)

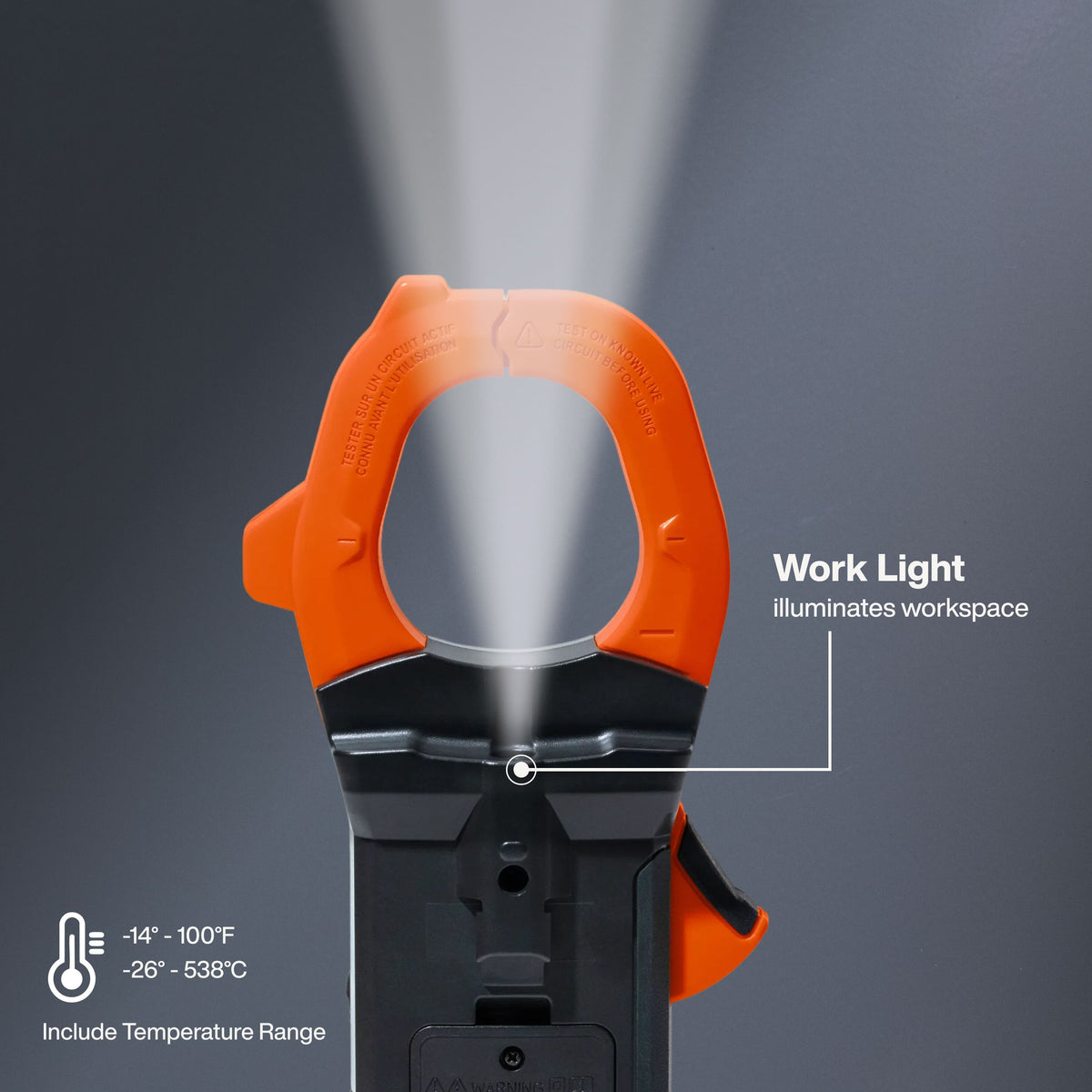

See the Reading and the Connection
A lit dial, a high-contrast 6000-count display and a worklight mean fewer readings taken by phone flashlight.
- Backlit reverse-contrast 6000-count LCD
- 1.51" display
- Lighted dial and built-in worklight
Free Up Your Hands
The lead holder on the clamp keeps one probe parked while you work the other, and an optional magnetic hanger puts the meter at eye level.
- Built-in test lead holder
- Works with Klein magnetic hangers 69445 or 69417
- Right-angle input test leads included

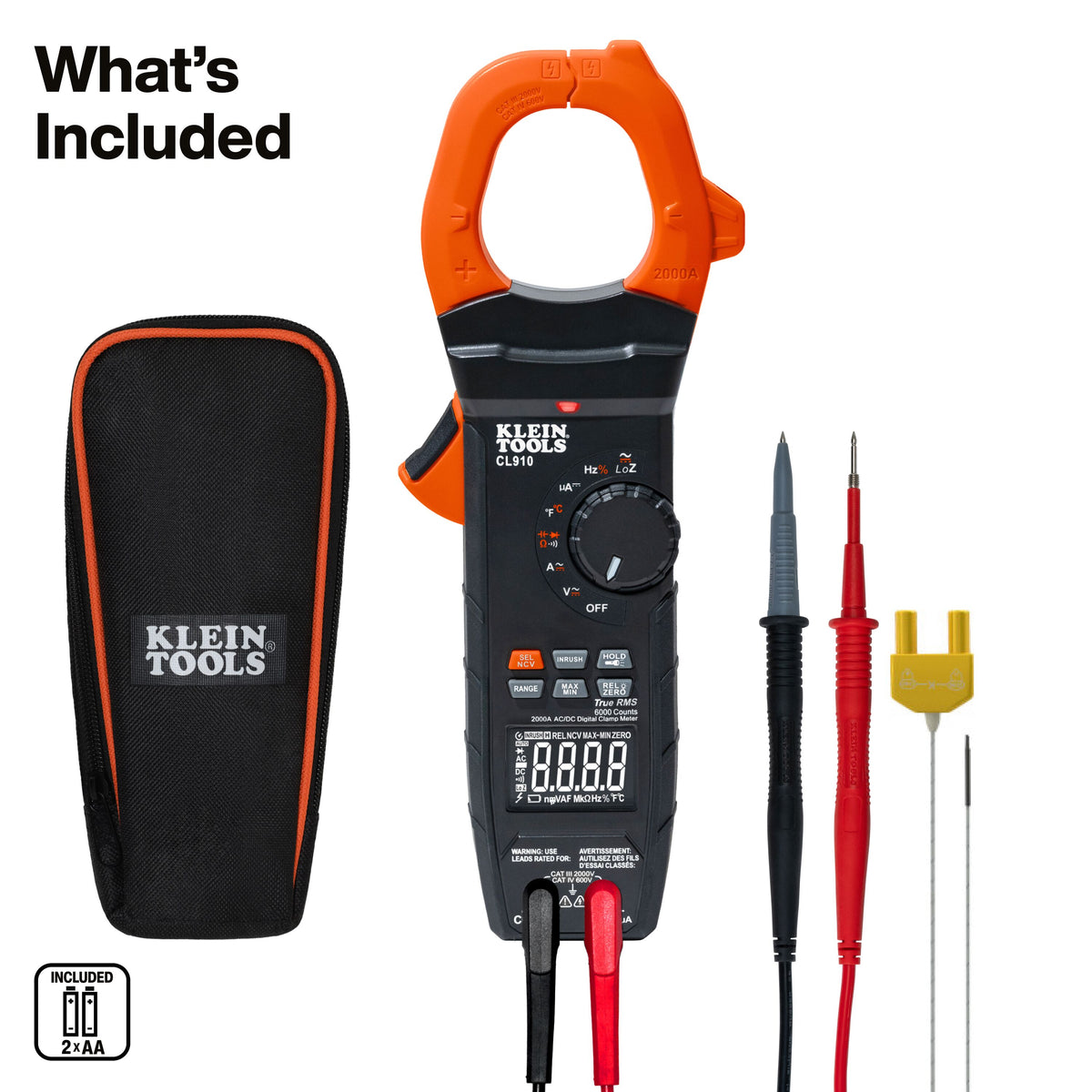

What's in the Box
- CL910 clamp meter
- Right-angle input test leads
- Thermocouple
- Carrying case
- Instruction manual
- (2) AA batteries
Magnetic hanger (Cat. No. 69445 or 69417) sold separately.
Key Specifications
| AC/DC Voltage | 2000V |
|---|---|
| AC/DC Current | 2000A |
| Measurement | True RMS, auto-ranging |
| Resistance | 60MΩ |
| Capacitance | 6000µF |
| Frequency | 10Hz-60kHz |
| DC Micro-Amps | 200µA |
| Temperature Range | -14°F to 1000°F (-26°C to 538°C) |
| Jaw Size | 2" (5.1 cm) |
| Display | Backlit reverse-contrast 6000-count LCD, 1.51" |
| Safety Rating | CAT IV 600V, CAT III 2000V, Class 2 double insulation |
| Ingress Protection | IP40 |
| Drop Protection | 6.6 ft (2 m) |
| Batteries | (2) AA, about 40 hr life, auto power-off |
| Dimensions (L x H x W) | 4-5/16" x 11-3/8" x 2" (11 x 28.9 x 5 cm) |
| Weight | 1.3 lb (587 g) |
Compatibility
Built For
Pro Tip
Use the LoZ (low impedance) function when a de-energized circuit shows a voltage you do not trust. It loads the circuit enough to drop induced ghost voltage, so the reading you see is the reading that matters.
Tool Nut's Take
A Clamp Meter That Keeps Up With Solar
The Klein Tools 2000A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight (CL910) covers 2000V and 2000A AC/DC in one meter, with the lighting to use it in dark gear.
- Who it's for: Solar and wind installers, distribution electricians and industrial techs working above 1000V.
- Why it stands out: 2000V AC/DC with CAT III 2000V rating, DC clamp current to 2000A, and a lit dial, display and worklight.
- Worth knowing: It is IP40, so it is protected from solid objects but not rated against water. Keep it out of the rain.
Common Questions
- Can the Klein CL910 measure DC current? Yes. It measures up to 2000A AC or DC through the clamp jaw.
- What is the CL910 safety rating? CAT III 2000V and CAT IV 600V, Class 2 double insulated.
- Does it measure temperature? Yes, from -14°F to 1000°F (-26°C to 538°C) using the included thermocouple.
- What batteries does it use? Two AA batteries, included, with about 40 hours of battery life.
