Klein Tools Haven's Cable Grip, 0.5-in. Capacity (1604-20)
Klein Tools Haven's Cable Grip, 0.5-in. Capacity (1604-20)
Out of Stock - Available to Order - Usually ships in 15-20 days
Product Details
Product Details
Key Features
Overview
Klein Tools Haven's Cable Grip, 0.5-in. Capacity (1604-20)

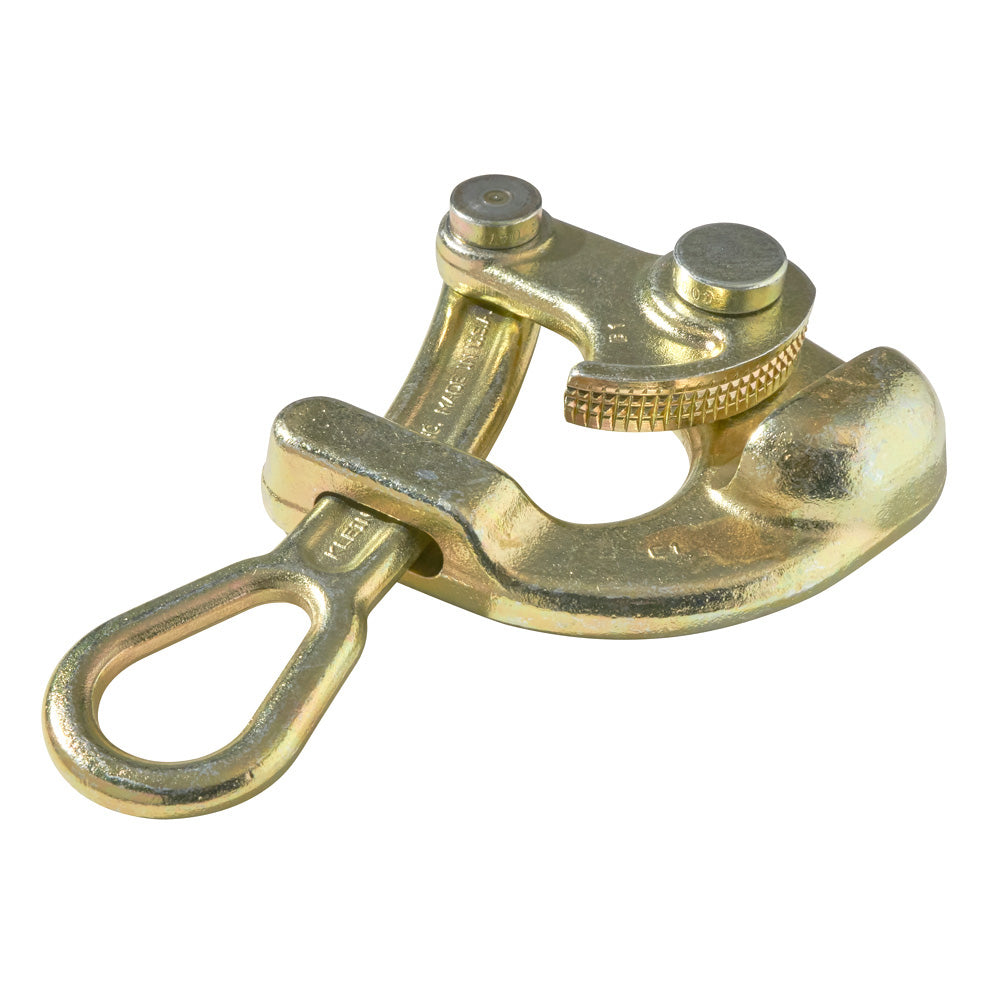

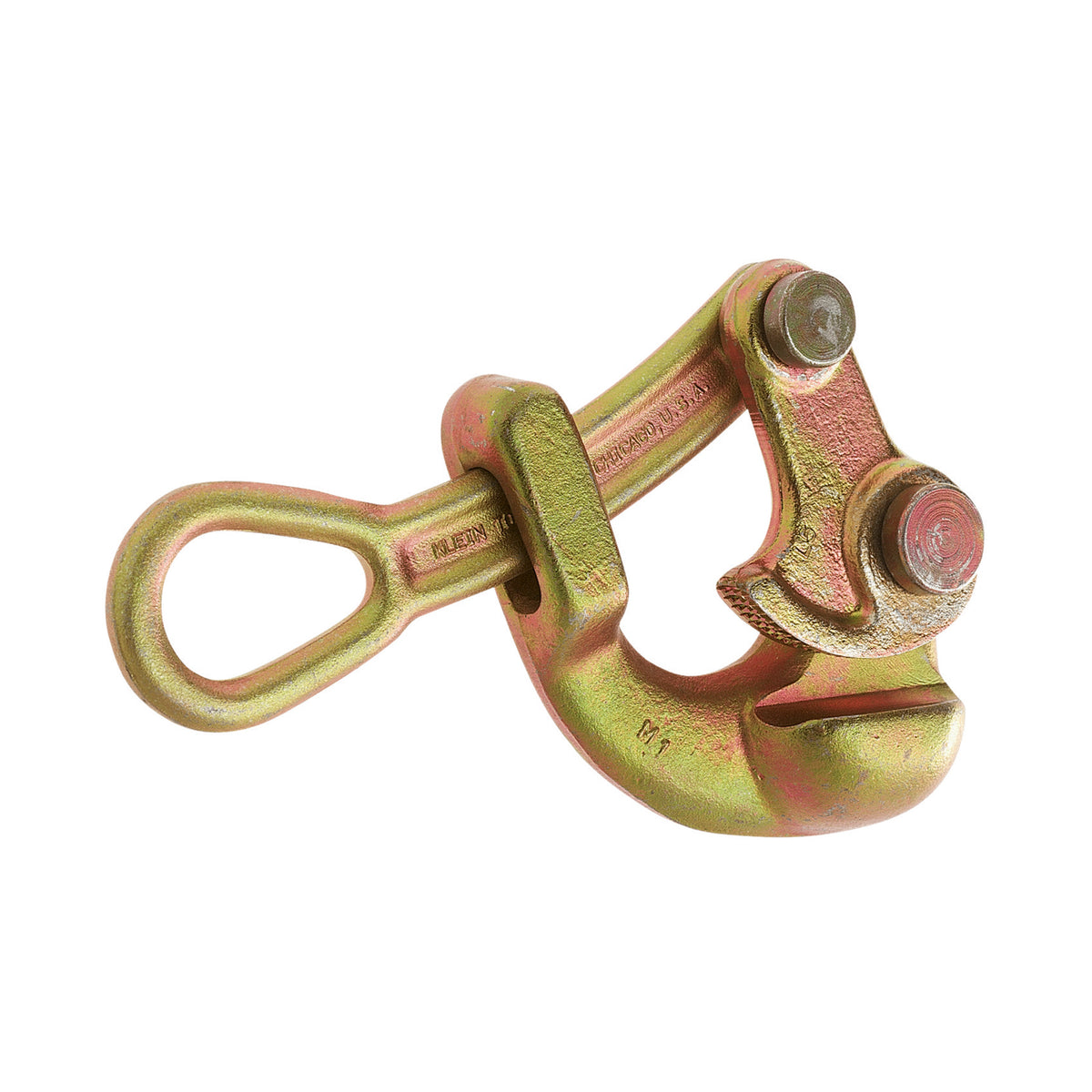

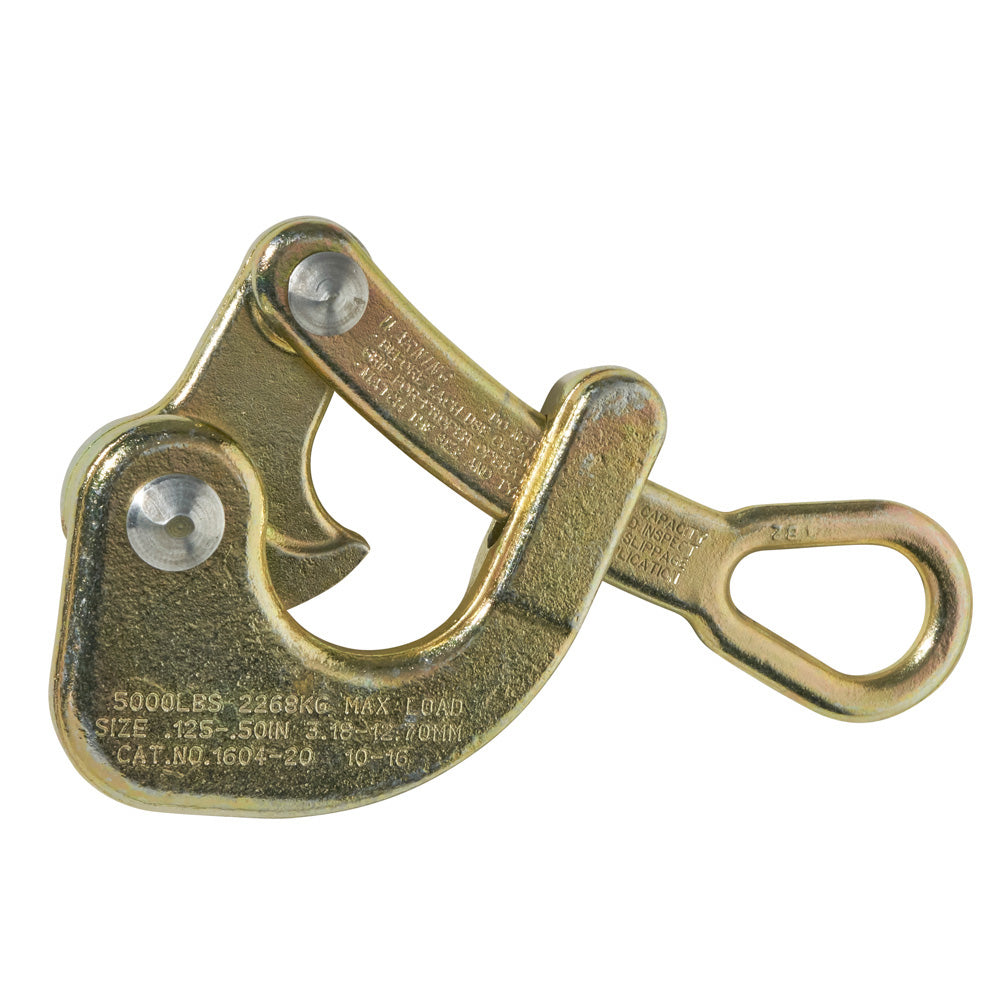

The Klein Tools Haven's Cable Grip 0.5-Inch Capacity (model 1604-20) is a wire pulling grip built for messenger strand, guy strand and extra-high-strength (EHS) cable. This is a cable grip designed for temporarily holding and tensioning strand during overhead line work where some conductor deformation is not a concern.

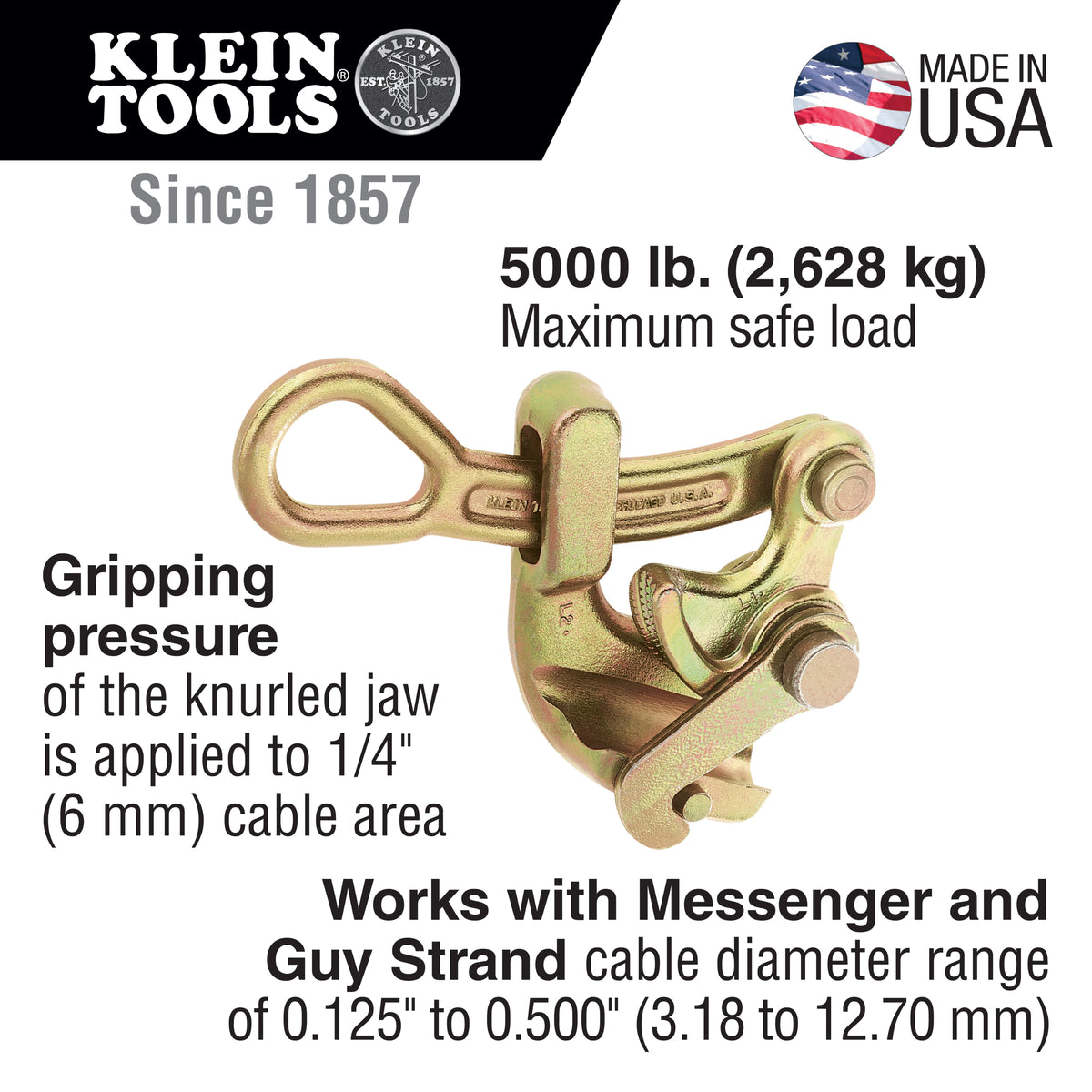

The knurled, curved jaw bites down over a 1/4 in. (6.35 mm) section of cable. That aggressive tooth pattern is what lets a compact grip hold up to 5,000 lb (2,268 kg) without slipping, but it also marks the strand. That trade-off is why Klein points this grip at messenger and guy work rather than finished conductors.
The body is drop-forged steel that is heat treated for strength. Klein hand inspects, actuates and pull-tests each grip to its rated load before it leaves the factory, and the 1604-20 is made in the USA.
At 8.75 in. long and about 2.2 lb, it is easy to carry on a belt or in a bucket and easy to handle at the top of a pole. There is no swing latch or spring on this model, which keeps the design simple and light.

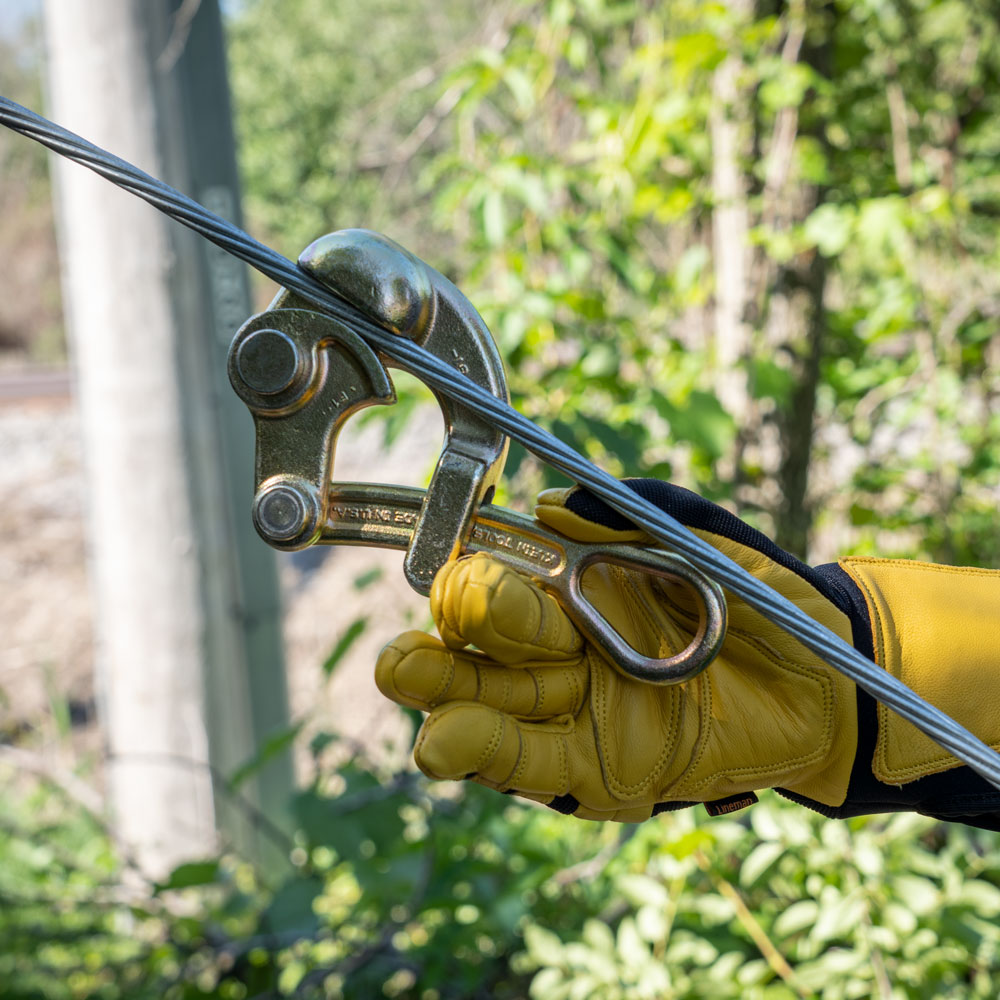

This Haven's grip is a fit for linemen, telecom and CATV crews, and utility contractors who set and tension guy wire or messenger on a regular basis and want a dependable grip that is small enough to keep on the truck.
Built for Messenger and Guy Strand
Haven's grips are the go-to when you need a compact grip on strand and a few tooth marks do not matter.
- Accepts 0.125 to 0.5 in. strand
- Aggressive knurled jaw
- Cable types: EHS, guy strand, messenger
Proof-Tested Before It Ships
Every grip is load tested at the factory, so the rating on the tool is a number you can trust on the pole.
- Maximum safe load: 5,000 lb (2,268 kg)
- Hand inspected and actuated
- Drop-forged, heat-treated steel
Small Enough to Carry Every Day
A short body and light weight mean it rides along without taking over the bucket.
- Overall length: 8-3/4 in. (22.2 cm)
- Weight: 2.2 lb (1 kg)
- No latch or spring to snag
Key Specifications
| Grip Type | Haven's Grip |
|---|---|
| Cable Types | EHS, guy strand, messenger |
| Cable Diameter | 0.125 to 0.5 in. (3.18 to 12.7 mm) |
| Maximum Safe Load | 5,000 lb (2,268 kg) |
| Jaw Type | Curved, aggressive teeth |
| Jaw Grip Length | 1/4 in. (6.35 mm) |
| Overall Length | 8-3/4 in. (22.2 cm) |
| Overall Height | 3-3/4 in. (9.5 cm) |
| Overall Width | 1-3/4 in. (4.4 cm) |
| Swing Latch | No |
| Material | Drop-forged, heat-treated steel |
| Weight | 2.2 lb (1 kg) |
| Made In | USA |
Compatibility
Built For
Pro Tip
Brush the jaw teeth clean before every pull. Klein calls this out for a reason: packed-in grit or ice is the number one cause of a grip slipping on strand, and a stiff brush takes ten seconds.
Tool Nut's Take
Small Grip, Big Bite
A compact, proof-tested Haven's grip that handles the guy and messenger sizes most crews see every day. That is the Klein Tools Haven's Cable Grip, 0.5-in. Capacity in a nutshell.
- Who it's for: Linemen and telecom crews tensioning guy wire and messenger up to 1/2 in.
- Why it stands out: 5,000 lb rating in a 2.2 lb, made-in-USA package.
- Worth knowing: The aggressive jaw marks the strand, so keep it off finished conductors.
Common Questions
- What cable sizes does the 1604-20 fit? It accepts strand from 0.125 to 0.500 in. (3.18 to 12.70 mm) in diameter.
- Does it have a swing latch? No. The 1604-20 has no swing latch. Klein's 1604-20L is the swing-latch version.
- Can I use it near energized lines? Klein requires the grip to be grounded, insulated or isolated when working on or near energized lines.
- Can I leave it installed as a permanent anchor? No. Klein rates its pulling grips for temporary installation only, not permanent anchorage.
