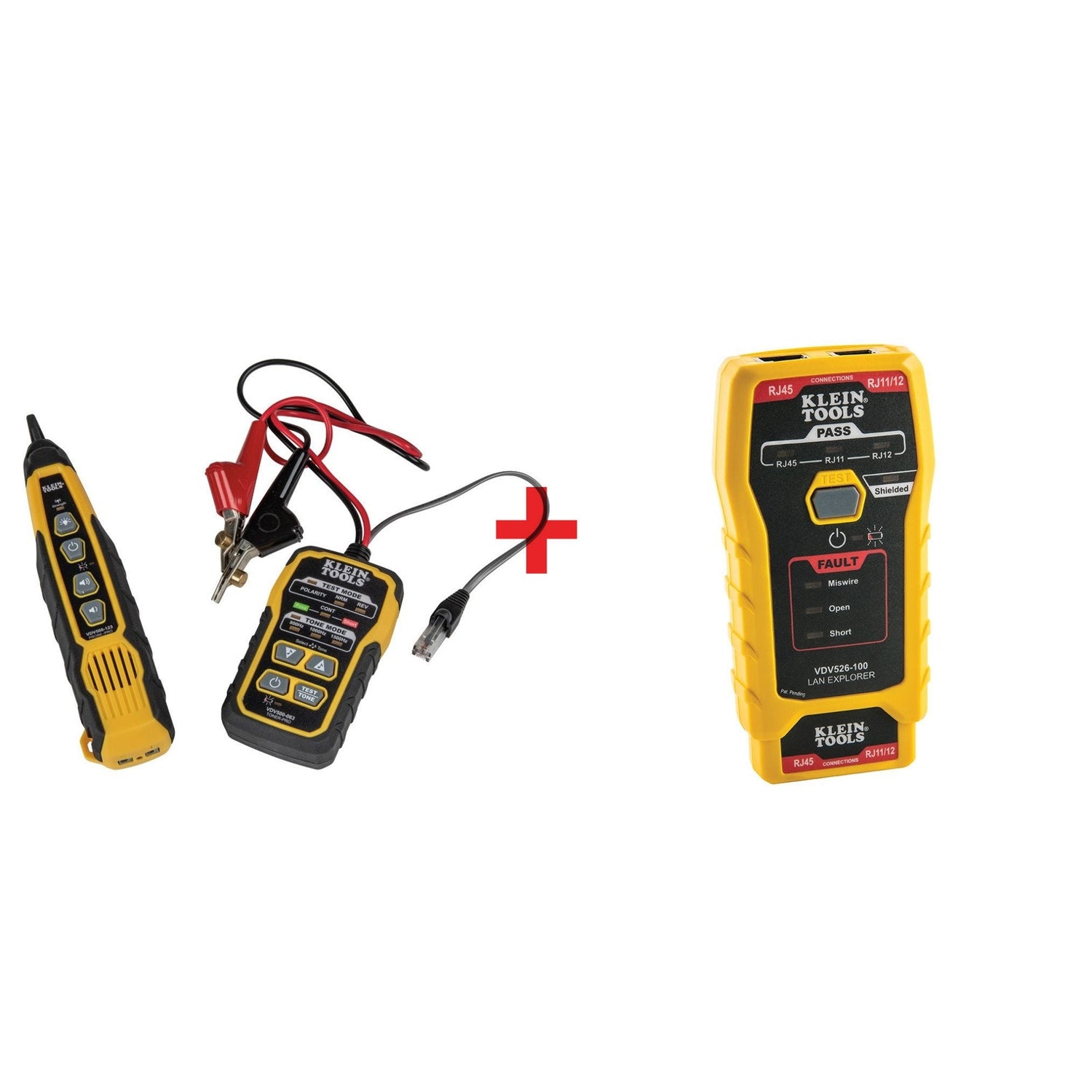

Kit Includes

• Klein Tools VDV500-820 Tone & Probe PRO Wire Tracing Kit
• Klein Tools VDV526-100 Network Cable Tester, LAN Explorer® Data Cable Tester with Remote

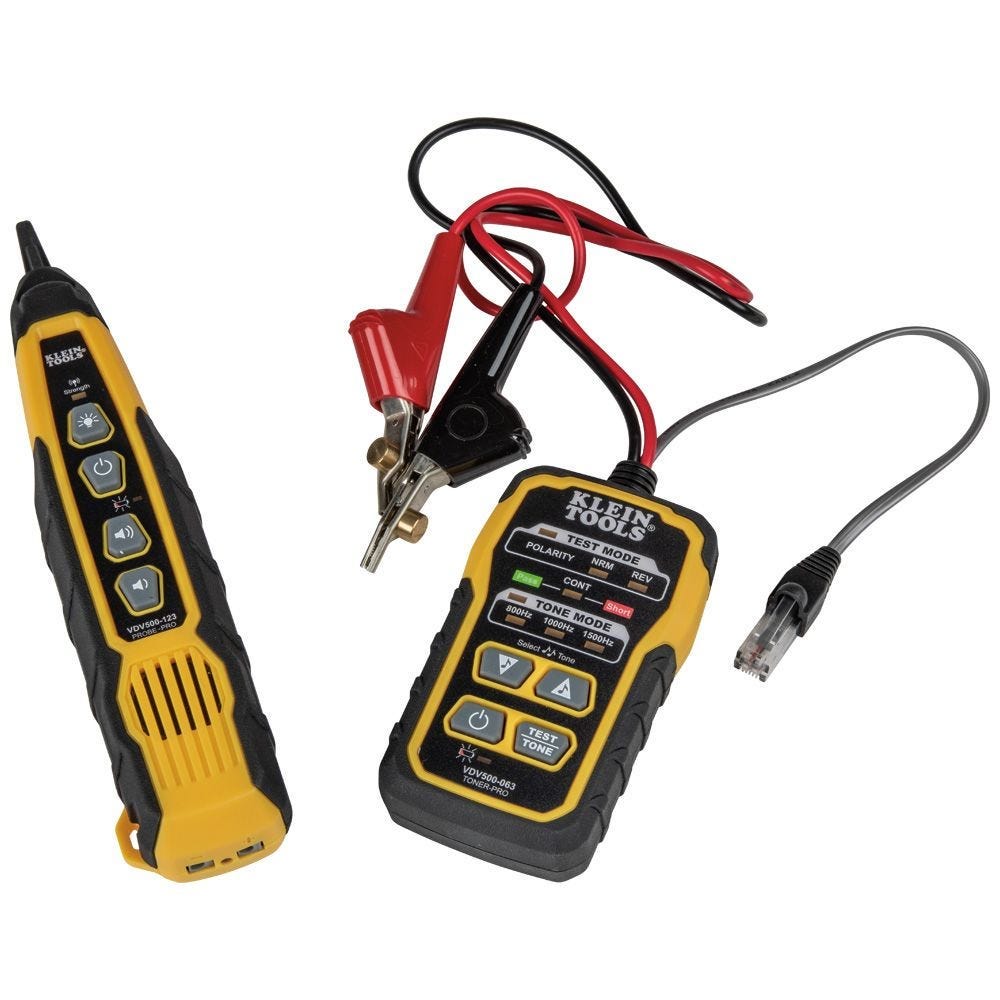

Klein Tools VDV500-820 Tone & Probe PRO Wire Tracing Kit

Product Highlights

Product Summary

This kit includes the tools necessary to tone and trace wires in common wiring systems. This premium tone generator has Angled Bed of Nails (ABN) clips that securely grip the cable. Tone Generator emits five distinct tones. An RJ11 plug easily connects to telephone or RJ45 data jacks for toning. The toner, also checks continuity and polarity that are indicated by clearly labeled LEDs. The probe traces with the tones signal. The adjustable-volume speaker amplifies the tone. The 3.5 mm jack allows for headphones (sold separately) to be attached in noisy environments. The probe has a tool-less non-metallic durable replaceable tip. The probe enables testing in distribution blocks without disturbing other services.

Features

• Includes a professional grade analog tone generator and tracing probe for open-ended, non-energized wiring
• Toner-Pro features 5 distinct tone cadences, transmits 1,000+ feet
• Rugged Angled Bed of Nails (ABN) clips securely attach to wires
• RJ11 plug easily connects to telephone and RJ45 data jacks to tone wire pair
• Toner-Pro tests for continuity and polarity with results indicated by clearly labeled LEDs
• Probe-Pro features 3.5 mm headphone jack for noisy environments (headphones not included)
• Responsive probe with durable non-metallic, replaceable conductive tip (VDV999-068) - sold separately
• Work light on probe tip for use in dark spaces
• Terminal block on probe to confirm the toned pair
• Each tool includes 4X AAA batteries

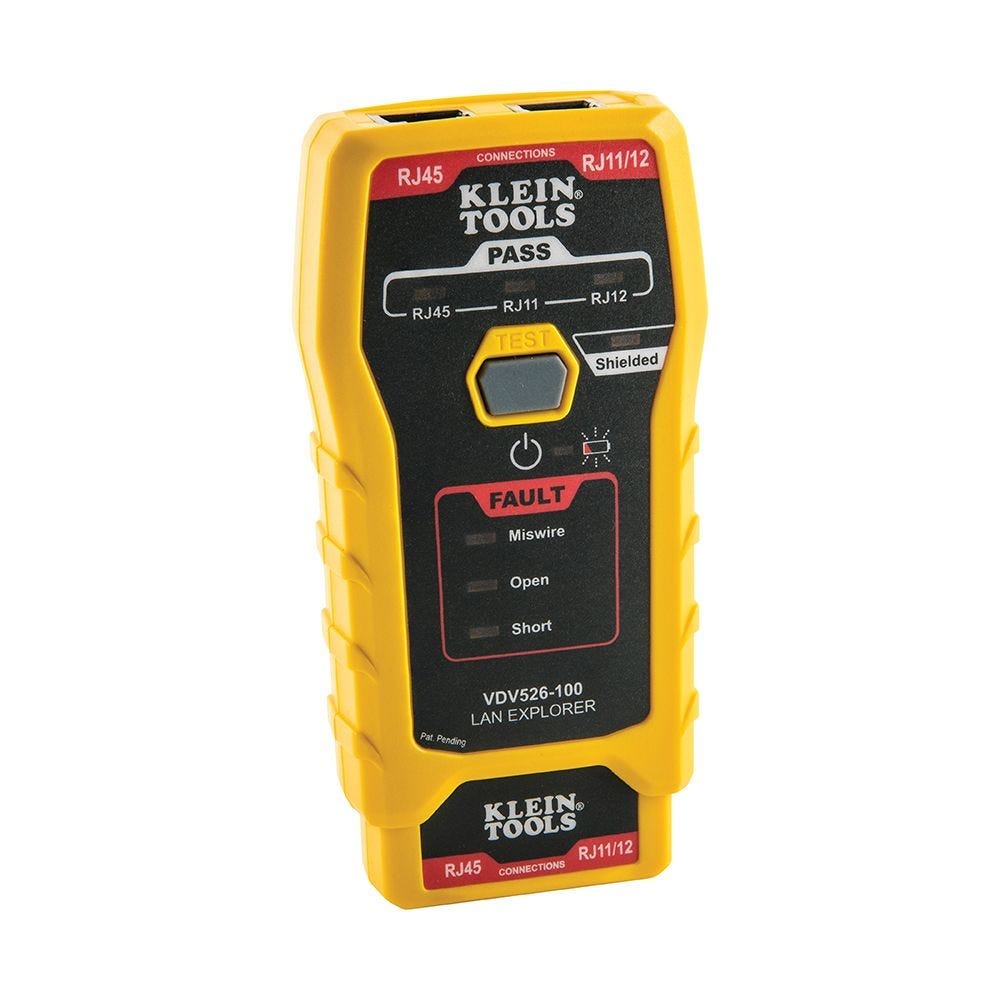

Klein Tools VDV526-100 Network Cable Tester, LAN Explorer® Data Cable Tester with Remote

Product Highlights

Product Summary

This simple, compact data cable tester for RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).

Features

• Cable tester with single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
• Tests CAT3, CAT5e and CAT6/6A cables
• Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
• Test remote stores securely in tester body
• Compact tester easily fits in your pocket
• Auto Power-off feature to conserve battery life (9V included)
• Low battery indicator
• Replacement remote (VDV999-150) available (sold separately)
