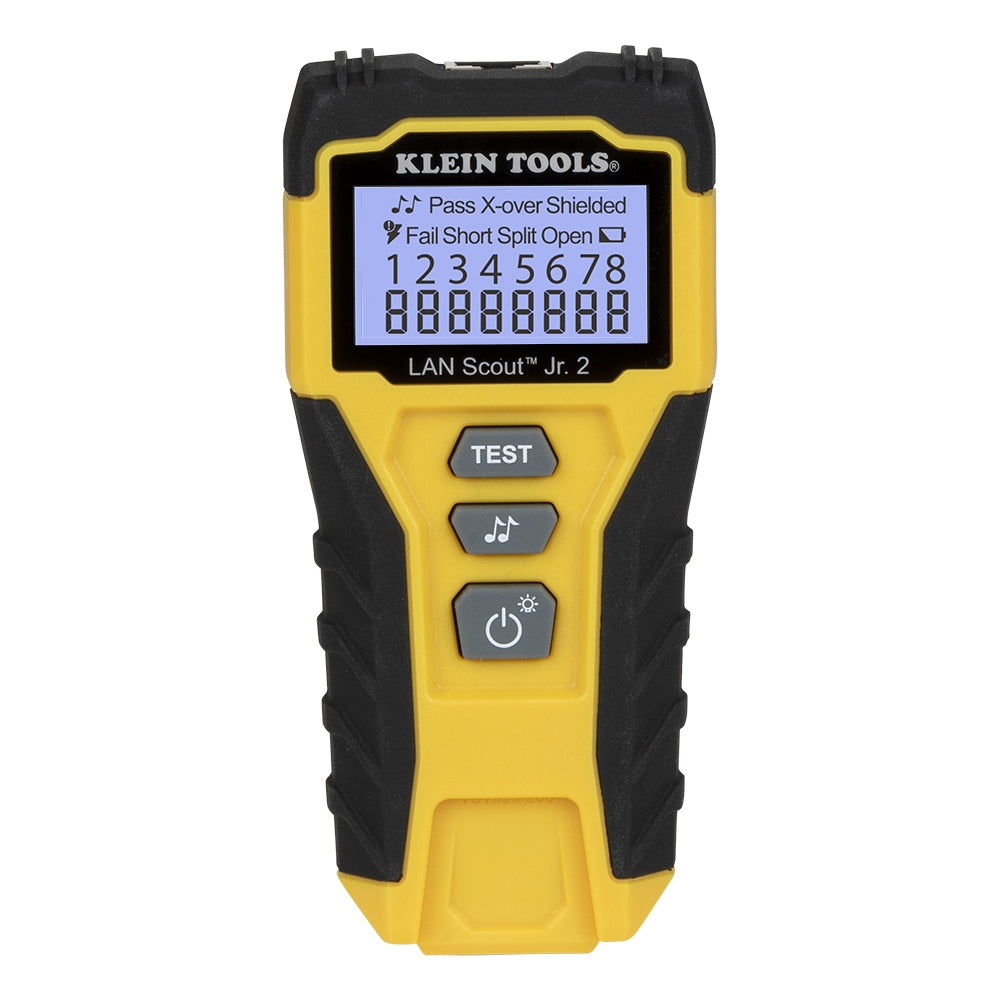

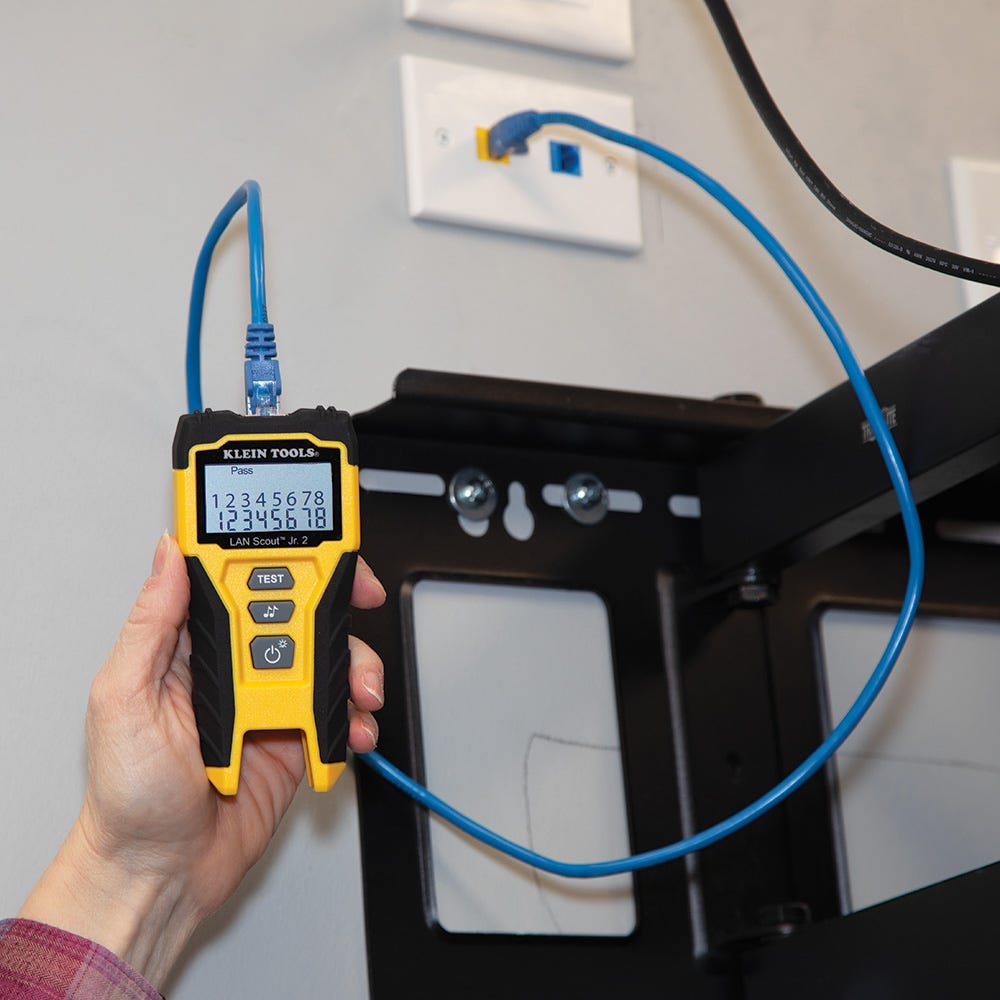

The LAN Scout Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.

• Cable tester for data (RJ45) terminated cables and patch cords

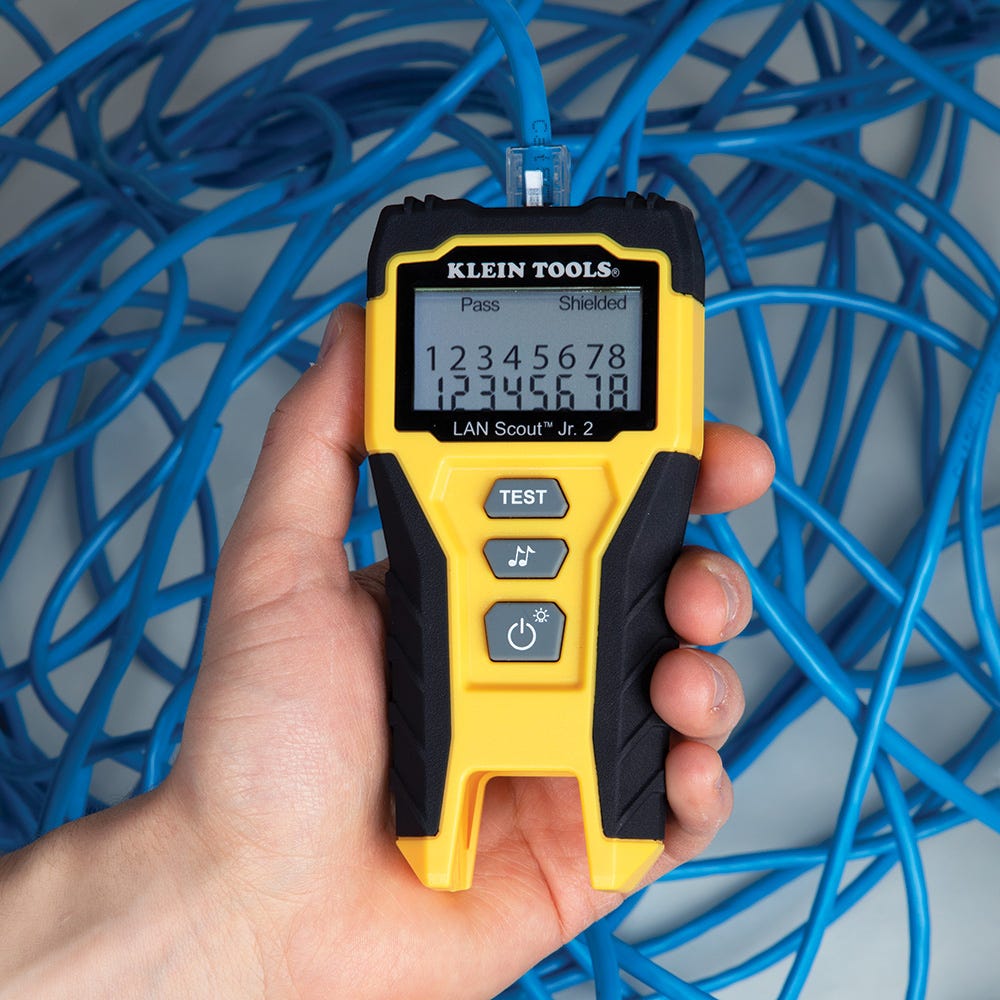

• Large backlit LCD for low lit areas displays pin to pin wiremap results

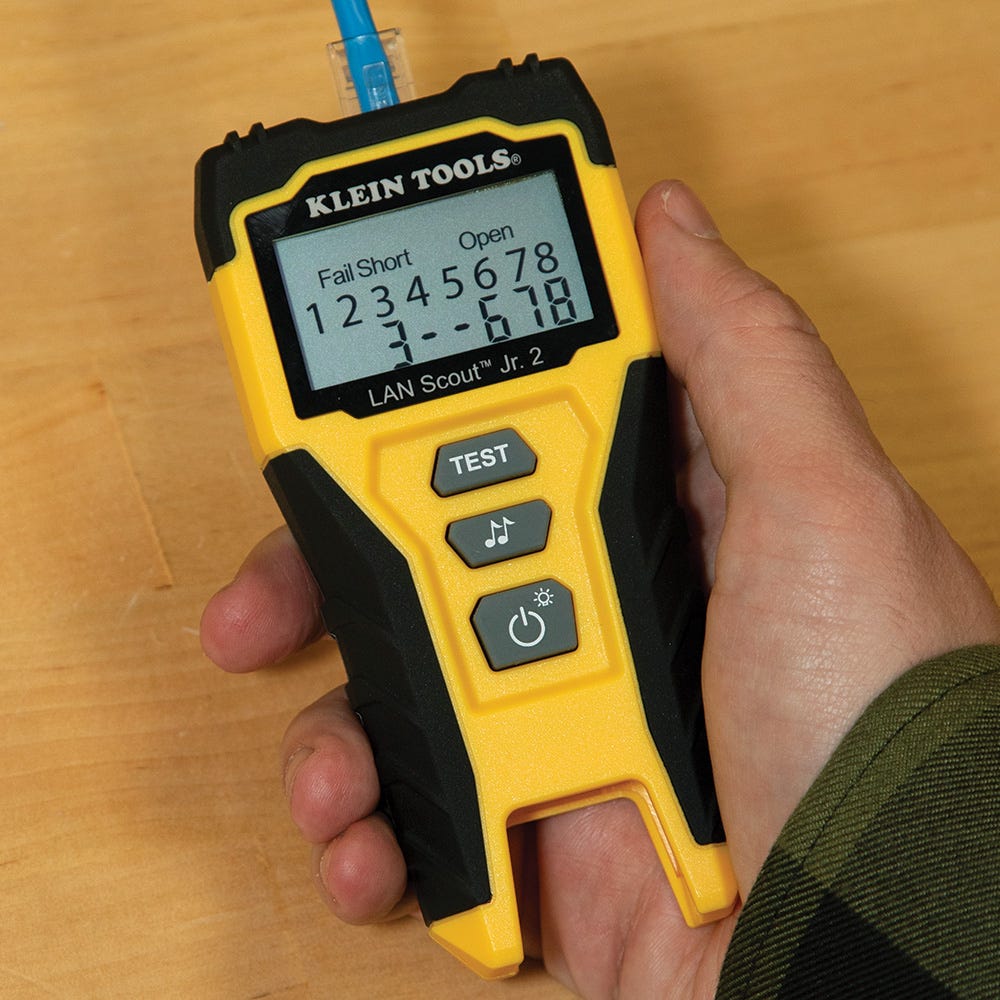

• Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
• Intuitive user interface features three buttons with simple, easy-to-identify test responses
• Tone on single wire, wire pair or all 8 conductor wires
• Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
• Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
• Soft, slip-resistant, rugged overmold for easy gripping and durability
• Replaceable 2 x AAA batteries (included)

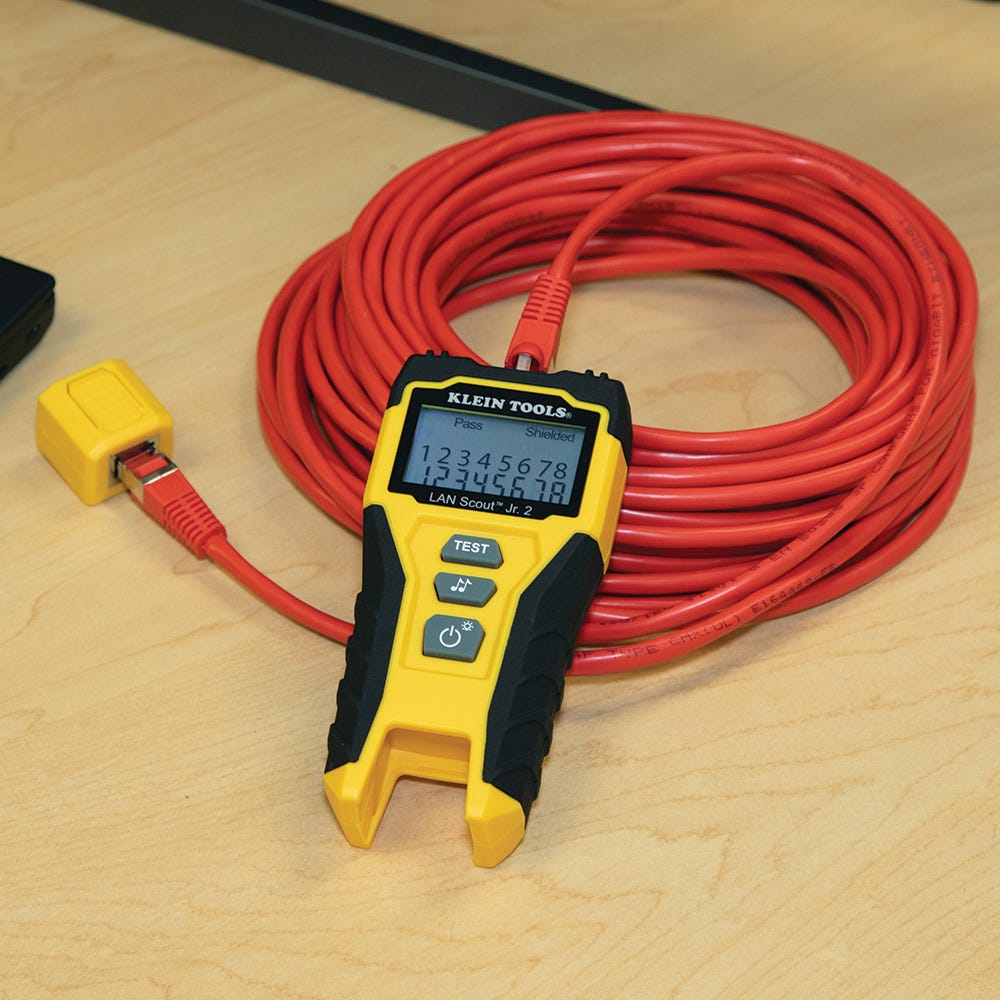

• Replaceable self-storing remote (included)
