Product Highlights

Product Summary

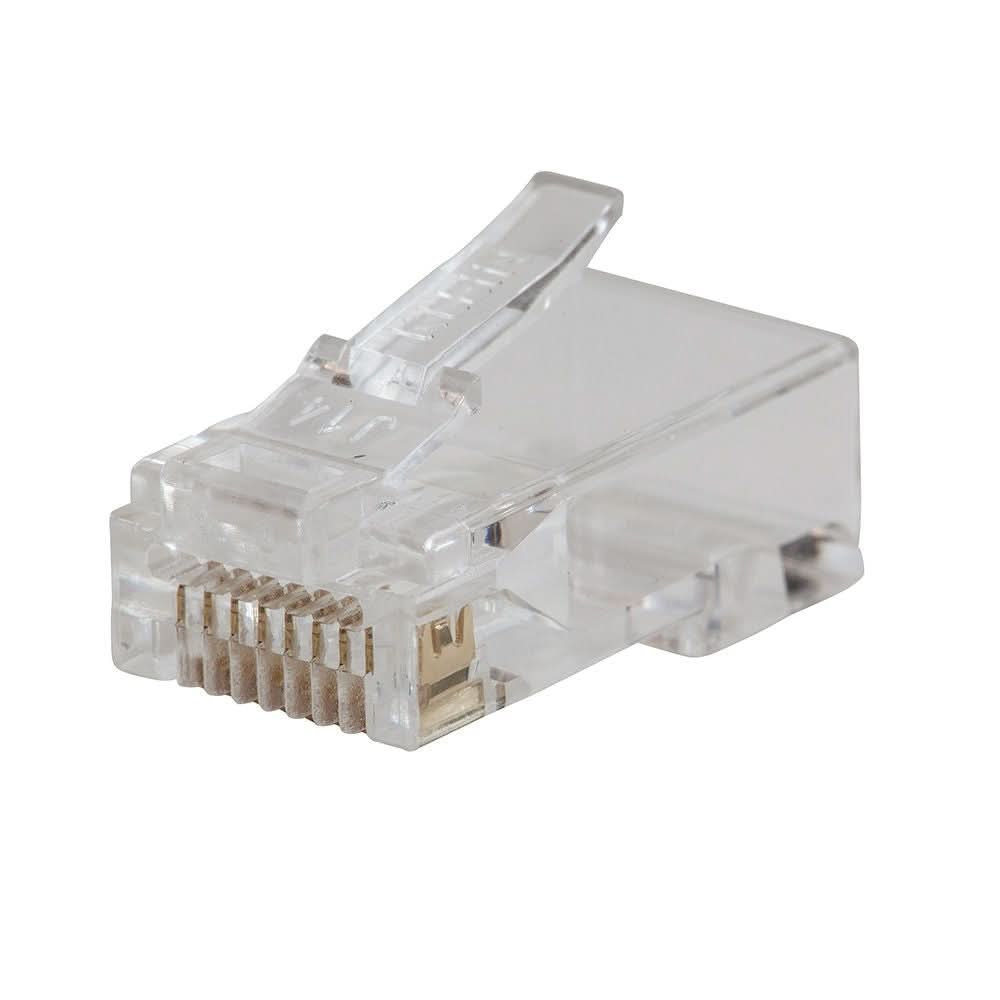

Exclusive Klein-designed Pass-Thru modular plugs for fast, reliable connector installations for data applications.Saves time, trims flush to end face when used with Klein Tools Pass-Thru Modular Crimper VDV226-110, and eliminates wasted materials.

Features

• Klein exclusive Pass-Thru Connectors provide fast, reliable connector installations for data applications
• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50 -inch gold plating on all contact surfaces
• Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
• For use with Klein Tools Pass-Thru Modular Crimper VDV226-110
• 10-Pack
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable
• Max diameter for CAT5E Pass-Thru Connectors is 0.04 (1.01 mm)|||Do NOT use on energized circuits or cabling systems||||||||||Type|Modular|Package Quantity|10|Overall Width|0.094 (0.2 cm)
• Overall Height
• 0.453 (1.2 cm)|Connector Color|Clear|Solid Conductor Wire|Yes|Special Features|Pass-Thru Technology|Cable Type|CAT5e|Position & Contacts|8P 8C|Stranded Conductor Wire|Yes|Material|PVC Plastic; Gold Plated Contacts|Connector Type|RJ45|Overall Length|0.875 (2.2 cm)
