Knipex 74 22 200 High Leverage 12-Degree Angled Diagonal Cutters (74 22 200 SBA)
Knipex 74 22 200 High Leverage 12-Degree Angled Diagonal Cutters (74 22 200 SBA)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

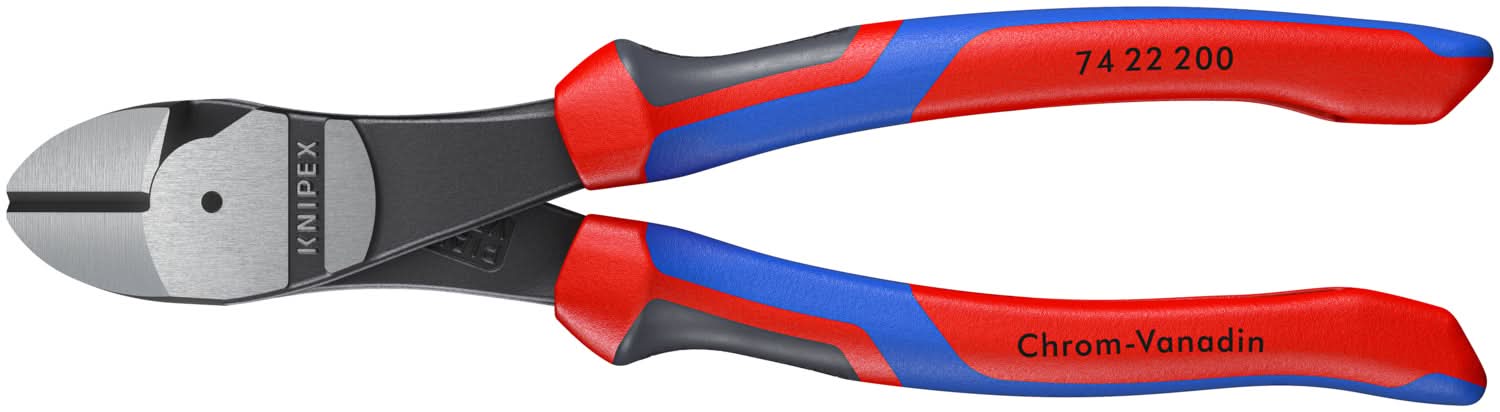

The Knipex 74 22 200 SBA Angled High Leverage Diagonal Cutting Pliers are compact heavy-duty cutting pliers built for mechanics, tradespeople, and serious users who need real cutting power in an 8 inch class tool. This is a diagonal cutting pliers tool designed for cutting wire, nails, rivets, and other hard materials with less effort. Model Number: 74 22 200 SBA.
What makes this cutter matter is the leverage. Knipex designed the cutting edge angle, transmission ratio, and handle shape to work together so you get strong cutting performance without overworking your hand. The claimed reduction in required force is about 20% versus conventional diagonal cutters of the same length, which is the kind of difference you feel fast when you are making repeated cuts all day.
The cutting edges are precision machined and induction hardened to about 64 HRC. That is not just a numbers game. It means the edges are built to stay sharp and keep cutting when the job moves beyond soft copper and light wire into harder stock, including piano wire. Knipex rates these cutters to handle piano wire up to 2.5 mm, which tells you they are aimed at hard constant use, not light bench work.

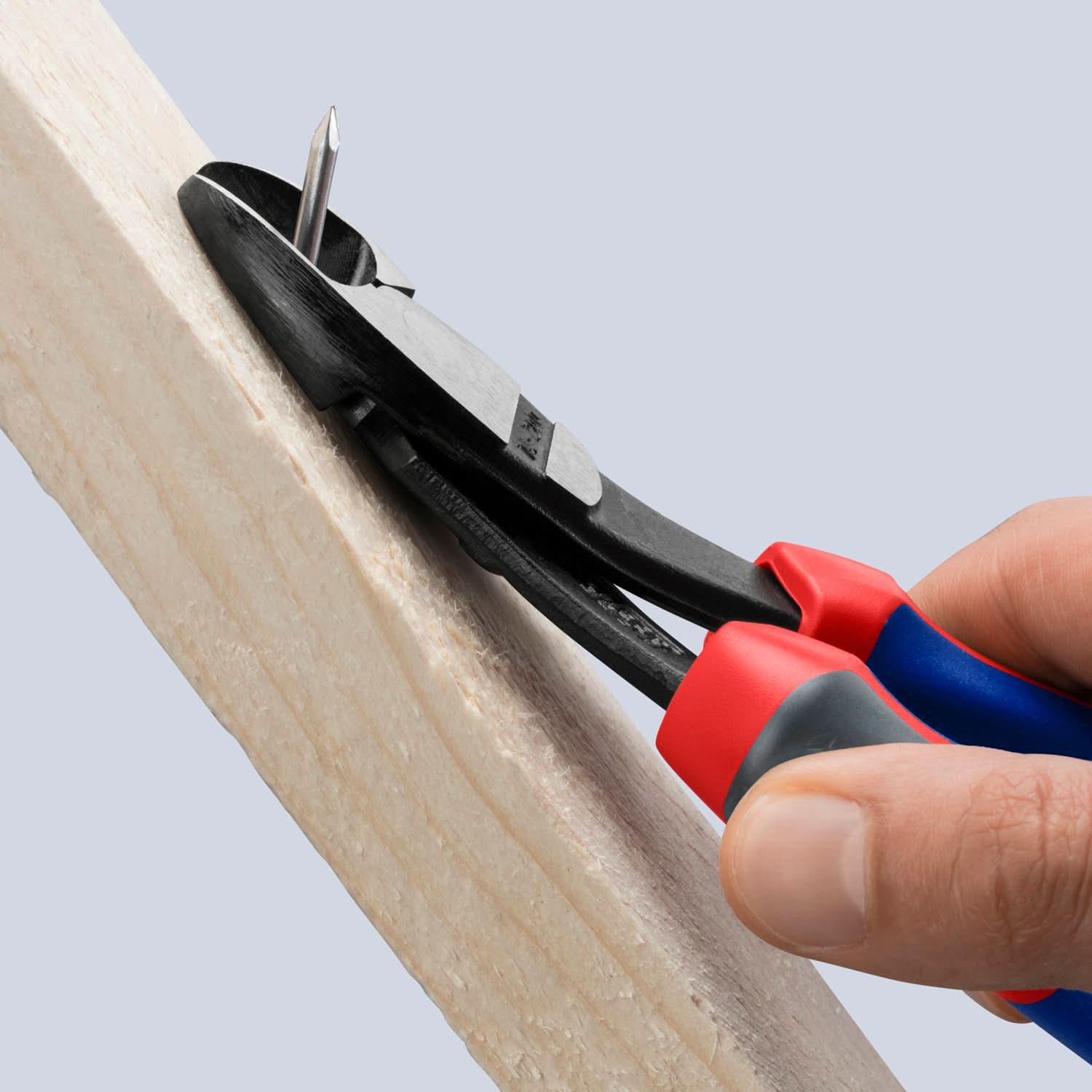

The 12 degree angled head is one of the more useful details on this model. In tight spots, straight diagonal cutters can force your knuckles into the work or make you come in at an awkward angle. This head shape gives you more hand clearance and makes flush or close cuts easier near surfaces, assemblies, and framing members. For assembly work, industrial maintenance, and jobsite punch-list cuts, that added clearance saves time and frustration.
Knipex also backs up the cutting performance with a robust build. The tool is forged from chrome vanadium heavy-duty steel and multi-stage oil hardened for strength and long service life. The forged joint axle is there for a reason too. It helps the cutter hold alignment under heavy loads, so the action stays smooth and solid instead of getting loose and sloppy over time.
At 200 mm overall length and about 0.66 lb, this cutter lands in a sweet spot. It is compact enough to ride in a pouch, work bag, or service kit, but it still gives you enough leverage for demanding cuts. The multi-component grips add comfort and control without making the handles bulky, which is important when you are using the tool repeatedly or working with gloves.

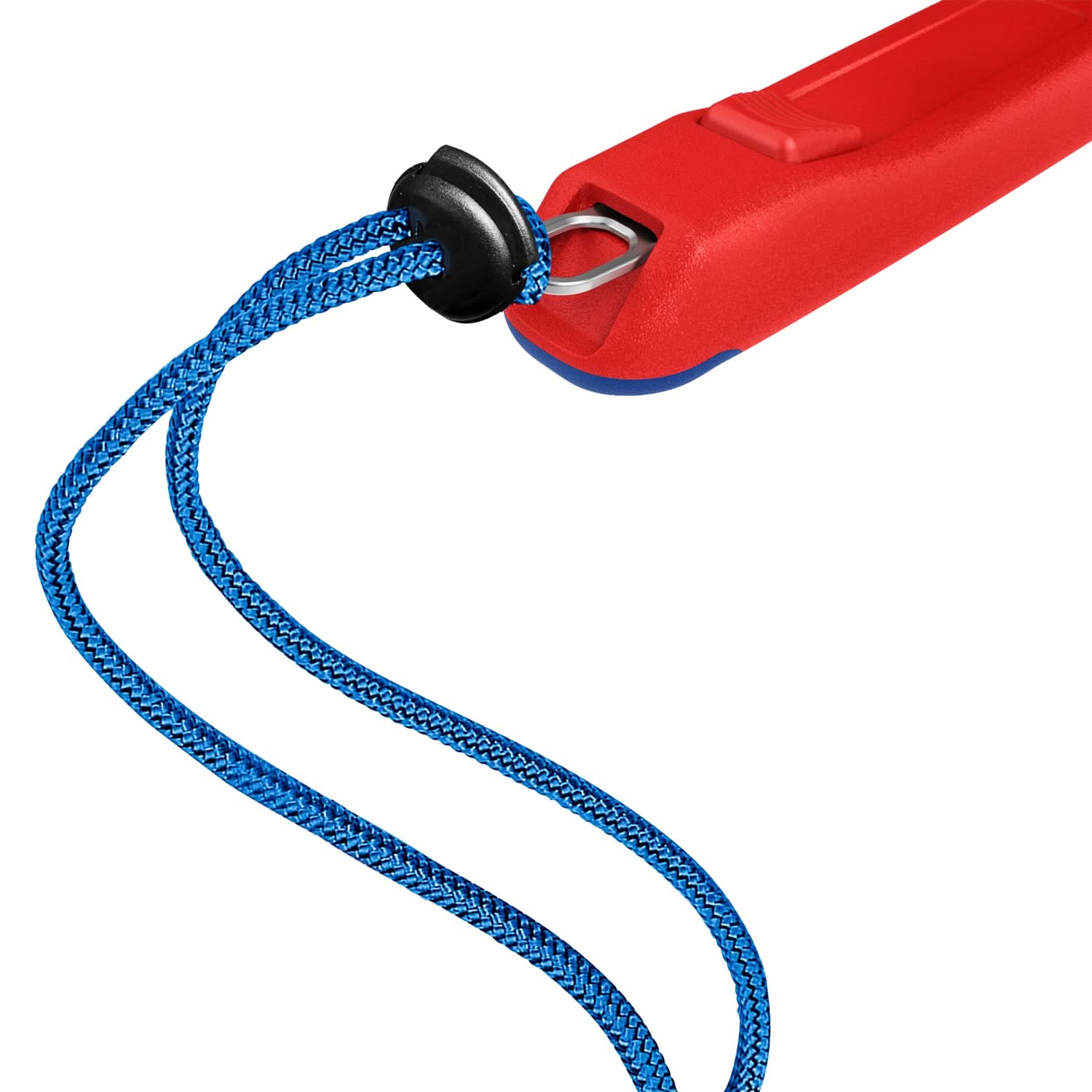

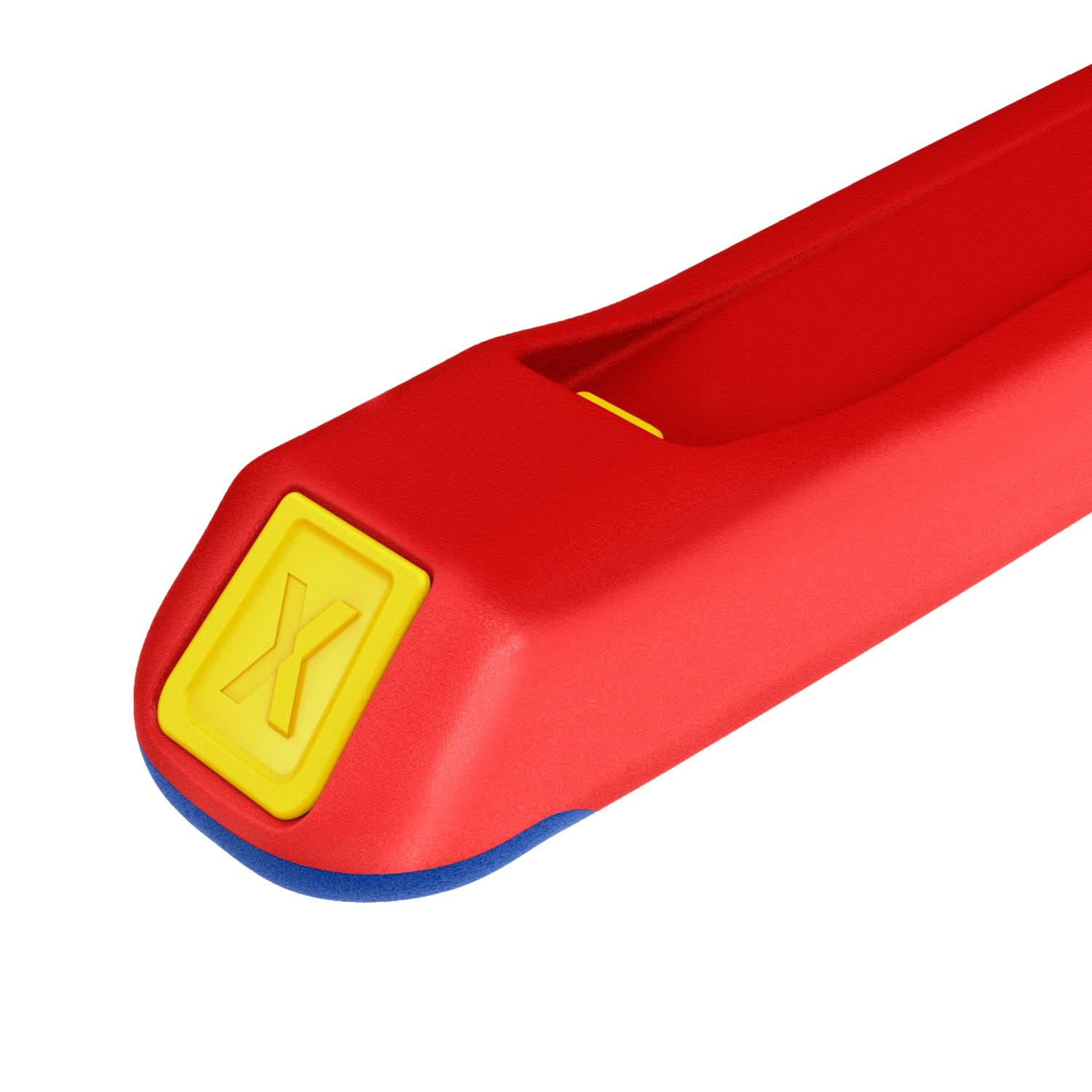

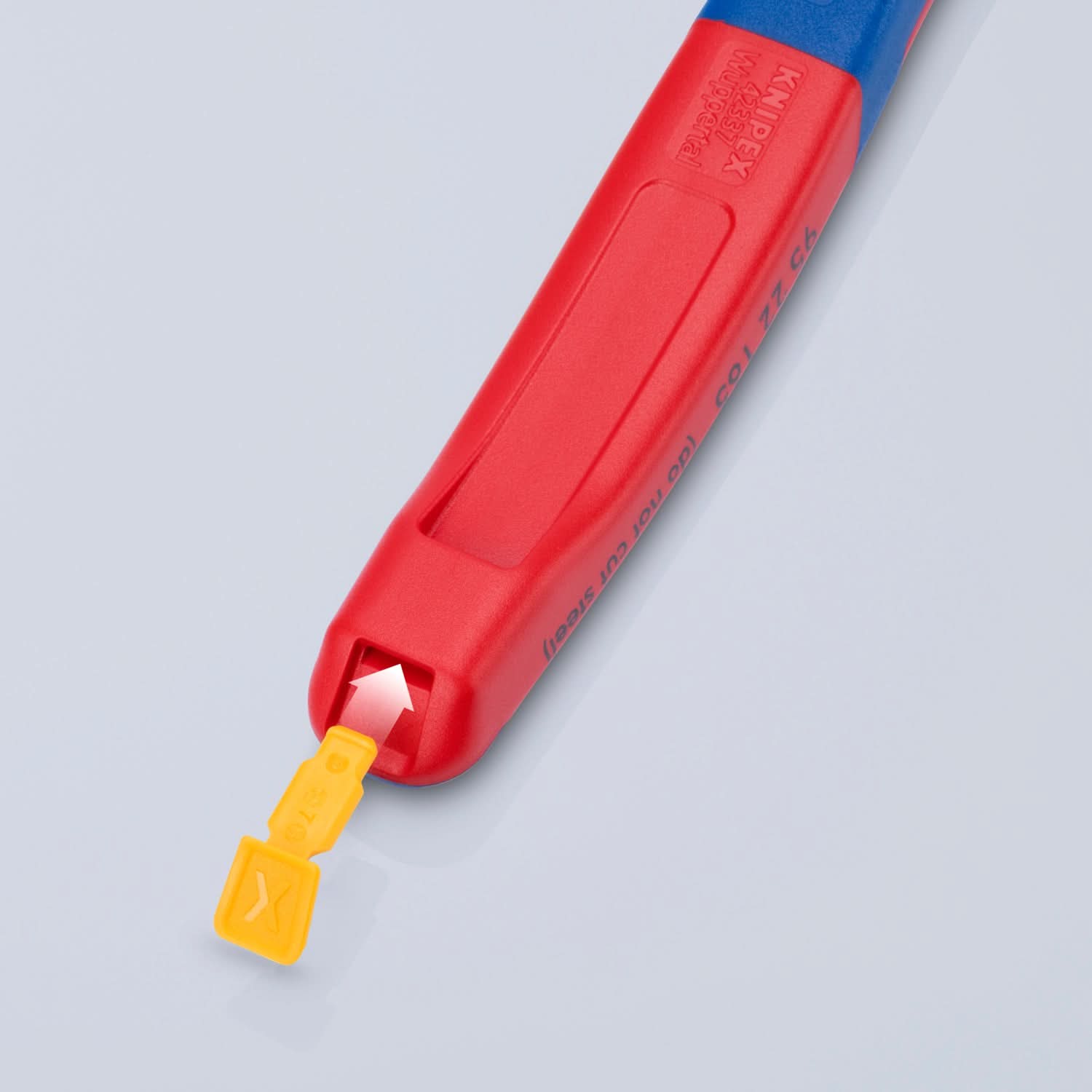

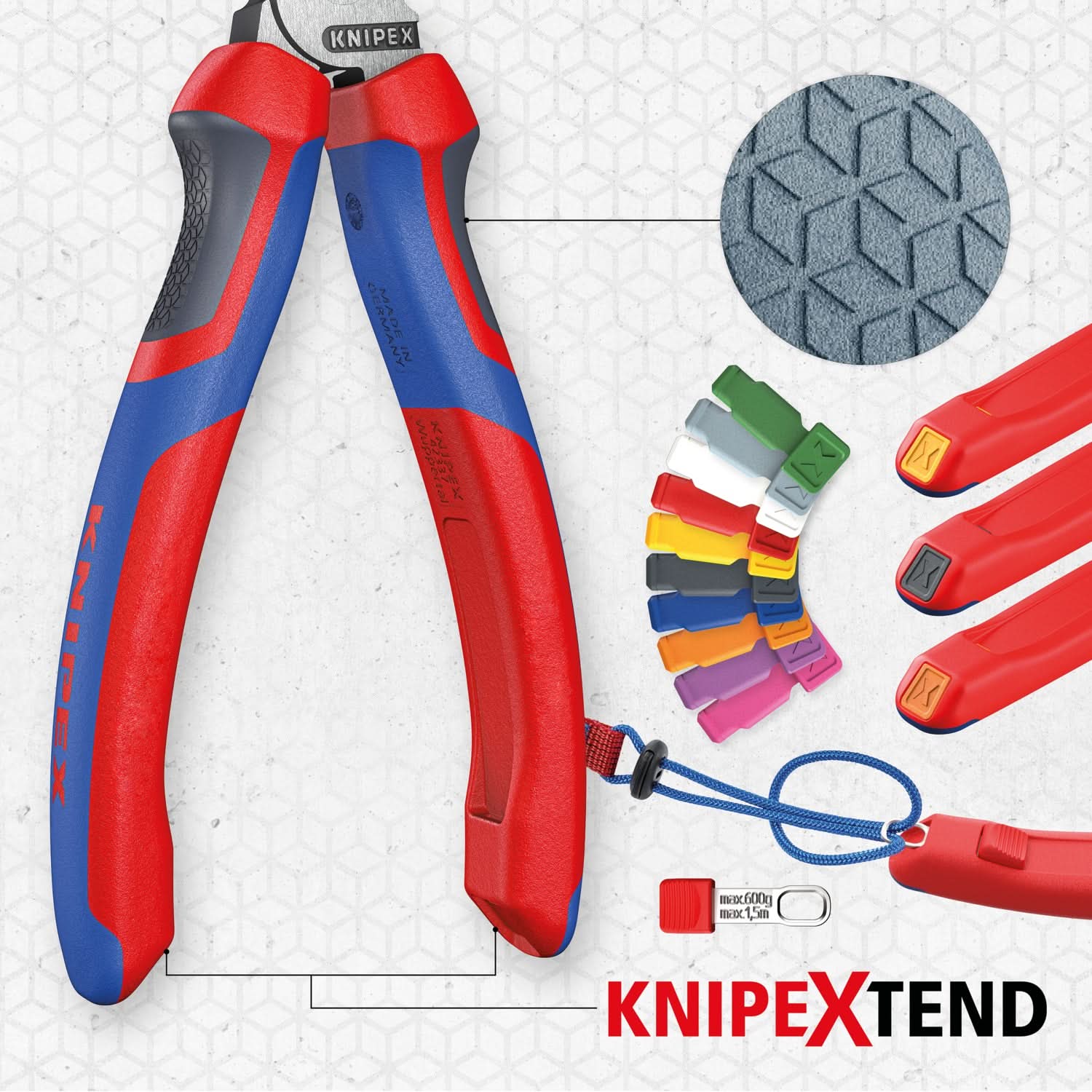

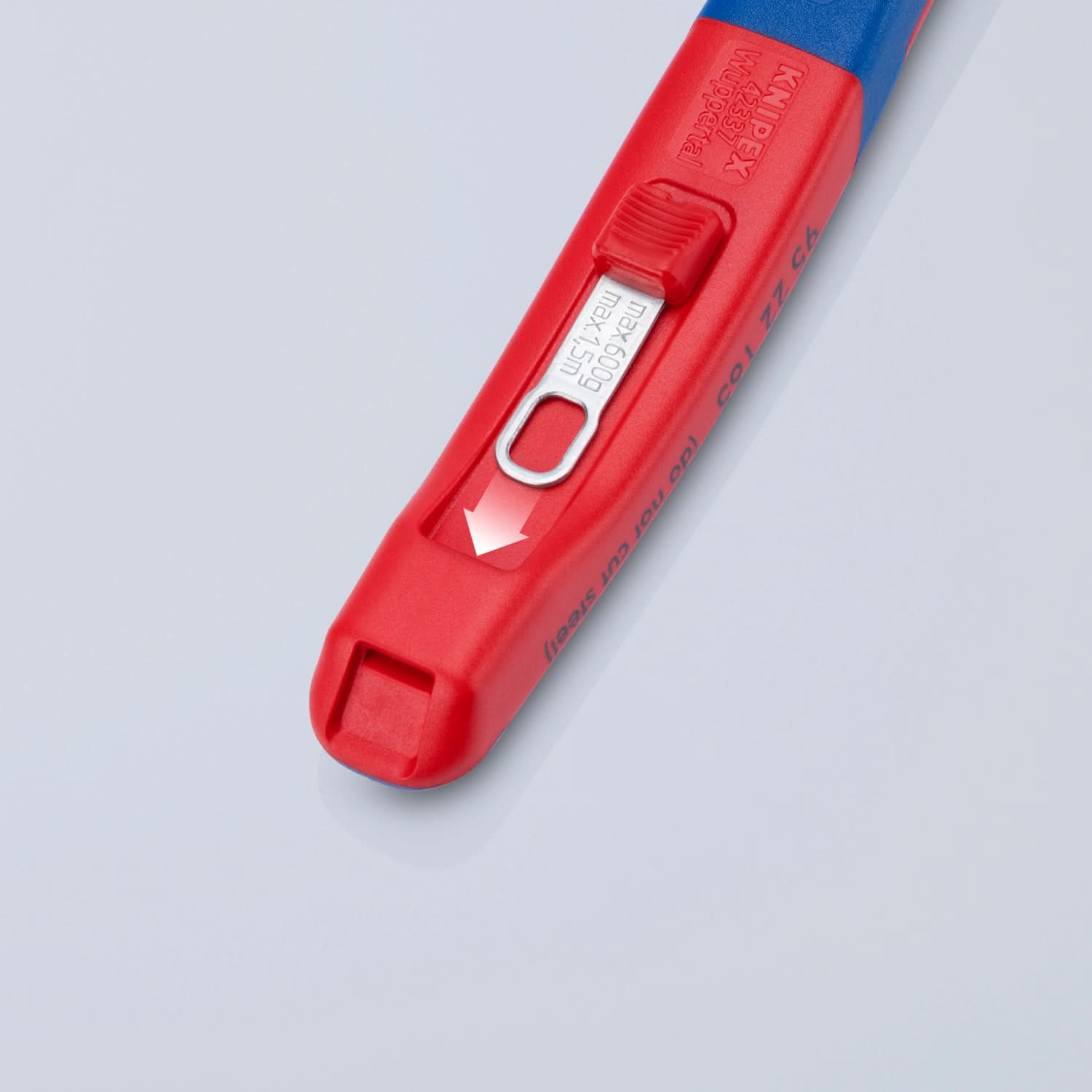

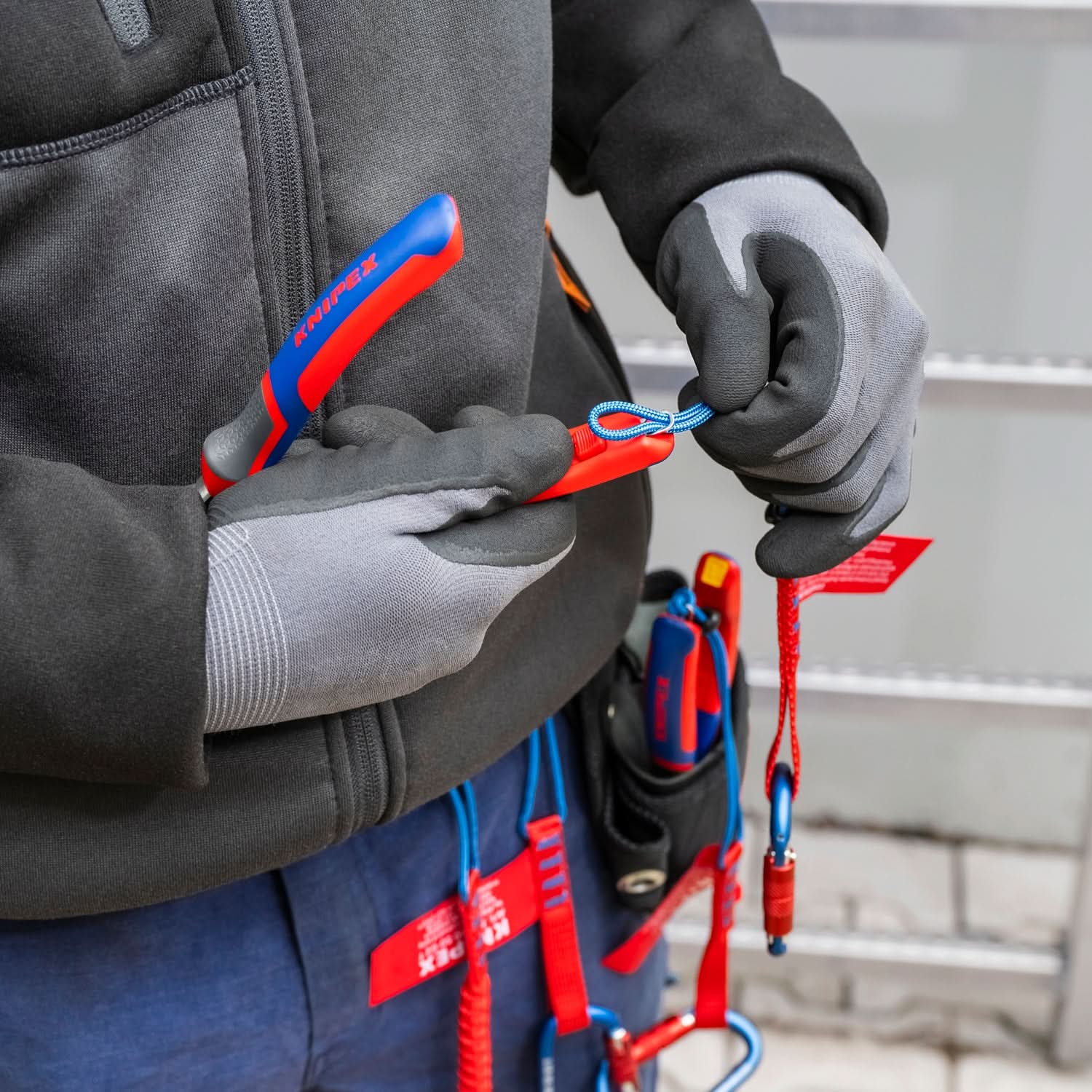

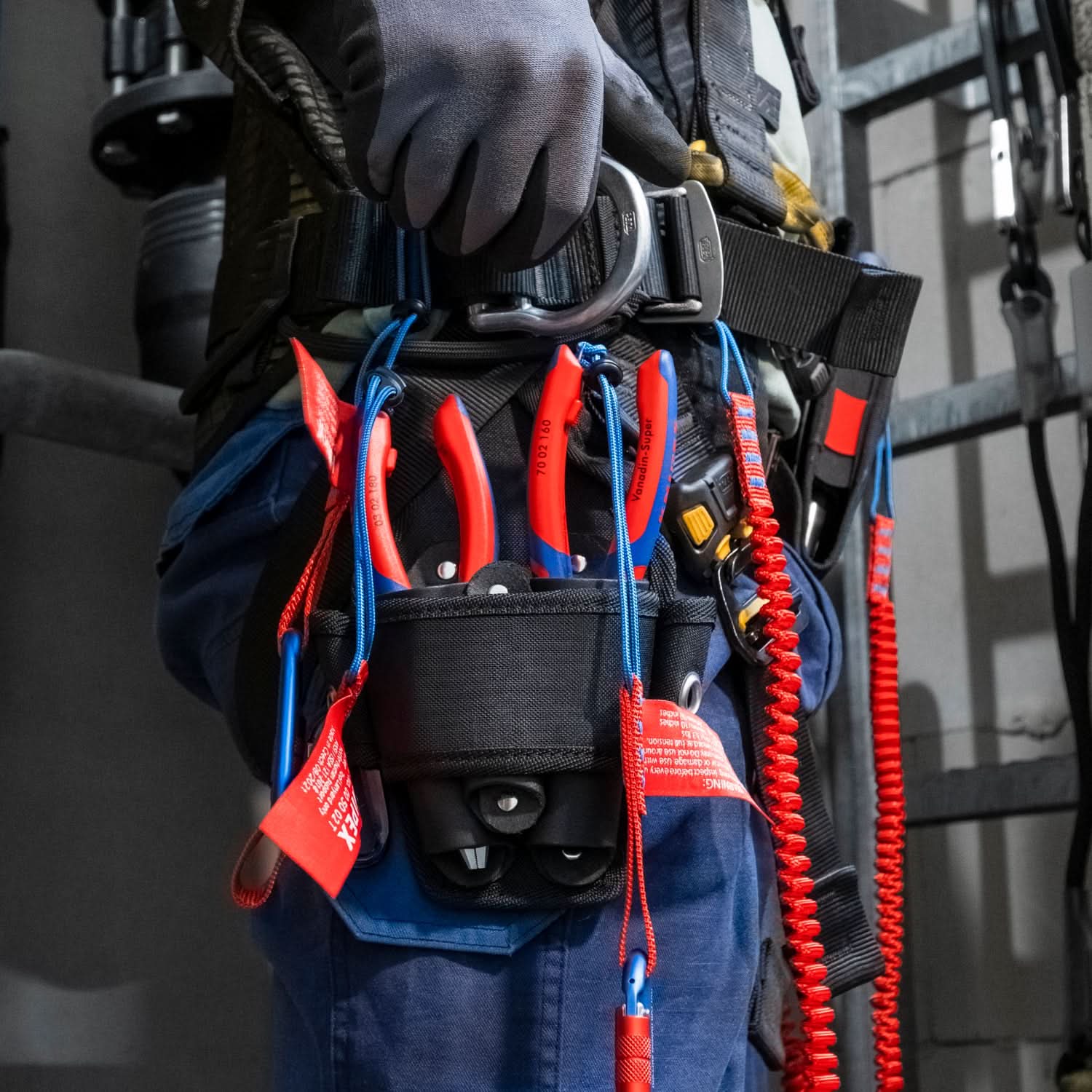

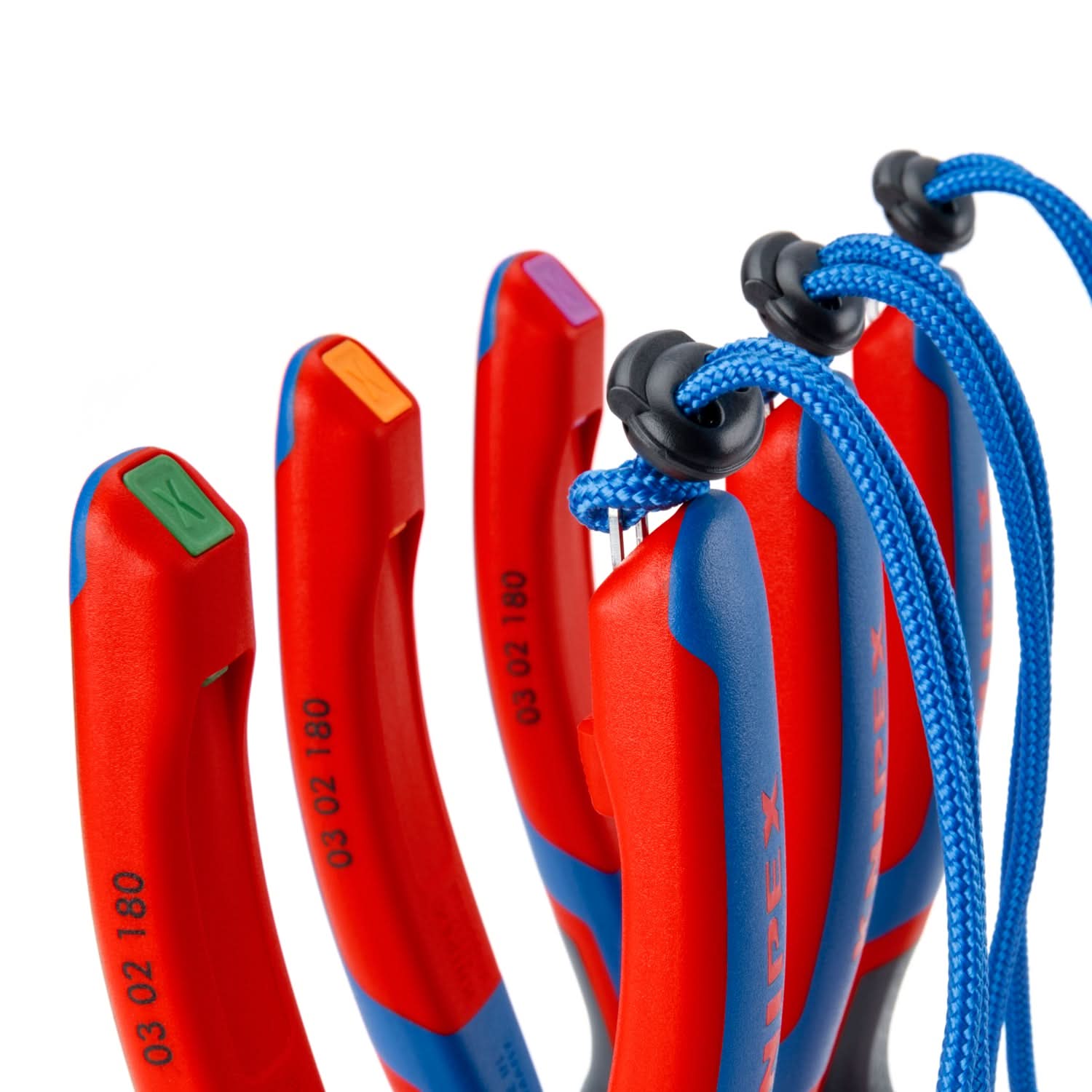

There is also some ecosystem value here if you already run Knipex hand tools on the job. The comfort handles are compatible with KNIPEXTEND color-coded clips and tethering accessories, sold separately. That makes this model easier to identify in a tool bag and easier to adapt for tethered work where tool retention matters.
If you are a mechanic, electrician, industrial tech, installer, or carpenter who needs one pair of cutting pliers that can live in the bag and handle hard daily work, this is the kind of cutter worth paying for. It is not a cheap throw-in tool. It is a compact, high leverage diagonal cutter for people who are tired of fighting dull edges and flexy joints.
Built to Cut Hard Material All Day

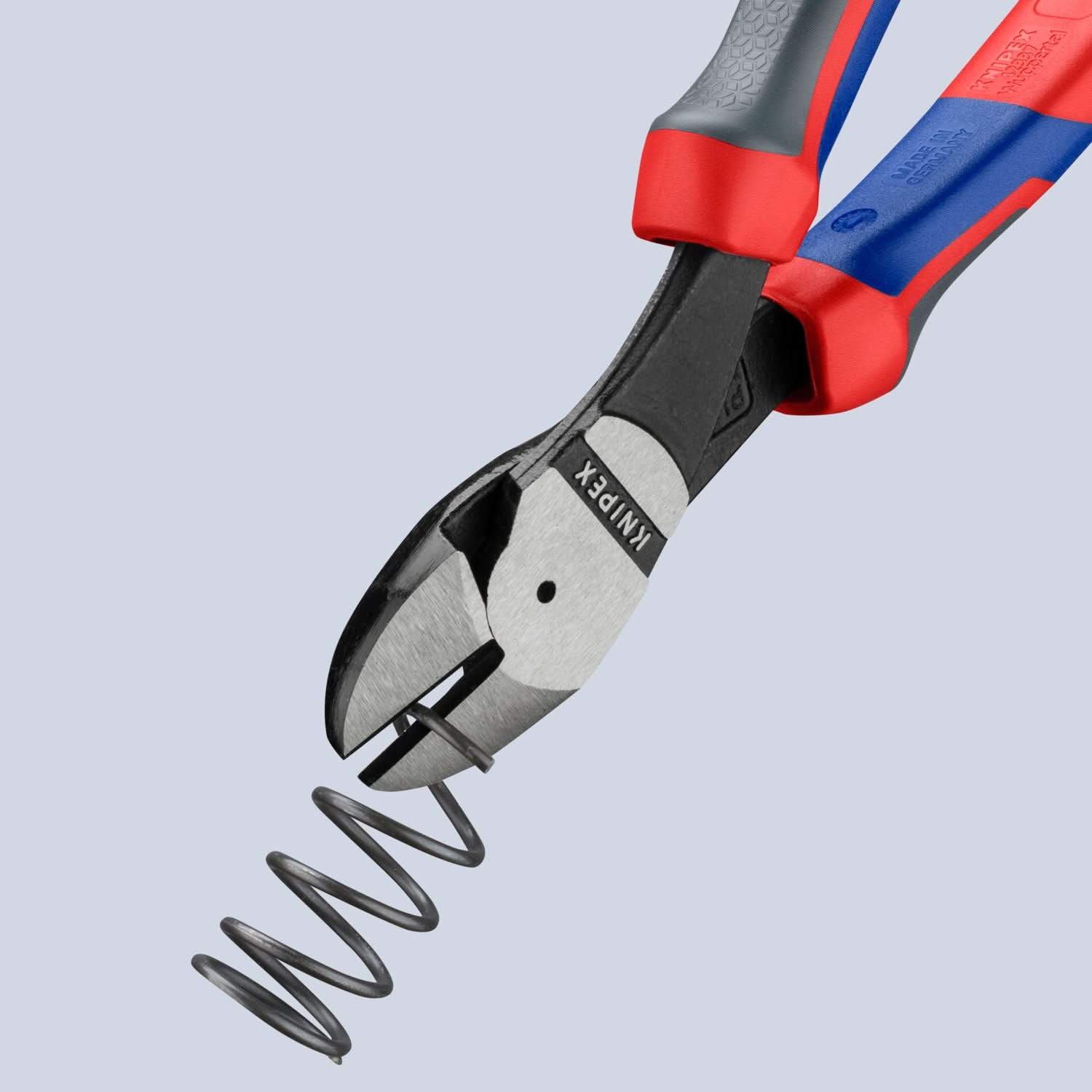

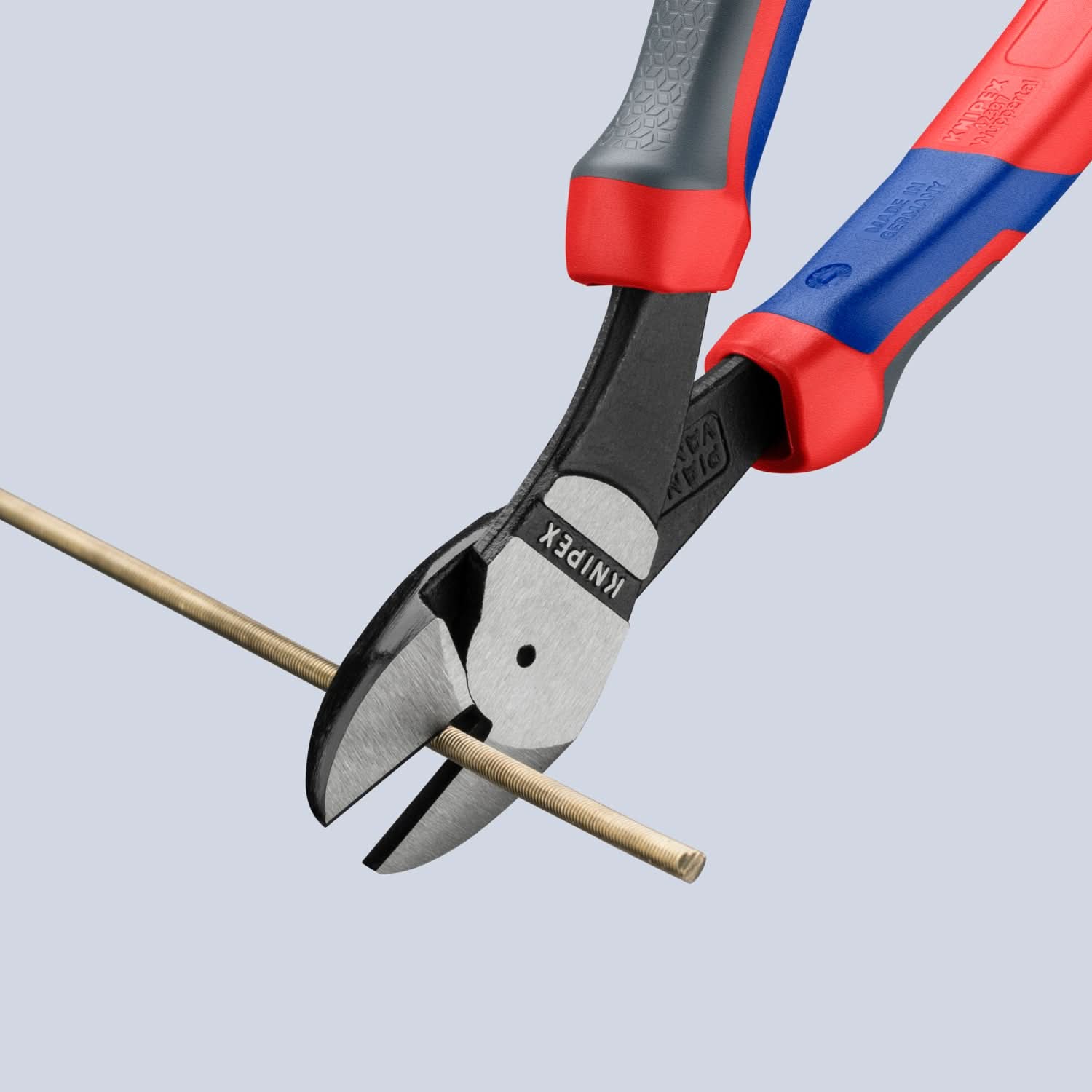

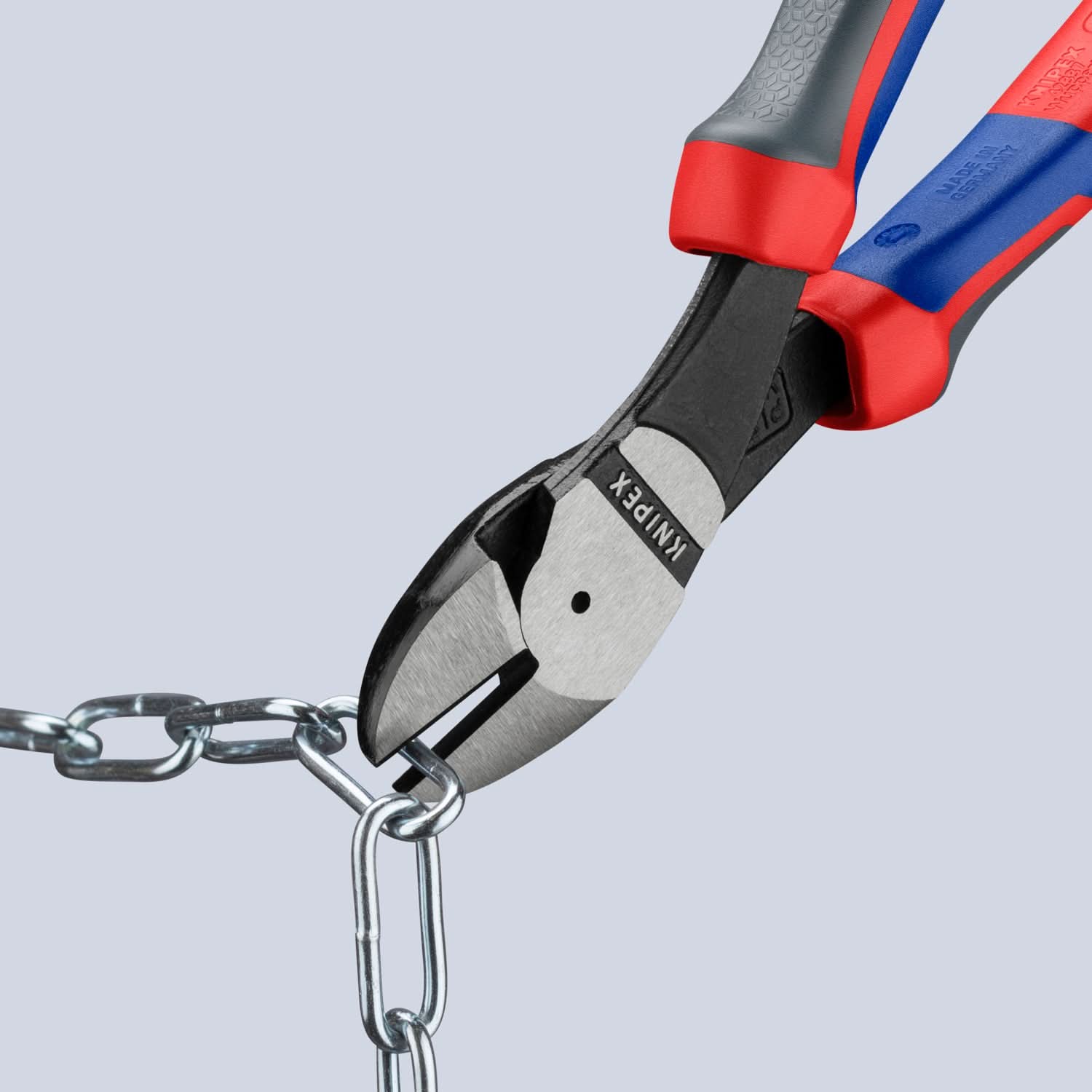

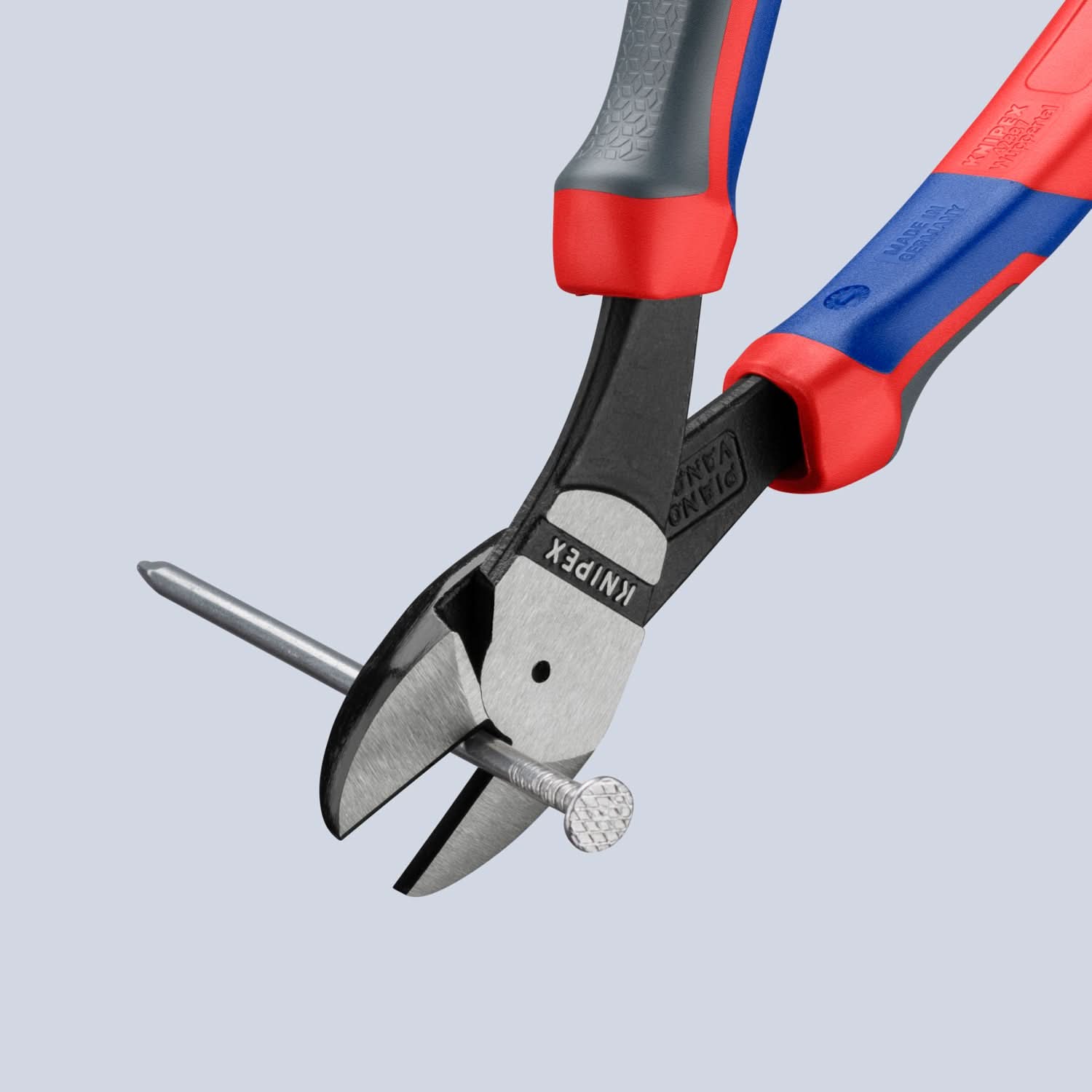

These cutters are made for the stuff that quickly exposes weak hand tools. Hard wire, nails, and rivets are exactly where the leverage and hardened edges pay off.
- Precision cutting edges are induction hardened to approximately 64 HRC
- Rated to cut piano wire up to 2.5 mm
- Designed for very tough, continuous use
Get Into Tight Spots Without Fighting the Tool
The angled head gives your hand more working room when access is tight. That makes close cuts easier around assemblies, corners, and surfaces where a straight cutter can feel awkward.
- 12 degree angled head improves hand clearance
- Good fit for confined work situations
- Compact 200 mm length is easy to carry and position
Heavy-Duty Joint That Holds Up
A cutter is only as good as the joint behind the edge. Knipex uses a forged joint axle and oil-hardened steel construction so the tool stays tight, aligned, and dependable under repeated heavy cuts.
- Chrome vanadium heavy-duty steel construction
- Forged joint axle supports long-term stability
- Multi-stage oil hardened for durability
Comfort You Notice on Repetitive Cuts
Good cutters should not beat up your hand. The ergonomic multi-component grips and efficient leverage make this a strong choice for assembly lines, service calls, and any job where you are making cut after cut.
- Multi-component comfort grips improve control
- About 300 g weight keeps the tool easy to carry
- Well suited to mobile use and work bags

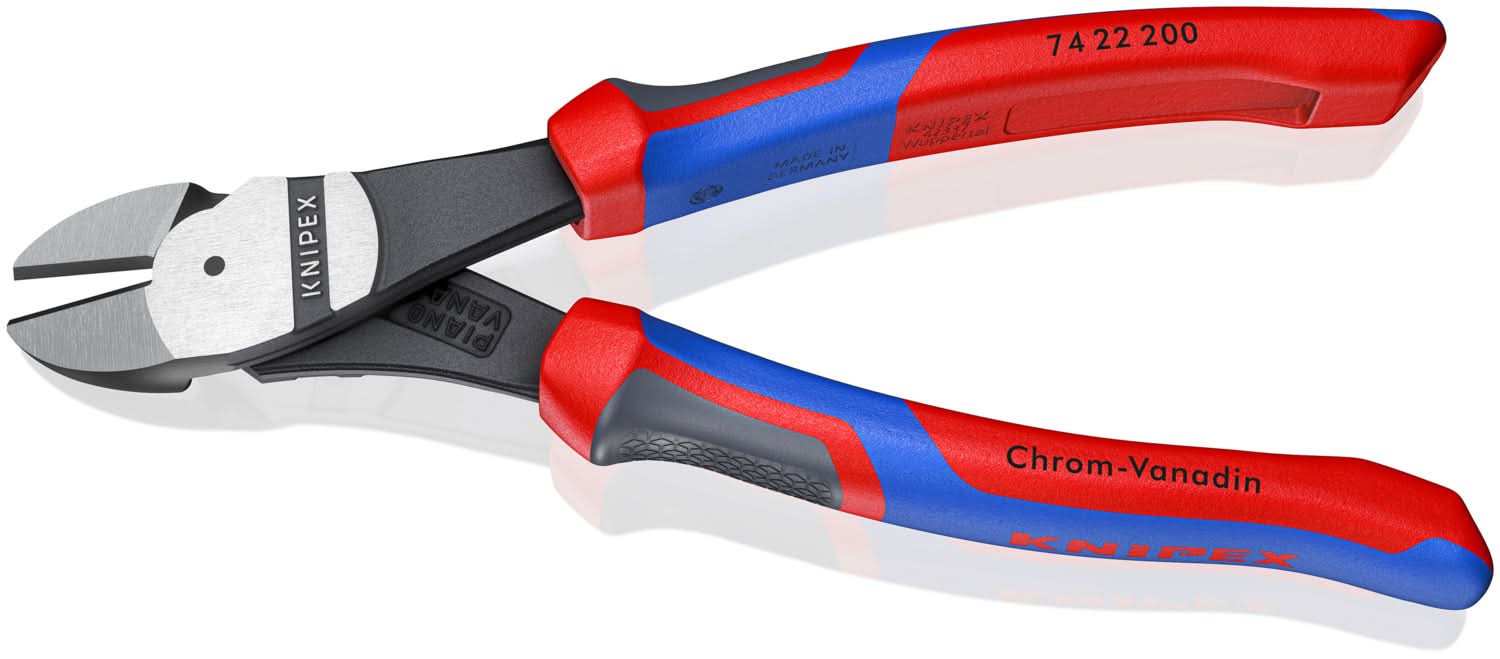

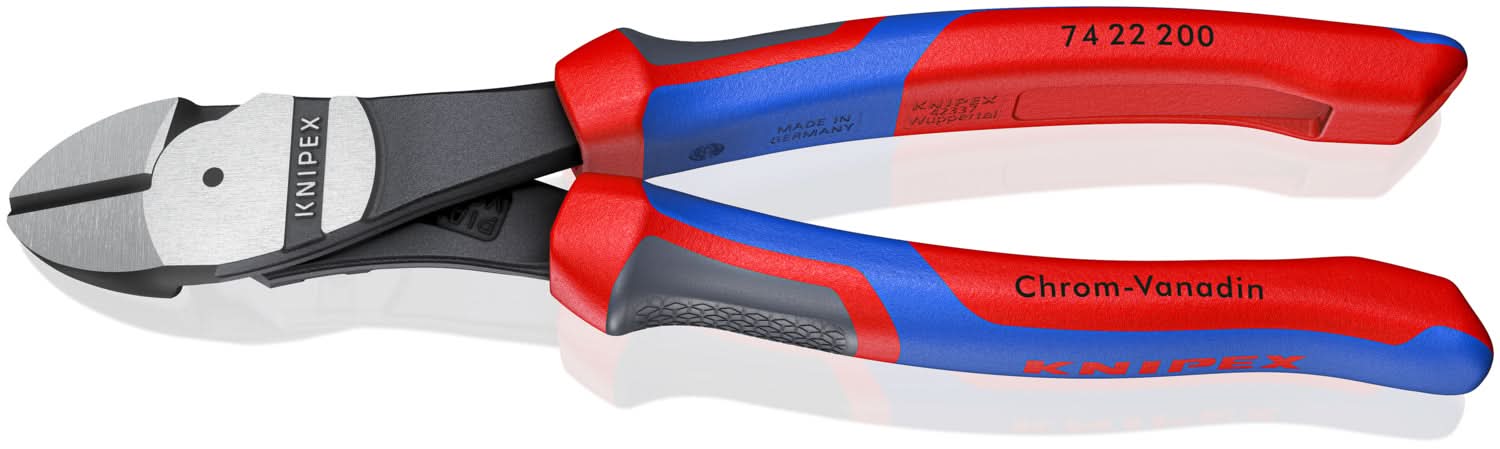

At a Glance
Key Specifications
| Tool Type | Angled high leverage diagonal cutting pliers |
|---|---|
| Overall Length | 200 mm / 8 in |
| Weight | 0.66 lbs / 300 g |
| Head Angle | 12° |
| Cutting Edge Hardness | Approx. 64 HRC |
| Piano Wire Capacity | Up to 2.5 mm |
| Material | Chrome vanadium heavy-duty steel, forged, multi-stage oil-hardened |
| Made In | Germany |
Compatibility
Built For
Pro Tip
If you are making close cuts against framing, assemblies, or crowded hardware, rotate the 12 degree angled head so your hand clears the surface before you squeeze. That small change is where this model feels better than a straight cutter.
Warranty & Support
Tool Nut's Take
Knipex 74 22 200 SBA Angled High Leverage Diagonal Cutting Pliers
This is the kind of cutter you buy once because you are done wasting time on hand tools that need two hands and a prayer to get through hard wire.
- Who it's for: Pros and serious DIY users who cut hard wire, nails, rivets, or spring steel often and want a compact tool that still has real bite.
- Why it stands out: The leverage is excellent, the 64 HRC edges are made for tough material, and the 12 degree head is genuinely useful in tight spaces.
- Worth knowing: This is a single cutter, not an insulated electrical tool, and the tethering accessories mentioned for the handle system are sold separately.
Common Questions
- Can these cut piano wire? Yes. The cutting edges are induction hardened to about 64 HRC, and the tool is rated to cut piano wire up to 2.5 mm.
- Are these insulated pliers? No. The handles are ergonomic multi-component comfort grips, but this model is not listed as insulated.
- What makes this different from a standard diagonal cutter? The high leverage design reduces the force needed for cutting by about 20% compared to conventional cutters of the same length, and the 12 degree angled head improves access.
- Where is this tool made? Germany.
