Knipex 90 31 01 TubiX S Pipe Cutter (90 31 01 SBA)
Knipex 90 31 01 TubiX S Pipe Cutter (90 31 01 SBA)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

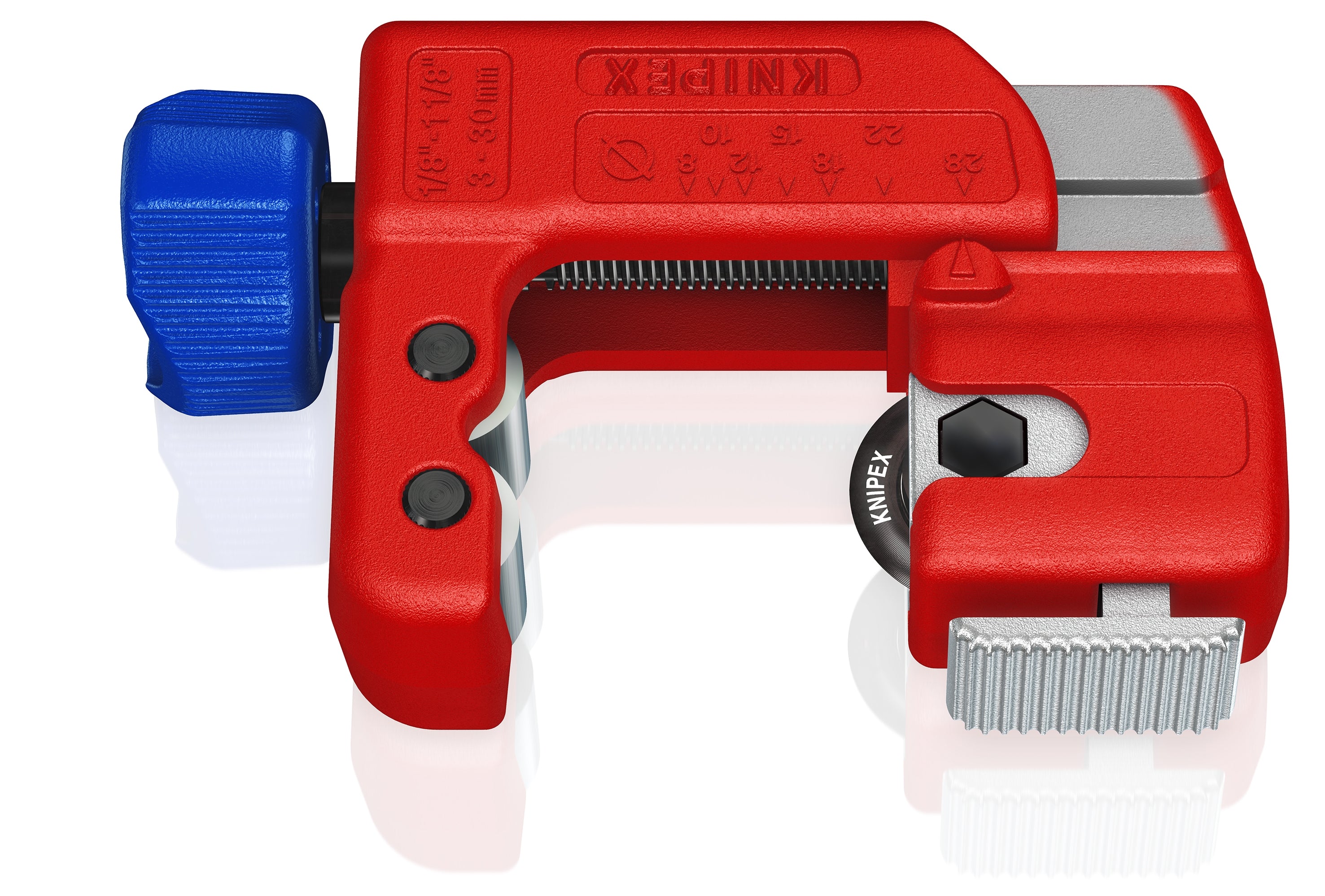

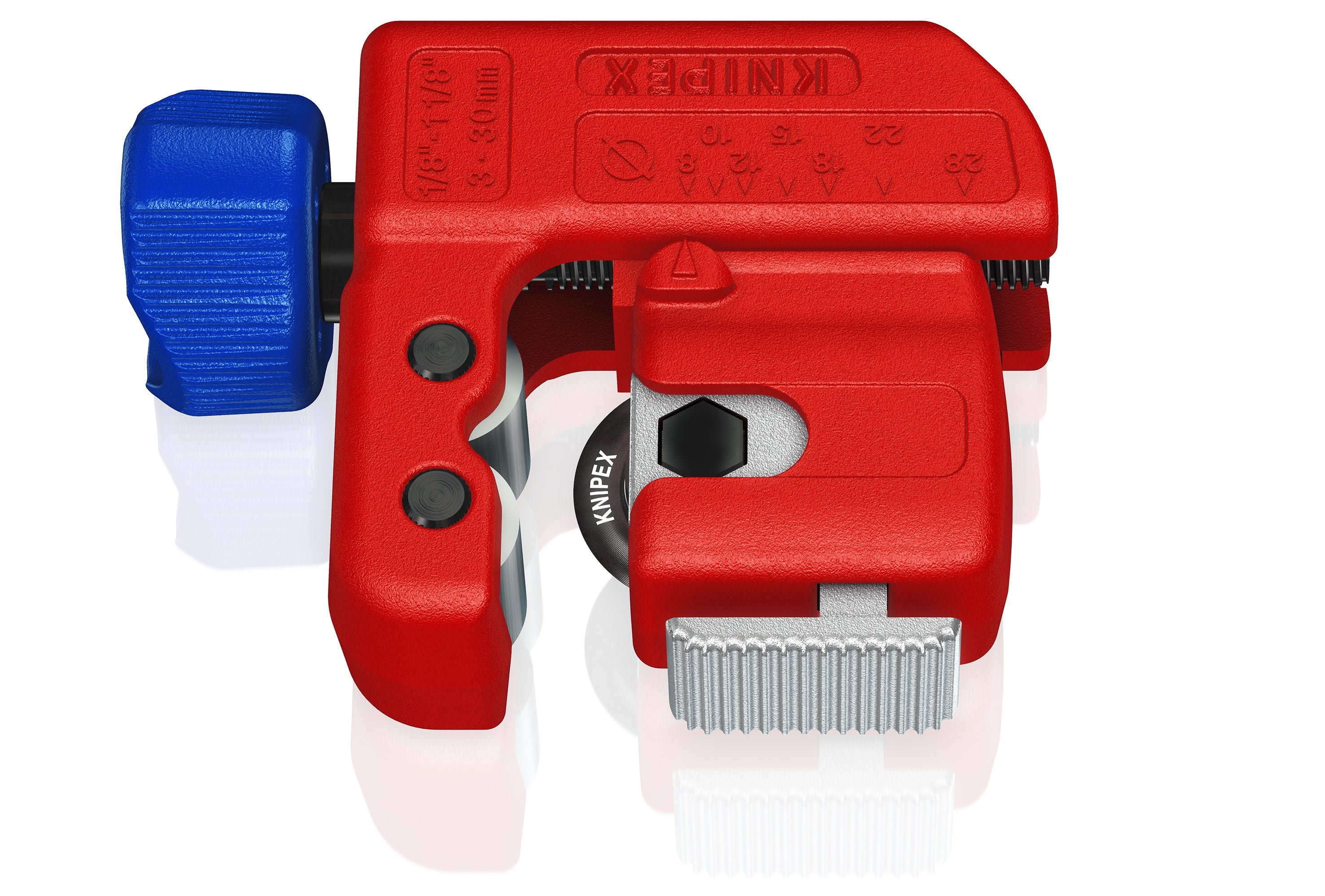

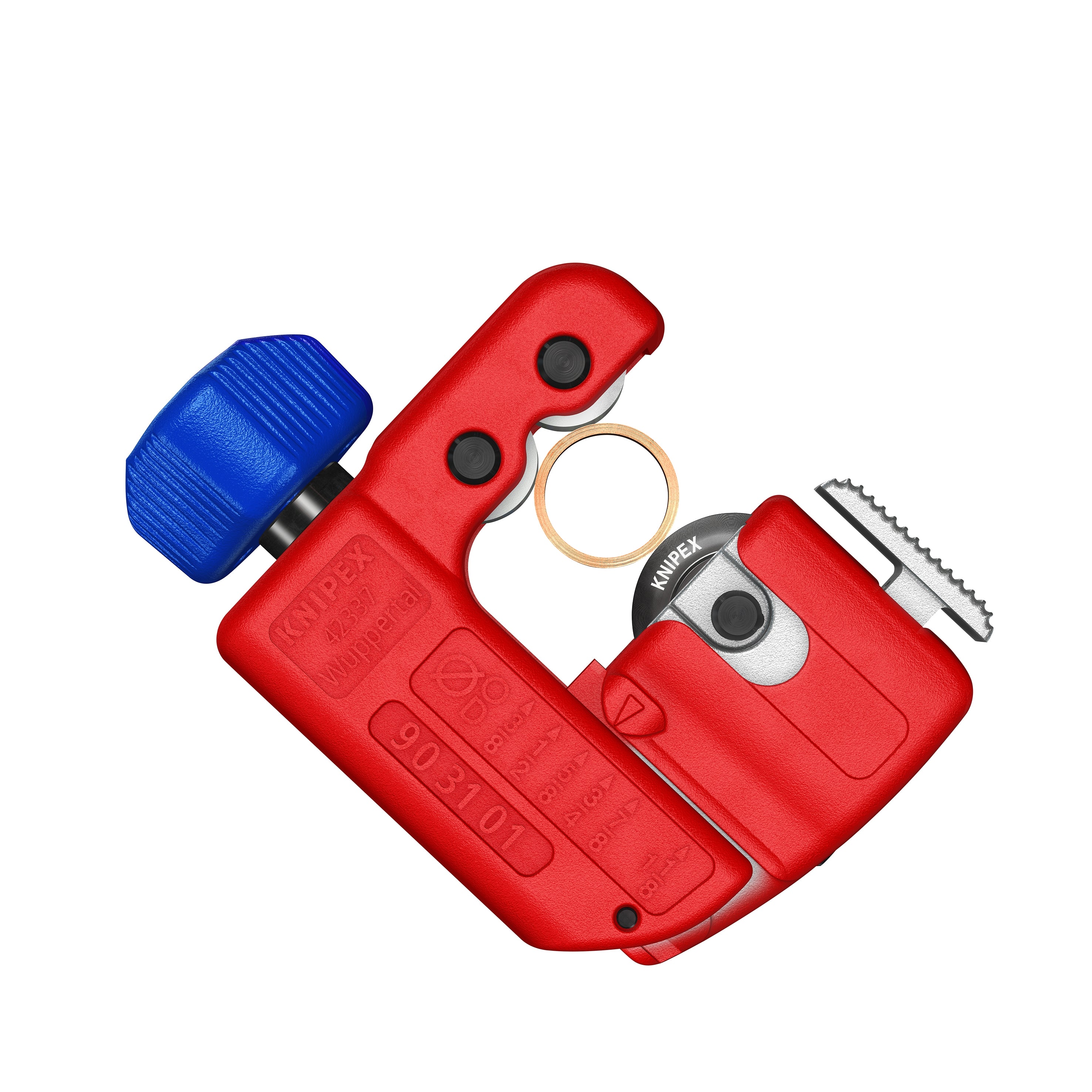

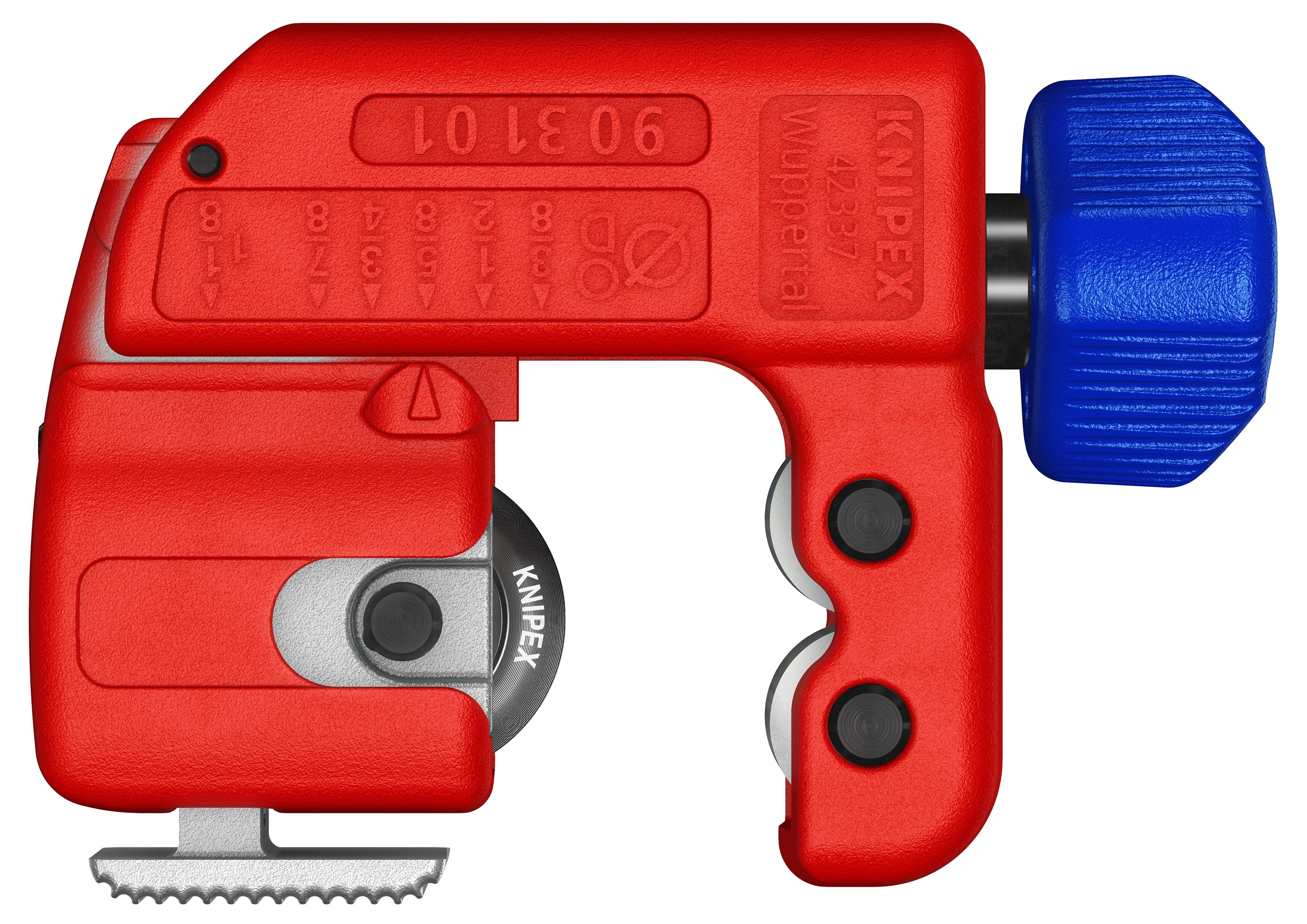

The Knipex TubiX S Pipe Cutter, model 90 31 01 SBA, is a compact hand-powered pipe cutter made for clean cuts on small copper and stainless steel pipe. This is a pipe cutter designed for cutting metal tubing in tight spaces. If you do plumbing, service work, punch-list repairs, or retrofit jobs where access is the real problem, this is the kind of tool that earns its keep fast.
Its cutting range covers pipe from 1/8 inch to 1-1/8 inch (3 to 30 mm) with wall thickness up to 5/64 inch (2 mm). That makes it a practical fit for common small-diameter pipe and tubing work, especially where you need a compact tubing cutter instead of a larger body style. The built-in scale lets you preset diameter before clipping it onto the pipe, which cuts down setup time and helps when you are moving from one cut to the next.
Knipex built this cutter around jobsite control. The QuickLock mechanism allows single-handed adjustment so the tool can be secured on the pipe without the usual fumbling. A spring-loaded cutting wheel helps position the wheel quickly and accurately, which is a real advantage when you are working overhead, close to finished surfaces, or reaching behind installed lines. The minimal cutting radius is one of the big reasons to buy this model in the first place. It is made to work where larger cutters run out of room.
The cutting action is set up for smoother rotation and more consistent feel. Knipex uses five needle bearings to reduce drag while turning, and the cutting wheel is made from high-quality ball bearing steel. On the knob side, the textured thumb recess is designed to provide 20% higher torque while also helping prevent slipping. In plain terms, you get more confident tightening pressure with less hand fight, which matters when the tool is wet or your access is awkward.

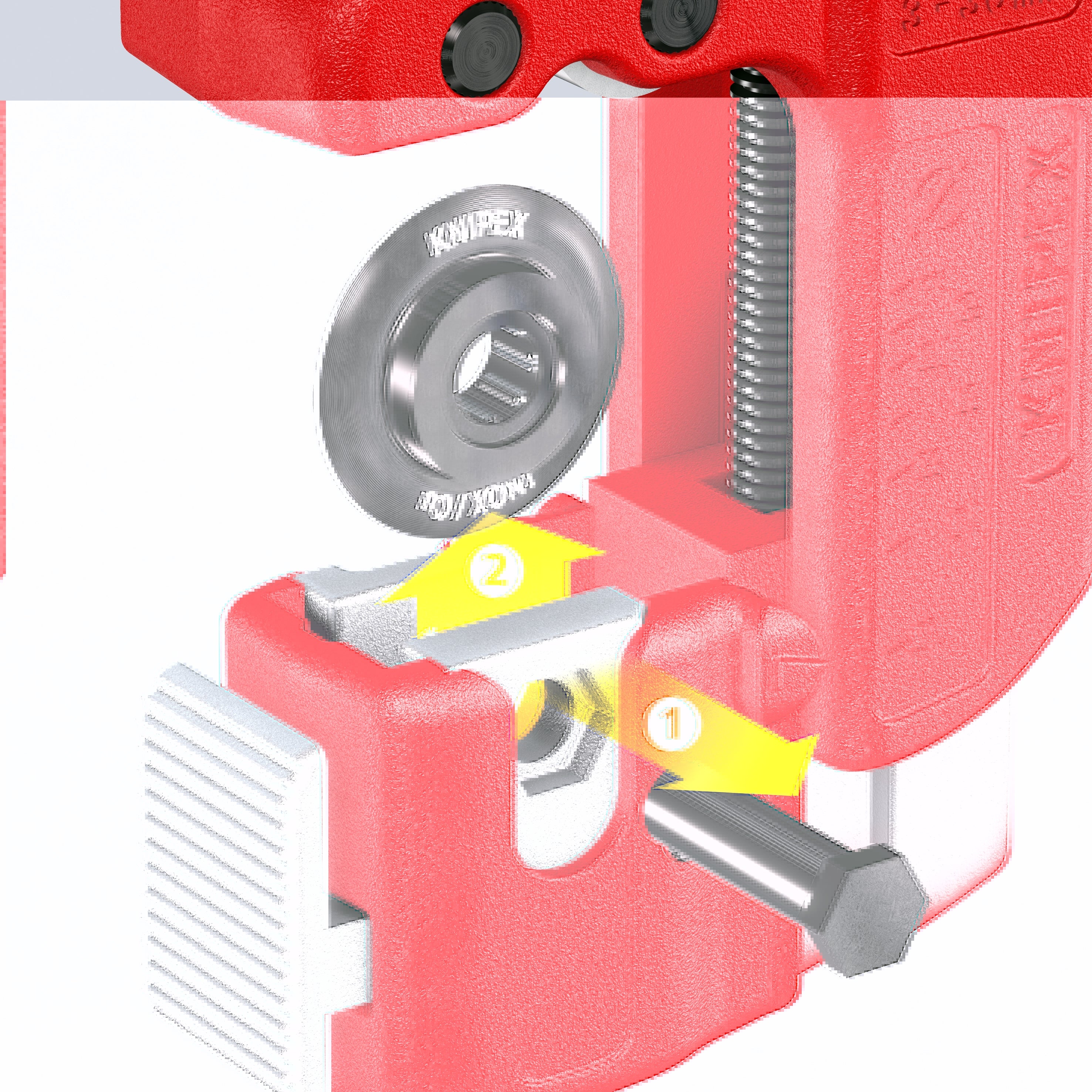

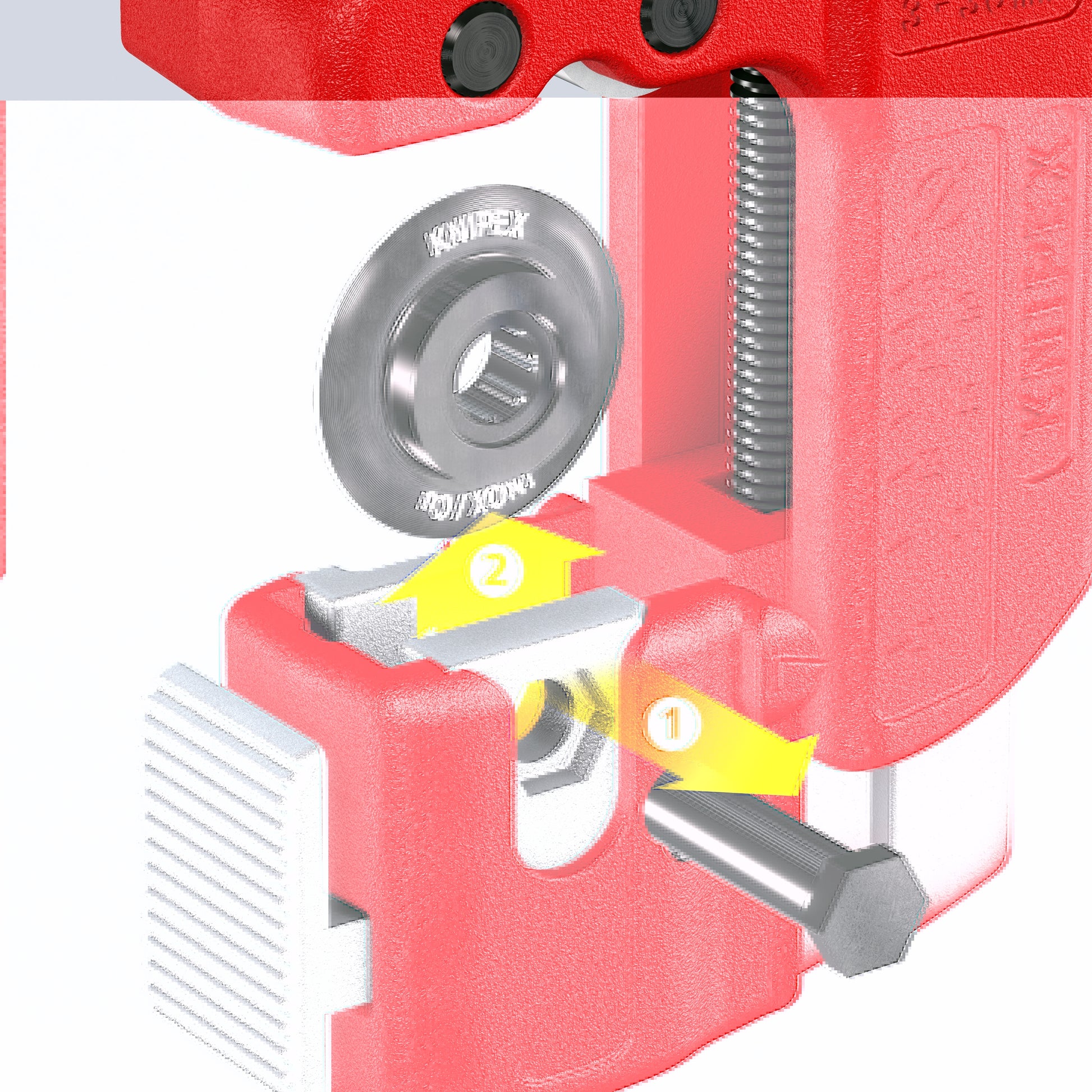

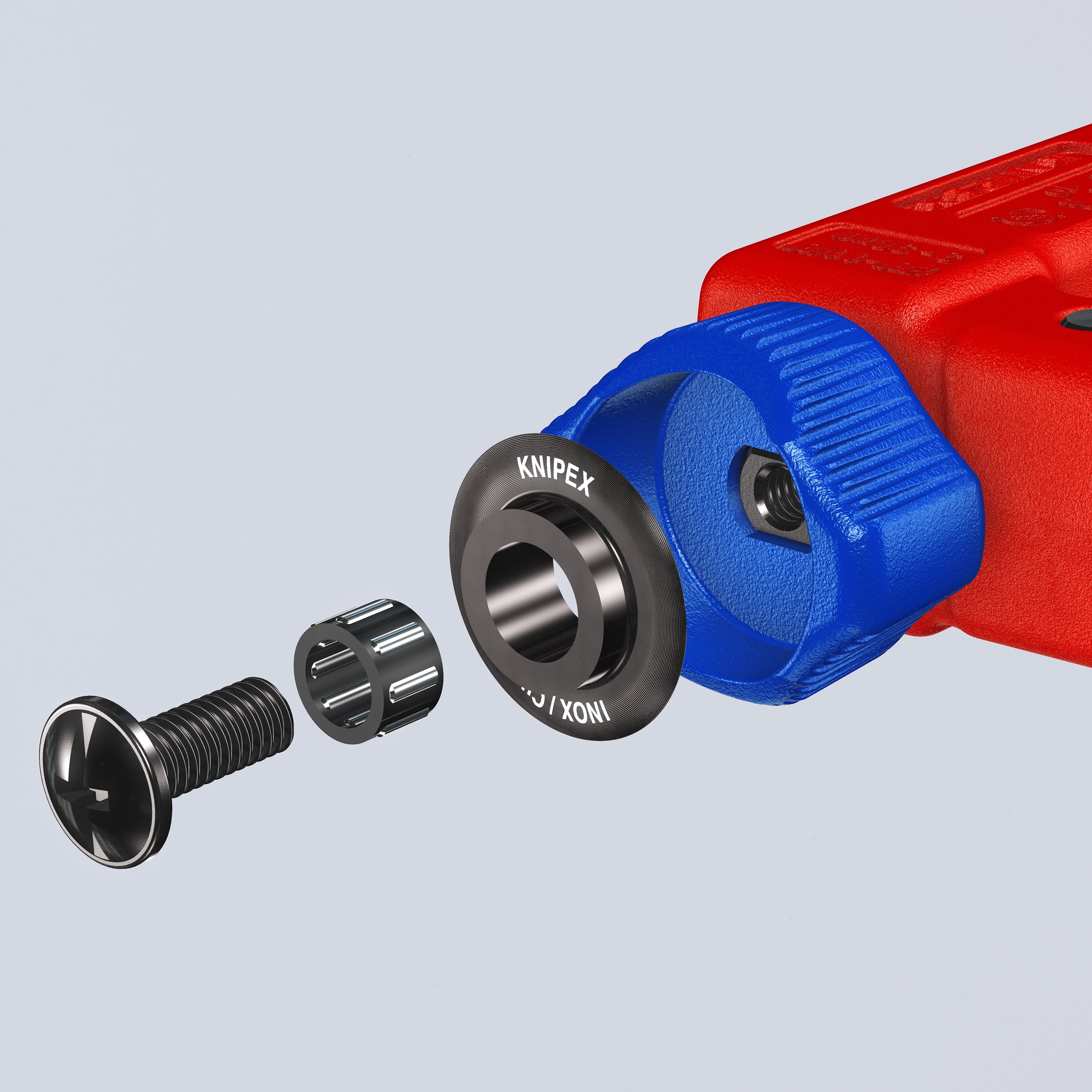

For day-to-day practicality, the cutter also stores a spare cutting wheel in the knob. That is a smart touch on a small service tool because it keeps a wear part with the tool instead of somewhere back in the truck. Replacement parts are also available, including a replacement cutting wheel and needle bearing set 90 39 02 V01 and a set of five replacement cutting wheels 90 39 02 V03. That gives the Knipex pipe cutter some real long-term value instead of making it a disposable item.

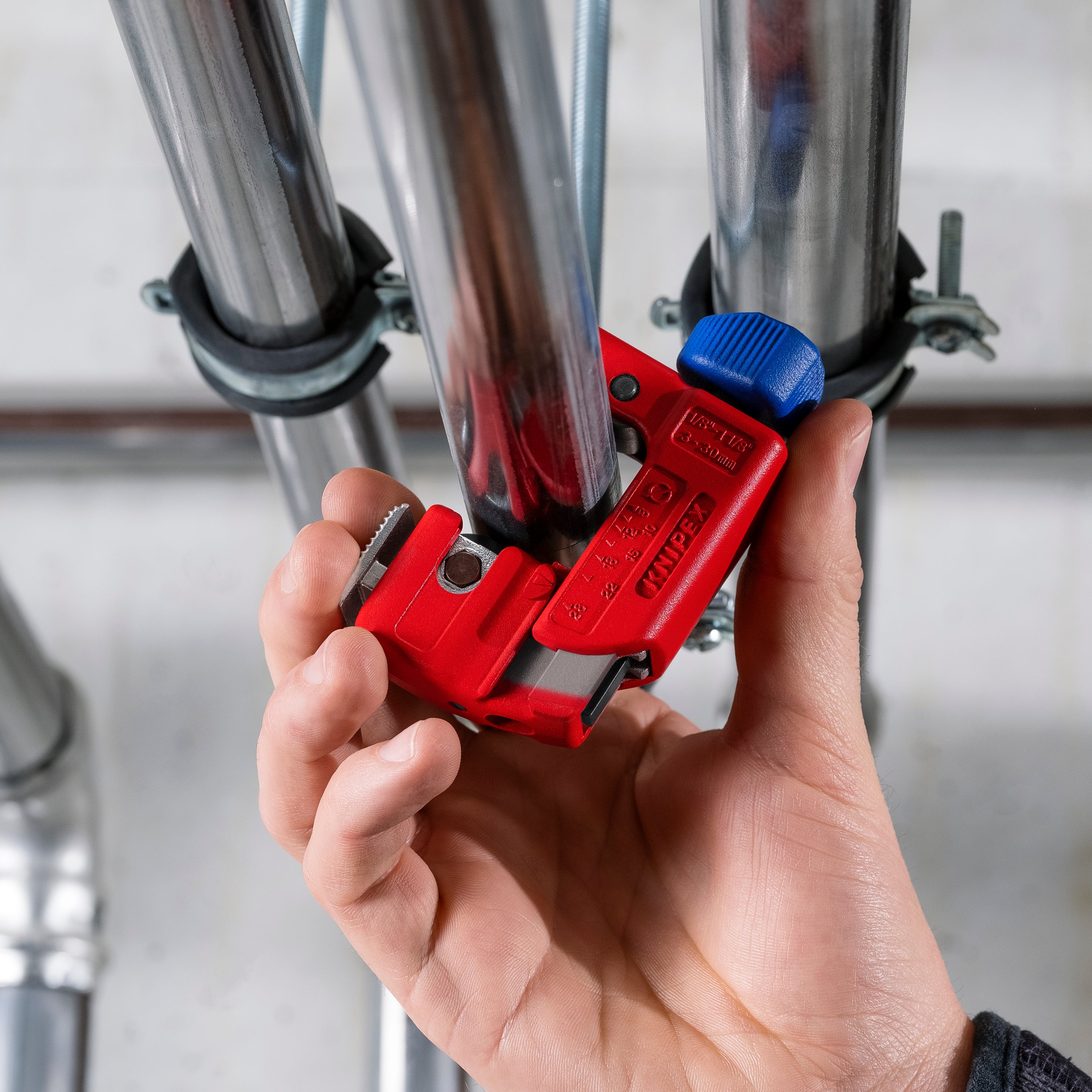

This compact metal pipe cutter makes the most sense for plumbers, HVAC techs, maintenance crews, and remodelers who regularly deal with installed copper or stainless tubing. If your work happens in utility rooms, under sinks, behind fixtures, or inside cabinets, the small size matters more than flashy extras. At roughly 3 inches long and about 0.575 lb, it is easy to keep in a pocket or pouch and pull out when a full-size tubing cutter would just slow you down.
Work Where Bigger Cutters Cannot

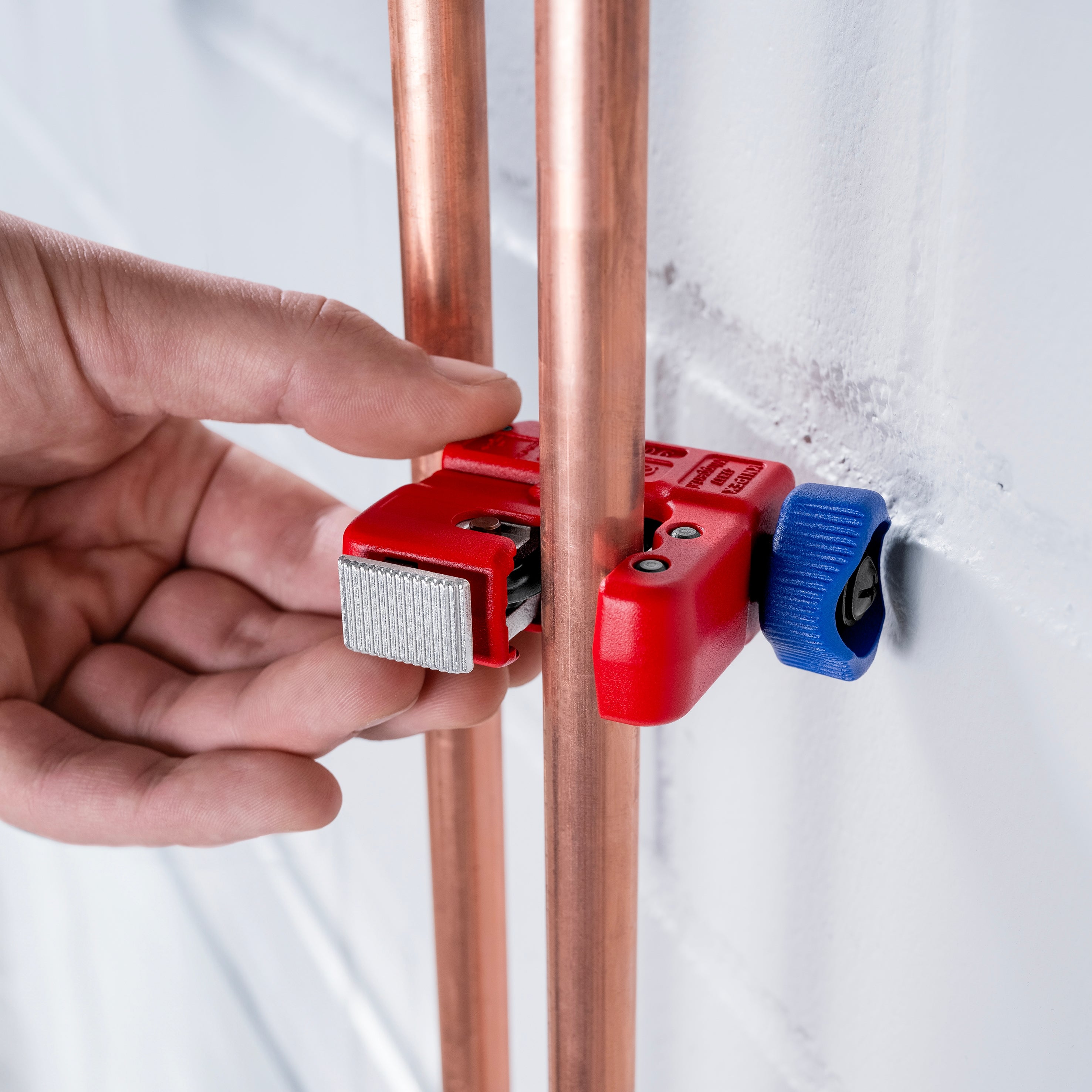

The whole point of this compact pipe cutter is access. When pipe runs are tight to a wall or packed next to other lines, the small body and minimal cutting radius help you make the cut without tearing apart more of the job than necessary.
- Cuts copper and stainless steel pipe from 1/8 inch to 1-1/8 inch
- Handles wall thickness up to 5/64 inch (2 mm)

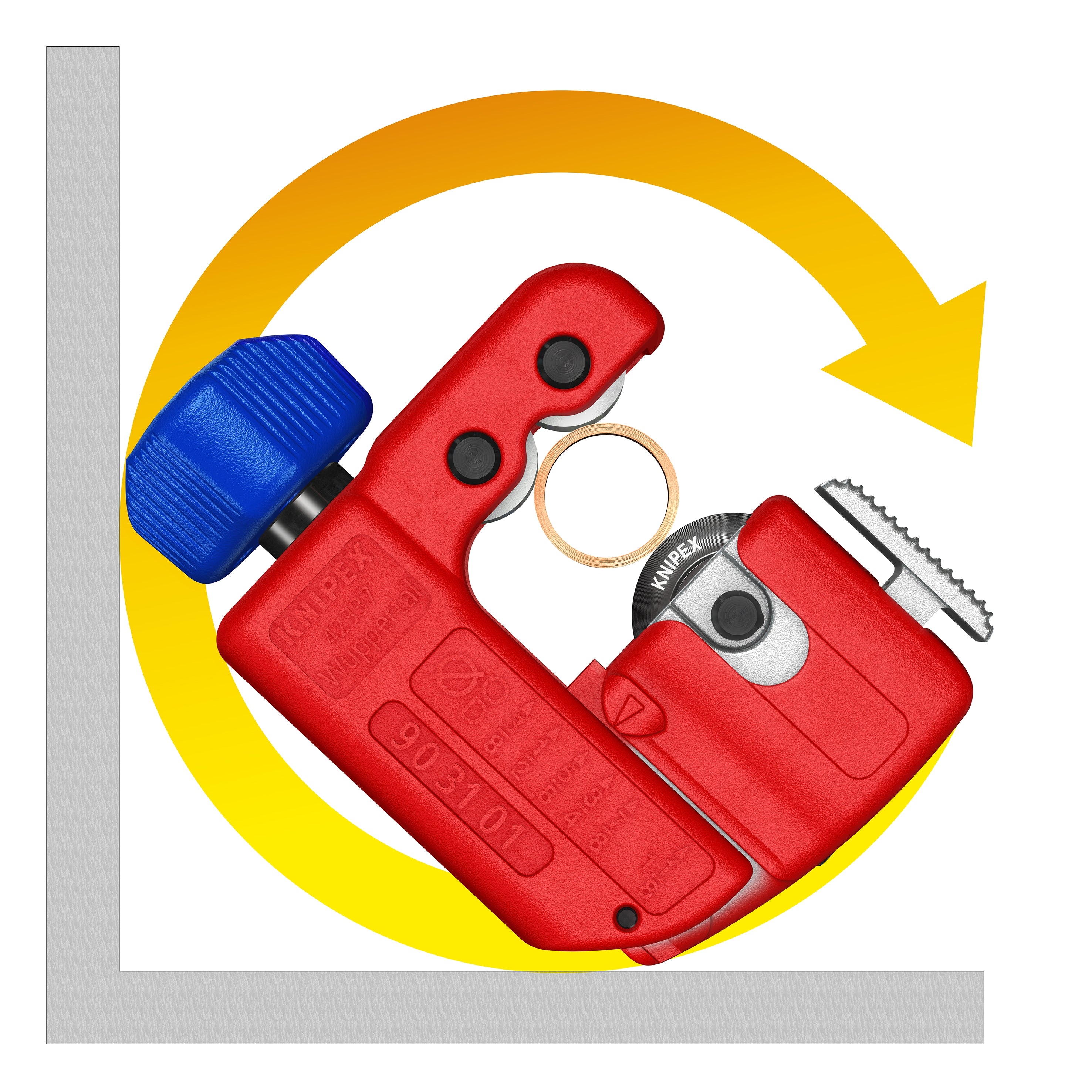

- Minimal cutting radius is built for confined service spaces
Faster Setup With One Hand

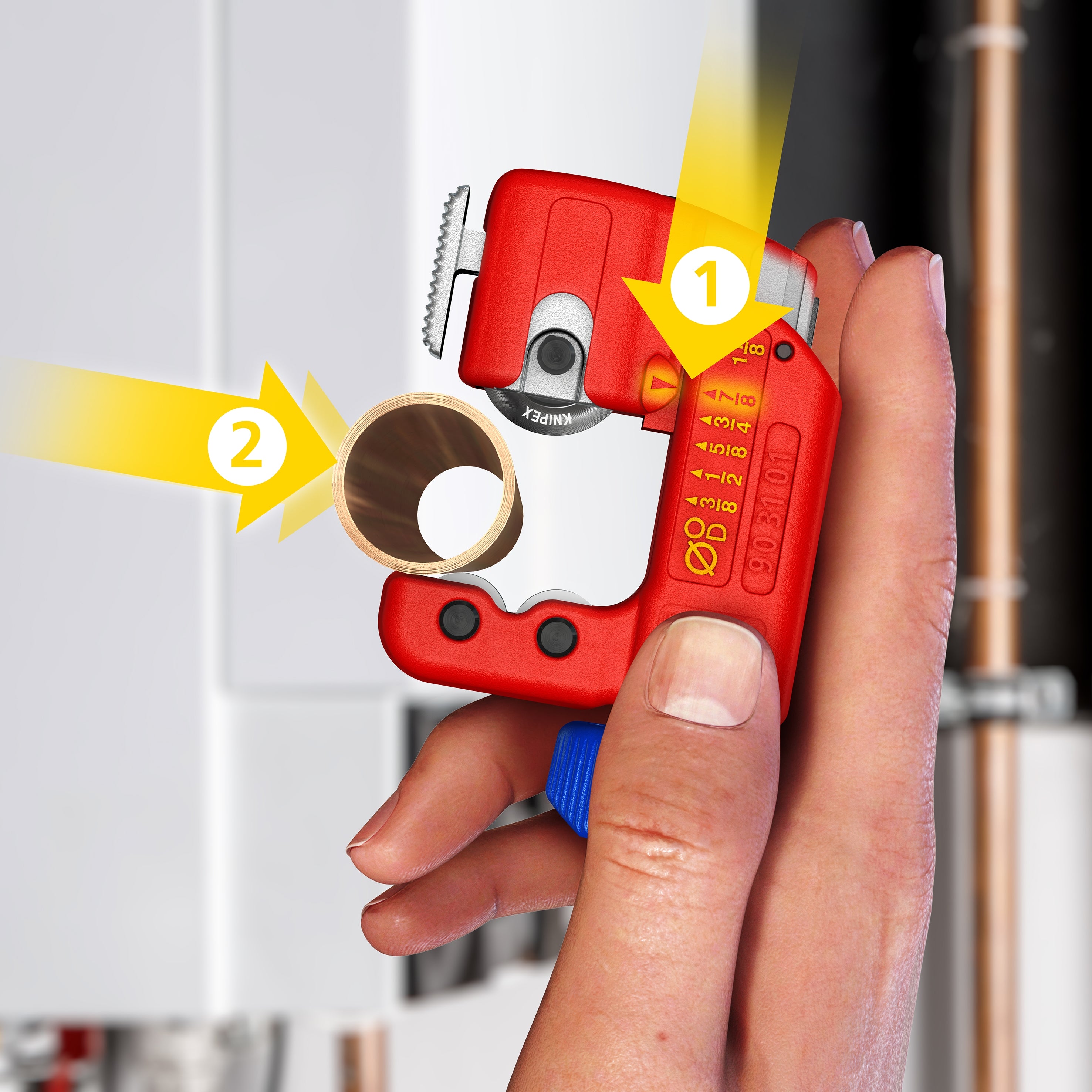

The QuickLock system is not just a spec on paper. It speeds up the part that usually wastes time: getting the cutter onto the pipe and adjusted correctly without a bunch of trial-and-error turns.
- QuickLock mechanism allows single-handed adjustment and clamping

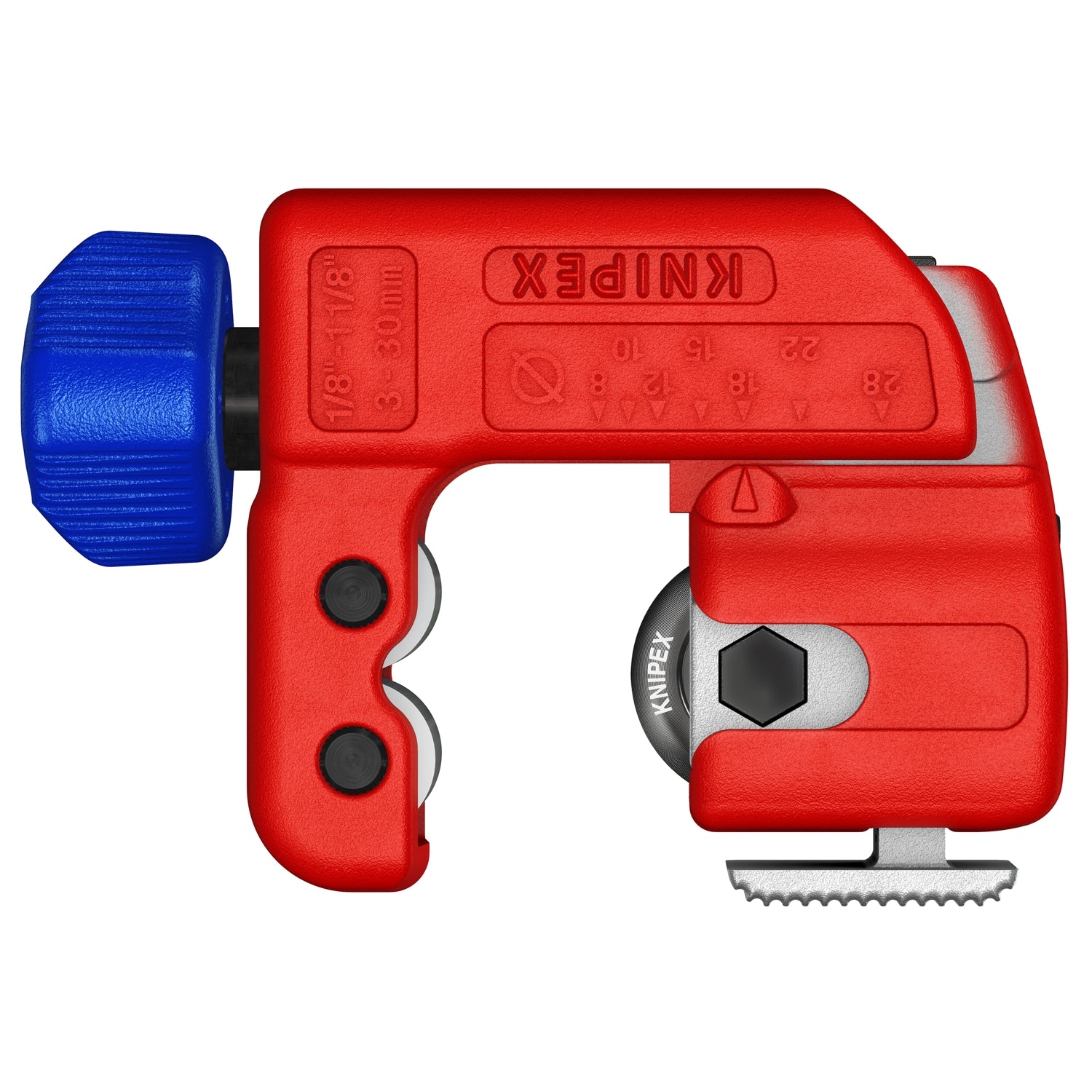

- Preset scale helps match the tool to pipe diameter before clipping on

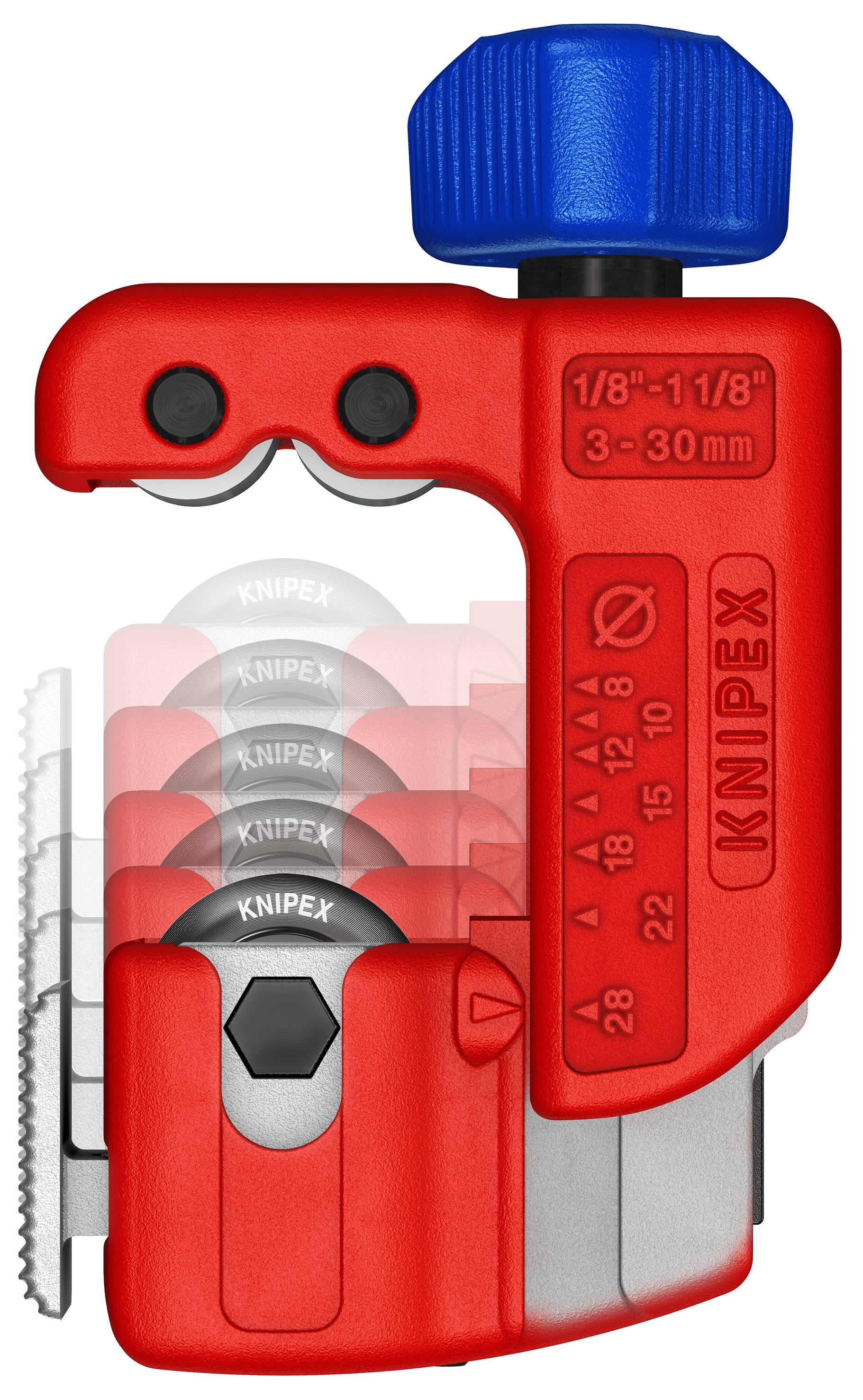

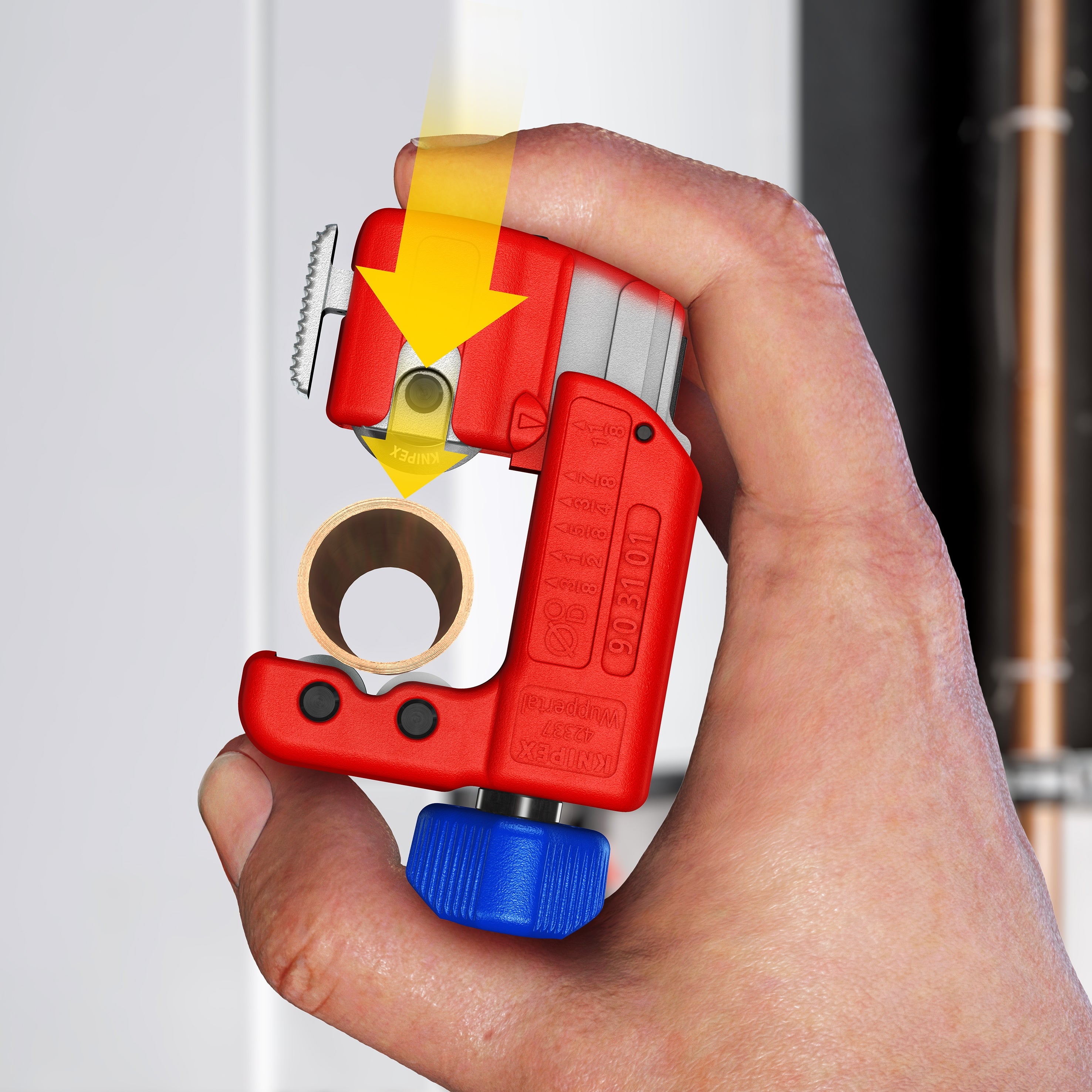

- Spring-loaded cutting wheel helps position the wheel quickly and precisely
Built for Smooth, Controlled Cuts
A small cutter only helps if it still tracks cleanly and turns smoothly. Knipex backs that up with needle bearings, a ball bearing steel cutting wheel, and a knob designed to give you more usable torque without slipping.

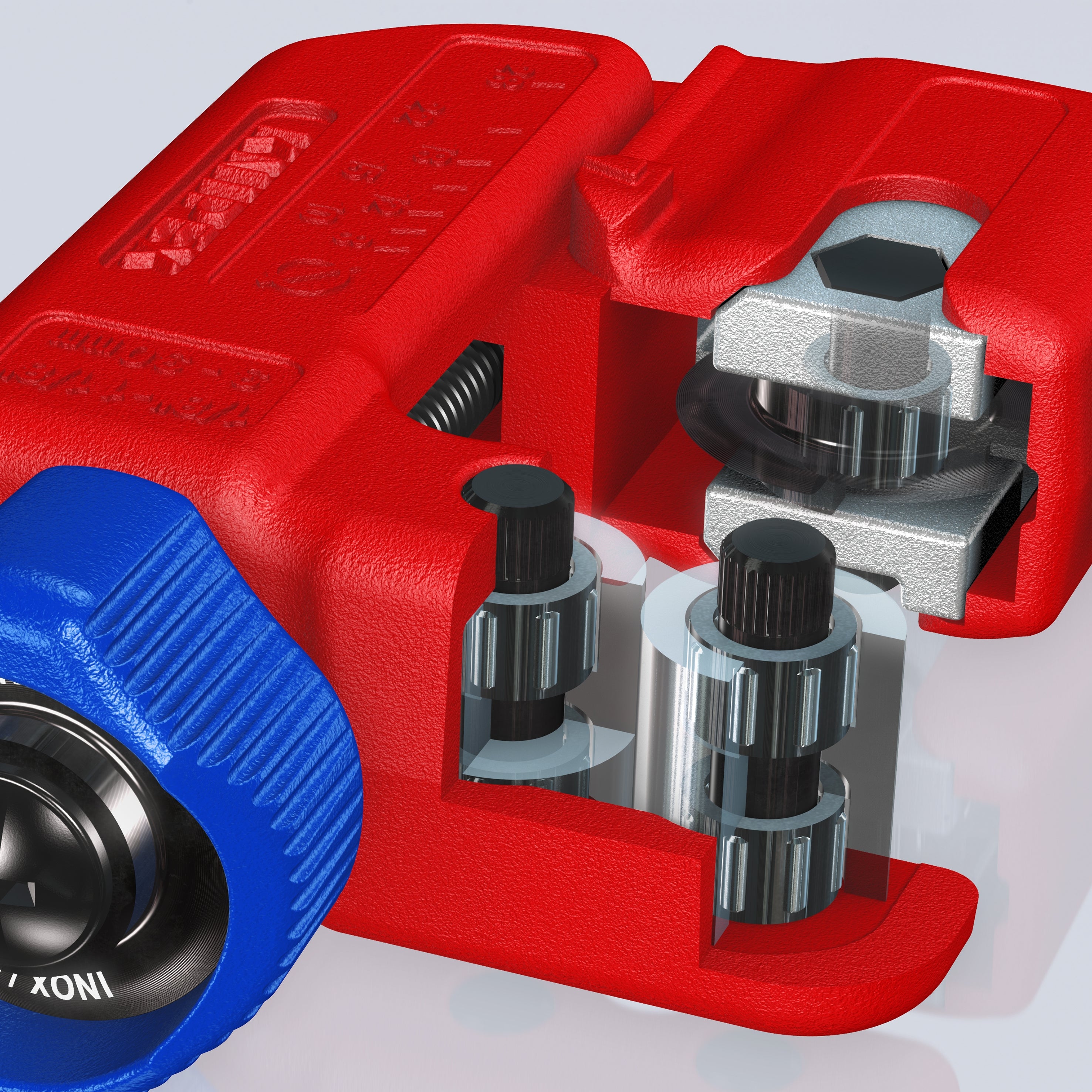

- Five needle bearings reduce drag during cutting
- Textured knob is designed for 20% higher torque
- Spare cutting wheel is stored in the knob for quick replacement
What's in the Box
- (1) Knipex TubiX S Pipe Cutter
Key Specifications
|
|
1/8 in to 1-1/8 in (3 to 30 mm) |
|---|---|
|
|
5/64 in (2 mm) |
|
|
3 in |
|
|
2-1/8 in |
|
|
1 in |
|
|
0.575 lb |
|
|
Ball bearing steel |
|
|
Spain |
Compatibility
Built For
Pro Tip
Use the preset diameter scale before you reach into the work area. Getting the Knipex TubiX S Pipe Cutter sized first makes it much easier to clip onto pipe one-handed when you are working close to a wall or between other lines.
Tool Nut's Take
Why the Knipex TubiX S Pipe Cutter stands out
This is the kind of compact tubing cutter that makes sense the second you have to cut installed pipe in a spot with no room to spare.
- Who it's for: Plumbers, HVAC techs, maintenance crews, and remodelers who work on copper or stainless lines in finished spaces and tight mechanical areas.
- Why it stands out: The small body, QuickLock setup, smooth needle-bearing action, and spare wheel storage make it more than just a mini cutter. It is clearly designed for real service work.
- Worth knowing: This is a specialized compact pipe cutter, not a one-size-fits-all shop tool. Stay within the listed pipe diameter and wall thickness range and it will make a lot more sense than forcing a bigger cutter into a cramped spot.
Common Questions
- What materials can it cut? It is designed for copper and stainless steel pipe.
- What size pipe can it handle? The cutting range is 1/8 inch to 1-1/8 inch, or 3 to 30 mm.
- Can it be used in tight spaces? Yes. The minimal cutting radius and compact 3 inch body are designed specifically for confined work areas.
- Are replacement parts available? Yes. Knipex lists replacement part set 90 39 02 V01 and a 5-pack of replacement cutting wheels under 90 39 02 V03.
