Knipex Crimping Pliers (97 22 240)
Knipex Crimping Pliers (97 22 240)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

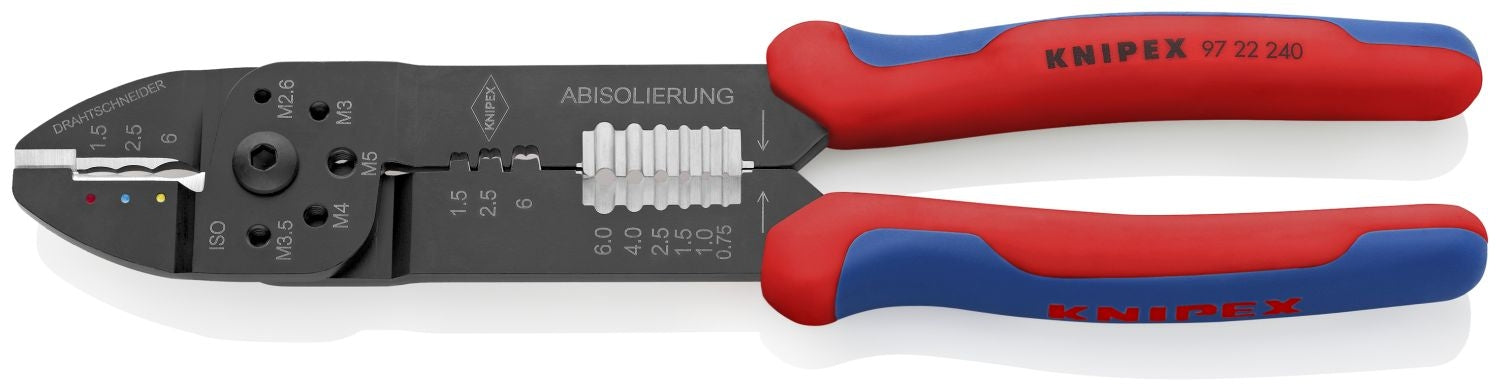

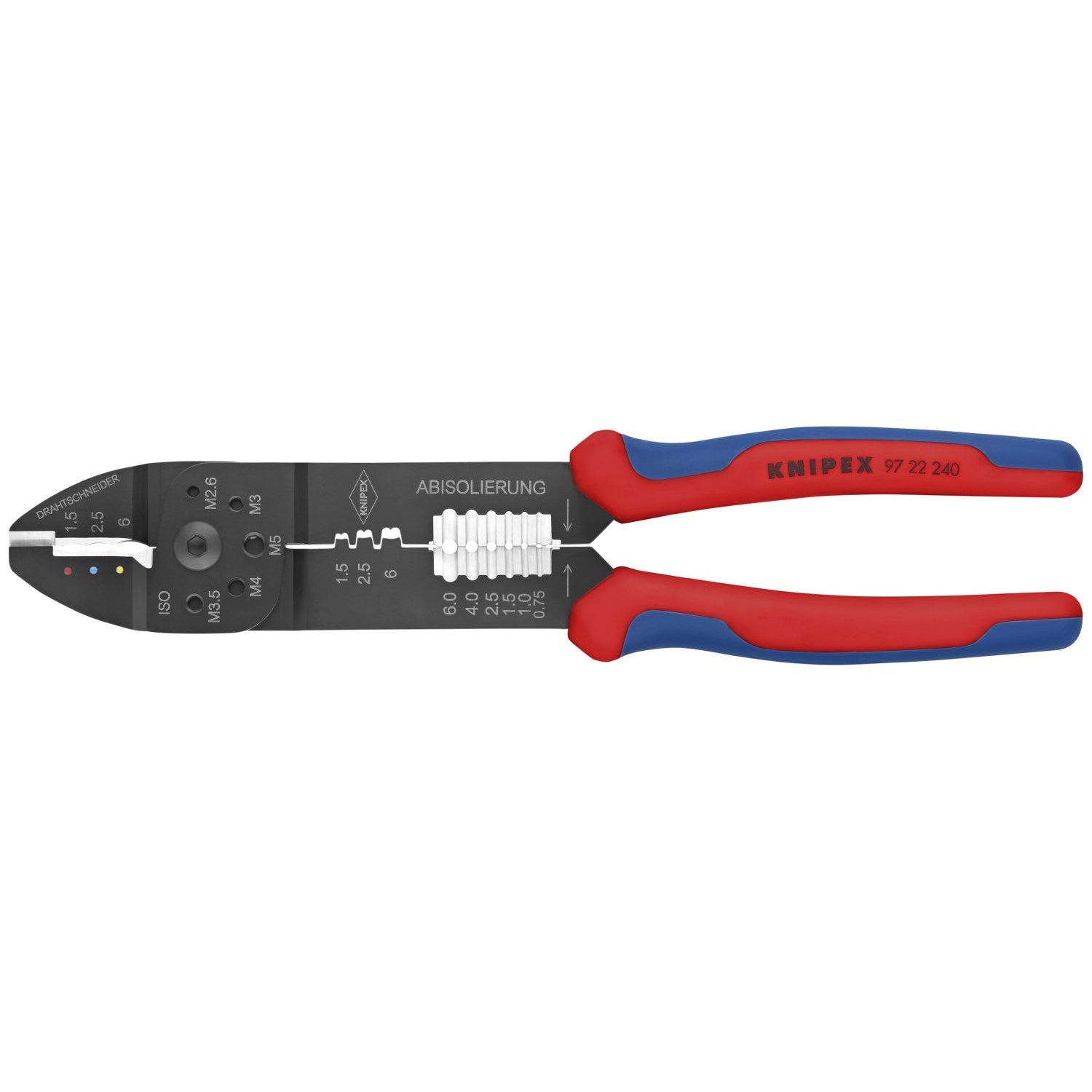

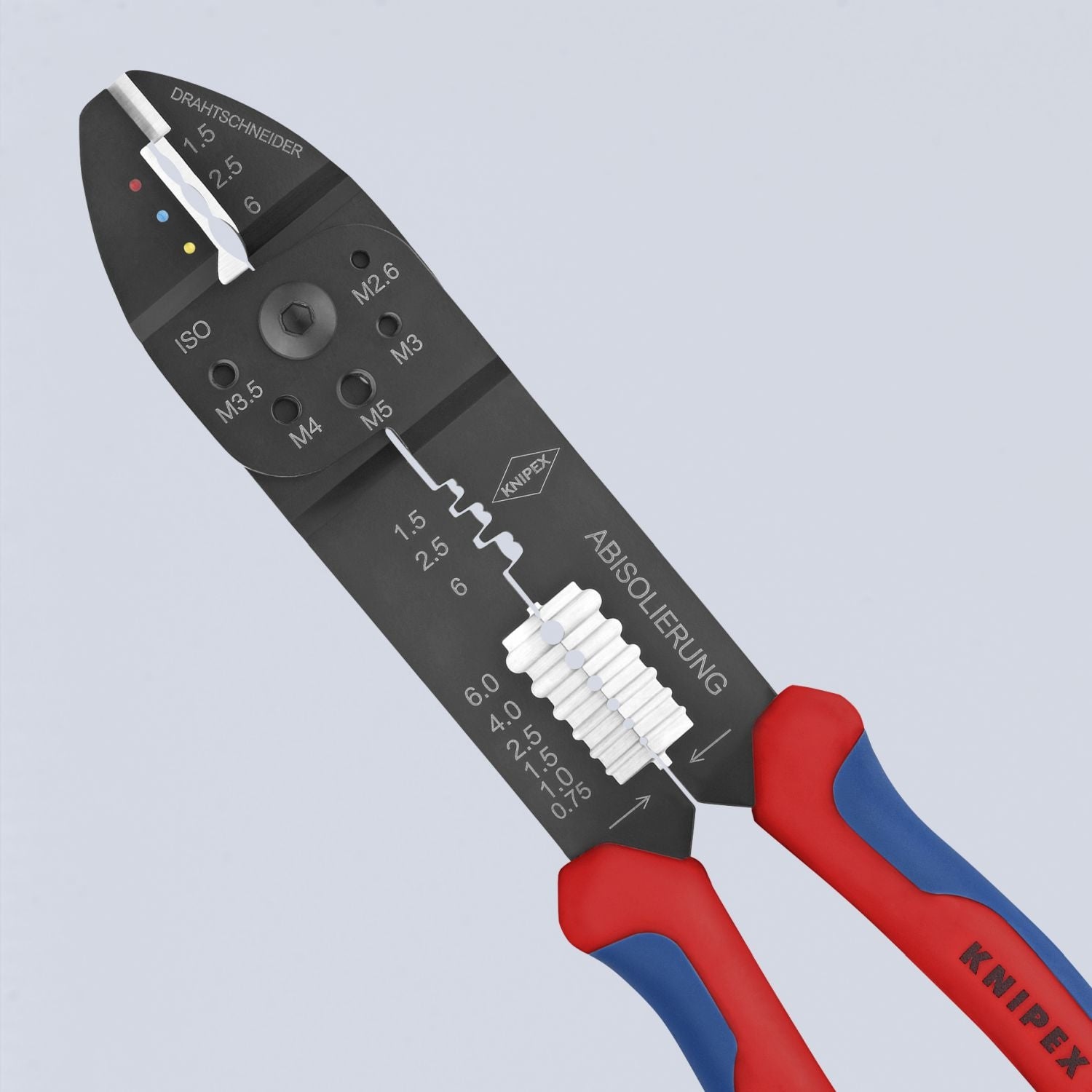

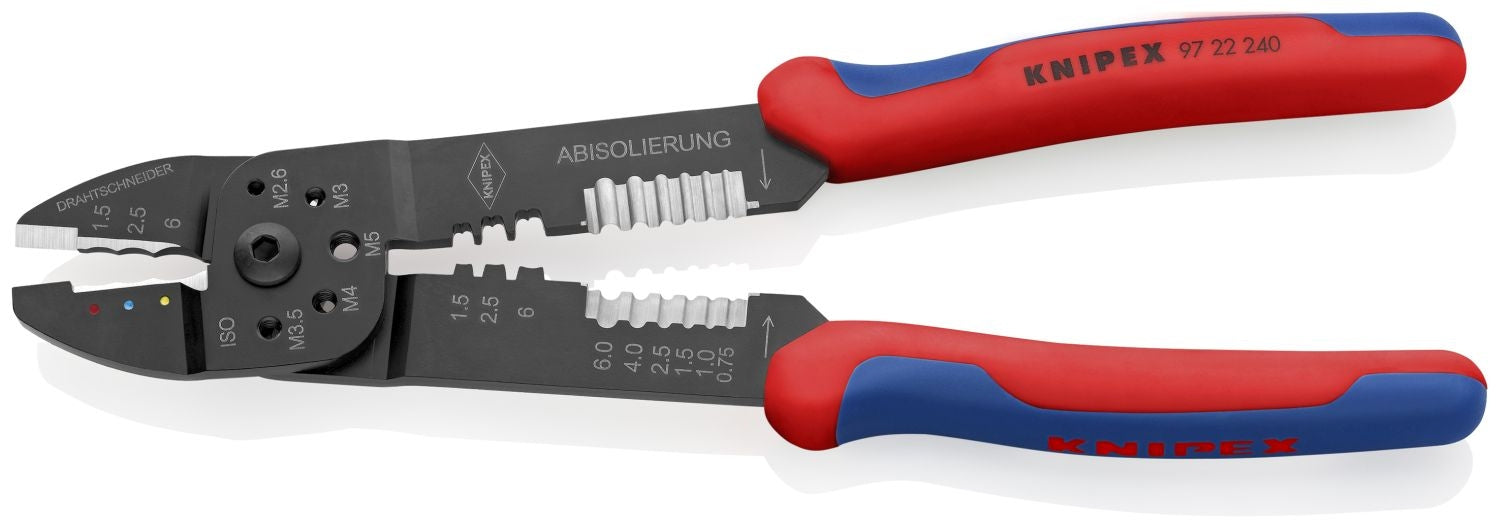

The Knipex 97 22 240 Crimping Pliers are a multi-function hand tool for cutting cable, stripping wire, and crimping terminals. This is a crimping pliers tool designed for wire preparation and terminal installation. Model number 97 22 240. At 9-1/2 inches long, this tool is sized for electrical work where you want one pair of pliers that can handle prep and termination without bouncing between separate strippers, crimpers, and cutters.

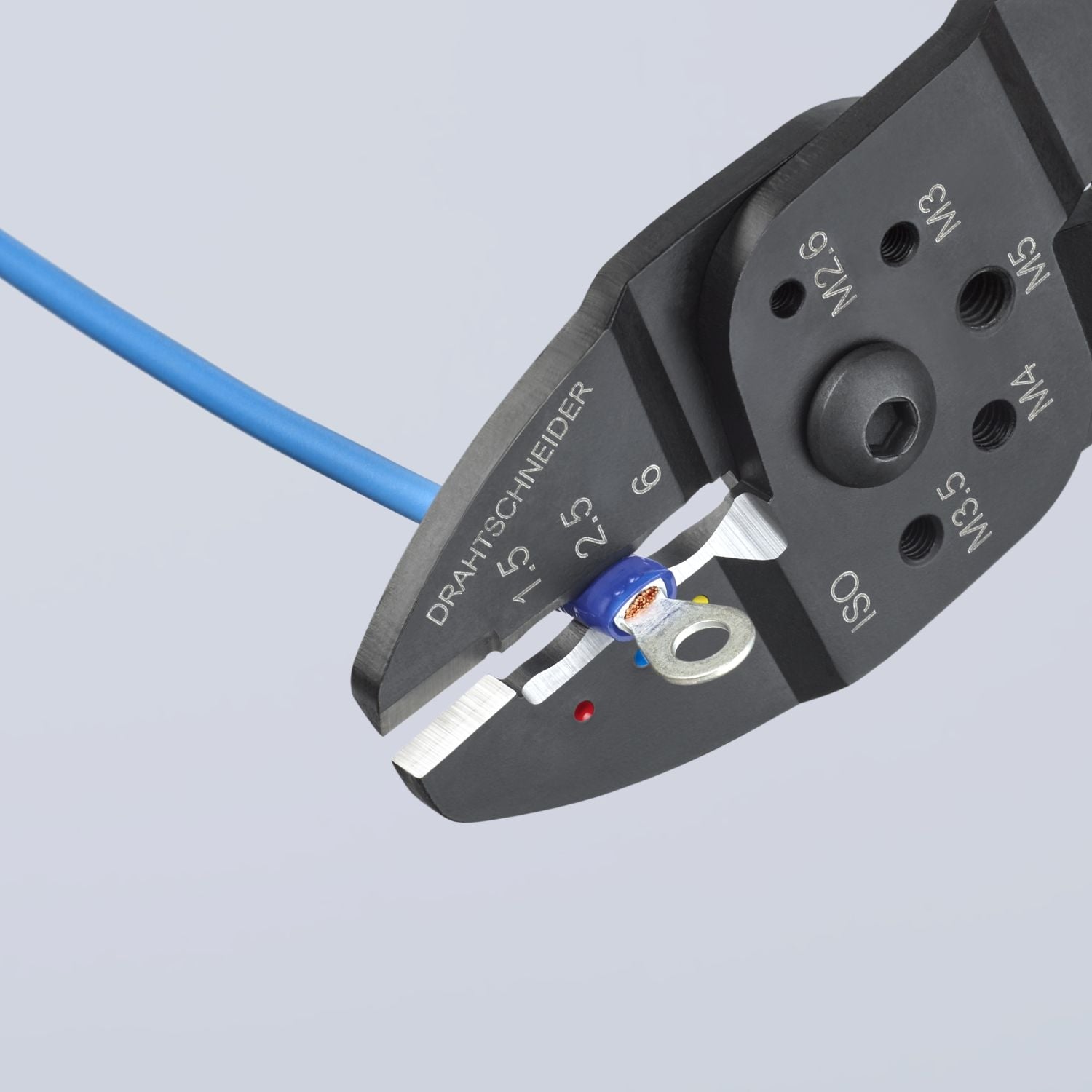

What makes this tool useful is the way the functions are laid out for real bench and field work. It is built to crimp insulated terminals, cable connectors, and plug-type connectors, while also handling non-insulated terminals in the stated range. The stripping section is marked for multiple sizes, so you can work across common wire diameters without guessing. When the fit is right, you get cleaner insulation removal and a better starting point for a reliable crimp.

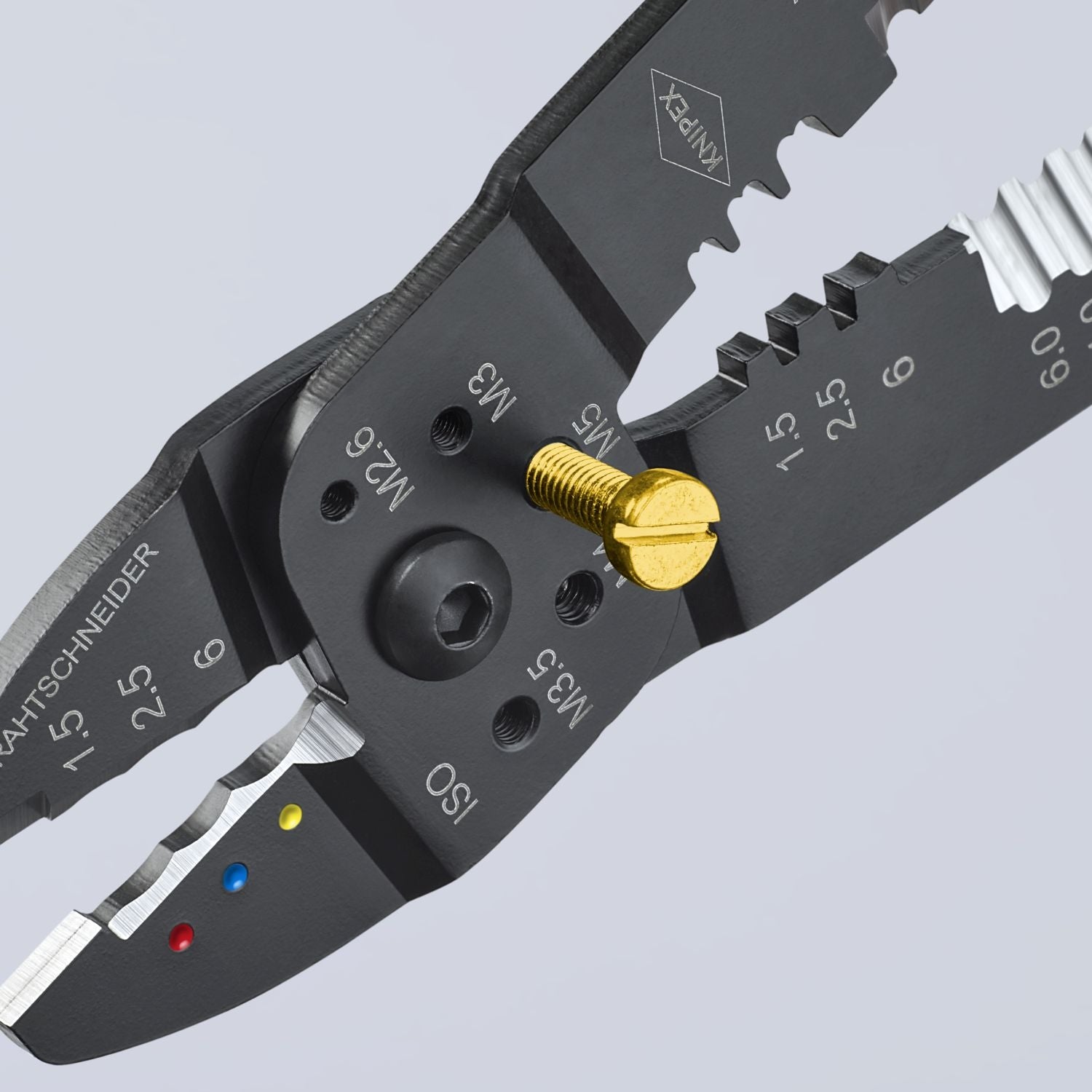

The Knipex 97 22 240 Crimping Pliers also include threaded holes for cutting copper and brass screws in sizes M2.6, M3, M3.5, M4, and M5. That matters more than it sounds. Instead of grabbing a separate screw cutter or risking damaged threads with side cutters, you can trim terminal screws to length and keep moving. For panel work, control wiring, and repair jobs, that is a real time saver.
Knipex builds these pliers from high-strength special steel with an oil-hardened construction and a black lacquered finish. In plain terms, that means this is not a flimsy multi-purpose tool meant for occasional light use. The bolted joint improves stability and keeps the action smooth, which helps when you are stripping smaller conductors or making repeat crimps where consistency matters. The multi-component handle covers add comfort and grip without making the tool bulky.

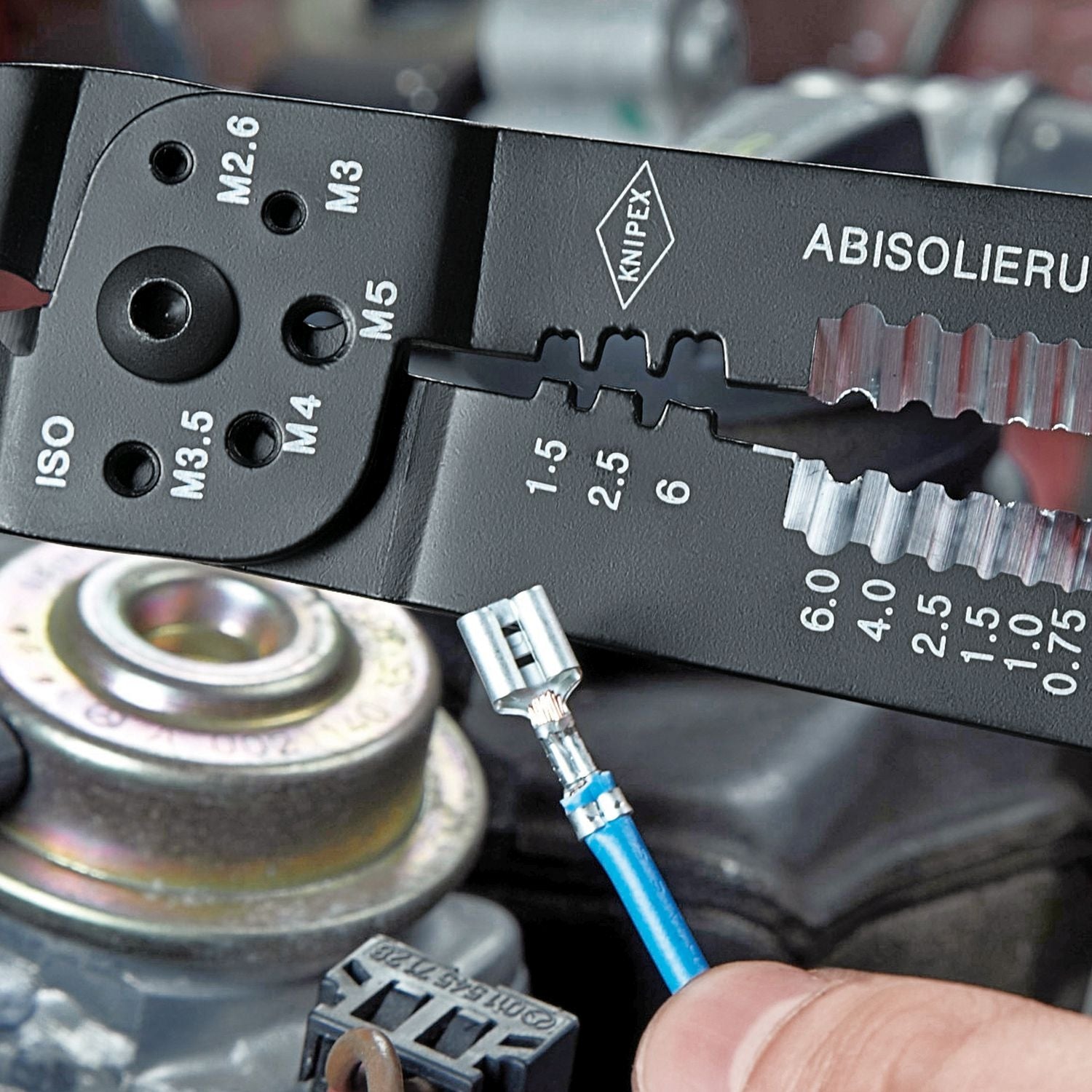

For wire capacity, stripping and crimping ranges cover insulated terminals from 0.75 to 6.0 mm² and non-insulated terminals from 0.5 to 2.5 mm², with 20 to 10 AWG use also referenced. That puts this crimping and wire stripping tool in a practical range for common service wiring, automotive connectors, and general electrical maintenance. It is not insulated for live electrical work, so it is meant for proper de-energized applications.
In the hand, the 9-1/2 inch length gives you more leverage than compact pocket strippers, which helps on tougher insulation and firmer crimps. At about 0.67 lb, it is still light enough for all-day carry in a pouch or service bag. The tool is manual and straightforward, with no adjustment mechanism to fuss with. Pick the right notch, make the strip, set the connector, and crimp.
This tool makes the most sense for electricians, maintenance techs, automotive repair work, and serious DIY users who regularly deal with terminals and connector repairs. If you want one dedicated tool that covers cutting, stripping, crimping, and even screw cutting in a compact format, this one earns its spot. If you only need a basic cutter or a single-purpose crimper, it may be more tool than you need. But if your work regularly moves from wire prep to connector install, the all-in-one layout is the whole point.
Handle Wire Prep and Terminal Work Faster
When you are repairing wiring or building connections, the fastest setup is the one that keeps everything in one hand tool. This crimping pliers design covers the steps that usually slow the job down.
- Built for crimping insulated terminals, cable connectors, and plug-type connectors
- Also handles non-insulated terminal work within the listed crimping range
- Manual layout keeps operation simple with no extra adjustment mechanism
Strip Cleanly Without Carrying Extra Tools

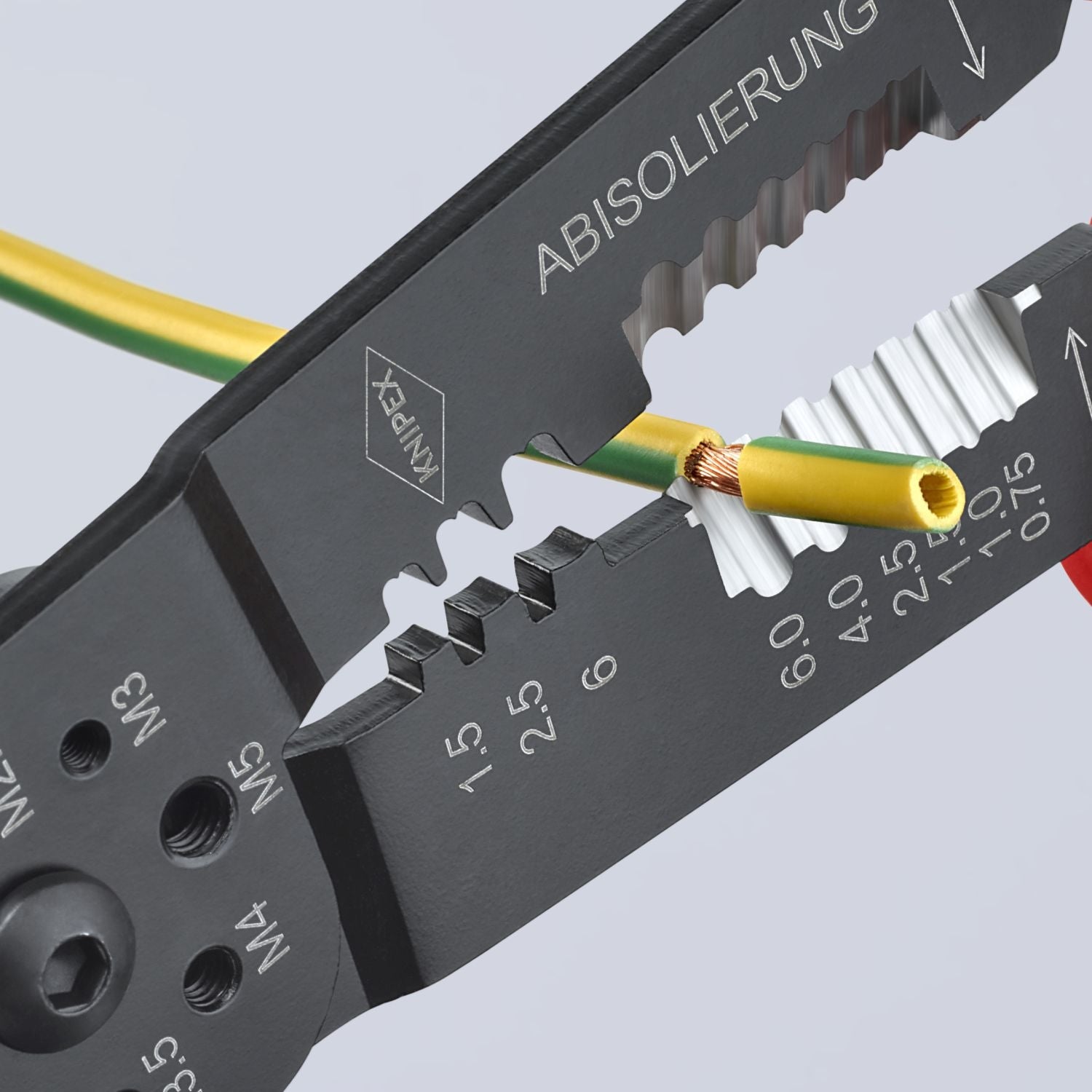

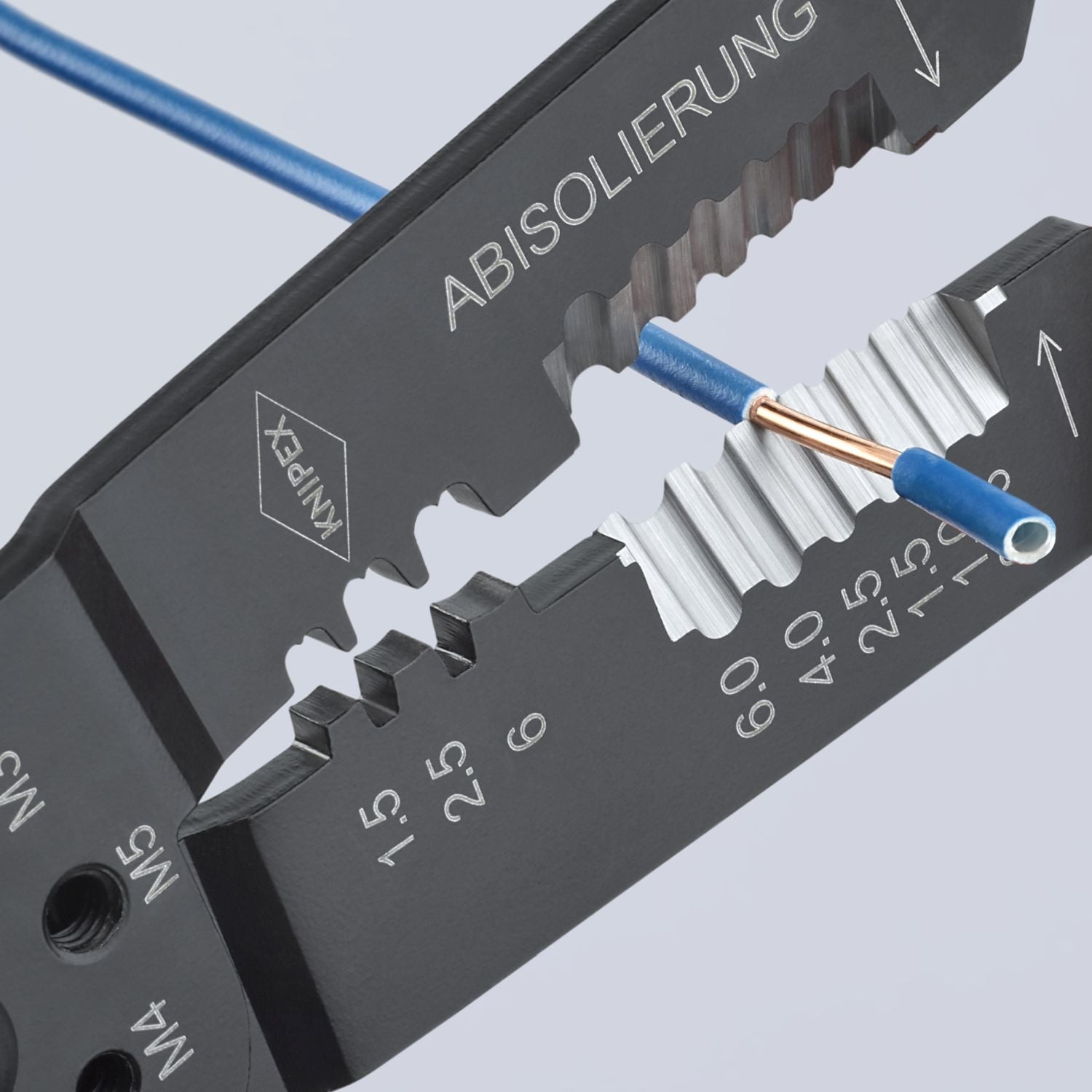

The marked stripping section helps you work wire sizes more confidently, especially when you are bouncing between conductors on repair and install work. A cleaner strip means less nicking and a better crimp afterward.
- Listed stripping capacity includes insulated terminals from 0.75 to 6.0 mm²
- Supplementary data references 20 to 10 AWG wire range
- Longer 9-1/2 inch body gives better leverage than smaller pocket tools
Knipex 97 22 240 Crimping Pliers Built for Repeat Use
This is the kind of hand tool that makes sense when it gets used often. The material, joint design, and handle shape all point toward durability and control rather than one-time convenience.
- Made from high-strength special steel and oil-hardened for durability
- Bolted joint improves stability and smooth movement
- Multi-component handles add grip and comfort during repeated cuts and crimps
Key Specifications
| Overall Length | 9-1/2 in |
|---|---|
| Weight | 0.67 lbs |
| Material | High-strength special steel, oil-hardened |
| Finish | Black lacquered |
| Handle Type | Multi-component |
| Crimping Positions | 3 |
| Crimping Profile | F crimp, oval crimp |
| Joint Type | Bolted |
Built For
Pro Tip
Match the wire to the correct stripping notch before you crimp. If the insulation comes off clean without nicking copper, your terminal will seat better and the finished crimp will hold more consistently.
Tool Nut's Take
One of those hand tools that actually earns drawer space
The Knipex 97 22 240 Crimping Pliers make a strong case for carrying one well-made multi-function electrical tool instead of three cheaper ones.
- Who it's for: Electricians, service techs, automotive techs, and anybody doing regular wire stripping and terminal crimping.
- Why it stands out: You get cutting, stripping, crimping, and screw cutting in one durable Knipex layout with a stable bolted joint and comfortable handles.
- Worth knowing: This is not an insulated live-work tool, and it is best suited for users who will actually use all the functions. If that is you, it is a smart buy.
Common Questions
- What does this tool do? It is designed to cut cable, strip wire, and crimp insulated terminals, cable connectors, plug-type connectors, and certain non-insulated terminals.
- What wire range does it cover? Insulated terminal capacity runs from 0.75 to 6.0 mm² and non-insulated terminal capacity from 0.5 to 2.5 mm². It also covers use from 20 to 10 AWG.
- Can it cut screws? Yes. It has threaded holes for cutting copper and brass screws in M2.6, M3, M3.5, M4, and M5 sizes.
- Is it 1000-volt insulated? No. This tool is specifically not 1000-volt insulated.
