Knipex Crimping Pliers-For 6 and 8 Pole Western Plug Type (97 51 10)
Knipex Crimping Pliers-For 6 and 8 Pole Western Plug Type (97 51 10)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview
Knipex 97 51 10 Crimping Pliers-For 6 and 8 Pole Western Plug Type is a dedicated crimping pliers tool for terminating Western plug connectors on unshielded ribbon telephone cable. This is a crimping pliers tool designed for cutting, stripping, and crimping RJ 11, RJ 12, and RJ 45 connections. Model Number: 97 51 10. If you need one hand tool that handles prep and termination without bouncing between separate cutters and crimpers, this is the one.
The big advantage here is control. Knipex uses a parallel crimping action, which helps keep pressure even across the connector instead of twisting it through the stroke. In practical use, that means more reliable plug termination and less guesswork when you are making repeated network or telephone cable ends.
This tool is built for 6-pole and 8-pole Western plug work. It crimps RJ 11 and RJ 12 plugs at 3/8 inch (9.65 mm) width and RJ 45 plugs at 15/32 inch (11.68 mm) width. There are two crimping positions, so you are set up for the common plug formats this tool was made for instead of trying to force a general-purpose pliers into a specialized job.
Knipex also built in the prep steps that usually slow the job down. You get a length cutter and dismantling knife for 1/4 inch and 1/2 inch ribbon cables, plus an additional stripping device for round cables. That makes this a good fit when your work moves between cable prep and connector installation and you want one tool that keeps the process moving.
The body is made from chrome vanadium electric steel and oil-hardened, which is exactly what you want in a tool that sees repeated squeeze cycles. The black-oxide finish adds jobsite durability, and the multi-component handles improve grip and comfort during repetitive work. At 7 1/2 inches long and about 0.67 lb, it is compact enough for service kits but still gives you enough handle length for controlled crimping force.
Another detail worth noting is the integral lock with self-releasing mechanism. That is not just a spec line. It helps maintain repeatable crimp quality because the tool is designed to complete the cycle before release. For installers and technicians, that kind of consistency is what keeps callbacks down.
This Knipex crimping pliers model makes the most sense for telecom work, low-voltage cabling, structured cabling maintenance, and anyone handling modular plug terminations regularly. If you occasionally make a cable end once in a while, it is probably more tool than you need. If you do this work often and want cleaner, more repeatable results, it earns its spot in the bag.
Make Clean Modular Terminations
This tool is made for modular connector work where a bad crimp costs time. The parallel crimping action helps keep the plug aligned so you get more uniform terminations.
- Crimps 6-pole RJ 11 and RJ 12 Western plugs
- Crimps 8-pole RJ 45 Western plugs
Prep Cable Without Switching Tools
The built-in prep functions save steps when you are moving from raw cable to finished connector. That is especially useful for service work and repetitive bench jobs.
- Includes a length cutter and dismantling knife for 1/4 inch and 1/2 inch ribbon cable

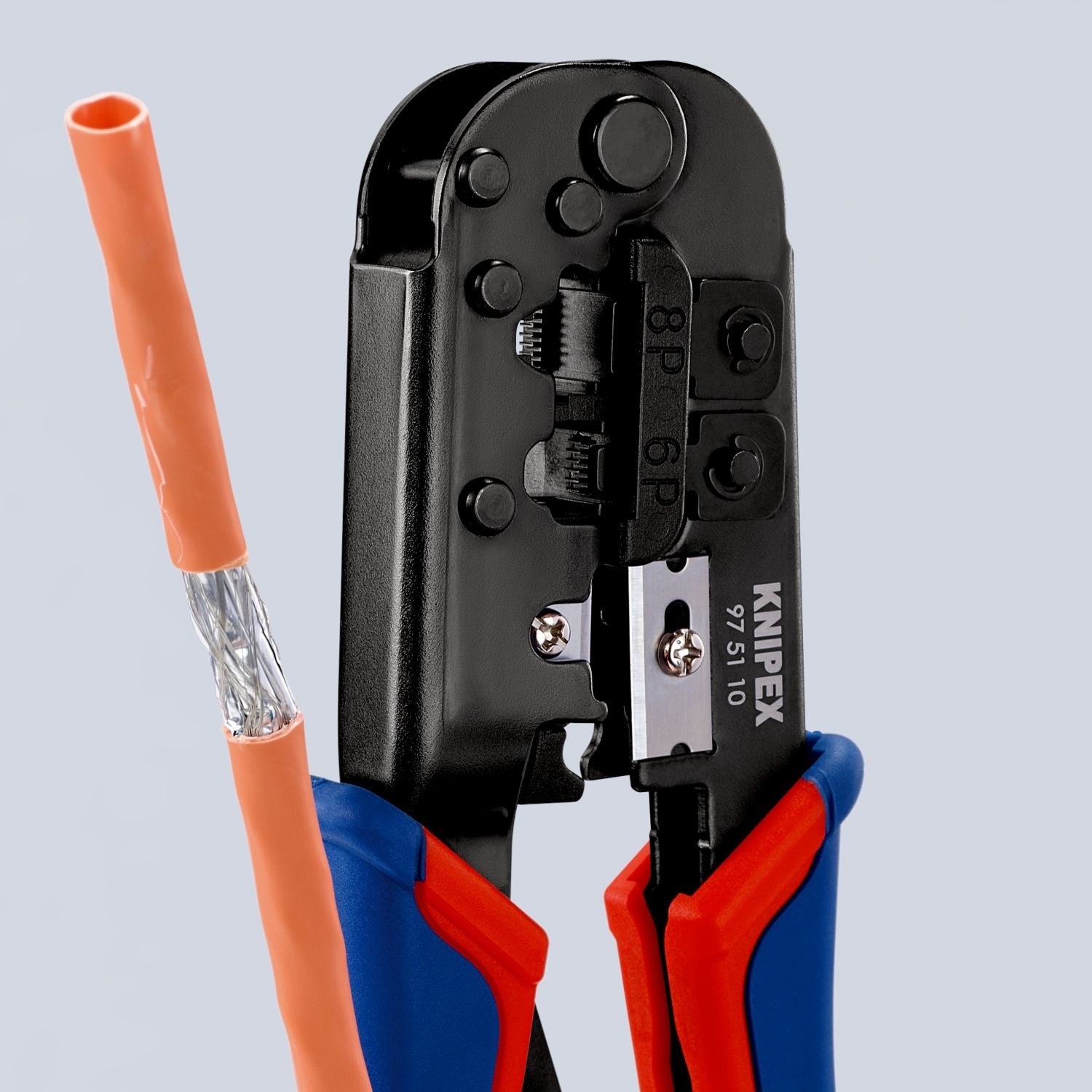

- Additional stripping device handles round cable too
Built for Repeated Crimp Cycles
Good crimpers need to hold up to a lot of squeezes. The steel construction and self-releasing lock are aimed at keeping force consistent and the tool comfortable through repeated use.
- Chrome vanadium electric steel, oil-hardened
- Multi-component handles improve grip and control
Key Specifications
| Overall Length | 7 1/2 in. |
|---|---|
| Weight | 0.67 lbs |
| Material | Chrome vanadium electric steel, oil-hardened |
| Finish | Black-oxide |
| Handle Type | Multi-component |
| Crimping Positions | 2 |
| Crimping Profile | Western crimp |
| Cable / Plug Types | RJ 11, RJ 12, RJ 45 |
Compatibility
Built For
Pro Tip
Let the self-releasing mechanism finish the crimp cycle instead of short-stroking it. That is the easiest way to get repeatable plug terminations, especially when you are doing a batch of RJ 45 ends.
Tool Nut's Take
Knipex 97 51 10 Crimping Pliers-For 6 and 8 Pole Western Plug Type gets the job done right
This is a purpose-built telecom crimper that earns its keep by combining cable prep, connector crimping, and repeatable pressure in one compact hand tool.
- Who it's for: Techs and installers making RJ 11, RJ 12, or RJ 45 terminations often enough to care about consistency.
- Why it stands out: Parallel crimping, a self-releasing lock, and built-in cutting and stripping functions make it more than just a basic crimper.
- Worth knowing: This is a specialized tool for Western plug work, so it makes the most sense if that is actually part of your regular workflow.
Common Questions
- What connectors does this tool crimp? It is designed for 6-pole and 8-pole Western plugs, specifically RJ 11, RJ 12, and RJ 45.
- Can it strip cable as well as crimp? Yes. It includes a length cutter and dismantling knife for ribbon cable plus an additional stripping device for round cable.
- Is this an insulated 1,000-volt tool? No. It is not 1,000-volt insulated.
