Knipex Crimping Pliers For Insulated Terminals, Plug Connectors and Butt Connectors (97 52 06)
Knipex Crimping Pliers For Insulated Terminals, Plug Connectors and Butt Connectors (97 52 06)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview

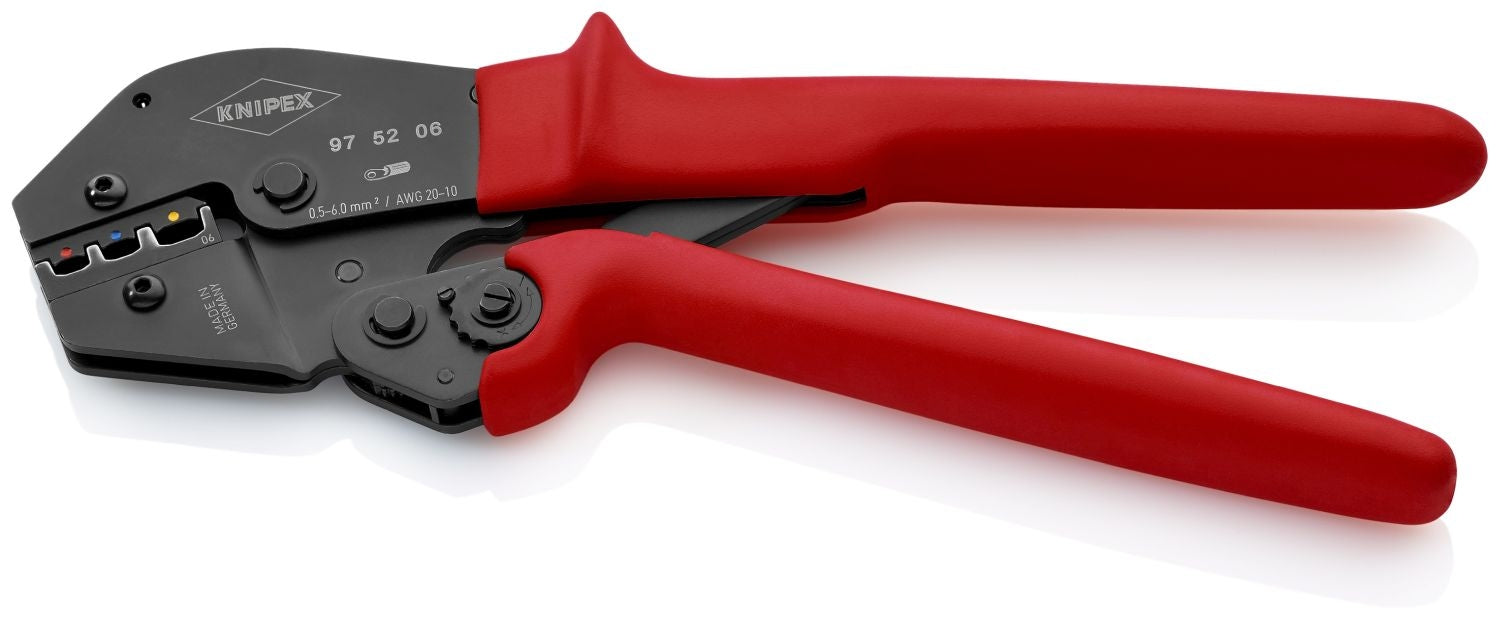

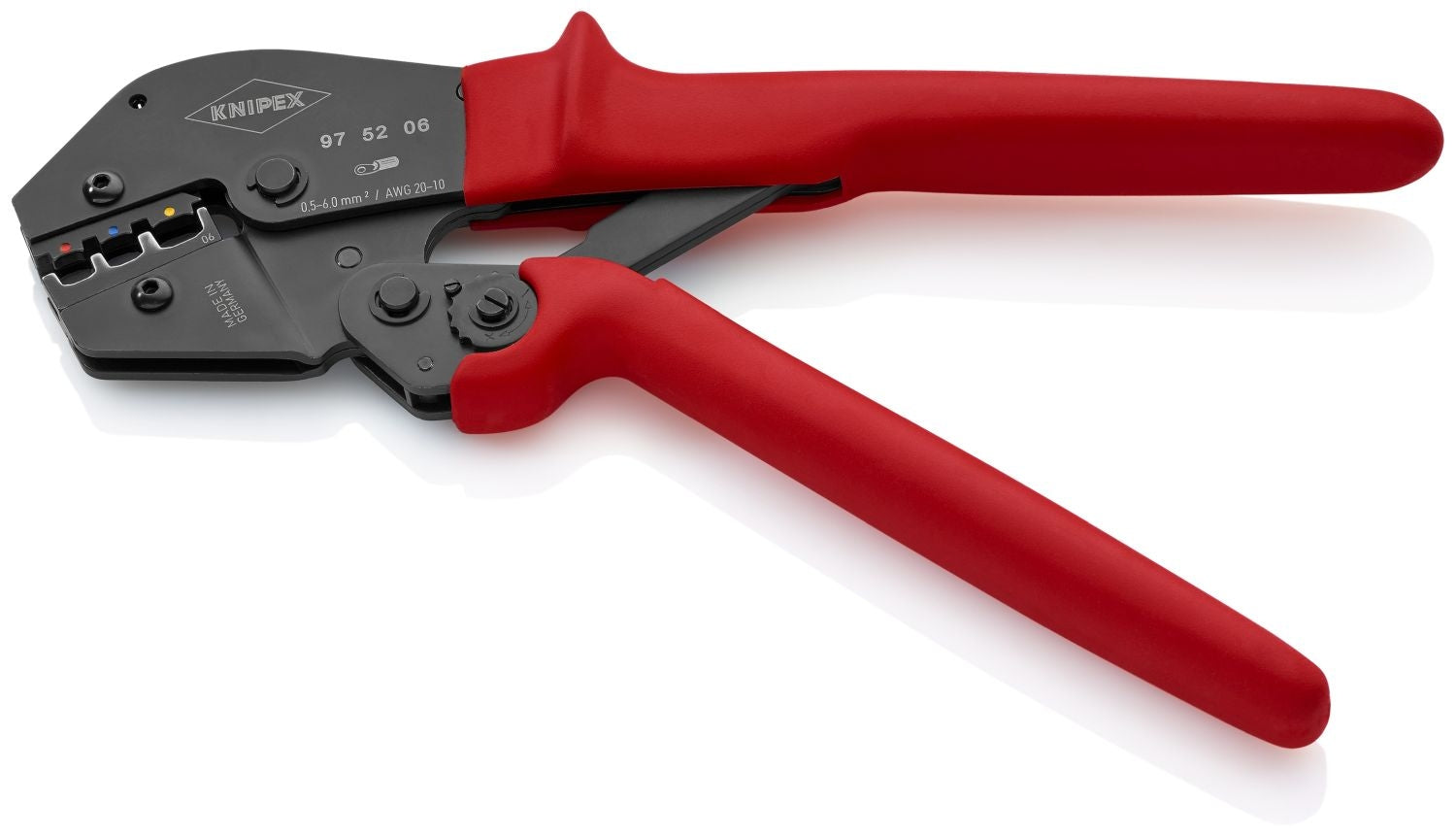

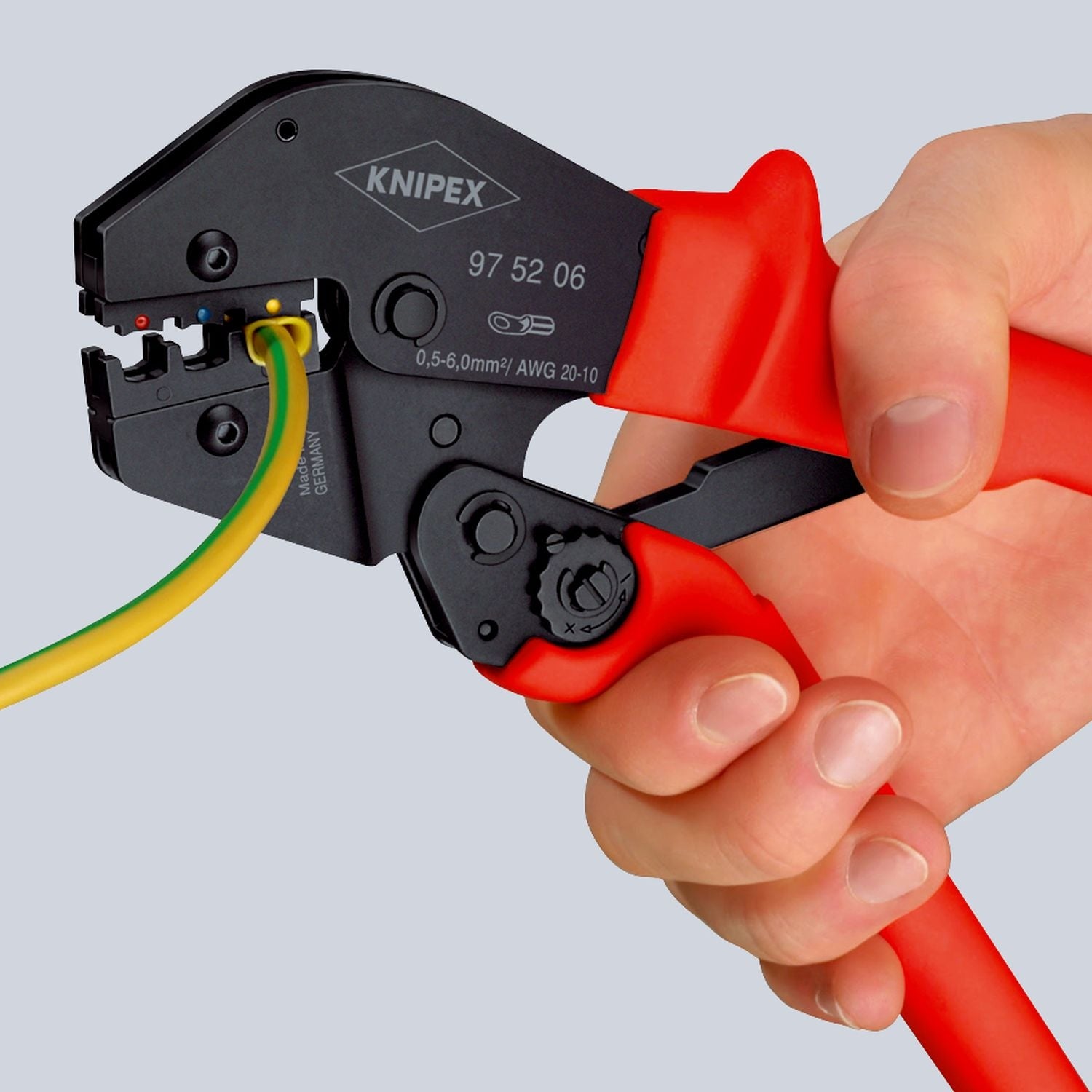

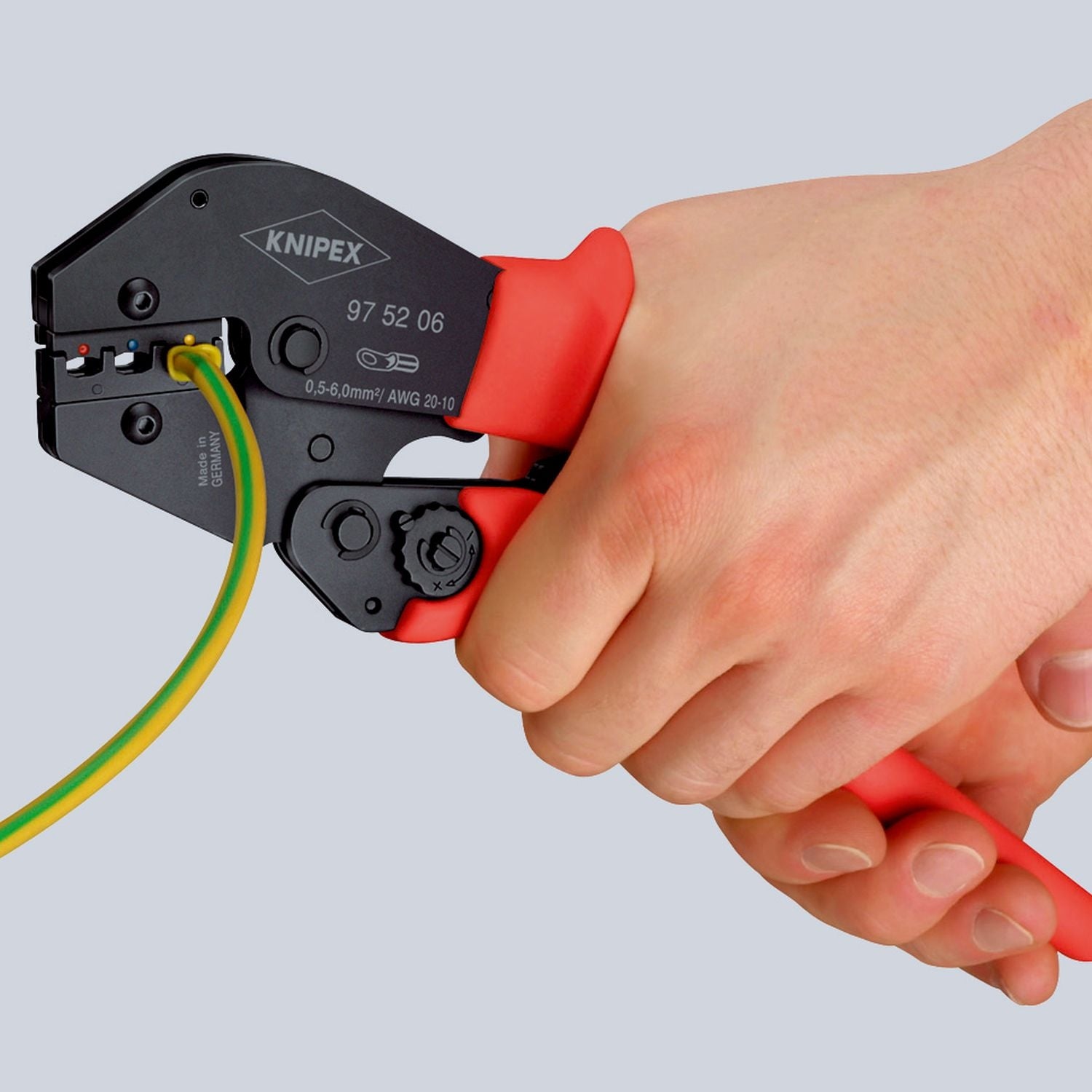

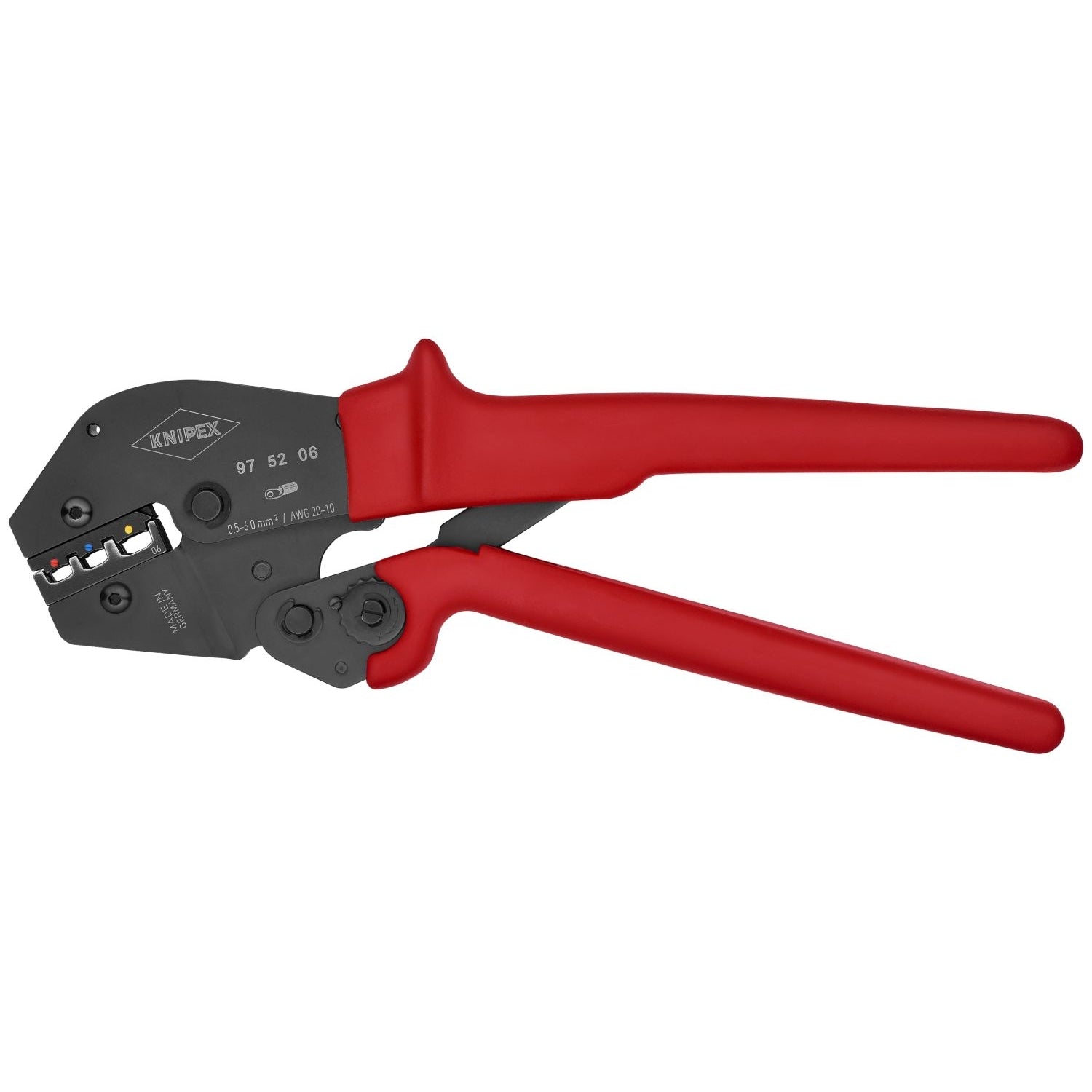

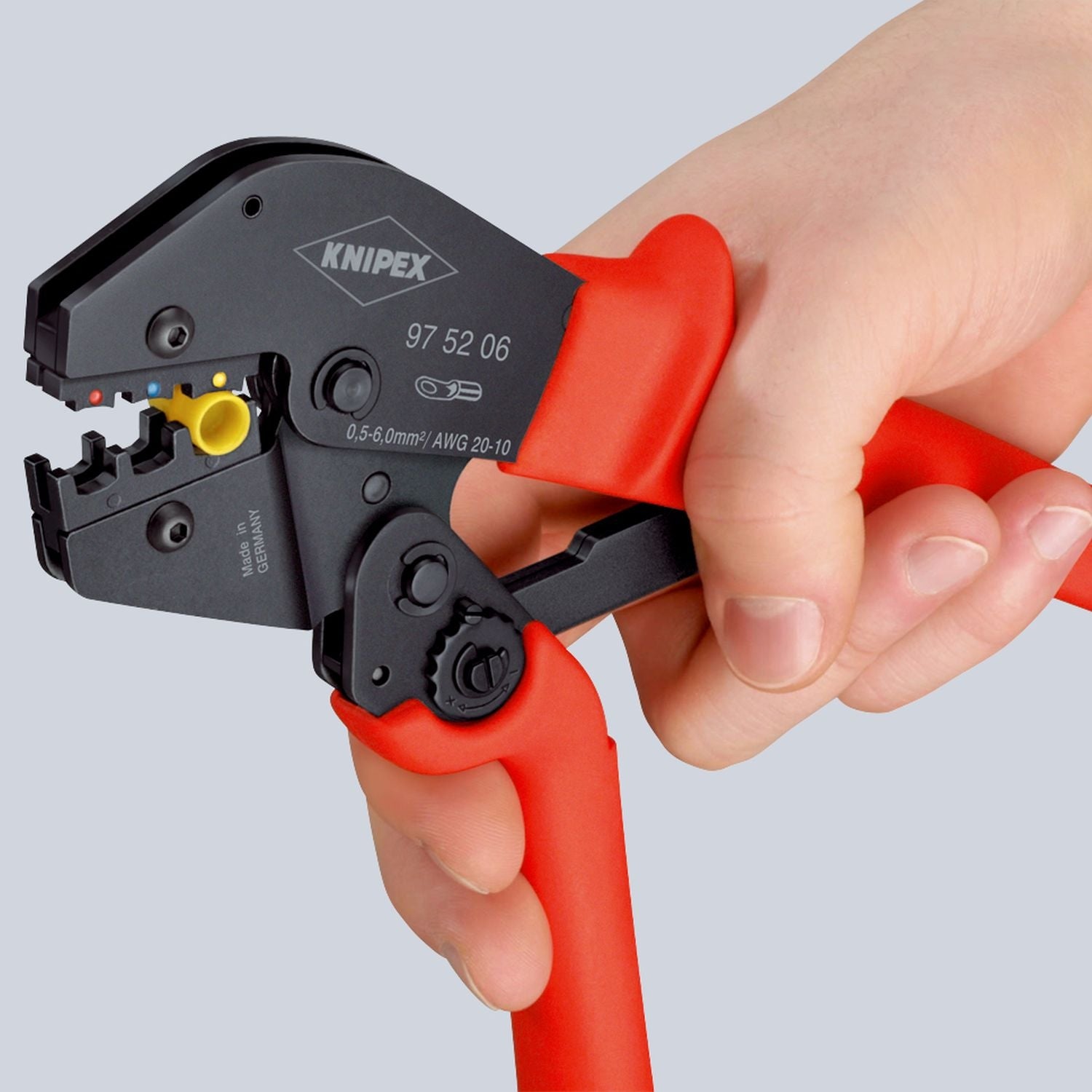

The Knipex 97 52 06 Crimping Pliers are built for solder-free electrical connections on insulated terminals, plug connectors, and butt connectors. This is a crimping pliers designed for repeatable electrical terminal crimping across a wire range of 0.5 to 6.0 mm², or 20 to 10 AWG. Model Number: 97 52 06. If you need a dedicated hand tool for clean, dependable electrical fastening work, this is the kind of crimper made for that job.
The main advantage here is controlled crimp quality without having to muscle through every connection. Knipex states the lever transmission reduces hand force by up to 30% compared with regular crimping pliers, which is a real benefit when you are doing repetitive work or moving into heavier conductor sizes. The tool uses three crimping positions and an oval crimp profile, giving you coverage across common insulated connector sizes instead of a one-size-fits-all compromise.

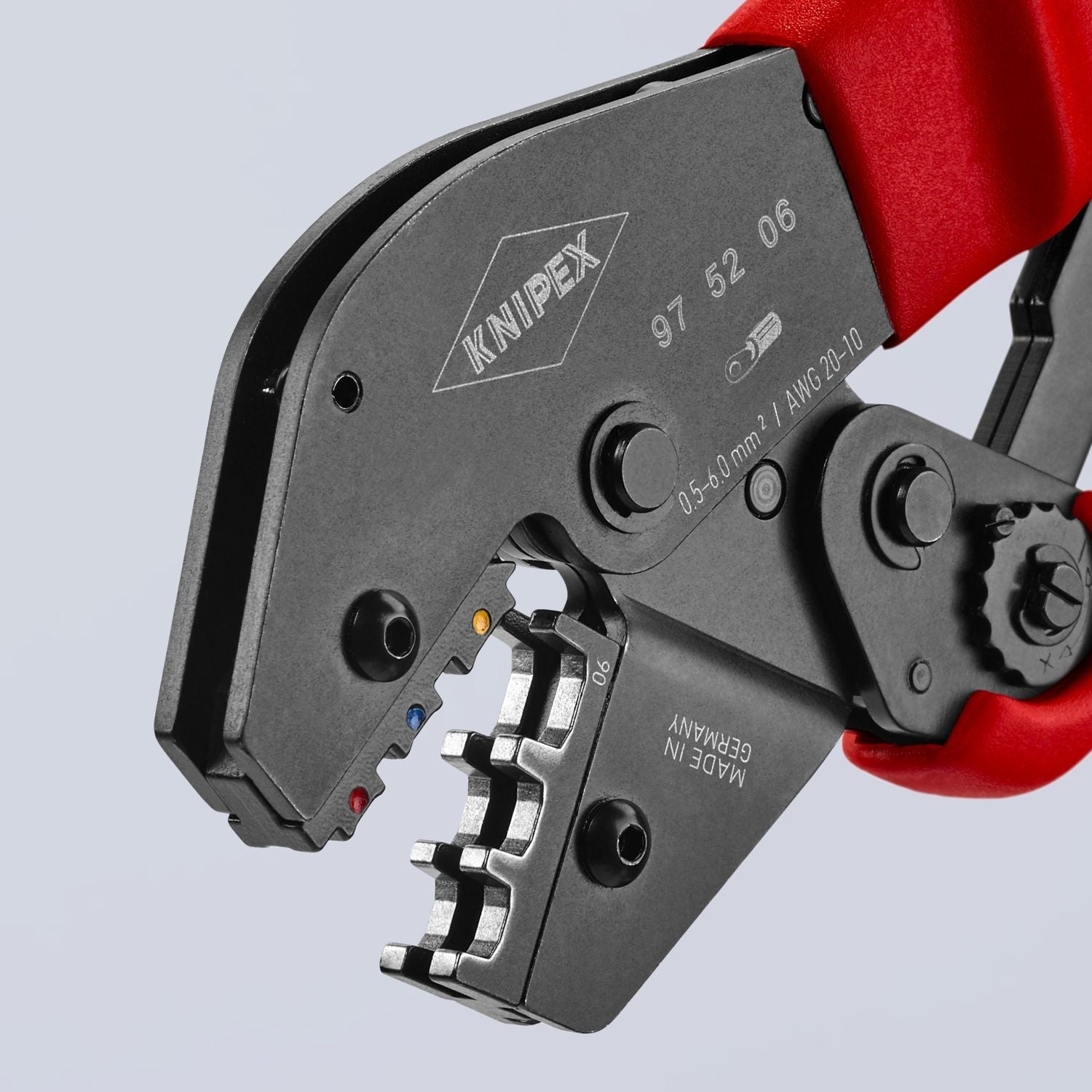

Consistency is what separates a decent electrical crimper from one you actually want in your bag every day. The 97 52 06 uses precision dies along with an integral lock and self-releasing mechanism to help produce repeatable crimps. Knipex also notes that crimping pressure is precisely set at the factory. In plain terms, that means less variation from connection to connection, which is exactly what you want when termination quality matters.
From a build standpoint, this tool is made from chrome vanadium electric steel and is oil-hardened for durability. The burnished finish and solid steel construction give it the kind of feel you expect from a serious shop or field tool, not a light-duty crimper that gets sloppy after a short stretch of use. The non-slip plastic handles keep grip straightforward and practical, and the overall layout is aimed at control rather than bulk.
Knipex also built in jobsite usability features that matter more than they sound on paper. The well-balanced center of gravity and angled head make the tool easier to position, especially when you are trying to line up the connector and conductor cleanly before committing to the crimp. For larger conductor diameters, the two-handed operation capability helps you finish the crimp with less strain and more control.
This hand crimper is not an insulated 1,000-volt tool, and it is not a combination stripper or cutter. It is a purpose-built electrical crimping pliers for users who want a dedicated tool focused on insulated terminals and plug connections. That makes it a better fit for electricians, panel work, maintenance techs, and serious DIY users who care more about termination quality than multi-tool convenience.
If your work regularly involves insulated terminals, butt connectors, and plug connectors in the 20 to 10 AWG range, this tool makes sense. If you only crimp once in a while, it may be more tool than you need. But if you want repeatable results, lower hand effort, and a dedicated Knipex crimper built in Germany, this one earns its keep pretty quickly.
Built for Repeatable Electrical Crimping
This electrical crimper is made to give you a more uniform result from one connection to the next. The die design and locking mechanism help take some of the guesswork out of hand crimping.
- Precision dies support repetitive, high crimping quality
- Integral self-releasing lock helps maintain consistent crimping action
- Factory-set crimp pressure is calibrated for dependable performance
High Leverage Without Fighting the Tool
Good crimping pliers should give you mechanical advantage without feeling clumsy. The lever transmission, angled head, and balanced layout are all aimed at making repeated terminal work easier on your hands.
- Up to 30% less hand force than regular crimping pliers
- Two-handed operation helps with larger conductor diameters
- Angled head and balanced center of gravity improve handling
Key Specifications
| Capacity | 0.5 to 6.0 mm² / 20 to 10 AWG |
|---|---|
| Crimping Positions | 3 |
| Crimping Profile | Oval crimp |
| Overall Length | 9 3/4 in. |
| Weight | 1.25 lbs |
| Material | Chrome vanadium electric steel, oil-hardened |
| Handle Type | Non-slip plastic |
| Made In | Germany |
Compatibility
Built For
Pro Tip
When you move up into the larger end of the 20 to 10 AWG range, use the two-handed operation Knipex built into this tool instead of forcing a one-hand squeeze. You will get better control and a more consistent crimp, especially on repeat terminations.
Tool Nut's Take
Why the Knipex 97 52 06 Crimping Pliers are worth the reach
This is a dedicated crimper for users who care about repeatable electrical connections and do not want to fight a cheap stamped tool every time they squeeze.
- Who it's for: Electricians, maintenance techs, panel builders, and advanced DIY users working with insulated terminals, plug connectors, and butt connectors in the 20 to 10 AWG range.
- Why it stands out: Lower hand effort, factory-set crimp pressure, precision dies, and a self-releasing lock make it a lot more consistent than generic crimpers.
- Worth knowing: This is a dedicated crimping tool, not a stripper, cutter, or insulated live-line tool. If you want cleaner crimps, that focus is a plus. If you want one tool to do everything, it is not built for that.
Common Questions
- What wire range does this crimper handle? It is rated for 0.5 to 6.0 mm² conductors, which corresponds to 20 to 10 AWG.
- What connector types is it designed for? It is designed for insulated terminals, plug connectors, and butt connectors.
- Does it have a ratcheting or locking mechanism? Yes. It uses an integral lock with a self-releasing mechanism to support consistent crimping.
- Is this an insulated 1,000-volt tool? No. It is not 1,000-volt insulated.
