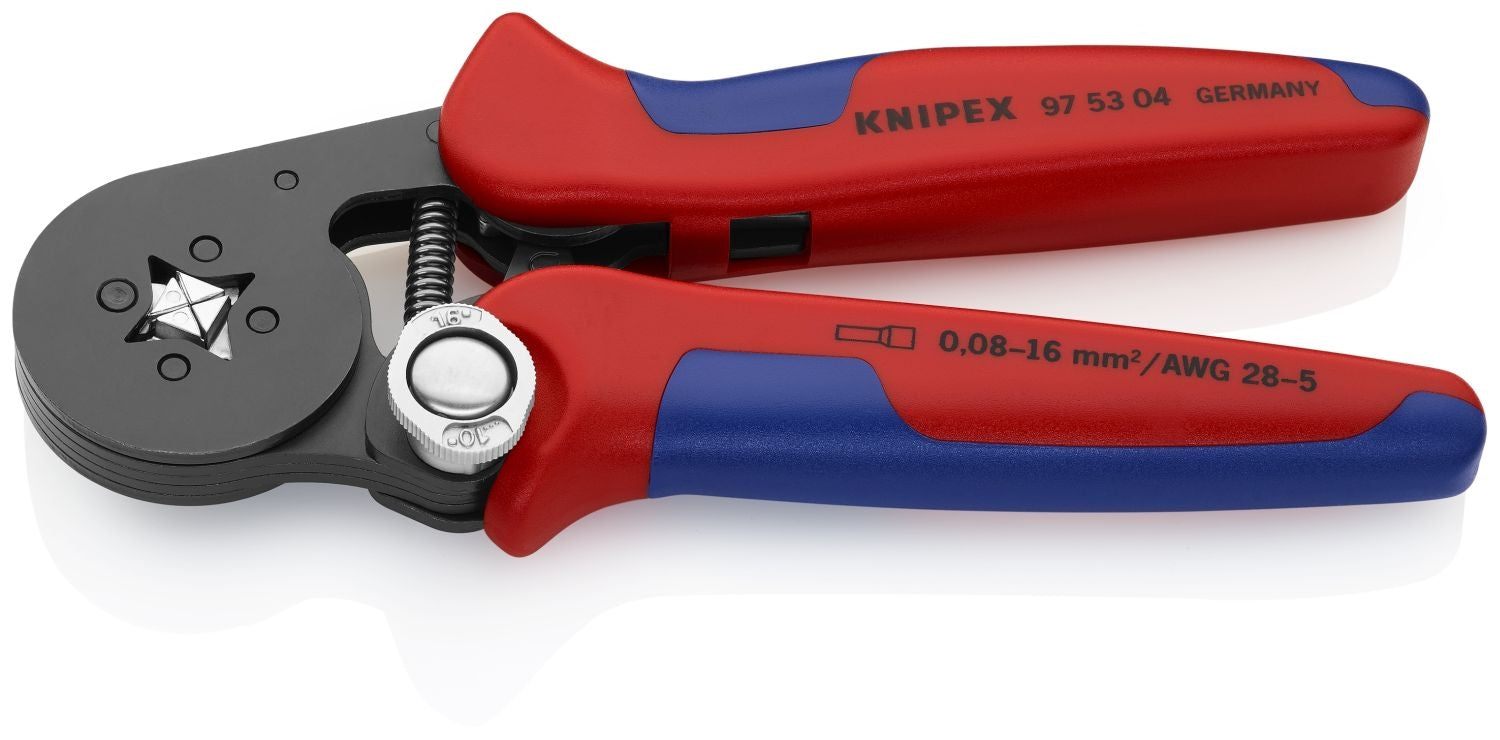

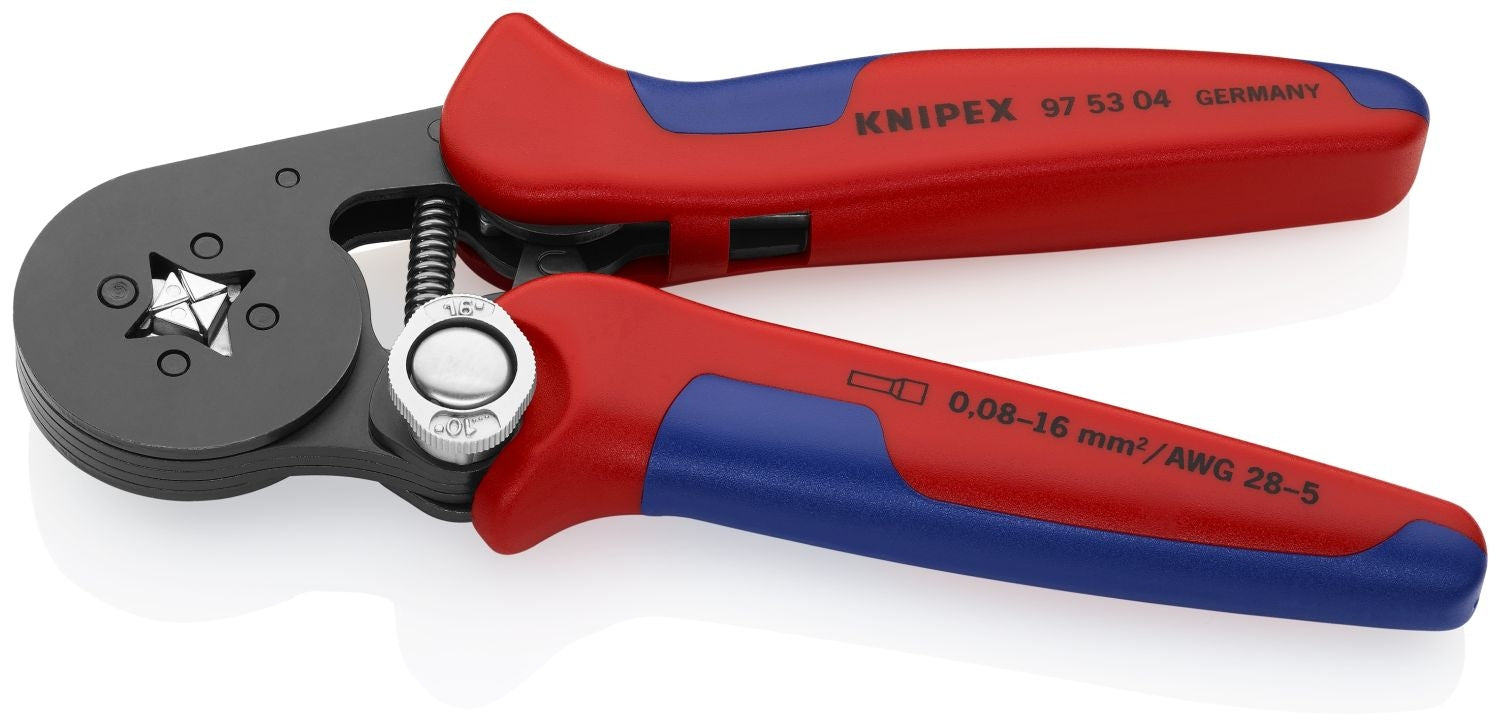

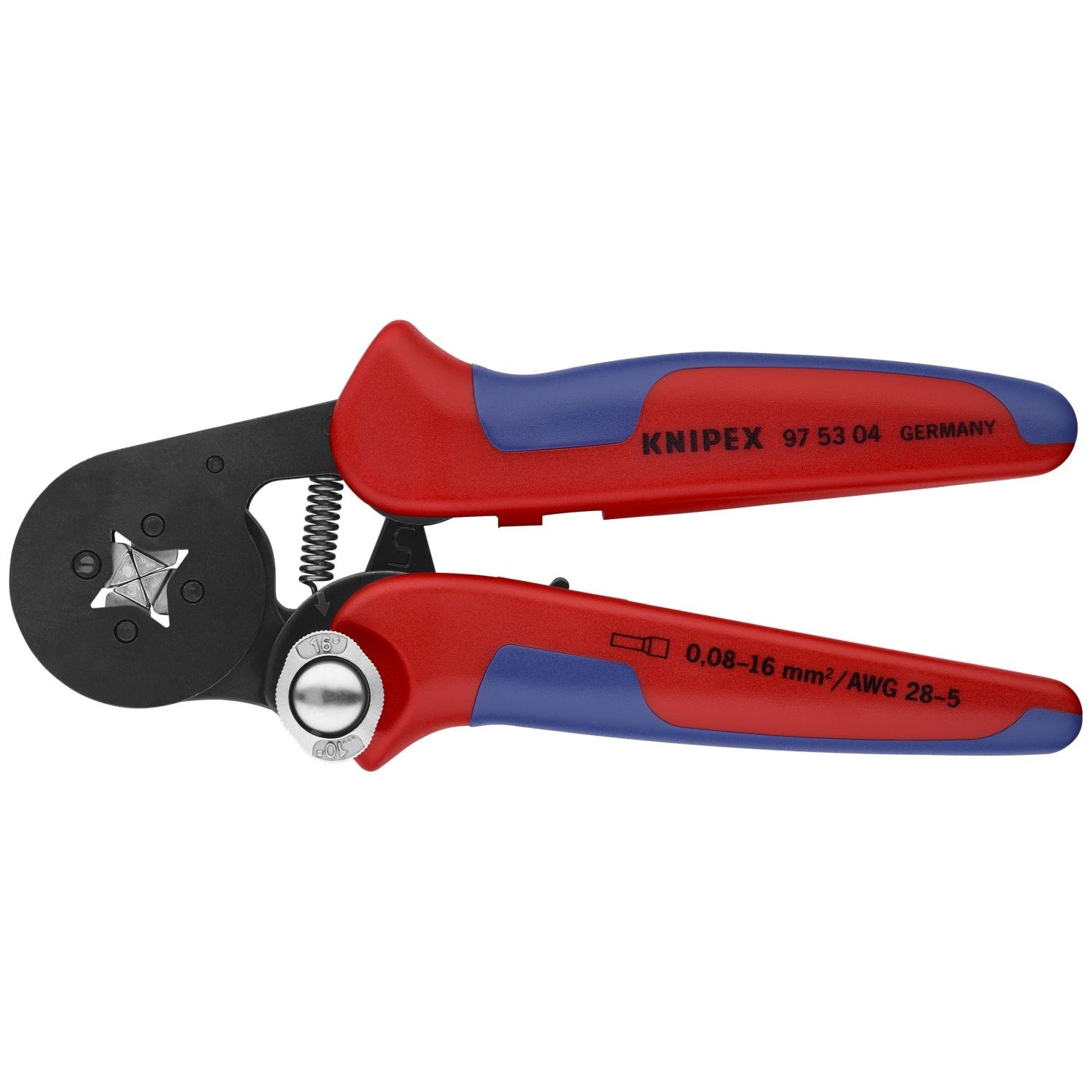

The Knipex 97 53 04 Self-Adjusting Crimping Pliers For Wire Ferrules is a precision hand crimping tool built for terminating wire ferrules and end sleeves cleanly and consistently. This is a crimping pliers designed for wire ferrule termination in electrical and control wiring work. Model Number: 97 53 04. If you spend time building panels, landing stranded conductors, or doing repeat wiring work, this tool is built to speed up the process and remove a lot of the judgment calls that lead to bad crimps.

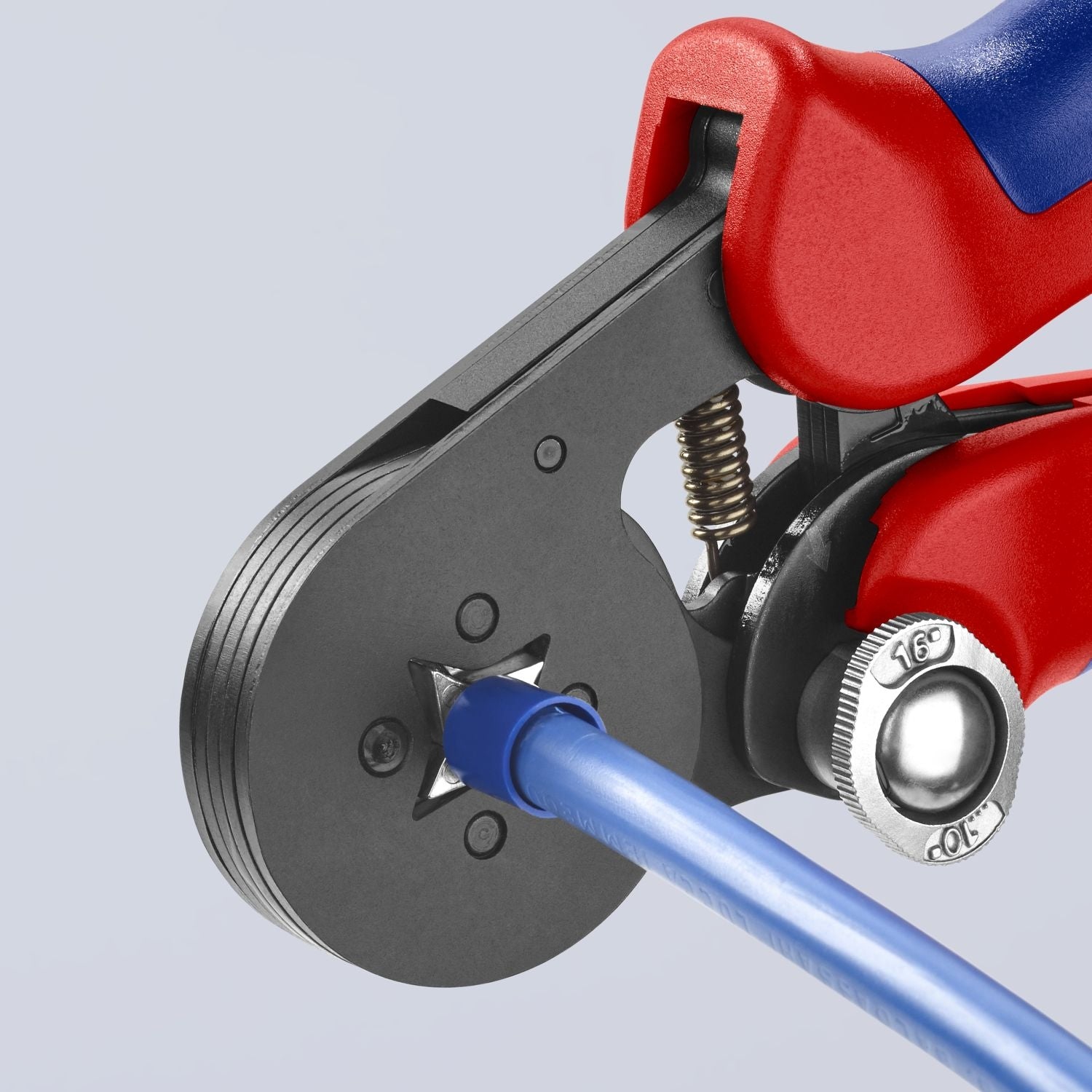

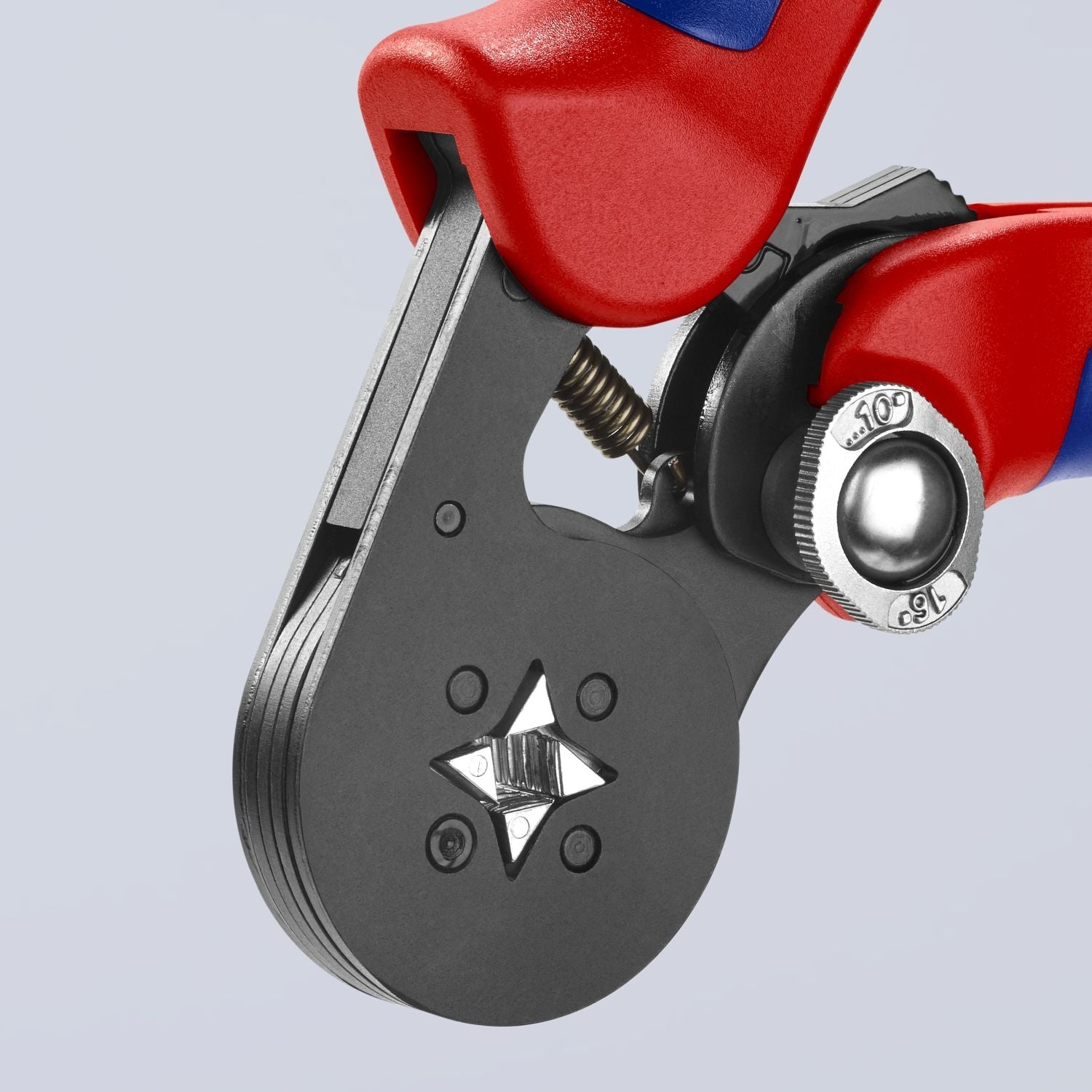

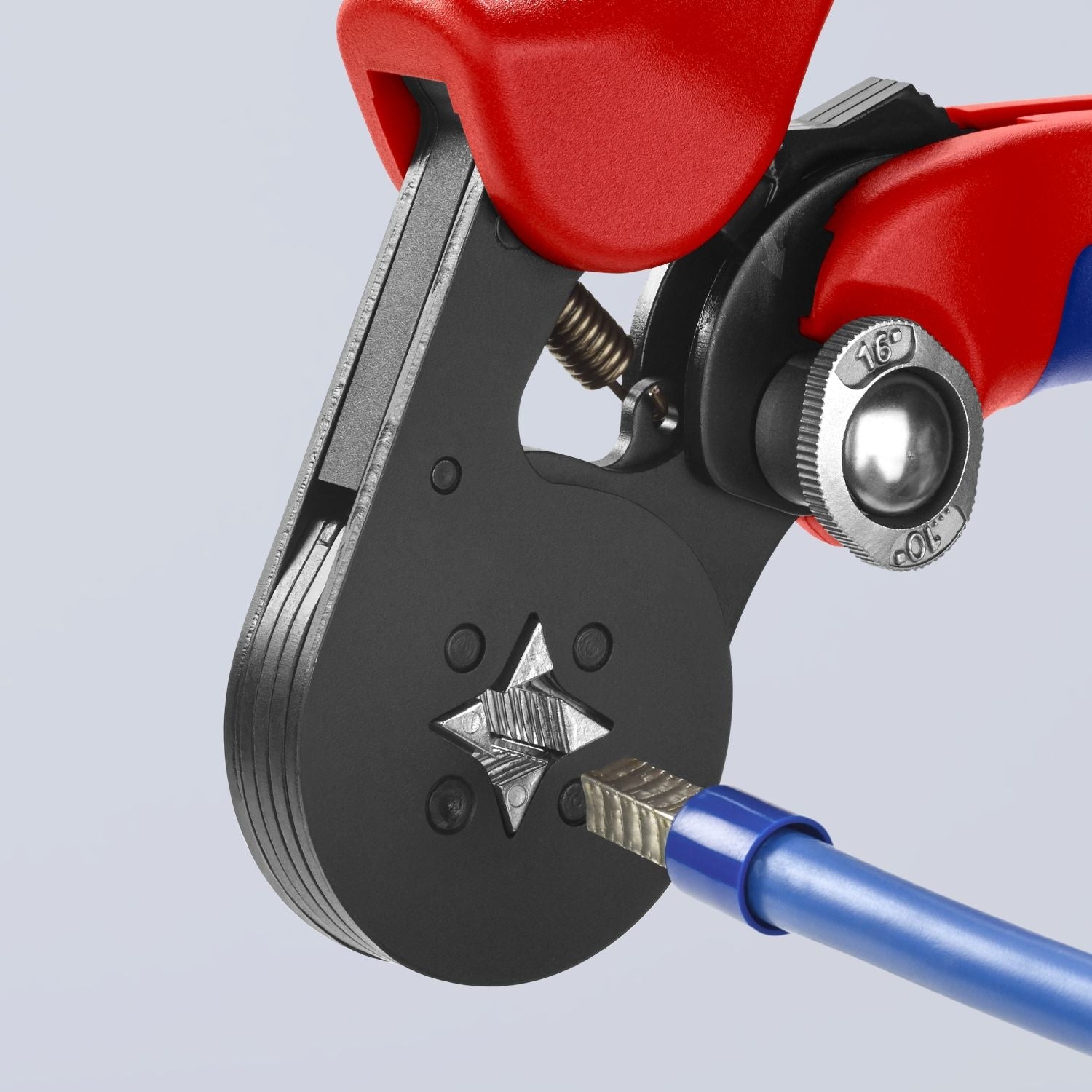

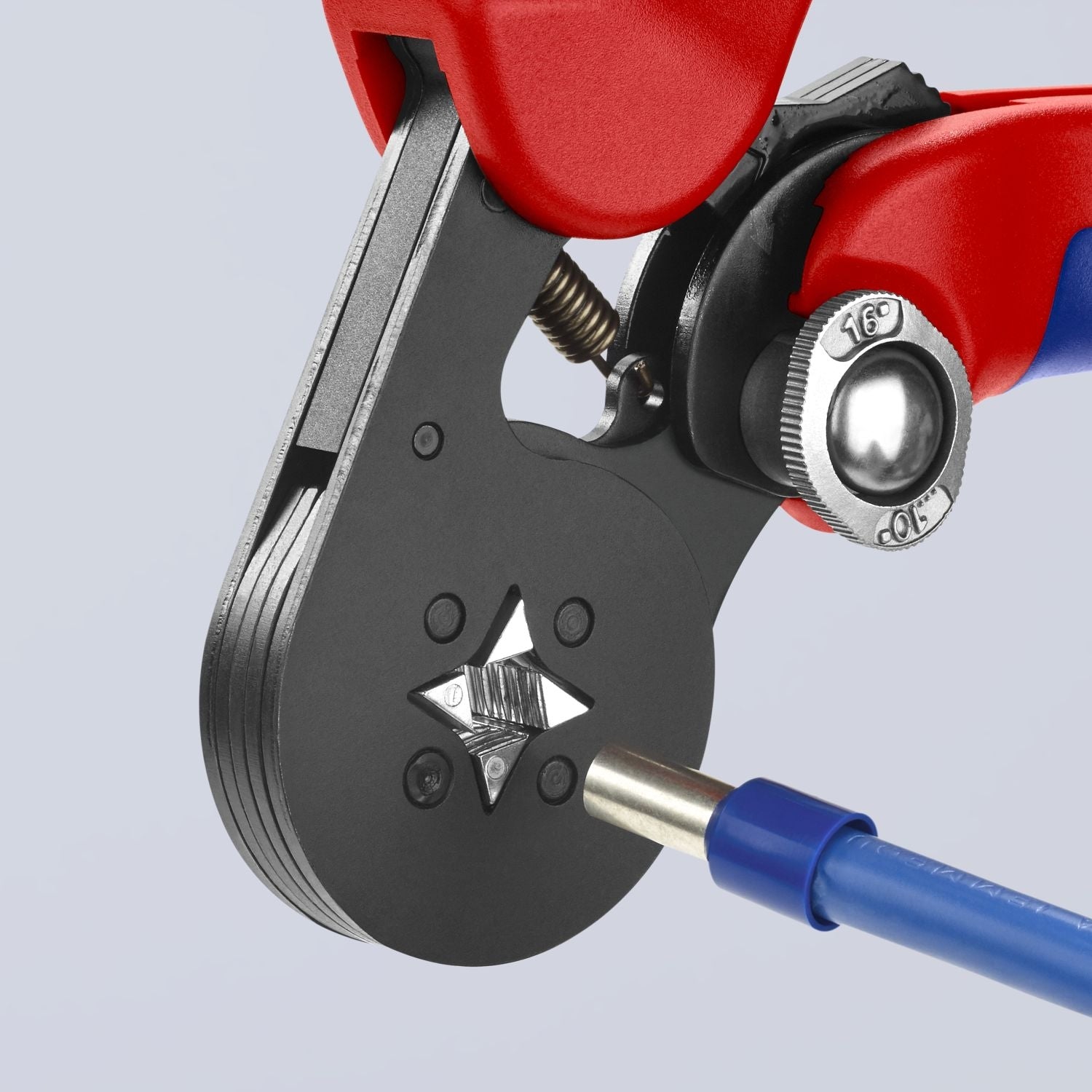

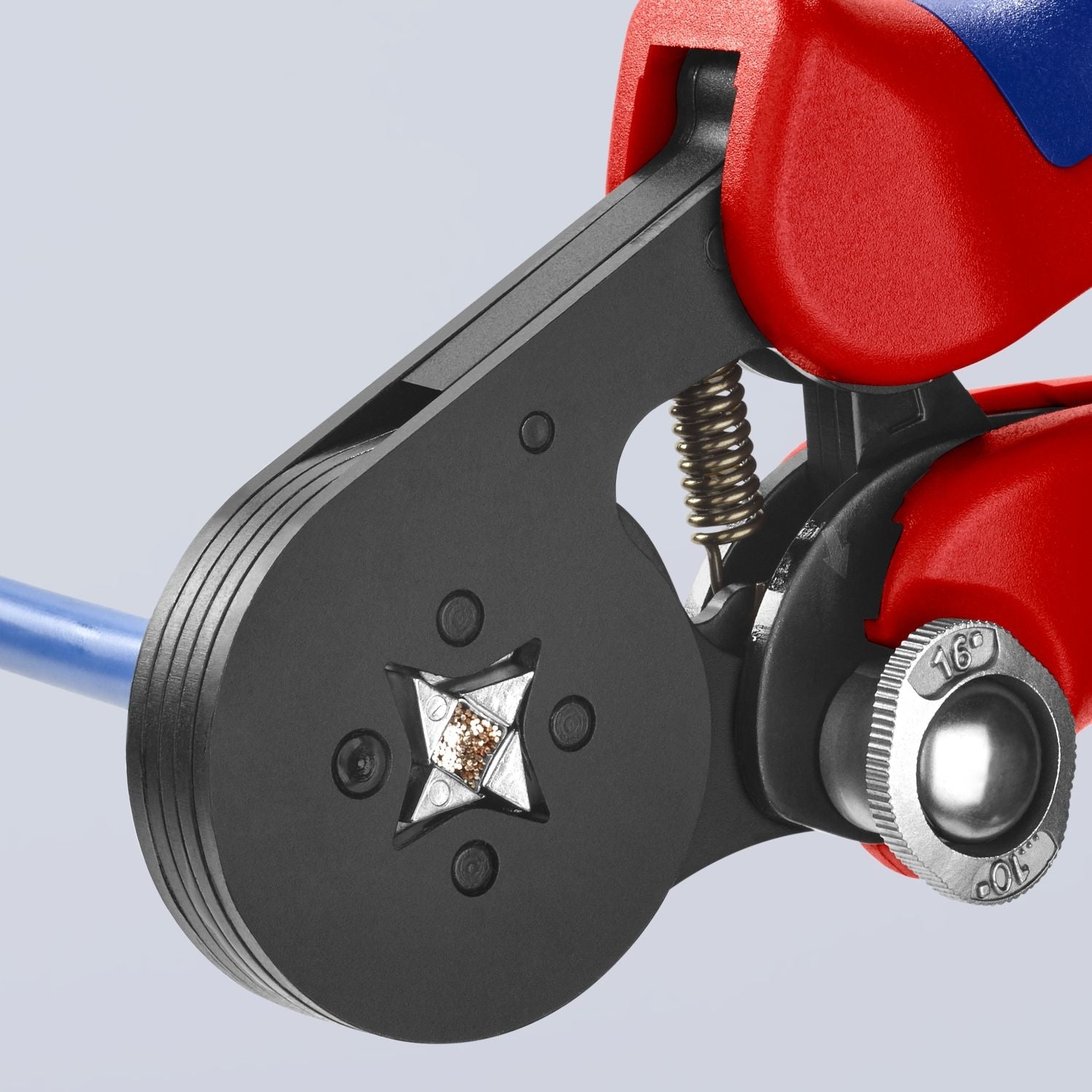

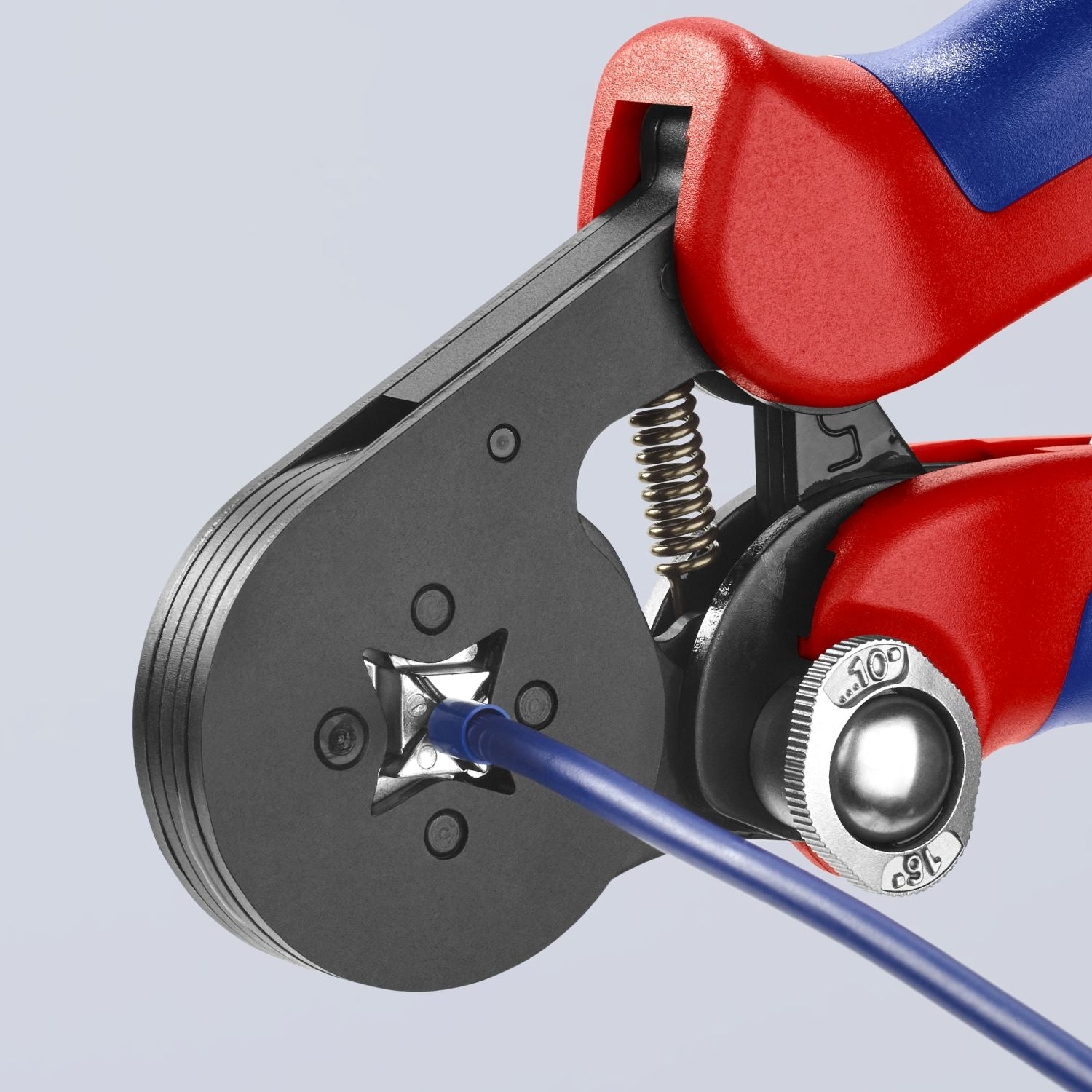

The big advantage here is the self-adjusting crimping action. Instead of manually setting the tool every time you change ferrule size, the pliers automatically adjust to the ferrule you are using. That saves time when you are bouncing between conductor sizes and helps reduce the chance of under-crimping or over-crimping. Knipex uses an automatic square crimp profile, which creates a contact surface suited for clamp connections and terminal blocks where even, repeatable compression matters.

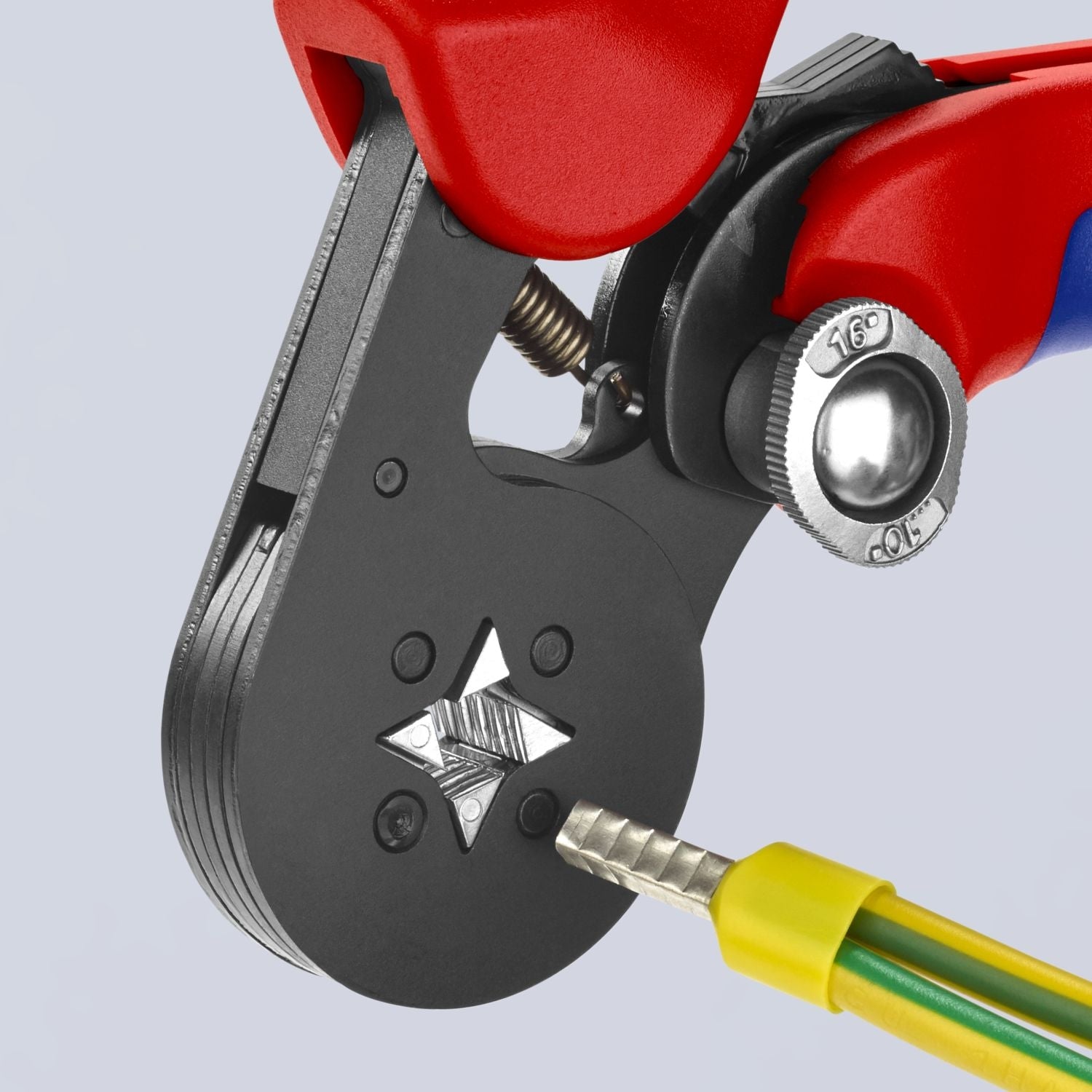

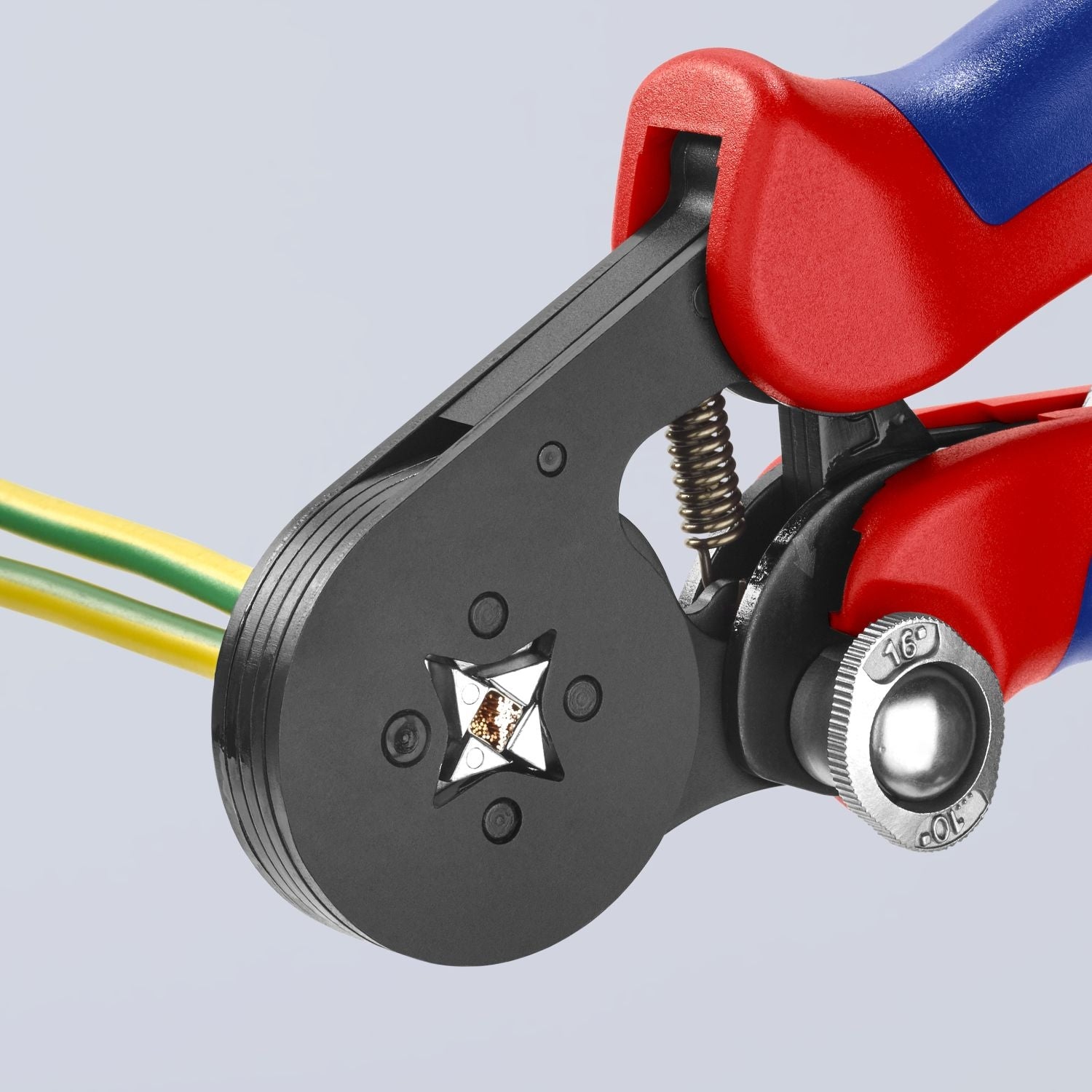

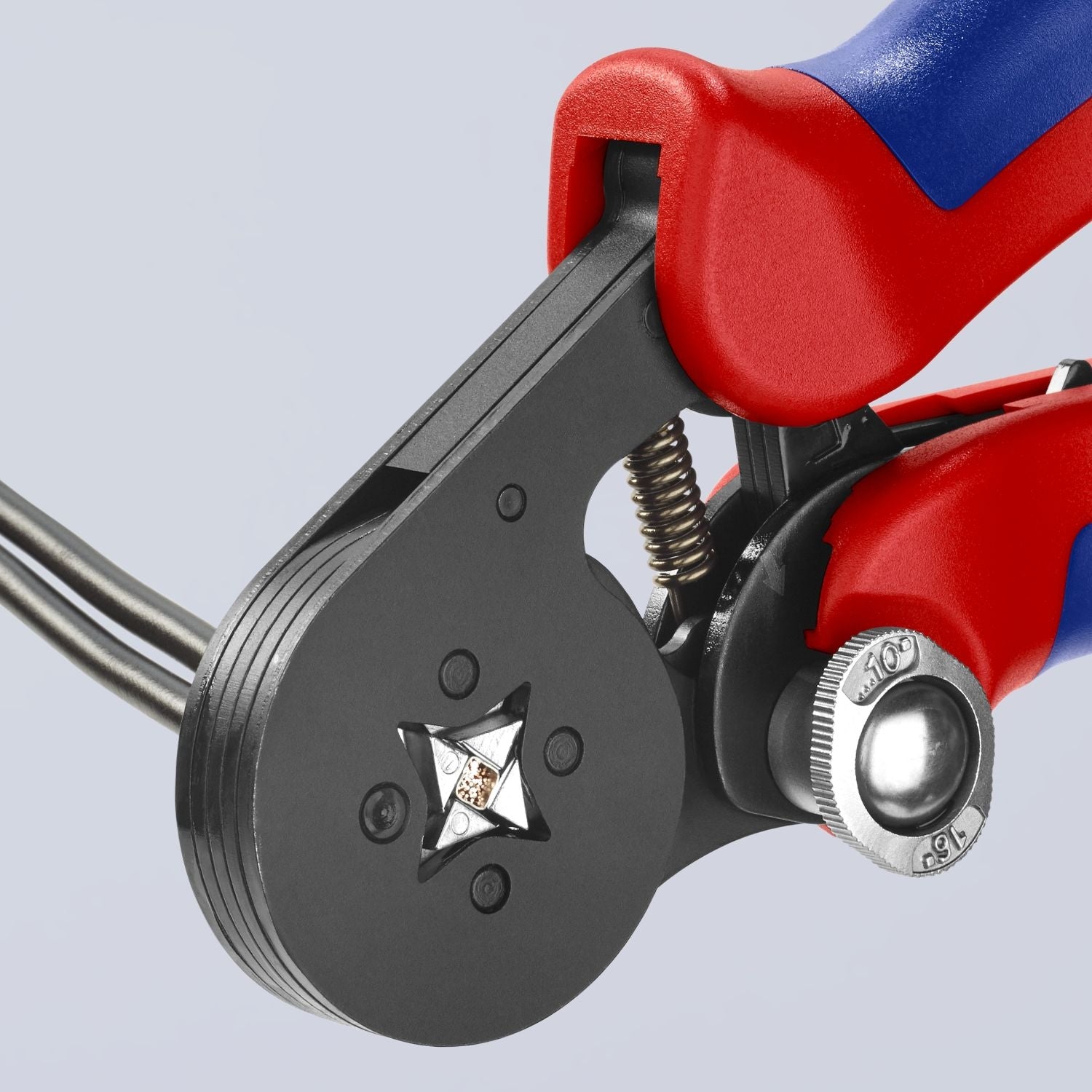

Capacity is one of the reasons this model stands out. It covers 0.08 to 10 mm² and also 16 mm², with stated equivalents down to 28 AWG and up through larger conductor sizes depending on ferrule type. It is also particularly suited for twin wire ferrules in smaller sizes, including applications up to 2 x 4 mm² and twin ferrules up to 2 x 6 mm² or 2 x AWG 8 in certain use cases. For electricians and panel builders, that range means fewer specialty crimpers on the bench.
Knipex also built this tool for repeatable results, not just convenience. The integral lock with self-releasing mechanism helps apply the right pressure before the crimp cycle completes, which is exactly what you want when consistency matters across dozens or hundreds of terminations. The tool is factory calibrated, so it is set up to deliver dependable crimp quality right out of the package. That is a practical benefit on jobs where a loose or poorly formed ferrule can create troubleshooting headaches later.

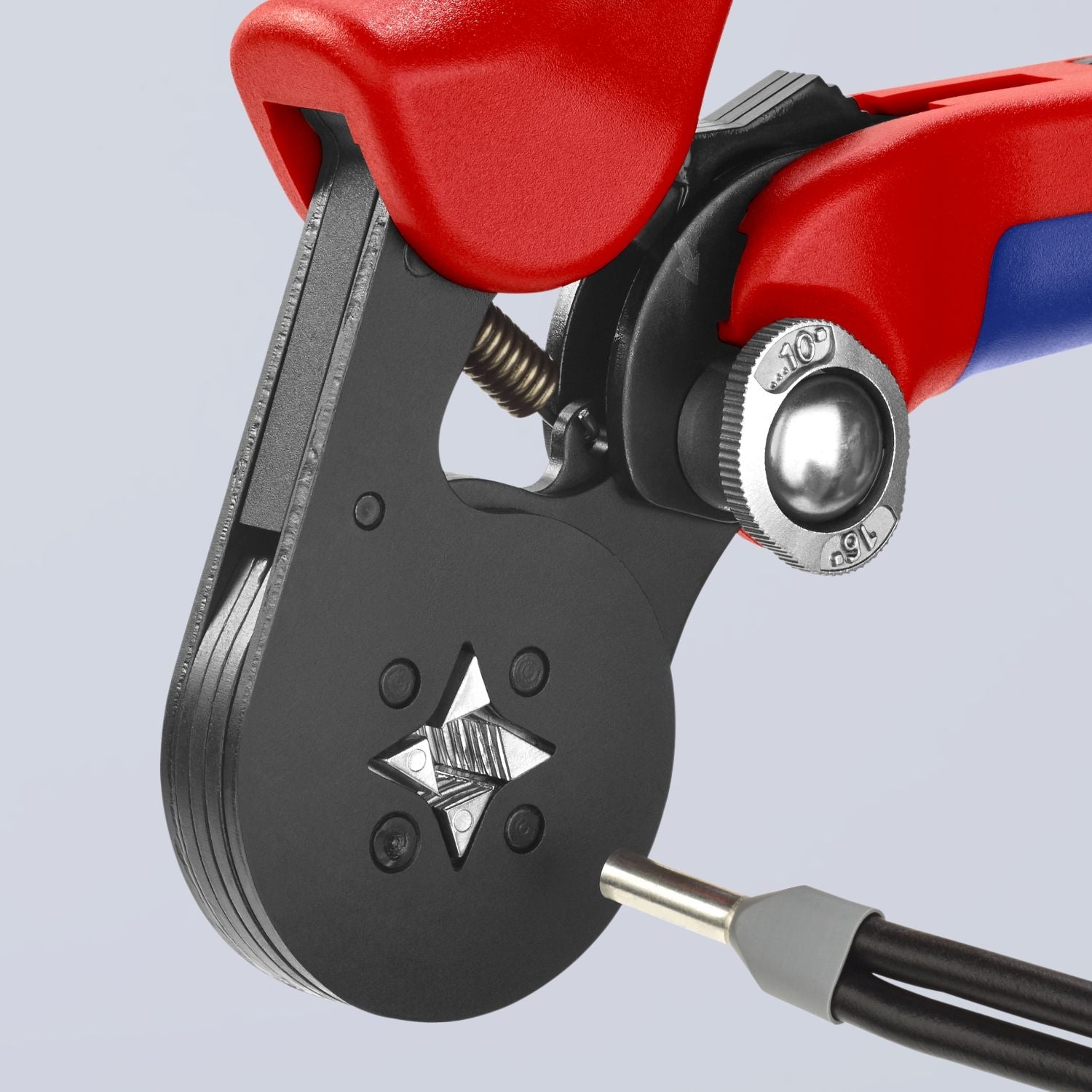

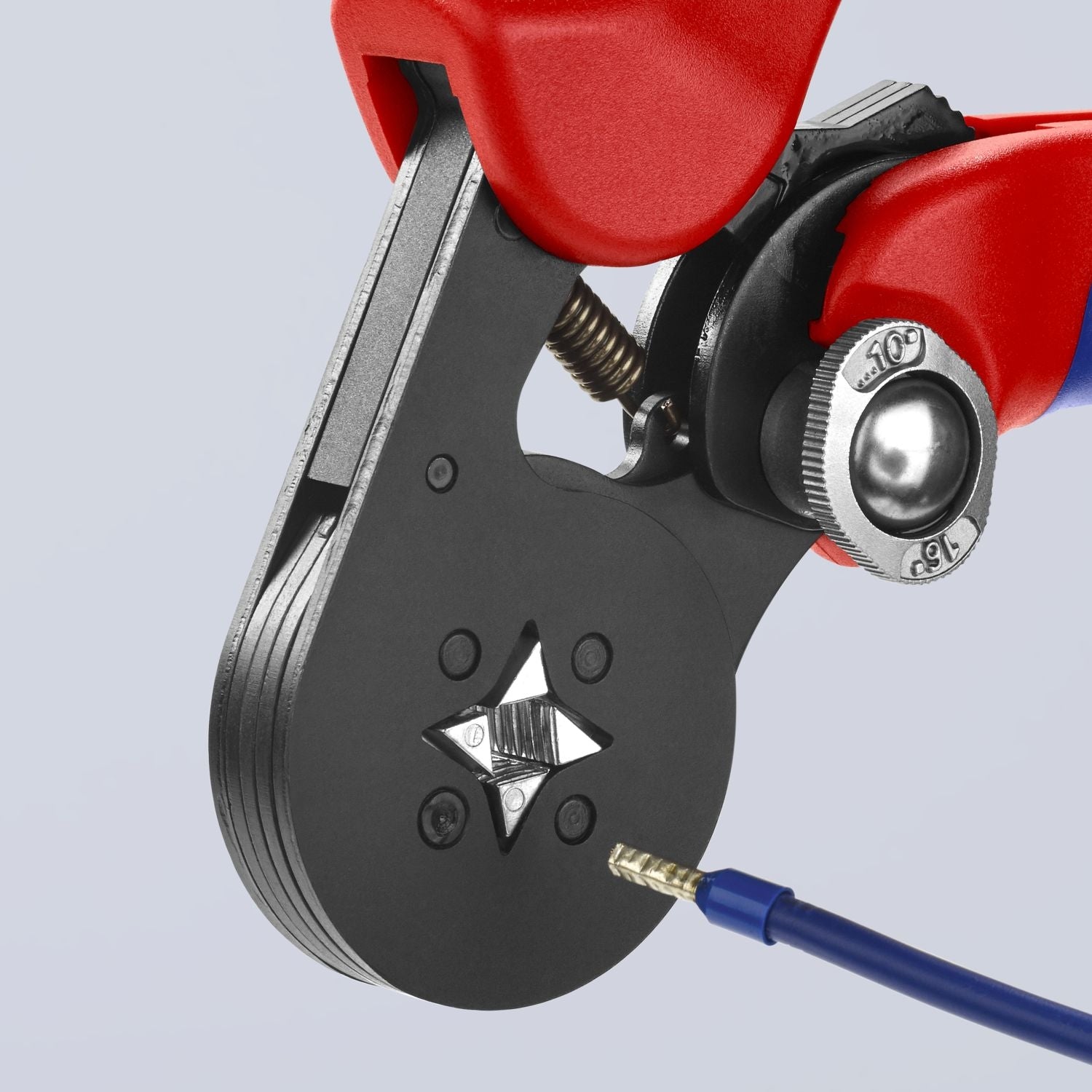

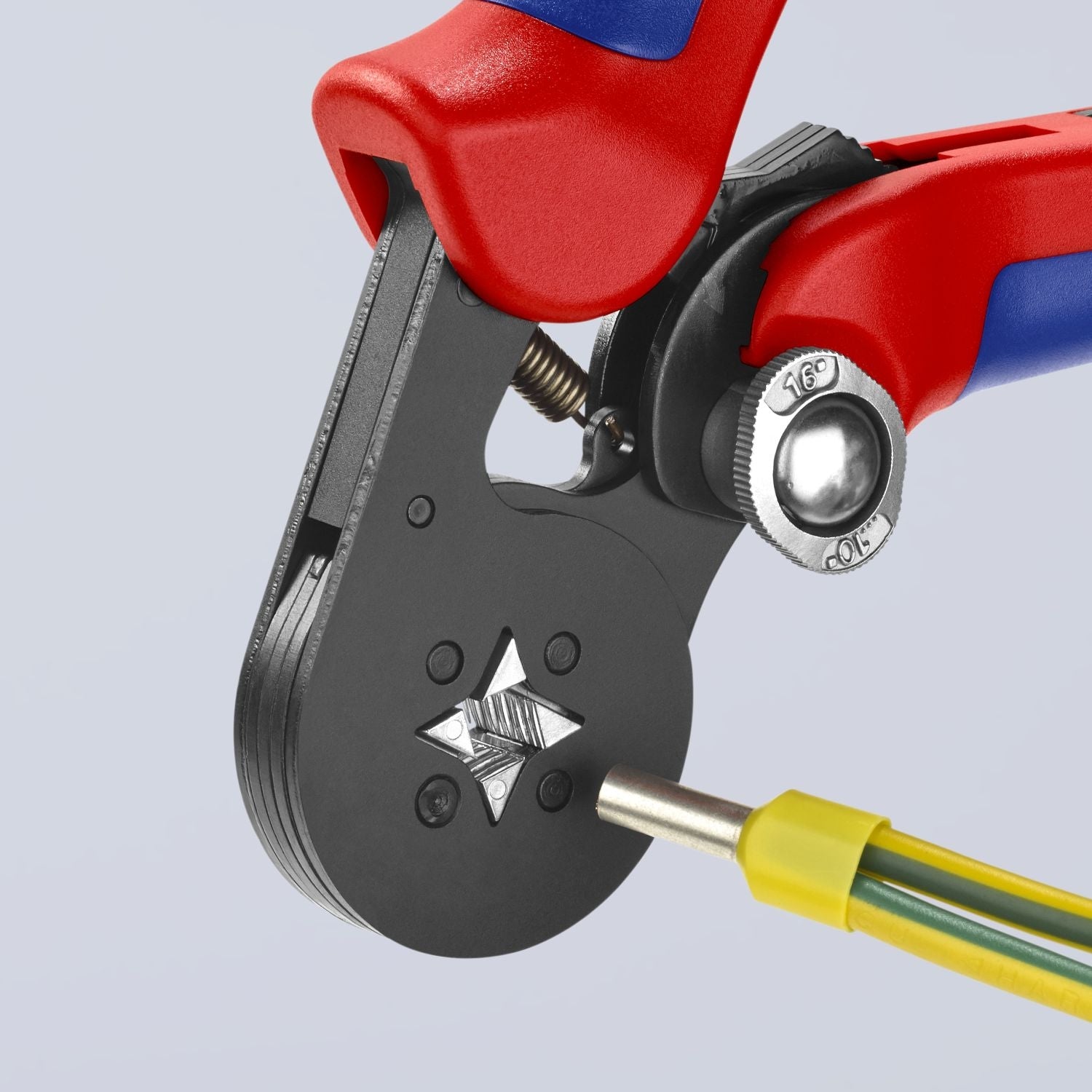

From a design standpoint, this is a compact 7 inch class crimper with side access for wire ferrules, a narrow handle width, and multi-component grips. The toggle lever mechanism improves force transmission, so larger ferrules are easier to crimp without beating up your hands. Knipex makes the body from chrome vanadium electric steel and oil-hardens it for long service life. In plain terms, it is built like a serious shop and field tool, not a throwaway crimper.
On the job, the lower weight and handy shape make a difference when you are working in enclosures, at a bench, or moving through repetitive harness and cabinet work. The side-access design can also be more convenient than front-loading tools when conductor routing is tight. Spring-loaded operation helps the tool reopen quickly between crimps, which keeps the pace up during repetitive electrical fastening and wire prep tasks.
This ferrule crimping tool is made for users who need clean, reliable terminations with stranded wire and ferrules that meet DIN 46228 parts 1 and 4. It is a strong fit for electricians, industrial maintenance techs, control panel builders, machine builders, and serious DIY users doing neat terminal work. If you only crimp ferrules once in a while, it may be more tool than you need. If ferrules are part of your regular workflow, this is the kind of crimper that pays for itself in speed, consistency, and fewer redos.
Cleaner Ferrule Terminations With Less Guesswork
This crimping pliers setup is built to make ferrule work more consistent when you are moving fast. The self-adjusting mechanism matches the ferrule size automatically, so you spend less time making manual adjustments and more time finishing clean terminations.
- Automatic square crimp profile for solid contact surfaces in clamp connections
- Designed for ferrules and end sleeves according to DIN 46228 parts 1 and 4
Built For Repetitive Electrical Work
When you are doing panel wiring or repeat terminations, hand fatigue gets real. Knipex uses a toggle lever mechanism and comfortable multi-component handles to reduce the effort needed per crimp without giving up compression quality.
- Toggle lever improves force transfer for fatigue-reduced operation
- Integral lock with self-releasing mechanism helps maintain repeatable crimp quality
One Tool That Covers a Broad Ferrule Range
A wide capacity range is what makes this hand crimper useful on real electrical jobs. It covers very small conductors, standard ferrule sizes used in panels and controls, and selected larger ferrules too, so you are not constantly swapping tools.
- Capacity: 0.08 to 10 mm² and 16 mm²

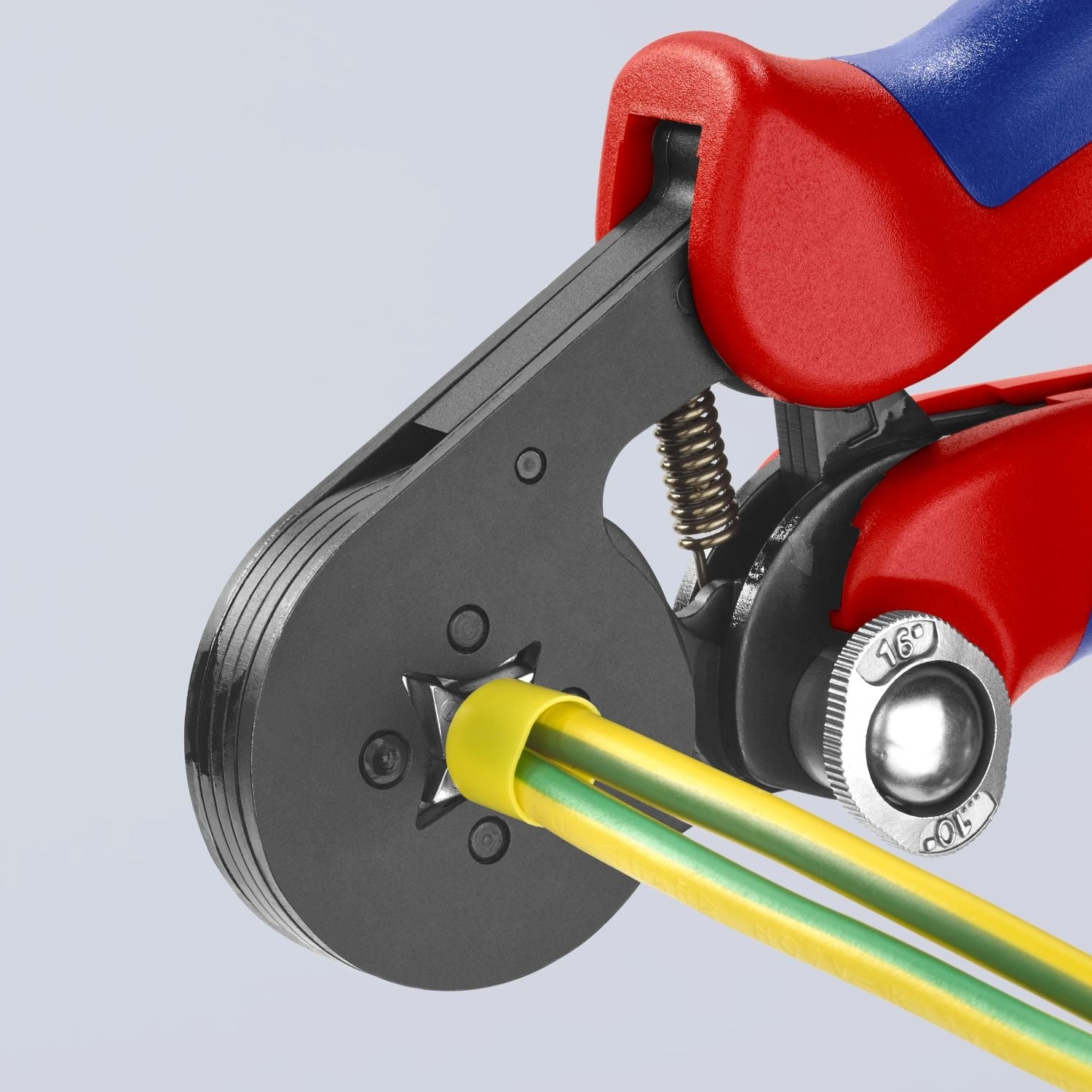

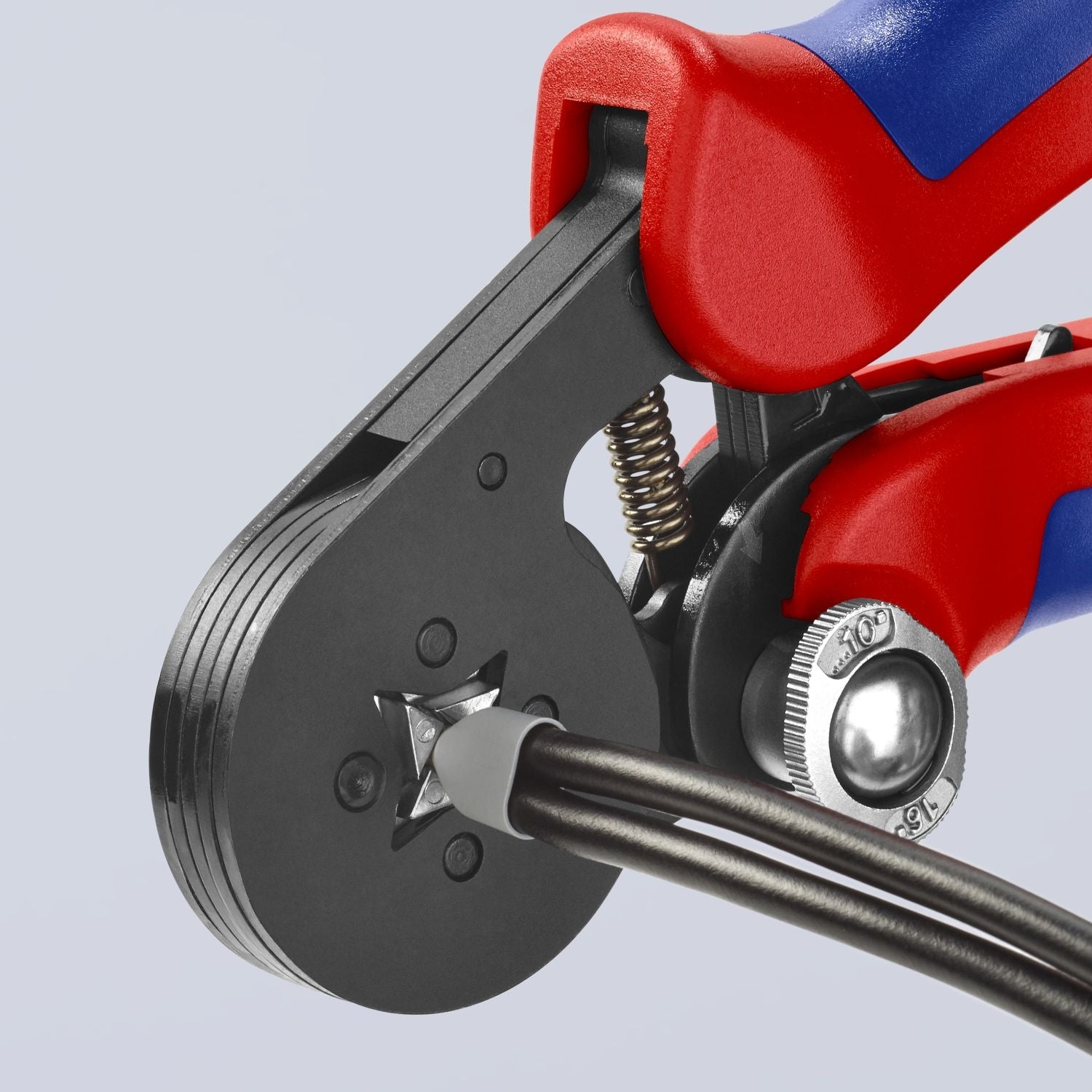

- Suitable in particular for selected twin wire ferrules in smaller sizes
What's in the Box
- (1) Knipex 97 53 04 Self-Adjusting Crimping Pliers For Wire Ferrules
Key Specifications
| Overall Length | 7 in. / 180 mm |
|---|---|
| Width | 2-3/4 in. / 77 mm |
| Height | 1-3/16 in. / 21 mm |
| Weight | 0.94 lbs. |
| Material | Chrome vanadium electric steel, oil-hardened |
| Handle Type | Multi-component |
| Crimping Profile | Automatic square crimp |
| Capacity | 0.08 to 10 mm² and 16 mm² / 28 to 5 AWG |
Compatibility
Built For
Pro Tip
If you are doing a lot of control wiring, keep your ferrules grouped by conductor size and let the self-adjusting mechanism do the rest. This Knipex crimper saves the most time when you are moving between different ferrule sizes without stopping to reset the tool.
Warranty & Support
Tool Nut's Take
Why the Knipex 97 53 04 Self-Adjusting Crimping Pliers For Wire Ferrules Earns Bench Space
This is the kind of ferrule crimper you buy when you are done fighting inconsistent terminations and cheap mechanisms.
- Who it's for: Electricians, panel builders, maintenance techs, and anyone doing regular ferrule terminations on stranded wire.
- Why it stands out: The self-adjusting action, square crimp profile, and toggle lever design make it faster and easier to get repeatable crimps across a wide ferrule range.
- Worth knowing: This is a purpose-built hand crimping tool for wire ferrules, not a general all-in-one crimper. If ferrules are part of your normal workflow, that specialization is exactly the point.
Common Questions
- What is this tool designed to crimp? It is designed for wire ferrules and end sleeves according to DIN 46228 parts 1 and 4.
- Does the tool require manual size adjustment? No. It uses a self-adjusting mechanism that automatically adapts to the ferrule size being crimped.
- What crimp profile does it use? It uses an automatic square crimp profile for reliable contact surfaces in clamp connections.
- What is the capacity range? It has a working range of 0.08 to 10 mm² plus 16 mm², with AWG markings down to 28 and up to 5 on the handle marking.
