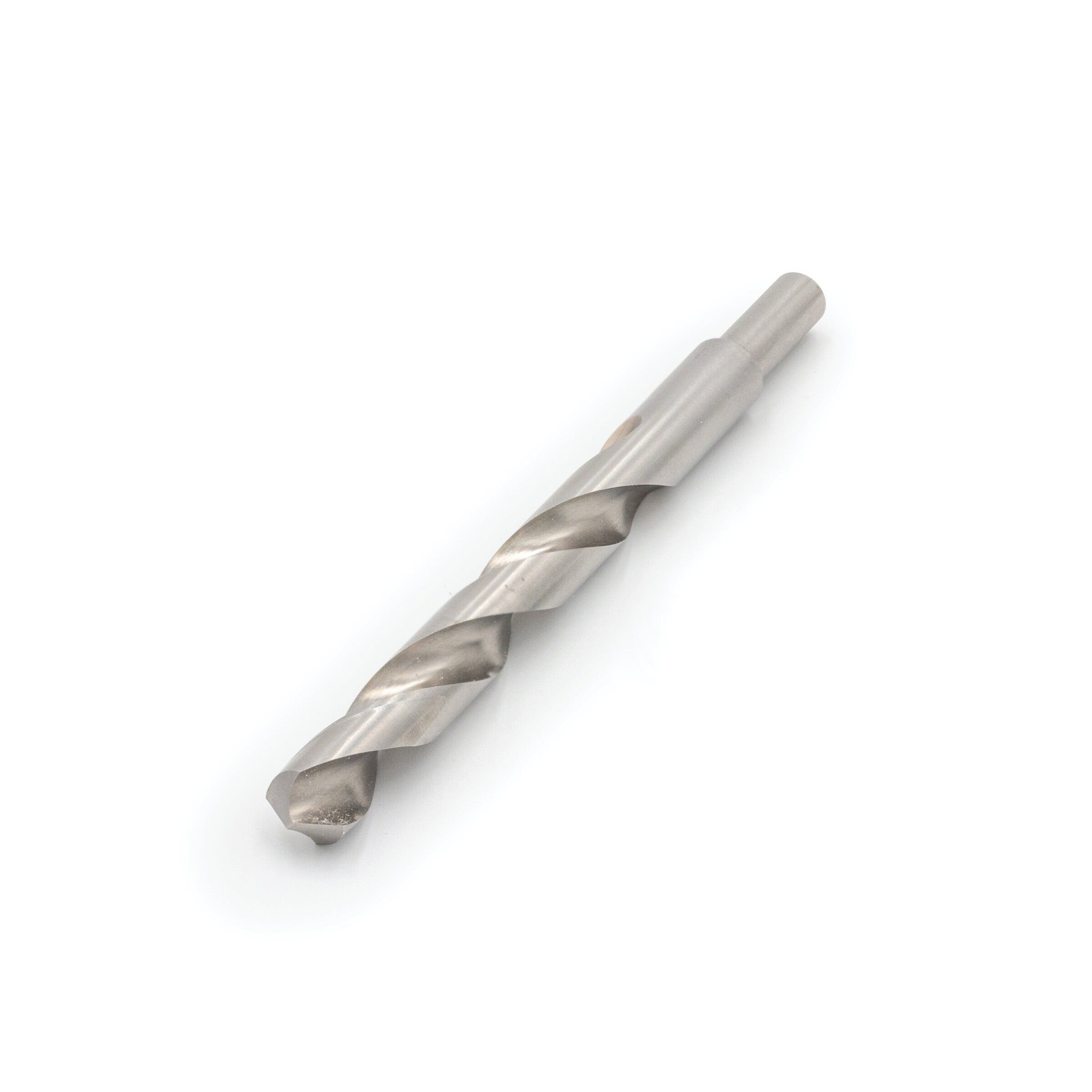

The Kreg 1/2-in. Dowel Drill Bit with Stop Collar is the largest bit in Kreg's dowel drilling lineup, sized to match Kreg's 1/2 in. fluted dowel pins for joinery that needs maximum holding strength — heavier furniture, structural shelving, and larger-format cabinetry. Model number KDDB500.

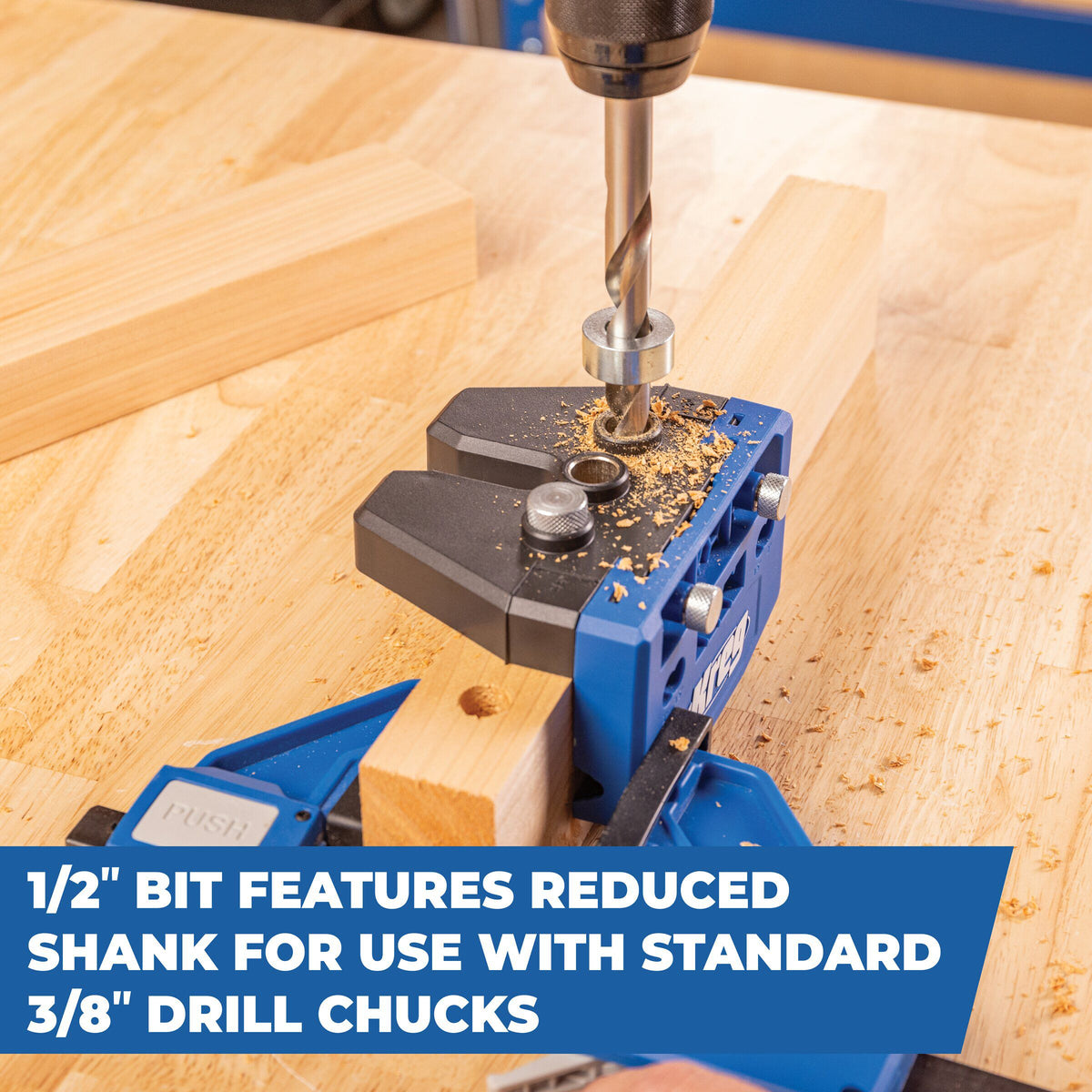

One detail sets this bit apart from its 1/4 in. and 3/8 in. counterparts in the same family: a 1/2 in. cutting diameter is larger than the standard 3/8 in. chuck opening found on most drills, which would normally mean needing a 1/2 in.-capacity drill just to use it. Kreg solves that with a reduced shank — the cutting head stays a full 1/2 in., but the shank steps down to a size that fits a standard 3/8 in. chuck. That means you can run the largest dowel bit in this system with the same drill you already use for the 1/4 in. and 3/8 in. bits.

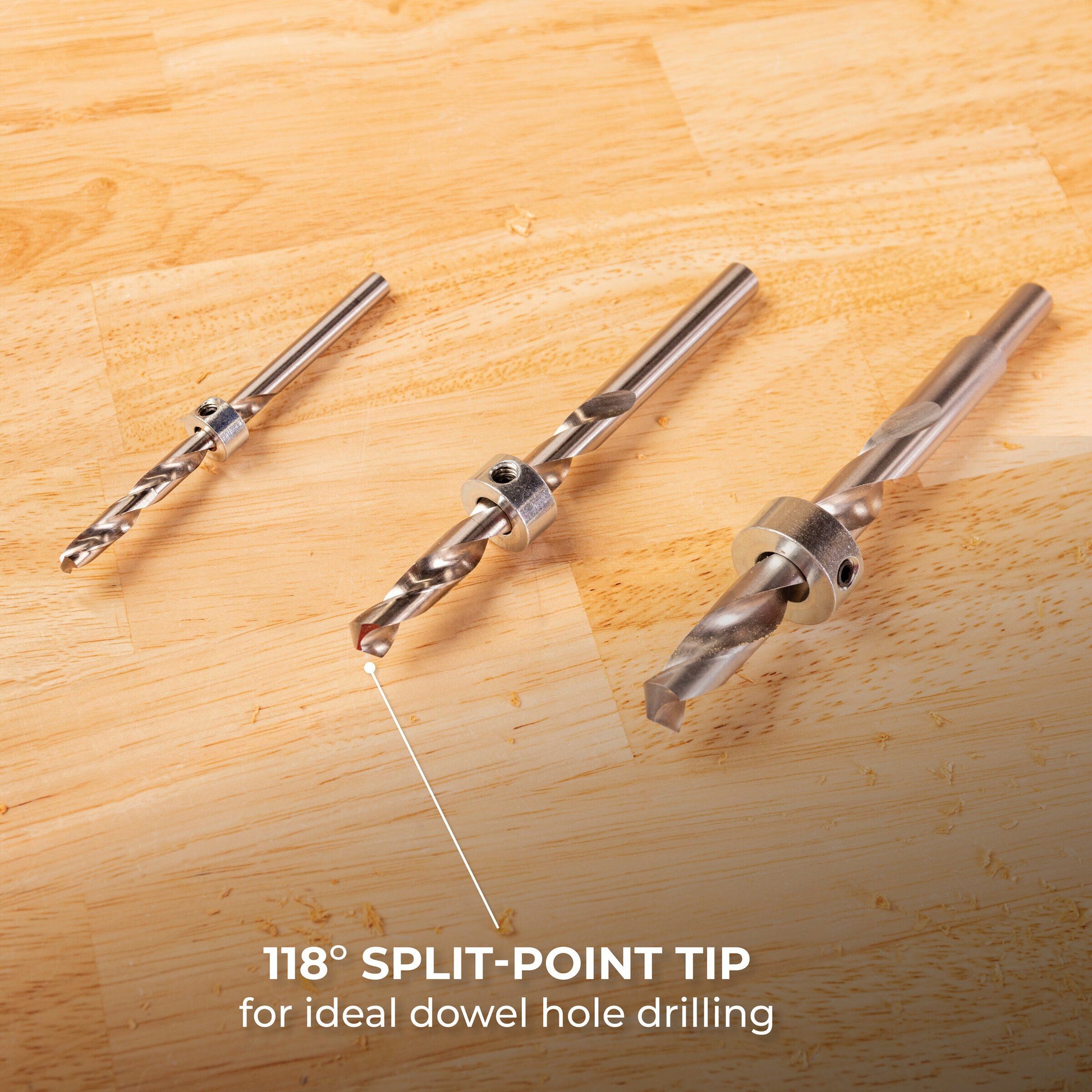

The 118-degree split-point tip carries over from the rest of the lineup, and it matters just as much here — arguably more, since 1/2 in. dowel joints tend to show up in heavier assemblies where a misaligned hole is a bigger problem to fix. The split-point geometry bites into the material immediately rather than wandering, keeping hole placement accurate on the largest, highest-stakes joints in this system.

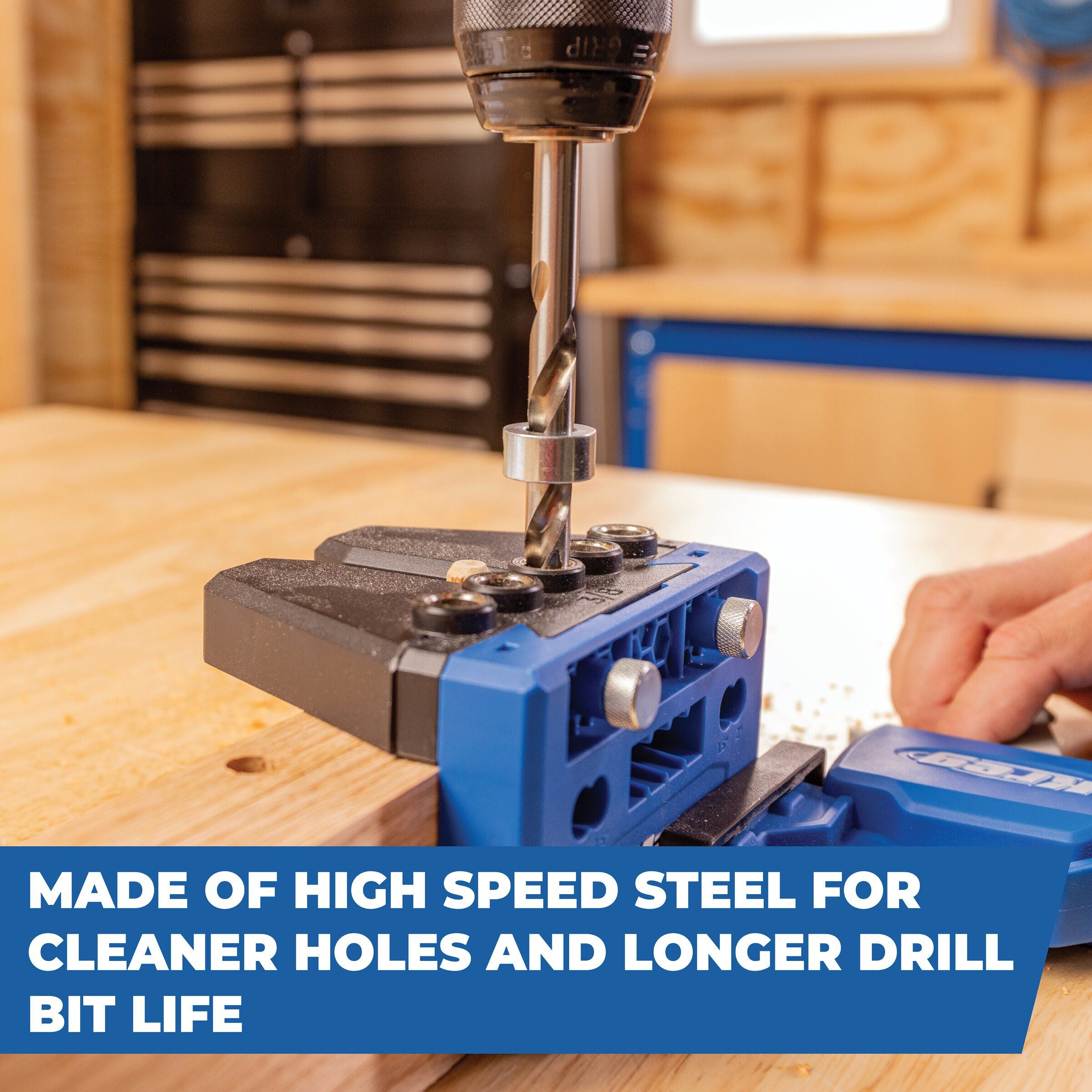

High-speed steel construction and the included stop collar work the same way here as on the smaller bits: HSS keeps the cutting edge sharp through repeated holes so diameter stays consistent, and the stop collar locks in a drilling depth you set once and then repeat across the whole project without remeasuring.

Who should buy this: woodworkers and furniture builders using Kreg's 1/2 in. dowel pins for heavy-duty joinery — table legs, aprons, structural shelving brackets, and similar work where maximum dowel strength matters. For lighter joinery, Kreg's 1/4 in. and 3/8 in. dowel drill bits are the better-matched, less material-intensive choice.

Maximum dowel strength without a specialty chuck

The largest bit in Kreg's dowel system, engineered with a reduced shank so it still fits the drill you already own.

• Who it's for: Furniture builders and woodworkers using 1/2 in. dowel joinery for heavier-duty assemblies.
• Why it stands out: Full 1/2 in. cutting diameter, reduced shank for standard chuck compatibility, split-point accuracy, and an included stop collar.
• Worth knowing: Make sure the bit is fully seated in the chuck before drilling — the reduced shank is a smaller diameter than the cutting head.

• Will this fit my standard drill? Yes — despite the 1/2 in. cutting diameter, the shank is reduced to fit a standard 3/8 in. drill chuck.
• What dowel pins does this match? Kreg's 1/2 in. fluted dowel pins.
• Does it include the stop collar? Yes, the stop collar and hardware are included with the bit.
