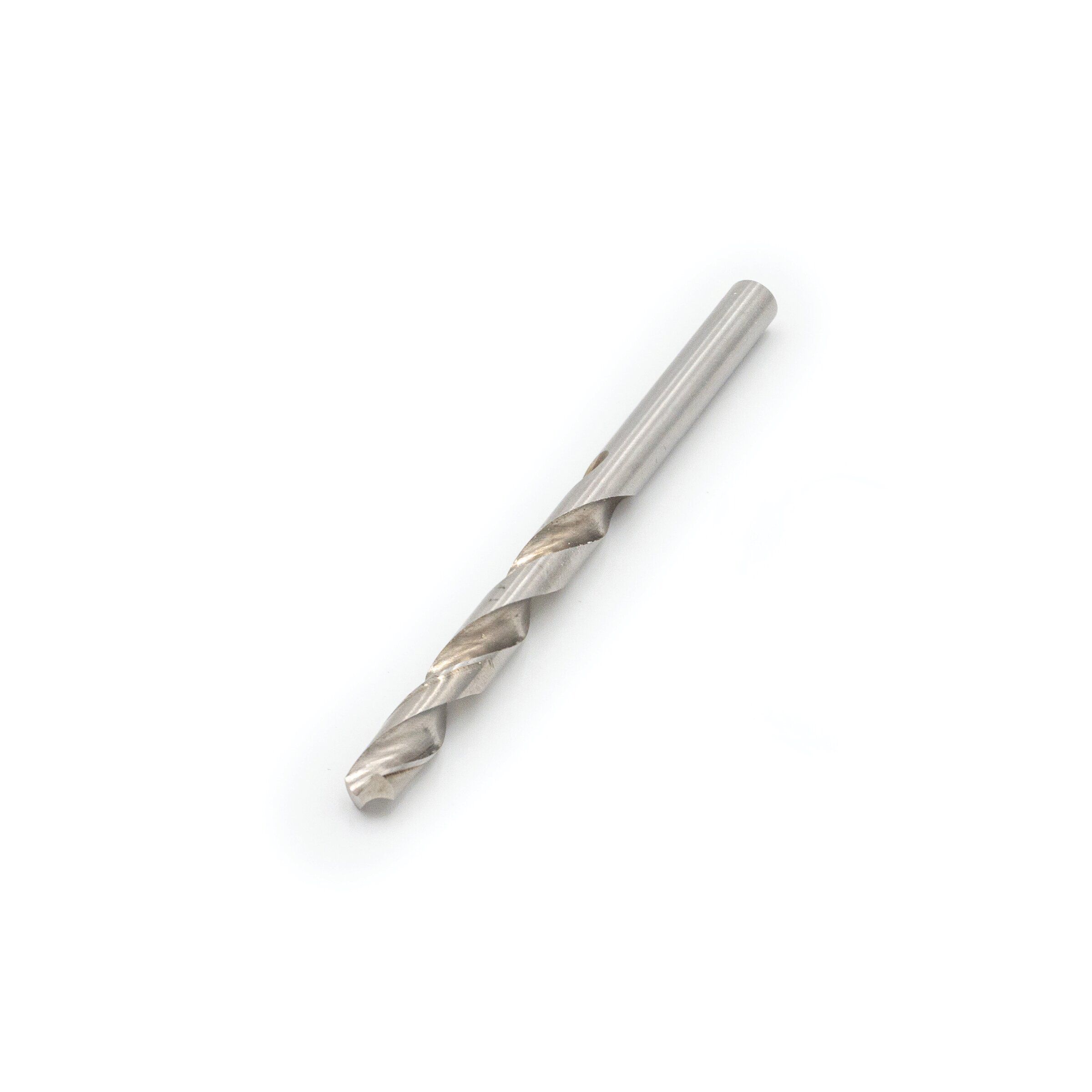

The Kreg 1/4-in. Dowel Drill Bit with Stop Collar is the drill bit half of Kreg's dowel joinery system, sized to match Kreg's 1/4 in. fluted dowel pins for edge-to-edge and mitered joinery. Model number KDDB250. This is a purpose-built joinery bit, not a general-purpose wood bit — it's designed to produce the exact hole diameter and depth that Kreg's dowel jigs and dowel pins are engineered around.

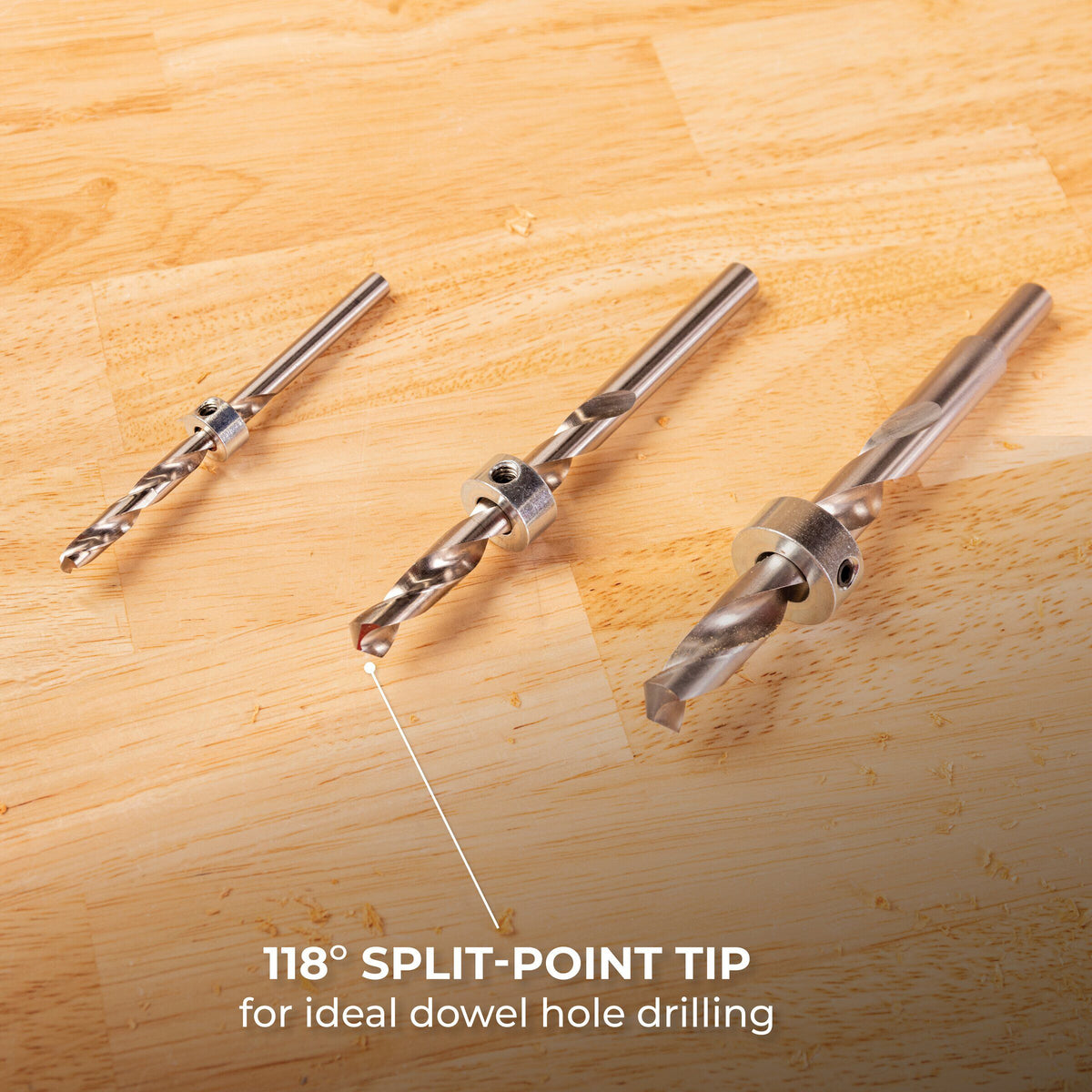

The 118-degree split-point tip is the detail that separates a dedicated dowel bit from a standard twist bit for this application. A split-point geometry bites into the wood immediately on contact instead of wandering or skating across the surface before it starts cutting, which matters enormously in dowel joinery where hole placement accuracy directly determines whether the joint lines up. A hole that starts even slightly off-mark throws off alignment on every dowel in a multi-pin joint.

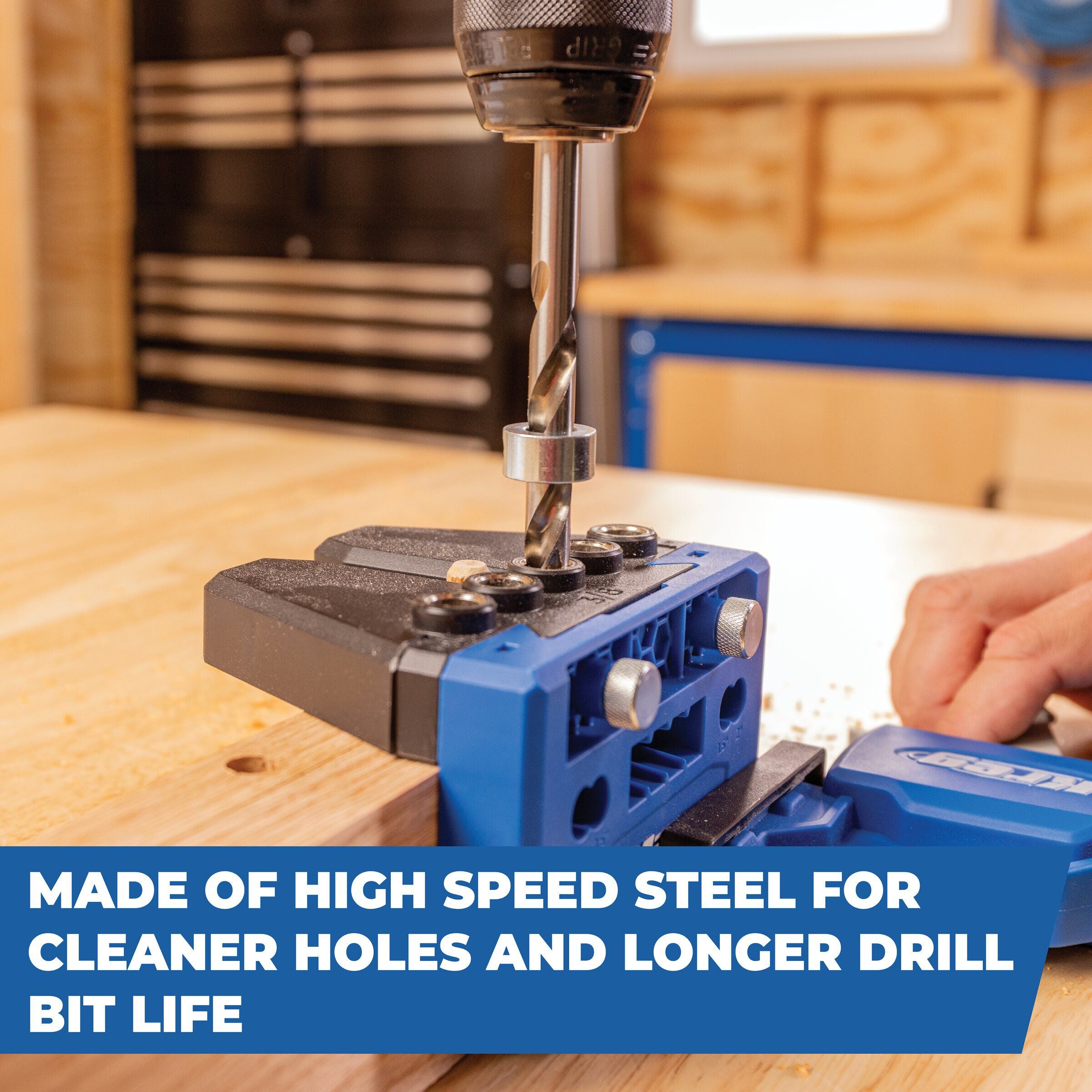

High-speed steel construction is what lets this bit hold that precision through repeated use. Dowel joinery projects — cabinet face frames, shelving, furniture assembly — often call for drilling many holes of the identical size in a single project, and a bit that dulls quickly will drift in both accuracy and hole diameter as it wears. HSS keeps the cutting edge sharp through more holes before resharpening or replacement is needed.

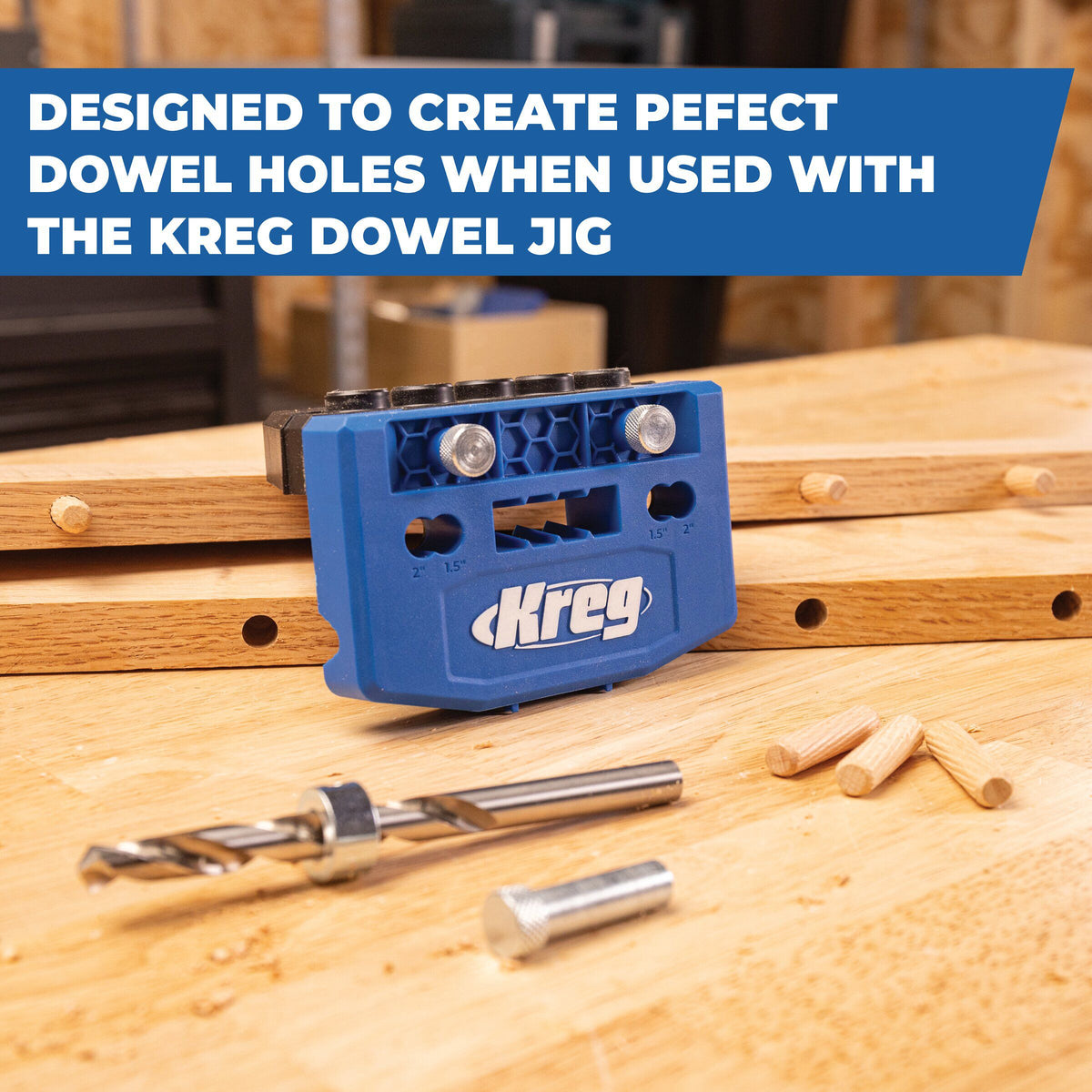

The stop collar included with this bit is what makes consistent hole depth practical across a whole project. Set it once against a test piece matching your dowel length, lock it down, and every subsequent hole comes out to the same depth without re-measuring — which is exactly what you need when a joint depends on multiple dowels all seating the same amount.

Who should buy this: woodworkers, cabinet installers, and furniture builders using Kreg's dowel joinery system with 1/4 in. dowel pins. This bit is sized specifically for that system — if you're working with a different dowel diameter, Kreg's 3/8 in. and 1/2 in. dowel drill bits are the matching sizes for those pins.

The half of the dowel system that determines whether it works

The dowel pins get the attention, but this bit and its stop collar are what actually determine whether your holes line up.

• Who it's for: Anyone running 1/4 in. dowel joinery with Kreg's dowel pins and dowel jigs.
• Why it stands out: Split-point accuracy, HSS durability, and a stop collar that takes the guesswork out of matching depth across multiple holes.
• Worth knowing: This bit is sized specifically for 1/4 in. dowels — make sure it matches the dowel pins you're actually using before you drill.

• Does this include the stop collar shown in the title? Yes, the stop collar and its hardware are included with the bit.
• What dowel size does this match? Kreg's 1/4 in. fluted dowel pins.
• Can I use this without a dowel jig? It's designed to work with Kreg's dowel jig system for aligned joinery, though the bit itself will drill a standard 1/4 in. hole on its own.
