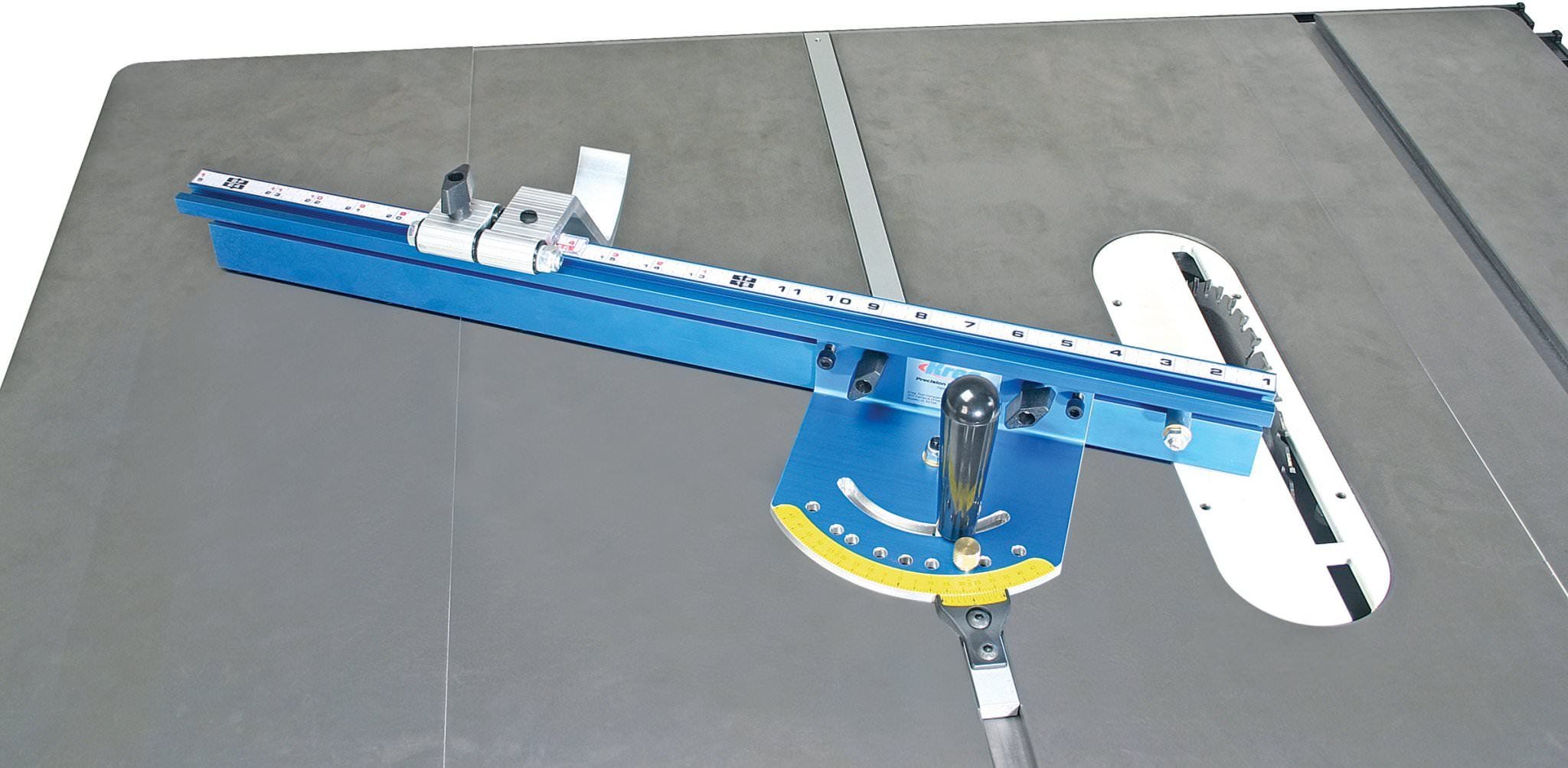

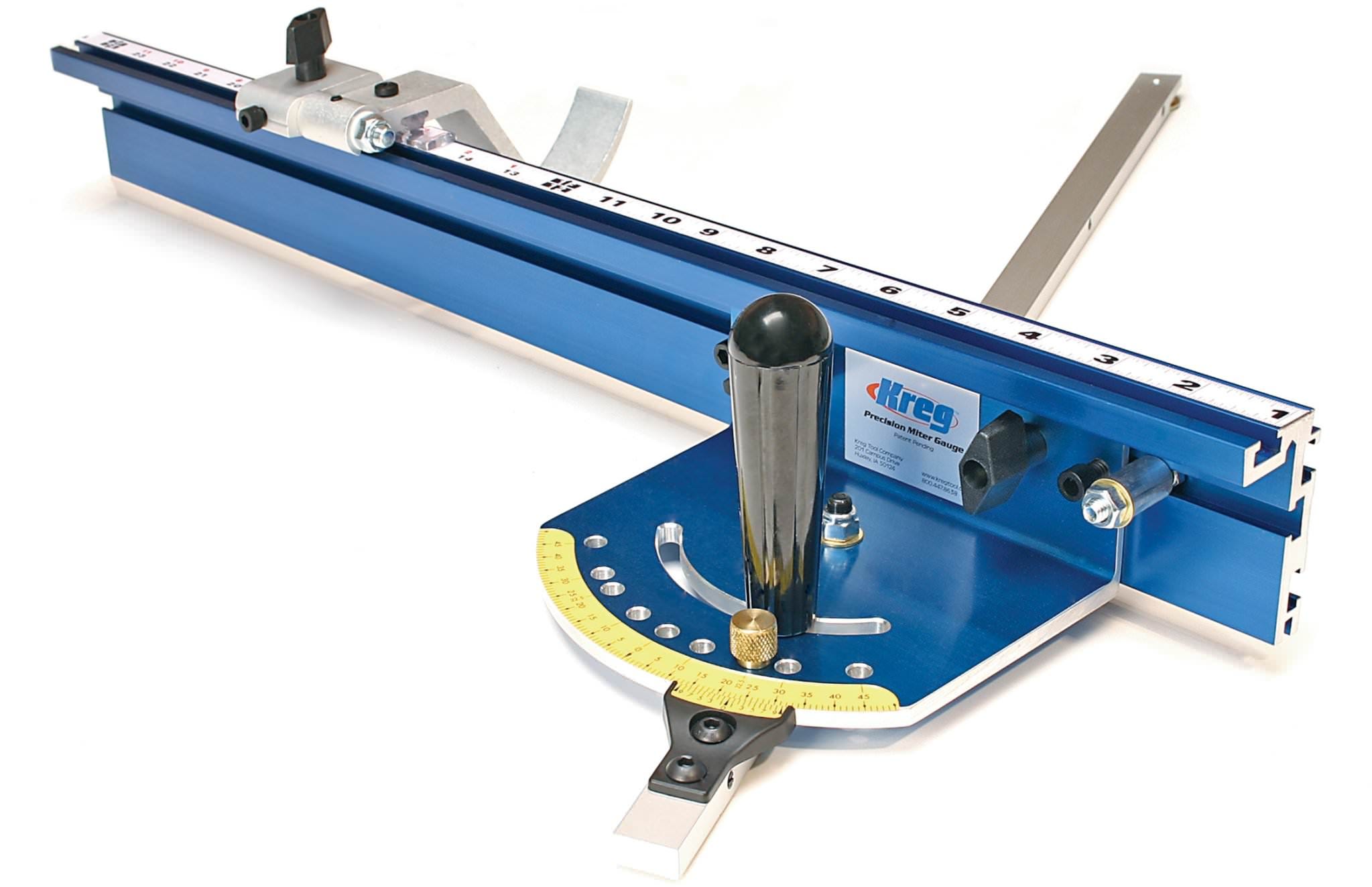

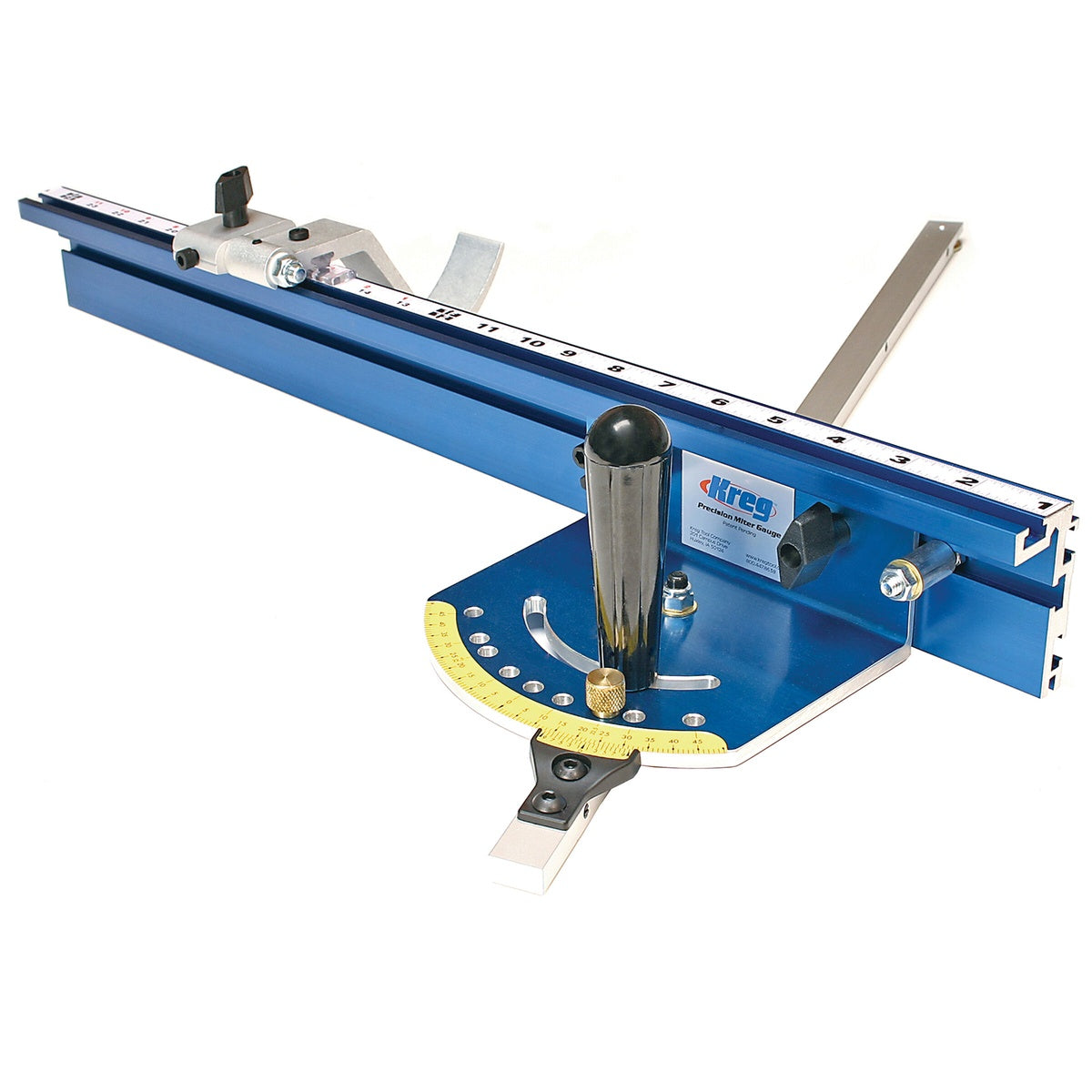

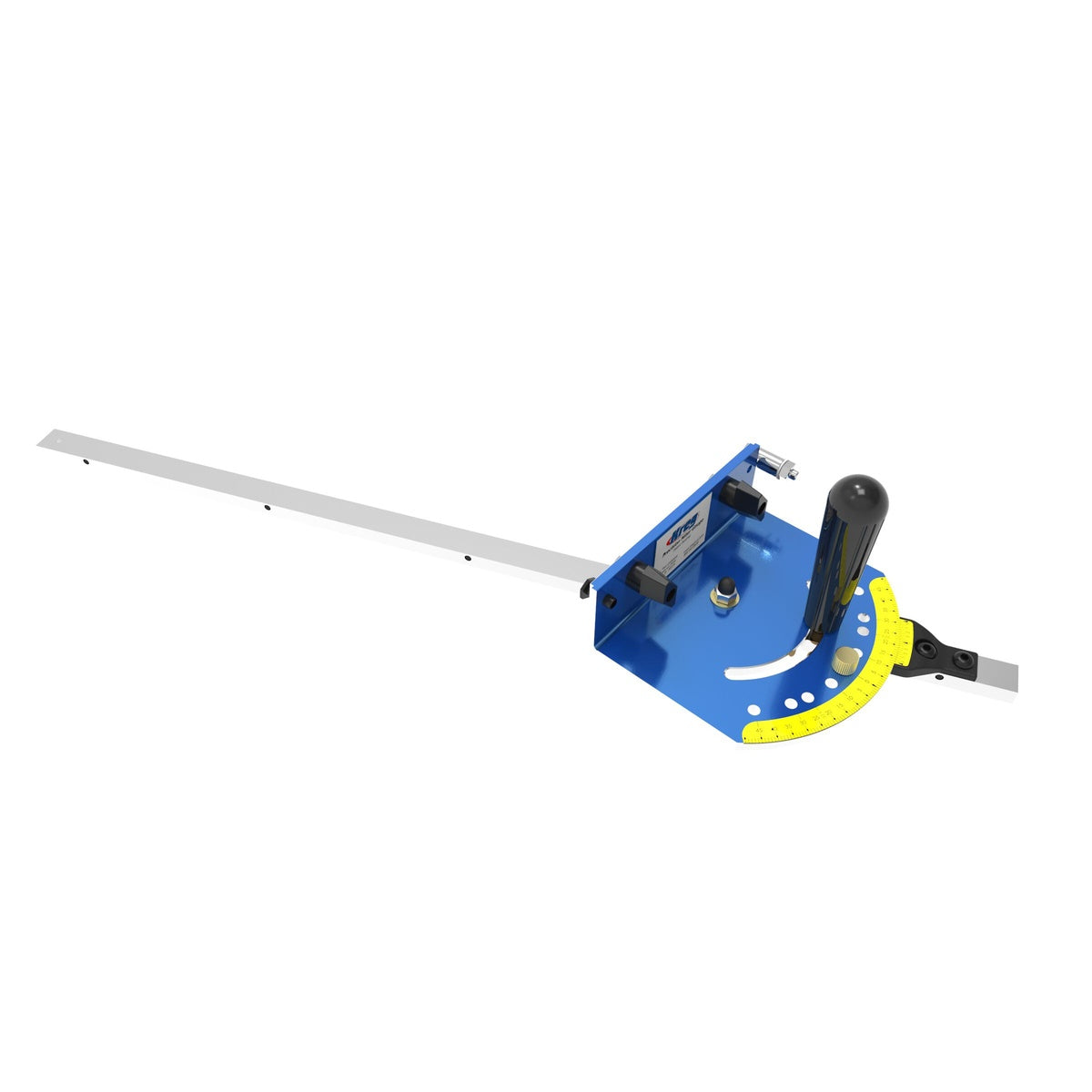

The Kreg KMS7102 Precision Miter Gauge System is a table saw miter gauge system built for accurate crosscuts and miter cuts. This is a miter gauge system designed for table saw angle cutting and repeatable length cuts. Model Number KMS7102. If you are tired of factory miter gauges that feel loose in the slot and take too much fiddling to trust, this setup is aimed squarely at fixing that problem.

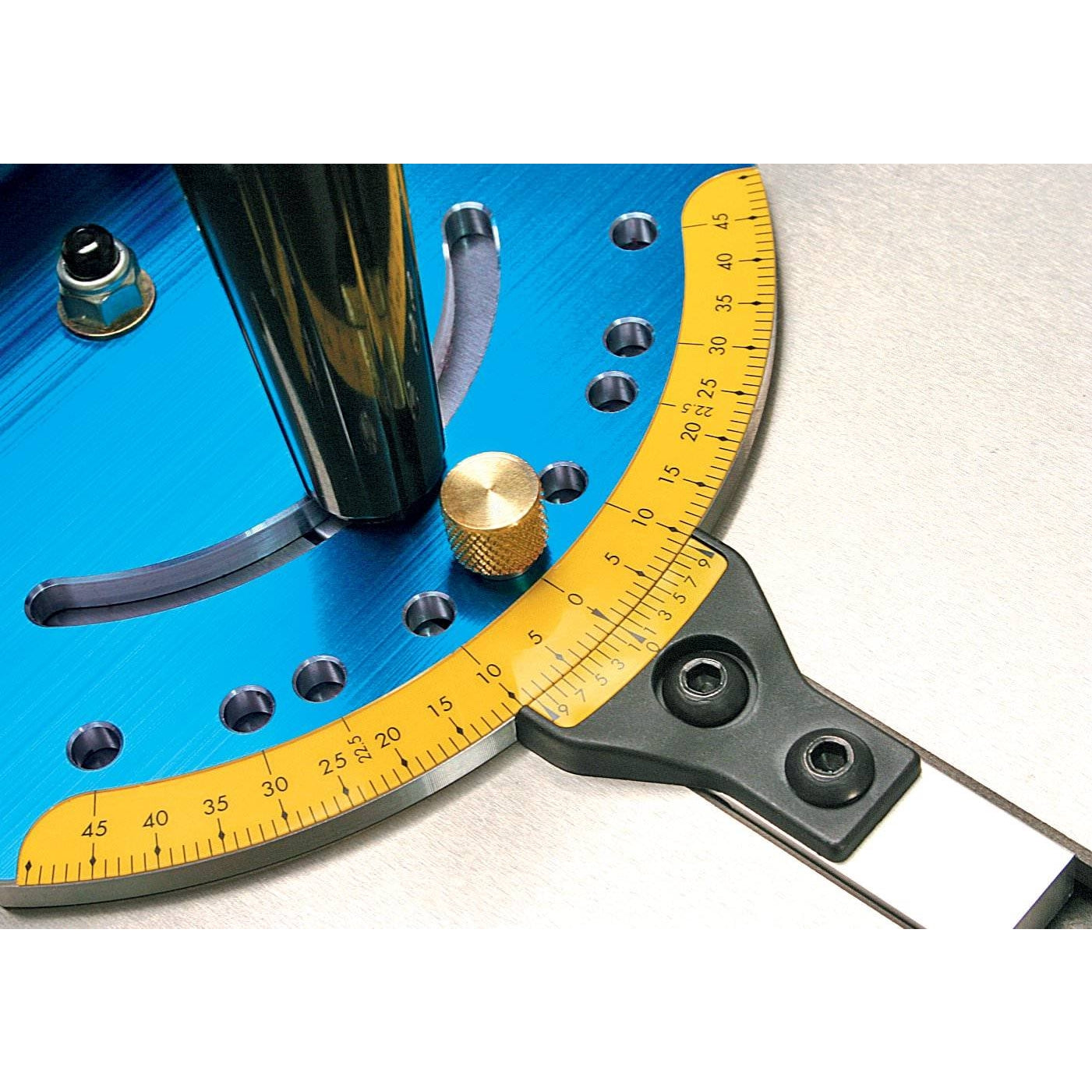

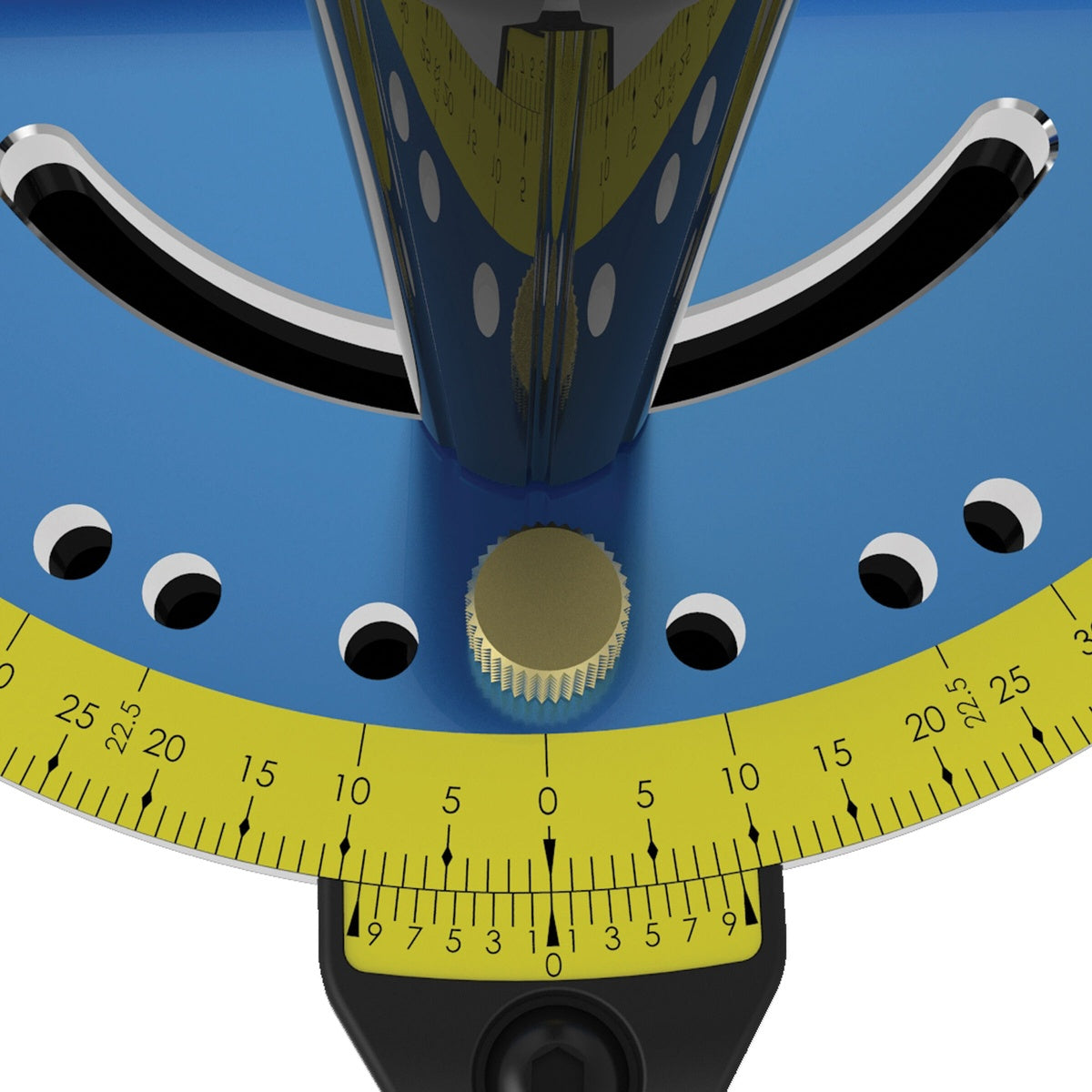

The big selling point here is accuracy without the usual setup headache. Kreg says the system is factory calibrated right out of the box, so you are not starting with a long tuning session before you can get to work. Positive stops at 0°, 10°, 22 1/2°, 30°, and 45° cover the cuts most woodworkers make all the time, and the brass pin makes moving between those stops quick. When you need something outside the preset angles, the Vernier scale allows adjustment down to 1/10 of a degree, which is the kind of control that matters for trim work, segmented projects, and joinery where small errors stack up fast.

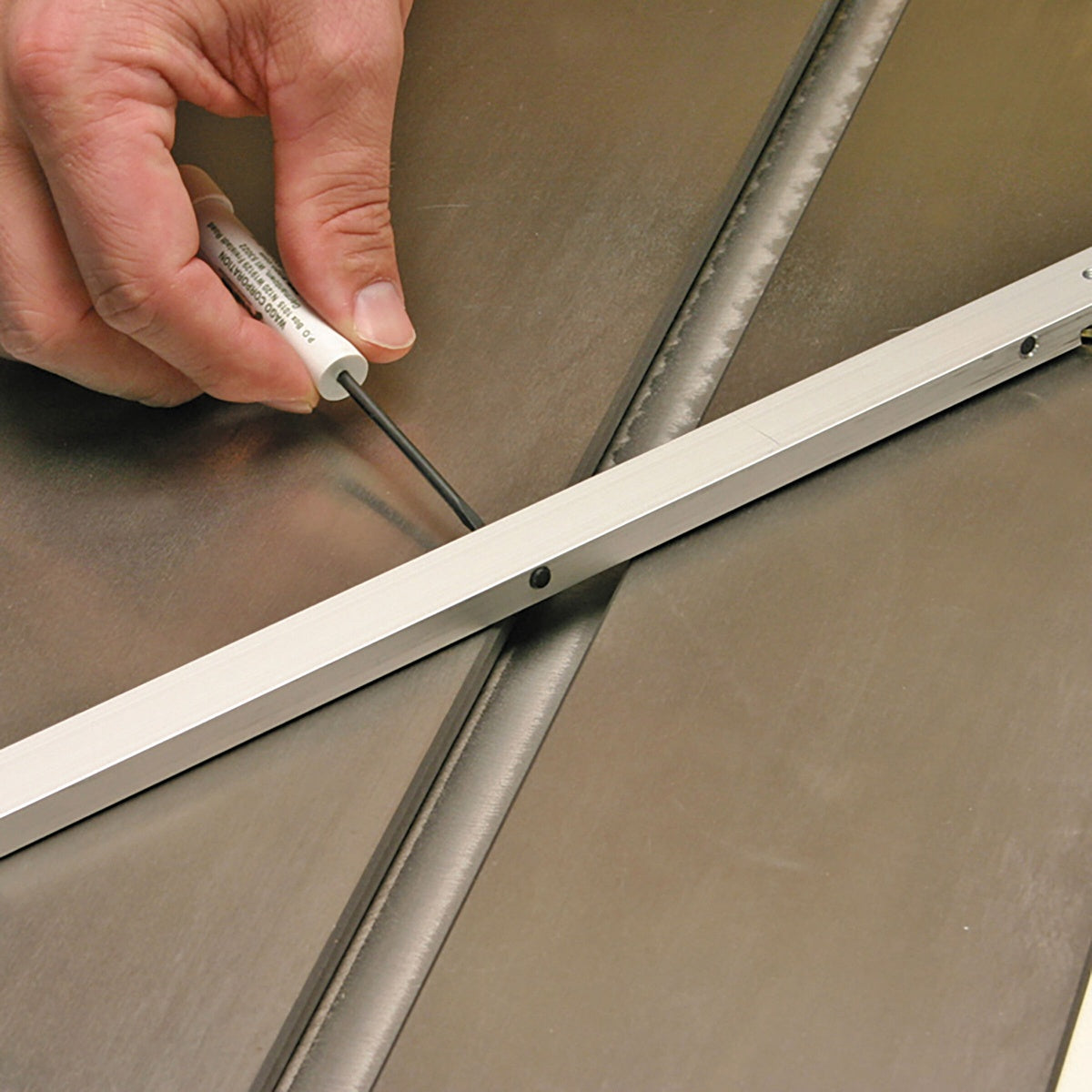

The bar and head are where this system separates itself from a throw-in gauge. The 24 in. anodized aluminum bar measures 3/8 in. thick by 3/4 in. wide and uses five bar adjusters to eliminate play in the miter slot. That matters because slop at the bar turns into inconsistency at the cut. A tighter fit tracks more predictably through the saw, which helps keep miters square, lengths consistent, and frustration down. On a job where you are cutting multiple parts that need to match, that is the difference between assembly going smoothly and chasing tiny errors later.

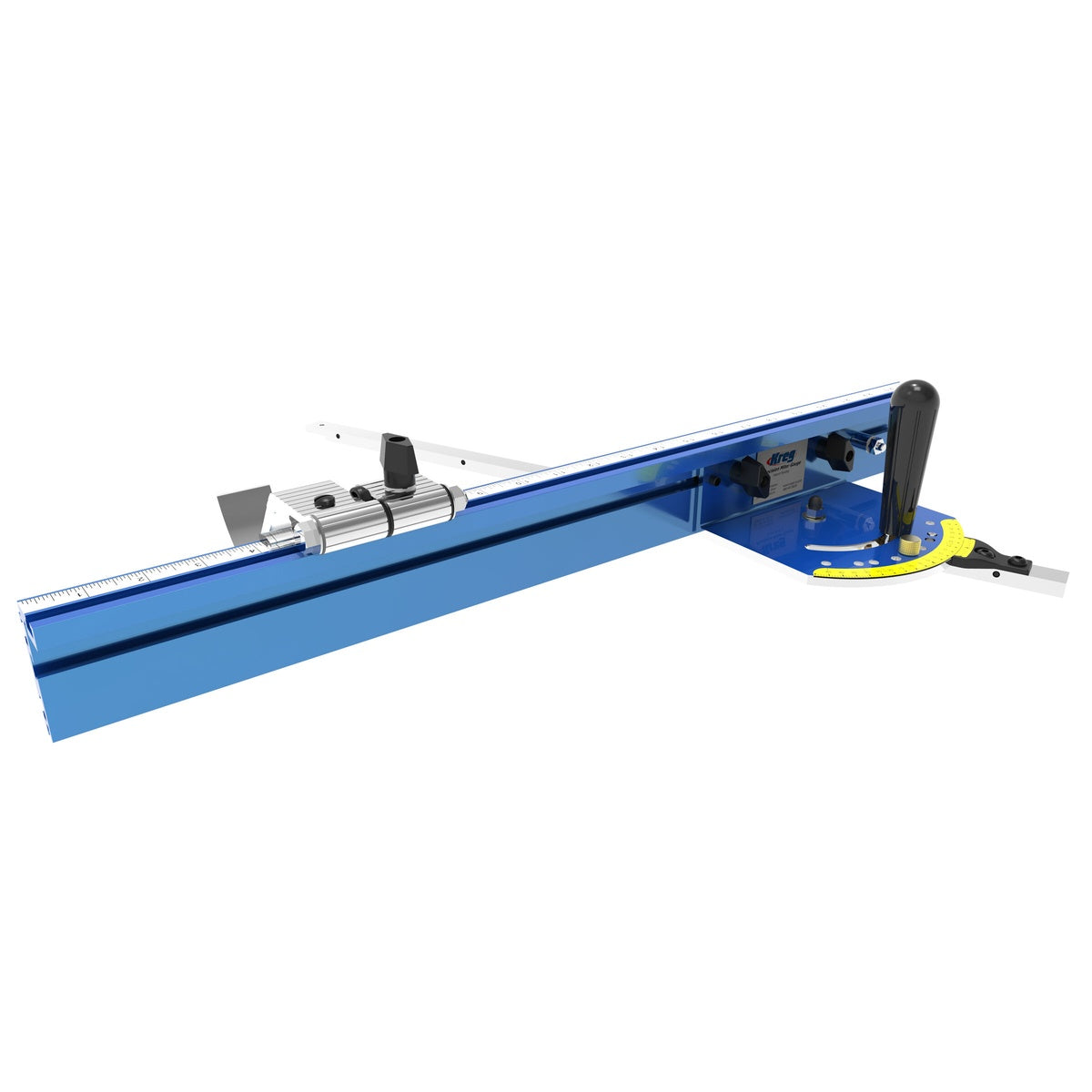

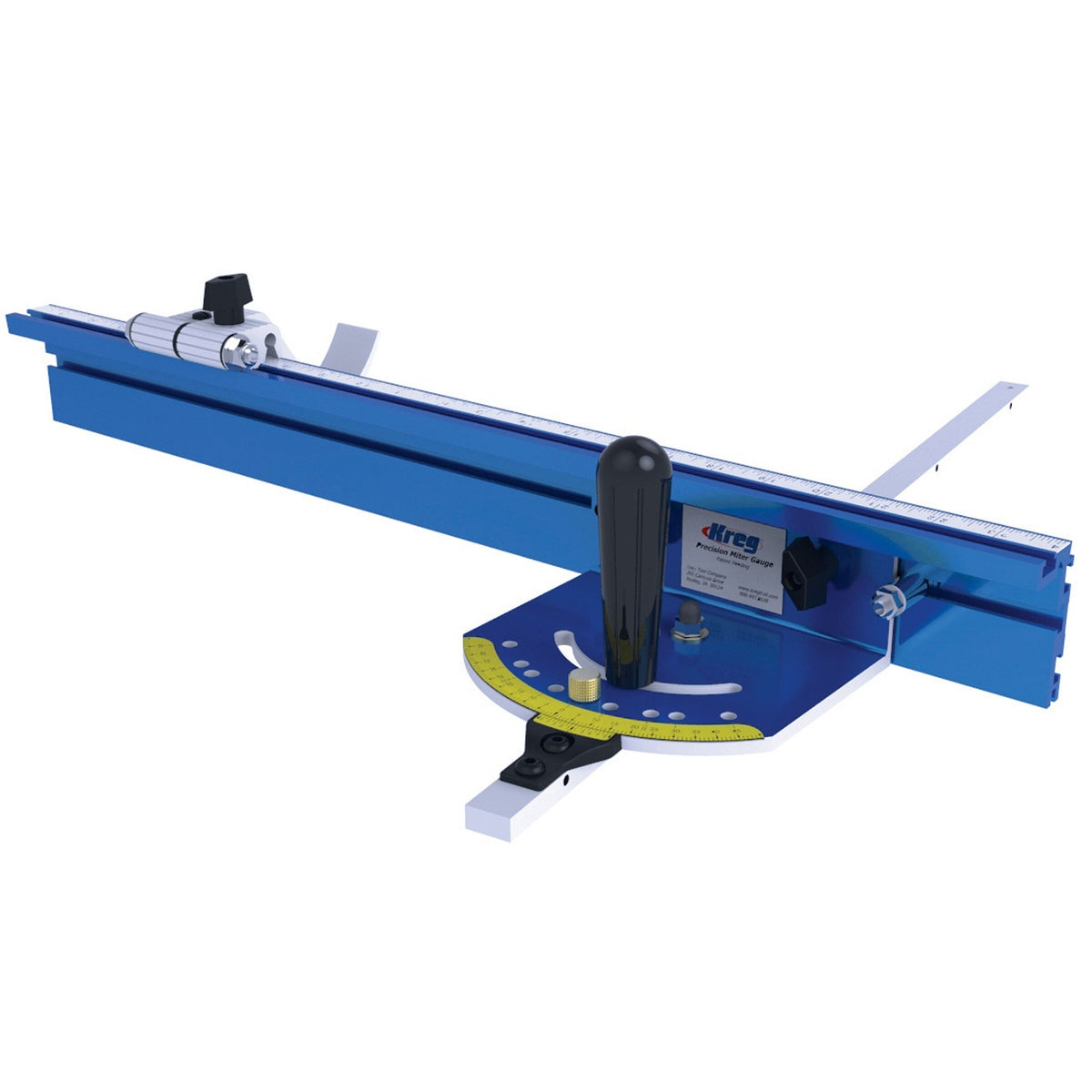

Kreg also built this around repeatability, not just angle setting. The 24 in. fence gives you more support for stock than a basic gauge, and the included Swing Stop lets you set a dimension and keep making the same cut without measuring each piece again. The stop slides easily, locks in place with a knob, and uses a curved foot that can swing out of the way when needed. That means you can square one end, flip the board, and cut to final length without moving the stop every time. For batch cutting parts, that is a real time-saver.

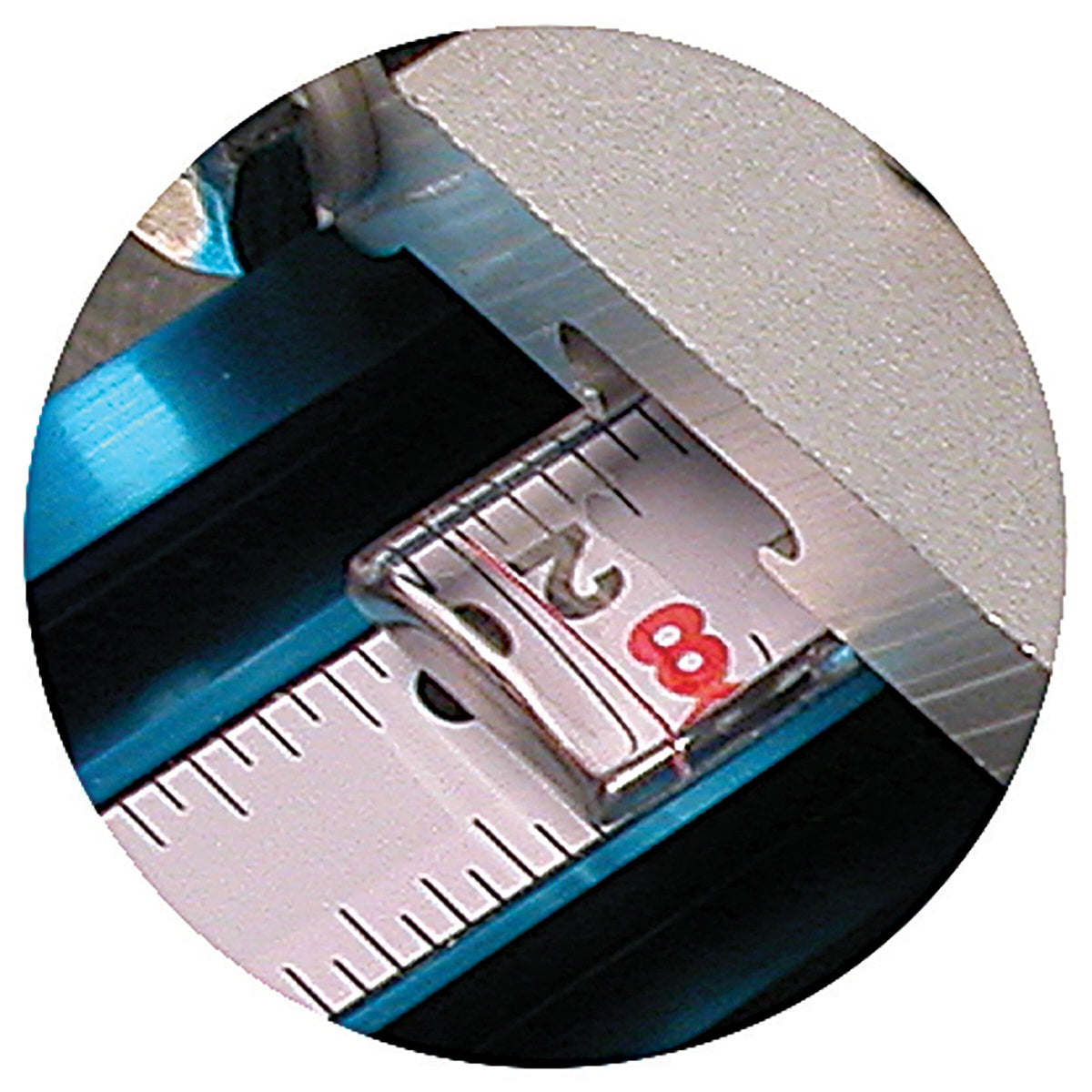

The measuring system is practical too. A clear lens cursor with a high-visibility red line makes it easier to set the stop precisely against the self-adhesive measuring tape on the fence. It is a simple feature, but it is the kind of detail that makes a setup easier to trust when you are working quickly. Kreg also notes that the Swing Stop has a break-away style curved foot that allows you to add a sacrificial fence, which is useful when you want extra backing support or a custom setup for delicate workpieces.

Build-wise, this is an aluminum-heavy system meant for woodworkers who want something more rigid and dependable than the light-duty gauges bundled with many saws. The rugged aluminum fence and CNC-milled miter gauge body are there for one reason: holding settings consistently. At roughly 5.5 lbs assembled, it has enough substance to feel planted without becoming awkward to handle.

This Kreg miter gauge system makes the most sense for woodworking, cabinetry, furniture work, trim prep, and shop users who rely on a table saw for accurate crosscutting. Serious DIYers will appreciate how much easier it is to get repeatable results, and experienced users will appreciate not having to fight play in the slot or vague angle settings. If your table saw work involves repeated parts, accurate miters, or cleaner setup for small-batch production, this system earns its keep pretty quickly.

Kreg KMS7102 Precision Miter Gauge System is a real upgrade from stock gauges

This is the kind of table saw accessory that makes your saw feel more capable because it cuts down setup time and improves repeatability where it counts.

• Who it's for: Woodworkers, cabinet guys, and serious DIY users who make repeated crosscuts or miter cuts and want better accuracy than a factory miter gauge usually delivers.
• Why it stands out: The adjustable 24 in. bar, preset angle stops, Vernier fine adjustment, and fence-mounted Swing Stop work together to solve both accuracy and repeat-cut workflow.
• Worth knowing: This is a precision miter gauge system, not just a basic head and bar. If you mostly make rough cuts, it may be more than you need. If you care about fit and repeatability, it is money well spent.

• Does this miter gauge need calibration before use? No. Kreg lists the KMS7102 as factory calibrated and ready to use out of the box.
• What preset angles does it have? It has positive stops at 0°, 10°, 22 1/2°, 30°, and 45°.
• Can it be adjusted for angles between the preset stops? Yes. The Vernier scale allows fine adjustment to 1/10 of a degree.
• How does it reduce play in the miter slot? The 24 in. anodized aluminum bar has five adjusters that let you tune the fit and remove side-to-side play.
