The Kreg KPHA540 Micro-Pocket Drill Bit with Stop Collar & Hex Wrench is a stepped pocket-hole drill bit kit for creating smaller pocket holes in thin and narrow material. This is a pocket-hole drill bit set designed for drilling compact pocket holes in 1/2 inch stock and narrow workpieces. Model Number: KPHA540. If you already use a Kreg micro-pocket setup, this is the bit package that gives you the correct cutting profile, depth stop, and setup wrench in one package.

What matters here is fit and scale. Standard pocket-hole joinery can be oversized for light stock, small trim components, or parts with limited edge width. The Kreg micro-pocket format solves that by using a smaller stepped bit that removes less material and leaves a cleaner, more proportionate pocket hole for smaller work. That also means faster, easier drill strokes because the bit is not hogging out as much material on every pass.

The bit itself is a 19/64 inch stepped design made from high speed steel. That stepped profile is important because it creates the proper pilot and pocket shape for pan-head pocket-hole screws used in micro-pocket applications. In plain terms, this is not just a small drill bit. It is a purpose-built pocket-hole bit designed to work with the right guide system and the right screw head style so the joint comes together correctly.

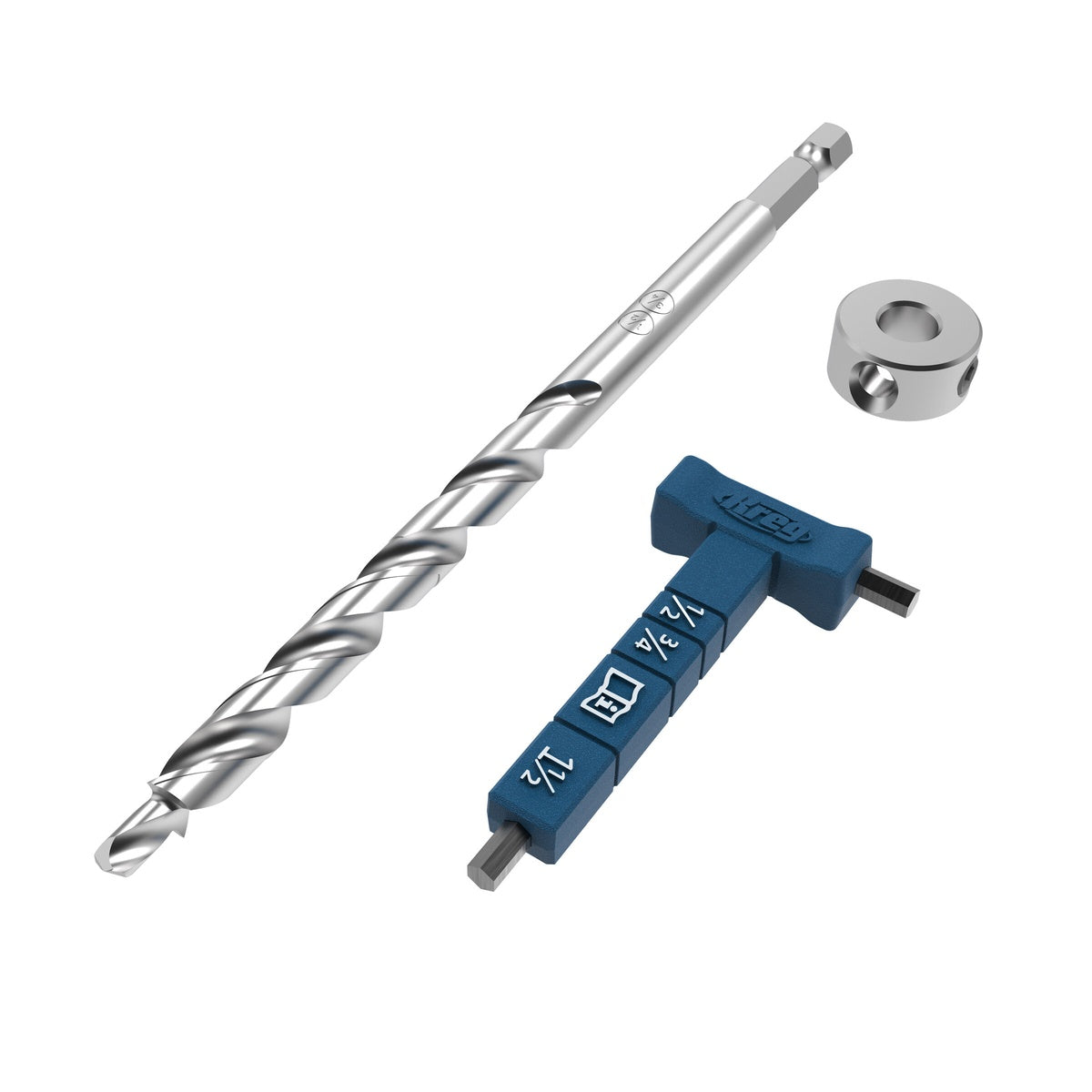

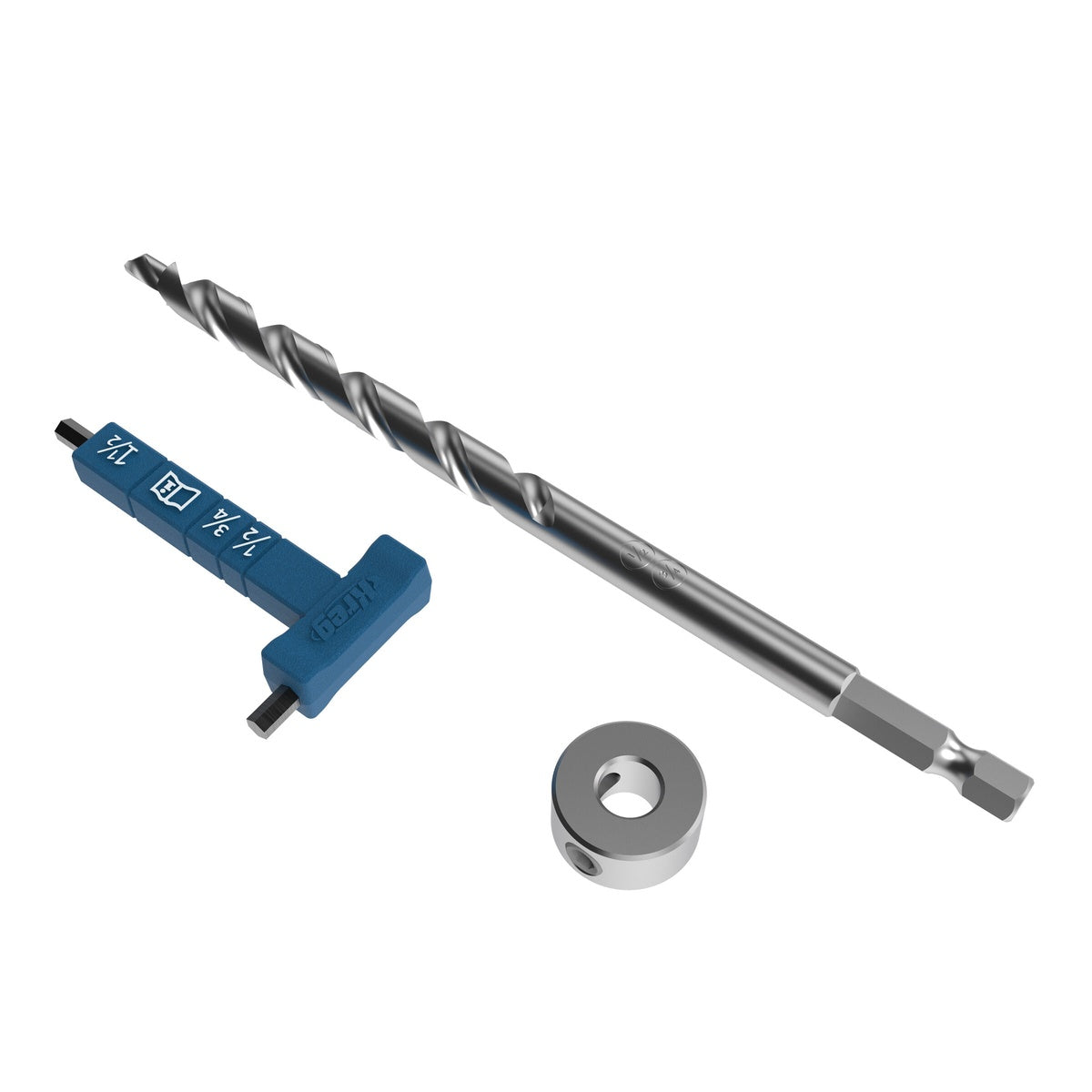

Kreg includes the stop collar plus a combined thickness gauge and hex wrench, which makes setup simpler and more repeatable. That matters on small stock, where drilling a little too deep or a little too shallow can ruin the part or weaken the joint. The gauge helps you match the setup to the material thickness, and the stop collar keeps drilling depth consistent once you are dialed in.

Compatibility is straightforward. This accessory is made for the Kreg Pocket-Hole Jig Micro KPHJ230 and for Kreg Micro-Pocket Drill Guide Kits KPHA530 and KPHA730. Supplementary product data also ties it to Kreg 500-Series and 700-Series pocket-hole jigs when used with the appropriate Micro-Pocket drill guide kit. That is the key point: this bit is part of the Kreg micro-pocket system, not a general-purpose replacement for every pocket-hole jig.

On the bench, the real advantage is control in smaller work. If you build narrow face frames, work with light stock, or need pocket-hole fastening where space is limited, the smaller pocket format gives you a cleaner and more workable result than a full-size setup. It is especially useful when the part is only 1 inch wide, where standard pocket-hole geometry can get crowded fast.

This is best suited for woodworkers, cabinet builders, trim carpenters, and serious DIY users who already own or plan to use Kreg micro-pocket guides. If your work leans toward smaller joinery, thinner material, and detail parts, the Kreg KPHA540 Micro-Pocket Drill Bit with Stop Collar & Hex Wrench is the right accessory to keep that setup cutting the way it should. If you do mostly standard 3/4 inch pocket-hole work, you will want the standard Kreg bit instead.

Kreg KPHA540 Micro-Pocket Drill Bit with Stop Collar & Hex Wrench is the right call for smaller stock

If you build small parts and thin assemblies, this micro-pocket setup makes a lot more sense than trying to force a full-size pocket-hole bit into work it was never meant for.

• Who it's for: Woodworkers, cabinet guys, trim carpenters, and serious DIY users running Kreg micro-pocket guides on smaller material.
• Why it stands out: You get the proper stepped bit, stop collar, and setup wrench together, plus compatibility with Kreg's Micro-Pocket system for cleaner work in 1/2 inch and narrow stock.
• Worth knowing: This is a specialty accessory, not a universal pocket-hole bit. It shines when your work is small and detail-focused, but it is not the bit you buy for everyday standard pocket-hole joinery.

• What is this tool used for? It is a micro-pocket stepped drill bit set used to drill smaller pocket holes for joinery in 1/2 inch stock and narrow workpieces.
• Which Kreg systems does it fit? It is designed for the Kreg Pocket-Hole Jig Micro KPHJ230 and Micro-Pocket Drill Guide Kits KPHA530 and KPHA730.
• What size is the bit? The bit size is 19/64 inch.
• What screw style is it intended to work with? The stepped bit is intended for pan-head pocket-hole screws in micro-pocket applications.
