Kreg Precision Router Table Insert Plate Levelers for Shop-Built Router Tables (PRS3040)
Kreg Precision Router Table Insert Plate Levelers for Shop-Built Router Tables (PRS3040)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

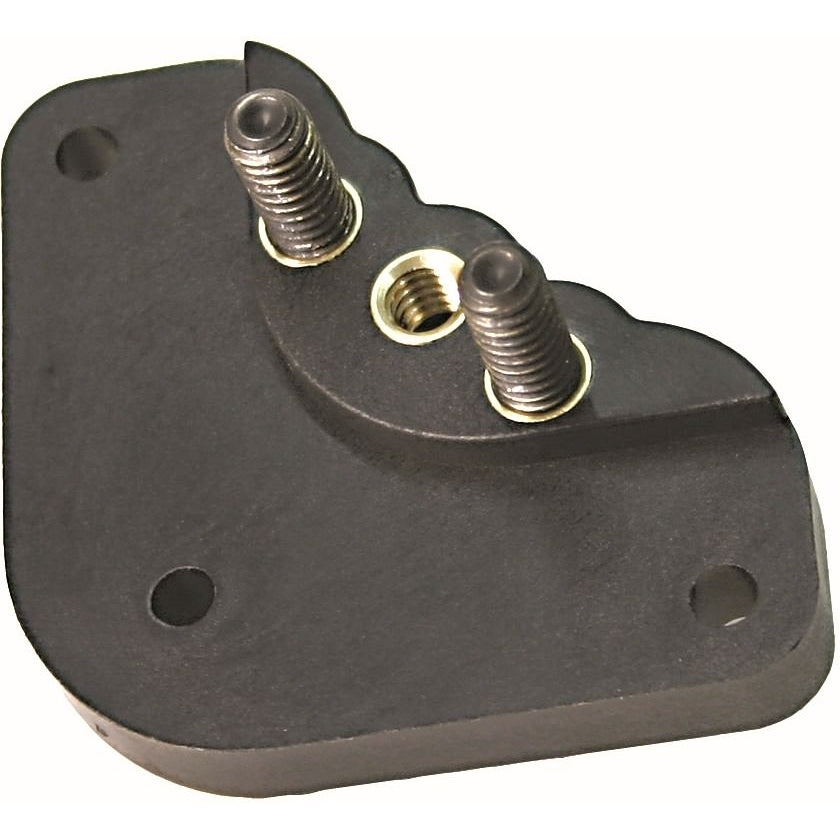

Kreg PRS3040 Precision Router Table Insert Plate Levelers are made for woodworkers building or upgrading a custom router table. This is a router table insert plate leveler set designed for adding and leveling an insert plate in a shop-built router table. Model Number: PRS3040. If you want an insert plate to sit flush without a lot of extra table work, this setup gives you a cleaner, simpler way to get there.
The big win here is adjustability. With eight adjustable points of contact, you can fine-tune support under the insert plate so it sits even with the tabletop instead of rocking or sitting proud at a corner. That matters in real routing work because uneven transitions can hang up workpieces, throw off feed control, and make edge profiles less consistent.
Kreg also built these around easier installation. The bottom-mount design eliminates the need for a supporting rabbet, which is a real advantage for anyone building a router table from scratch or retrofitting an existing top. Instead of adding more table machining than necessary, you get a hardware-based way to support and dial in the plate. Locating tabs help position the parts during install, while four-corner lock-downs add stability once everything is set.
Material and construction are straightforward and job-focused. The levelers are made from durable heavy-duty plastic, which keeps weight down while still giving you a stable platform for insert plate support. At about 0.5 lb assembled weight, they are easy to handle during installation and do not add unnecessary bulk to the table structure.
Compatibility is clear and important on this kind of router table hardware. These levelers are designed for a 3/4 in. corner radius and work with router tables up to 1-1/2 in. thick. That makes them a fit for many shop-built router table tops, but the corner radius and top thickness need to match your build. If those two details line up, installation is much more straightforward.
This is not a flashy upgrade. It is a practical one. Anyone who has dealt with a homemade router table knows the insert plate area can make or break how smooth the whole setup feels. A plate that is supported properly, sits flush, and stays put makes routing cleaner and less frustrating, especially when working smaller stock or feeding pieces across the table with steady pressure.
The ideal buyer is the woodworker, cabinet installer, trim carpenter, or serious DIY user putting together a shop-built router table and wanting a more controlled insert plate installation. If you are building custom benches and fixtures, replacing improvised support hardware, or trying to get a cleaner finished setup without cutting a rabbet, this accessory makes sense.
Dial In a Flush Router Table Surface
A router table works better when the insert plate sits dead flush with the top. These levelers give you multiple adjustment points so you can support the plate evenly instead of relying on a rough cutout and hoping for the best.
- Eight adjustable contact points help fine-tune plate height
- Helps reduce rocking, proud corners, and uneven workpiece travel
Skip the Extra Table Work
The bottom-mount design is the reason this accessory is appealing for custom builds. You do not need to cut a supporting rabbet into the tabletop, which saves time and simplifies the build process for a shop-made router table.
- Bottom-mount design supports the insert plate from underneath
- Locating tabs make installation easier to position accurately
Built to Stay Put Once Set
Once your plate is where you want it, stability matters just as much as adjustment. The four-corner lock-downs are there to help keep the setup secure so your insert plate does not shift around during regular routing work.
- Four-corner lock-downs add stability after adjustment
- Heavy-duty plastic construction keeps the hardware durable and lightweight
What's in the Box
- (4) Insert plate levelers
- Mounting screws and mounting hardware
- 1/8 in. Allen wrench
Key Specifications
| Material | Heavy-duty plastic |
|---|---|
| Mounting Type | Screw |
| Overall Length (in) | 2.25 in. |
| Overall Width (in) | 2.25 in. |
| Weight (lbs) | 0.5 lb |
| Router Table Thickness Capacity | Up to 1-1/2 in. |
| Corner Radius Compatibility | 3/4 in. |
| Made In | United States |
Compatibility
Built For
Tool Nut's Take
Kreg PRS3040 Precision Router Table Insert Plate Levelers Fix a Common Homemade Table Problem
This is the kind of small router table accessory that makes a custom setup feel finished instead of improvised.
- Who it's for: Woodworkers and serious DIY users building a router table from scratch or upgrading an existing homemade top.
- Why it stands out: The no-rabbet bottom-mount design, eight-point adjustment, and four-corner lock-downs solve installation and leveling in one package.
- Worth knowing: You need your insert plate opening to match the 3/4 in. corner radius requirement, and these are meant for router tables up to 1-1/2 in. thick.
Common Questions
- What is this product used for? It is used to support and level an insert plate in a shop-built router table.
- Do these levelers require a supporting rabbet? No. The bottom-mount design eliminates the need for a supporting rabbet.
- What router table thickness will they work with? They are designed to work with router tables up to 1-1/2 in. thick.
- What corner radius are they designed for? They are designed for a 3/4 in. corner radius.
