LAGUNA MBAND14BX220-250 14|BX Bandsaw 220 Volt
LAGUNA MBAND14BX220-250 14|BX Bandsaw 220 Volt
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview
The Laguna MBAND14BX220-250 14|BX Bandsaw 220 Volt is a floor-standing woodworking bandsaw built for shops that need more frame strength, more resaw height, and better control than an entry-level machine can offer. This is a bandsaw designed for resawing, ripping, curve cutting, and general stock preparation in a woodworking shop. Model Number: MBAND14BX220-250. With a 2.5 horsepower motor, 12 inch resaw capacity, and 220 volt power requirement, this machine is aimed at woodworkers who are past the hobby-grade stage and want a saw that can stay accurate under load.
On the cutting side, the numbers line up with what serious users actually look for. The 12 inch resaw capacity opens the door for slicing taller boards, bookmatching, and processing rough stock that would stop a smaller bandsaw cold. Laguna also pairs that capacity with a 115 inch blade length and a large 21-1/2 inch by 16 inch table, so the saw has enough support for bigger workpieces without feeling cramped. Table height is listed at 38 inches, which puts the work surface in a comfortable range for long sessions at the saw.
Where this machine separates itself is in the structure. Laguna calls out the main differences from the 14|12 as increased weight, a solid one-piece frame, and heavier gauge construction. That is not fluff. On a bandsaw, a stiffer frame and more mass help reduce deflection and keep the blade tracking where it should, especially when you are pushing dense hardwood through a resaw cut. Cast iron wheels add to that steady feel and help the saw carry momentum smoothly through the cut.

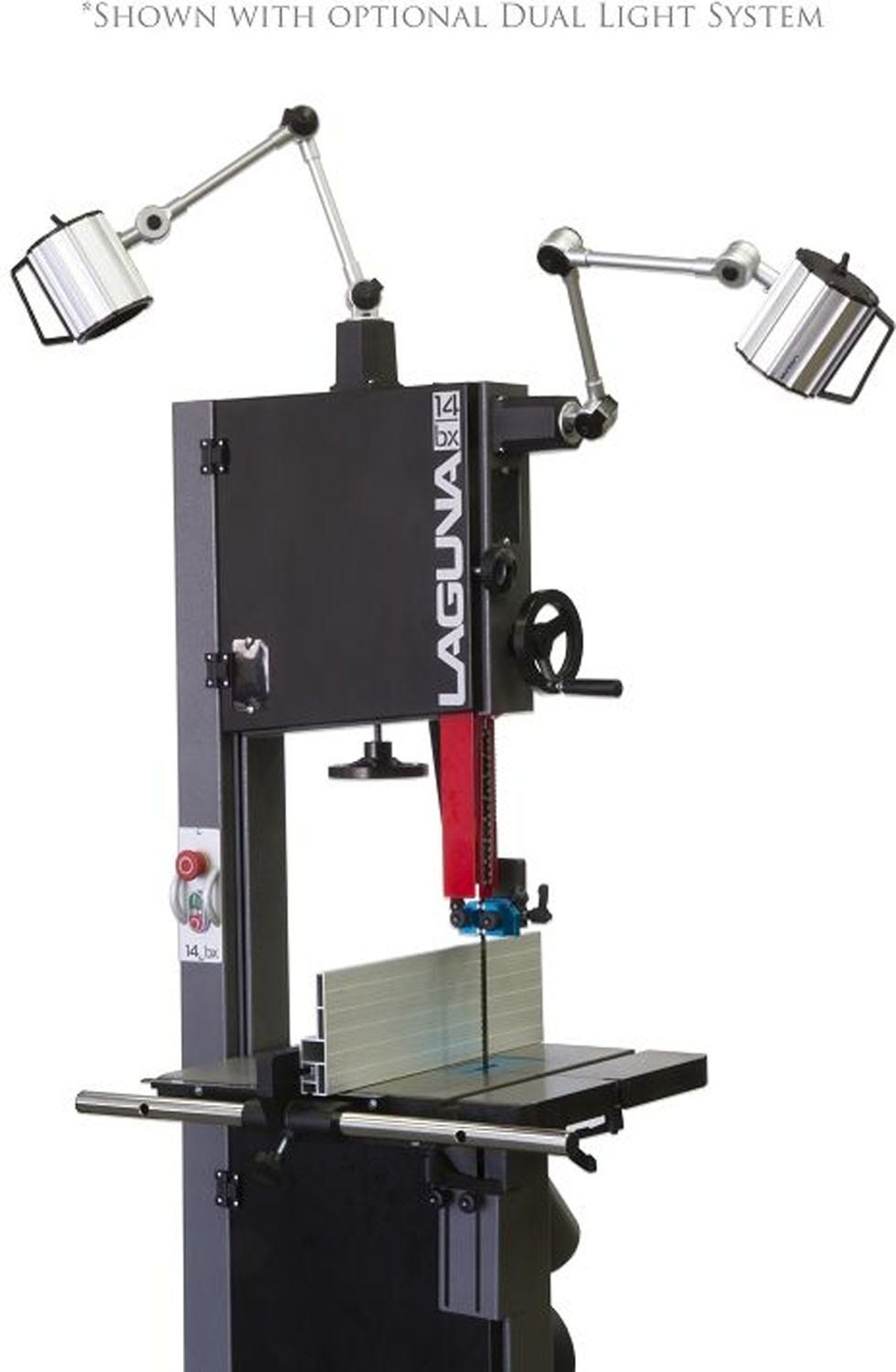

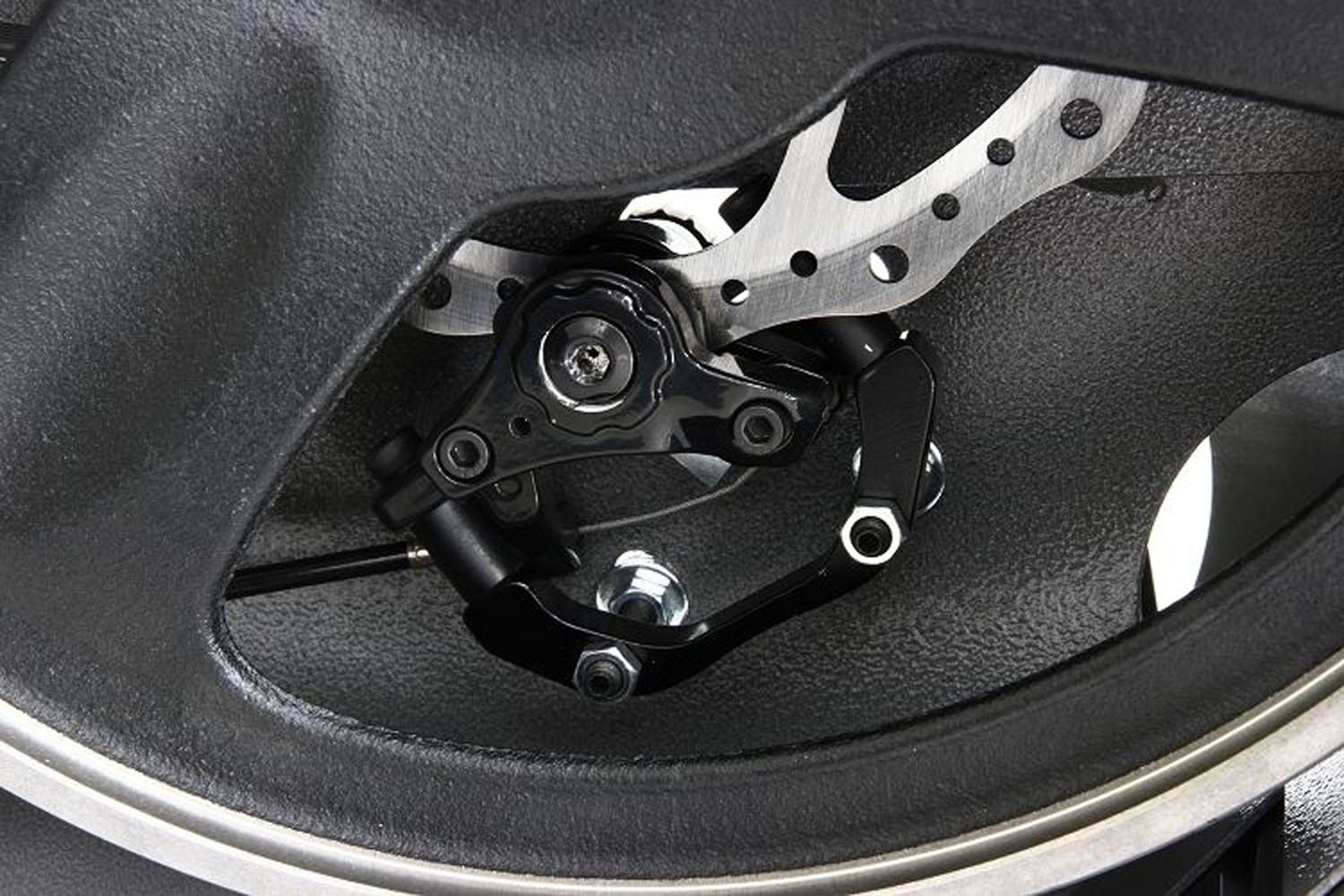

The shop-use details are well thought out too. A magnetic on and off switch is the kind of feature you appreciate once you have lived with lesser machines. It gives the saw a more deliberate, industrial feel at startup and shutdown. Laguna also includes a disc brake with micro-switch, which adds another layer of control when stopping the blade. Dual light mounting positions are a practical touch for users who want to improve visibility at the cut line without improvising a lighting setup.

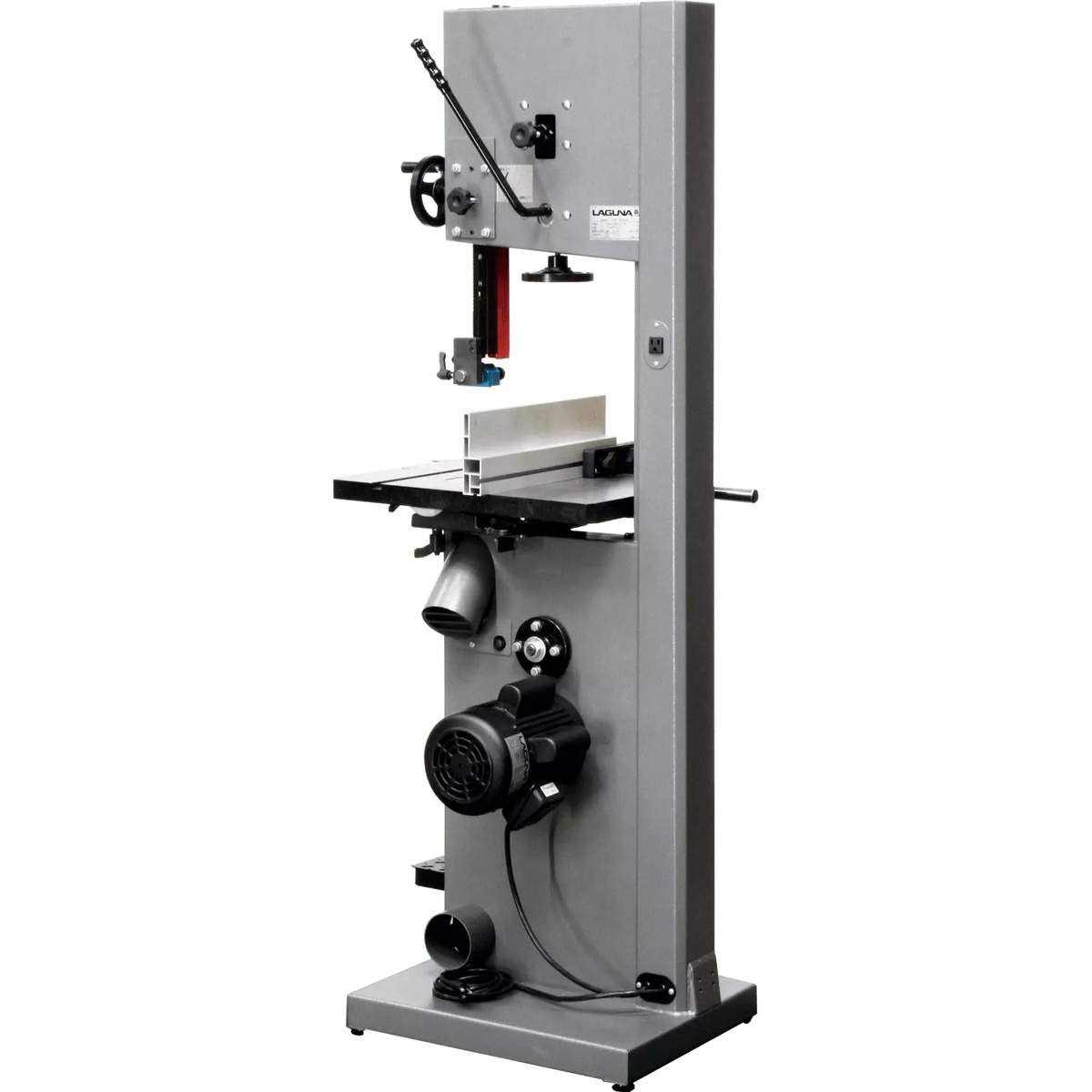

Dust collection is another real-world point worth calling out. The saw uses two 4 inch dust ports, which is more serious than the small single-port setups found on lighter machines. In a woodworking shop, better dust extraction means cleaner lower wheel housings, a clearer table area, and less time dealing with fine dust buildup around the machine. If you already run a proper dust collection system, this setup makes the Laguna 14|BX a better fit for an organized shop workflow.

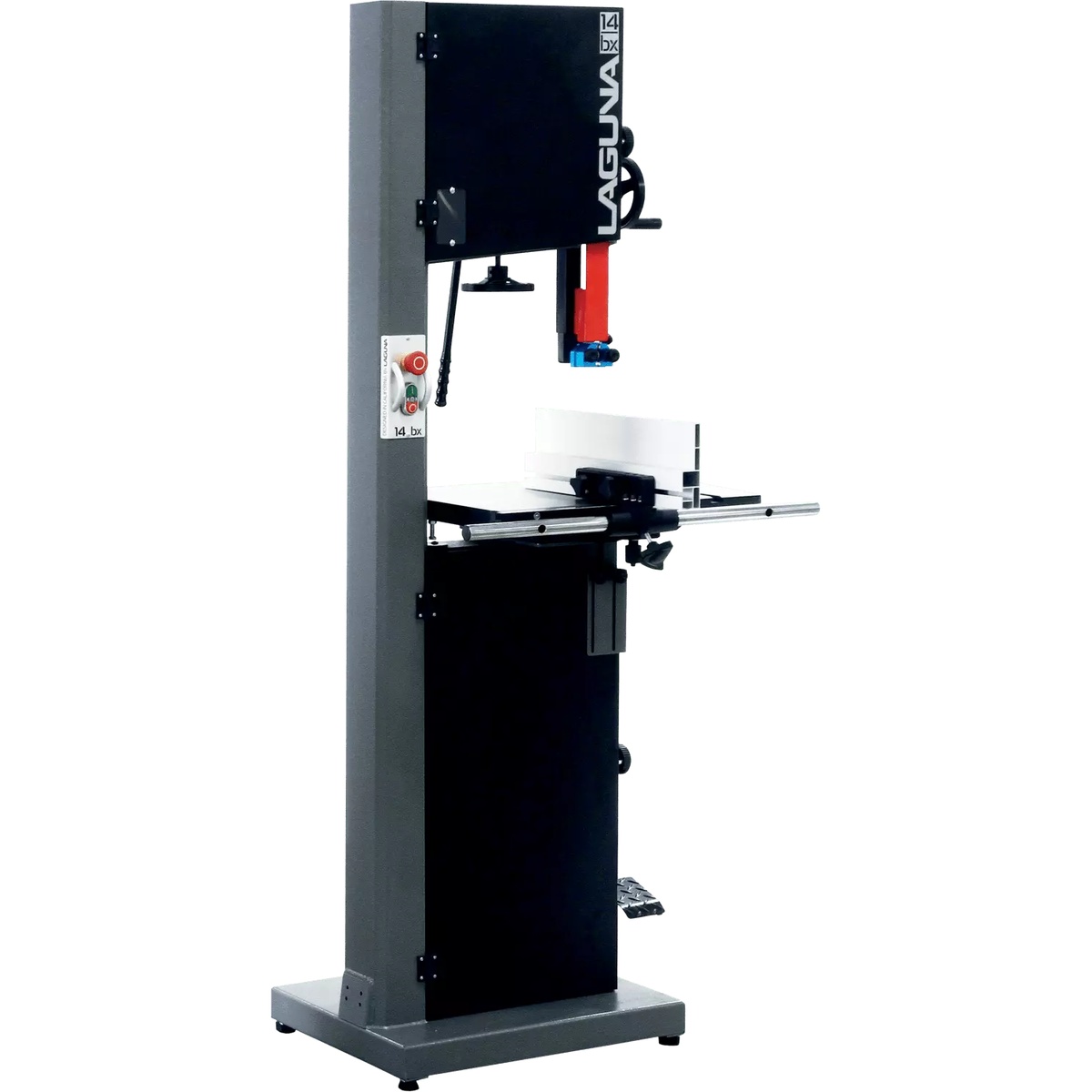

From a layout standpoint, the machine stands 70-1/4 inches tall and uses a table that tilts 7 degrees to the left. That gives you some flexibility for angled work while keeping the overall machine footprint in the class most woodworkers expect from a 14 inch bandsaw. The included fence shown in the product imagery and listed table dimensions point to a saw meant to do more than occasional curved cuts. This is a machine for straight ripping, controlled resaw work, and repeatable shop tasks where setup consistency matters.
Who is it for? Woodworkers, cabinet shops, furniture makers, and serious home shop users who need a 220 volt bandsaw with real resaw ability. If your work includes milling rough lumber, cutting thicker hardwood, or keeping one dependable bandsaw in the shop for a wide range of tasks, this saw makes sense. If you only need a light-duty saw for small craft work, it is probably more machine than you need. But if you want a stronger frame, a bigger work surface, and the kind of features that make daily use easier, the 14|BX lands in a very solid spot.
Built for Serious Resaw Work

This is the kind of woodworking bandsaw you buy when a basic 14 inch saw is no longer enough. The combination of 12 inch resaw height, 2.5 horsepower, and a heavier frame gives you a machine that is built to handle bigger material with better stability.
- 12 inch resaw capacity for taller boards and thicker stock
- 2.5 horsepower motor powered by 220 volts
- 115 inch blade length for a serious shop-class setup
Rigid Frame, Better Control

The big upgrade story here is structure. Laguna specifically calls out the added weight, solid one-piece frame, and heavier gauge build compared to the 14|12, and that matters because a steadier saw is easier to trust when the cut gets demanding.
- Solid one-piece frame for improved rigidity
- Cast iron wheels help the saw run with a more planted feel
- Assembled weight is listed at 270 lbs
Set Up for Real Shop Use

Good shop machines save time in the little ways, not just the headline specs. The large table, magnetic switch, brake setup, and dual 4 inch dust ports all point to a bandsaw meant to be used regularly, not just occasionally.
- 21-1/2 inch x 16 inch table gives better support for larger workpieces
- Magnetic on and off switch adds more deliberate machine control
- Two 4 inch dust ports support stronger dust collection
Key Specifications
|
|
2.5 hp |
|---|---|
|
|
220 V |
|
|
12 in. |
|
|
115 in. |
|
|
21-1/2 in. x 16 in. |
|
|
38 in. |
|
|
7° |
|
|
270 lbs |
Built For
Pro Tip
If you are setting this saw up for resawing, hook up both 4 inch dust ports to your dust collection system from day one. It helps keep the lower housing cleaner and makes the table area easier to see when you are feeding taller stock.
Tool Nut's Take
Why the Laguna MBAND14BX220-250 14|BX Bandsaw 220 Volt earns its floor space
This is a real step-up woodworking bandsaw for the buyer who wants more than a light-duty 14 inch machine and actually plans to use that resaw capacity.
- Who it's for: Woodworkers, furniture builders, and small professional shops that need a 220 volt bandsaw for resawing, ripping, and daily stock prep.
- Why it stands out: The heavier one-piece frame, cast iron wheels, magnetic switch, brake setup, and 12 inch resaw capacity make it feel like a more serious machine than typical saws in this class.
- Worth knowing: This is not the pick for someone who just wants a small occasional-use bandsaw. It wants 220 volt power and makes the most sense when you are actually taking advantage of the bigger table and added capacity.
Common Questions
- What type of tool is this? It is a floor-standing woodworking bandsaw designed for resawing, ripping, curve cutting, and general stock preparation.
- Does this bandsaw require 220 volt power? Yes. The Laguna MBAND14BX220-250 14|BX Bandsaw 220 Volt is specified as a 220 V machine.
- How much resaw capacity does it have? It has 12 inches of resaw capacity, which is one of the main reasons buyers step up to this model.
- What size blade does it use? The listed blade length is 115 inches.
- Does it support dust collection? Yes. It has two 4 inch dust ports for connection to a dust collection system.
