Part Number

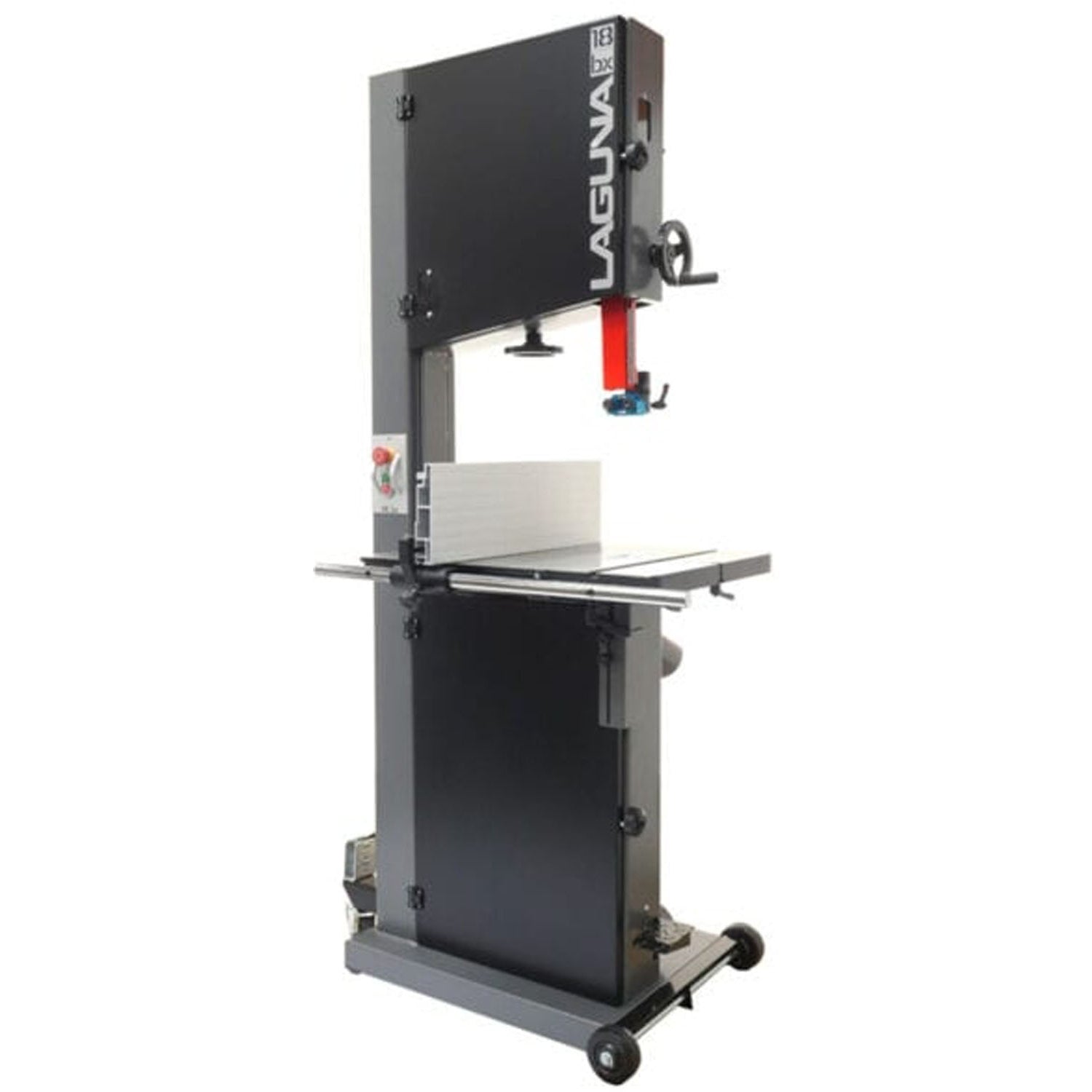

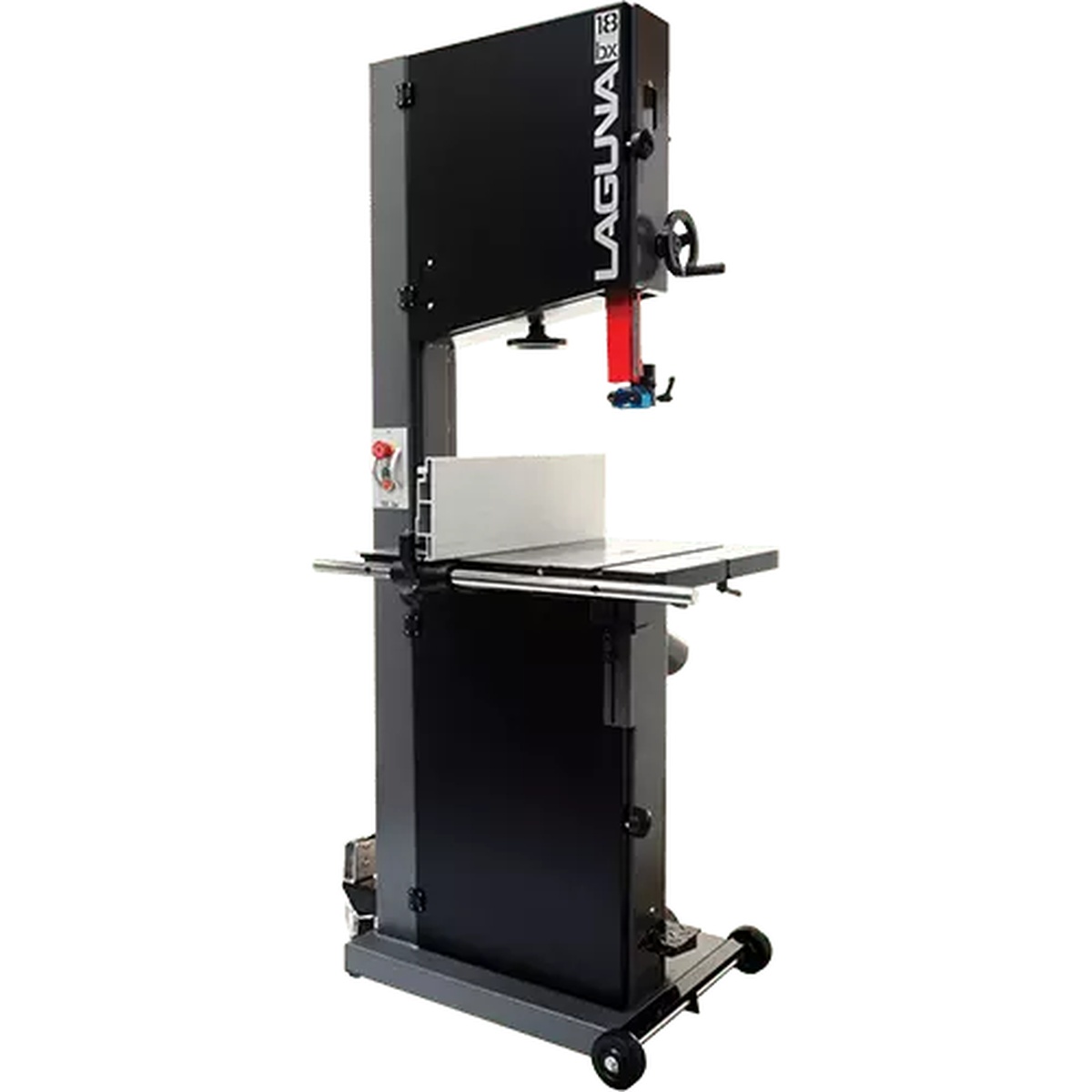

MBAND18BX2203
Motor
3HP, 220V, 1 Ph. 12 Amp.
Recommended Breaker
20 Amp.

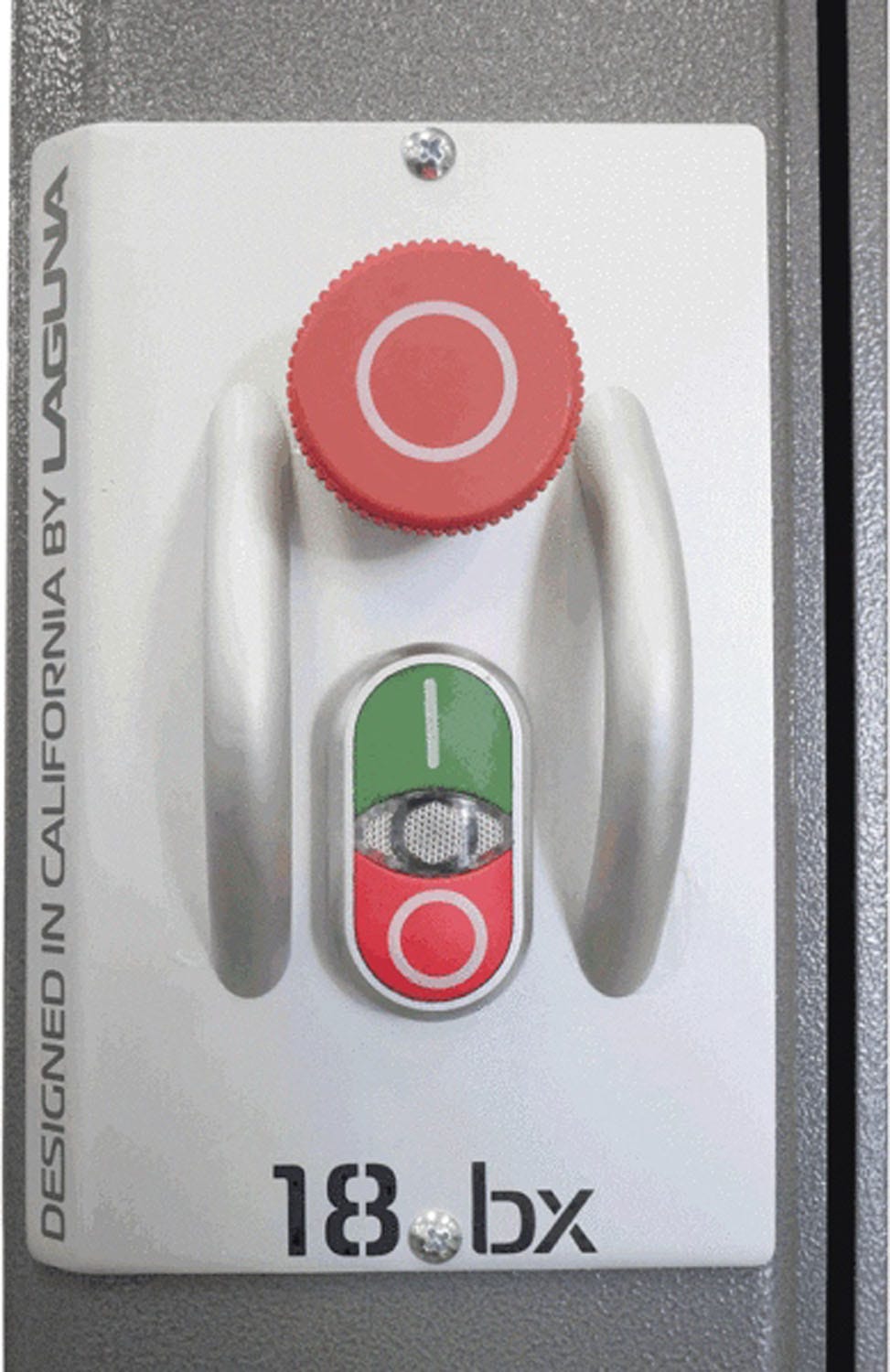

Magnetic Starter
√
Min-Max Blade Width
?"-1 ¼"
Resaw Capacity
16"
Throat
18 "
Blade Length
145"

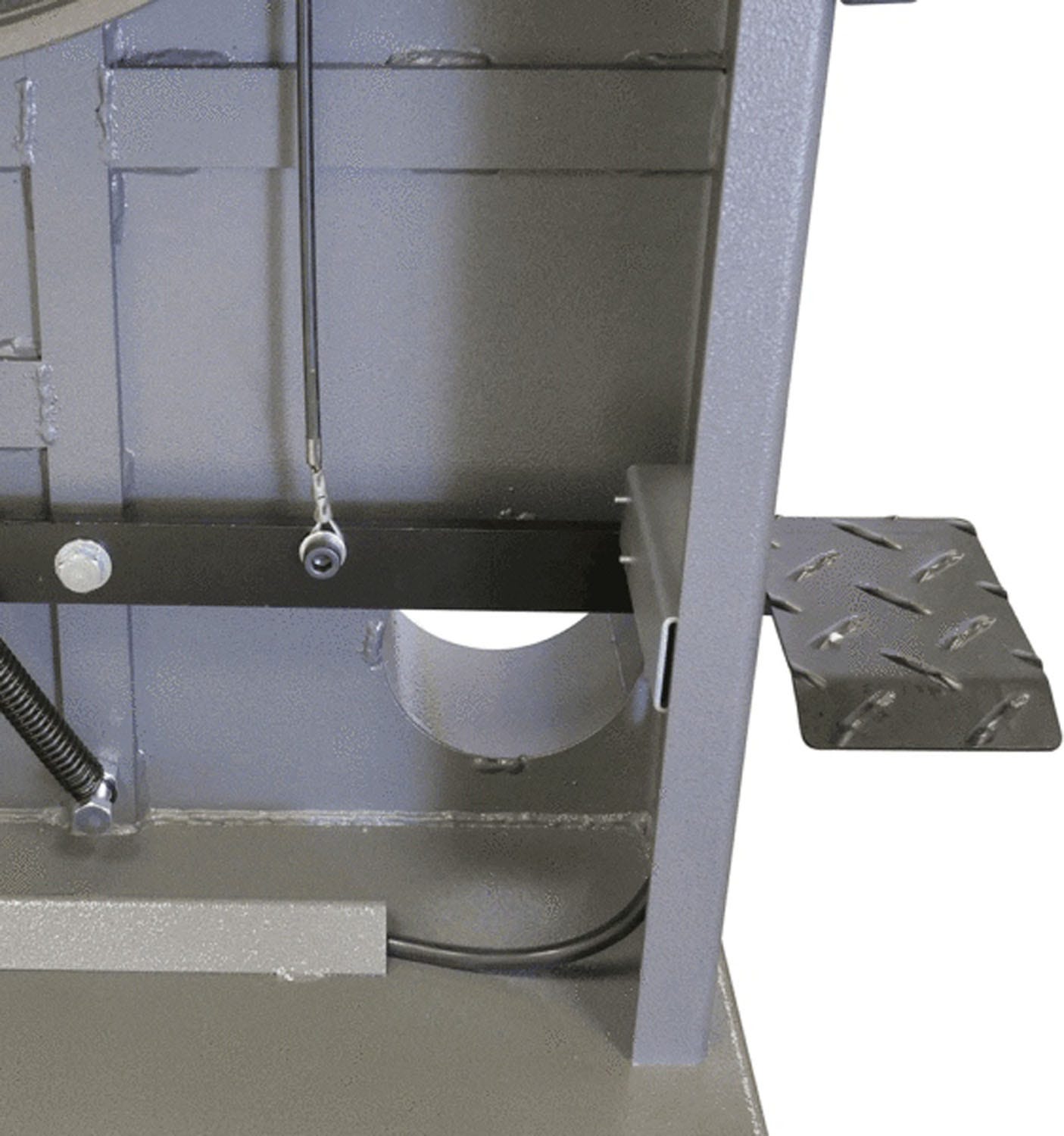

Disc-Brake with Micro Switch
√
220V Outlet on Back for Light
√
Window for Tension
√
Window for Tracking
√
Magnetic Blade Tension Guide
√
Worm Gear & Pinion Upper Guide
√
10 Point Laguna Ceramic Guides
√
Flat Poly-Groove Drive Belt
√
Premium Anodized Insert with Micro Adjustment
√

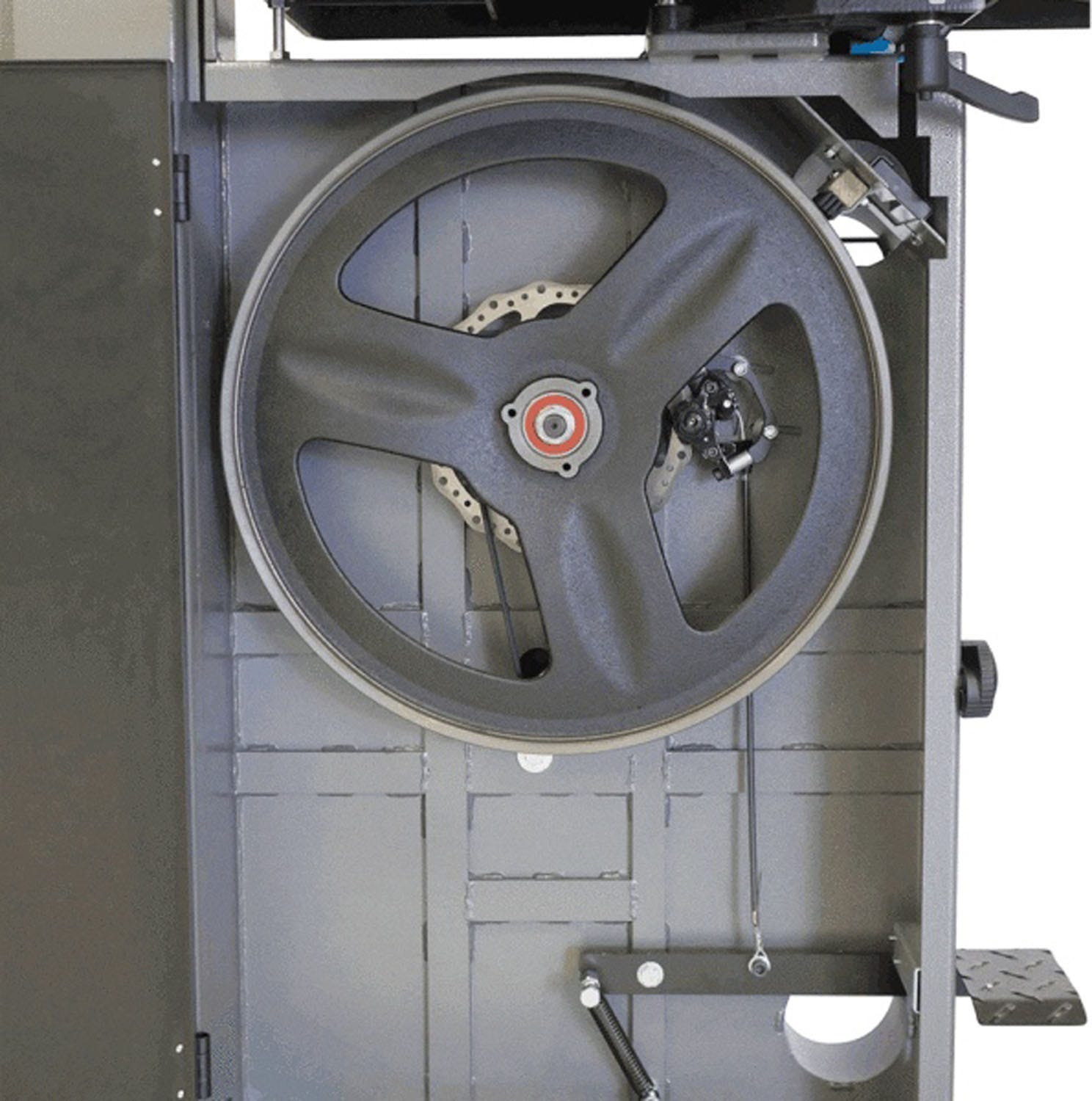

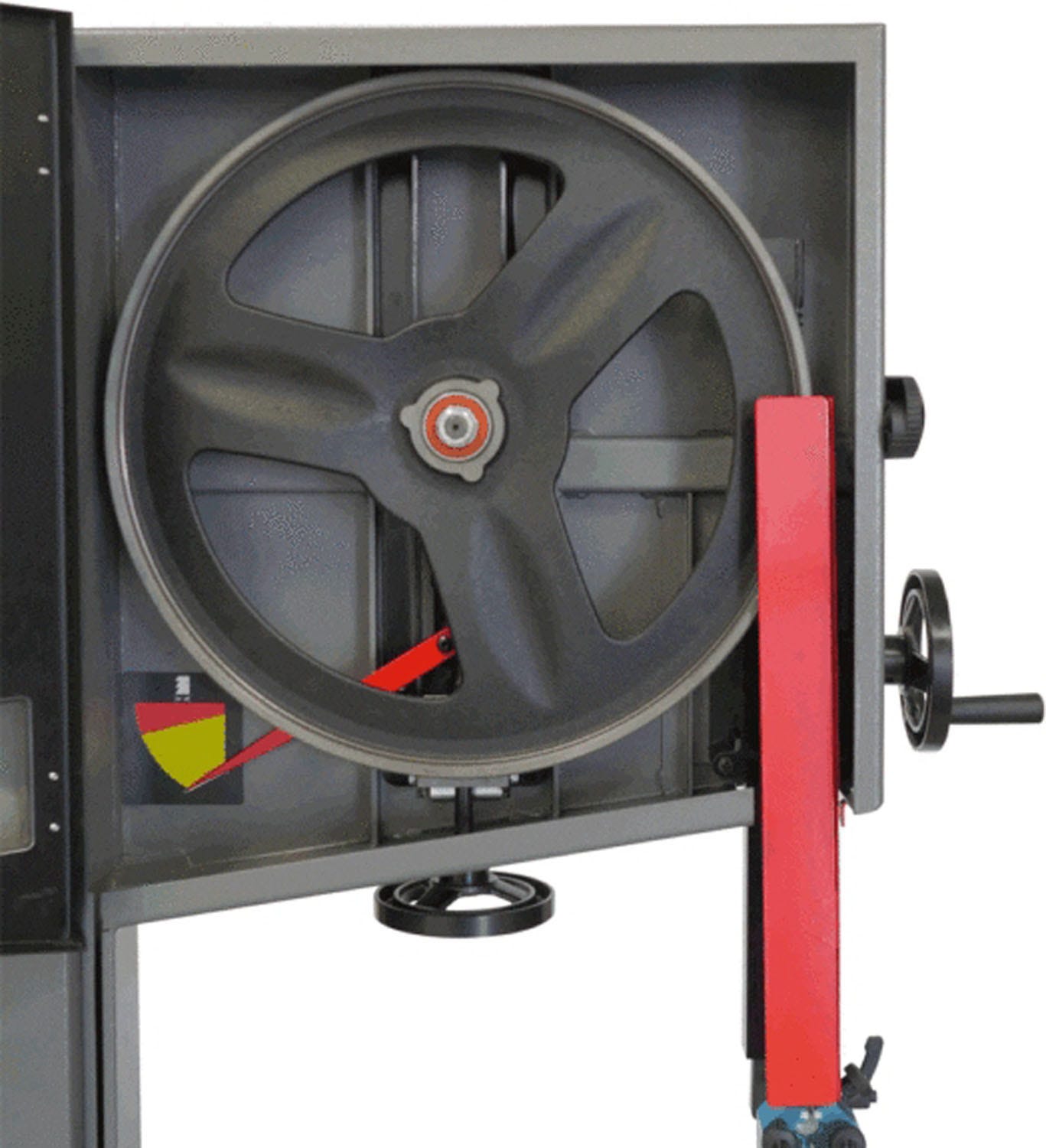

Dynamically Balanced Cast Iron Wheels
√
Urethane Single Piece Snap-on Tire
√
Cast Table Size
20" x 26"

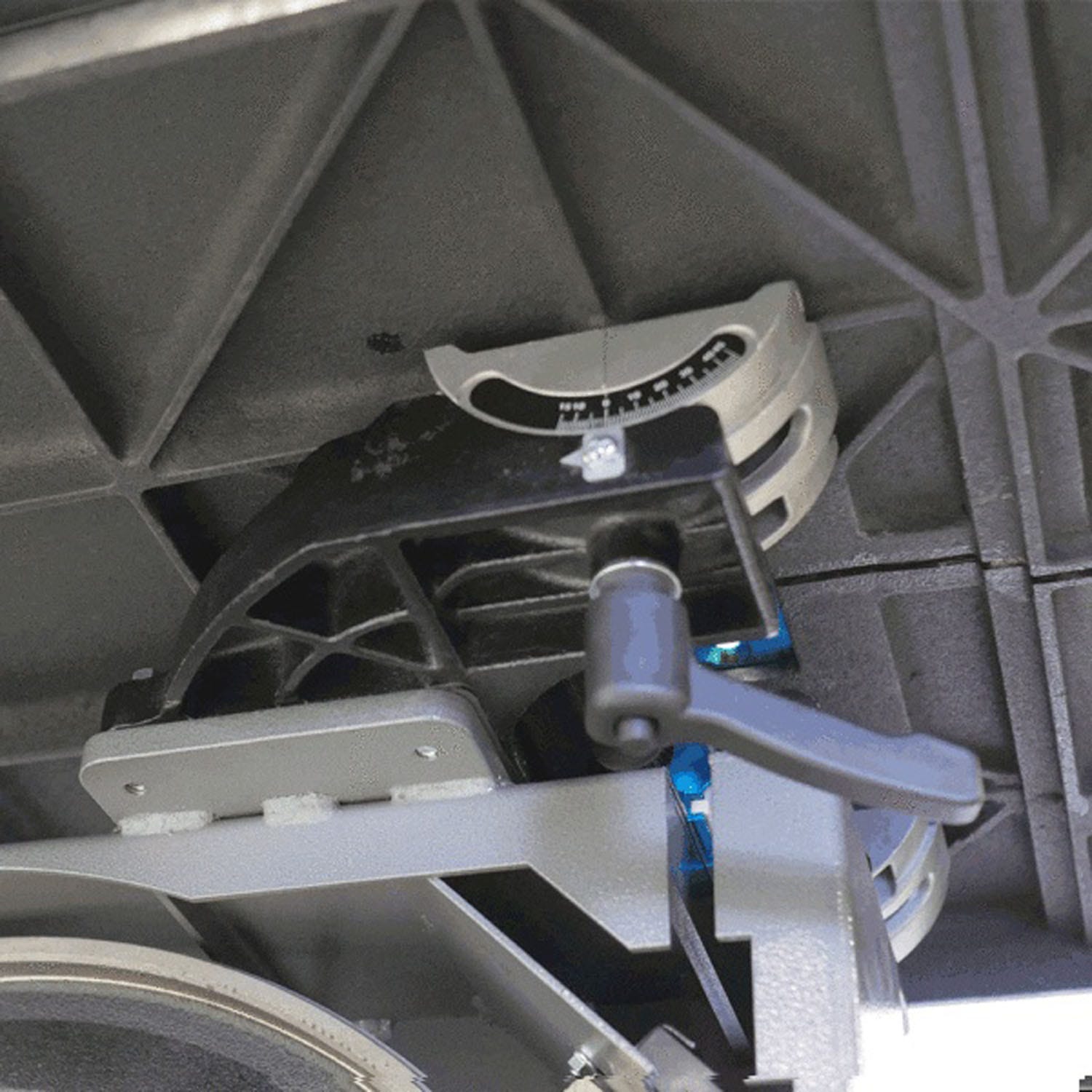

Table Tilt
-6°, +45°
Quick-Release Tension
√
Hi/Low Anodized Aluminum Fence
22 ó" x 5 ." x ó"
Table Height
38"

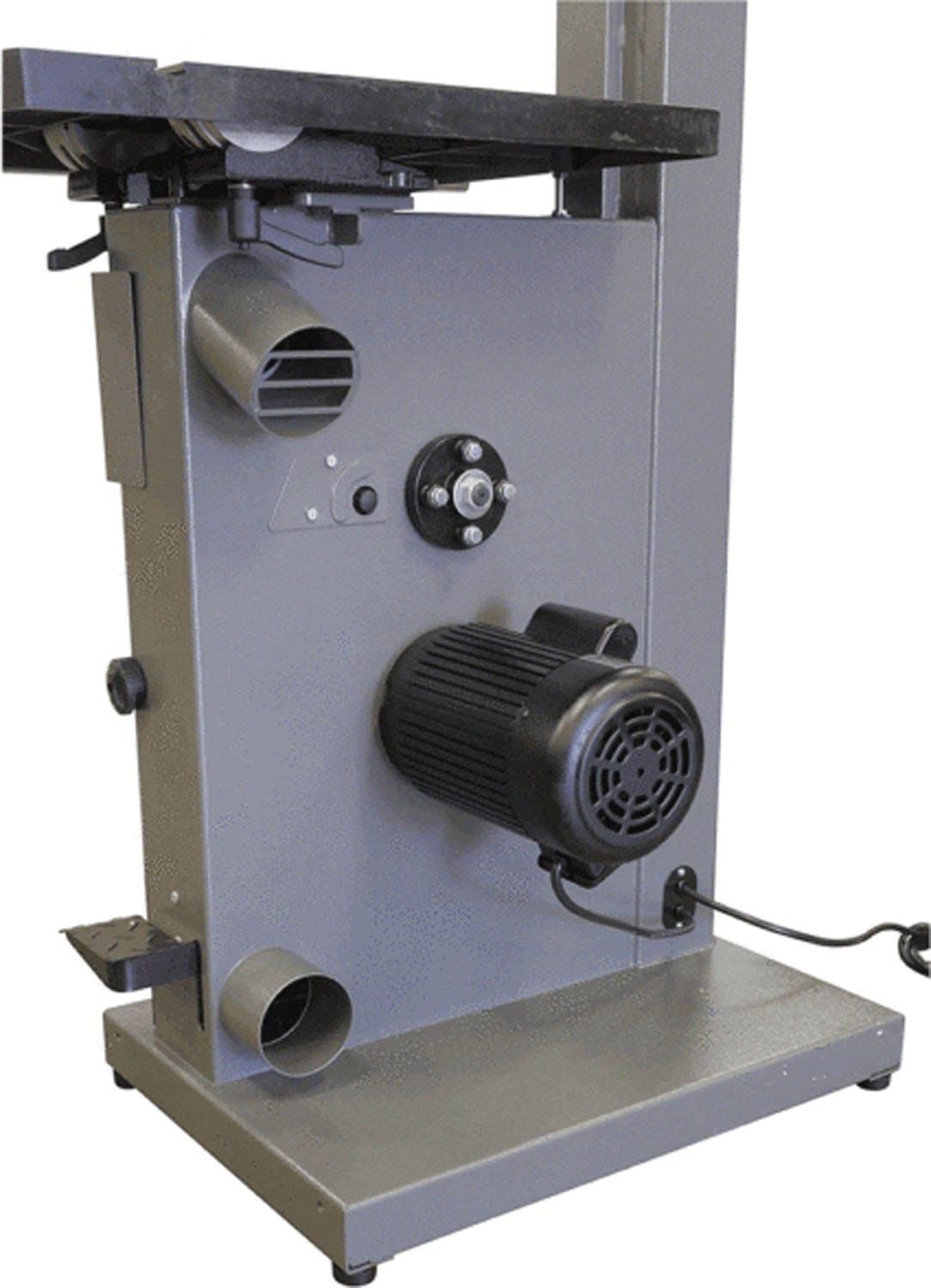

Dust Ports
2 x 4"
Overall Height
77 ¾"
Dimensions, Base
27" x 20"
Dimensions Overall
36" x 30"
Dimensions Box
82" x 34" x 24"
Weight (Net/Ship)
410/460 Lbs.
