LAGUNA MDCPF15110 P|flux:1 Cyclone Premium Dust Collector

Product Details

LED shows when drum if full
LED shows when filter needs cleaning

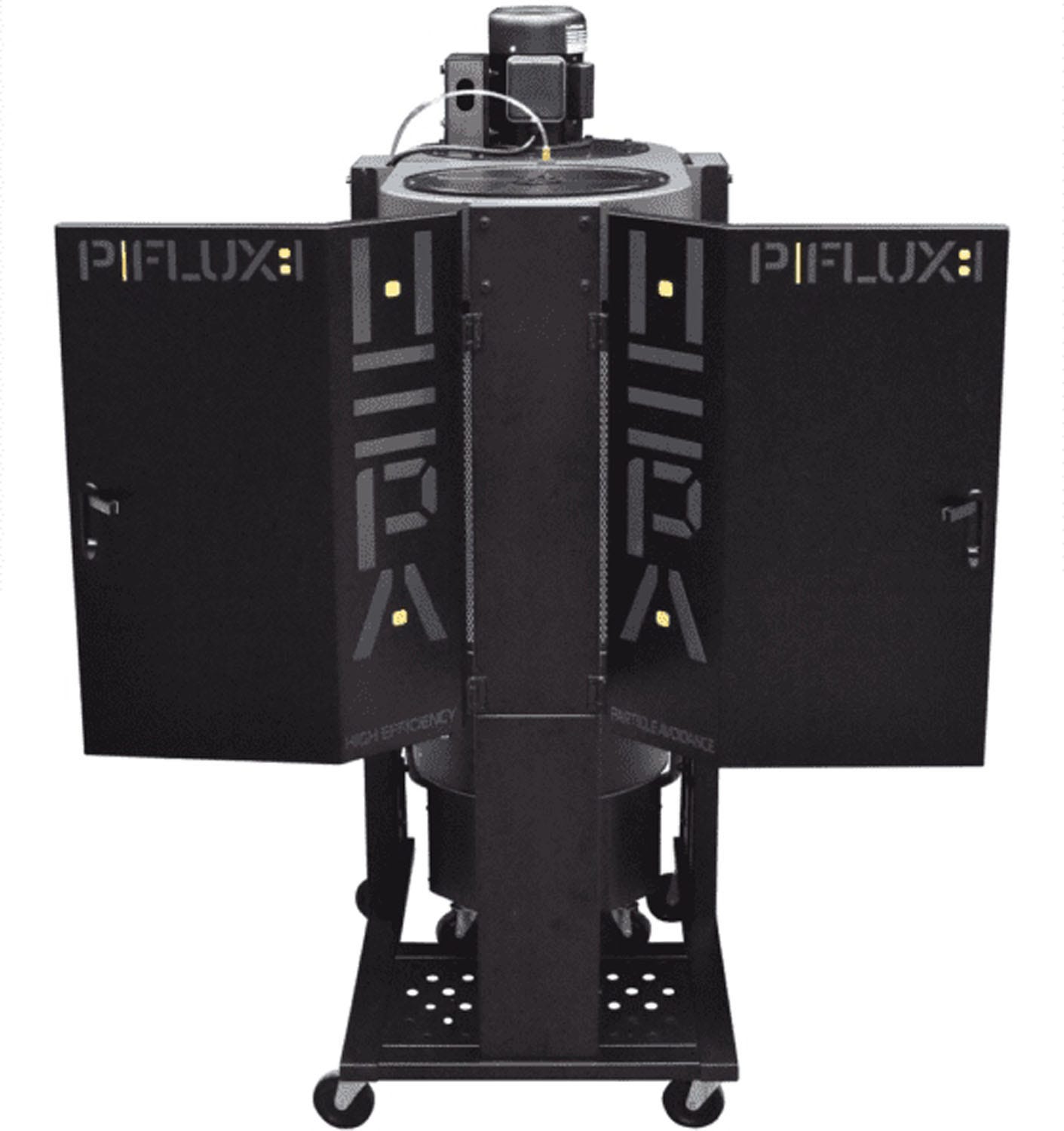

Swing-away doors sports acoustic foam on the inside to lower noise level
Motor HP: 1.5 HP
Phase: 1
Voltage: 110V

High Volume Dust Removal from Laguna

When lifting the drum into position a connector on the back of drum automatically hooks up to a pipe in cyclone this way creating a low pressure in bottom of the drum. This is designed to hold down plastic bag to avoid it being sucked up into the cone during use, no other cyclone or dust system has such a smart system, it is a vast improvement over last generation.

If you chose to use the P|Flux without a bag, you can simply shut off the system using a valve offering you speed and flexibility.

Specifications

Motor HP 1.5 HP
Yes
Phase 1
Yes
Voltage 115
Yes
Amps 18.8 Amps
Yes
Hertz 60
Yes
Plug No
Yes
RPM 3450
Yes

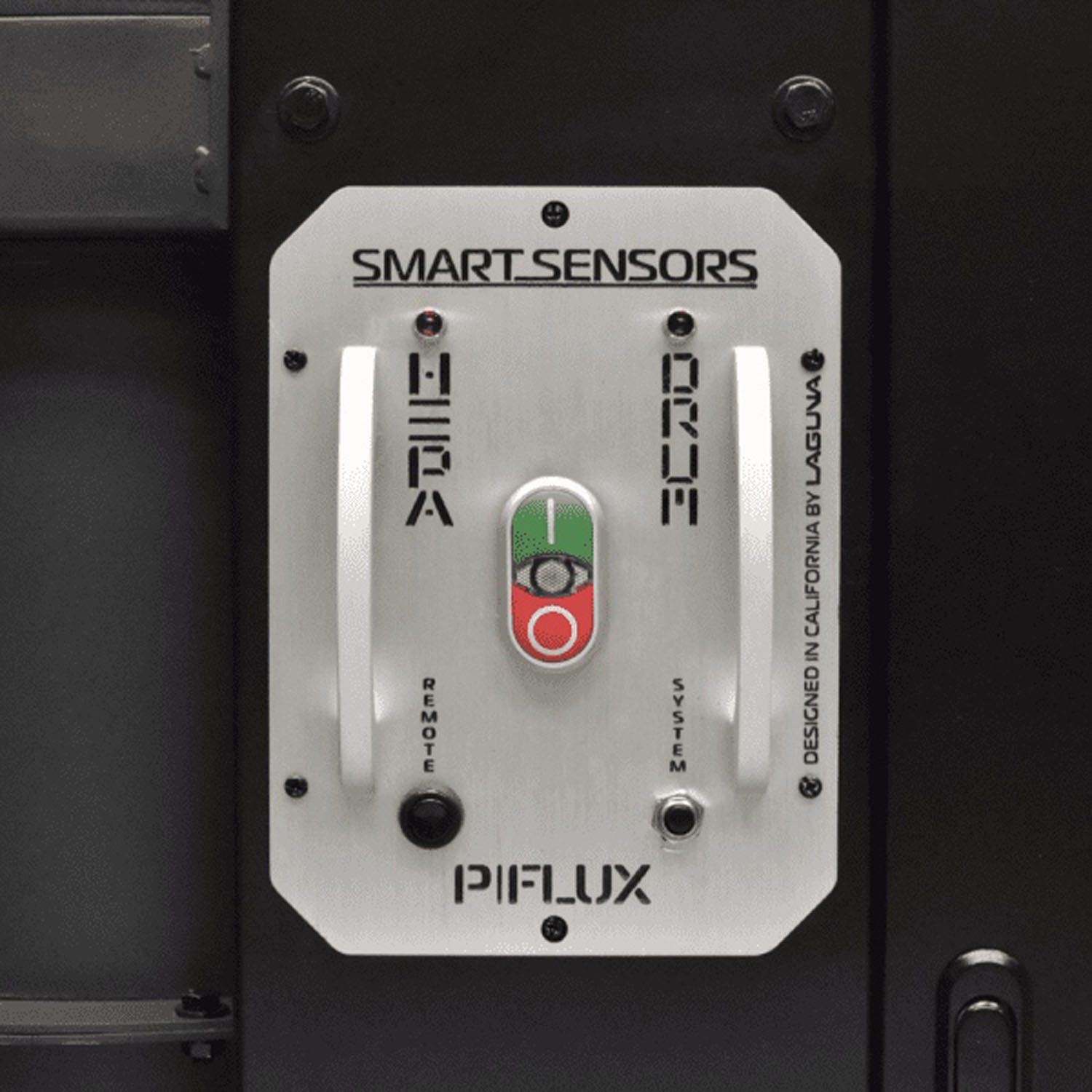

Control Panel Embedded Anodized Aluminum w. Magnetic On/Off
Yes
Hand held remote control High Frequency
Yes
Real CFM 900
Yes
Nominal CFM 1314
Yes
Max Static Pressure (inches of water) 10.1"
Yes
Impeller/Fan Size 13.5"
Yes
Impeller Material Steel
Yes
Impeller Type Radial Fin
Yes
Balanced To
ISO 1940
Inlet Diameters 6 manifold 4 x 2
Yes
Drum Capacity 25 Gal.
Yes
Octagon Drum Low Pressure Suction
Yes
Drum Collection Bag (Dia. x L) Plastic bag (24 x 37 3/8)
Yes
Canister Filter Type HEPA
Yes
Filtration Efficiency 0.4 micron @ 99.2%
Yes
MERV Rating 16+
Yes
Refer to tab 4
Yes
Canister Diameter 400mm (15.75")
Yes
Canister Length 500mm (19.69")
Yes
Filter Surface Area 4.5m 48ft
Yes
Canister Cleaning Internal Pulse Clean (See Instructions)
Yes
Canister Filter Lower Dust Collection Metal end cap with 4" hookup window & quick release
Yes
Frame Wheels (4x) 4" PU Caster
Yes
Drum Wheels (4x) 4" PU Caster
Yes
US/CSA Approved Yes
Yes
Decibel Reading 70 d B(A) (@9.8ft)
Yes
Machine weight 122kgs 269Lbs
Yes
Shipping weight 150kgs 331Lbs
Yes

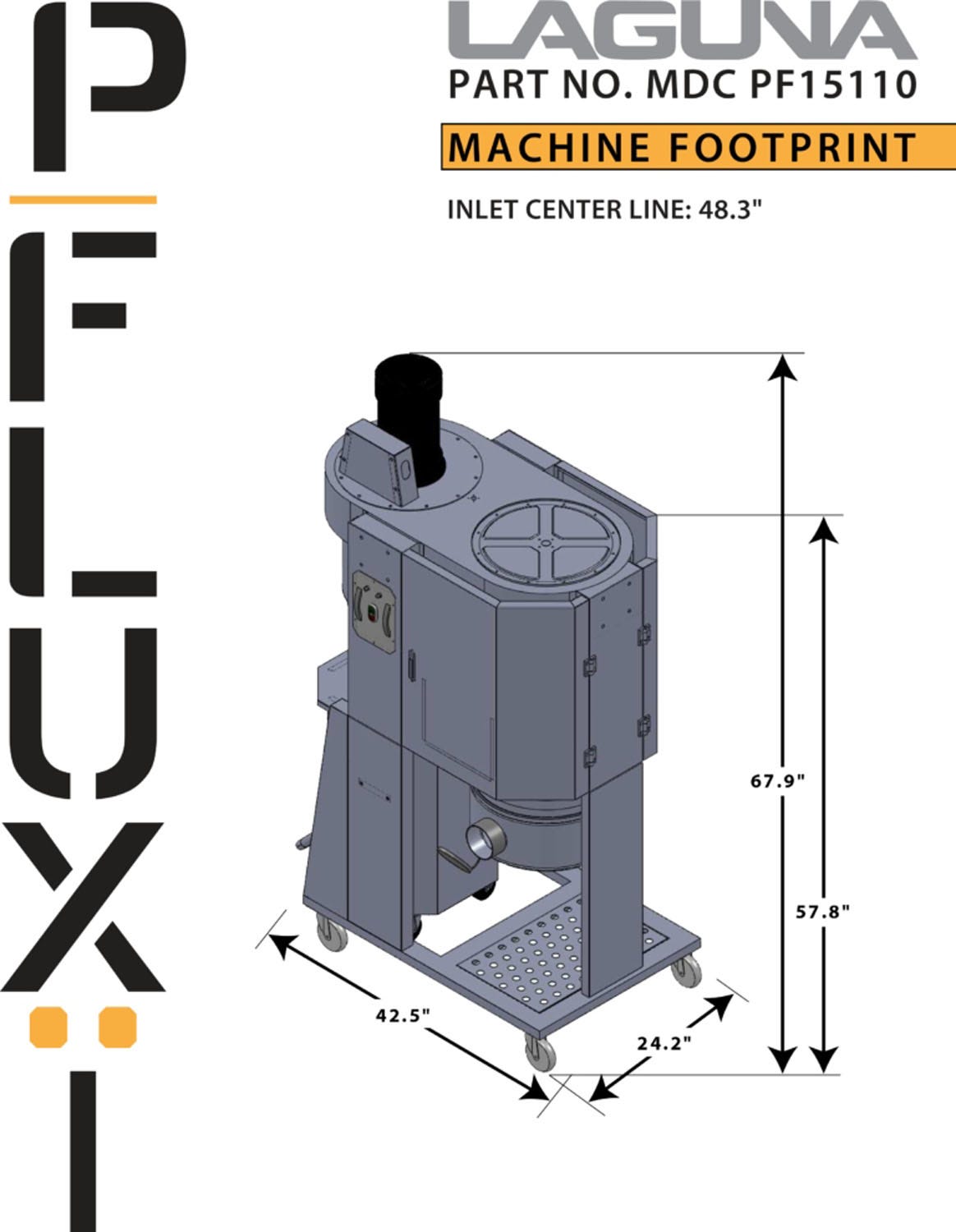

Assembled Dimensions (L x W x H) 45 1/2" x 24 1/4 x 68 1/2"
1078x614x1722mm

LAGUNA MDCPF15110 P|flux:1 Cyclone Premium Dust Collector

Name: LAGUNA MDCPF15110 P|flux:1 Cyclone Premium Dust Collector
Brand: Laguna
SKU: MDCPF15110-LAGUNA
Price: 3499.00 USD
Availability: InStock

Visit our Laguna store

MDCPF15110-LAGUNA

$3,499.00

$3,499.00 ~~$3,499.00~~

+ Free Delivery

Ships from Manufacturer

Product Details

LED shows when drum if full
LED shows when filter needs cleaning
Swing-away doors sports acoustic foam on the inside to lower noise level
Motor HP: 1.5 HP
Phase: 1
Voltage: 110V

High Volume Dust Removal from Laguna

If you chose to use the P|Flux without a bag, you can simply shut off the system using a valve offering you speed and flexibility.

Specifications
