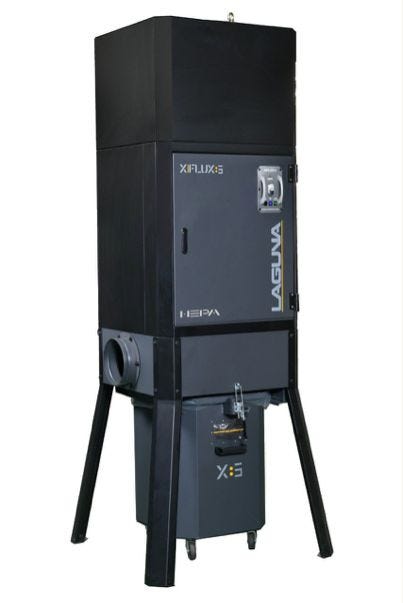

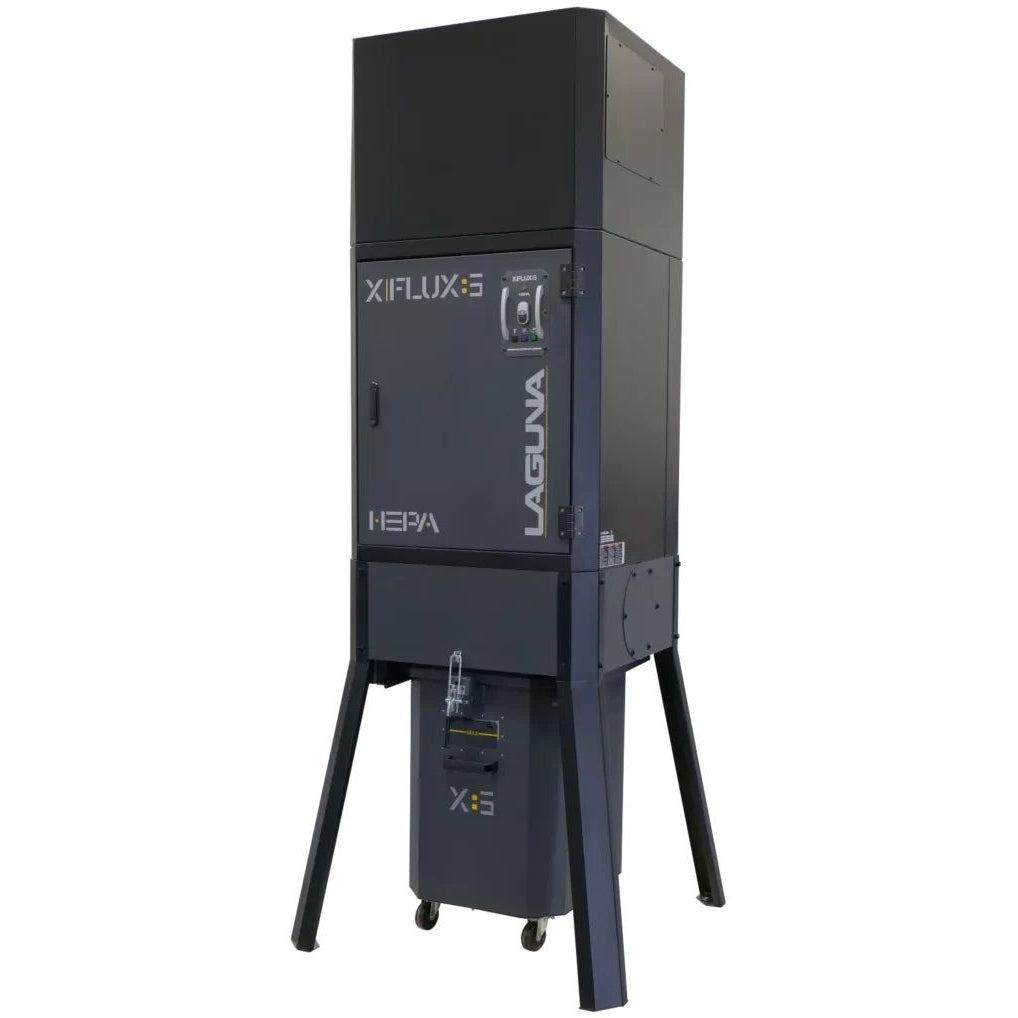

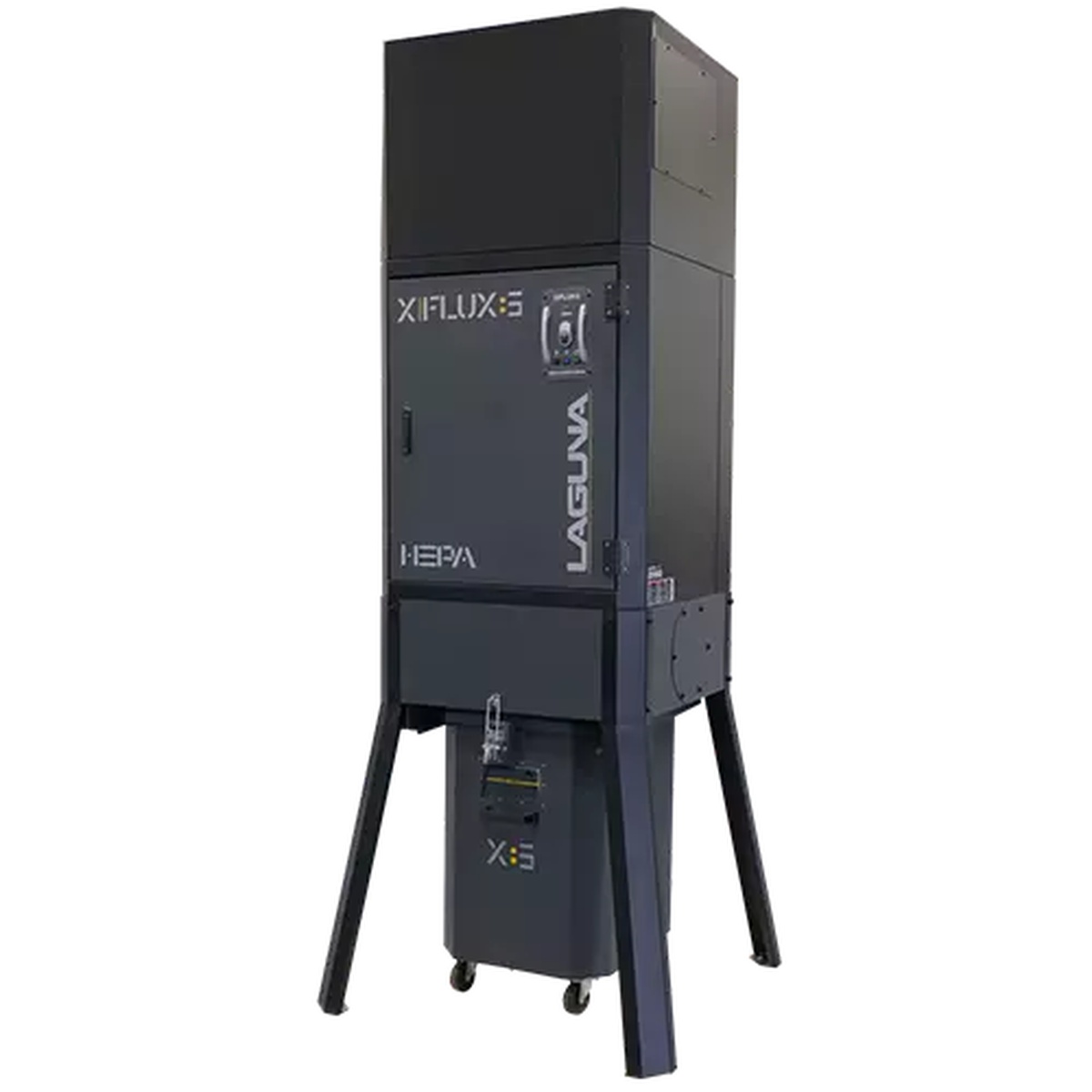

The Laguna X|Flux 5 Dust Collector is a full-size stationary single-stage dust collector built for serious woodworking dust collection in shops running larger machines. This is a dust collector designed for collecting chips and fine airborne dust from stationary woodworking equipment. Model number MDCXF52201. If you need strong airflow, HEPA-level filtration, and less day-to-day filter maintenance, this is the kind of machine you move up to when smaller collectors are no longer enough.

The headline number here is the 3093 CFM maximum air flow. That kind of airflow matters because dust collection is not just about keeping the floor cleaner. It is about pulling waste at the source before chips clog a machine or fine dust escapes into the shop. Laguna also lists a 1823 CFM shop setting air flow, which gives you a more realistic picture of working performance in an installed setup. Paired with a 12 inch maximum static pressure, the X|Flux 5 is built for real extraction work, not light cleanup duty.

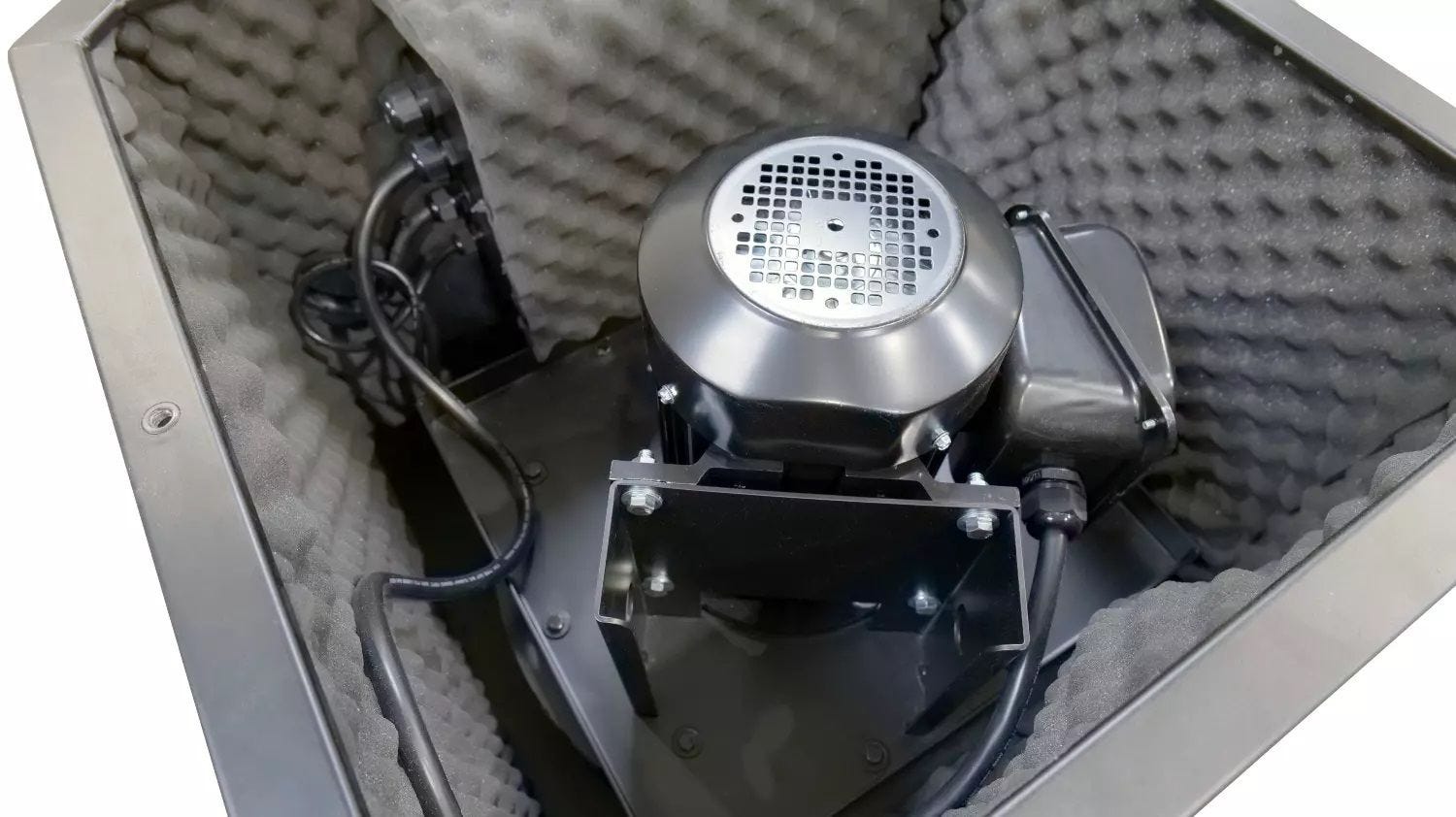

Power comes from a 5 HP motor running on 220V, 60Hz, single phase at 3450 RPM. In plain terms, this is a machine for dedicated shop power and dedicated shop use. It is not a roll-it-out-for-the-weekend unit. It is for woodworkers, cabinet shops, production spaces, and serious hobby shops that want one central collector with the muscle to support demanding tools and longer duct runs better than compact units can.

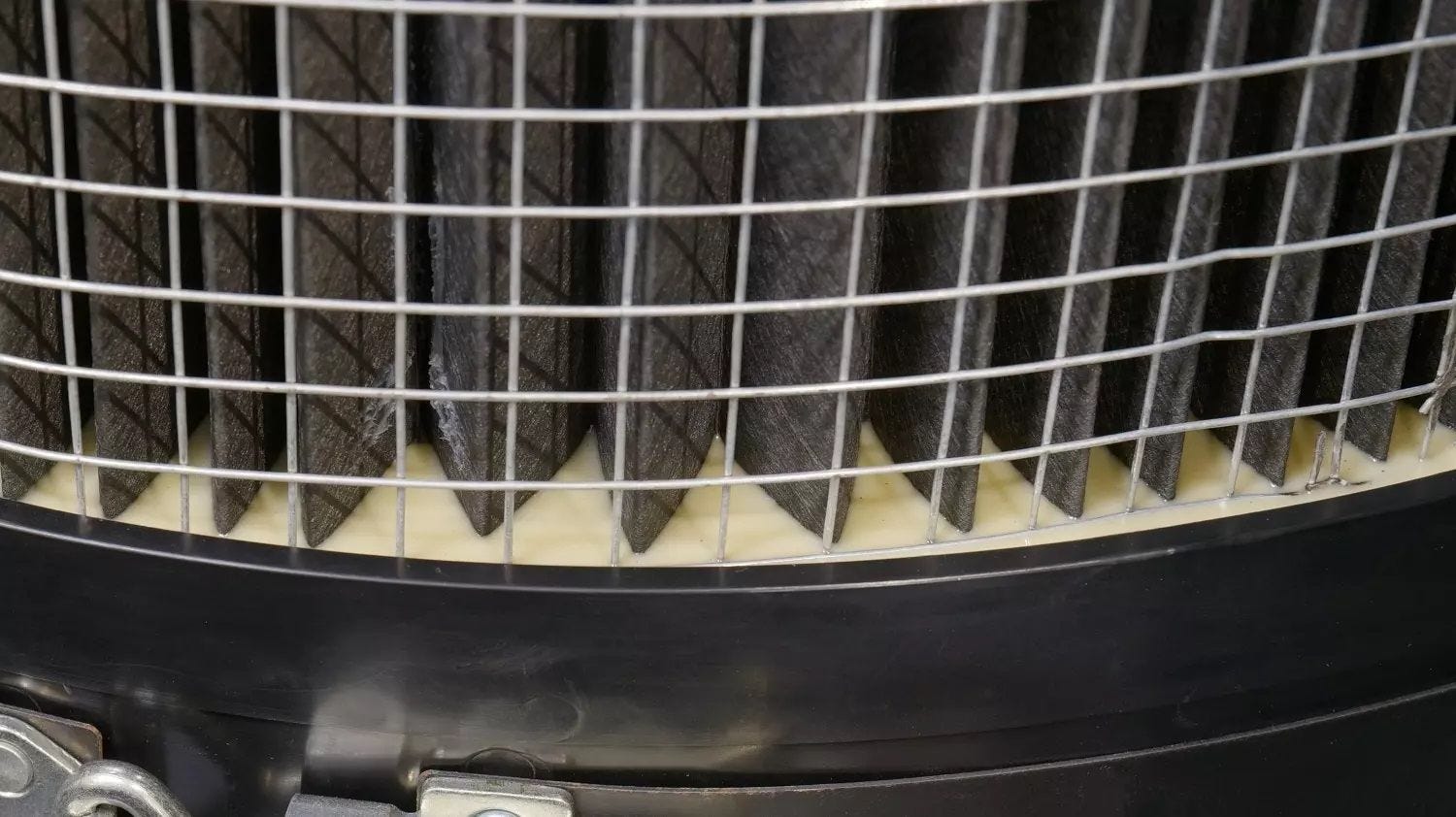

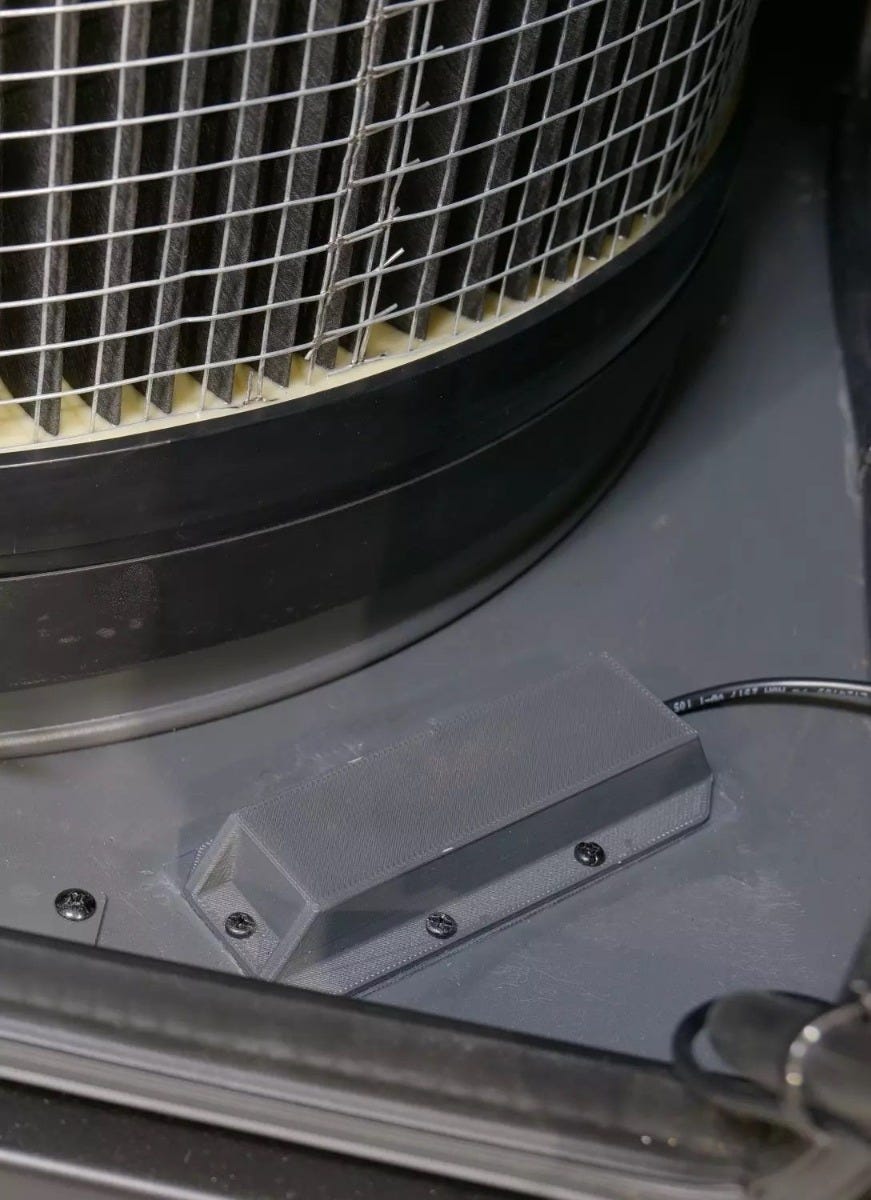

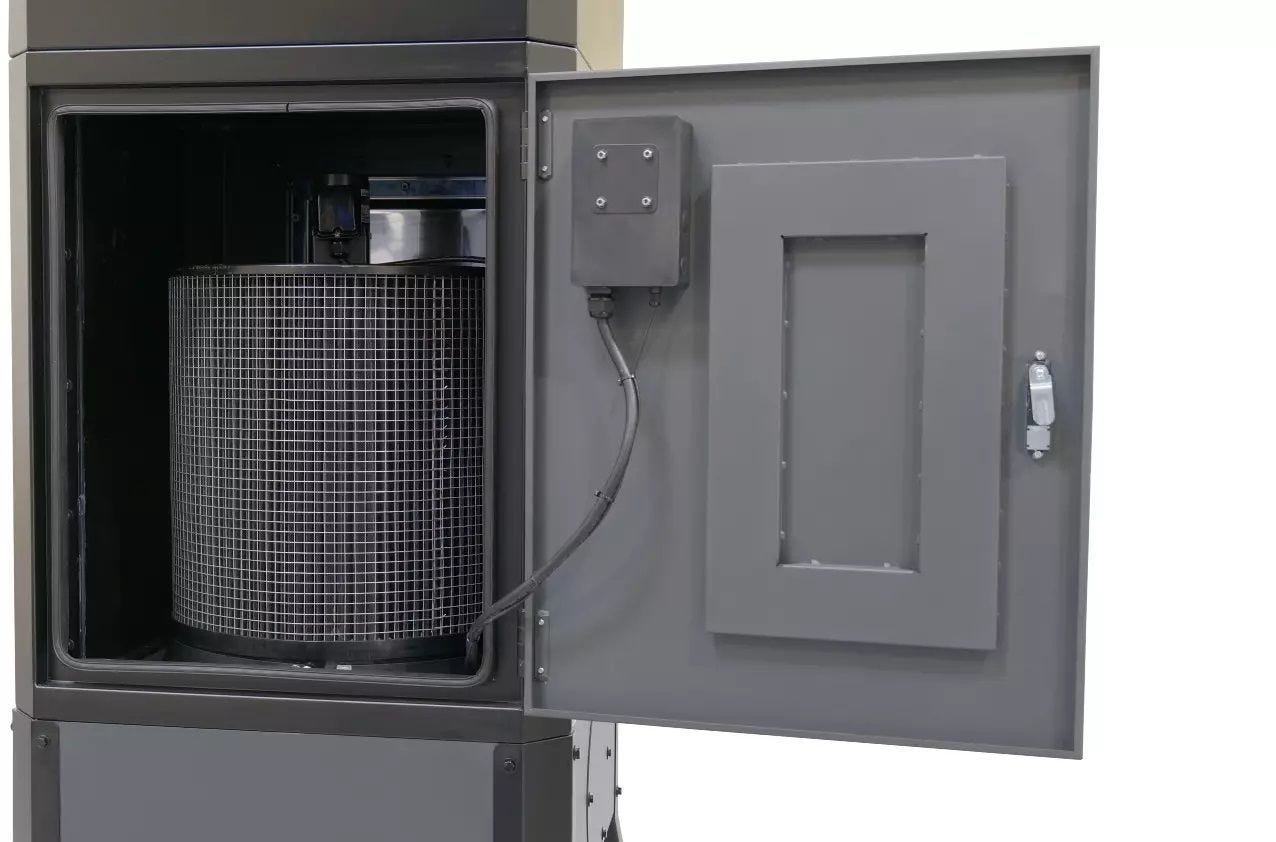

One of the smartest parts of this machine is the filter setup. The X|Flux 5 uses a HEPA cartridge filter measuring 19.7 inches by 19.7 inches with 99.7% efficiency at 0.3 to 0.4 micron. That matters because the dangerous stuff in a wood shop is often the fine dust you do not immediately see. Laguna adds an auto-clean system that runs every 3 minutes for 10 seconds in forward and reverse, using double paddles to sweep the filter. The benefit is simple: better sustained airflow and less manual filter banging and brushing.

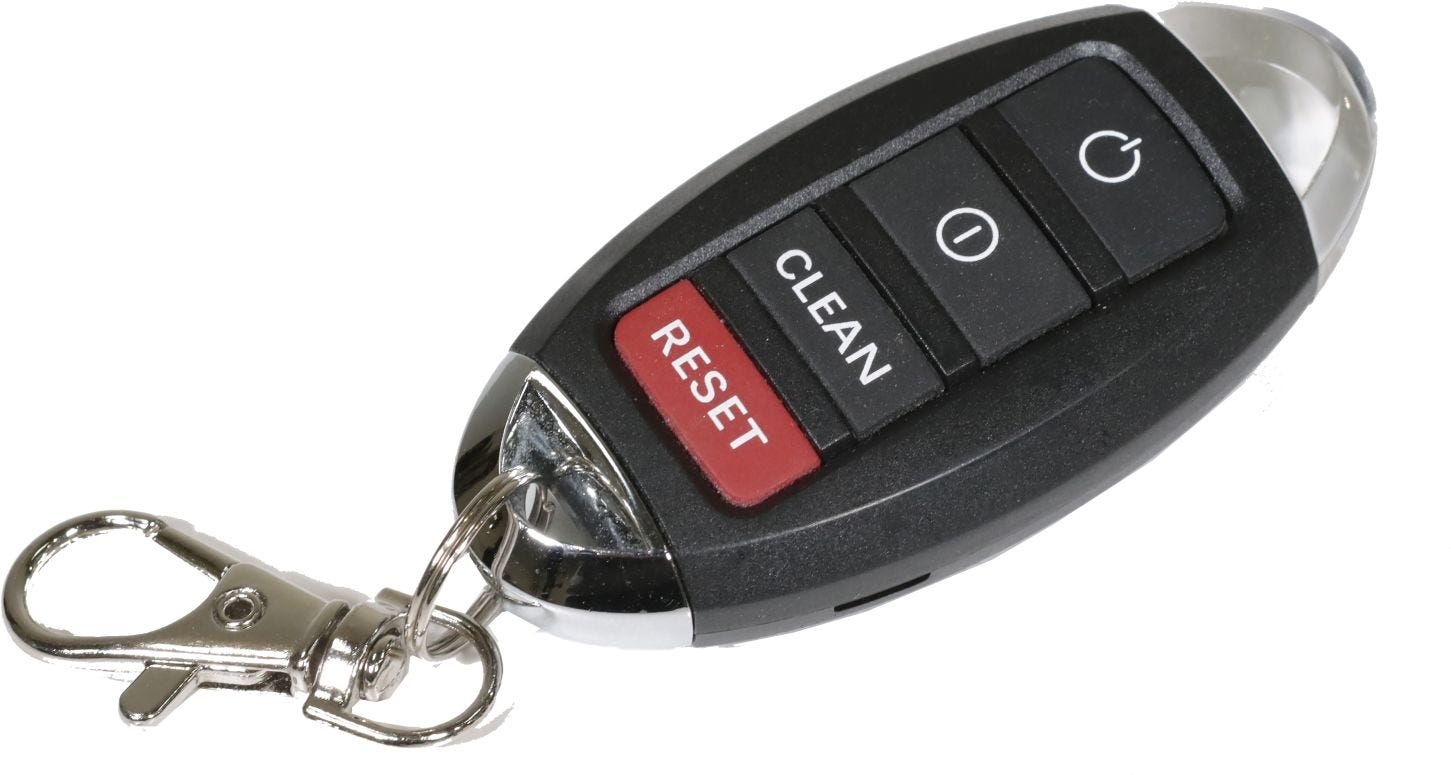

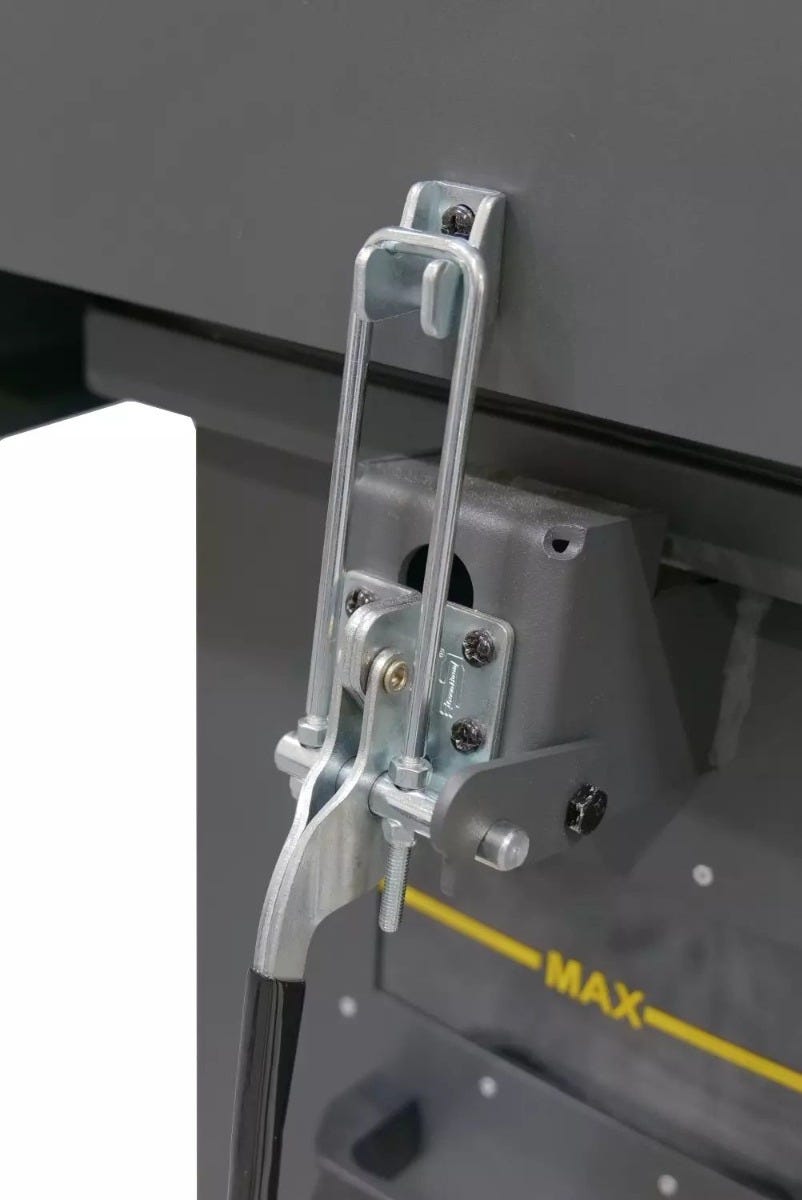

From a day-to-day use standpoint, this Laguna dust collector is set up like shop equipment should be. The collector uses an 8 inch inlet, a 14.5 inch fan, and a 39 gallon octagon drum on locking casters for debris collection. The drum size gives you useful chip capacity before emptying, while the locking casters make servicing the drum a lot less annoying than wrestling with fixed bins. Laguna also includes a high-frequency remote control and an LED drum light, both of which are practical features you appreciate once the collector is installed and not sitting right next to you.

Noise is another area where this unit makes sense for an enclosed shop. Laguna lists the sound level at 69 dBA at 9.8 feet. For a 5 horsepower dust collector, that is a meaningful number because it points to a machine designed to move serious air without becoming one more thing you dread turning on. No dust collector is silent, but lower operating noise matters if the machine runs for long stretches through the workday.

Physically, this is a substantial machine with assembled dimensions of 36 inches long, 38 inches wide, and 91 inches high. Machine weight is listed at 456 lbs, with shipping weight at 544 lbs. That size and weight tell you exactly what this is: a permanent shop fixture, not a portable extractor. The tradeoff is stability, capacity, and airflow that better match larger saws, planers, jointers, and sanding operations.

Who should buy it? The Laguna X|Flux 5 Dust Collector makes the most sense for woodworkers who have already outgrown smaller single-tool dust collection setups. It is a strong fit for cabinet makers, furniture builders, school shops, custom millwork shops, and advanced home shops with multiple stationary machines. If you are running a larger table saw, planer, jointer, wide sander, or central ducting system and want high airflow with HEPA filtration, this machine is built for that job.

Laguna X|Flux 5 Dust Collector for Shops That Are Done Messing Around

This is a serious shop dust collector with the airflow, filtration, and capacity to support larger woodworking setups without constant babysitting.

• Who it's for: Woodworkers, cabinet makers, and production-minded shops that need a stationary dust collection system for larger machines and heavier chip loads.
• Why it stands out: The combination of 5 horsepower, 3093 CFM airflow, HEPA filtration, and automatic filter cleaning makes it a lot more than just a big bin with a motor on top.
• Worth knowing: This is a 220V single-phase machine that weighs 456 lbs, so plan for a dedicated install and enough floor space to service the drum comfortably.

• What type of dust collector is this? It is a full-size stationary single-stage dust collector for woodworking dust and chip collection.
• What power does it require? The unit runs on 220V, 60Hz, single-phase power and uses a 5 HP motor.
• Does it use HEPA filtration? Yes. It uses a HEPA cartridge filter rated at 99.7% efficiency for particles in the 0.3 to 0.4 micron range.
• Does the filter clean itself? Yes. The auto-clean system sweeps the filter every 3 minutes for 10 seconds using forward and reverse action.
