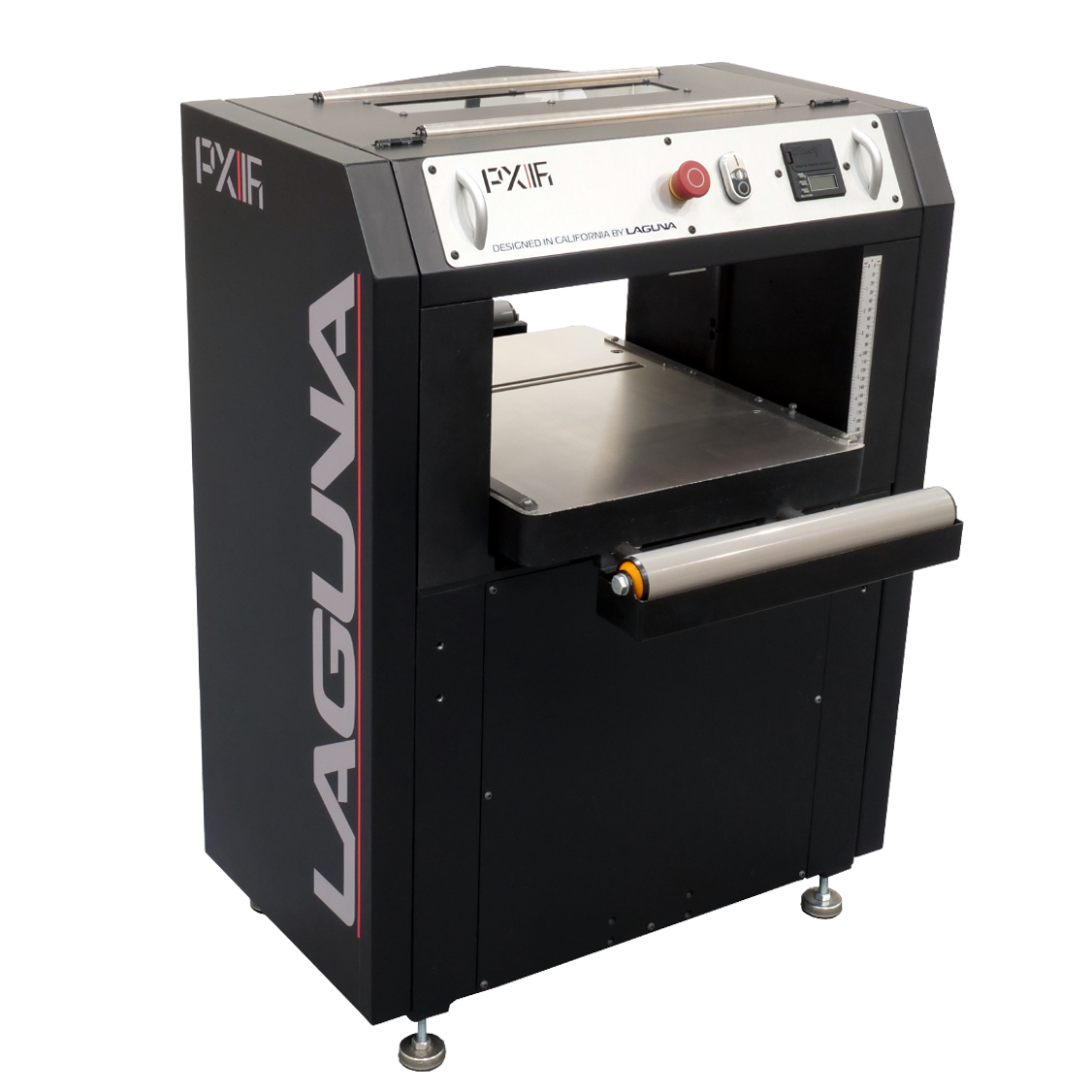

The Laguna PX|16 Planer, model MPLANPX16-0130, is a heavy-duty stationary woodworking planer built for shops that need clean surface finish, accurate thicknessing, and dependable feed performance on wider stock. This is a planer designed for thicknessing and finish planing solid wood stock. With a 16 inch maximum stock width, 8 inch maximum stock thickness, and a 5 horsepower 220V single-phase motor, it is aimed at serious woodworkers, cabinet shops, furniture builders, and production-minded users who have outgrown lunchbox planers.

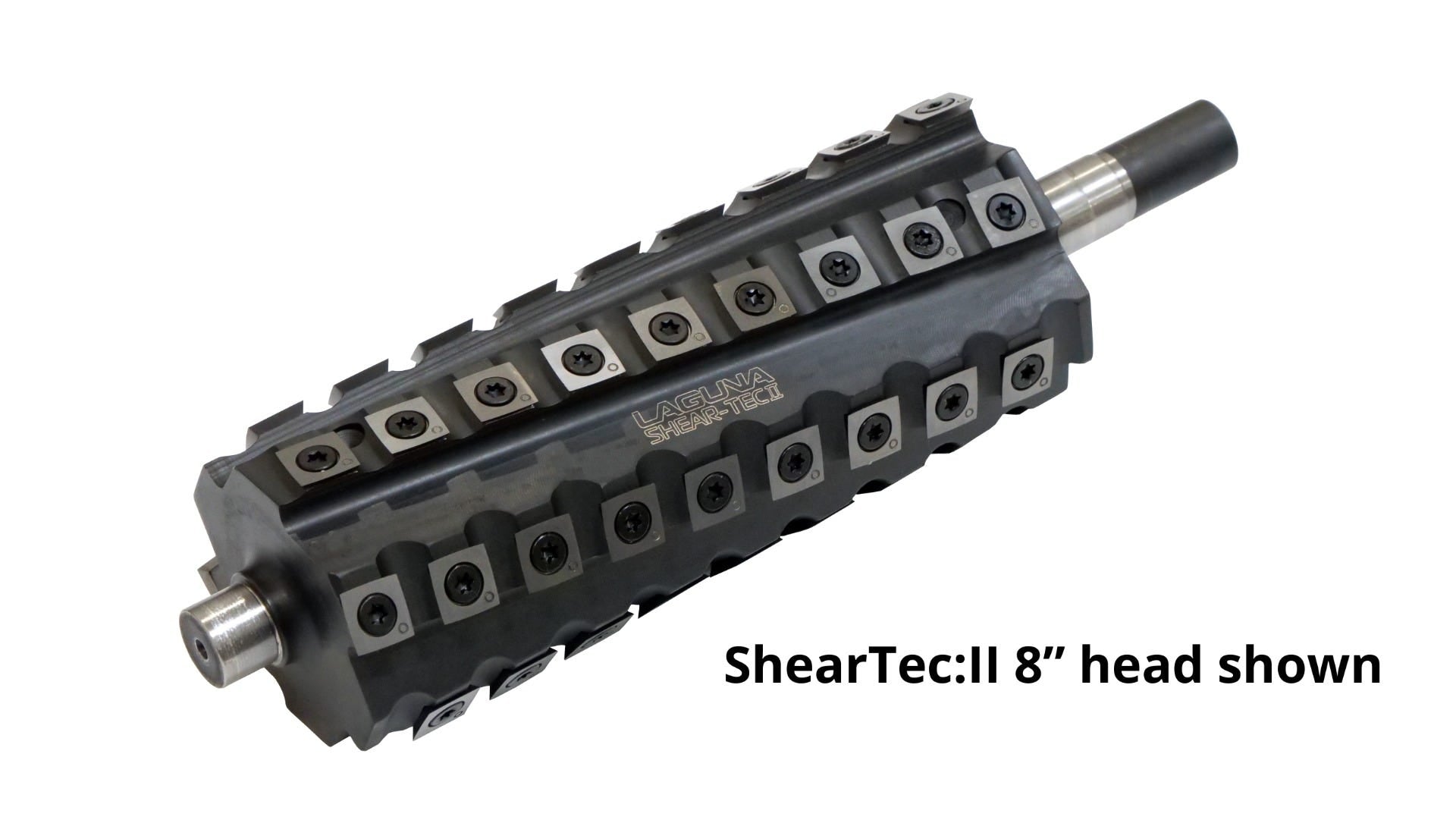

What matters most here is how the machine combines capacity with finish quality. The ShearTec II cutterhead uses 108 four-sided carbide inserts arranged in 6 rows, spinning at 5,000 cutterhead RPM. In practical terms, that means cleaner cuts across a wide range of species, better results on figured or difficult hardwoods, and less downtime when an edge dulls or gets nicked. Instead of resetting full straight knives, you rotate an insert and get back to work. That is a real time saver in a shop where setup interruptions kill momentum.

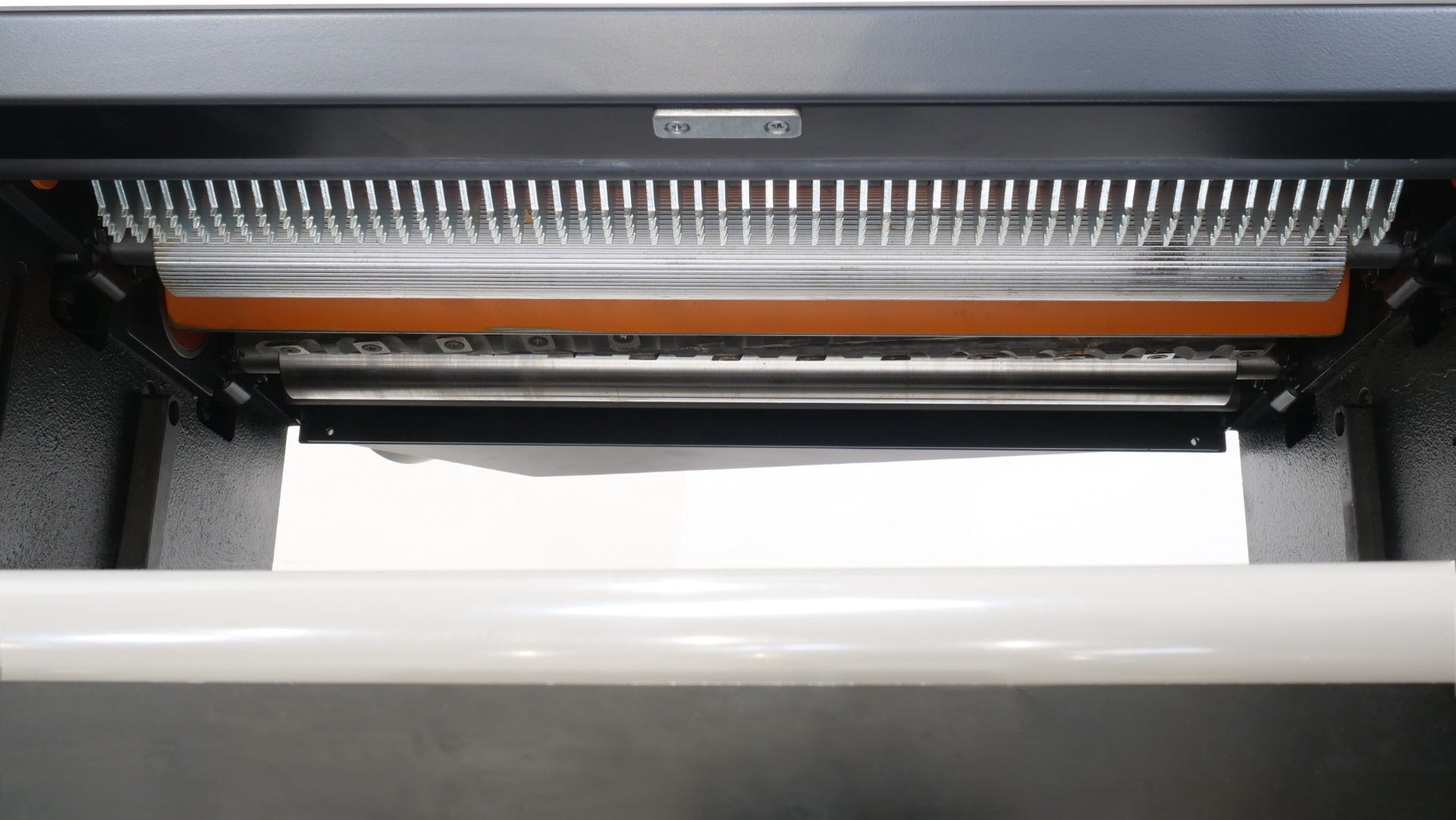

Laguna also paid attention to consistency. The 4-post bed support is there for a reason: it keeps the cutterhead and table relationship stable through the full cutting range so you are not chasing uneven results from side to side. The machine also uses a serrated infeed roller and pressure bar mounted close to the cutterhead to virtually eliminate snipe. If you have spent time trimming off the first and last few inches of boards after planing, you know why that detail matters.

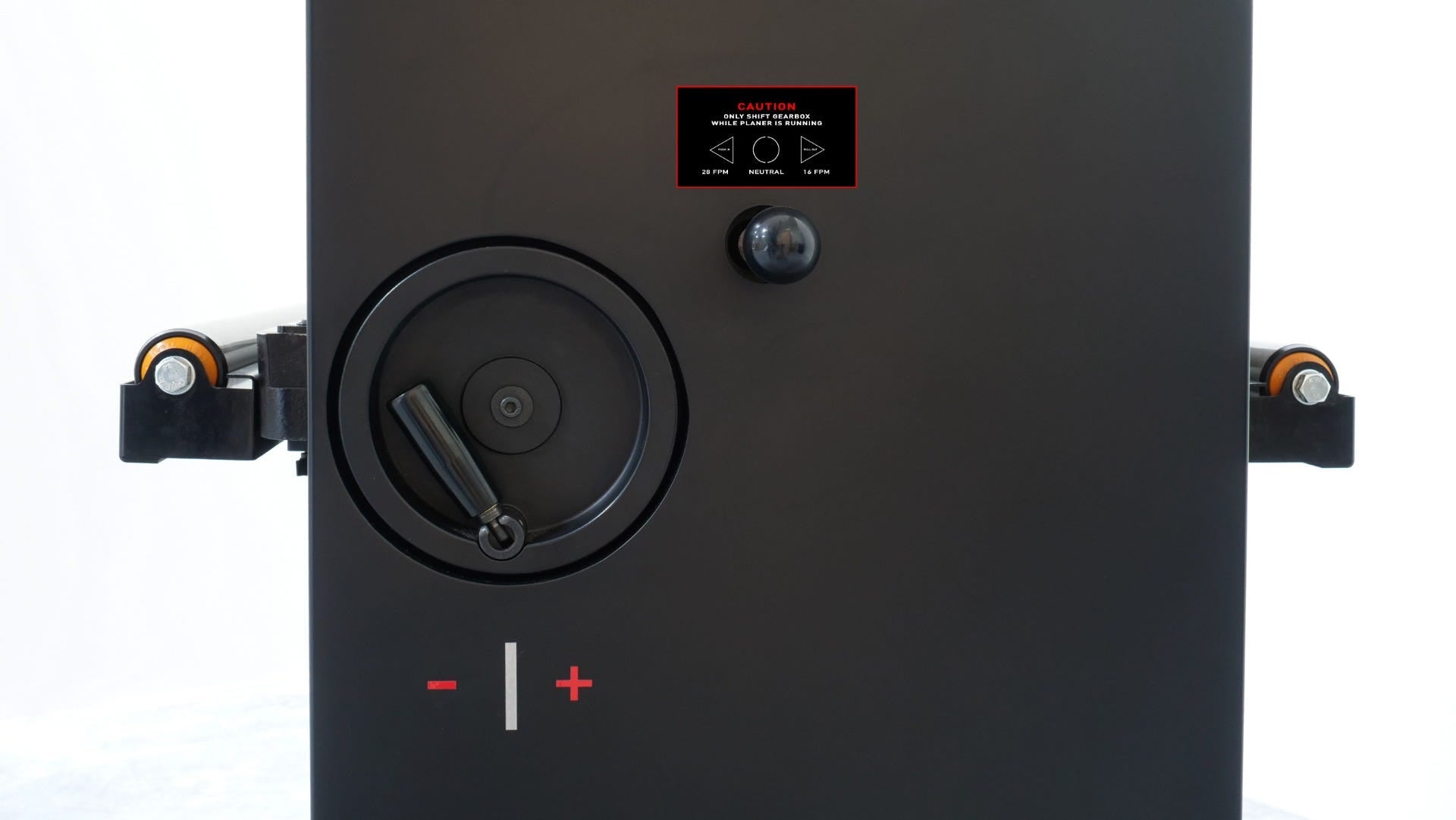

The feed system gives you two feed speeds, 16 and 28 feet per minute. That gives you a practical choice between a slower pass when surface quality matters most and a faster pass when you are moving material and sizing rough lumber efficiently. Maximum depth of cut is listed at 1/16 inch, with up to 1/8 inch possible for softwoods or edge planing. That balance tells you this machine is set up for real stock removal when needed, but it is still focused on controlled, repeatable woodworking results instead of brute-force hogging.

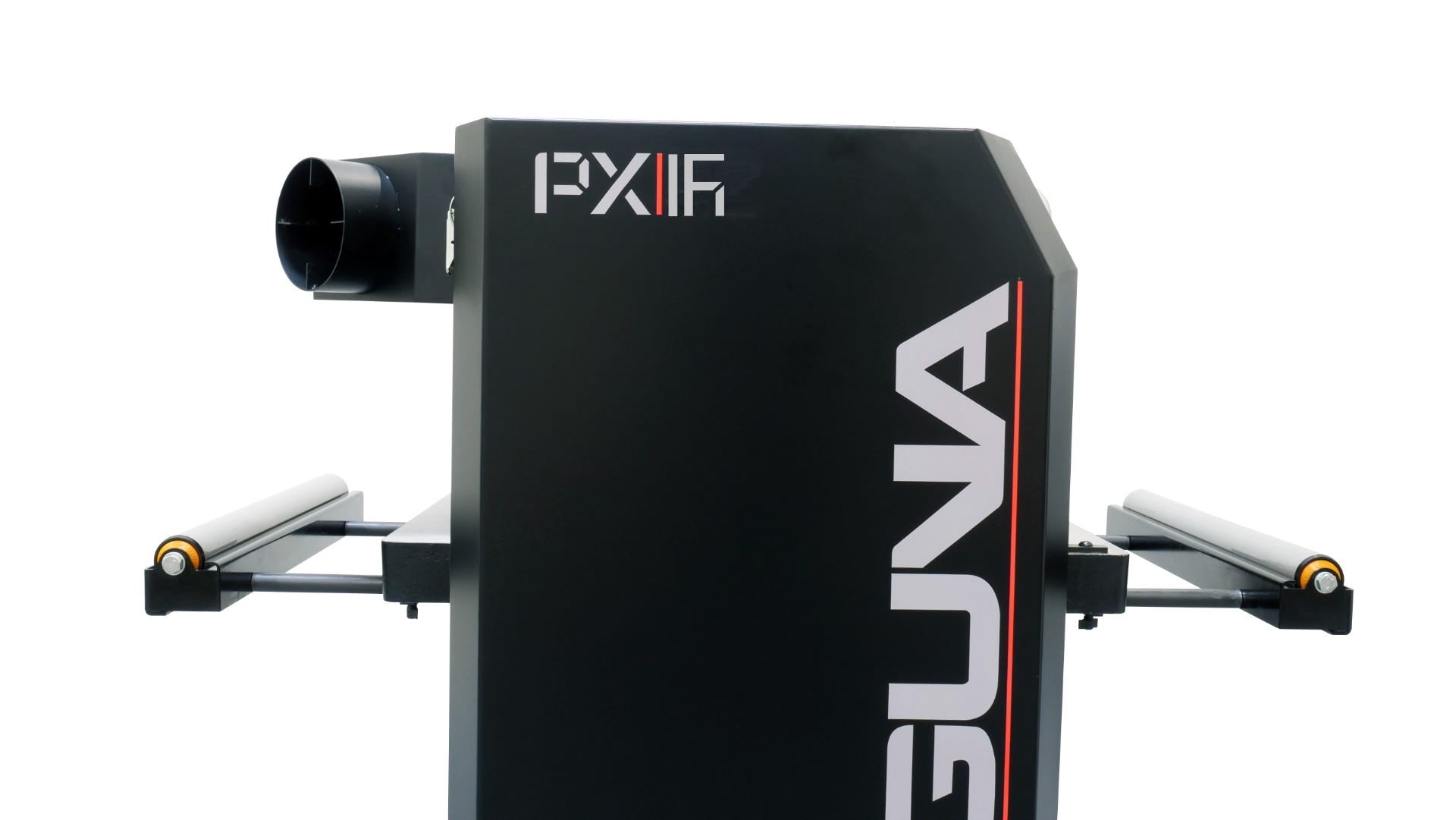

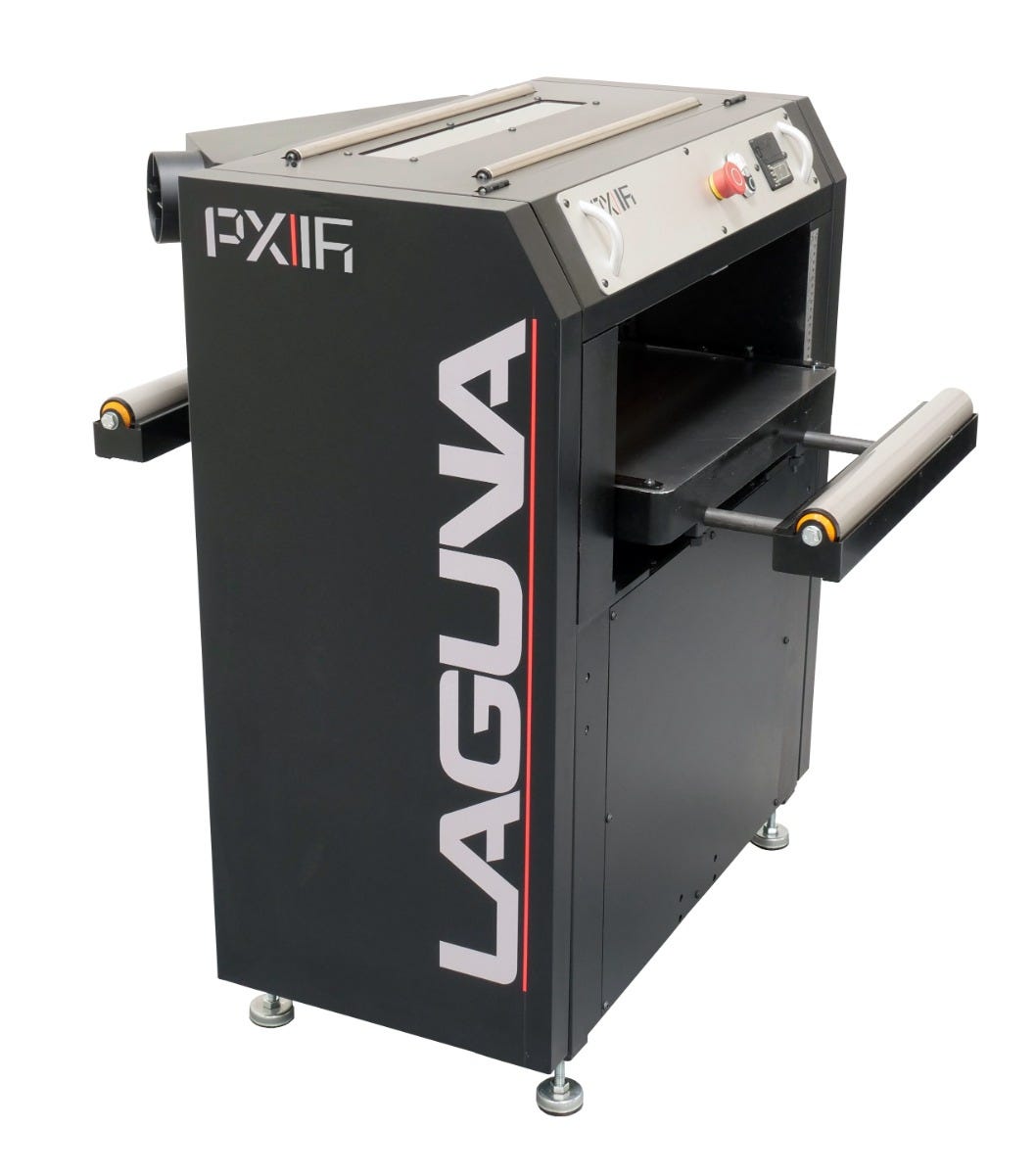

From a usability standpoint, the PX|16 has a more operator-friendly layout than older fixed-control machines. The digital thickness readout uses a Wixey DRO mounted on the control panel, so your thickness setting is easier to see and easier to dial in accurately. Laguna also moved the controls to the top of the machine and angled them toward the user, which sounds minor until you are making repeated adjustments throughout the day. The infeed and outfeed rollers help support material handling while keeping the footprint compact.

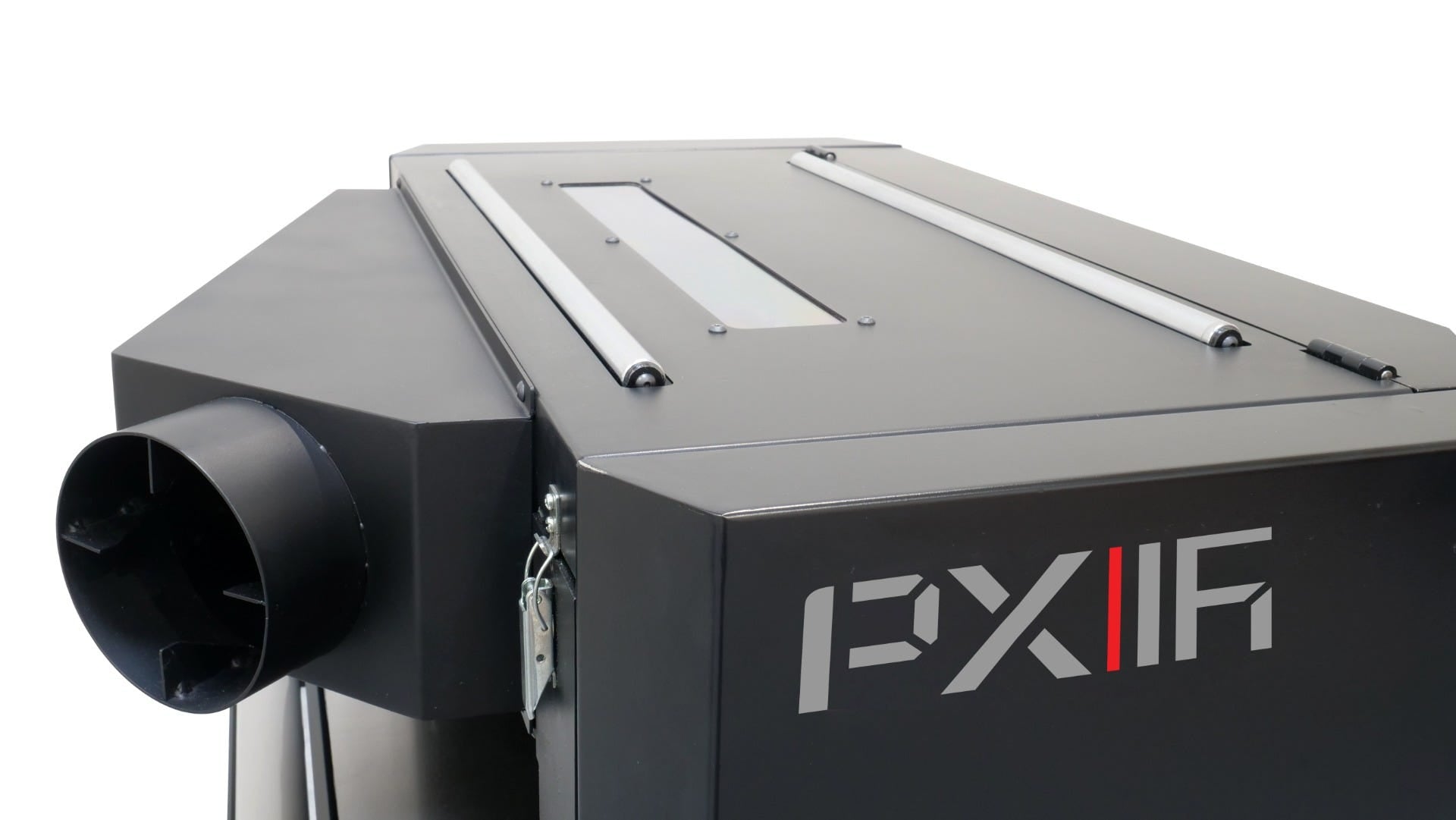

Dust collection and shop layout are handled in a practical way too. The 4 inch dust port can be directed left or right, which makes it easier to tie this planer into an existing dust collection run without forcing the whole machine into an awkward position. Deep grooves in the ShearTec II cutterhead are also designed to improve shaving ejection and help keep operation quieter, with listed noise at 83 dB measured 1 meter away. For a machine in this class, that is worth noting if your planer sits in a shared or smaller shop space.

At 493 pounds, this is not a portable thickness planer and that is a good thing. The weight, cabinet design, and overall machine size are part of what make it stable when feeding larger hardwood boards. Bed size is 16 inches by 21-1/2 inches, with an additional 4 inch pull-out extension, and the minimum stock length is 8 inches with minimum thickness down to 1/4 inch. That gives the Laguna PX|16 Planer useful range for both small precision parts and larger board work.

If you are a hobbyist working occasionally with narrow stock, this is more machine than you need. If you are regularly milling rough lumber, building furniture, making doors, running cabinet parts, or trying to get premium finish quality without constant knife maintenance, this machine makes a lot more sense. The Laguna PX|16 Planer is for the woodworker who wants shop-grade capacity, carbide insert convenience, and repeatable thicknessing without stepping into a full industrial three-phase setup.

• What size stock can the Laguna PX|16 Planer handle? It is rated for material up to 16 inches wide, up to 8 inches thick, as thin as 1/4 inch, and as short as 8 inches.
• What type of cutterhead does it use? It comes standard with a ShearTec II cutterhead with 108 four-sided carbide inserts arranged in 6 rows.
• Does it have more than one feed rate? Yes. The machine offers two feed speeds: 16 and 28 feet per minute.
• What power does it require? The motor is 220V, 5 horsepower, single phase, 60 Hz, and draws 23 amps.
• How is dust collection handled? It uses a 4 inch dust chute that can be pointed to the left or right to better fit your shop layout.

Laguna PX|16 Planer for shops ready to stop fighting finish quality

The Laguna PX|16 Planer gives you the cutterhead, capacity, and bed support you want when a benchtop planer just is not cutting it anymore.

• Who it's for: Woodworkers, cabinet makers, and furniture builders who regularly mill rough lumber and want repeatable thicknessing on wider boards.
• Why it stands out: The ShearTec II 6-row carbide insert cutterhead, 4-post bed support, and practical two-speed feed setup make this a smart step into true shop-grade planing.
• Worth knowing: This is a 493 lb stationary machine with a 220V single-phase requirement, so make sure your space and electrical setup are ready for it.
