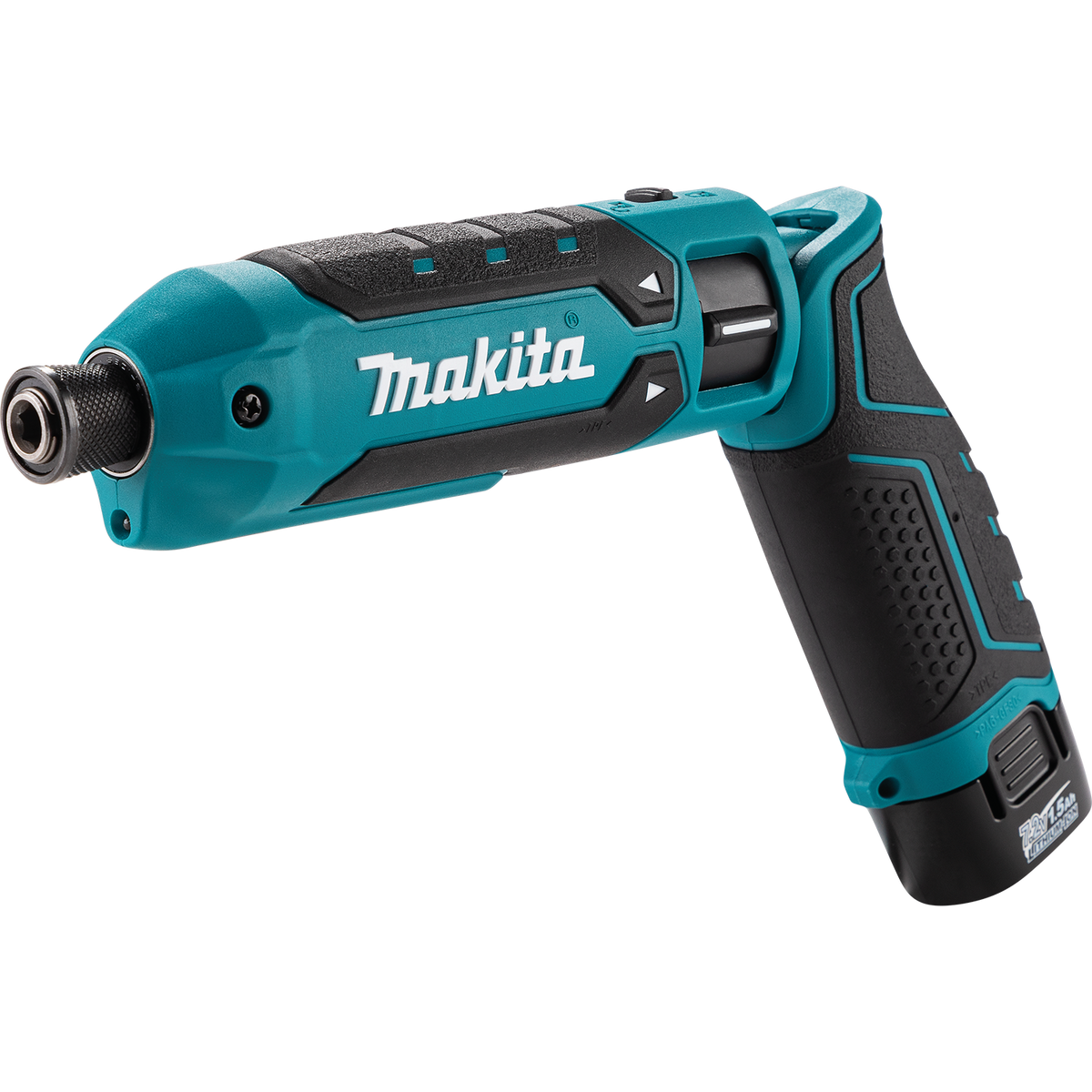

Makita 7.2V Lithium-Ion Cordless 1/4-in. Hex Pen Impact Driver, 1.5Ah Kit (TD023DSE)
Makita 7.2V Lithium-Ion Cordless 1/4-in. Hex Pen Impact Driver, 1.5Ah Kit (TD023DSE)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details

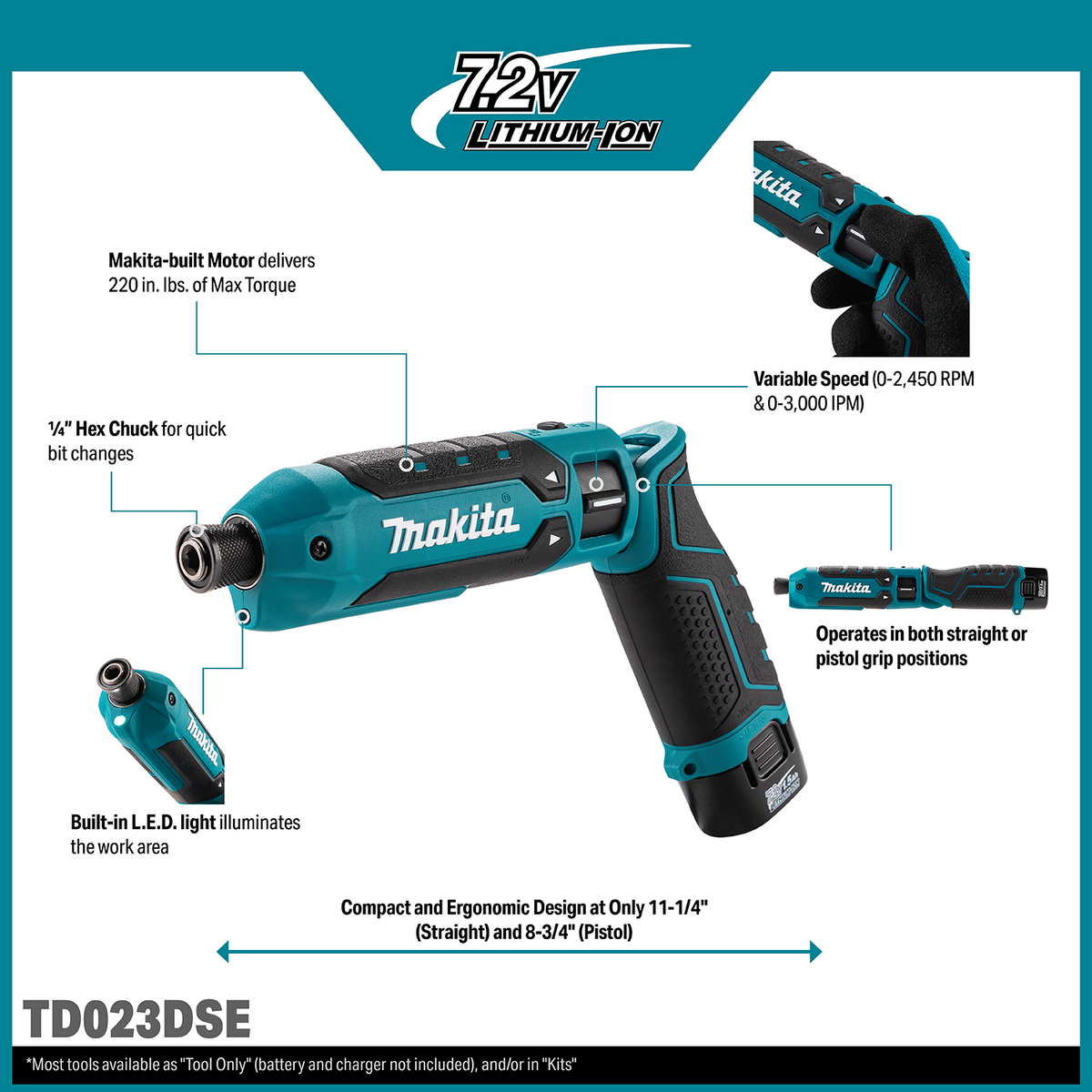

Key Features
Overview
The Makita TD023DSE 7.2V Lithium-Ion Cordless Impact Driver Kit is a compact pen-style impact driver with a Makita-built motor that delivers 220 in.lbs. of max torque. This is a hex pen impact driver designed for light-duty fastening such as electrical device installation, cabinet hardware, fixture mounting, and assembly work. Model number TD023DSE. The kit includes two 7.2V 1.5Ah batteries, a charger, and a tool case.

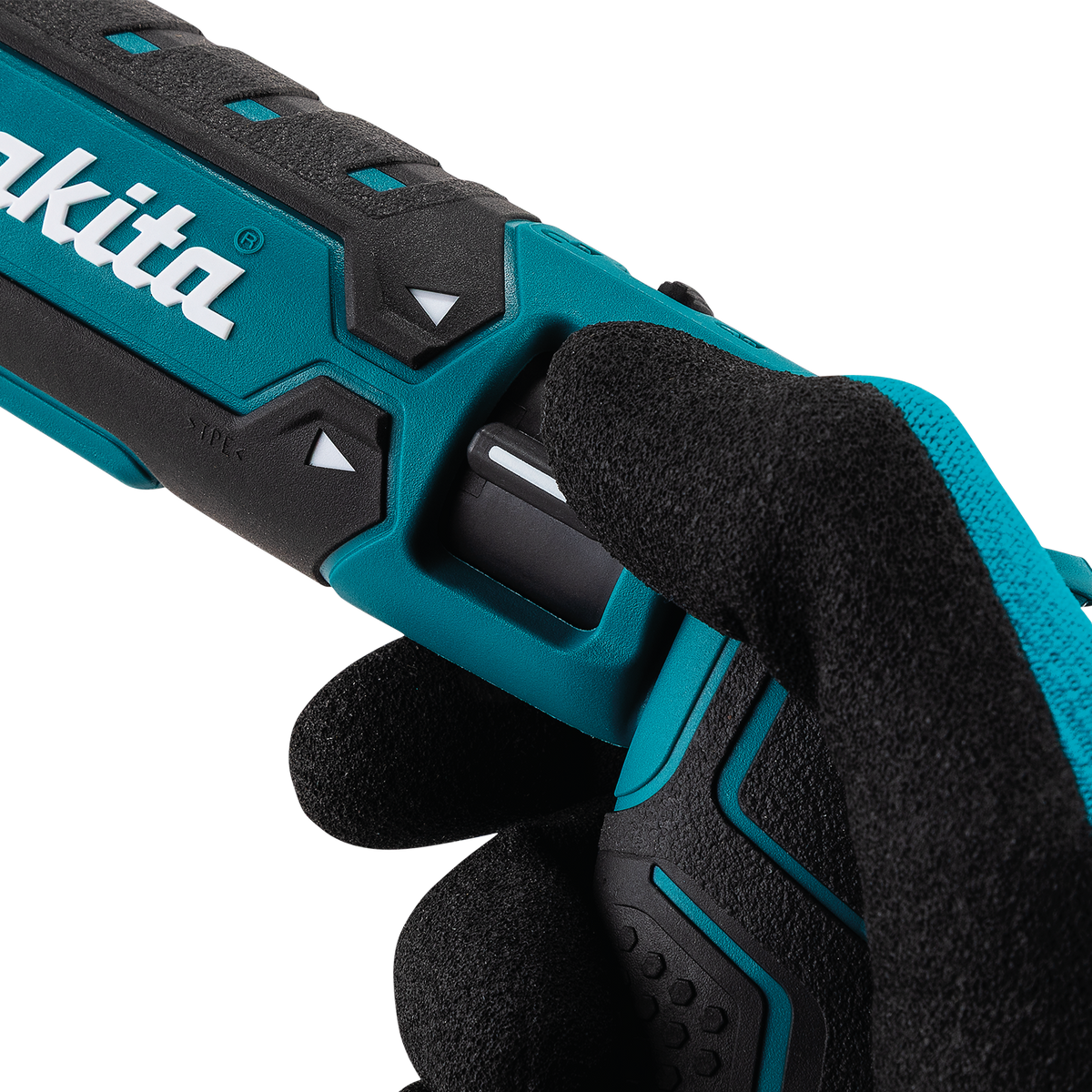

Variable speed from 0 to 2,450 RPM and 0 to 3,000 impacts per minute covers a wide range of fastening applications. The ergonomically located forward/reverse switch makes direction changes easy for precise screw driving.

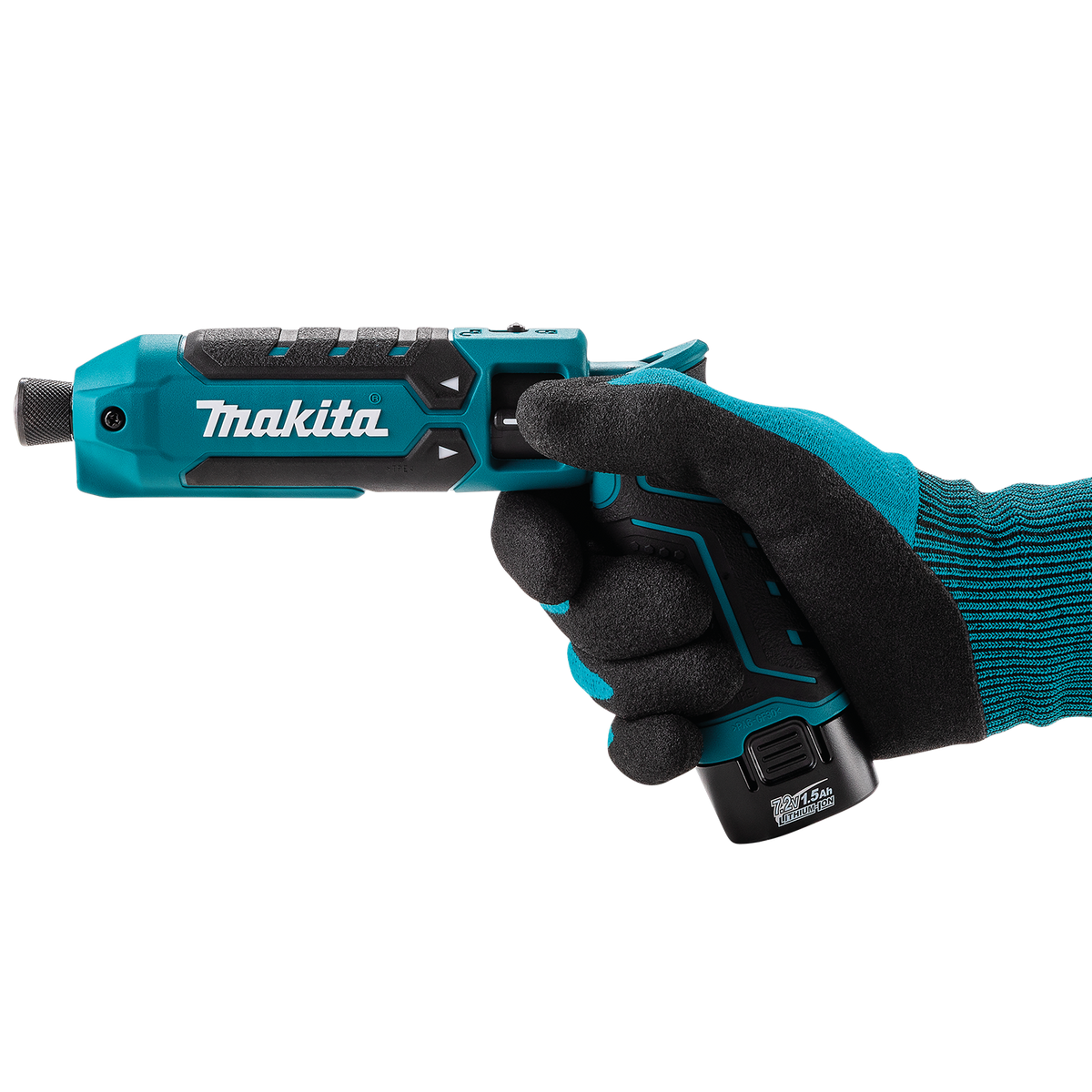

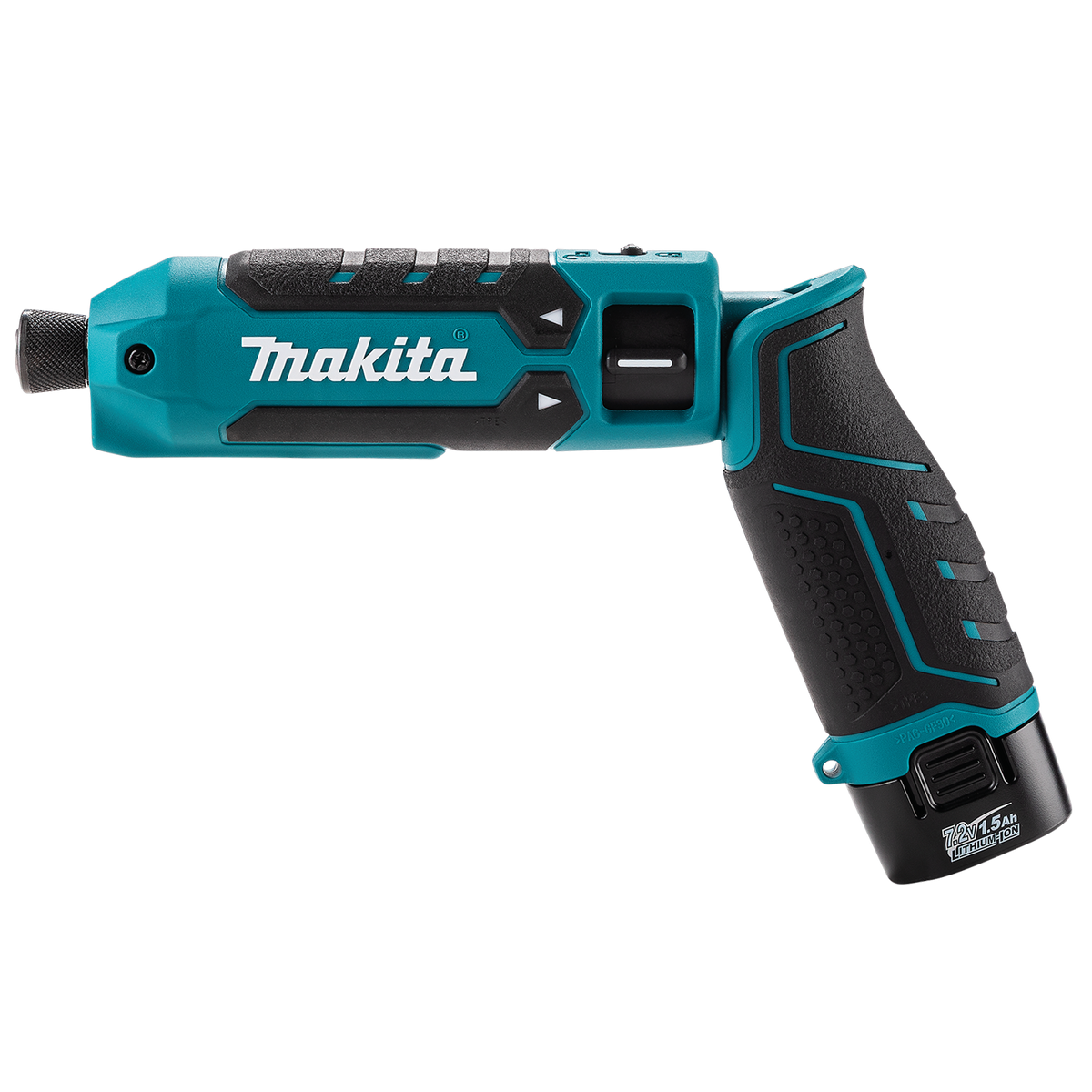

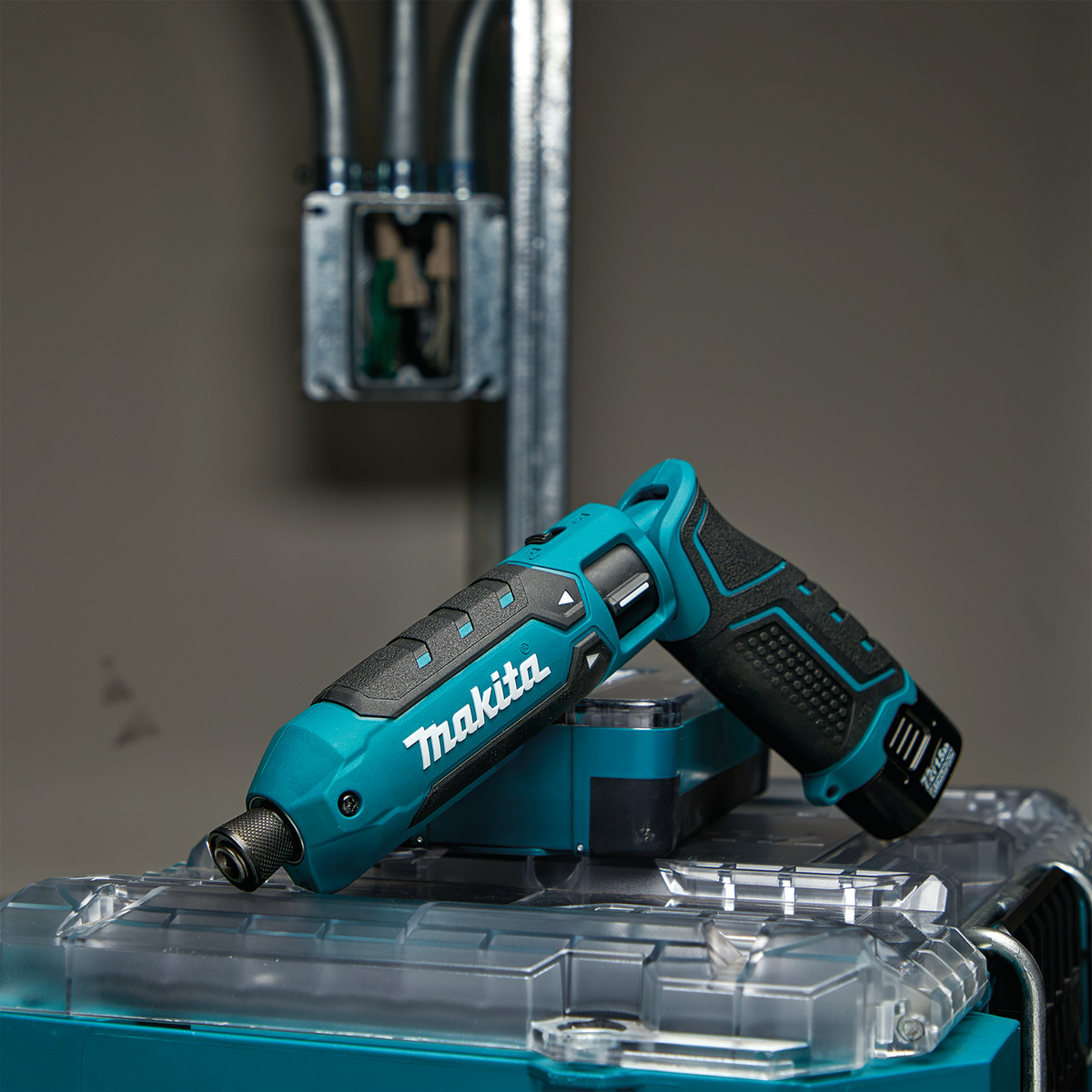

The TD023DSE operates in a straight, in-line position or a pistol grip position. In-line it measures 10-1/4 inches; as a pistol grip it measures 8-3/4 inches. That flexibility lets you reach into electrical boxes and cabinets in-line, then switch to a pistol grip when you want more control.
The tool can also be used as a hand-driven screwdriver to securely fasten screws to proper torque. An electric brake supports maximum productivity, and a lock-off switch adds user convenience.
The 1/4-inch hex chuck allows quick bit changes. A soft grip handle adds comfort, and at only 1.3 lbs. with battery, the driver reduces operator fatigue during repetitive work. The built-in LED illuminates the work area and flashes when it is time to recharge.
Makita 7.2V lithium-ion batteries provide longer run time and lower self-discharge, so the driver is ready when you pull it out of the case. Electricians, cabinet installers, maintenance staff, and serious DIYers who want a pocket-sized driver with more punch than a screwdriver will get a lot of use from this kit.

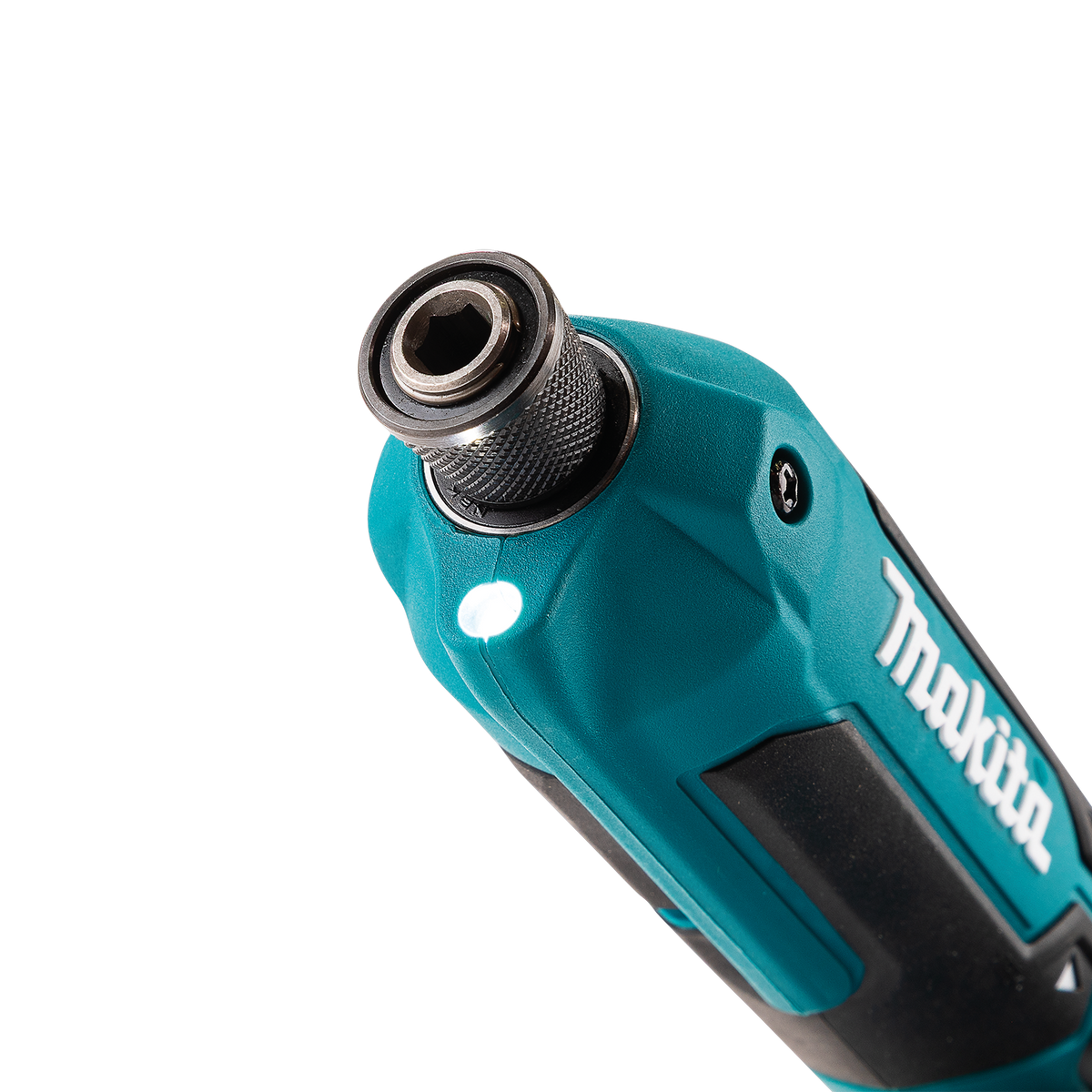

Fasten Where You Can See
The built-in LED lights up dark boxes and cabinets, and it flashes to tell you when the battery needs charging.
- Built-in LED work light
- Flashing low-battery warning
- 0 to 2,450 RPM variable speed

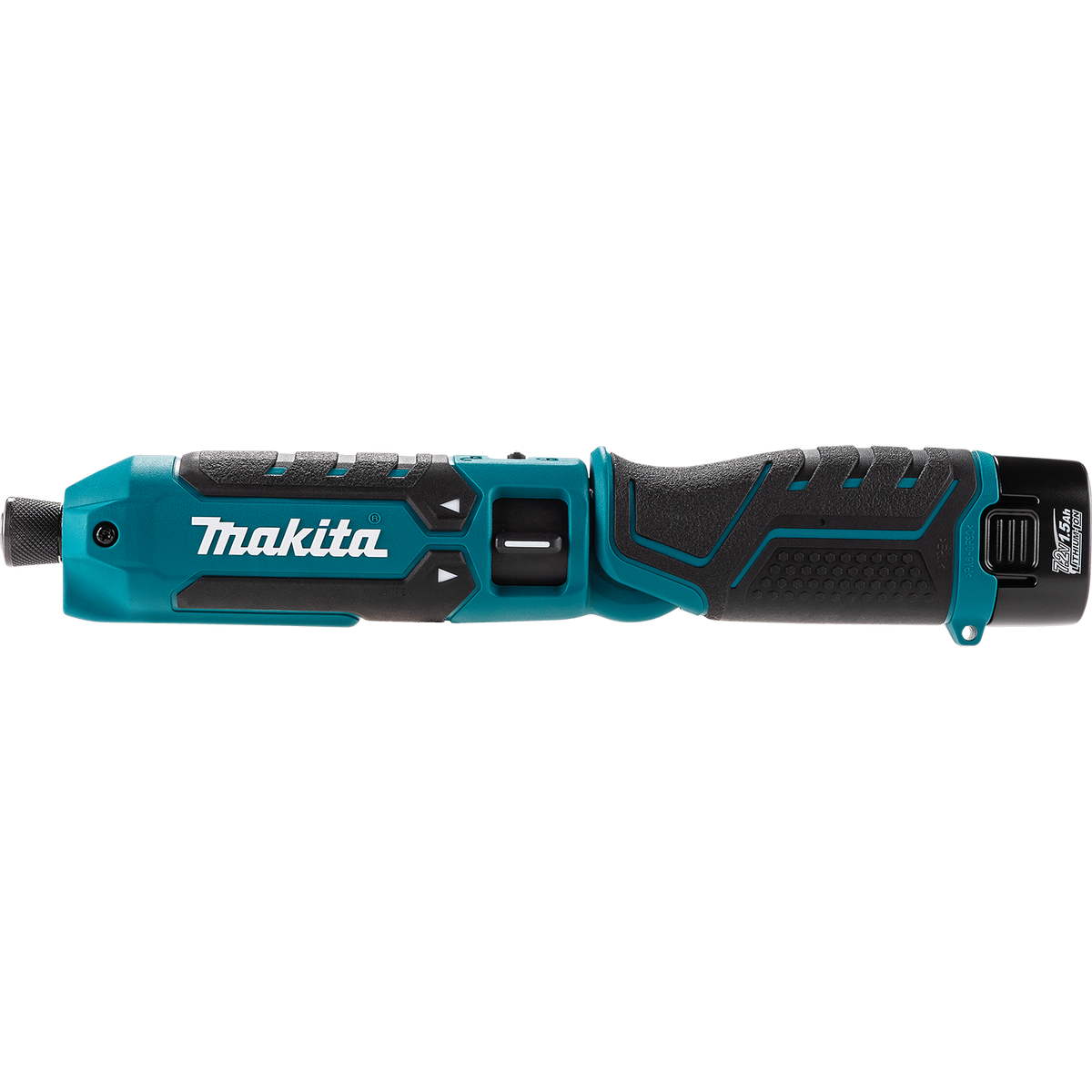

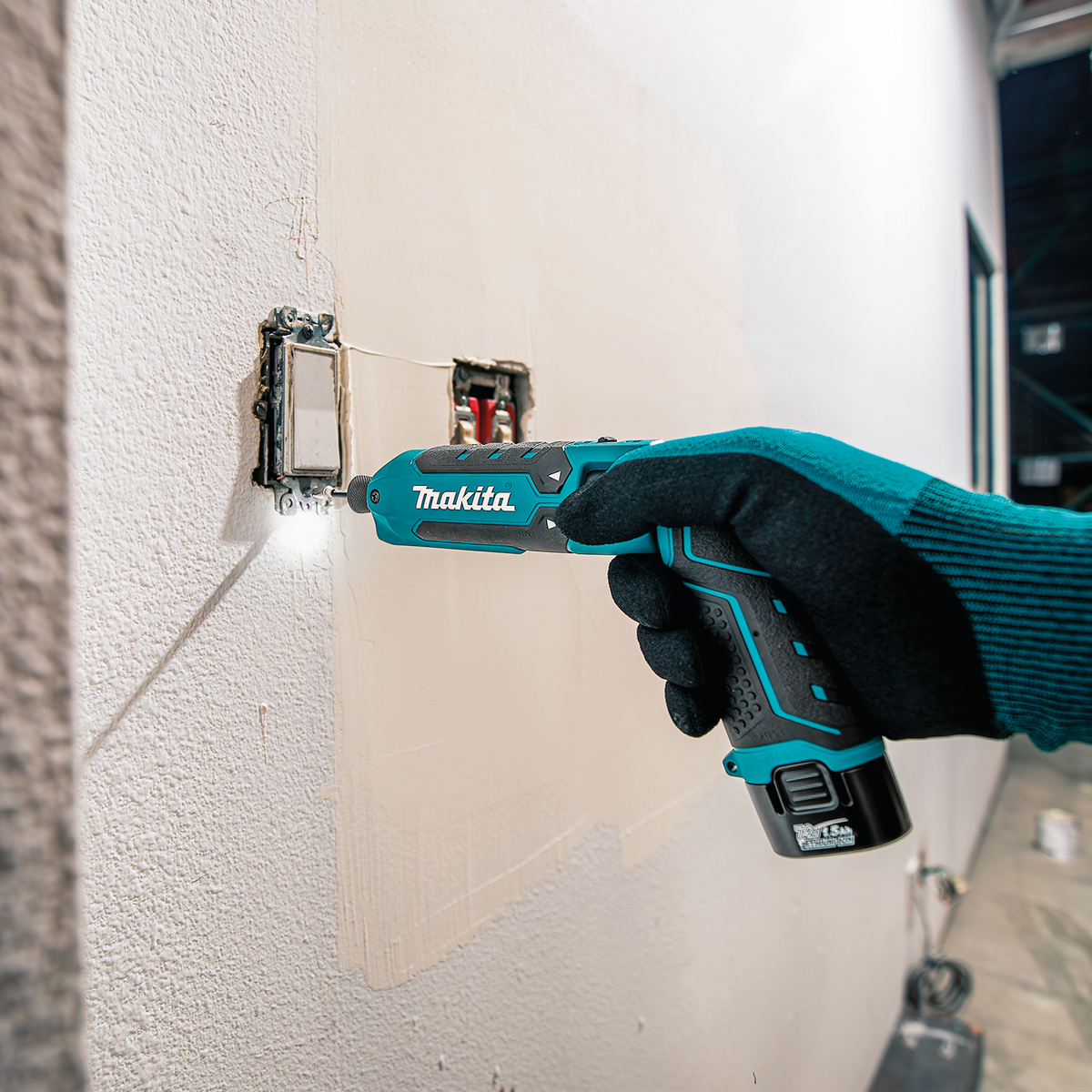

In-Line for Tight Spaces

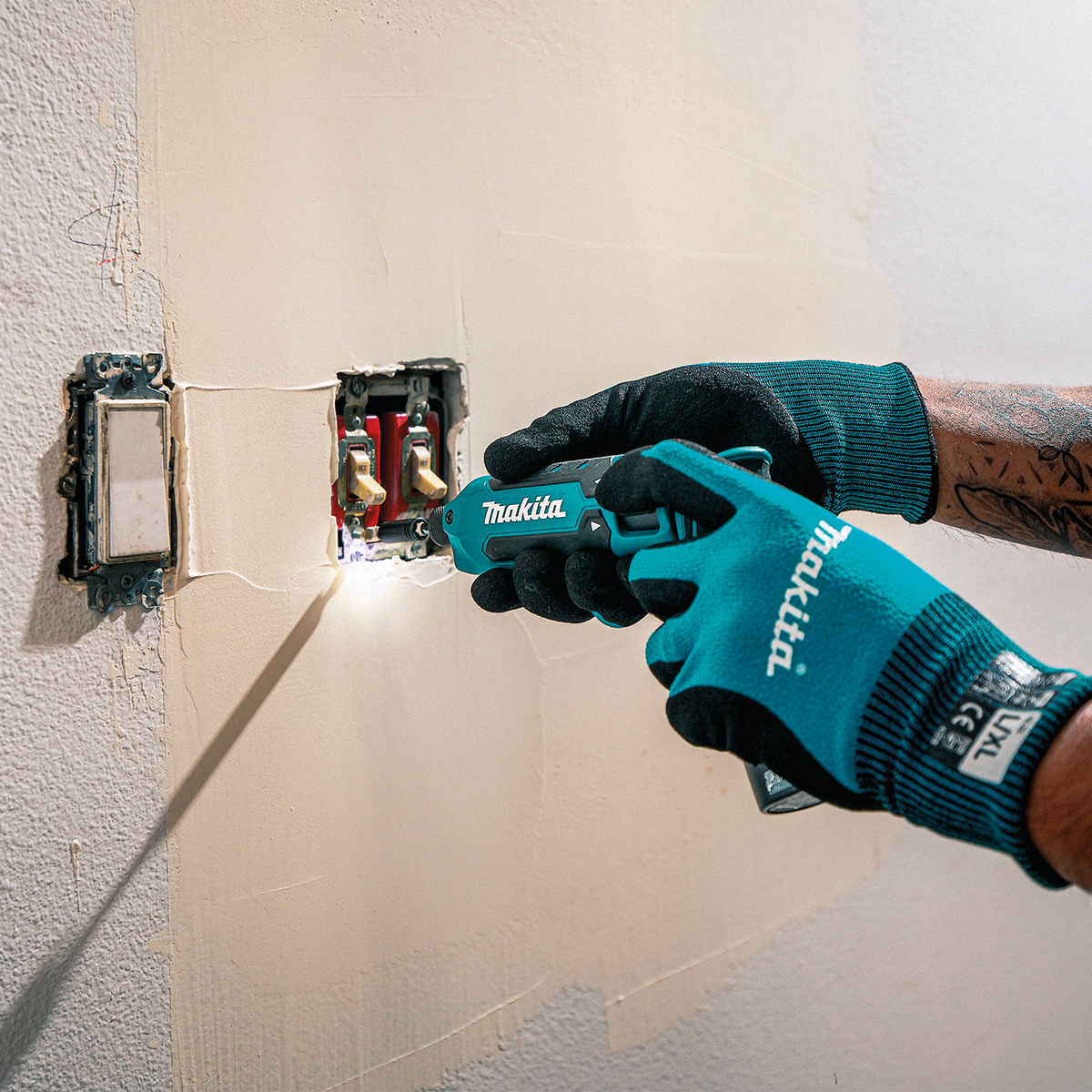

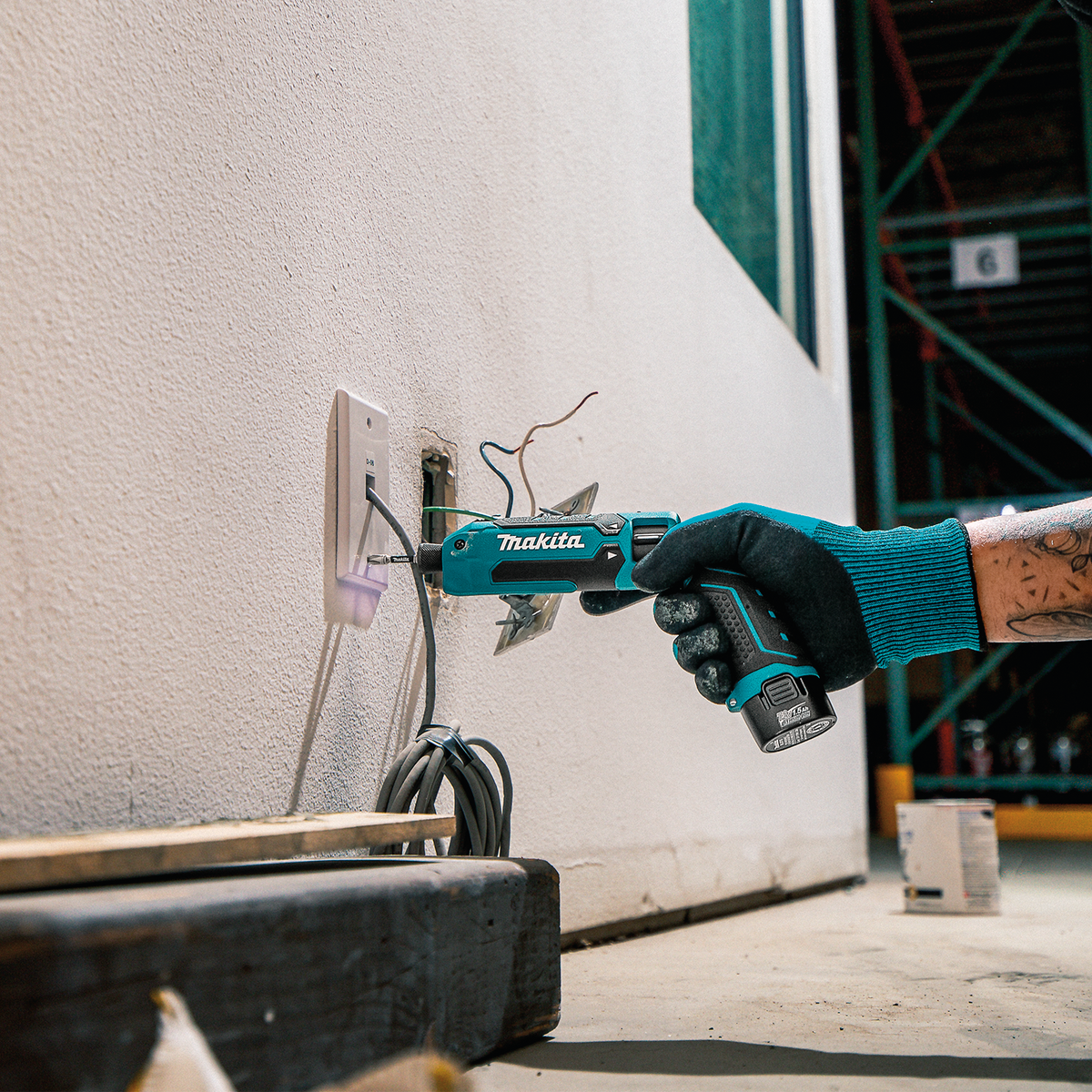

Run it straight in-line to reach into electrical boxes and other tight spots where a larger driver will not fit.
- 10-1/4 in. long in-line
- 8-3/4 in. long in pistol grip
- Operates in straight or pistol grip positions

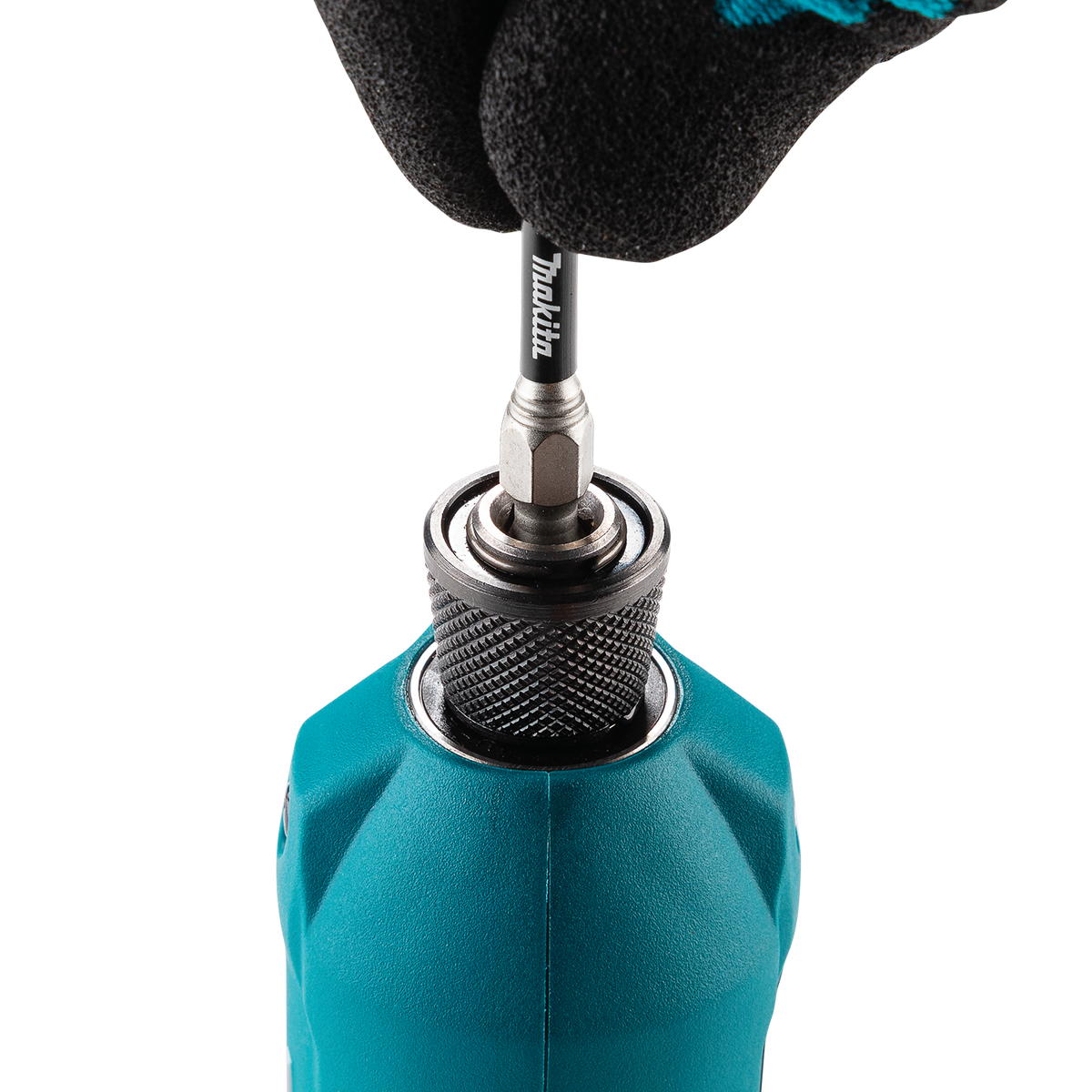

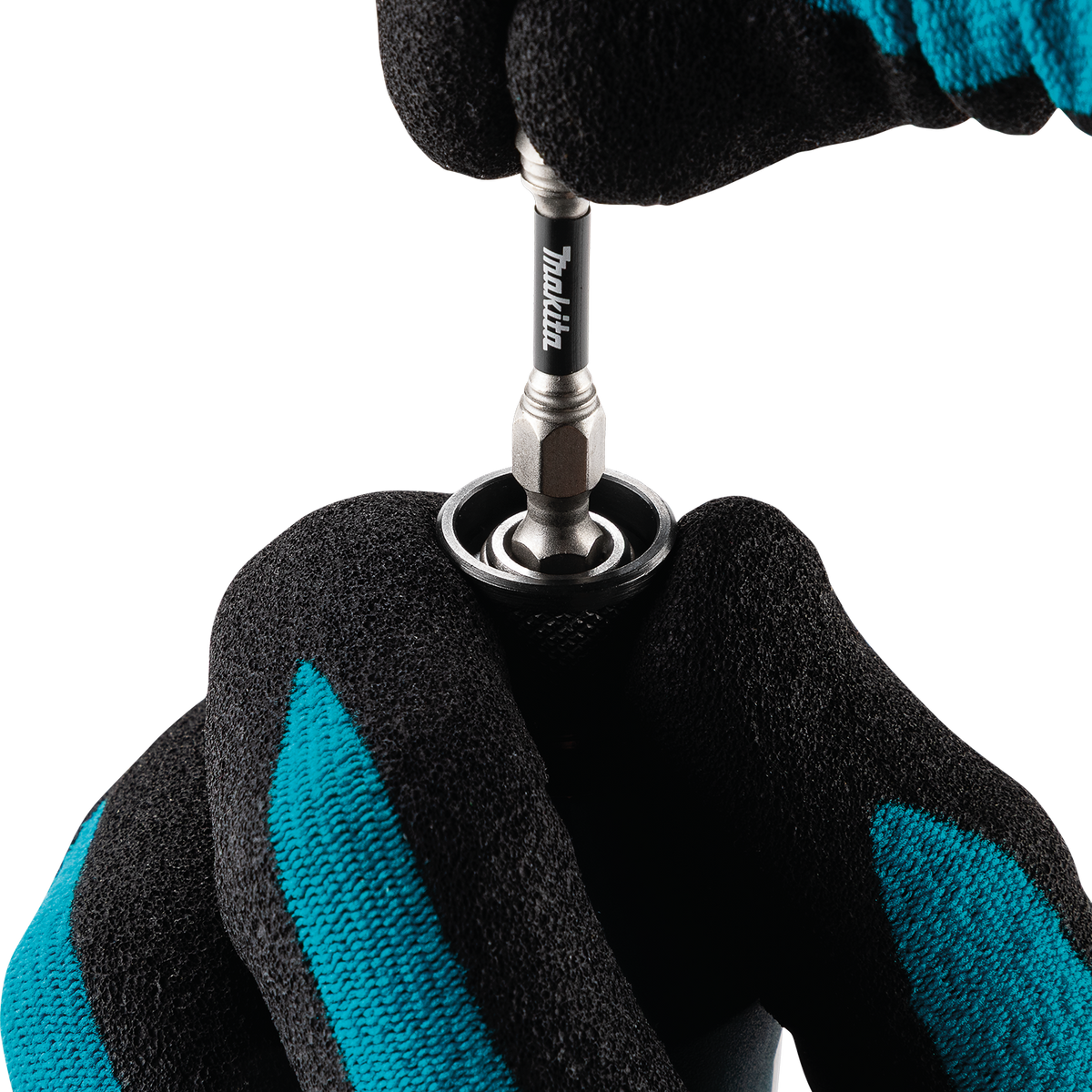

Quick Bit Changes
The 1/4-inch hex chuck takes standard hex shank bits for fast swaps between screw types.
- 1/4 in. hex chuck

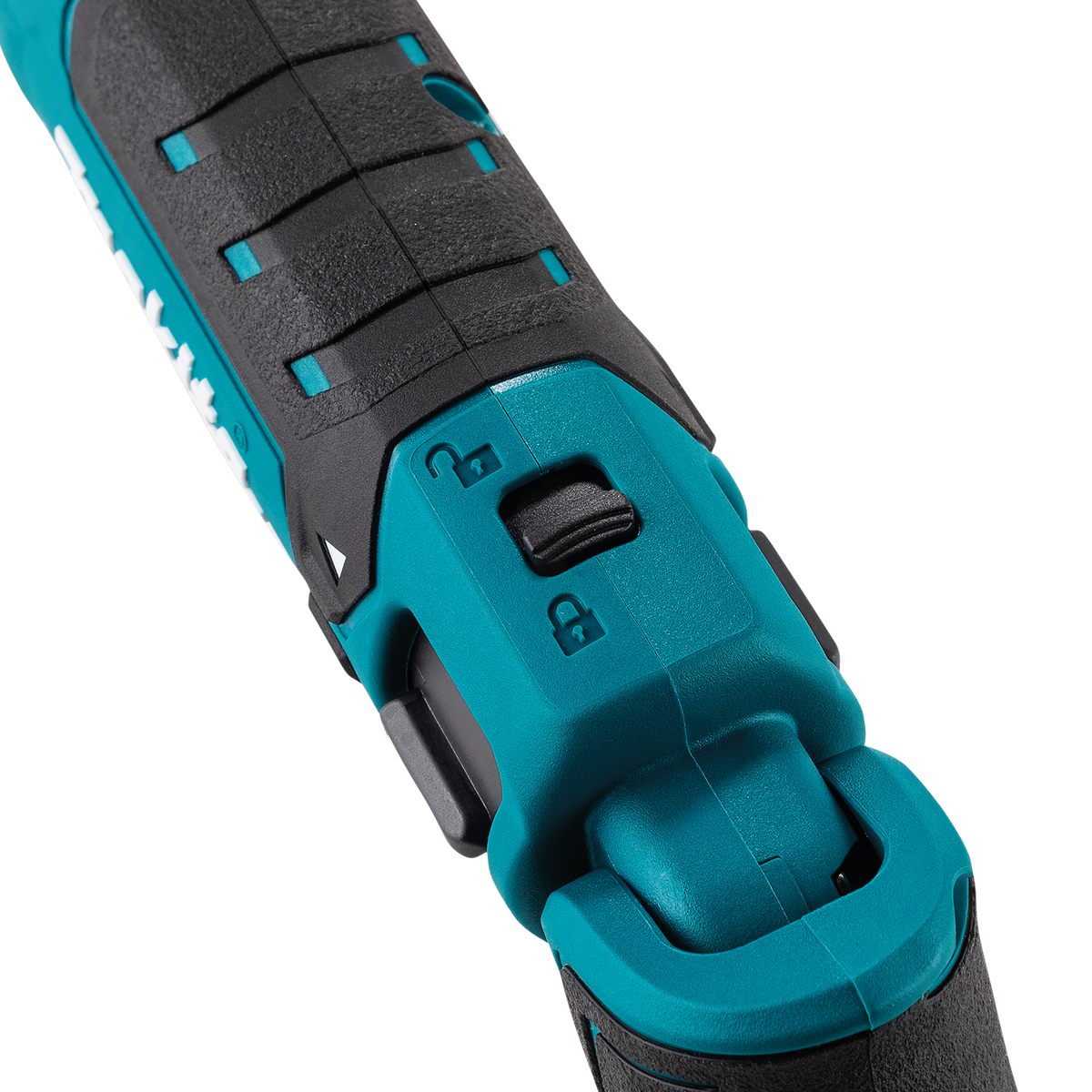

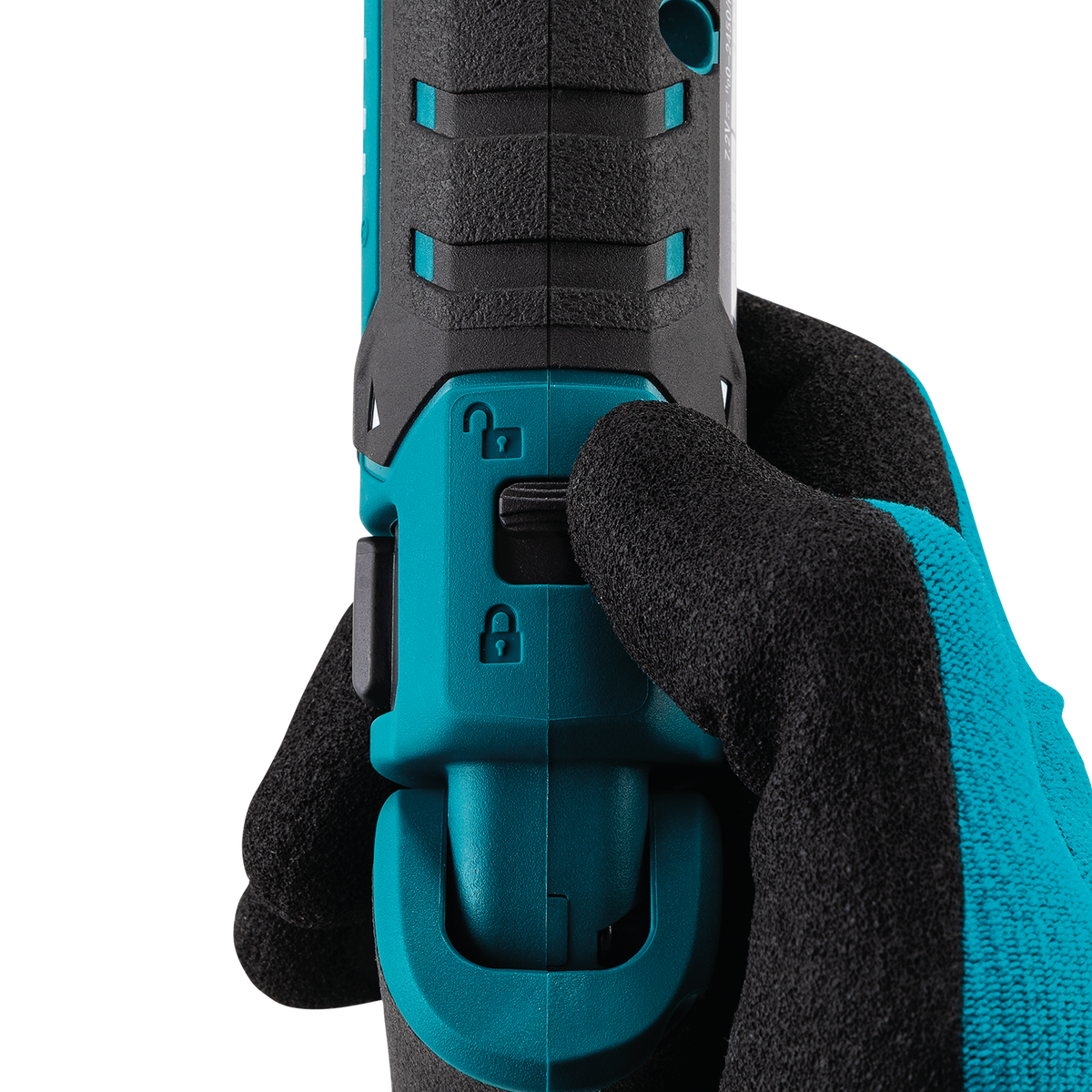

- Lock-off switch for user convenience
- Electric brake for maximum productivity
Kit-Ready in the Case
The kit arrives with two batteries, a charger, and a case, so you are ready to work out of the box.
- (2) 7.2V 1.5Ah lithium-ion batteries
- 7.2V to 12V max charger
- Tool case included

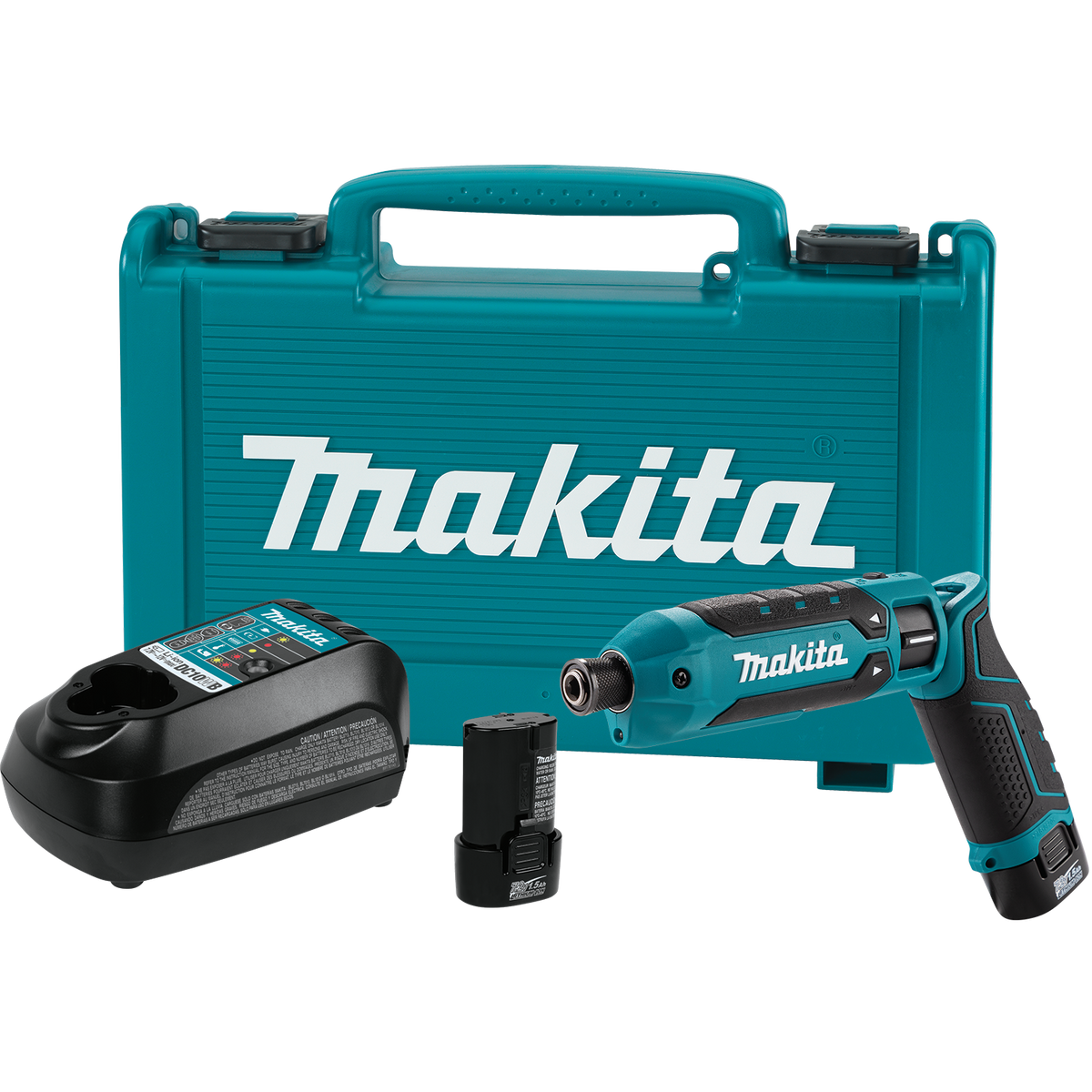

What's in the Box
- (1) 7.2V Lithium-Ion Cordless Impact Driver
- (2) 7.2V Lithium-Ion 1.5Ah Battery (BL0715)
- (1) 7.2V - 12V max Lithium-Ion Charger (DC10WB)
- (1) Tool Case (824842-6)
Key Specifications
| Voltage | 7.2V |
|---|---|
| Max Torque | 220 in.lbs. (25 N·m) |
| No-Load Speed | 0 - 2,450 RPM |
| Impacts Per Minute | 0 - 3,000 IPM |
| Chuck | 1/4 in. hex |
| Overall Length (in-line) | 10-1/4 in. |
| Overall Length (pistol) | 8-3/4 in. |
| Weight (with battery) | 1.3 lbs. |
| Battery | 7.2V 1.5Ah lithium-ion (2 included) |
Compatibility
Built For
Pro Tip
Use the motor to run the screw down, then turn the driver by hand for the final snug. The TD023DSE can be used as a hand-driven screwdriver, which is a good way to avoid stripping small screws on device plates and cabinet hardware.
Warranty & Support
Tool Nut's Take
Pocket-Sized Punch
The Makita TD023DSE packs 220 in.lbs. into a 1.3 lb. pen driver that works in-line or as a pistol grip.
- Who it's for: Electricians, installers, and maintenance techs doing light-duty fastening all day.
- Why it stands out: Two-position design, LED with battery warning, and a complete kit with two batteries.
- Worth knowing: This is a 7.2V tool on its own battery platform. It does not use 12V max CXT or 18V LXT batteries.
Common Questions
- Can it be used straight and as a pistol grip? Yes. The TD023DSE operates in straight or pistol grip positions.
- How much torque does it have? 220 in.lbs. (25 N·m) of max torque.
- What batteries are included? Two 7.2V lithium-ion 1.5Ah batteries (BL0715), plus a charger and case.
