Makita 23-Gauge, 1-3/8-in. Pin Nailer (AF353)
Makita 23-Gauge, 1-3/8-in. Pin Nailer (AF353)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

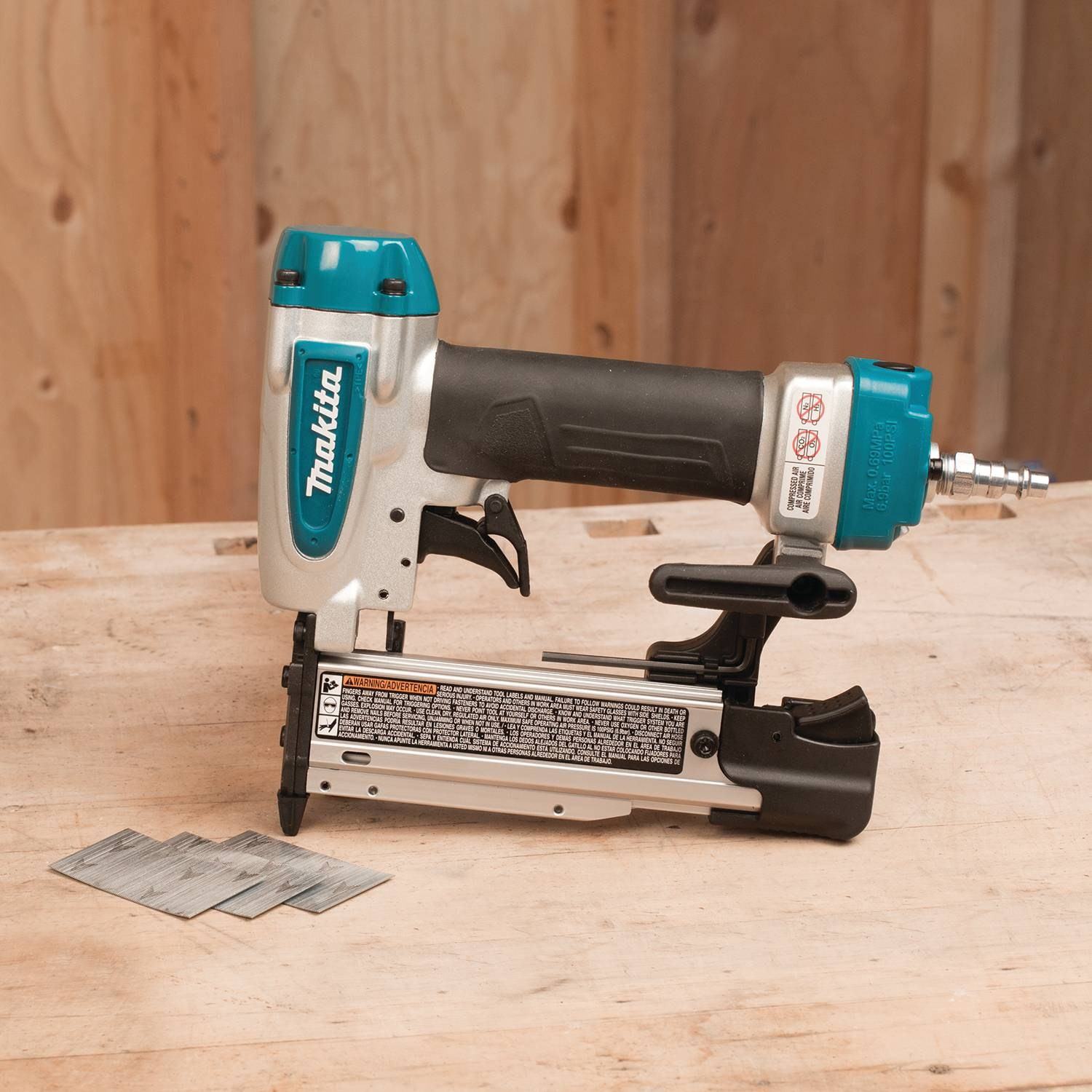

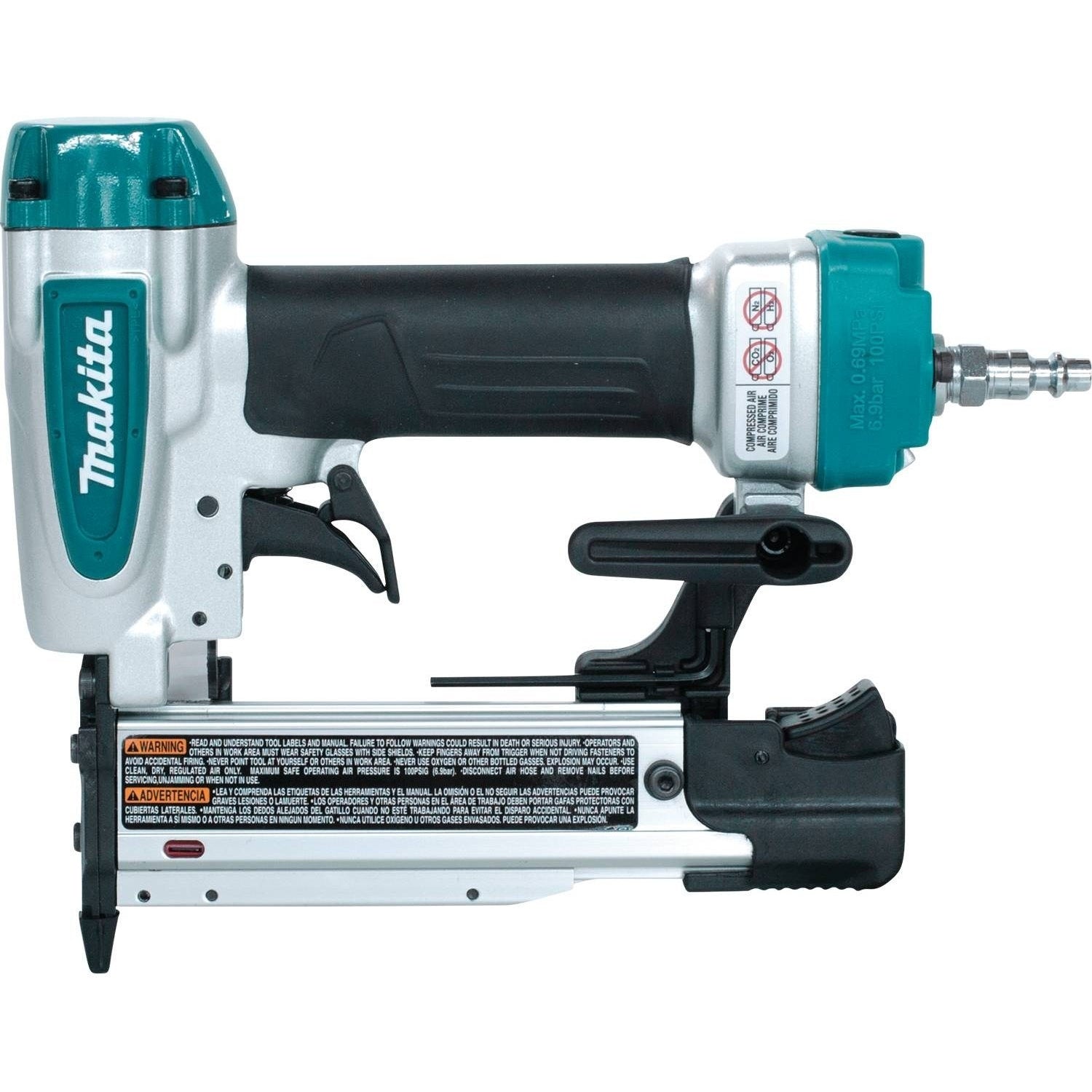

The Makita AF353 23 Gauge 1-3/8" Pin Nailer is a compact pneumatic finish nailer built for detailed trim and woodworking work where you want holding power without a noticeable fastener hole. This is a pneumatic pin nailer designed for fine finish fastening. Model Number: AF353. It is a strong fit for finish carpenters, cabinet installers, woodworkers, and serious DIY users who need a light nail gun for moulding, paneling, picture frames, glazed bead, and similar delicate work.
Makita built this tool around standard 23 gauge headless pins in six lengths: 5/8 inch, 11/16 inch, 3/4 inch, 1 inch, 1-3/16 inch, and 1-3/8 inch. That range gives you enough flexibility to tack thin trim, secure small parts, and pin joints without stepping up to a larger finish nailer. Because the pins are headless, hole cleanup is minimal, which saves time at the end of the job and helps keep fine finished surfaces looking clean.

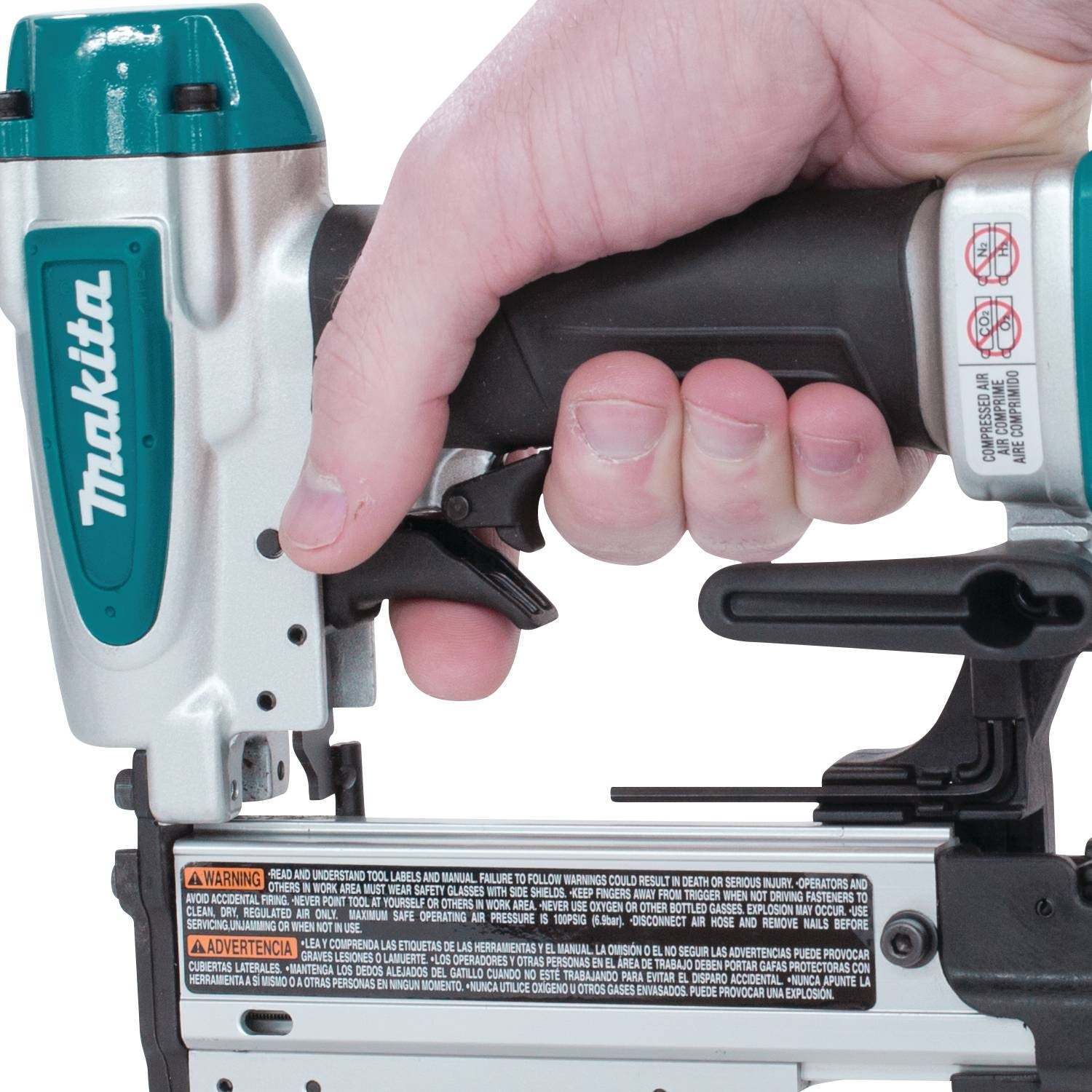

Where this nailer earns its keep is control. The narrow nose helps you place pins into tight corners and awkward angles, and the included removable no-mar tips with sightlines make it easier to hit the exact spot without dinging the material. The double 2-finger trigger is built for controlled firing, which is what you want when you are working on small profiles, thin stock, or visible trim that does not forgive sloppy placement.
The side drop-in loading magazine holds up to 130 nails, so you can keep moving instead of stopping constantly to reload. Makita also added a self-adjusting magazine that matches the loaded fastener length, which cuts down on fiddling between different pin sizes. A nail lock-out mechanism and red window alert help prevent dry-firing when you are out of pins, protecting both the tool and the work surface.
For jobsite practicality, the AF353 keeps things simple in a good way. The built-in air duster gives you a quick blast to clear dust and debris from the work area before setting the next piece. The rear exhaust directs air away from the operator and away from the work surface, which is a small feature until you are doing detailed finish work and do not want exhaust blowing debris back onto your line. If a jam happens, the easy-to-clear nose helps get you back up and running faster.
The body, magazine, and cylinder are aluminum, which helps keep the overall weight down while still giving the tool the durability you expect from a pro-grade pneumatic nailer. At only 2 lbs., it is easy to carry, easy to maneuver inside cabinets or around installed trim, and less fatiguing over a full day. The integrated rubber soft grip improves comfort, and the reversible belt hook makes it easier to keep the nailer close when you are moving around a room or climbing a ladder.

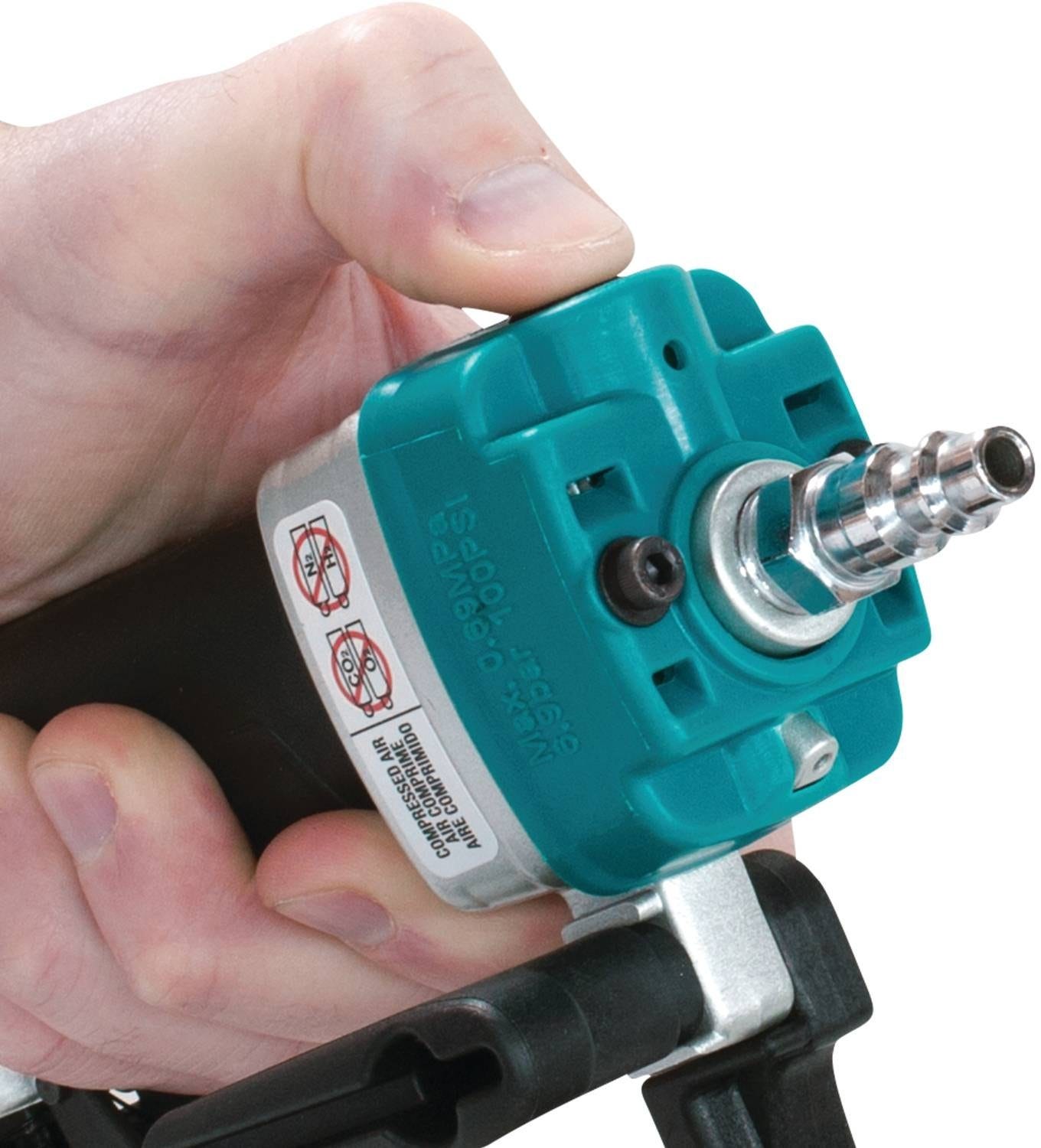

On the air side, this Makita pin nailer runs at 65 to 100 PSI, uses a 1/4 inch NPT inlet, and has a minimum recommended air delivery of 0.8 SCFM at 90 PSI. In plain terms, it does not demand a huge compressor, which makes it practical for punch-list work, trim installs, and shop use. If you already run pneumatic finish tools, this slides right into that setup without drama.
If your work is mostly delicate trim, cabinet assembly, light fastening, or detailed woodworking where a brad nailer feels too aggressive, this is the right kind of tool. If you need more holding power for heavier trim or structural fastening, step up to a larger finish nailer. But for subtle fastening and clean finish results, the Makita AF353 23 Gauge 1-3/8" Pin Nailer is exactly the kind of specialty tool that saves rework and leaves a cleaner final product.
Compact Size for Detailed Finish Work

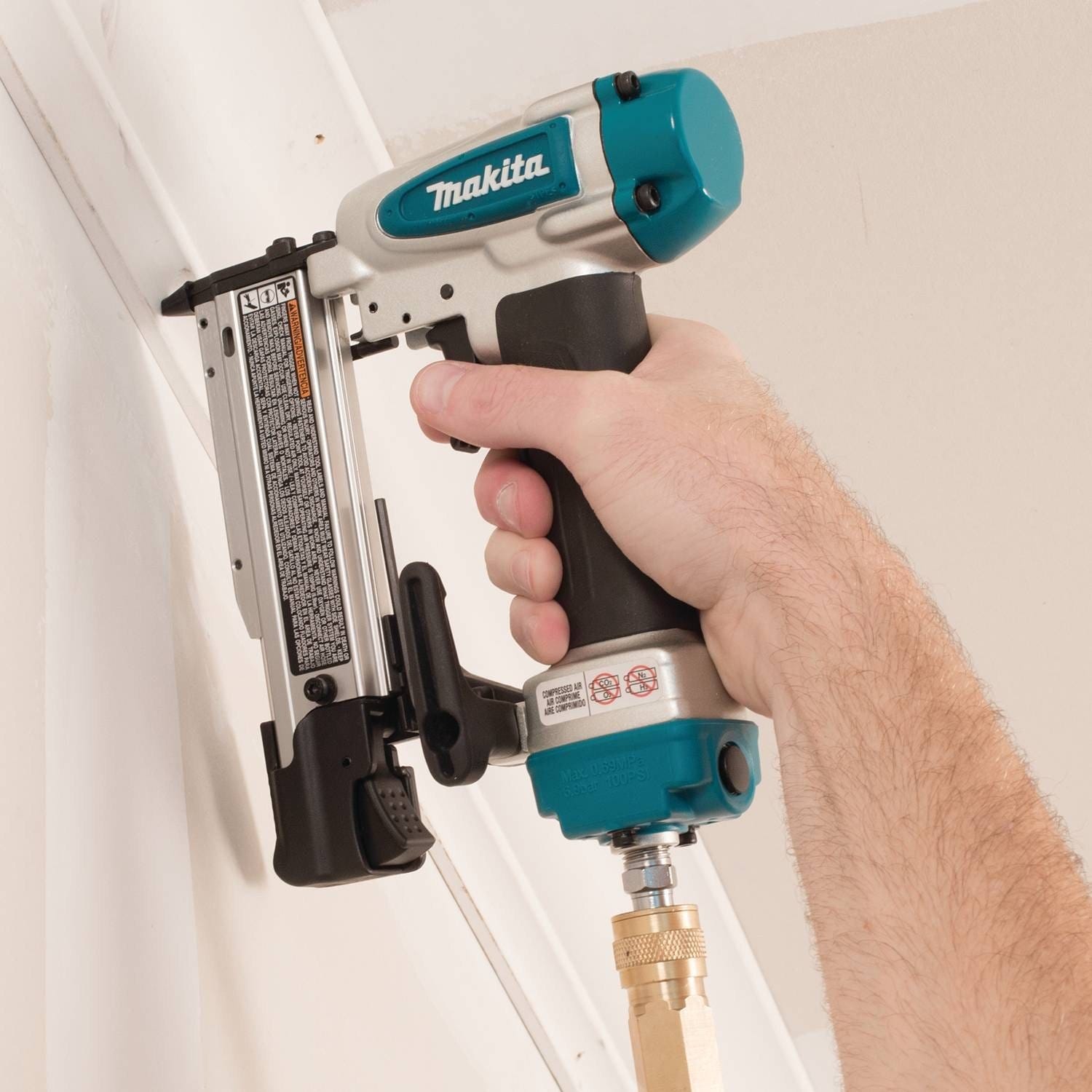

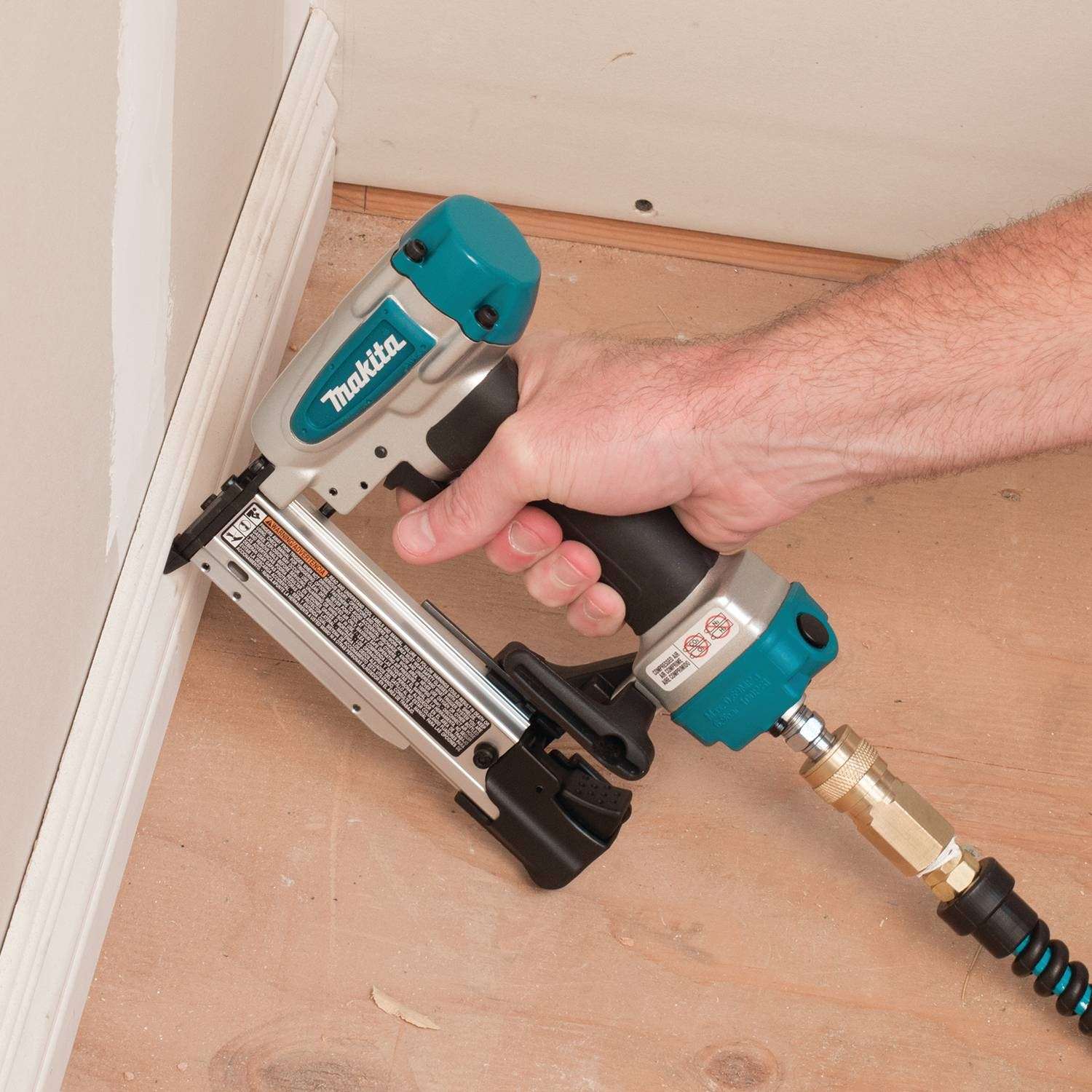

This is the kind of nail gun you grab when precision matters more than brute force. Its light build and narrow nose make it easier to work inside cabinets, around small trim profiles, and in corners where a bigger finish nailer gets clumsy.
- Tool weight is only 2 lbs. for reduced fatigue during all-day use
- Narrow nose design improves access in tight areas and angled placements
Ready for Shop or Jobsite Carry
The included case helps keep the nailer, tips, wrench, and small accessories together instead of rolling around the truck. That is especially useful with specialty tools like a 23 gauge pin nailer that you want protected and ready when finish work comes up.
- Includes tool case for transport and storage

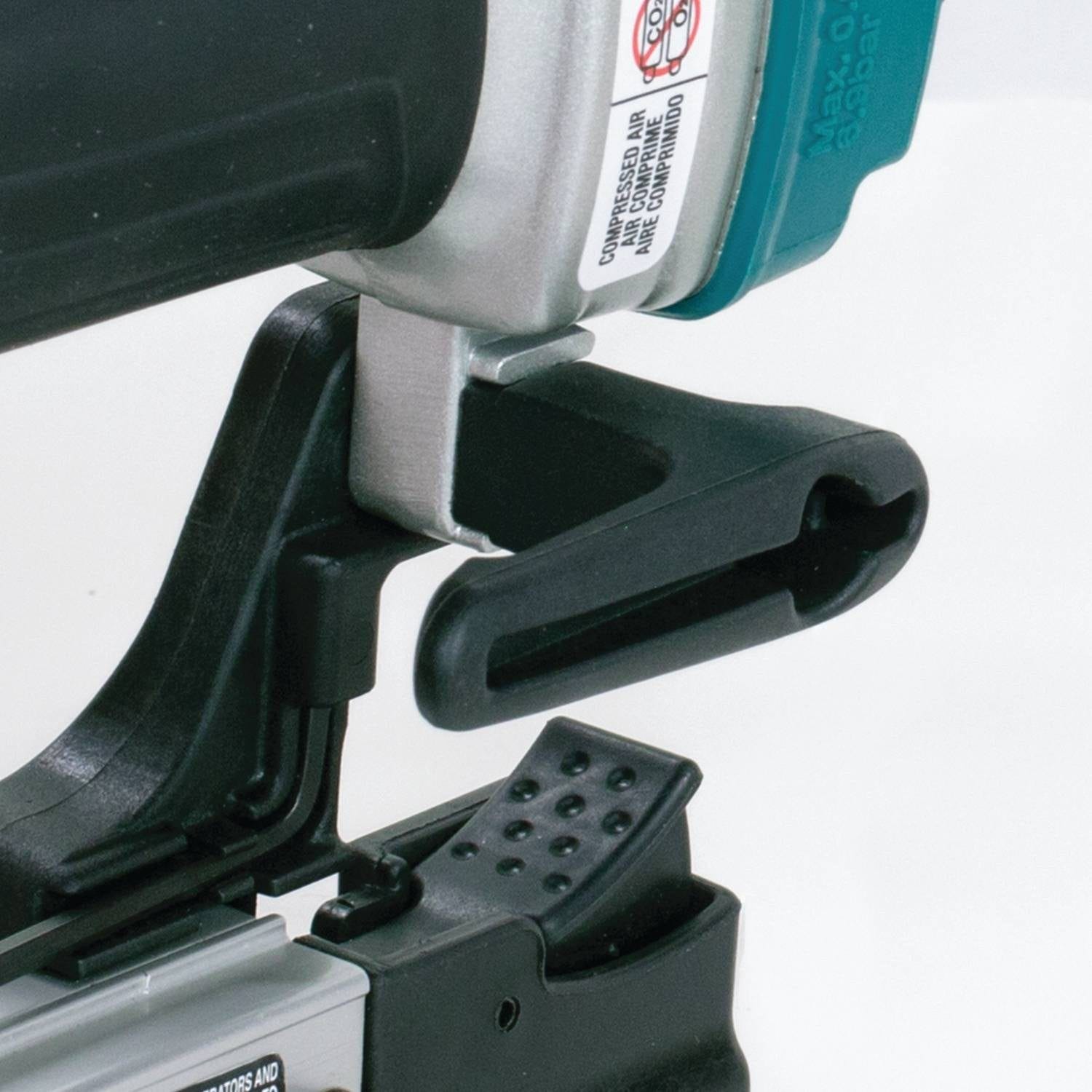

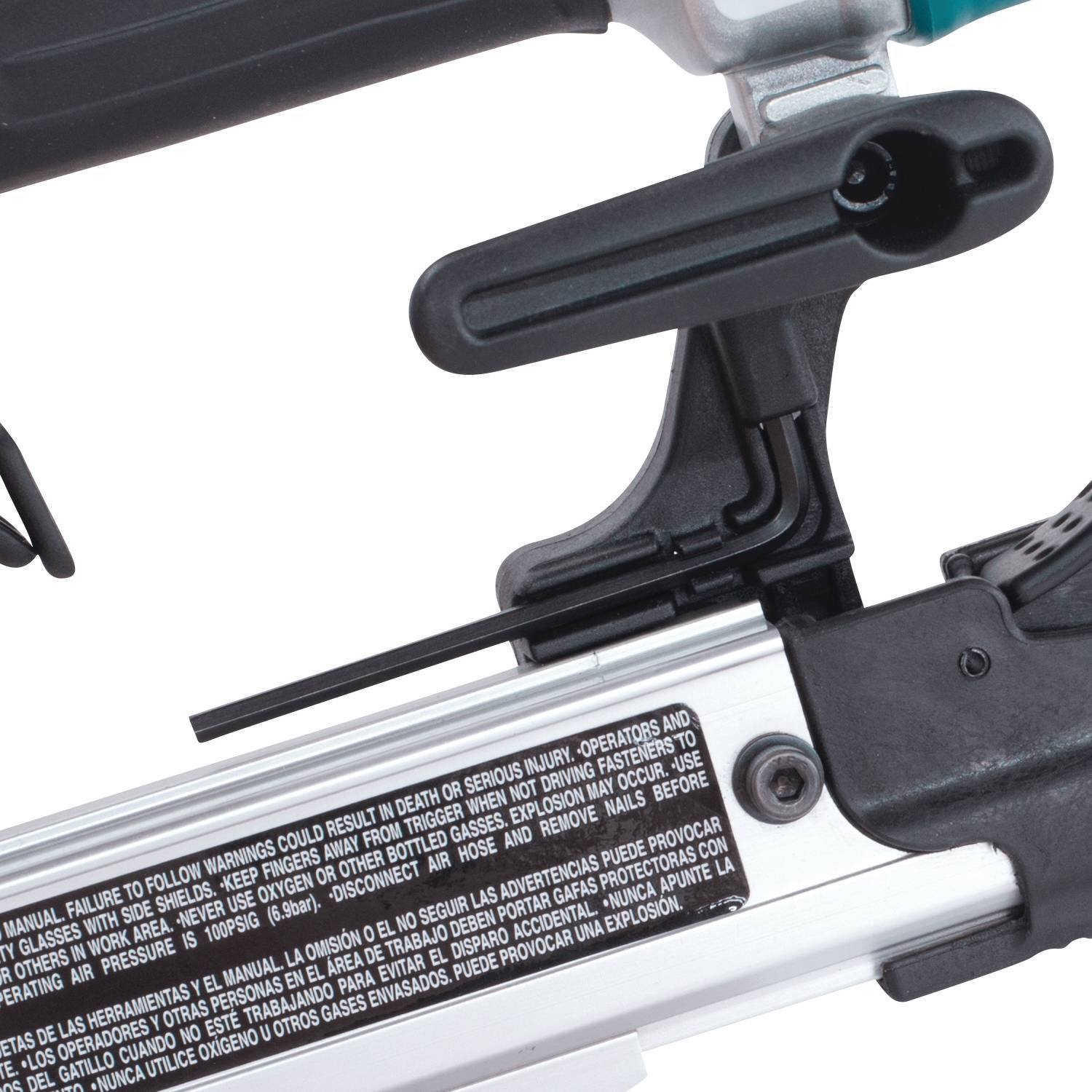

- Reversible belt hook keeps the nailer close between placements
What's in the Box
- Makita AF353 23 Gauge 1-3/8 inch Pin Nailer
- (2) Removable No-Mar Tips
- Air Fitting
- Hex Wrench
- Pneumatic Nailer Oil
- Safety Glasses
- Tool Case
Key Specifications
|
|
Pneumatic |
|---|---|
|
|
5/8 in to 1-3/8 in |
|
|
23 gauge headless pins |
|
|
130 pins |
|
|
65 to 100 PSI |
|
|
0.8 SCFM at 90 PSI |
|
|
1/4 in NPT |
|
|
2 lbs |
Compatibility
Built For
Pro Tip
Use this pin nailer to hold small trim and glued joints in place while the adhesive sets. That is where a 23 gauge tool really shines, because you get temporary holding strength with a much smaller hole to fill than a brad nailer leaves behind.
Warranty & Support
Tool Nut's Take
Makita AF353 23 Gauge 1-3/8" Pin Nailer for Clean Finish Work
This is a smart buy if you do detail work where a brad nailer leaves too much evidence behind.
- Who it's for: Finish carpenters, cabinet installers, furniture builders, and woodworkers doing delicate fastening on trim, bead, frames, and small assemblies.
- Why it stands out: The 2 lb build, 130-pin magazine, no-mar tips, and dry-fire protection make it practical for real jobsite use, not just occasional shop work.
- Worth knowing: This is a pneumatic specialty tool, so you need an air setup and the right 23 gauge headless pins. It is built for subtle fastening, not heavy holding power.
Common Questions
- What fasteners does this nailer use? It uses standard 23 gauge headless pins in lengths from 5/8 inch up to 1-3/8 inch.
- Is this a cordless tool? No. The AF353 is a pneumatic pin nailer that runs on compressed air.
- What air pressure does it need? Makita lists an operating range of 65 to 100 PSI, with a minimum recommended air delivery of 0.8 SCFM at 90 PSI.
- What kind of work is it best suited for? It is best for finish fastening tasks like moulding, chair rail, trim, cabinets, paneling, picture frames, window beading, and other detailed woodworking applications.
