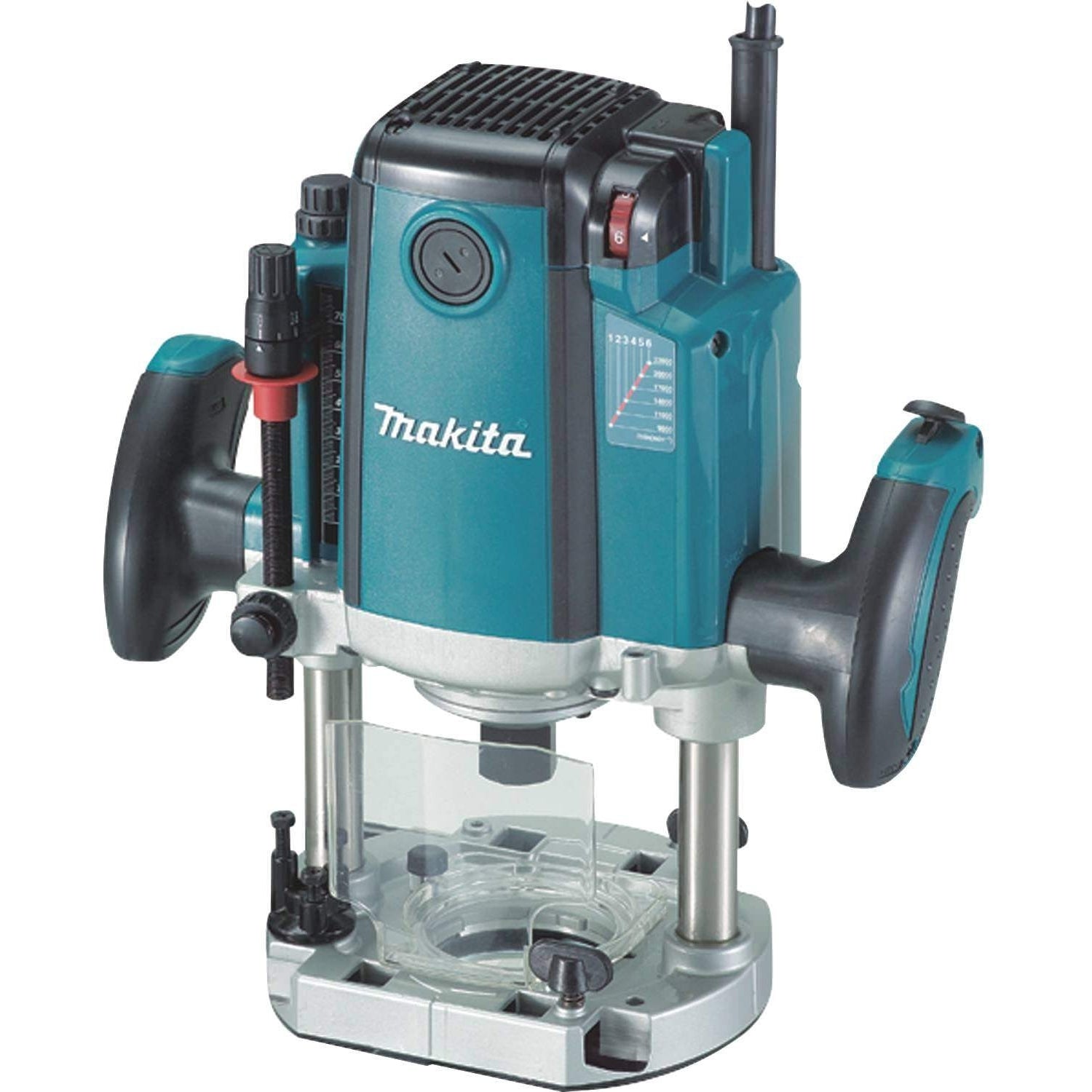

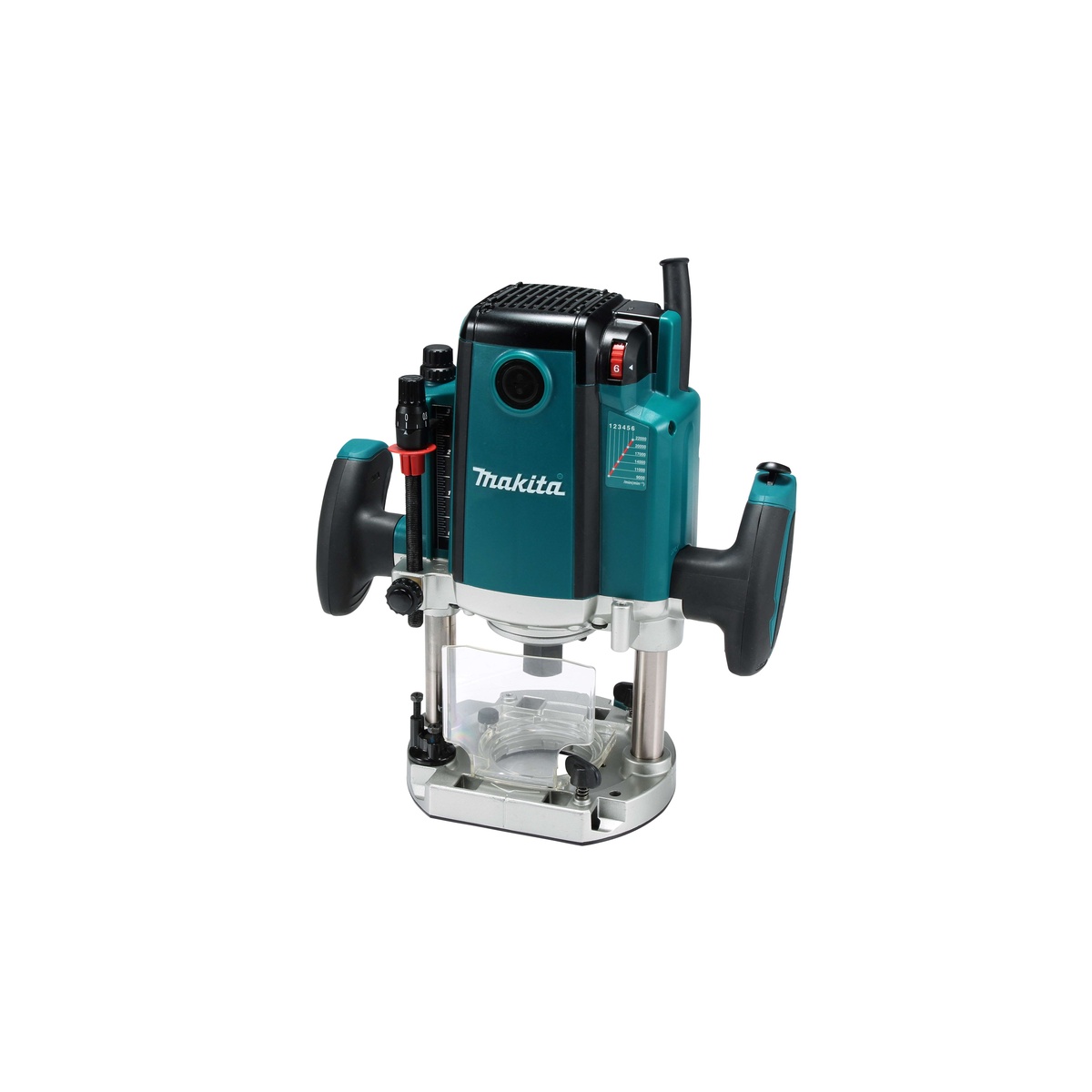

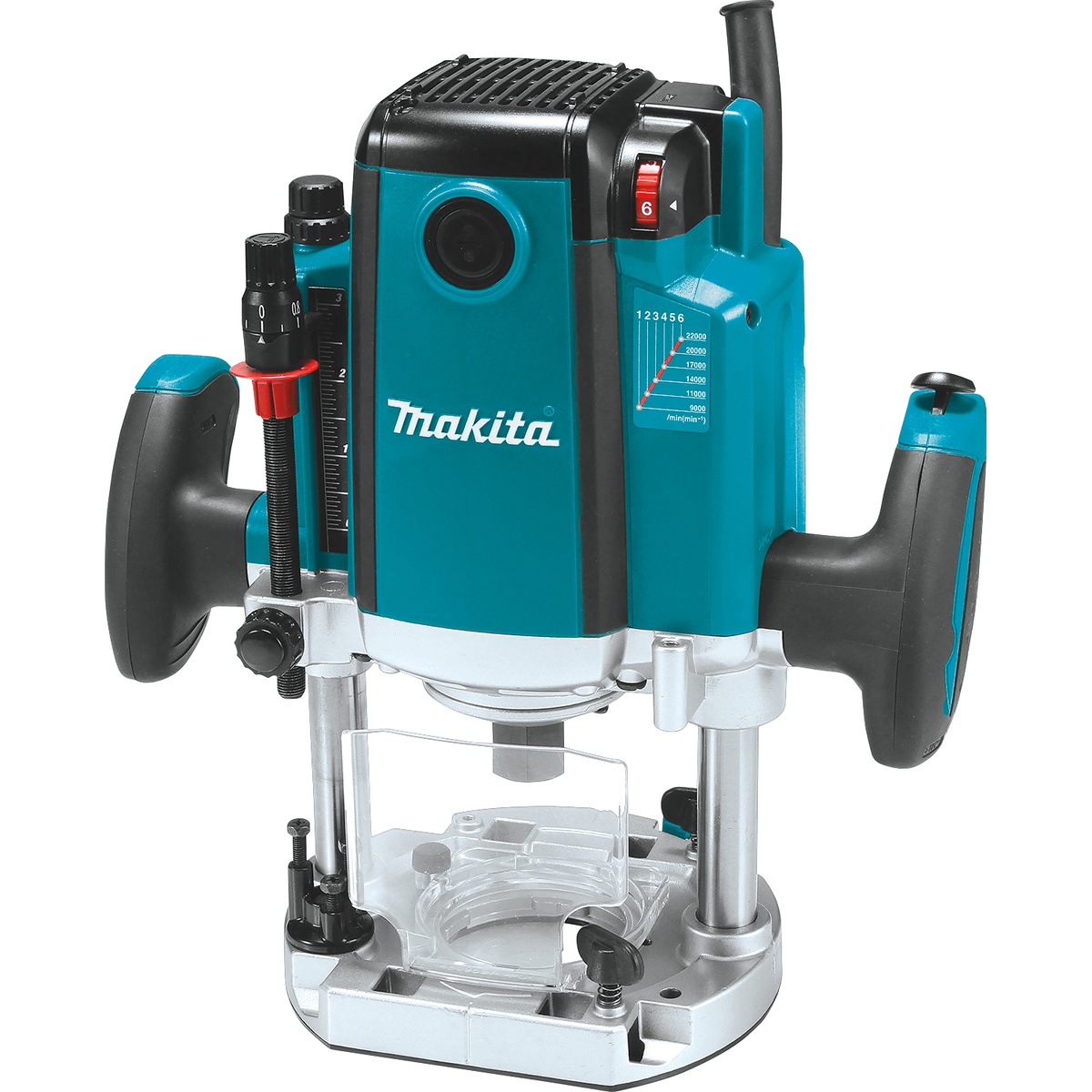

Makita RP2301FC Corded 3-1/4 HP* Plunge Router, with Variable Speed
Makita RP2301FC Corded 3-1/4 HP* Plunge Router, with Variable Speed
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview
The Makita RP2301FC 3-1/4 HP Plunge Router with Variable Speed is a corded professional woodworking router built for clean, controlled plunge routing in cabinetry, furniture, counters, doors, windows, and general finish carpentry. Model RP2301FC pairs a 15 amp motor with variable speed from 9,000 to 22,000 RPM, giving you the range to run larger bits at lower speed and smaller bits at higher speed. This is a plunge router designed for precision edge work, mortising, template routing, and detailed woodworking where depth control matters.

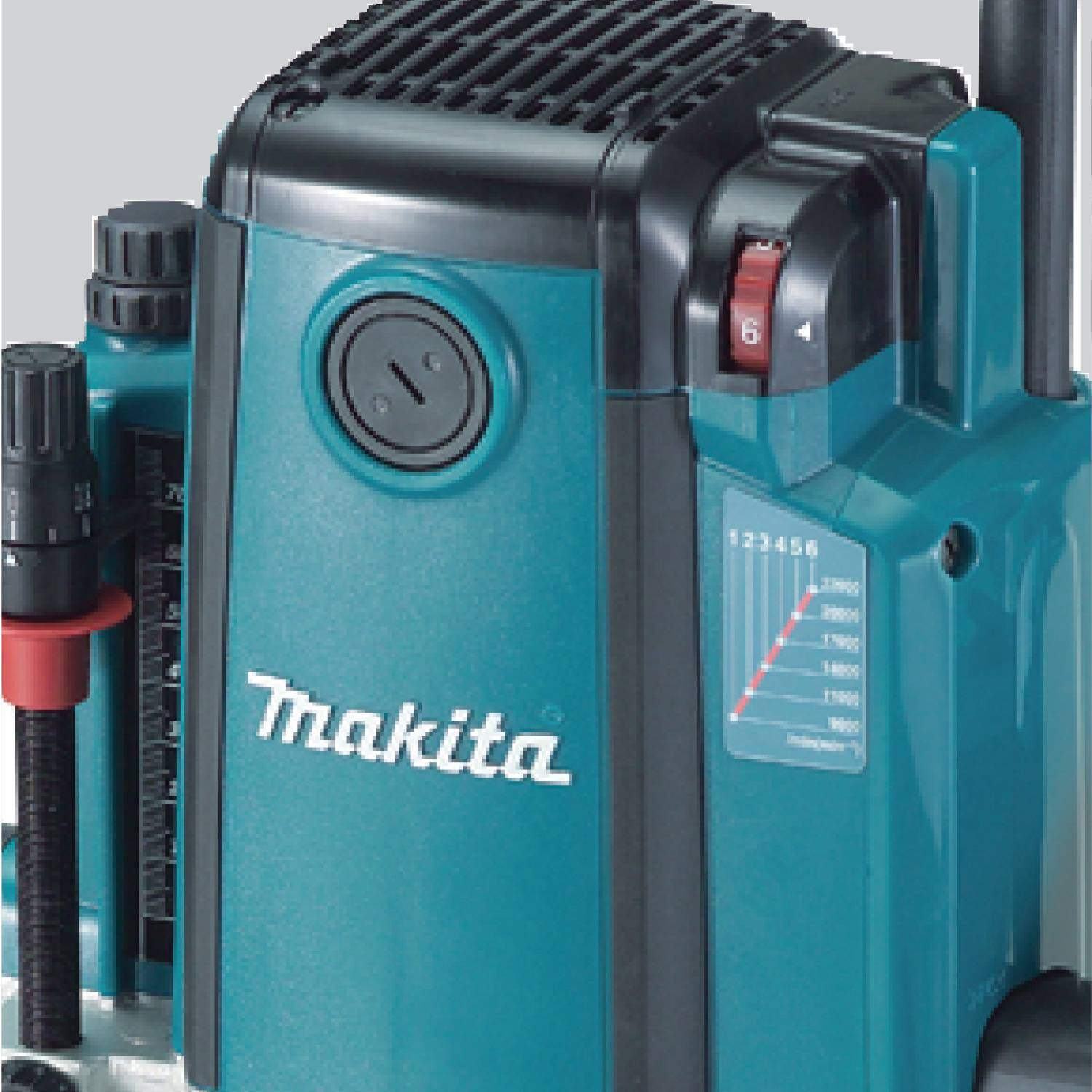

On the job, the big story is power plus control. The motor is rated at 3-1/4 horsepower and backed by electronic speed control, which means the router is built to maintain cutting speed when the bit meets resistance. That matters when you are working hardwoods or making deeper passes, because a router that bogs down leaves a rougher cut and makes the tool harder to manage. The variable speed dial lets you match the cutter speed to the bit and material, which is a real advantage for fine woodworking and router bit life.

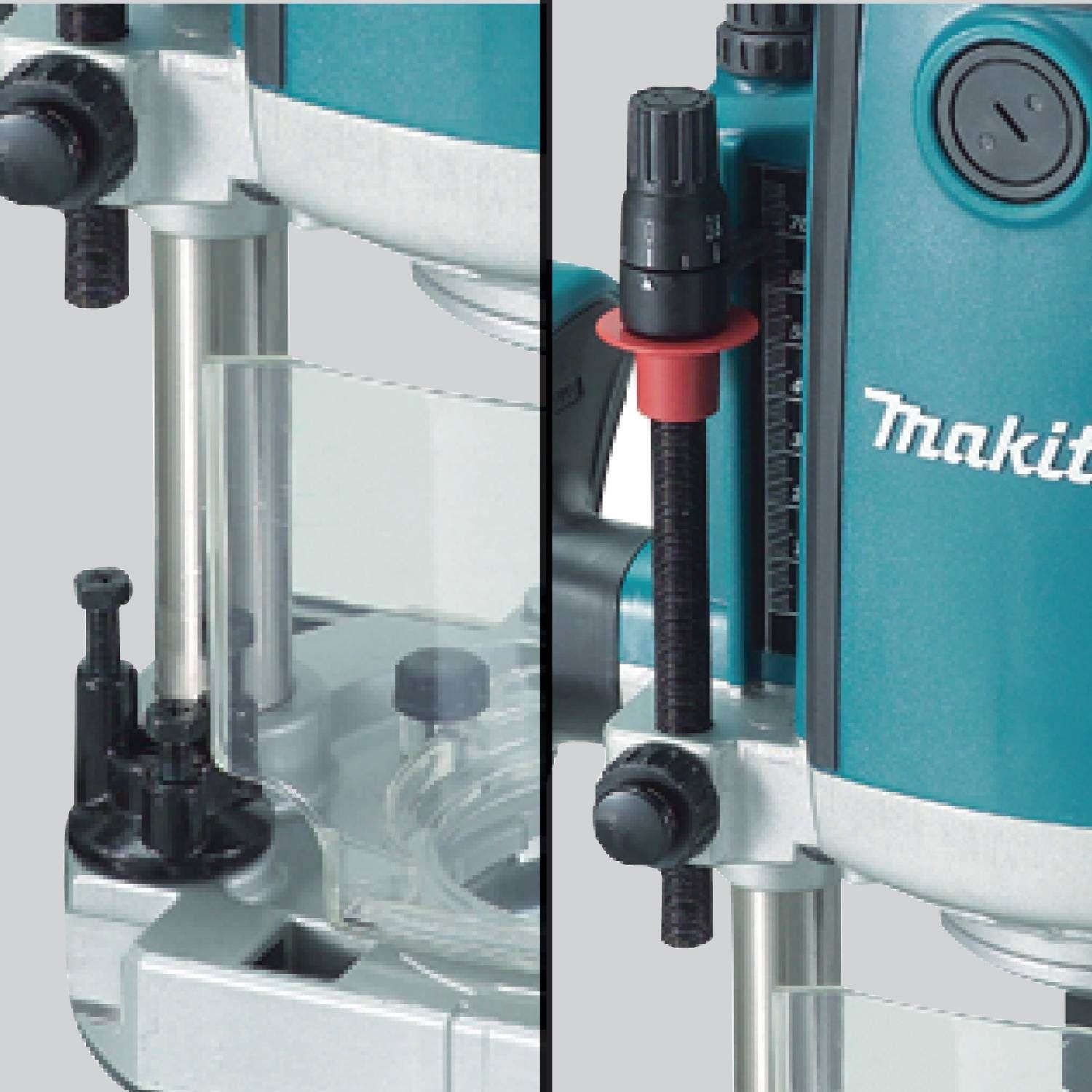

The plunge system is set up for accuracy, not just travel. You get up to 2-3/4 inches of plunge capacity, linear ball bearings for smoother vertical movement, quick-release plunge depth adjustment with micro control, and three preset depth stops. In practical terms, that means you can set depth faster, repeat cuts more consistently, and make controlled plunge entries without fighting the base. For cabinet work, hinge mortises, pattern work, and stopped grooves, that kind of adjustment is what separates a router that is merely powerful from one that is actually useful.
Makita also put real thought into day-to-day handling. The ergonomic rubberized handles give you a stable grip during plunge cuts, and the built-in two-finger switch keeps control where your hands already are. Soft start helps the router come up to speed without the jump that can unsettle your setup, especially with larger bits. The electric brake shortens spin-down time, which saves a little time on every cut and makes bit changes and repositioning less of a wait.
For visibility and shop practicality, the RP2301FC includes twin LED lights to better light the cut area, easy-to-read depth scales, a chip deflector, and a flat top design that helps the router sit more securely when changing bits. The shaft lock speeds up bit swaps, and the tool-free template guide system makes guide installation and removal simpler when you are switching between freehand and template-based routing. These are the kind of details that matter more the longer you use the tool.
Durability is another strong point. Makita calls out oversized ball bearing construction and a built-in fan with labyrinth construction to reduce dust entering the tool. For a router, that matters because fine dust is everywhere, especially in cabinet shops and finish work. Better internal protection helps the tool stay smoother over time and supports longer service life under regular use.
The Makita RP2301FC 3-1/4 HP Plunge Router with Variable Speed accepts both 1/4 inch and 1/2 inch shank router bits, which makes it flexible enough for lighter trim profiles as well as larger cutters used in more demanding routing applications. That wide bit compatibility gives serious woodworkers room to use the tool across a broad range of tasks instead of reserving it for only one setup.
This router makes the most sense for cabinet makers, finish carpenters, furniture builders, deck builders, boat builders, and general contractors who need a full-size plunge router with real depth control and enough motor to stay composed under load. If you mainly do light trim or laminate work, it may be more router than you need. But if you want a heavy-duty plunge router for production-style woodworking, the RP2301FC is built for that lane.
Control Deep Cuts with Confidence
This router is built for jobs where plunge accuracy and cut quality matter more than shaving a pound or two. The long plunge travel and fine depth controls help you make repeatable cuts without creeping up on the setting all day.

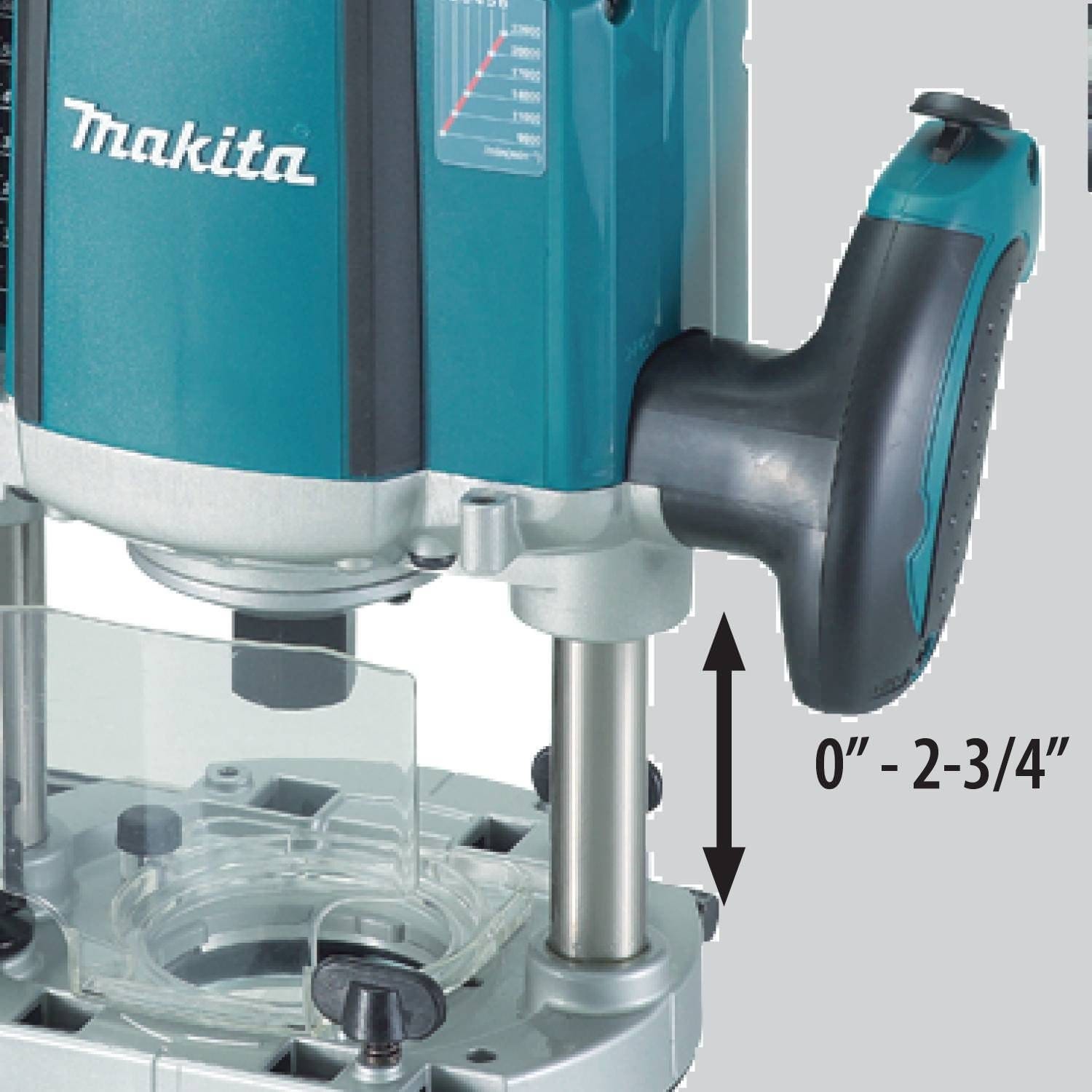

- 0 inch to 2-3/4 inch plunge capacity for grooves, mortises, and deeper routing work
- Quick-release plunge depth adjustment with micro control and three preset depth stops
- Linear ball bearings support smoother plunge action
Built to Stay Productive
Makita loaded this corded router with features that make setup changes and repeated cuts easier during a long work session. It is the kind of tool you buy when routing is a regular part of the work, not an occasional task.
- Soft start improves control when the motor comes up to speed
- Electric brake cuts spin-down time between cuts and adjustments
- Twin LED lights, shaft lock, and tool-free template guide system support faster workflow
What's in the Box
- Makita RP2301FC plunge router
- (1) 1/2 inch collet
- (1) 1/4 inch collet
- (1) Extended depth adjustment knob
- (1) Wrench
Key Specifications
| Motor | 15 A |
|---|---|
| Maximum Horsepower | 3-1/4 HP |
| No-Load Speed | 9,000 to 22,000 RPM |
| Plunge Capacity | 2-3/4 in |
| Collet Capacity | 1/4 in, 1/2 in |
| Overall Length | 12-1/4 in |
| Weight | 13.4 lbs |
| Power Source | Corded |
Compatibility
Built For
Pro Tip
When you are setting up repeat plunge cuts, use the micro adjustment after locking in one of the preset stops instead of trying to sneak up on depth with the main plunge setting alone. It is faster, and it keeps your next setup closer to where you actually want it.
Warranty & Support
Tool Nut's Take
Makita RP2301FC 3-1/4 HP Plunge Router with Variable Speed Is the Right Kind of Heavy-Duty
This is a serious woodworking router with the power, plunge control, and bit capacity to handle real shop work without feeling like a compromise tool.
- Who it's for: Cabinet makers, finish carpenters, furniture builders, and contractors who need a full-size plunge router for repeated precision work.
- Why it stands out: The combination of 15 amp power, electronic speed control, 2-3/4 inch plunge capacity, and thoughtful details like soft start, brake, LEDs, and tool-free guide changes makes it more useful than a router that only wins on horsepower.
- Worth knowing: At 13.4 pounds, this is not a light trim router. That is the tradeoff for stability, plunge travel, and full-size routing capability.
Common Questions
- Is this a fixed-base or plunge router? It is a plunge router with a plunge base and up to 2-3/4 inches of plunge capacity.
- What size router bits does it accept? The RP2301FC accepts both 1/4 inch and 1/2 inch shank router bits.
- Does it have variable speed? Yes. It has a variable speed range of 9,000 to 22,000 RPM, plus electronic speed control to help maintain speed under load.
- Is this router corded or cordless? This is a corded router.
