Makita SK105GDNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Green Beam Laser Kit (2.0Ah)
Makita SK105GDNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Green Beam Laser Kit (2.0Ah)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview
The Makita SK105GDNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Green Beam Laser Kit (2.0Ah) is a cordless cross-line laser level built for layout, alignment, and plumb work on interior and light exterior jobs. This is a laser level designed for level, align, and plumb applications. Model Number: SK105GDNAX. If you need clean horizontal and vertical reference lines without dragging cords around or dealing with dim red beams, this kit is the practical step up.
What matters most here is visibility and accuracy. Makita rates the green beam for up to 115 feet of line visibility depending on ambient light, with detection up to 262 feet when used with the Makita Laser Detector LE00855702, sold separately. Accuracy is rated at +/- 1/8 inch at 33 feet, which is the kind of spec that actually matters when you are setting cabinets, laying out walls, aligning tile, or transferring reference points across a room. The bright 510 to 530 nm Class II green laser is easier to pick up than a typical red beam in many jobsite conditions, especially indoors.

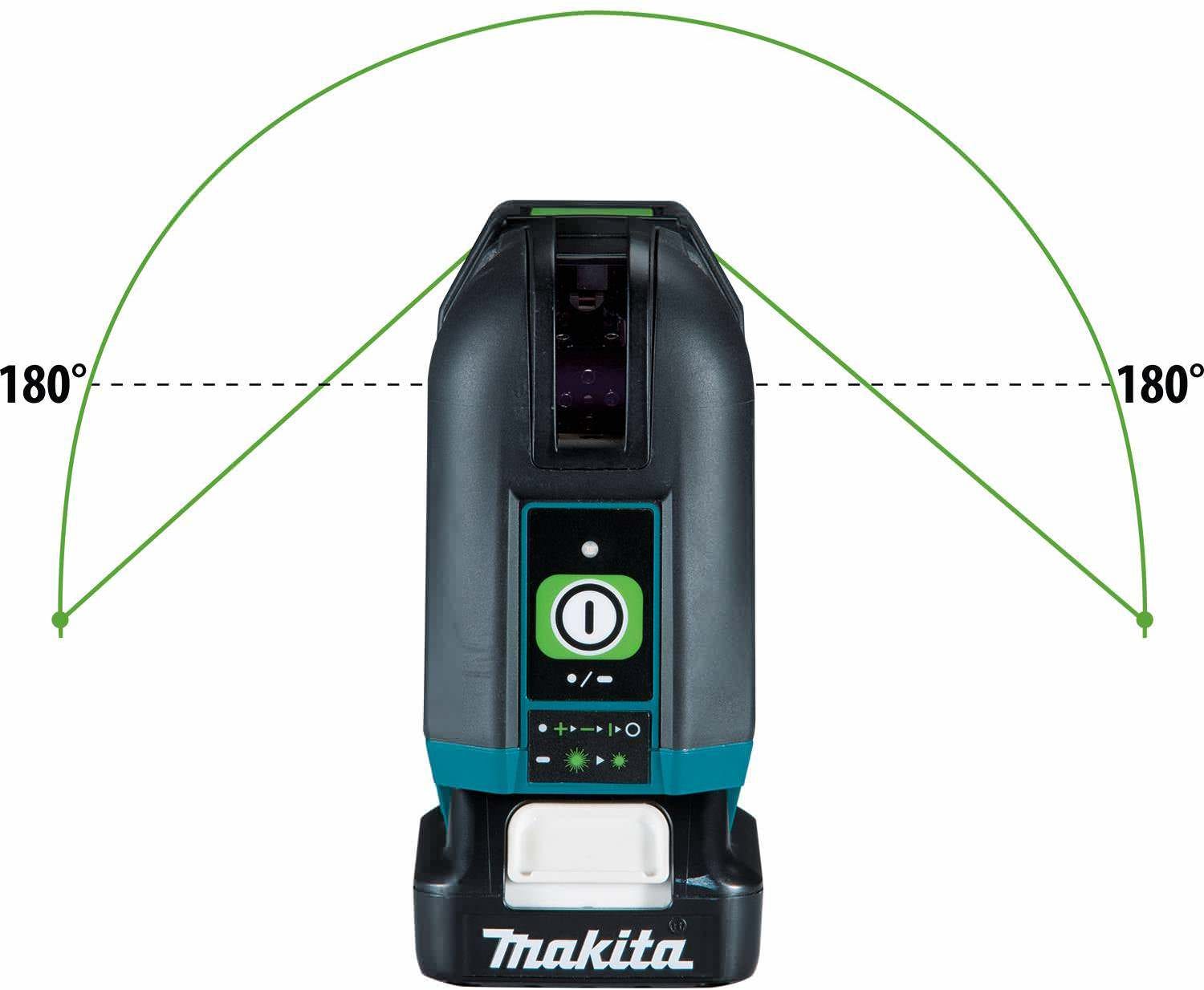

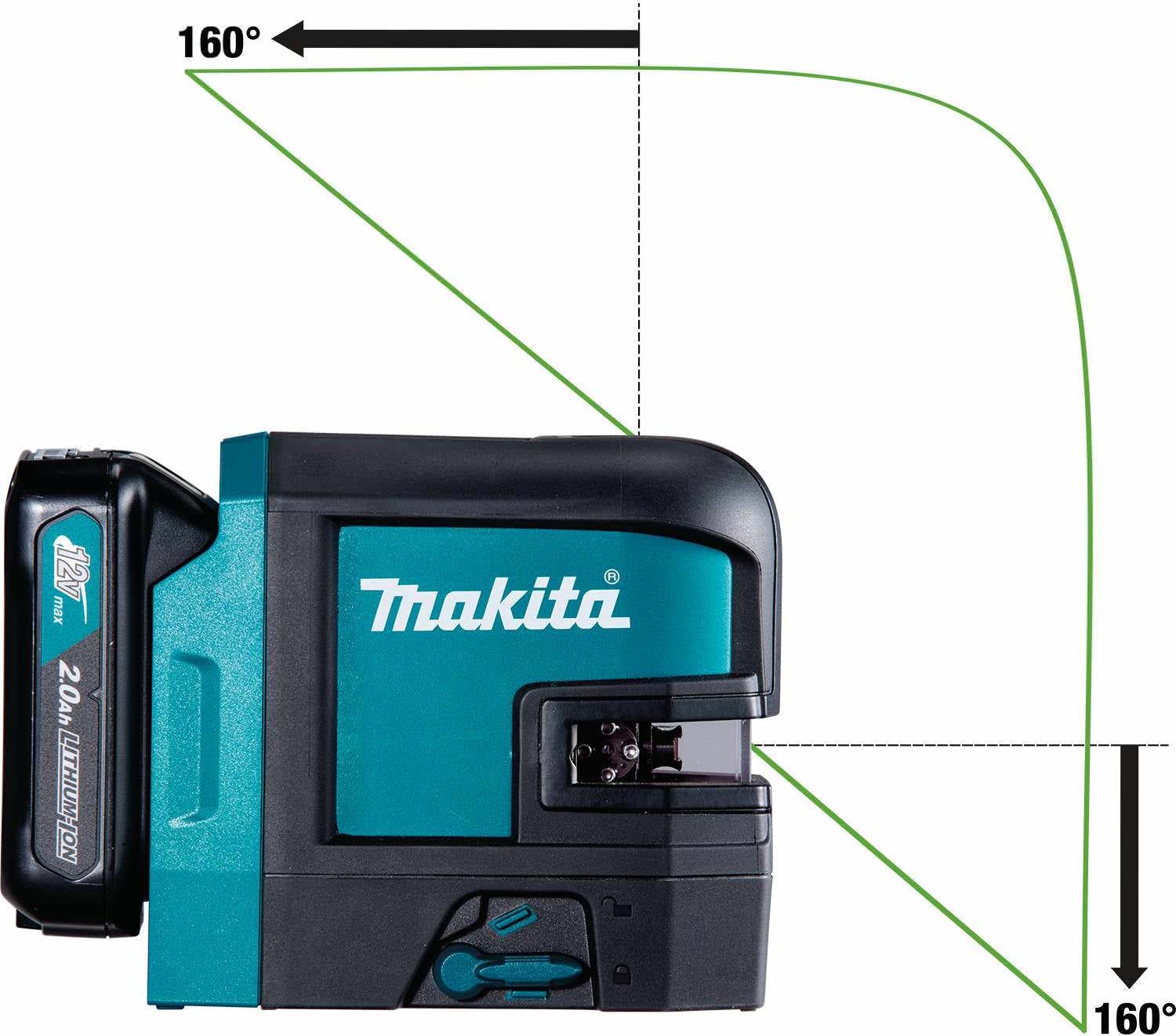

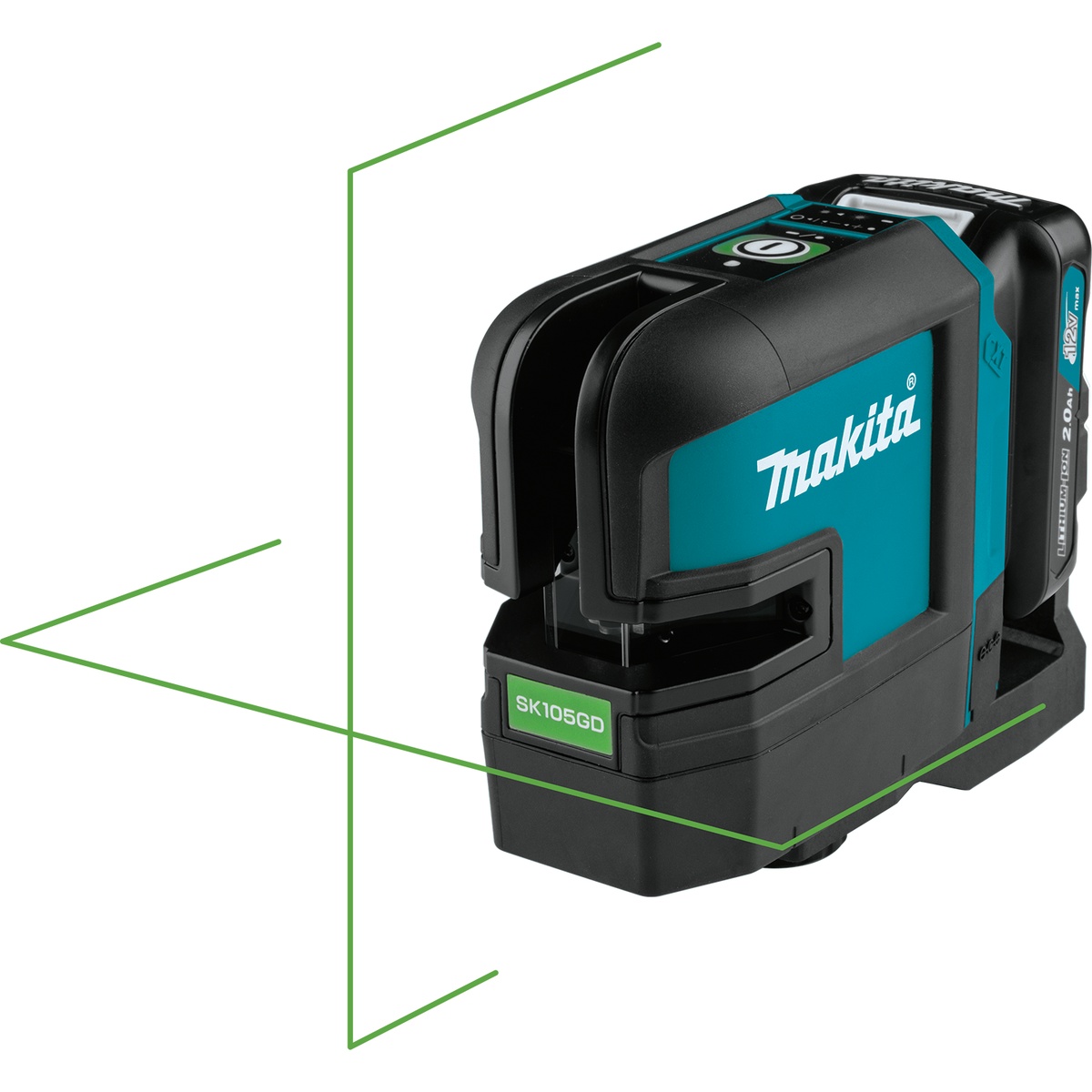

The line coverage is another strong point. This Makita laser level projects two lines, horizontal and vertical, with a fan angle that spans past 180 degrees horizontally and 160 degrees vertically. In plain terms, you get broad reference coverage that helps when you are working across a room instead of right in front of the tool. Self-leveling is correctable up to 4 degrees of slope, and Makita states line stability is achieved in up to 3 seconds, so you are not wasting time waiting for the tool to settle every time you move it.
Makita built this one with real jobsite use in mind. The housing has a rubberized over-mold for added protection, the laser windows are recessed to help guard against bumps, and the unit carries an IP54 rating for dust and water resistance. The integrated pendulum lock does two useful things: it protects the laser diode during transport and storage, and it lets you handle slope incline applications when self-leveling is not what the job calls for. The one-button interface also keeps operation simple, which is exactly what you want in a layout tool that may be getting moved and reset throughout the day.
Runtime is solid for a compact cordless layout tool. With the included 12V max CXT 2.0Ah battery, Makita rates it for up to 10 hours of continuous run time. If you want longer runtime, it is also compatible with the 12V max CXT 4.0Ah battery BL1041B, which Makita says can provide up to 20 hours. There is also a power connector port that allows users already invested in the 18V LXT platform to power it with an 18V LXT battery when paired with the Power Source Adapter ADP05 and adapter cord, both sold separately. That kind of crossover matters if your crew is already running Makita cordless tools and wants fewer dead-end systems in the truck.

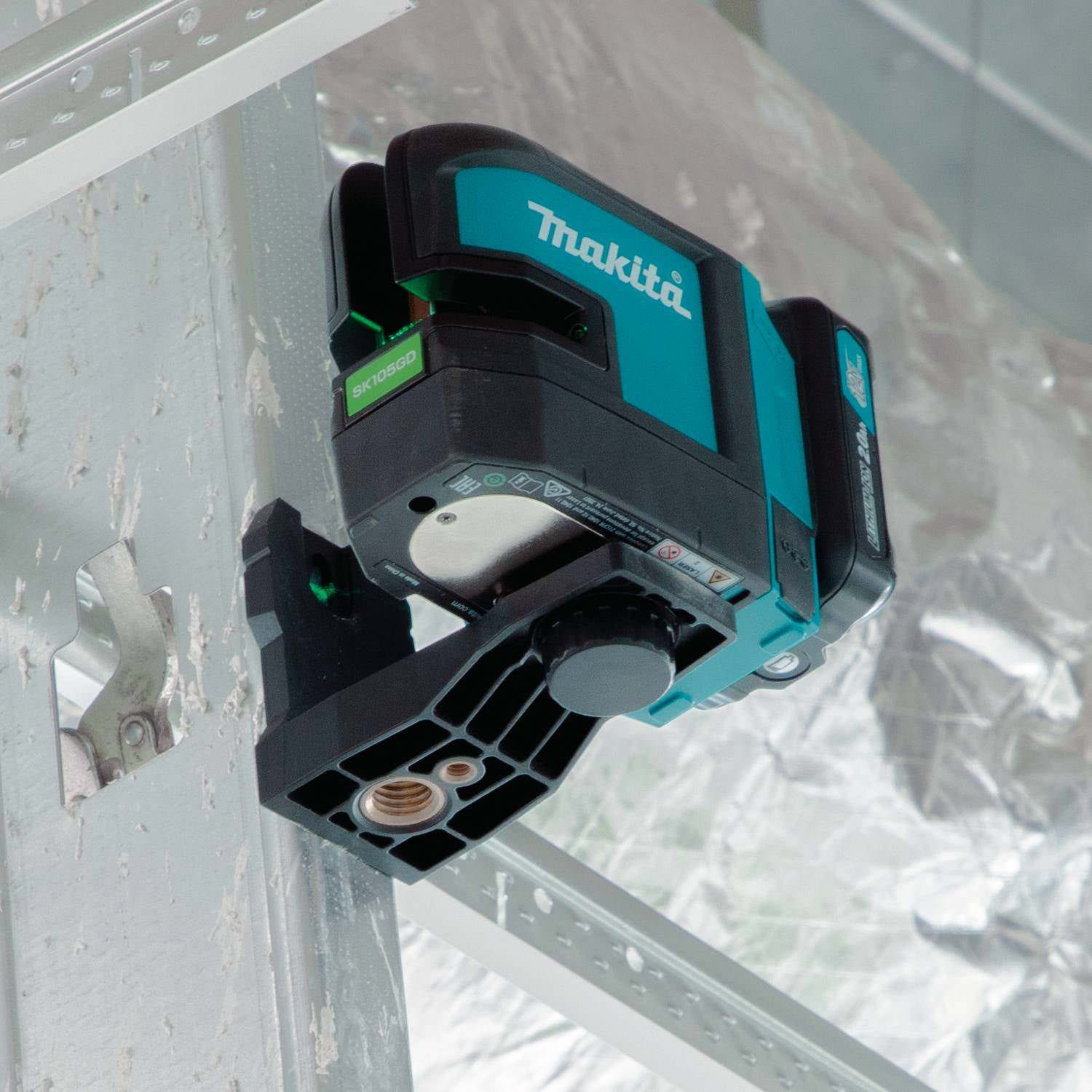

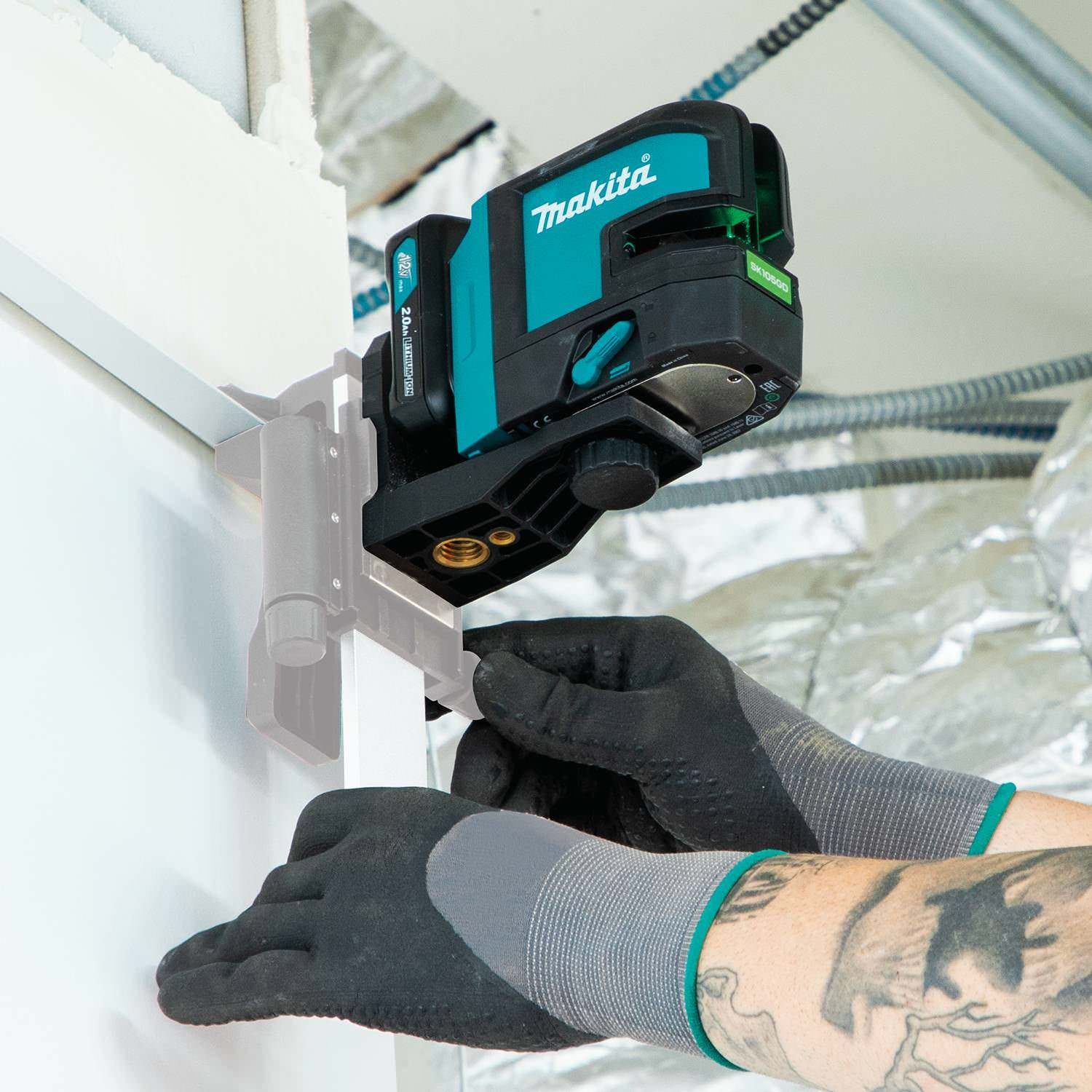

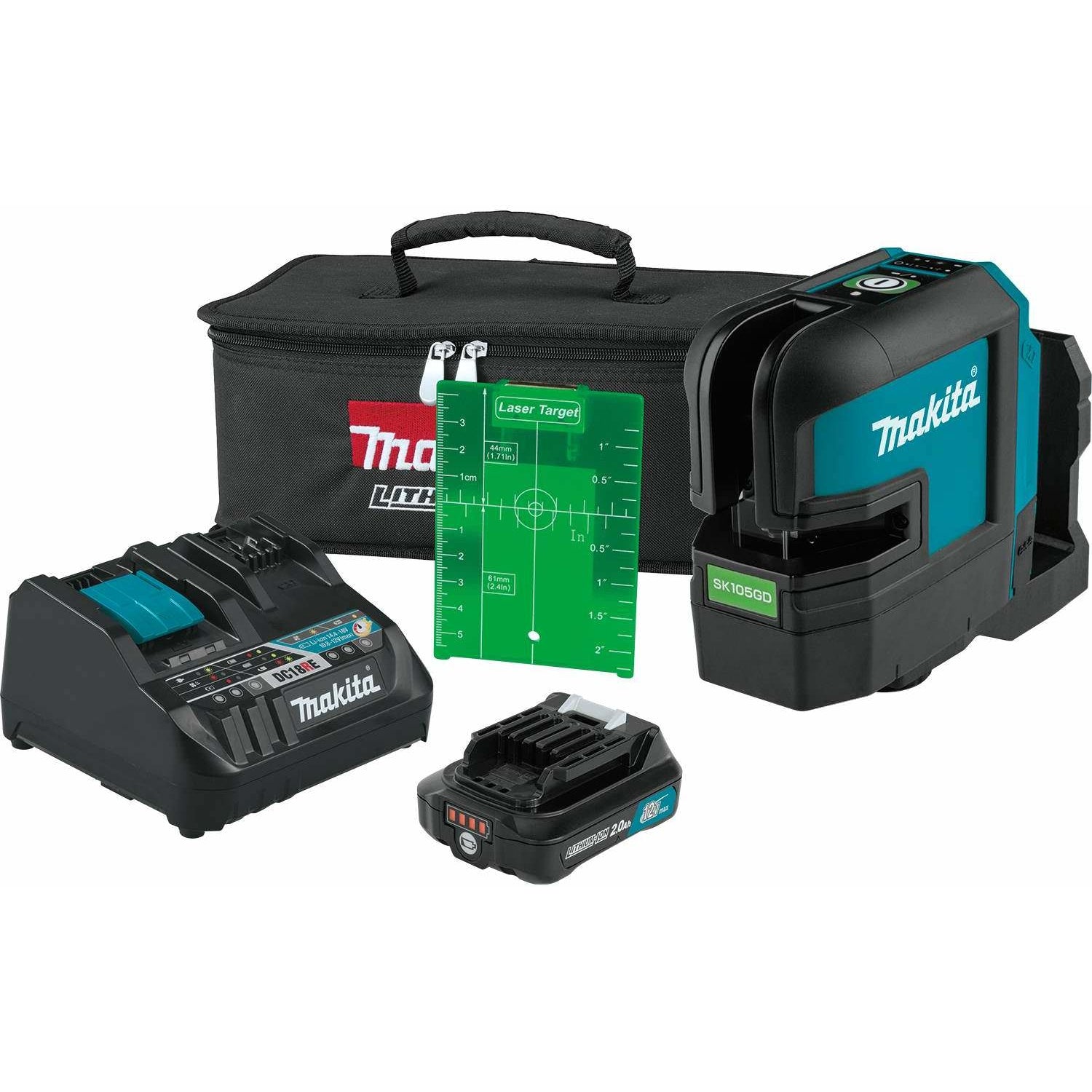

As a kit, this package gives you more than just the laser. It includes the SK105GDZ laser, a BL1021B 12V max CXT 2.0Ah battery, a DC18RE Rapid Optimum Charger, a magnetic L-adapter, a magnetic green target plate, and a kit bag. The multi-purpose magnetic bracket with integrated 1/4 inch and 5/8 inch threads gives you mounting flexibility on metal surfaces, wood surfaces, or Makita tripods. That means fewer extra parts to chase down before you can get to work.
This Makita SK105GDNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Green Beam Laser Kit (2.0Ah) makes the most sense for remodelers, finish carpenters, cabinet installers, electricians, plumbers, and general contractors who need a compact cordless laser level with dependable green beam visibility. It is also a good fit for serious DIY users doing room layout, shelving, tile, or interior finish work. If your work depends on fast setup, clear lines, and a kit that is ready to travel, this one earns its place.
See the Line Faster
The whole point of a green beam laser level is being able to pick up the line quickly and get moving. The Makita SK105GDNAX gives you broad horizontal and vertical reference lines that are easier to work from during layout and finish installation.
- Green beam visibility up to 115 feet depending on ambient light
- Detectable up to 262 feet with Makita Laser Detector LE00855702, sold separately

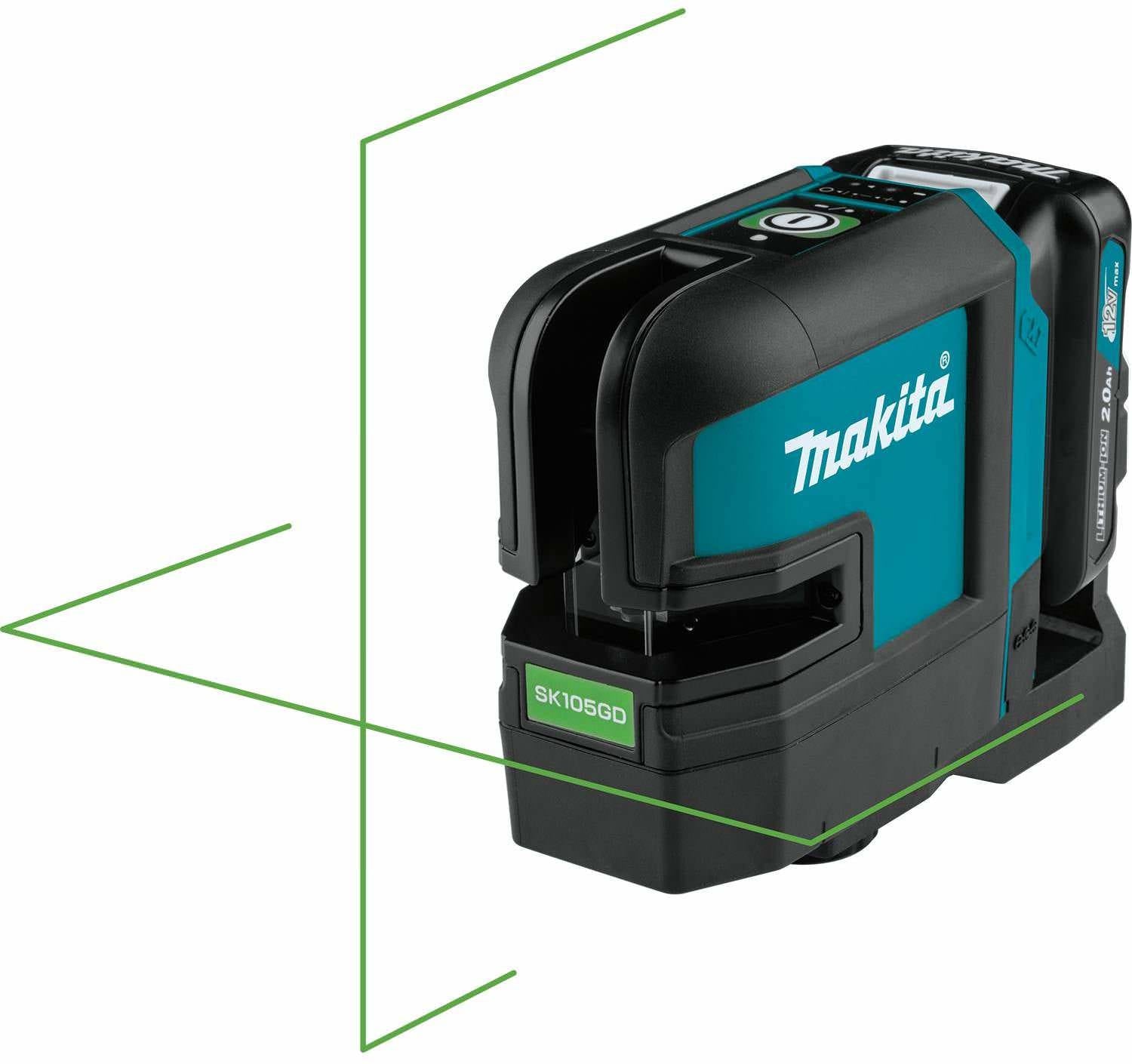

- Two-line output: horizontal and vertical
- Laser diode: Class II, 510 to 530 nm
Ready to Work Out of the Bag
This is not just a bare laser tossed in a box. The kit is set up so you can charge, mount, store, and start laying out lines without building your own package from separate parts.
- Includes 2.0Ah 12V max CXT battery and Rapid Optimum Charger

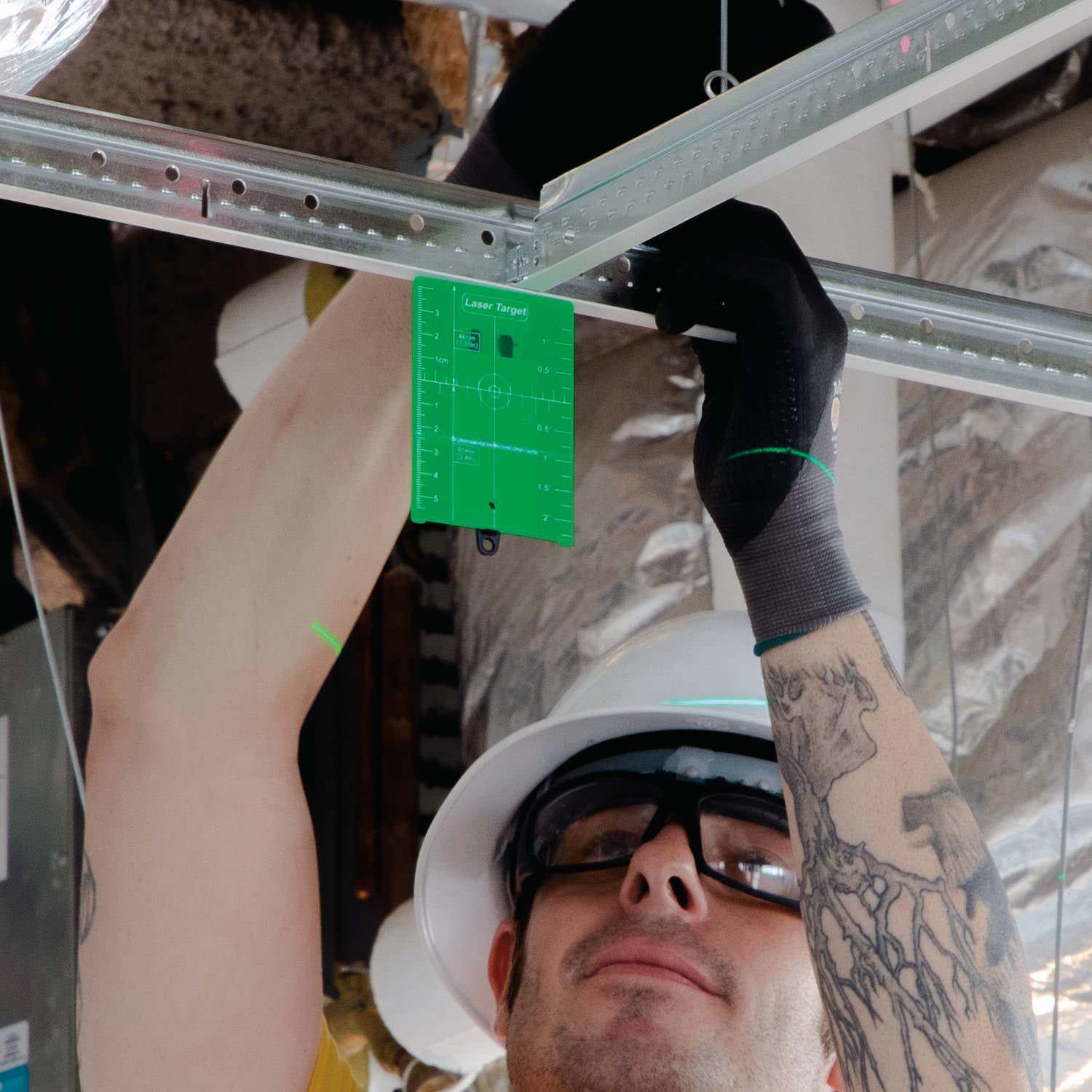

- Includes magnetic L-adapter and magnetic green target plate
- Kit bag keeps the setup together between jobs
- Up to 10 hours of continuous run time with the included battery
Compact Power That Travels Well

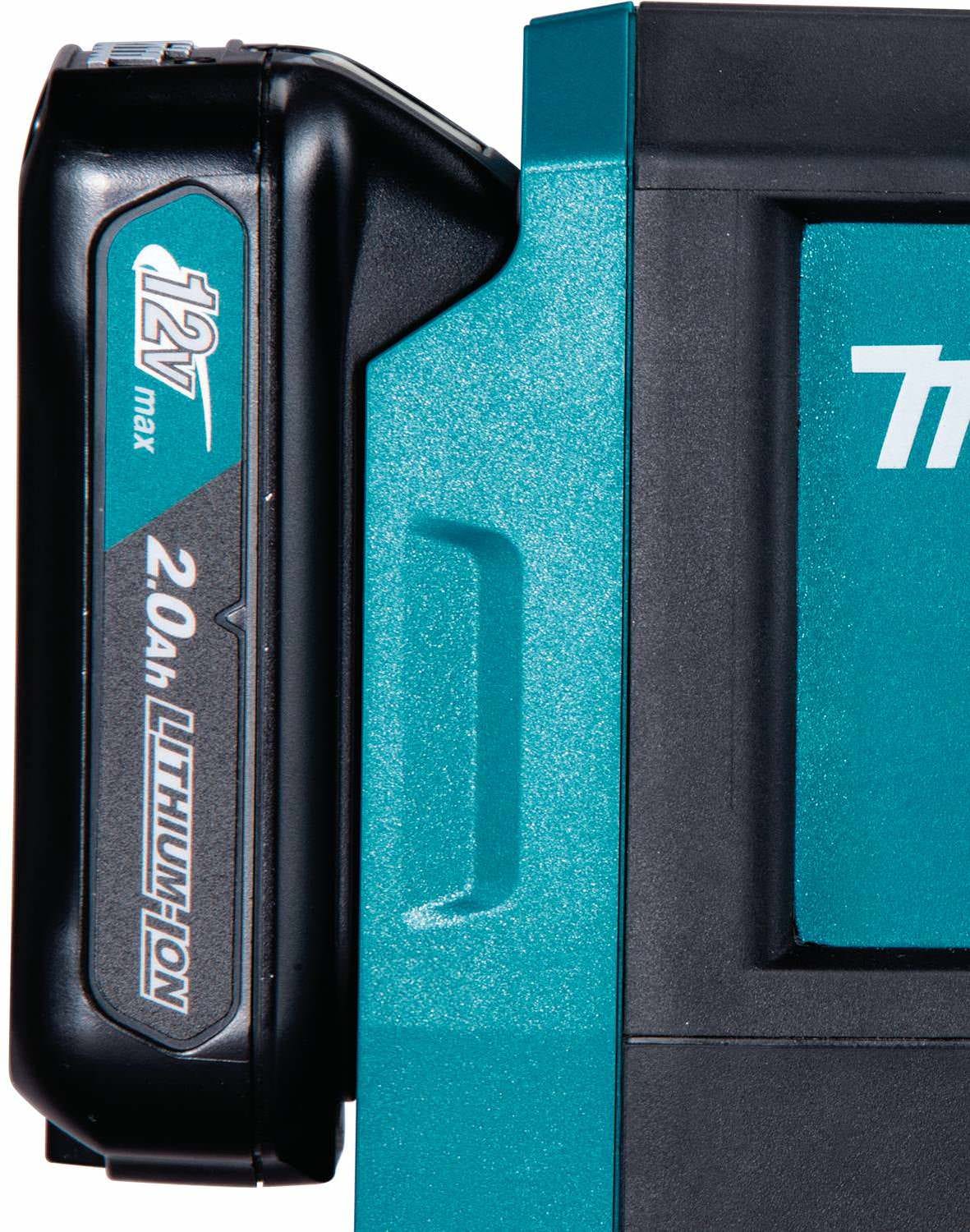

The included slide-style 12V max CXT battery keeps this cordless laser level compact and easy to carry, while still giving enough runtime for real work. That matters when the laser is being moved from room to room or floor to floor.

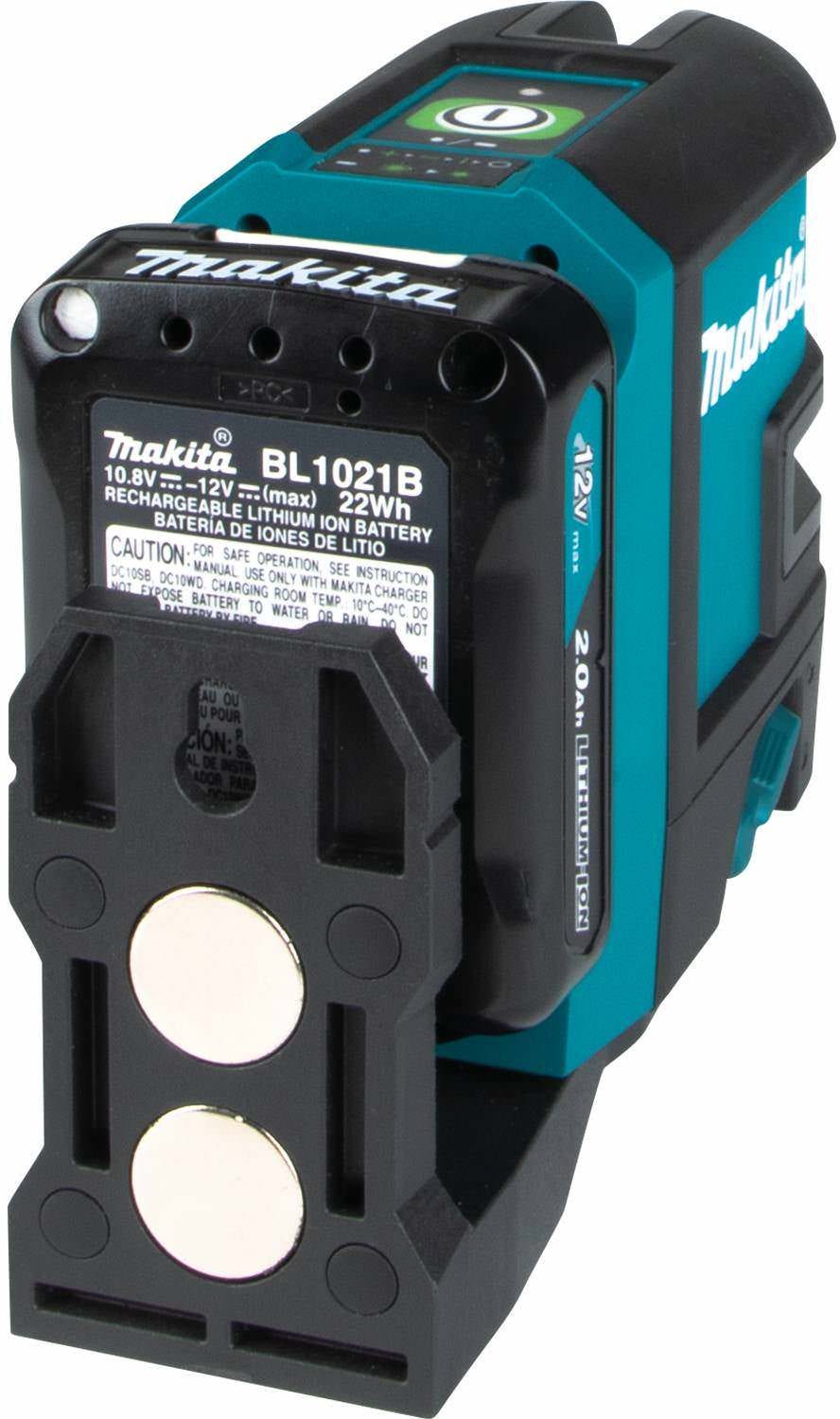

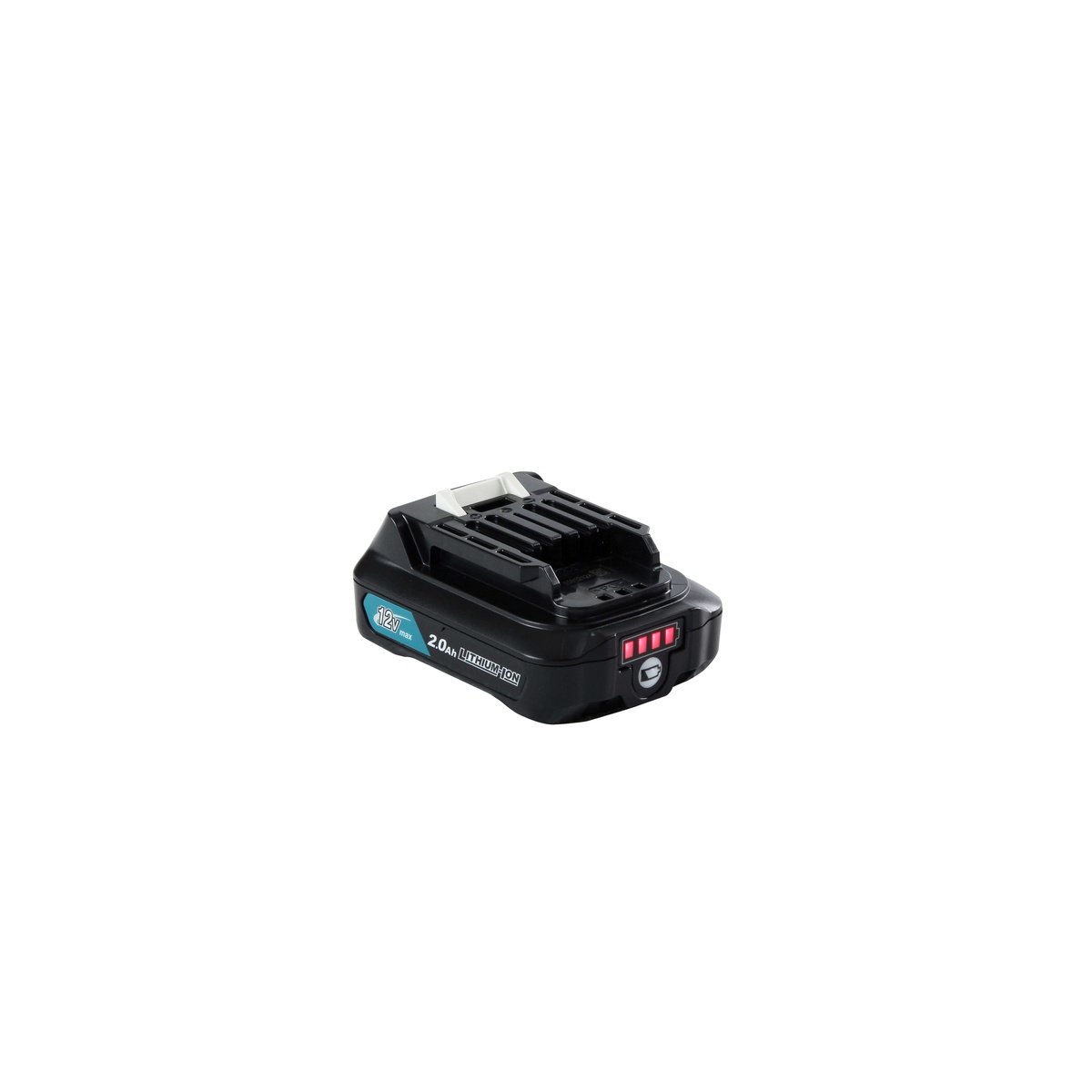

- Included battery: BL1021B 12V max CXT 2.0Ah
- Battery features an integrated LED charge level indicator
- Compatible with 12V max CXT 4.0Ah BL1041B for longer runtime
- Battery Protection Circuit helps protect against overloading, over-discharging, and overheating

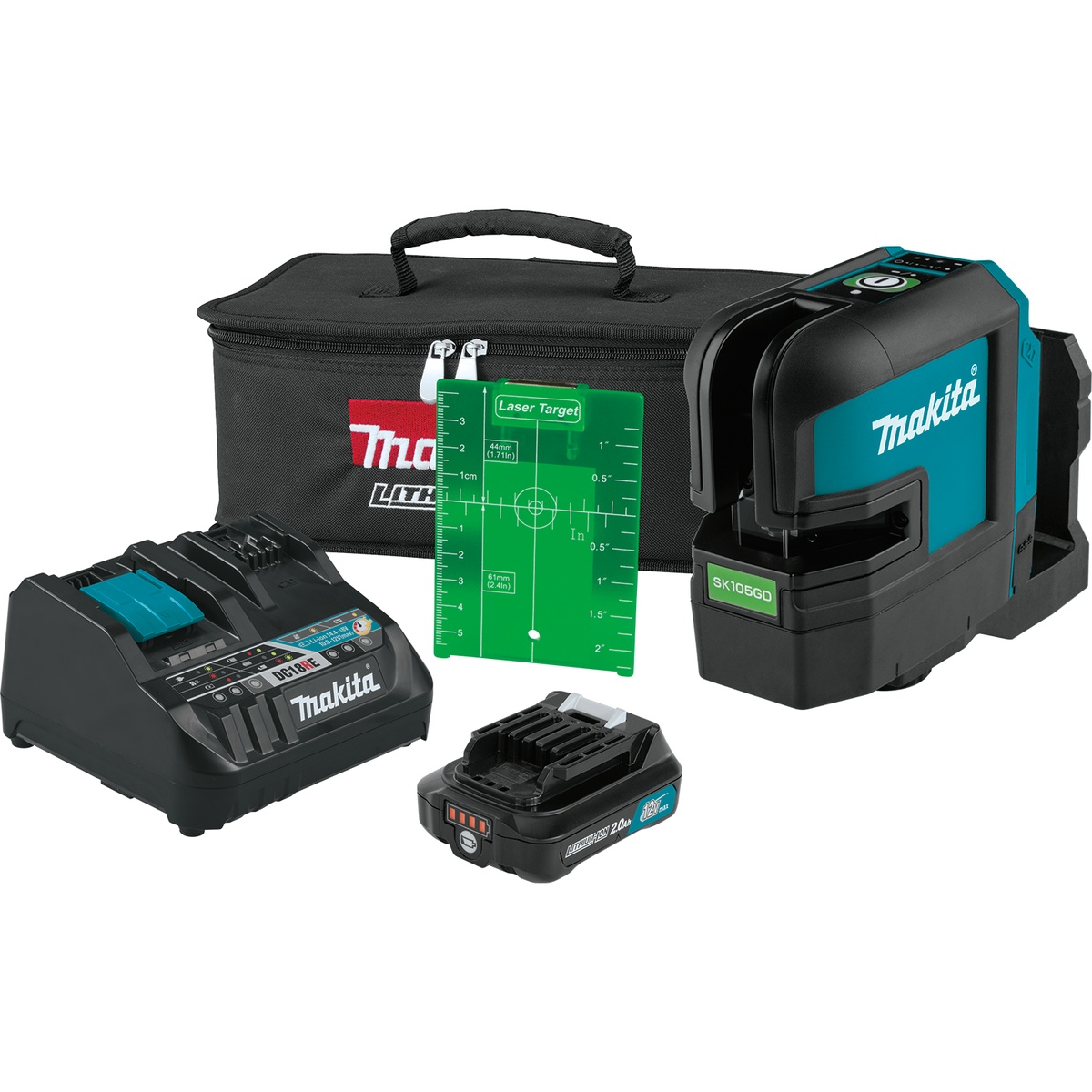

What's in the Box
- (1) Makita 12V max CXT Self-Leveling Cross-Line Green Beam Laser (SK105GDZ)
- (1) 12V max CXT Lithium-Ion 2.0Ah Battery (BL1021B)
- (1) 18V LXT / 12V max CXT Lithium-Ion Rapid Optimum Charger (DC18RE)
- (1) Magnetic L-Adapter (LE00870131)
- (1) Magnetic Green Target Plate (LE00823195)
- (1) Kit Bag (832173-9)
Laser detector and 18V LXT power source adapter components are sold separately.
Key Specifications
|
|
+/- 1/8 in at 33 ft |
|---|---|
|
|
115 ft |
|
|
262 ft |
|
|
10 hours |
|
|
4 degrees |
|
|
IP54 |
|
|
1.9 lbs |
|
|
12V max CXT Lithium-Ion |
Compatibility
Built For
Pro Tip
Use the pendulum lock when you need a fixed incline reference instead of a level line. It is also worth locking the pendulum before tossing the unit back in the bag, because that protects the laser during transport and keeps the tool ready for the next setup.
Warranty & Support
Tool Nut's Take
Makita SK105GDNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Green Beam Laser Kit (2.0Ah) Gets the Important Stuff Right
This is a compact cordless laser level kit with the visibility, accuracy, and mounting flexibility that make layout work go smoother instead of slower.
- Who it's for: Pros and serious DIY users doing interior layout, cabinet work, remodeling, electrical, plumbing, and finish carpentry.
- Why it stands out: Bright green lines, broad horizontal and vertical coverage, solid runtime on the included 12V max CXT battery, and real compatibility with the Makita cordless system.
- Worth knowing: It is a cross-line laser, not a 360-degree model, and the detector plus 18V adapter parts are separate purchases.
Common Questions
- Is this a self-leveling laser? Yes. The Makita SK105GDNAX is self-leveling and correctable up to 4 degrees of slope.
- How far can the beam be seen? The green line is visible up to 115 feet depending on ambient light, and detectable up to 262 feet with the Makita Laser Detector LE00855702.
- Can it run on other Makita batteries? Yes. It uses 12V max CXT batteries and can also use an 18V LXT battery as an alternate power source with the required ADP05 power source adapter and adapter cord, sold separately.
- Is it built for dusty or damp jobsites? It has an IP54 rating for dust and water resistance, plus recessed laser windows and a rubberized housing for added durability.
