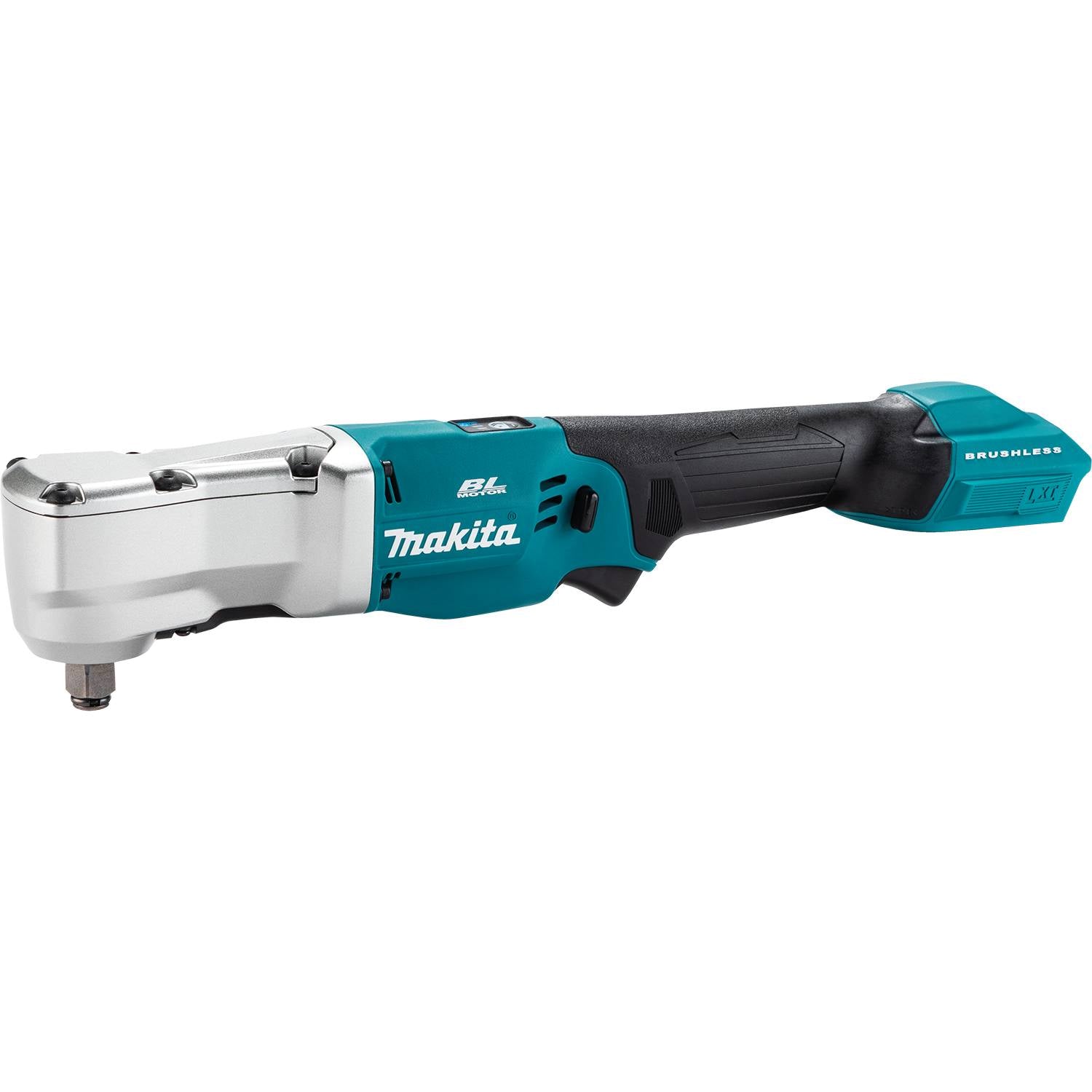

Makita 18V LXT Brushless High Torque 1/2-in. Angle Impact Wrench with Friction Ring, Tool Only (XLT04Z)
Makita 18V LXT Brushless High Torque 1/2-in. Angle Impact Wrench with Friction Ring, Tool Only (XLT04Z)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview
The Makita 18V LXT Lithium-Ion Brushless Cordless High Torque 1/2 in. Sq. Drive Angle Impact Wrench w/ Friction Ring (Tool Only), Model XLT04Z, is built for users who need serious torque in places a full-size impact wrench cannot reach. This is a cordless angle impact wrench designed for fastening and loosening nuts and bolts in tight spaces. If you work on automotive assemblies, equipment service, mechanical installs, or maintenance jobs where clearance is the real problem, this tool solves that without giving up the output you need.
Makita rates it at 250 ft-lbs of fastening torque and 390 ft-lbs of nut-busting torque, which puts this right-angle impact wrench in a class that makes sense for real removal work, not just light-duty assembly. The brushless motor is there for more than spec-sheet bragging rights. It helps deliver efficient power, better runtime from the battery platform, and less maintenance over the long haul compared with brushed designs. On the job, that means more confidence when you are breaking loose stubborn hardware and fewer compromises when working off ladders, under vehicles, or inside equipment housings.

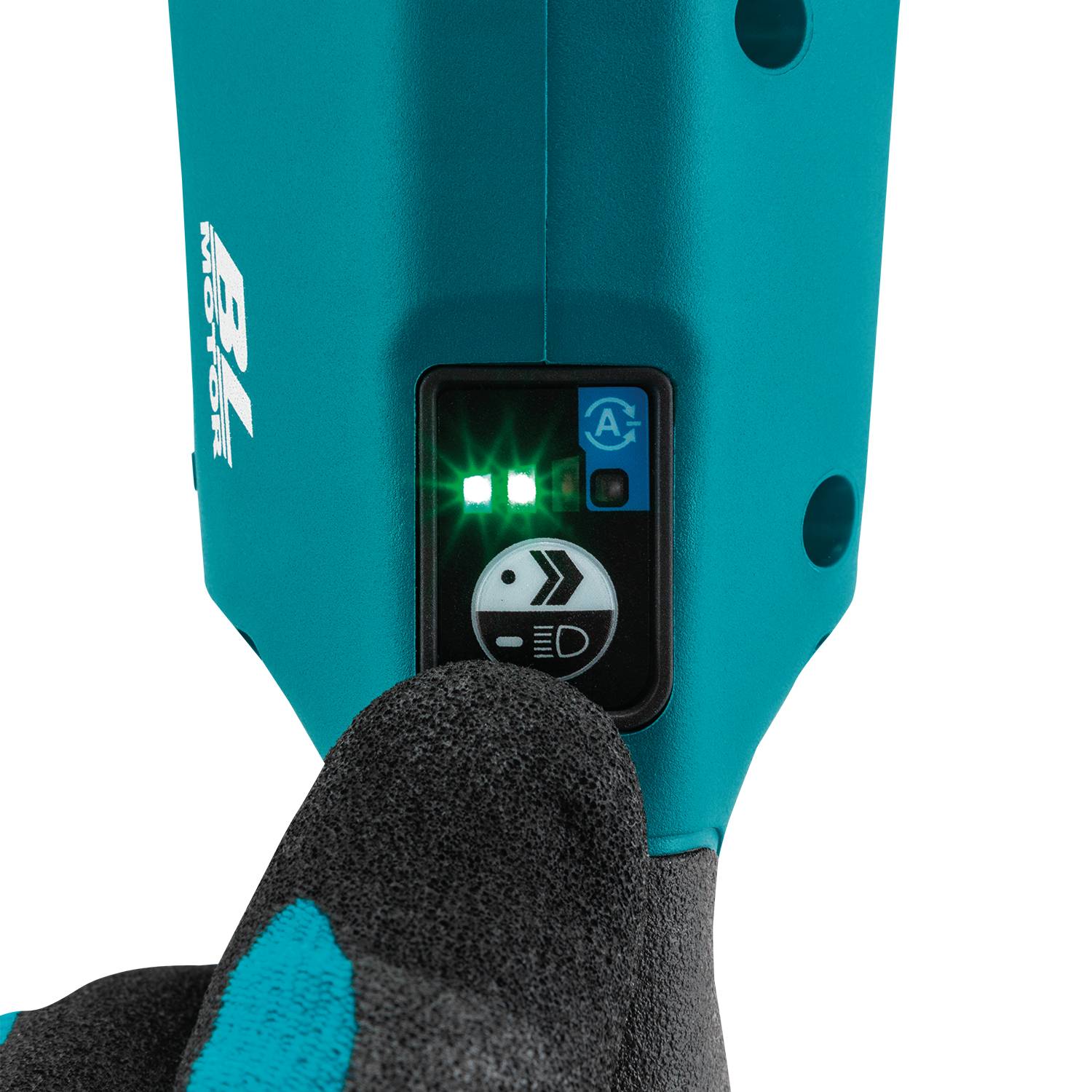

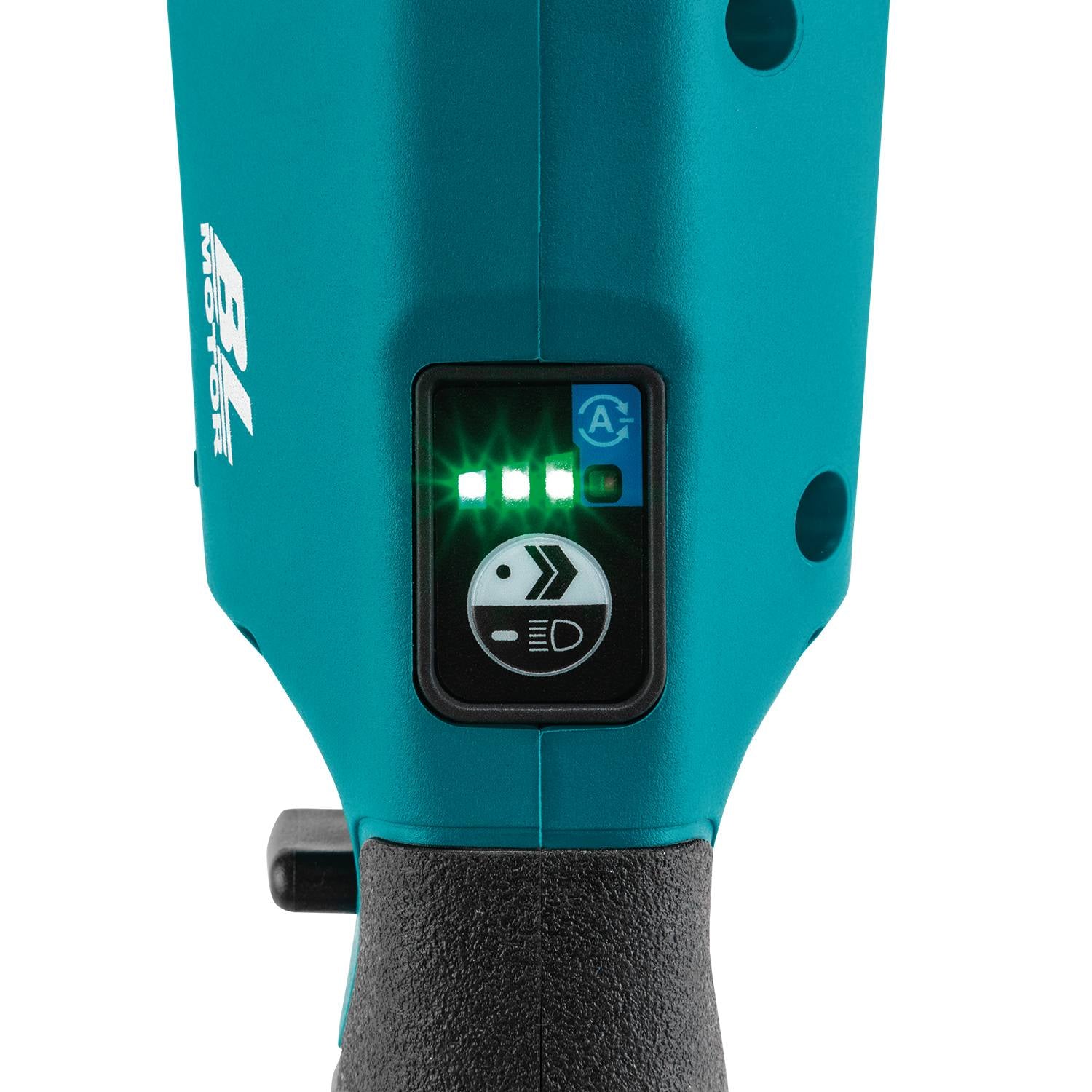

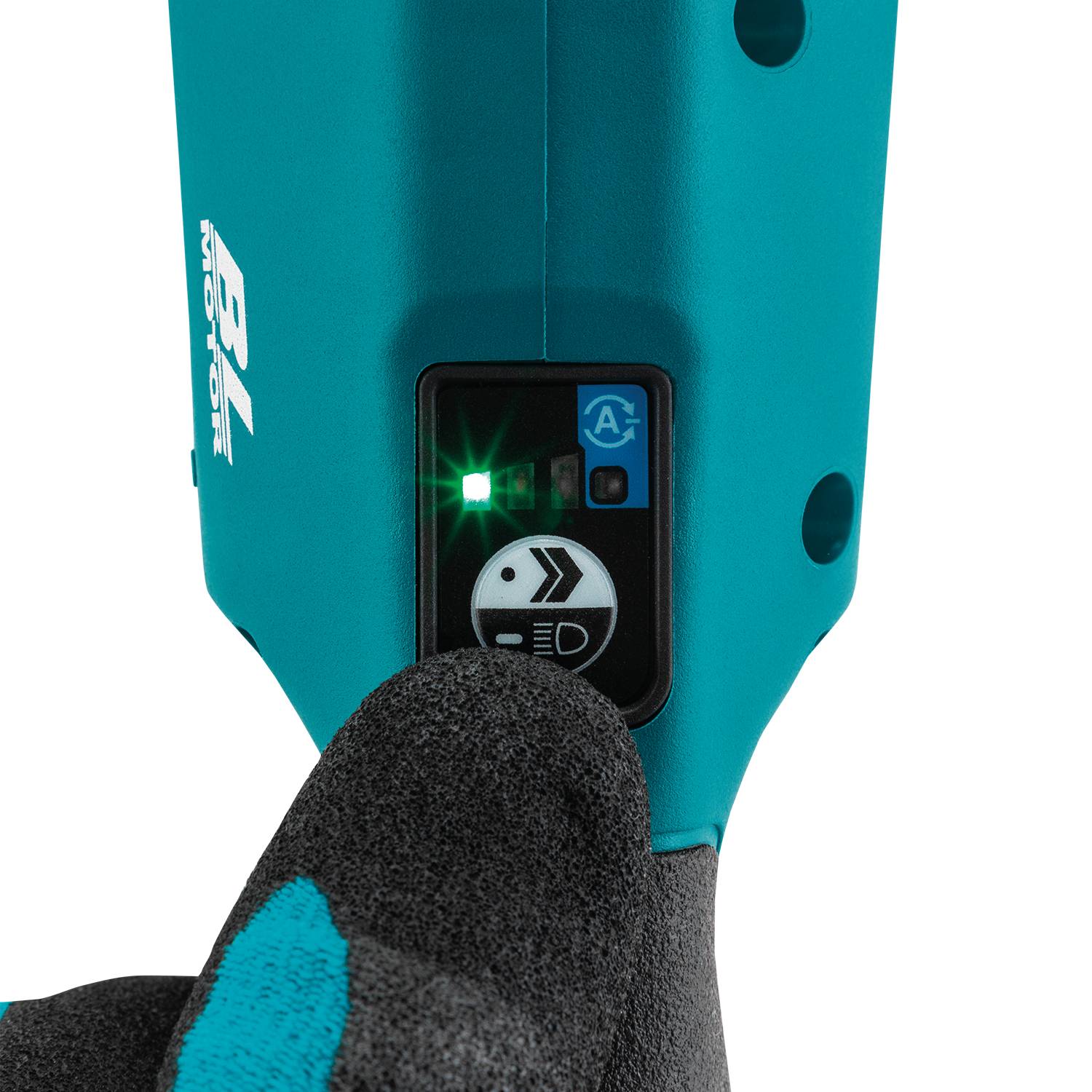

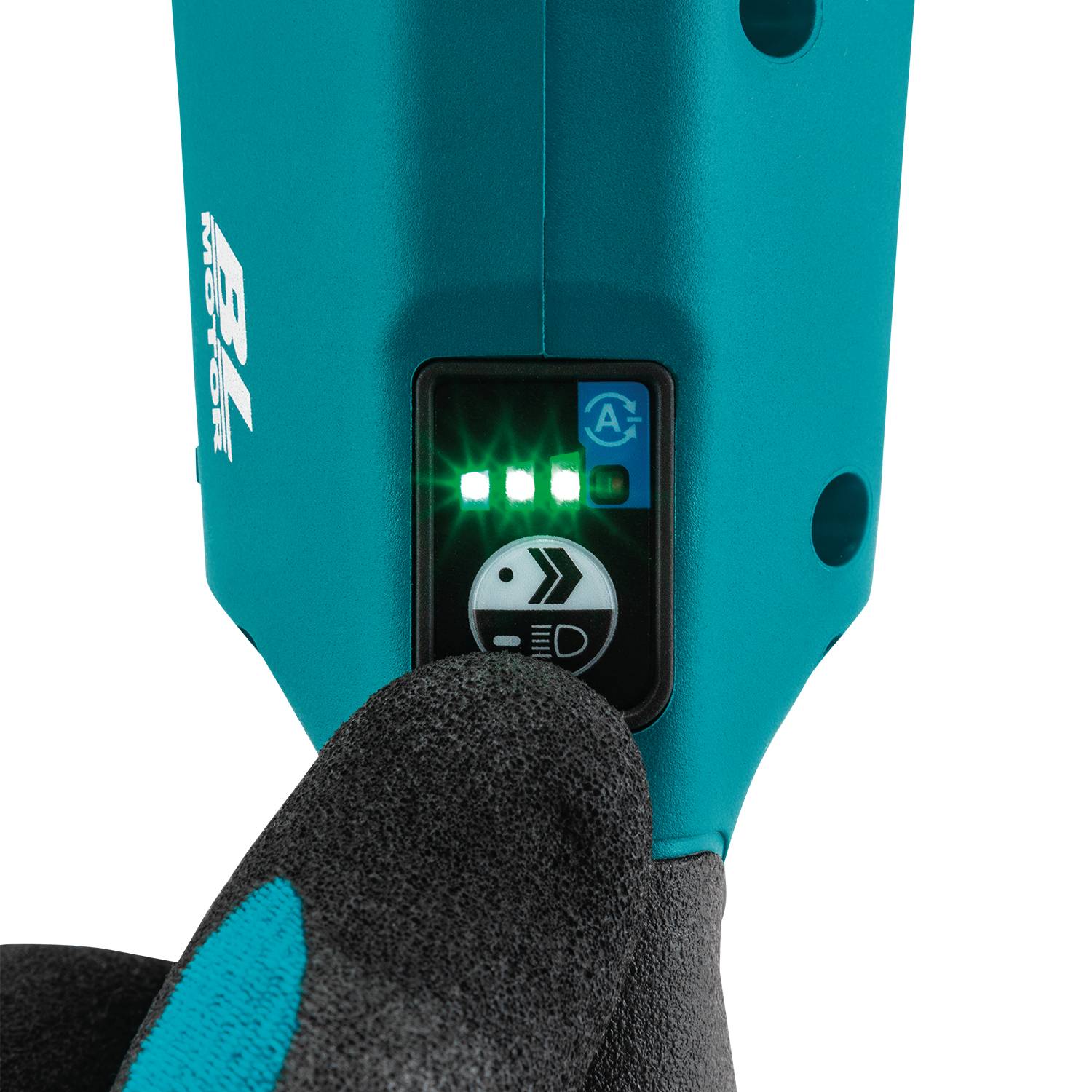

The three-speed setup gives this impact wrench a wider working range than a one-speed right-angle tool. You get no-load speed settings of 0 to 1,000, 0 to 1,500, and 0 to 3,200 RPM, with matching impact rates of 0 to 1,800, 0 to 2,800, and 0 to 4,000 IPM. That matters because not every fastener wants full force. Lower settings help when starting threads or working with smaller hardware, while the top setting is there when you need removal speed and impact energy. Makita also calls out an ultra-smooth variable speed trigger, which is exactly what you want in a tool that is often used one-handed or at awkward angles.

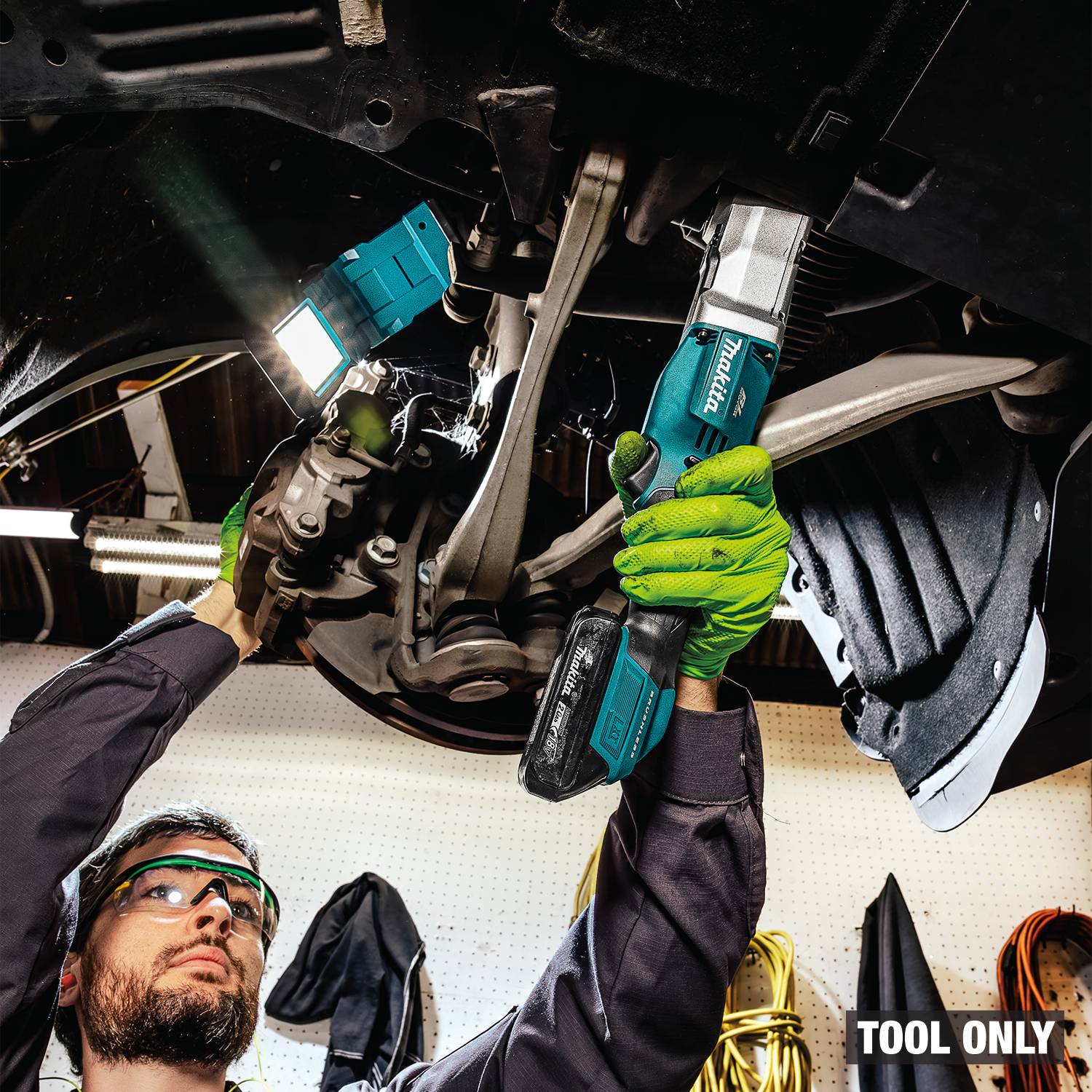

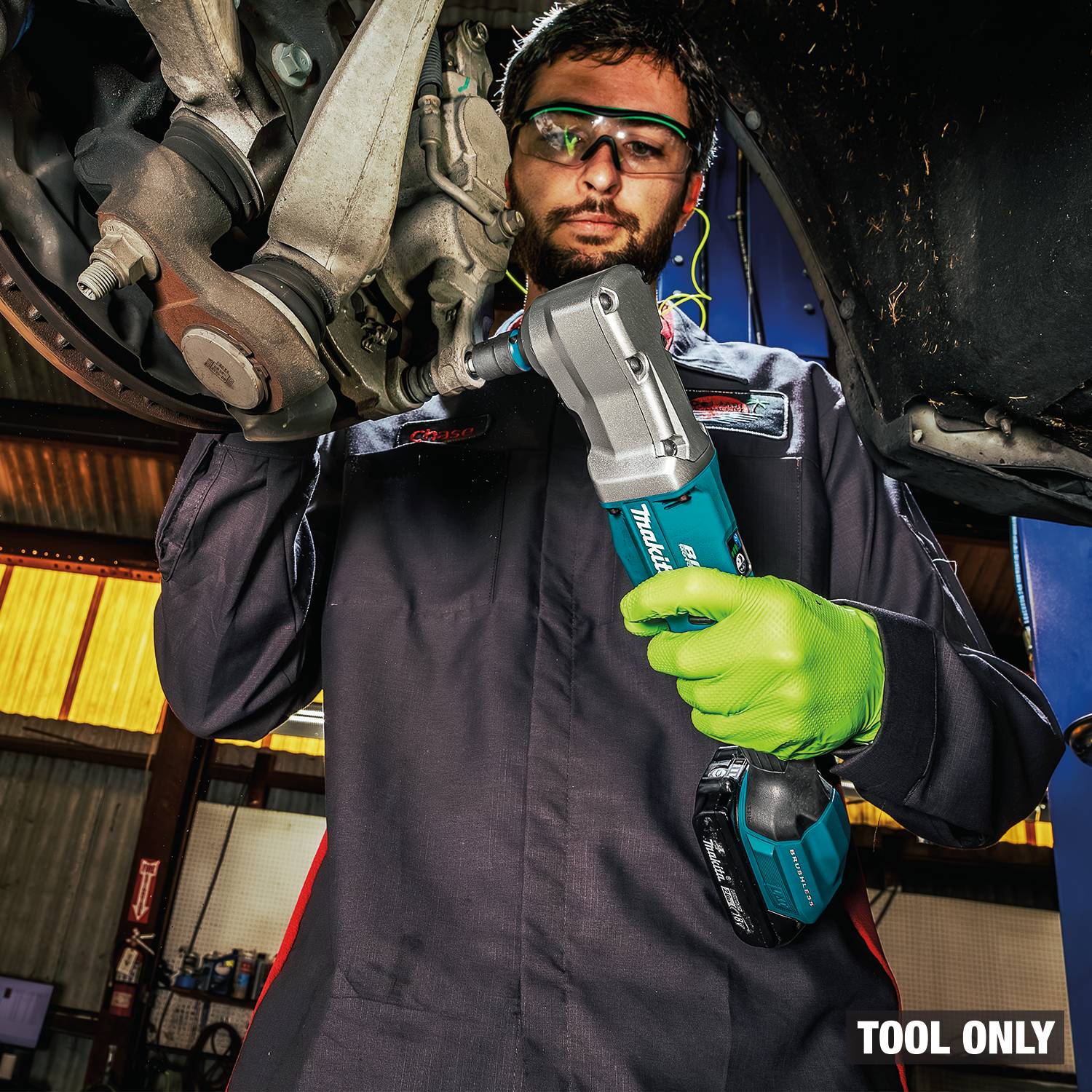

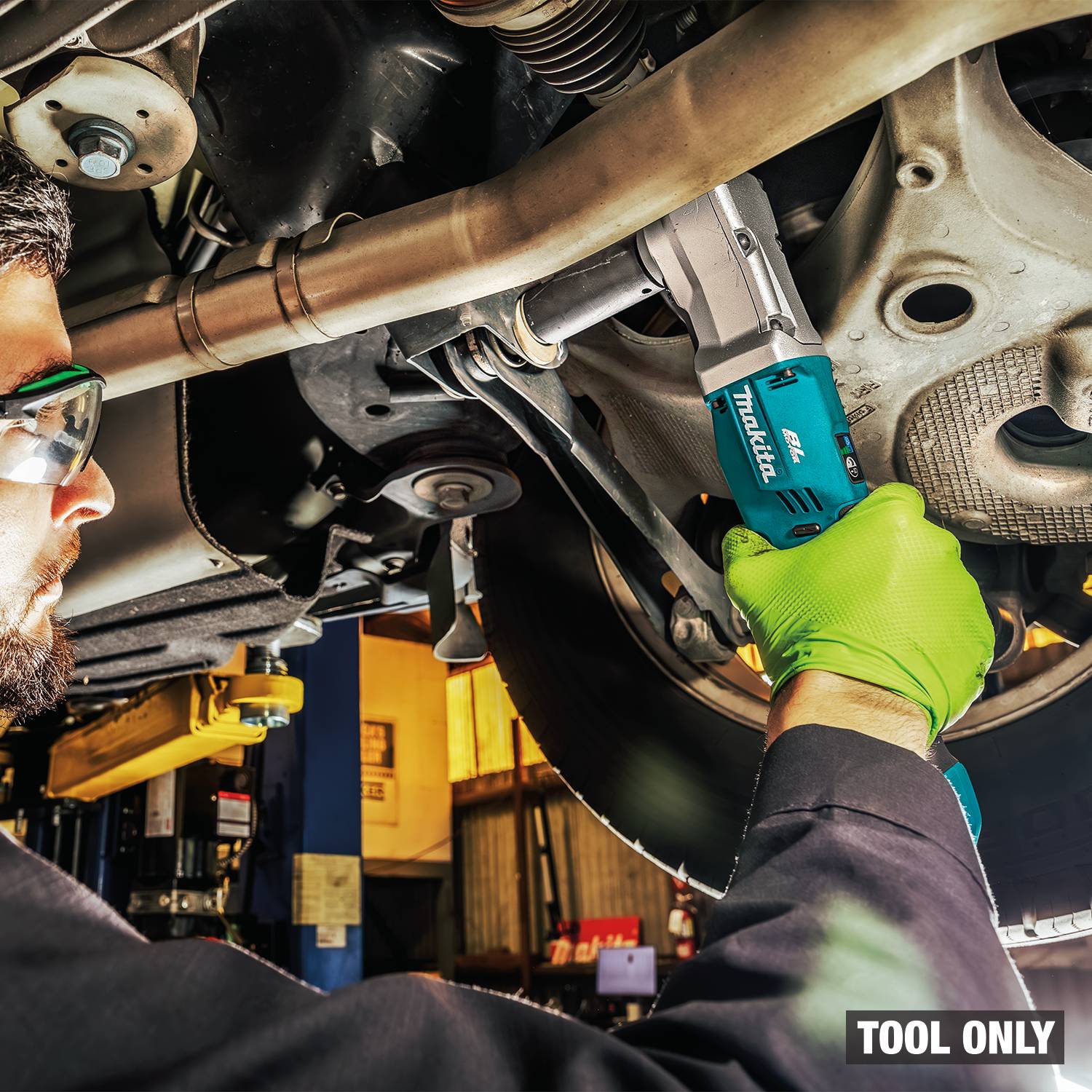

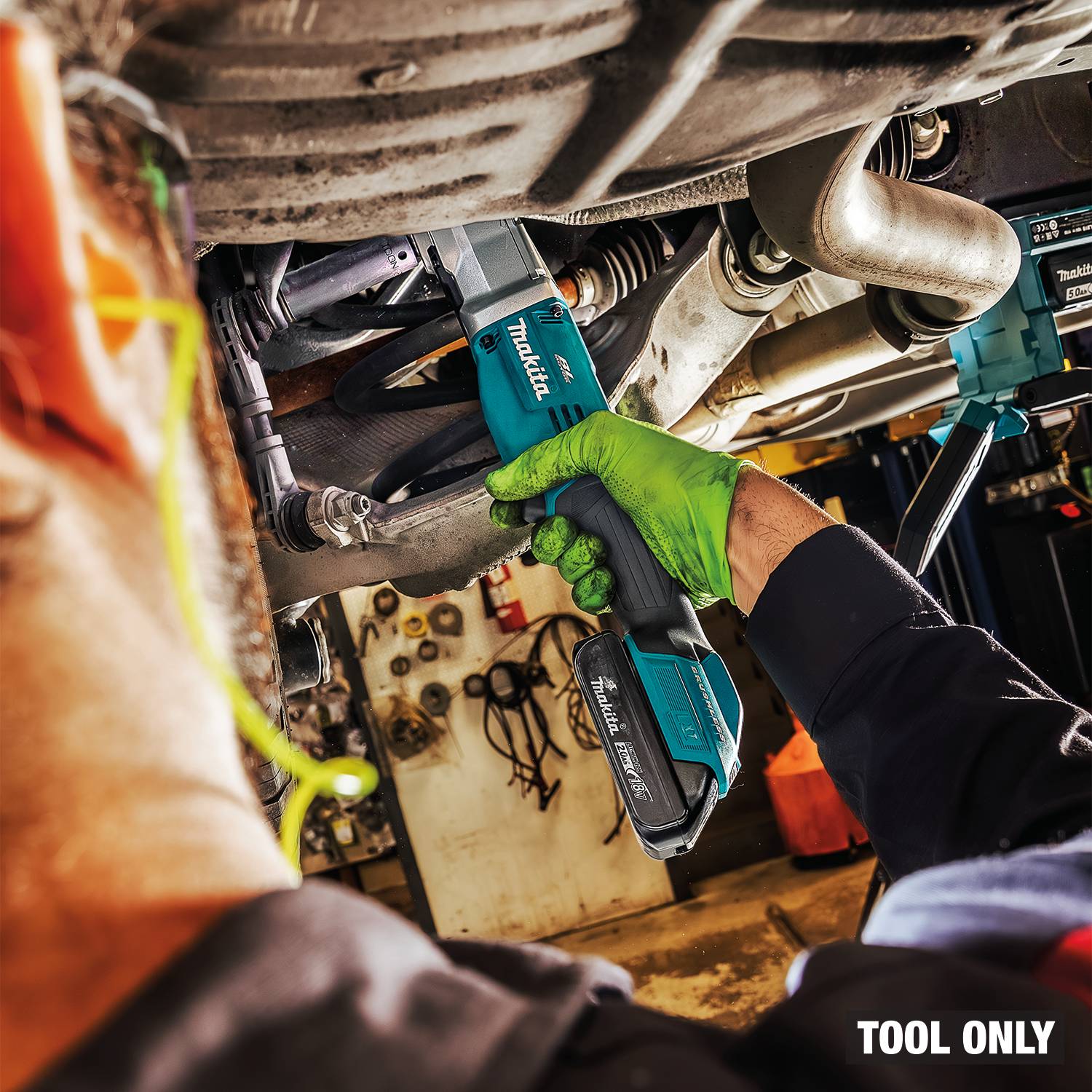

Where this tool really separates itself is physical access. The angle head is compact for close-quarter work, with Makita listing a 3-3/8 inch angle head height. That makes a difference around frame rails, engine compartments, plumbing chases, machinery guards, and other spaces where a standard inline impact wrench simply runs out of room. Overall length is 15-5/8 inches, so while it is not a tiny tool, the right-angle head changes what jobs become possible without dragging out hand ratchets and breaker bars.

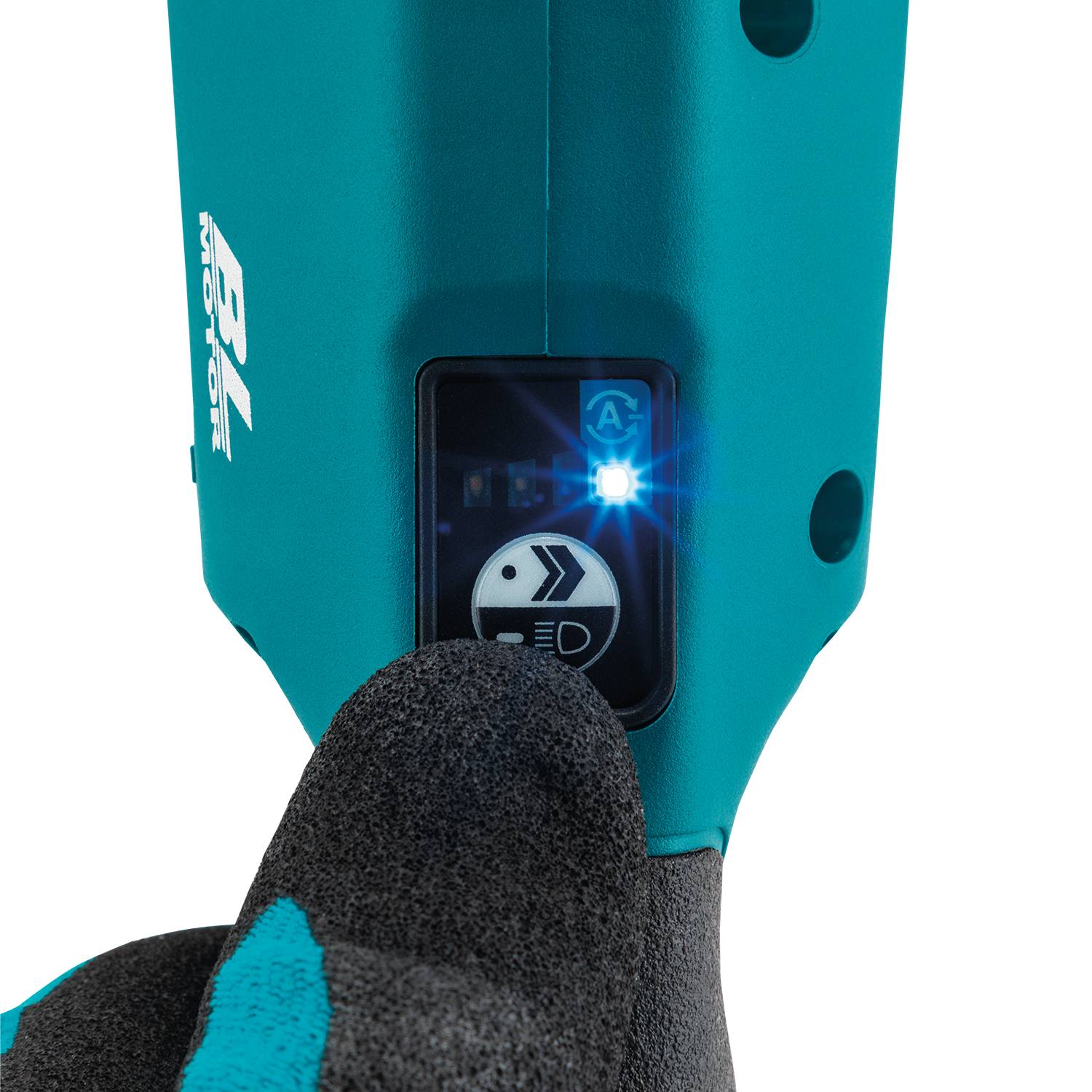

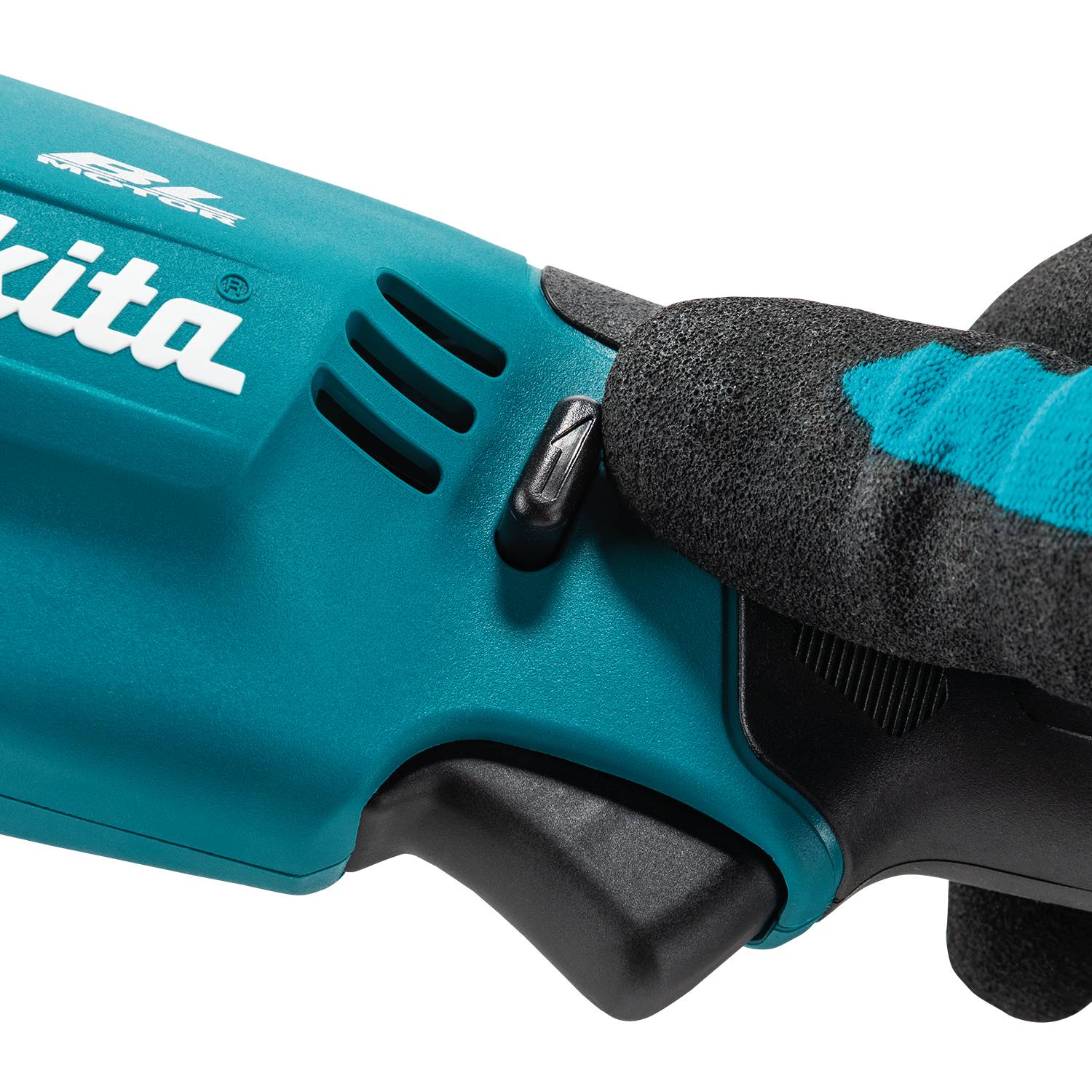

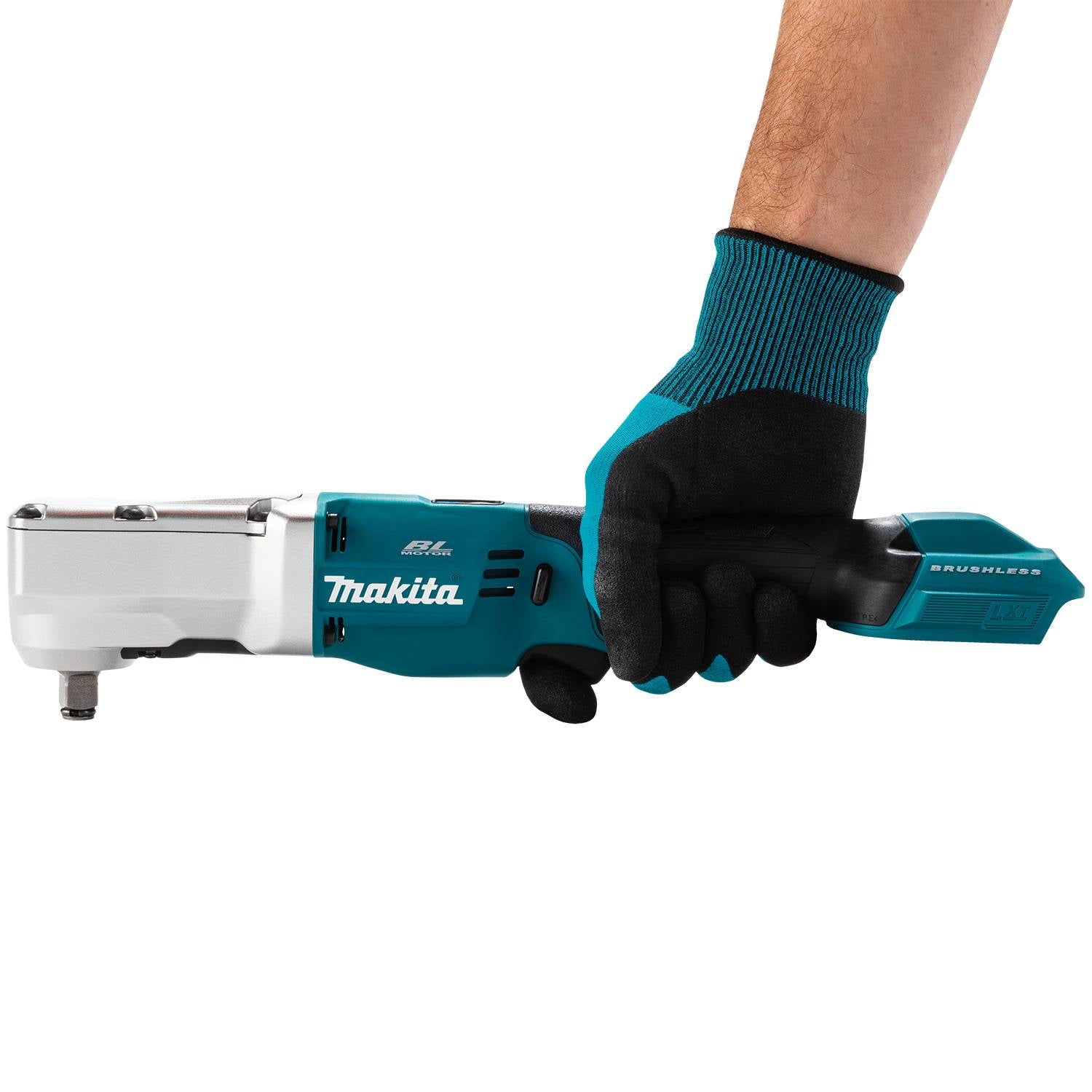

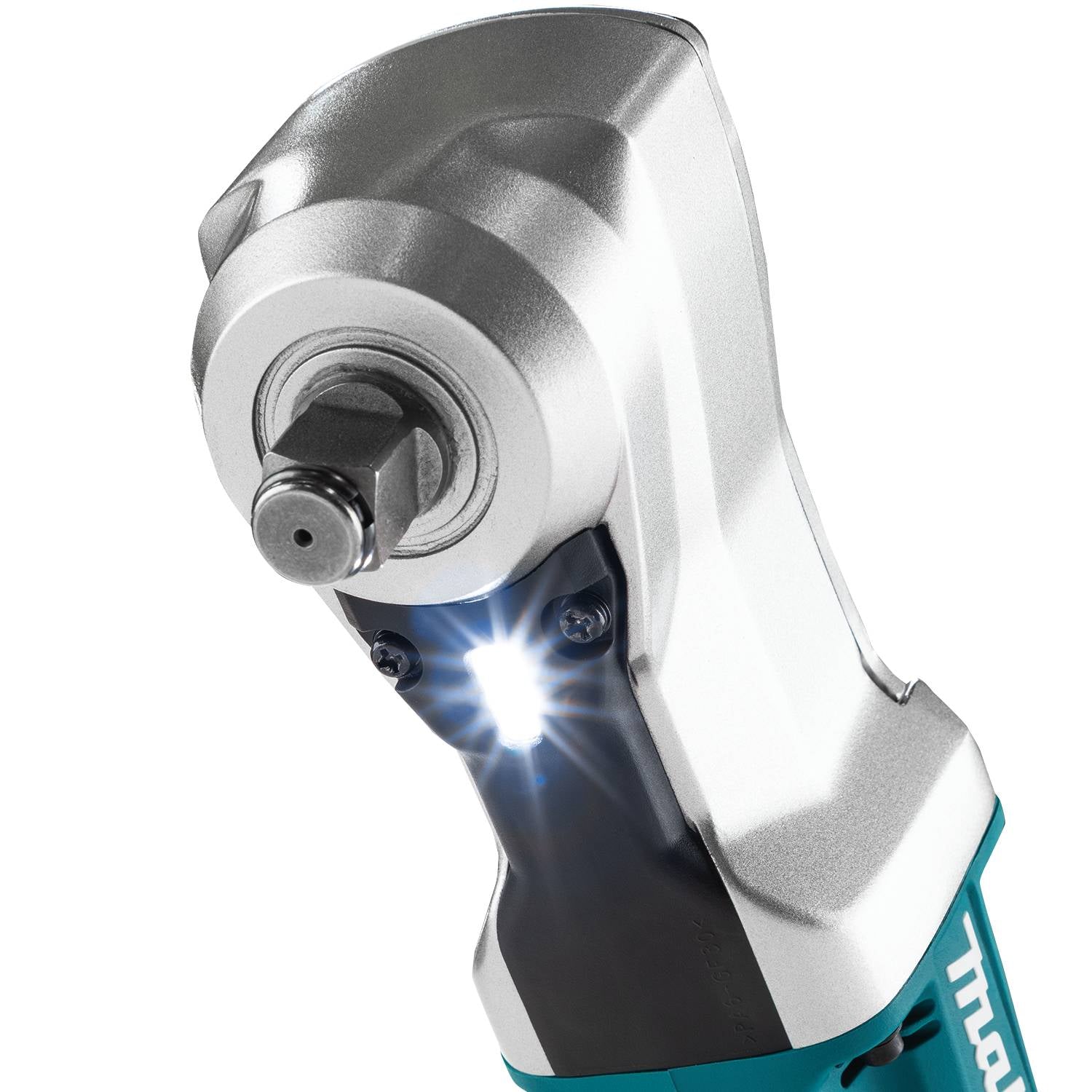

Makita also paid attention to jobsite usability. Forward and reverse Auto-Stop modes help improve efficiency by keeping the tool from overdriving or letting a fastener run away once it breaks loose. Twin LED lights with afterglow help in dark service areas, inside cabinets, under vehicles, and around equipment. The rubberized soft grip handle and ergonomic layout matter too, especially in a tool category where awkward body positioning is common. At 4.0 lbs with battery, it stays manageable for overhead or repeated service work.
On the durability side, this Makita impact wrench uses the brand's proprietary hammer and anvil impact mechanism, and the tool is equipped with Extreme Protection Technology for improved dust and water resistance in harsh conditions. It also uses Star Protection Computer Controls to help protect against overload, over-discharge, and overheating when paired with compatible batteries. Those are the kinds of details that matter if the tool is going to live in a service truck, maintenance cart, or daily-use shop rotation instead of coming out once a month.
The XLT04Z is part of the Makita 18V LXT battery platform and is compatible with Makita 18V Lithium-Ion batteries that have the star symbol. This is a tool-only configuration, so no battery or charger is included. That makes the most sense for current Makita users who already have packs and chargers in the system. If you are already invested in LXT, this is an easy way to add a specialty fastening tool without buying duplicate power sources.
Who should buy it? This Makita 18V LXT Lithium-Ion Brushless Cordless High Torque 1/2 in. Sq. Drive Angle Impact Wrench w/ Friction Ring (Tool Only) is a strong fit for mechanics, industrial maintenance techs, fleet service crews, plumbers, HVAC installers, and contractors who regularly deal with tight-access fasteners. If your problem is clearance first and torque second, this tool is exactly the right kind of solution. If you mostly work in open areas, a standard impact wrench may be the better value. But when access is the job, this right-angle design earns its place fast.
Reach Fasteners Standard Impacts Cannot
This right-angle impact wrench is built for the kind of spaces that usually force you into slower hand-tool work. The compact head and 1/2 inch square drive give you a practical way to bring impact power into crowded mechanical areas.
- 3-3/8 inch angle head height for close-quarter access

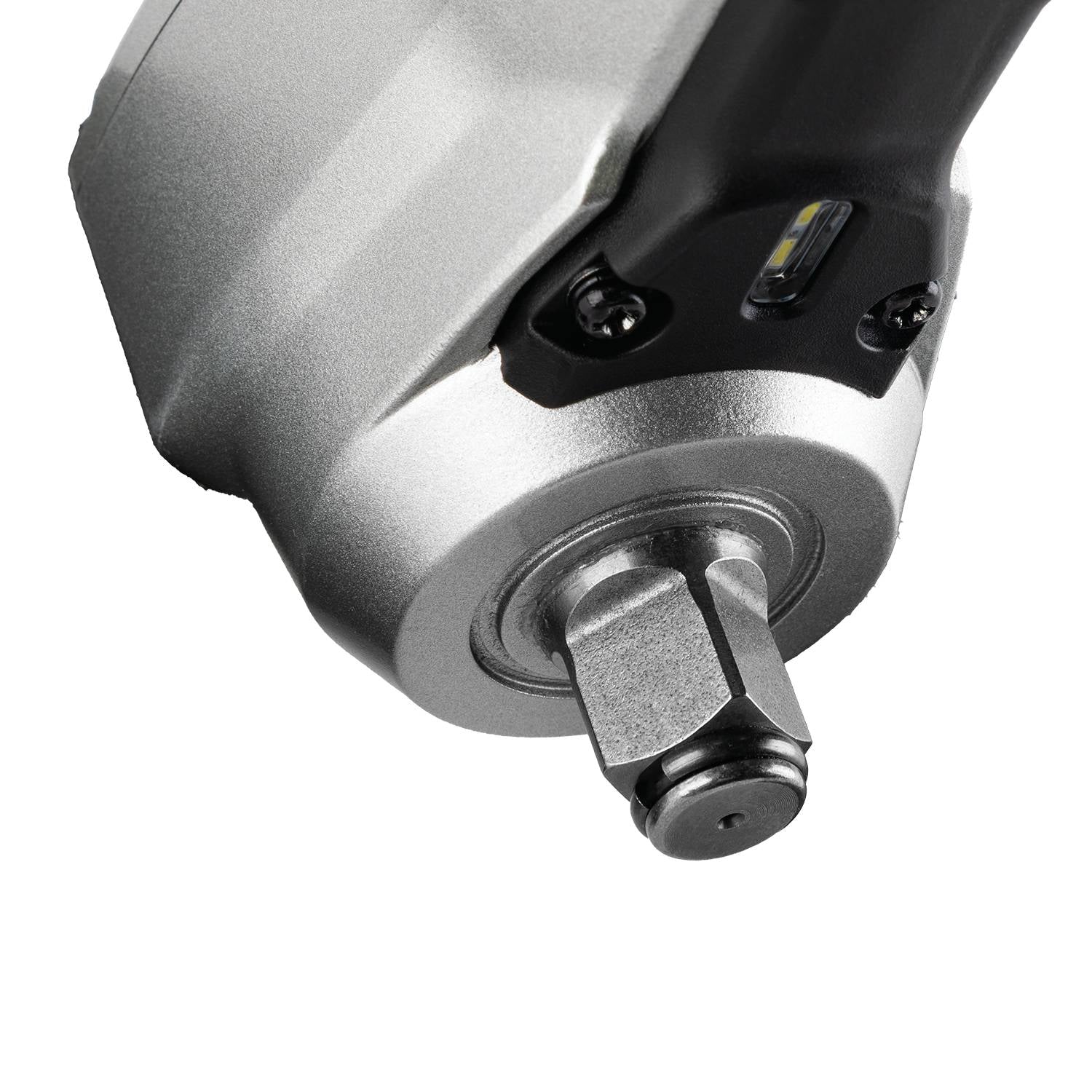

- 1/2 inch square drive with friction ring for common socket-based fastening tasks
What's in the Box
- (1) Makita XLT04Z 18V LXT High Torque 1/2 in. Square Drive Angle Impact Wrench with Friction Ring
Battery and charger are not included.

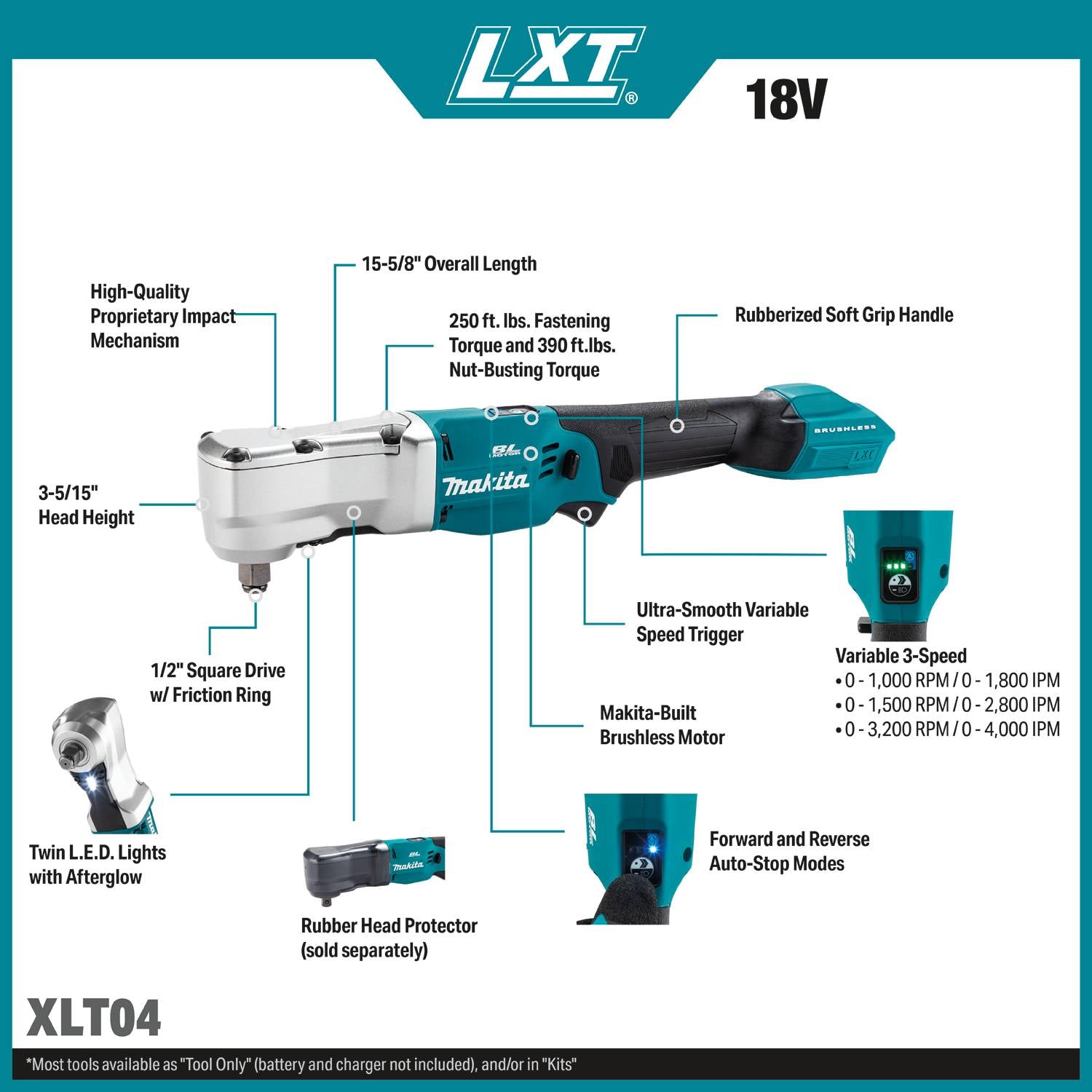

Key Specifications
| Voltage (V) | 18V |
|---|---|
| Drive Size | 1/2 in. square drive |
| Fastening Torque | 250 ft-lbs / 340 N·m |
| Nut-Busting Torque | 390 ft-lbs / 530 N·m |
| No-Load Speed (RPM) | 0 - 1,000 / 0 - 1,500 / 0 - 3,200 RPM |
| Impacts Per Minute | 0 - 1,800 / 0 - 2,800 / 0 - 4,000 IPM |
| Overall Length | 15-5/8 in. |
| Weight (lbs) | 4.0 lbs with battery |
| Motor Type | Brushless |
| Battery Platform | Makita 18V LXT Lithium-Ion |
Compatibility
Built For
Pro Tip
Use the lower speed setting and reverse Auto-Stop when you are backing off hardware in engine bays or equipment frames. It gives you better control when the fastener breaks free so the socket and hardware do not run away in a cramped spot.
Warranty & Support
Tool Nut's Take
Makita 18V LXT Lithium-Ion Brushless Cordless High Torque 1/2 in. Sq. Drive Angle Impact Wrench w/ Friction Ring (Tool Only) Is the Answer When Clearance Is the Problem
This is the kind of specialty impact wrench that saves you from wasting time with hand tools when the fastener is buried where a standard gun will not fit.
- Who it's for: Mechanics, service techs, maintenance crews, and contractors who regularly work around crowded assemblies and need real torque in a right-angle format.
- Why it stands out: You get 390 ft-lbs of nut-busting torque, a brushless motor, three speed ranges, and Auto-Stop modes in a compact angle-head design on the Makita 18V LXT platform.
- Worth knowing: This is a bare tool, so bring your own Makita 18V LXT battery and charger. If you do not need tight-access capability, a standard impact wrench may be a simpler buy.
Common Questions
- Is this a standard impact wrench or a right-angle model? It is a cordless right-angle impact wrench built for fastening and removal in tight spaces.
- How much torque does it make? Makita lists 250 ft-lbs of fastening torque and 390 ft-lbs of nut-busting torque.
- What battery system does it use? It runs on Makita 18V LXT Lithium-Ion batteries and is compatible with batteries that have the star symbol for Star Protection.
- Does it have multiple speeds? Yes. It has three speed ranges up to 3,200 RPM and up to 4,000 impacts per minute.
- Does it have a warranty? Yes. The tool includes a 3-year limited warranty.
