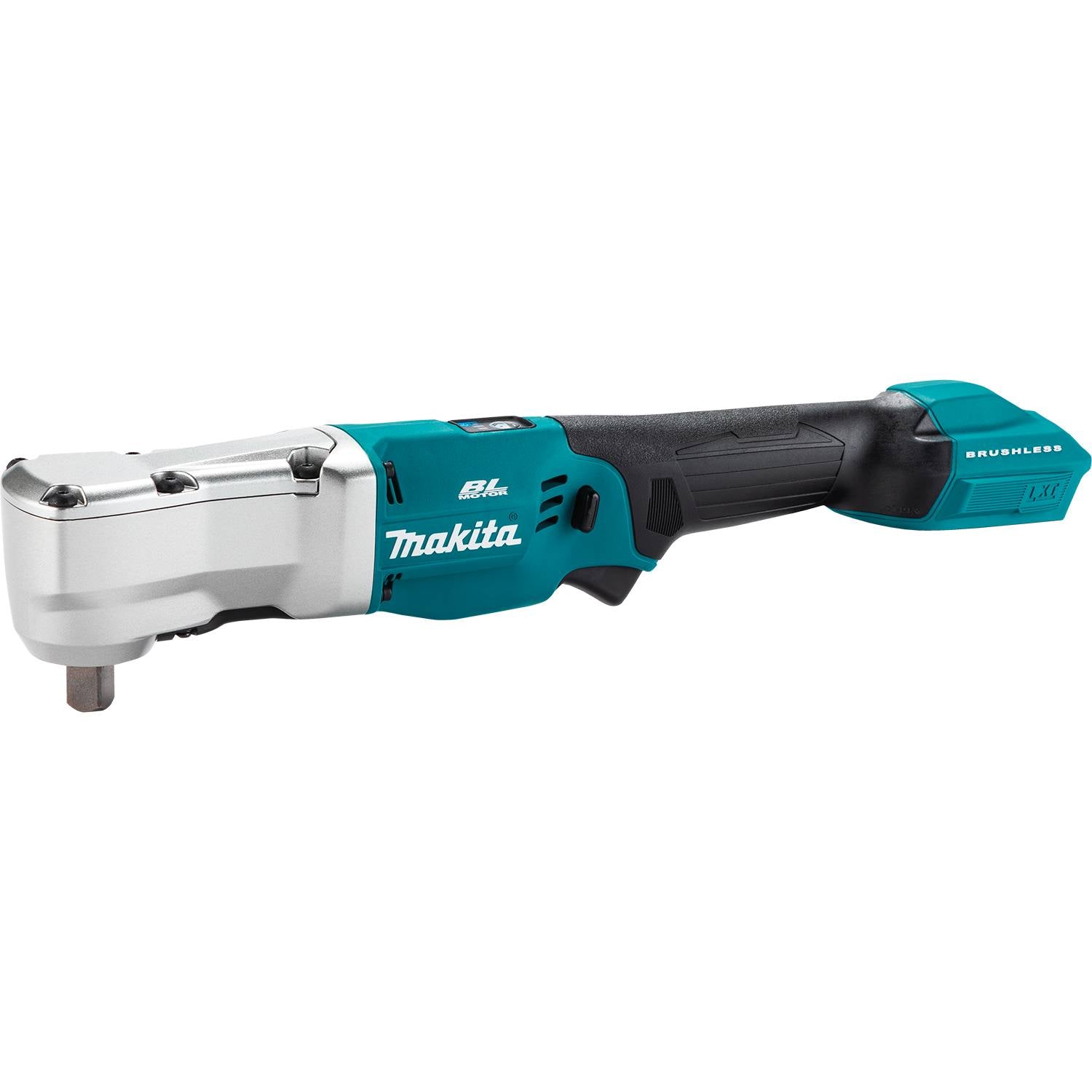

Makita 18V LXT Brushless High Torque 1/2-in. Angle Impact Wrench with Detent Pin, Tool Only (XLT05Z)
Makita 18V LXT Brushless High Torque 1/2-in. Angle Impact Wrench with Detent Pin, Tool Only (XLT05Z)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview
Makita XLT05Z 18V LXT Lithium-Ion Brushless Cordless High Torque 1/2 in. Sq. Drive Angle Impact Wrench w/ Detent Pin is a cordless right-angle impact wrench built for fastening where space is limited but torque still matters. This is a cordless angle impact wrench designed for high-torque fastening in tight spaces. Model Number: XLT05Z. If you work around suspension components, heavy equipment, mechanical assemblies, or confined service areas, this tool gives you the reach of a compact head with the output to break loose stubborn hardware.

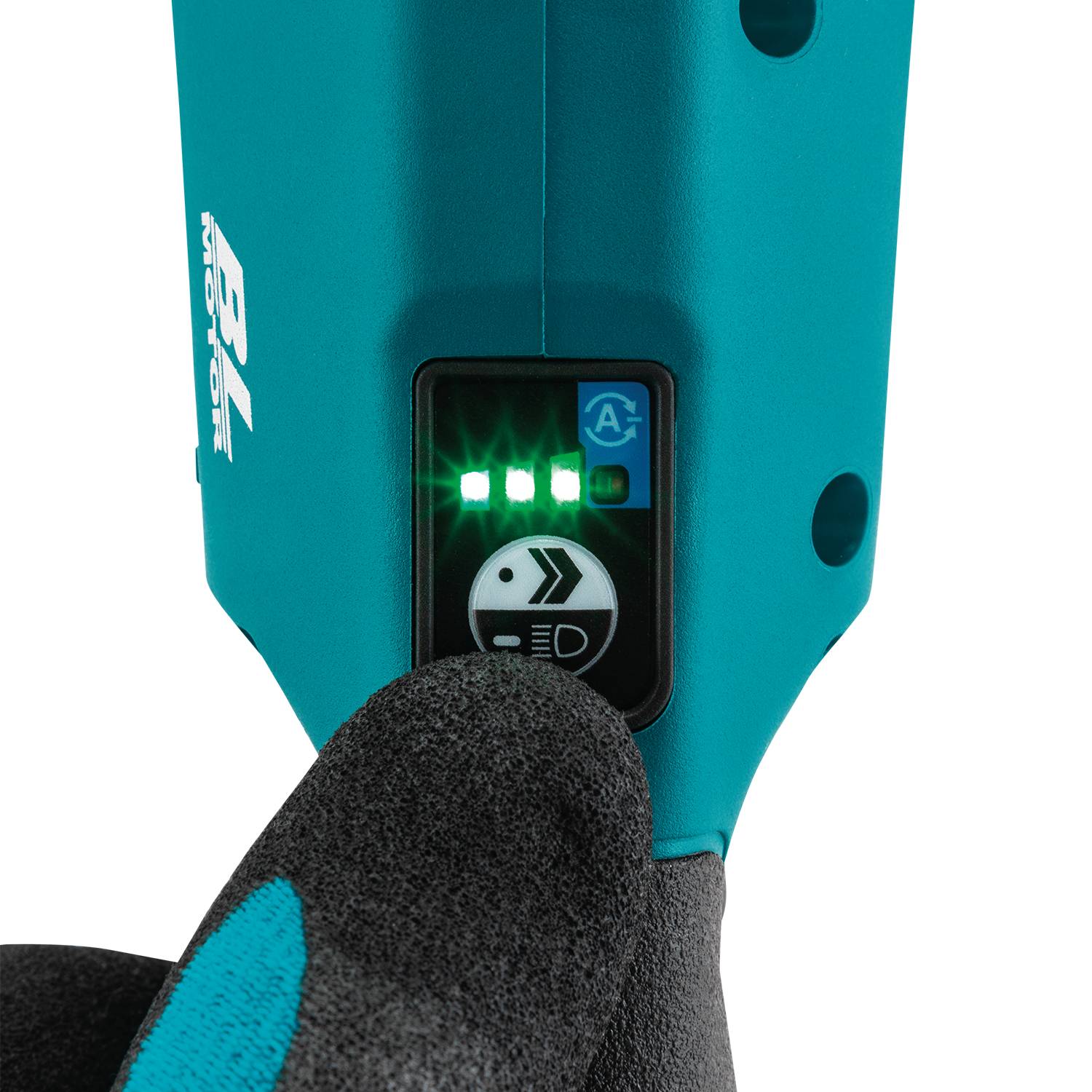

The headline numbers are what make this tool worth a serious look. It delivers 250 ft-lbs of fastening torque and 390 ft-lbs of nut-busting torque from a Makita-built brushless motor. That gives you enough force for demanding fastening work while keeping the tool on the 18V LXT platform. Makita also gives you three speed settings with no-load speeds of 0 to 1,000, 0 to 1,500, and 0 to 3,200 RPM, along with impact rates of 0 to 1,800, 0 to 2,800, and 0 to 4,000 IPM. In plain terms, you can slow it down for controlled starts and finish work, then step up when you need faster run-down and more aggressive impact action.

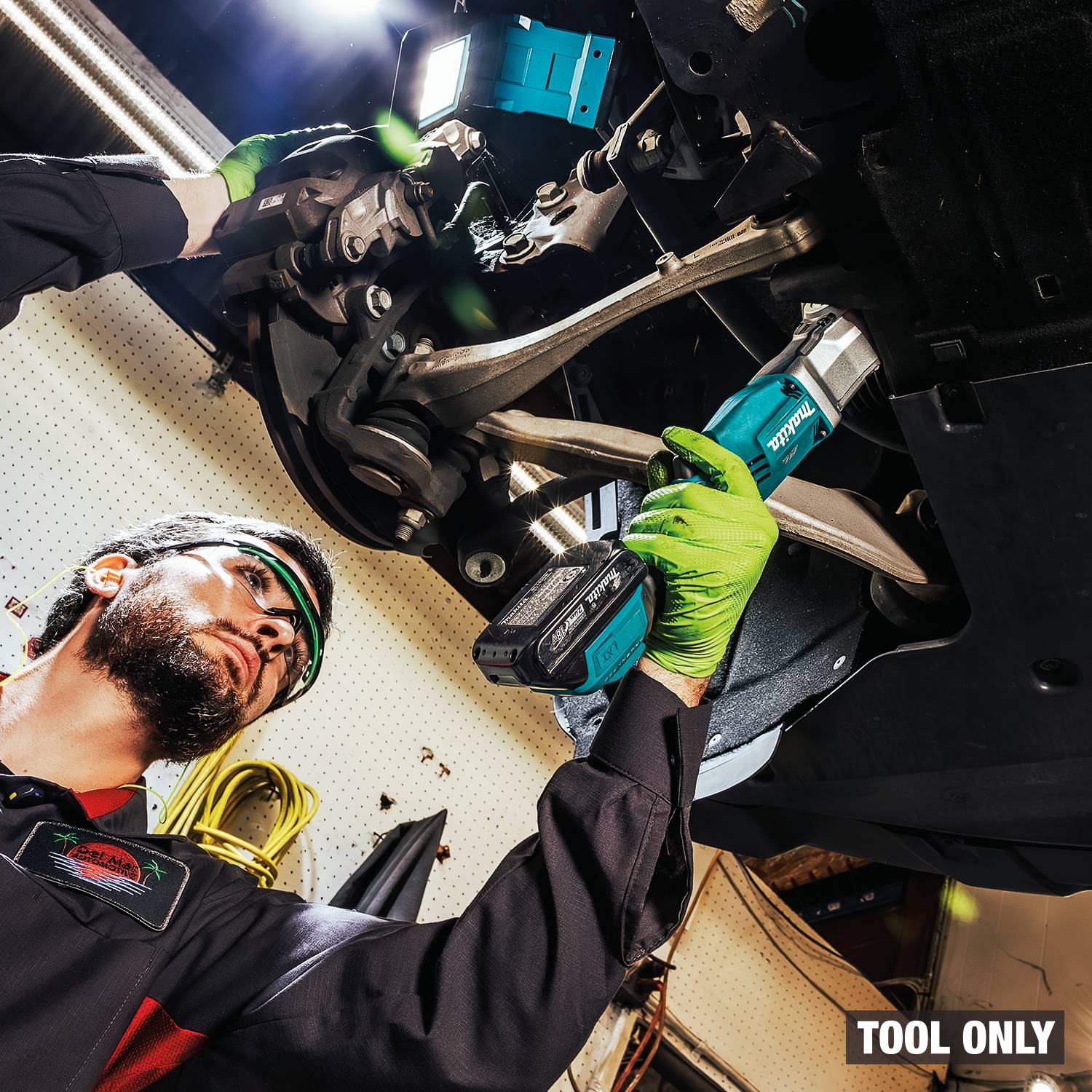

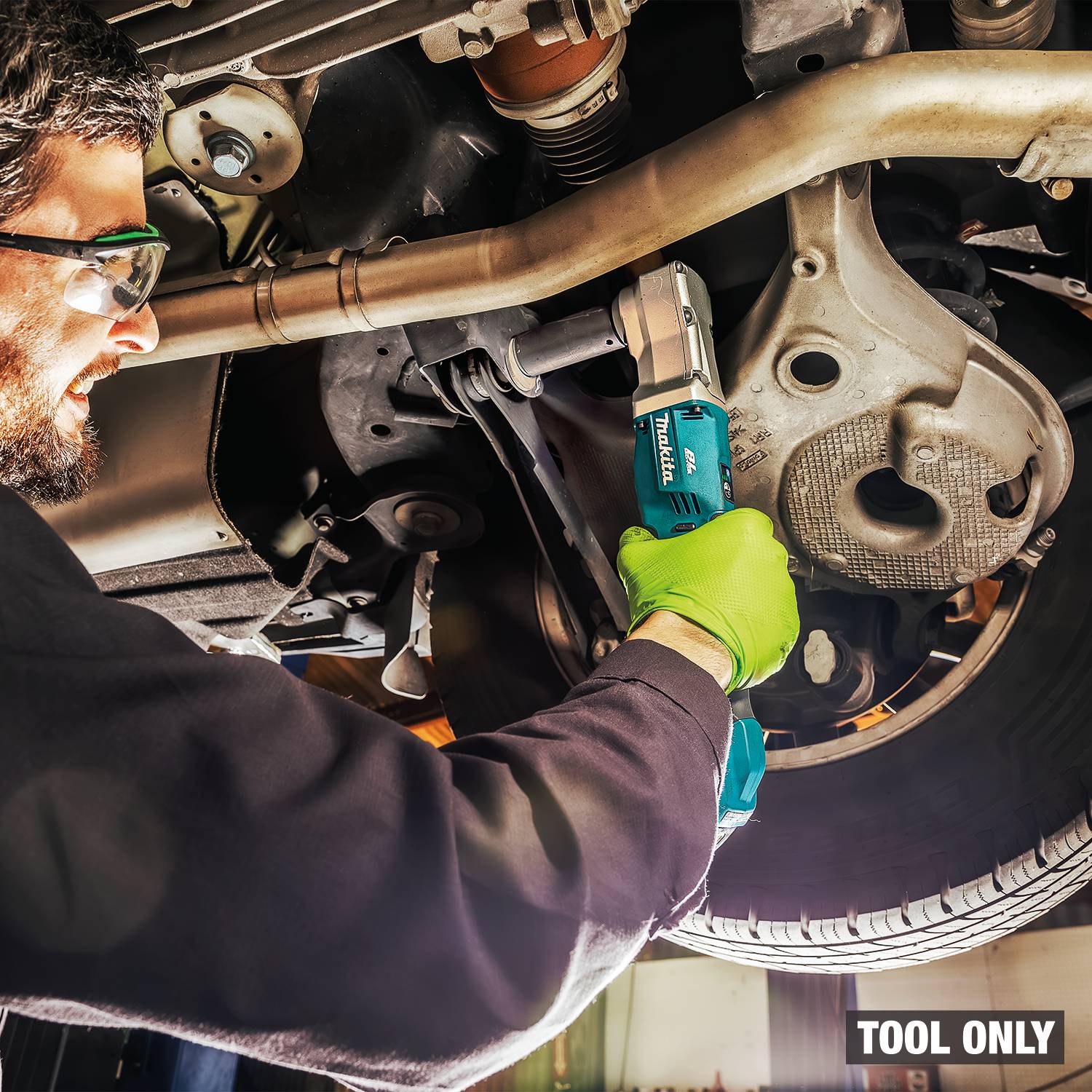

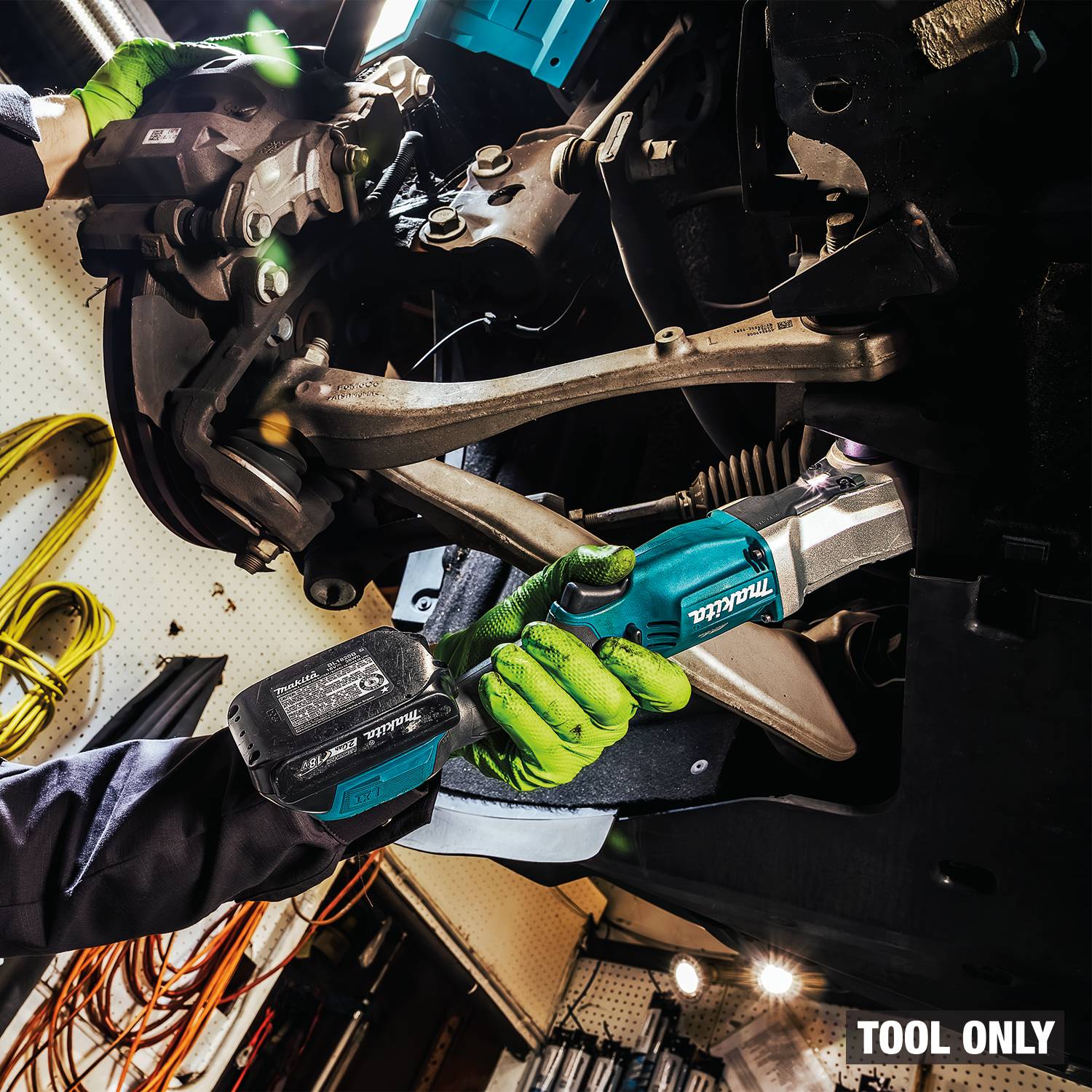

Where this impact wrench separates itself from a standard full-size impact is the head design. The compact 3-3/8 inch angle head height is made for close-quarter access, which is exactly why someone buys a tool like this in the first place. Instead of fighting clearance around framing, piping, machinery, or vehicle components, you can get the 1/2 inch square drive where it needs to go. The detent pin anvil helps keep sockets secured during higher-torque work, which matters when you are working overhead, under a vehicle, or anywhere dropped sockets waste time.

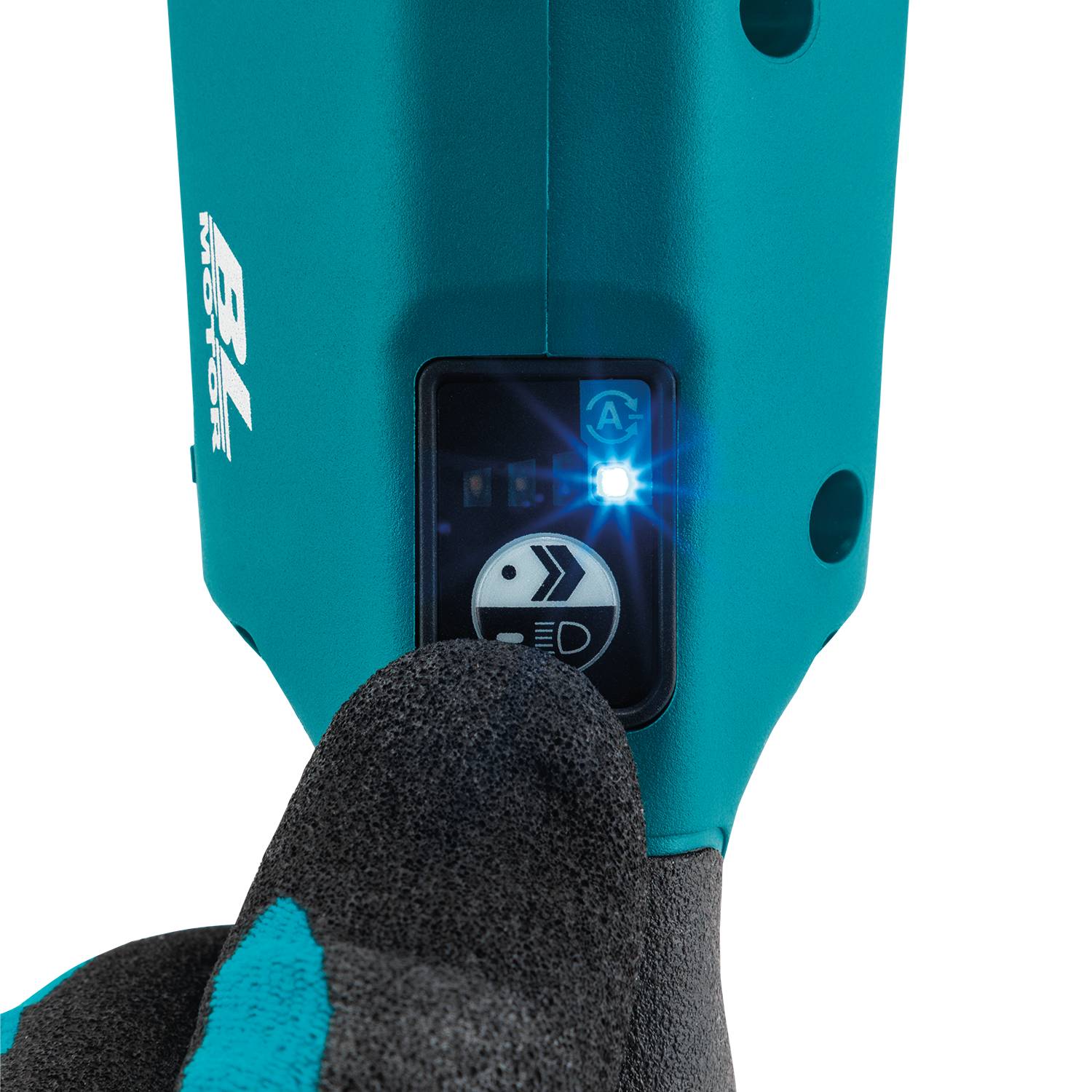

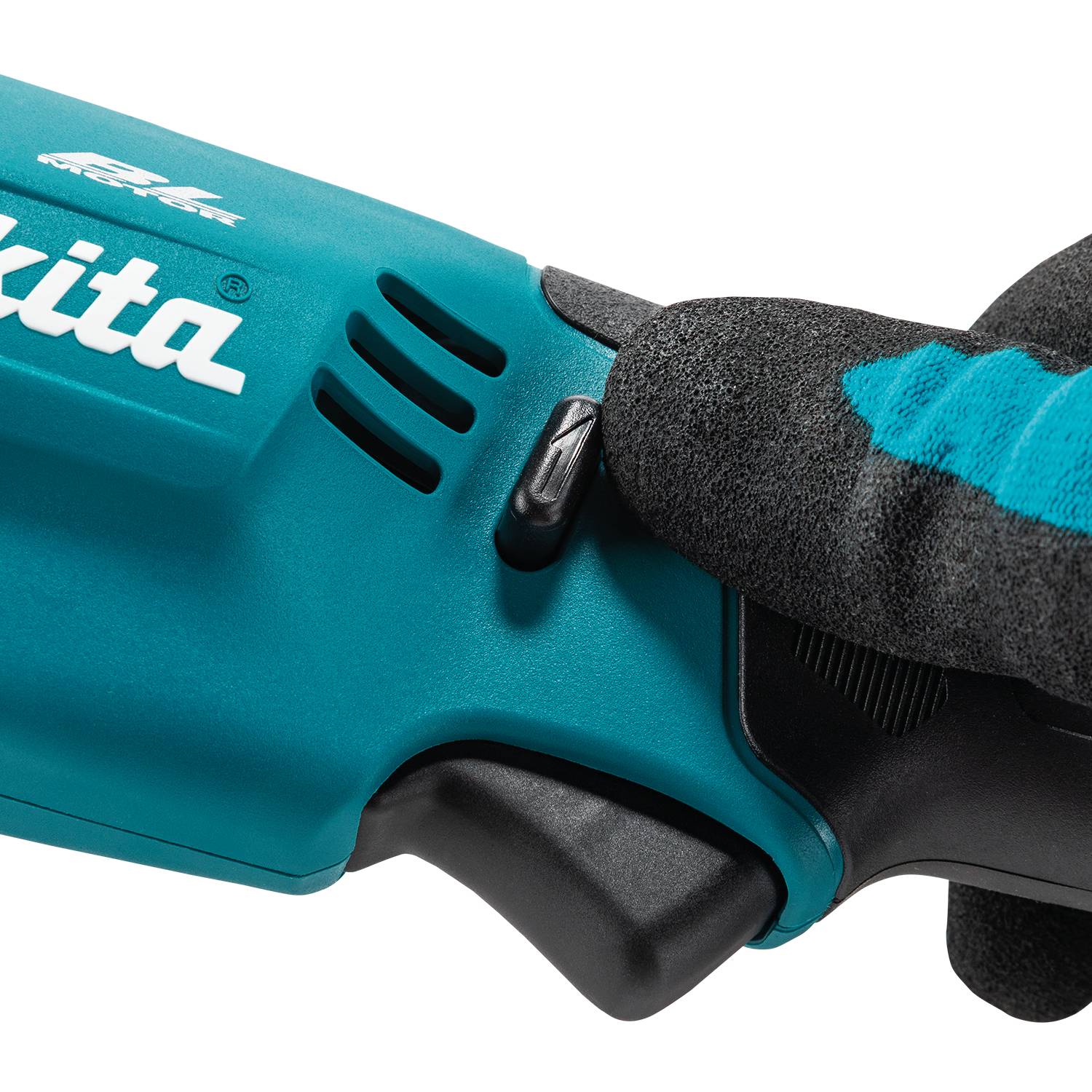

Makita did not stop at raw output. The XLT05Z includes forward and reverse Auto-Stop modes for better efficiency and control. That feature is useful when you want to avoid over-tightening or spinning a fastener longer than necessary after it breaks free. Add in the ultra-smooth variable speed trigger and this tool is easier to manage than a one-note impact wrench that only wants to hammer at full blast. For techs and tradespeople, that means less guessing and better consistency across different fastener sizes and materials.

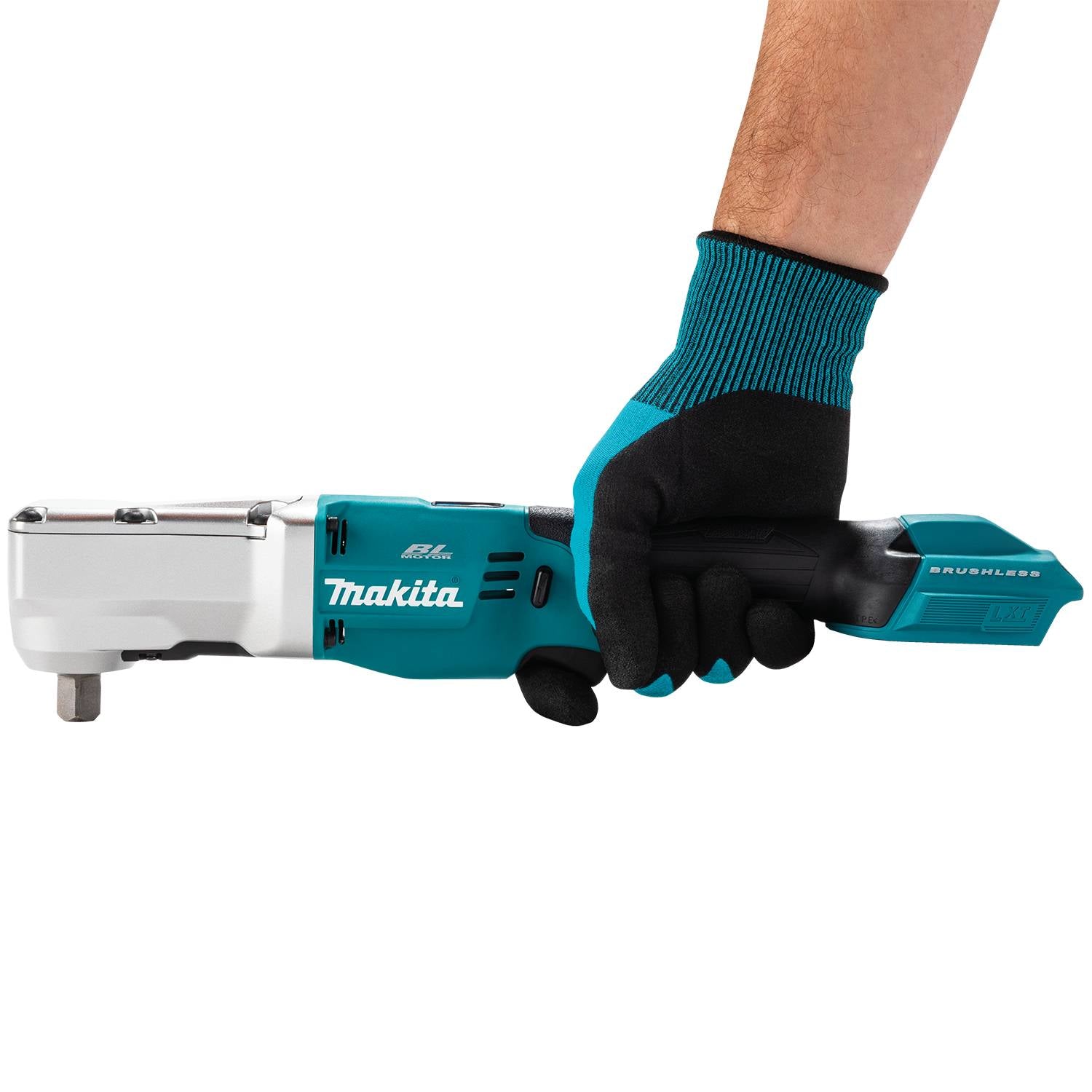

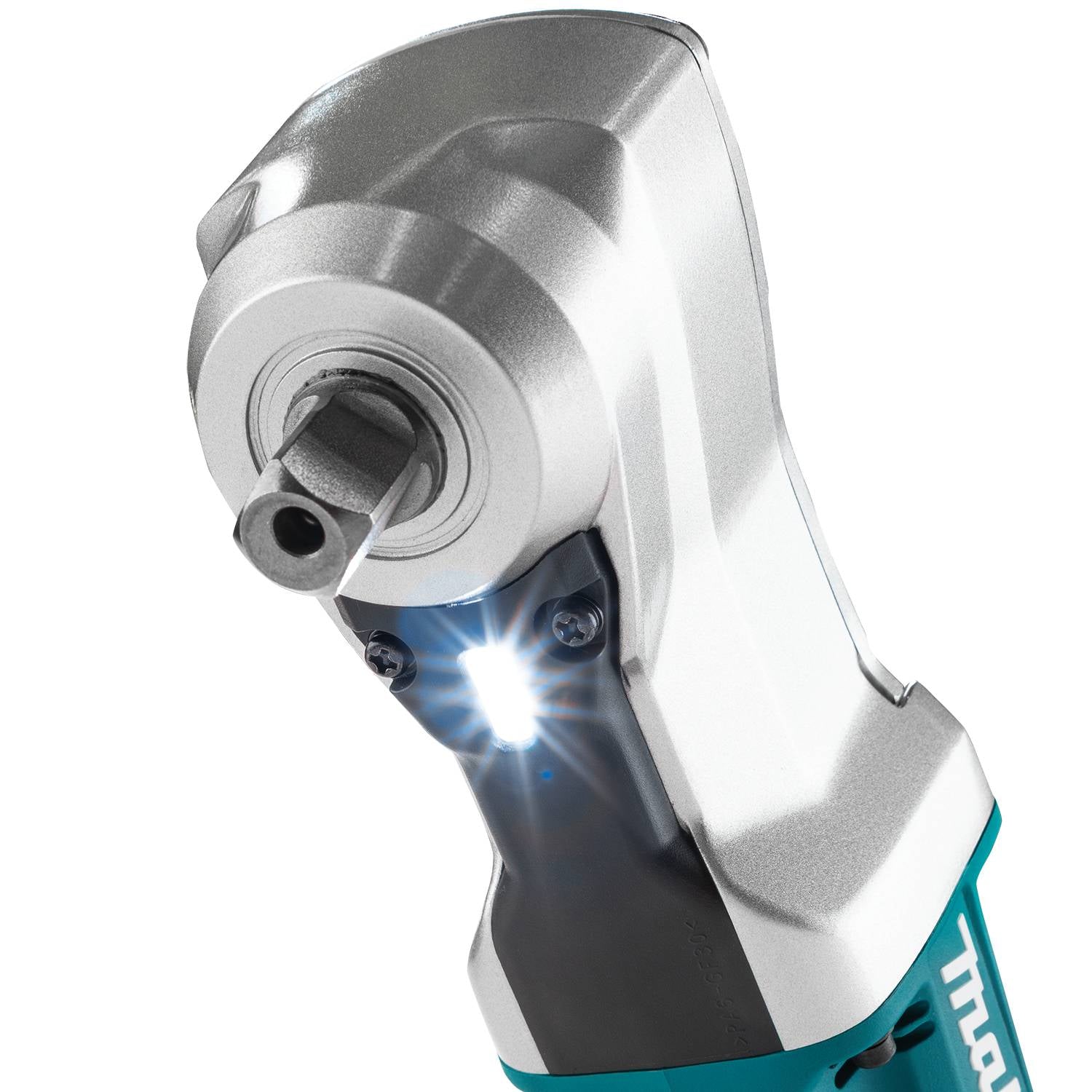

Jobsite practicality is also handled well here. Twin LED lights with afterglow help when you are working in dark cabinets, service bays, crawl spaces, or equipment compartments. The rubberized soft grip handle and ergonomic layout are there for a reason too. On a tool that is often used in awkward positions, balance and grip make a real difference. Makita lists the weight at 4.0 lbs with battery, which helps reduce fatigue compared to heavier high-torque options, especially when you are reaching into confined areas for repeated fastening tasks.
This model is part of the Makita 18V LXT system and is compatible with Makita 18V LXT Lithium-Ion batteries with the Star symbol. It is also equipped with Star Protection Computer Controls, which let the tool and battery communicate to help protect against overloading, over-discharging, and overheating. Makita also builds in Extreme Protection Technology for improved dust and water resistance in harsh conditions. That matters if the tool is going into real-world shop, field, or jobsite use instead of living on a clean bench.
This is a smart buy for automotive techs, industrial maintenance crews, mechanics, equipment service pros, and contractors who regularly deal with hard-to-reach fasteners. It is also a good fit for existing Makita 18V LXT users who need a specialty impact wrench without adding another battery platform. If you mostly work in open spaces and just need maximum torque per dollar, a conventional impact wrench may make more sense. But if access is the problem and you still need serious output, this tool solves the actual job.
Torque Where Standard Impacts Cannot Reach
This is the kind of tool you grab when a standard impact wrench is too bulky but a hand ratchet is too slow. The right-angle layout gives you access without giving up the output needed for demanding fastening and removal work.
- 3-3/8 in. angle head height for close-quarter access

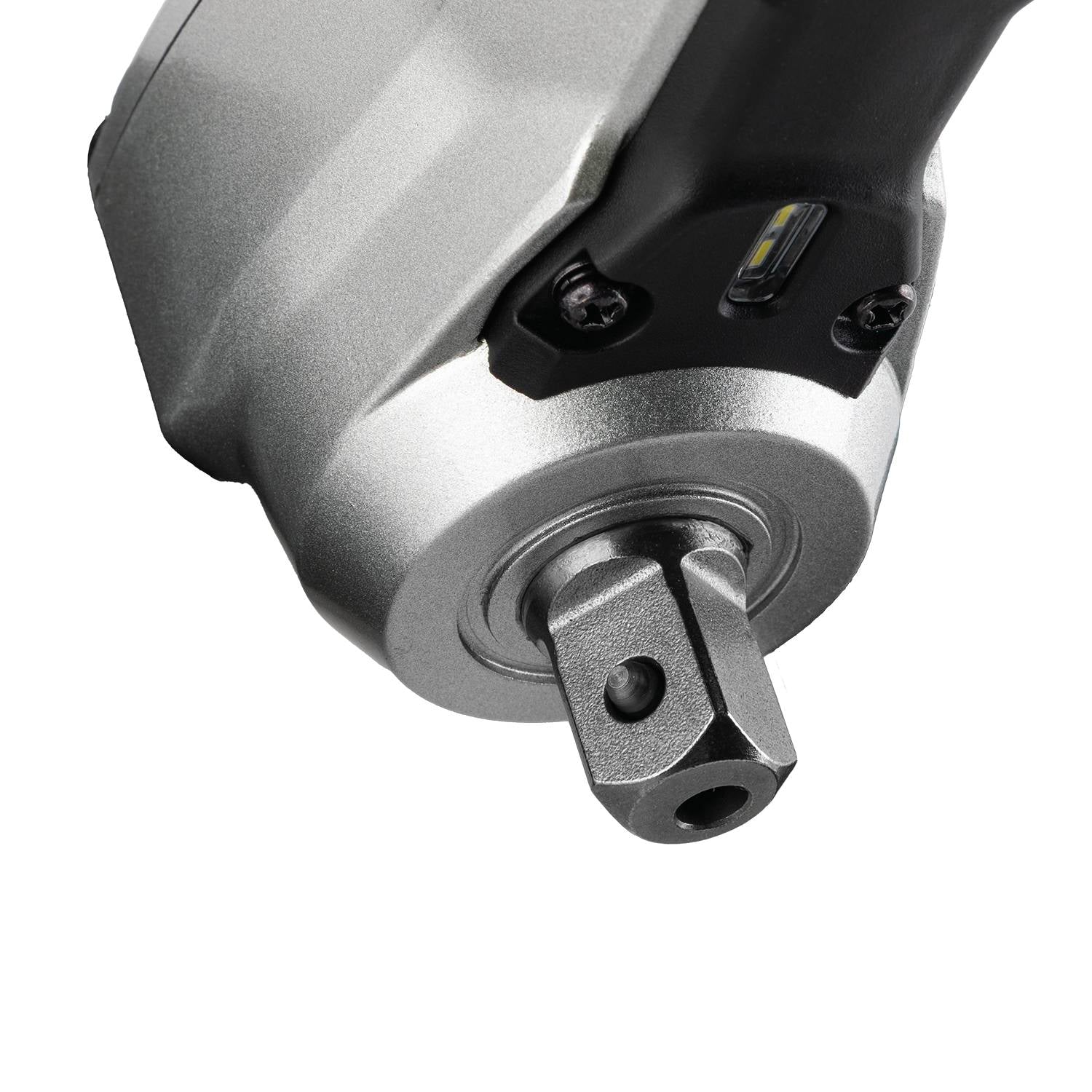

- 1/2 in. square drive with detent pin for secure socket retention
- 250 ft-lbs fastening torque and 390 ft-lbs nut-busting torque

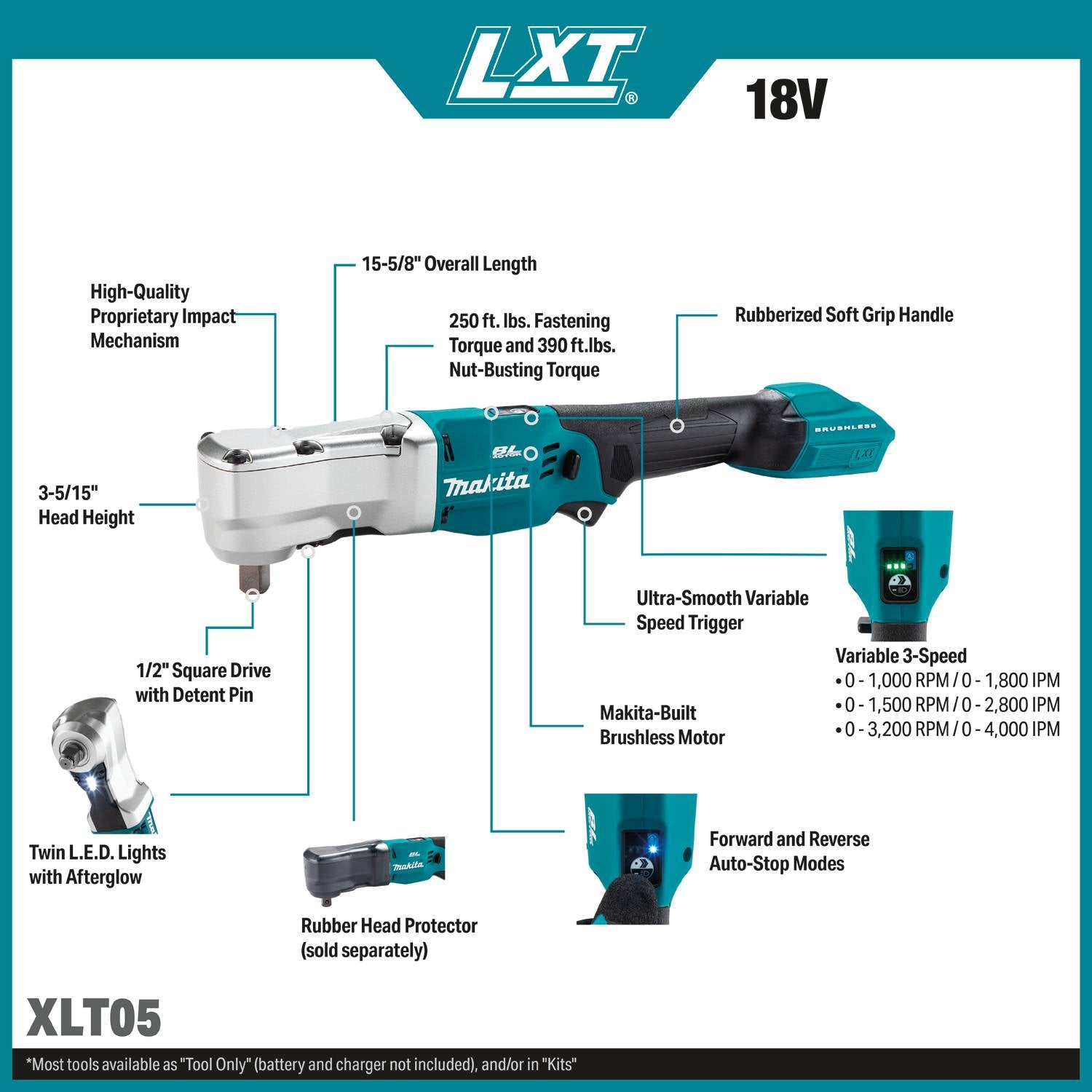

Key Specifications
| Tool Type | Cordless angle impact wrench |
|---|---|
| Voltage (V) | 18V |
| Drive Size | 1/2 in. square drive |
| Motor Type | Brushless |
| Fastening Torque | 250 ft-lbs / 340 N·m |
| Nut-Busting Torque | 390 ft-lbs / 530 N·m |
| No-Load Speed (RPM) | 0-1,000 / 0-1,500 / 0-3,200 |
| Impacts Per Minute (IPM) | 0-1,800 / 0-2,800 / 0-4,000 |
| Overall Length | 15-5/8 in. |
| Angle Head Height | 3-3/8 in. |
| Weight (lbs) | 4.0 lbs with battery |
| Battery Platform | Makita 18V LXT Lithium-Ion |
Compatibility
Built For
Pro Tip
Use the lower speed settings and Auto-Stop mode when starting fasteners in cramped spots. It gives you better control, helps keep the socket seated, and saves you from overdriving once the fastener breaks loose or seats up.
Warranty & Support
Tool Nut's Take
Makita XLT05Z is the one you buy when access matters as much as torque
This is a serious specialty impact wrench that solves a real problem: getting high-torque fastening power into places a standard impact cannot reach.
- Who it's for: Mechanics, service techs, maintenance crews, and Makita 18V LXT users who work around cramped assemblies and stubborn fasteners.
- Why it stands out: You get 390 ft-lbs of nut-busting torque, a compact angle head, three speed settings, Auto-Stop modes, and brushless efficiency in one platform-friendly tool.
- Worth knowing: This is tool only, so if you are not already on Makita 18V LXT, factor in a battery and charger. Also, this is not a cheap niche tool, but if tight-access torque is part of your work, it earns its keep fast.
Common Questions
- What battery platform does this tool use? It is part of the Makita 18V LXT system and works with Makita 18V LXT Lithium-Ion batteries.
- How much torque does it produce? It delivers 250 ft-lbs of fastening torque and 390 ft-lbs of nut-busting torque.
- Does it have multiple speed settings? Yes. It has three speed ranges: 0-1,000, 0-1,500, and 0-3,200 RPM, with matching impact rates up to 4,000 IPM.
- What type of anvil does it use? It has a 1/2 in. square drive with a detent pin for secure socket retention.
- Is it covered by a warranty? Yes. Makita lists a 3-year limited warranty.
