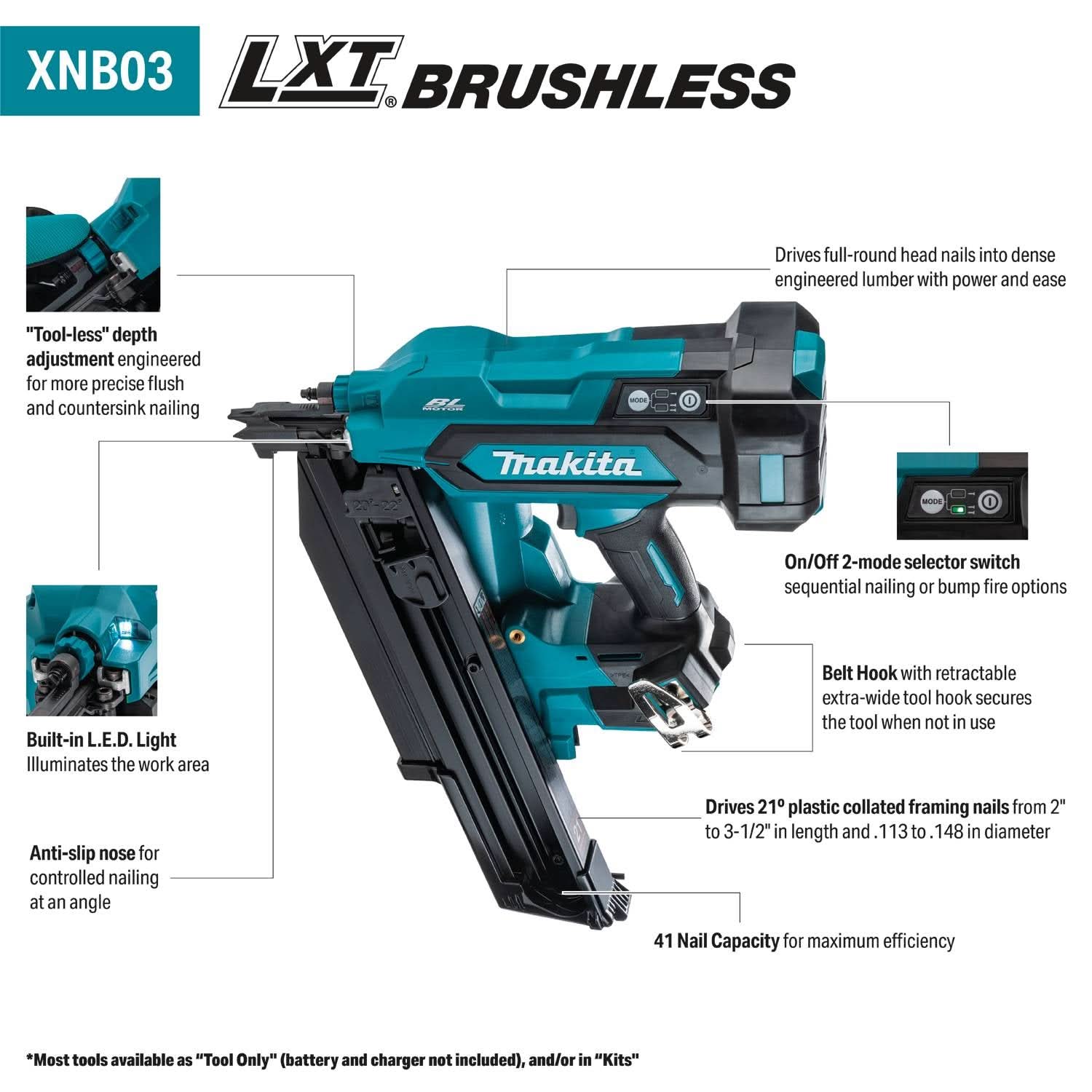

• Drives full-round head nails into dense engineered lumber with power and ease
• Drives up to 1,000 framing nails on a single charge*

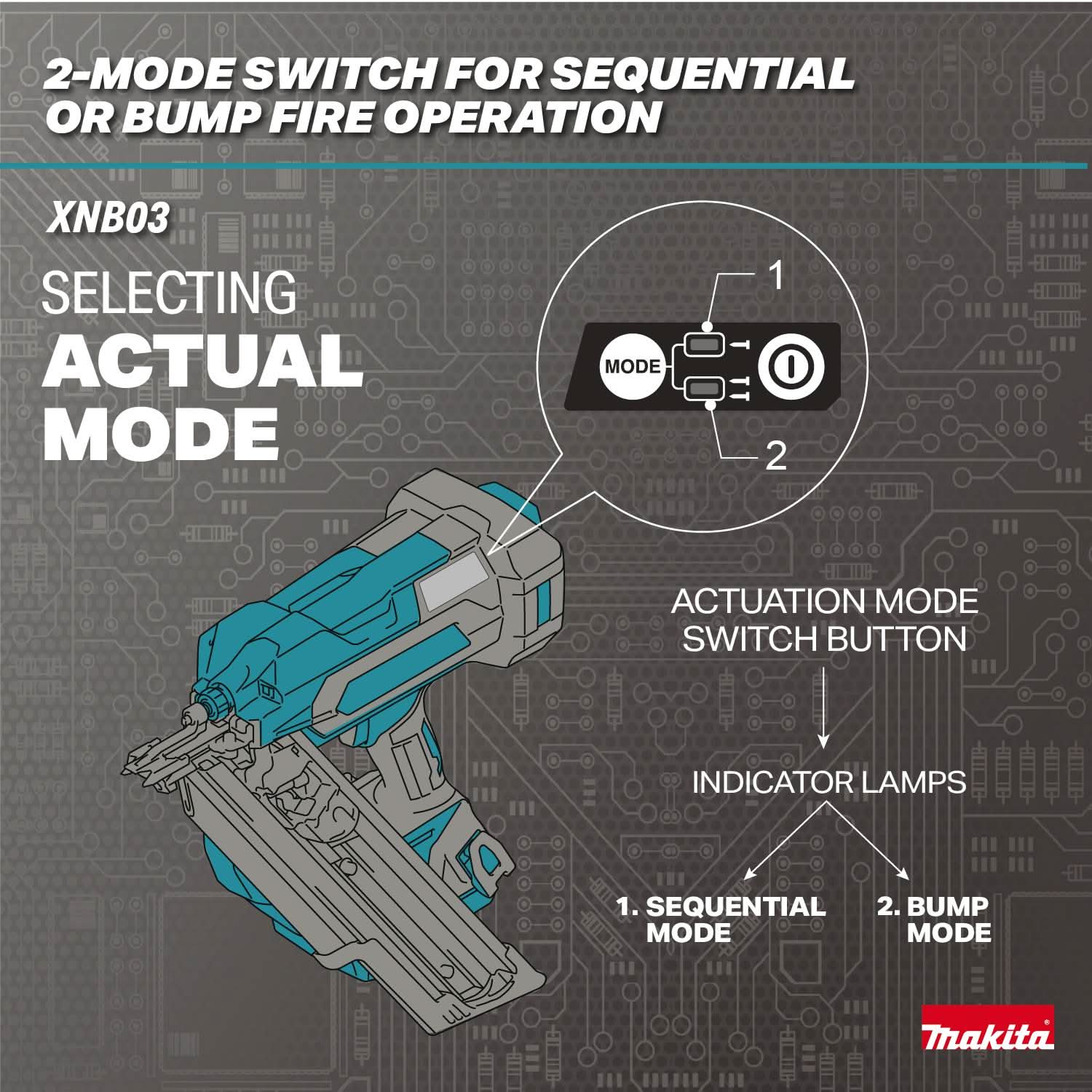

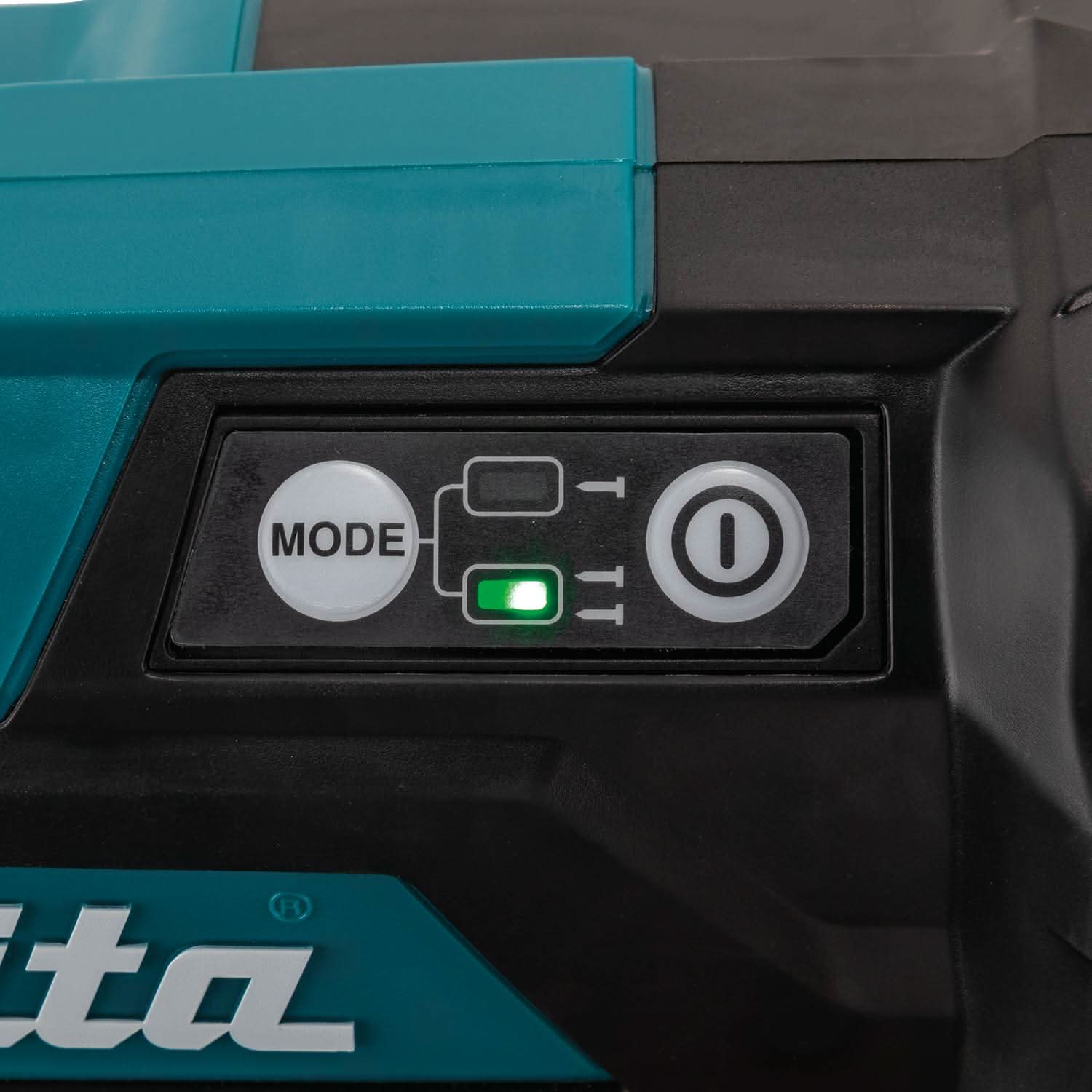

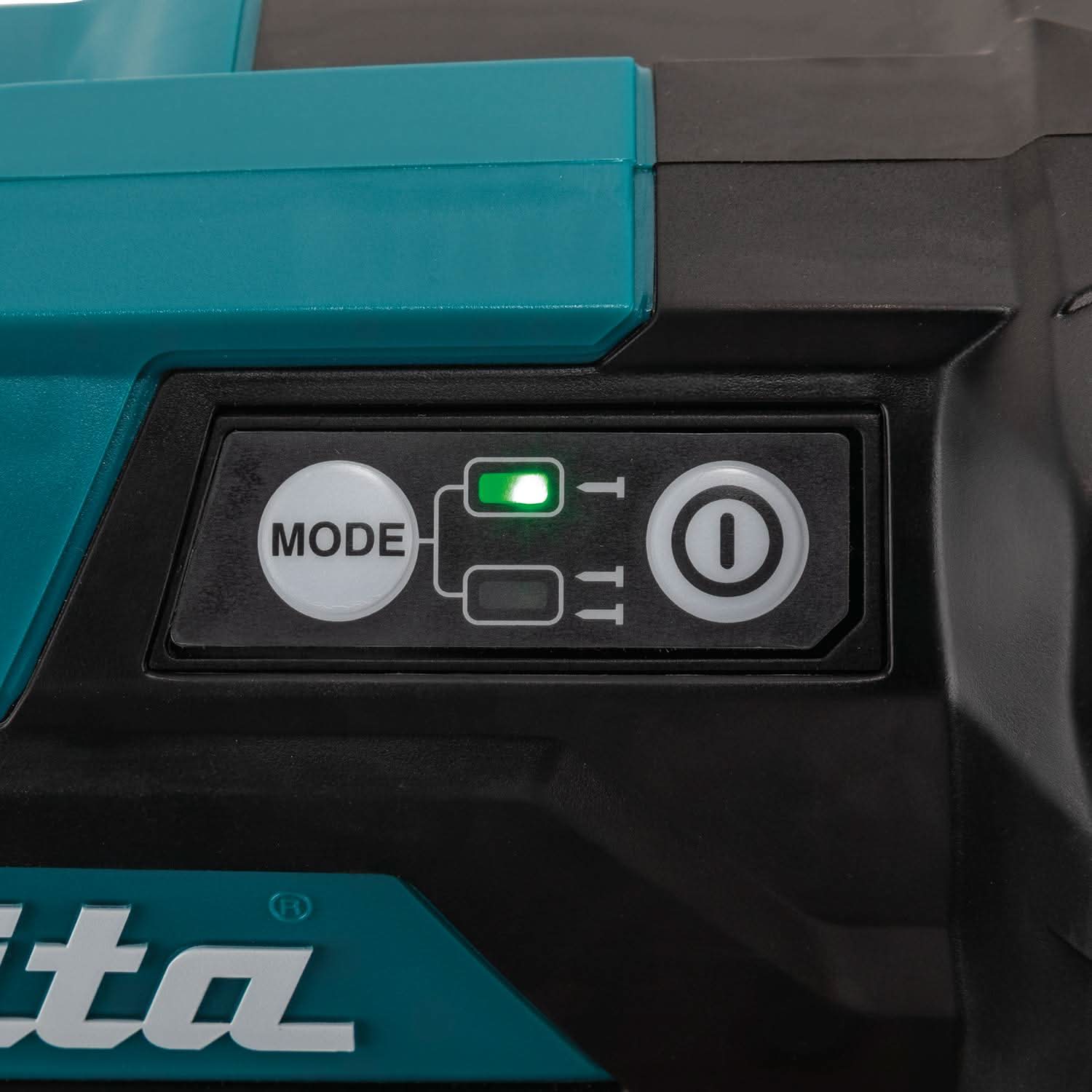

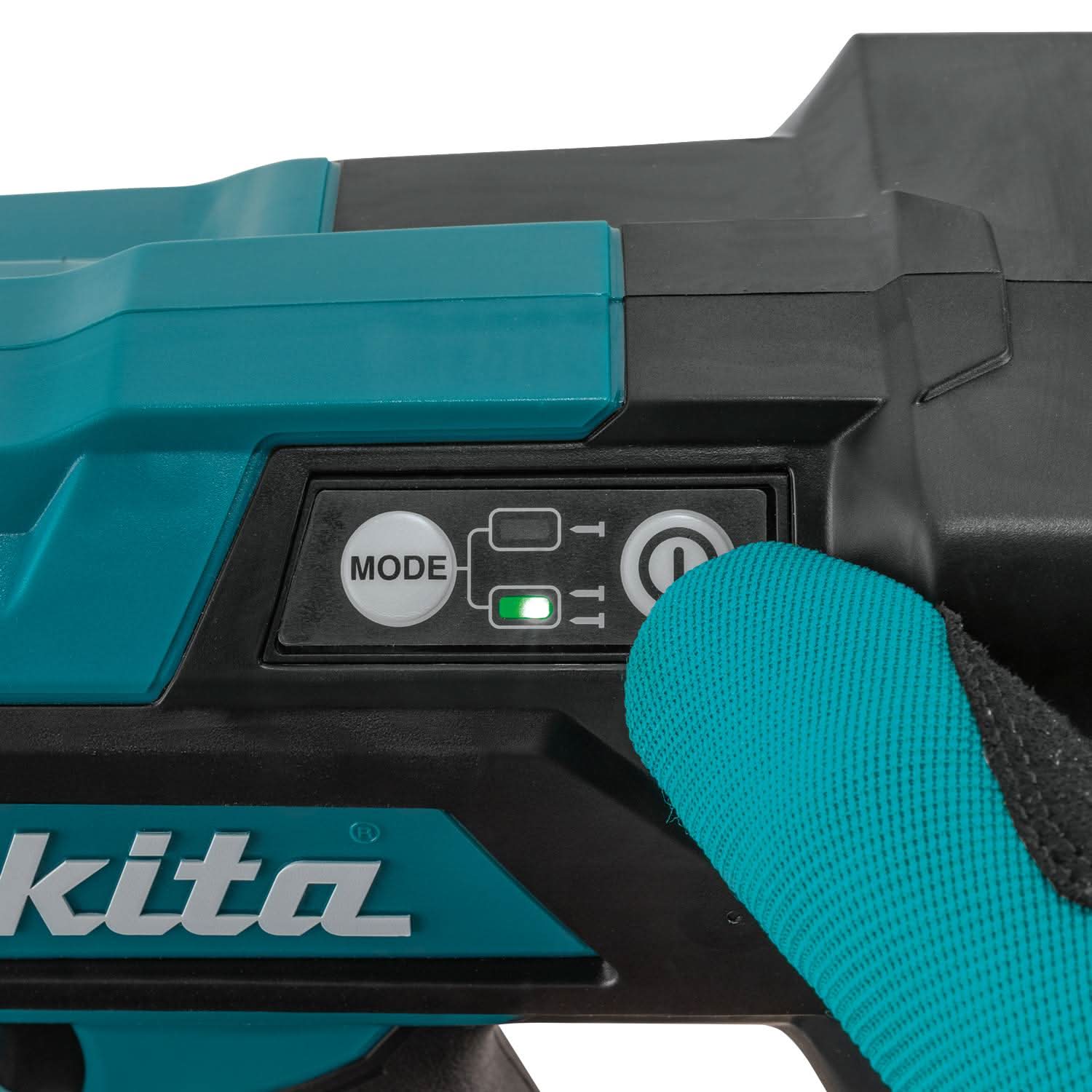

• 2-mode selector switch allows operator to select sequential nailing or bump fire options

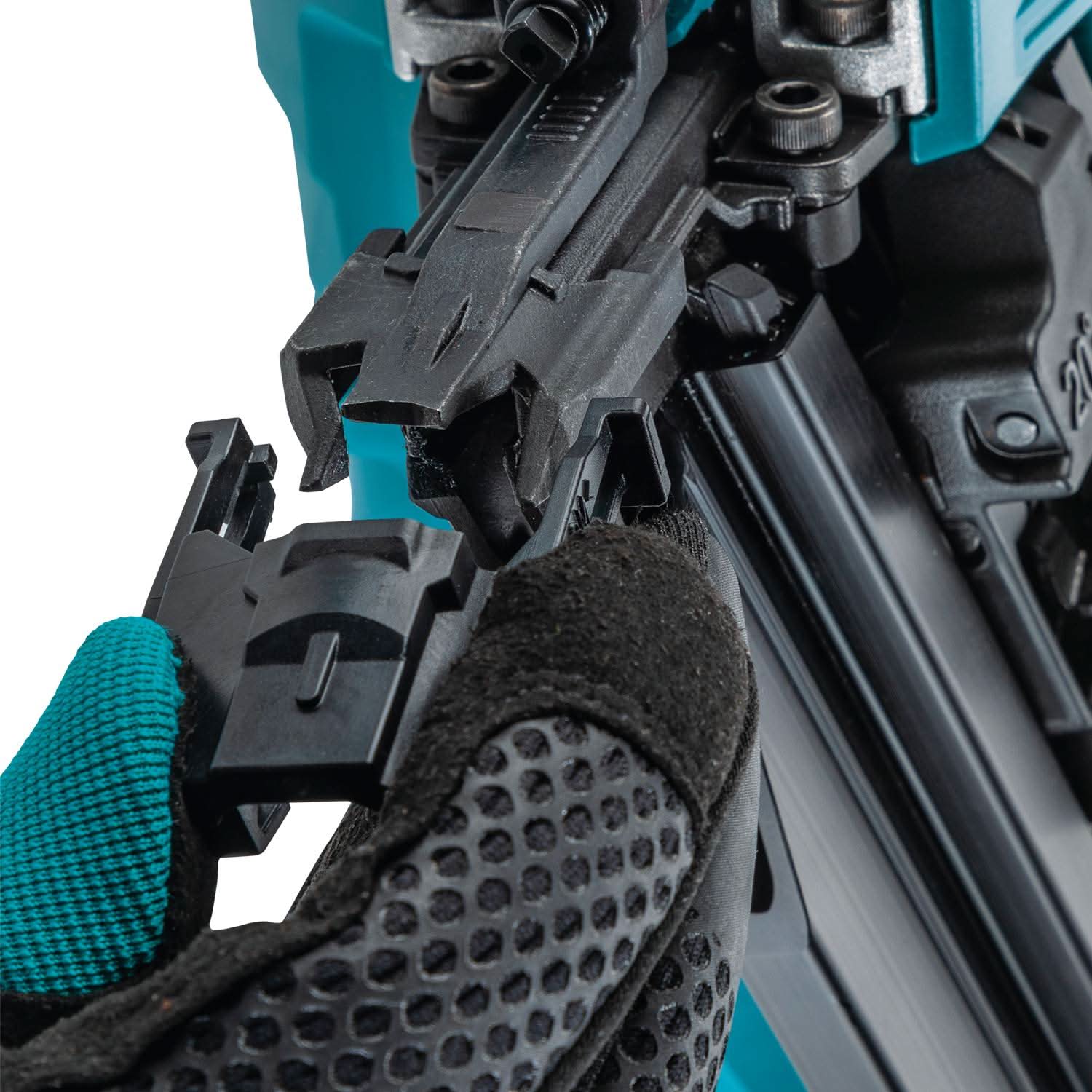

• Anti-slip nose for controlled nailing at an angle

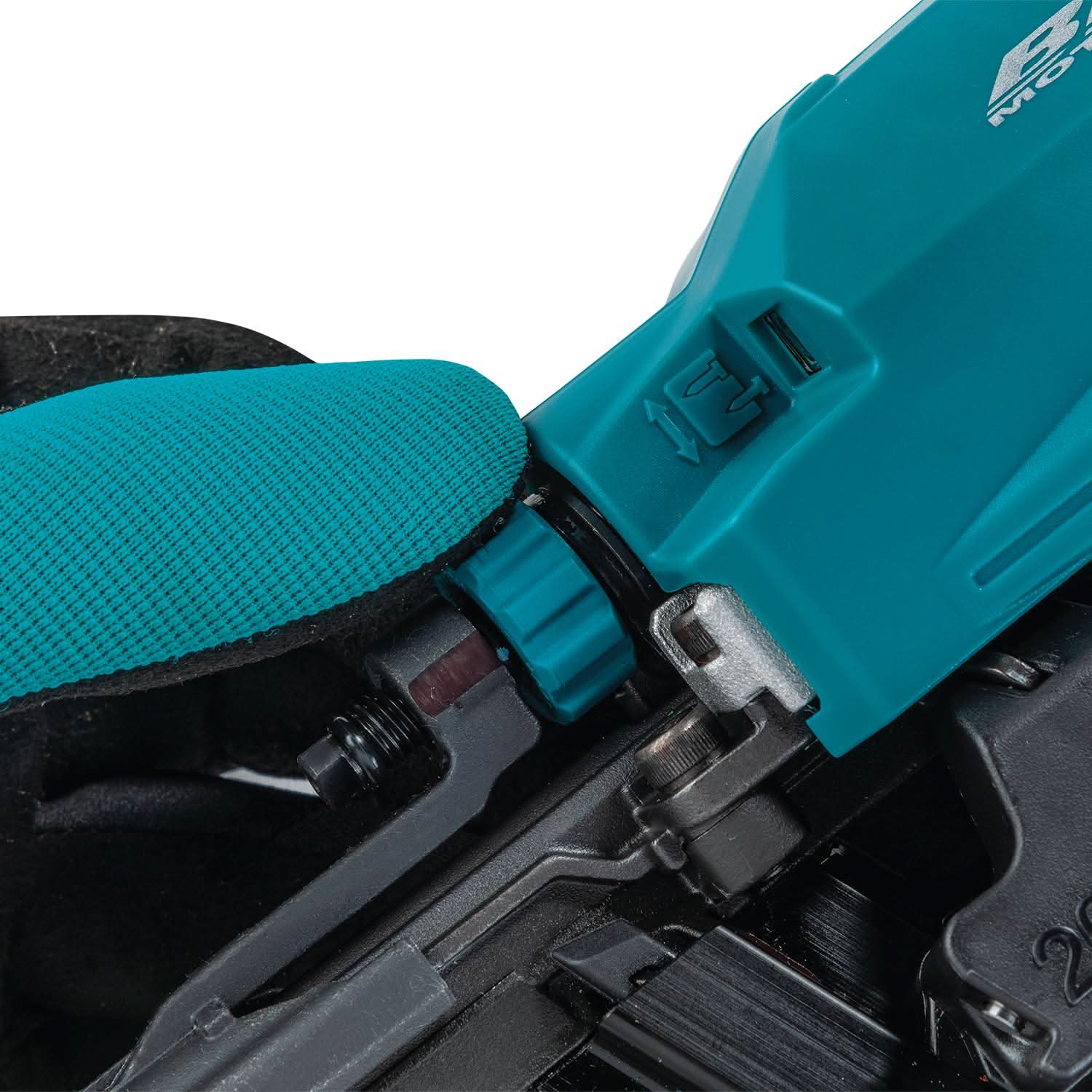

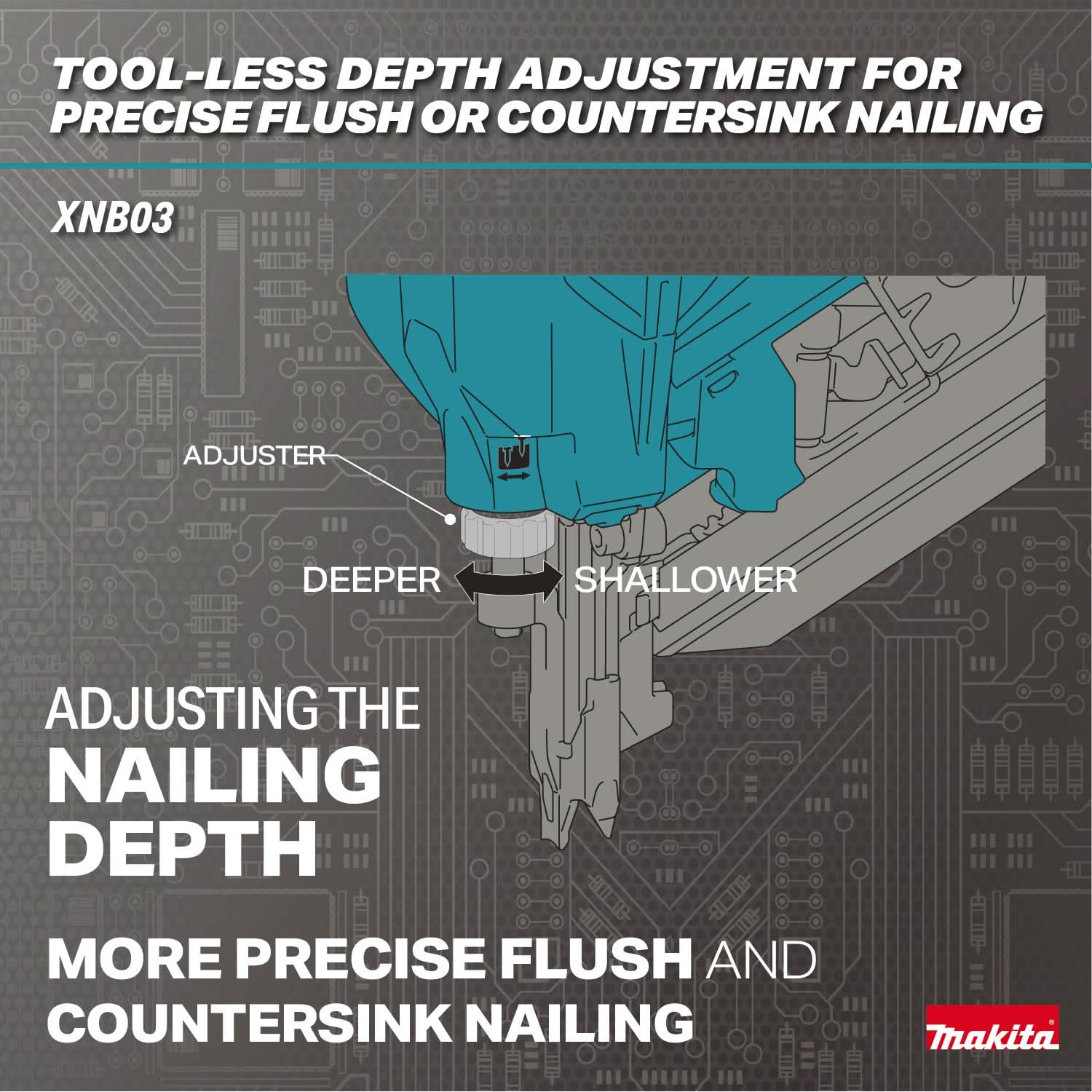

• "Tool-less" depth adjustment engineered for more precise flush and countersink nailing
• Anti-dry fire mechanism engineered to help prevent driving blanks
• Weighs only 11.9 lbs. with 18V LXT for reduced operator fatigue

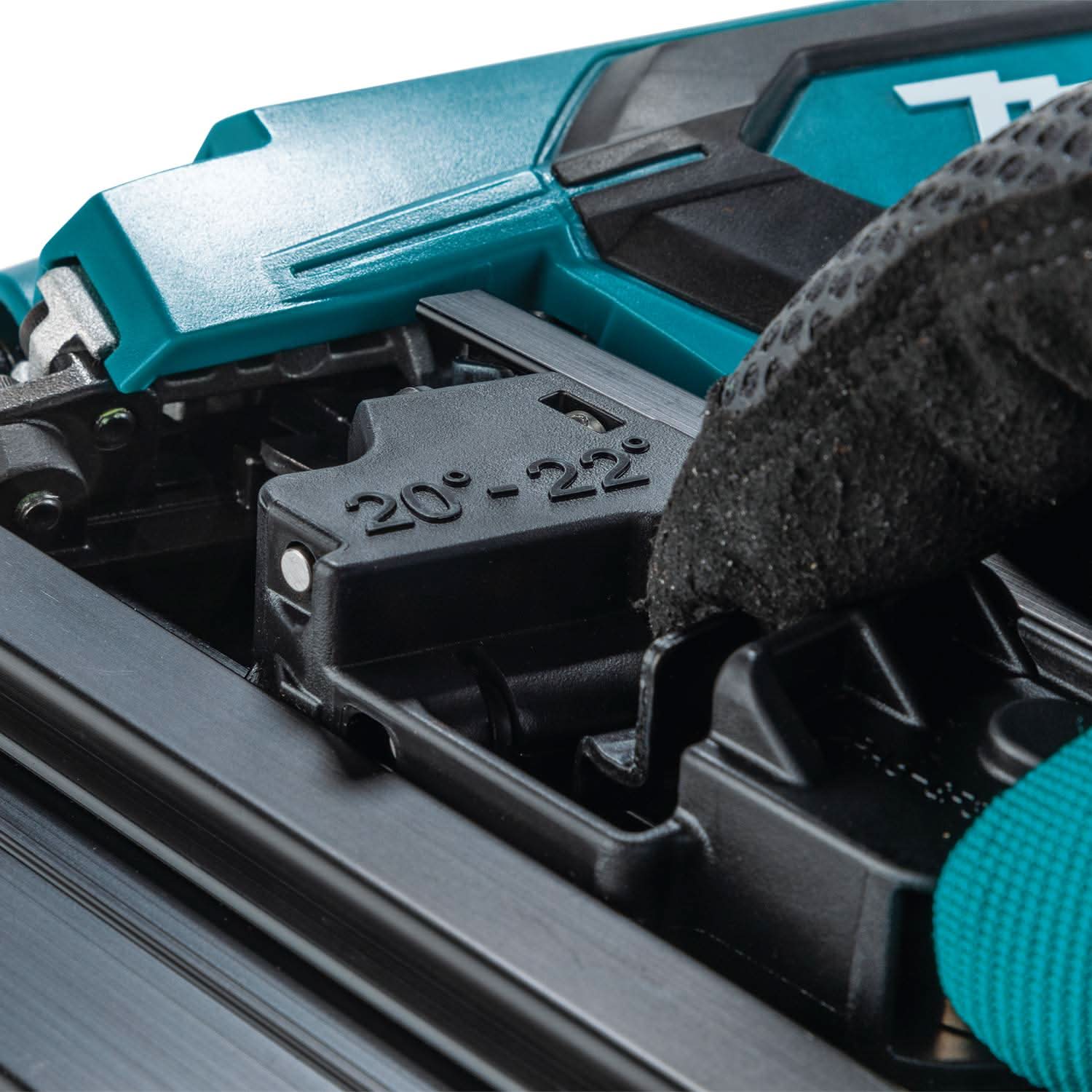

• Rear lock-and-load magazine with 41 nail capacity for maximum efficiency

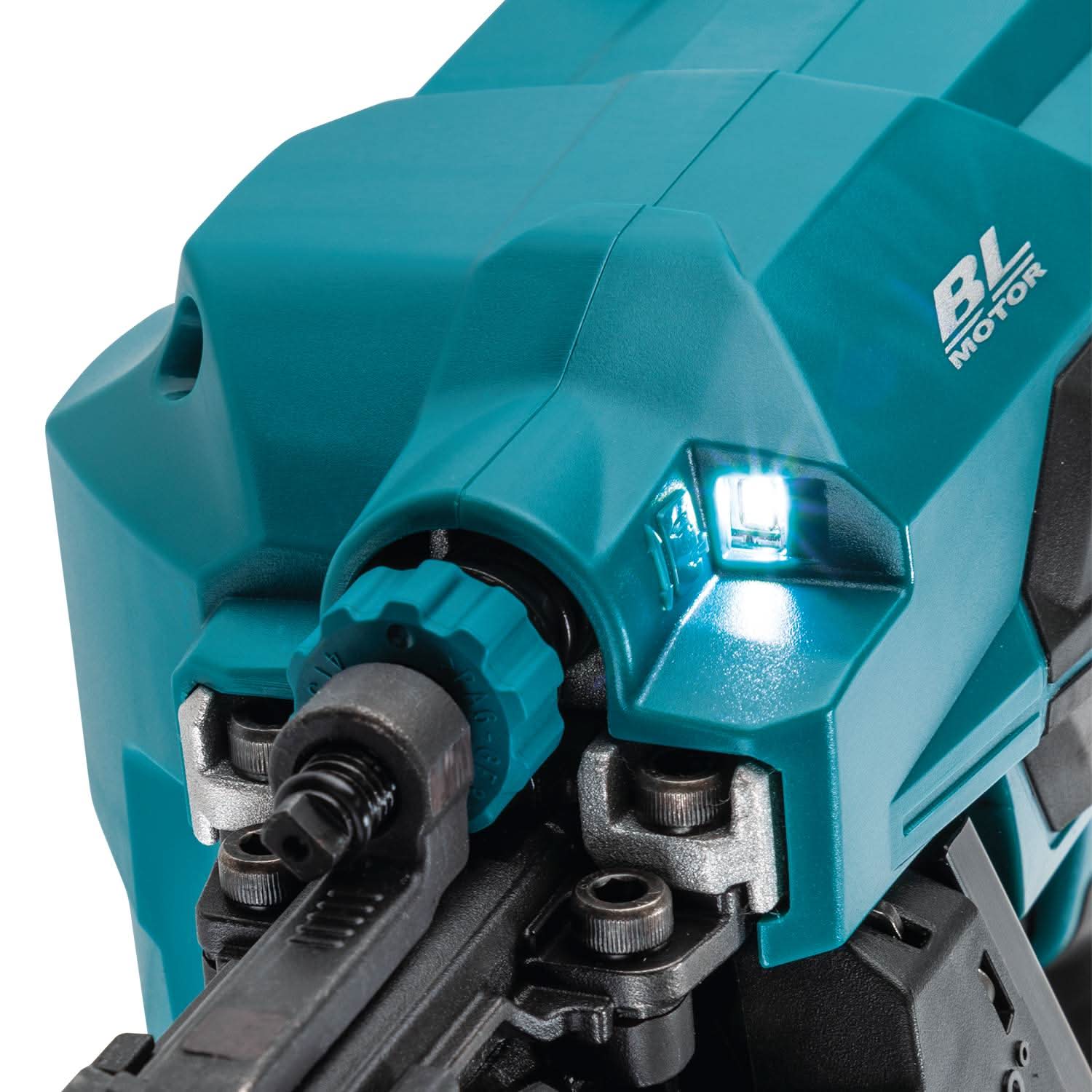

• Built-in L.E.D. light illuminates the work area

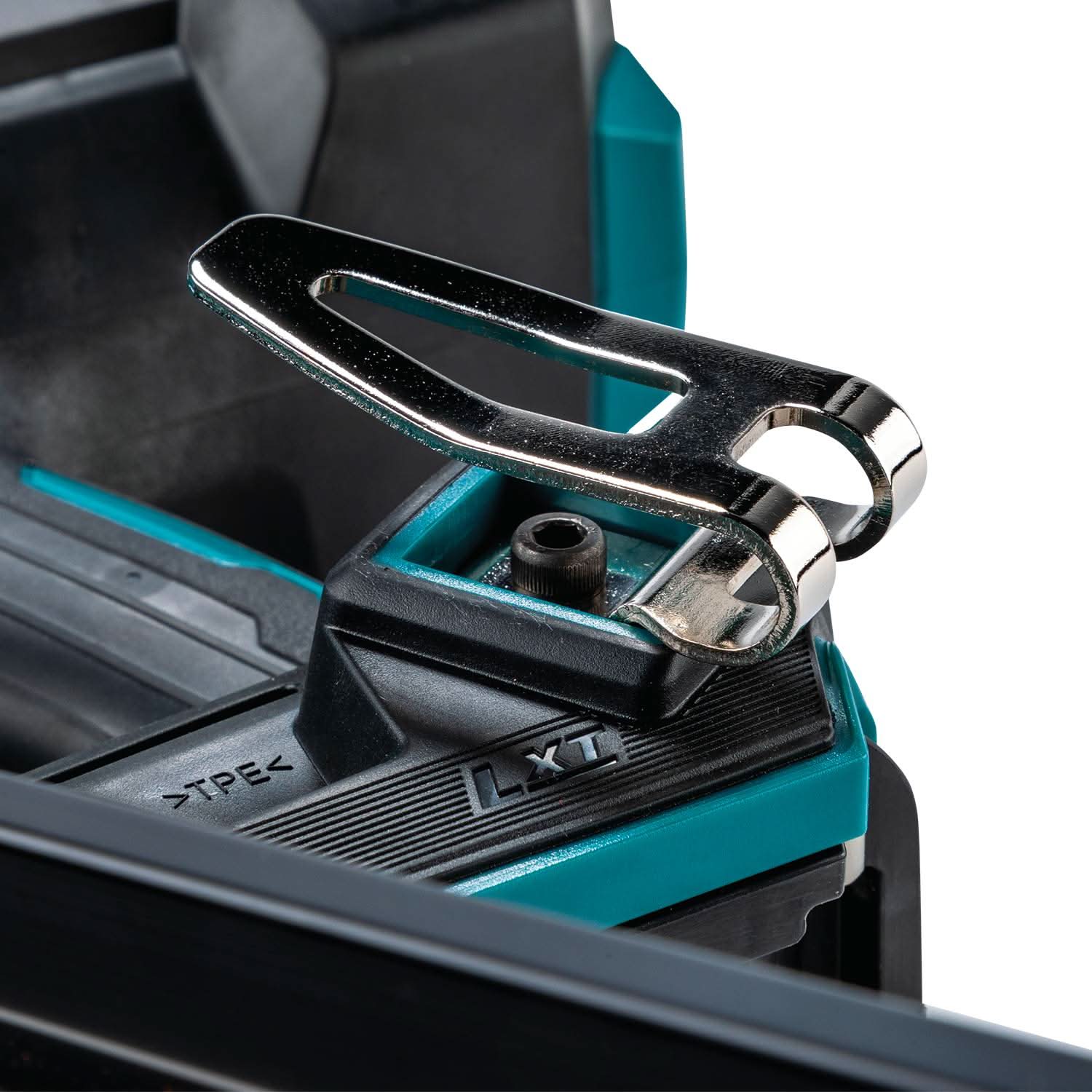

• Belt Hook with retractable extra-wide tool hook secures the tool when not in use
• Ergonomically designed handle with rubberized soft grip provides increased comfort

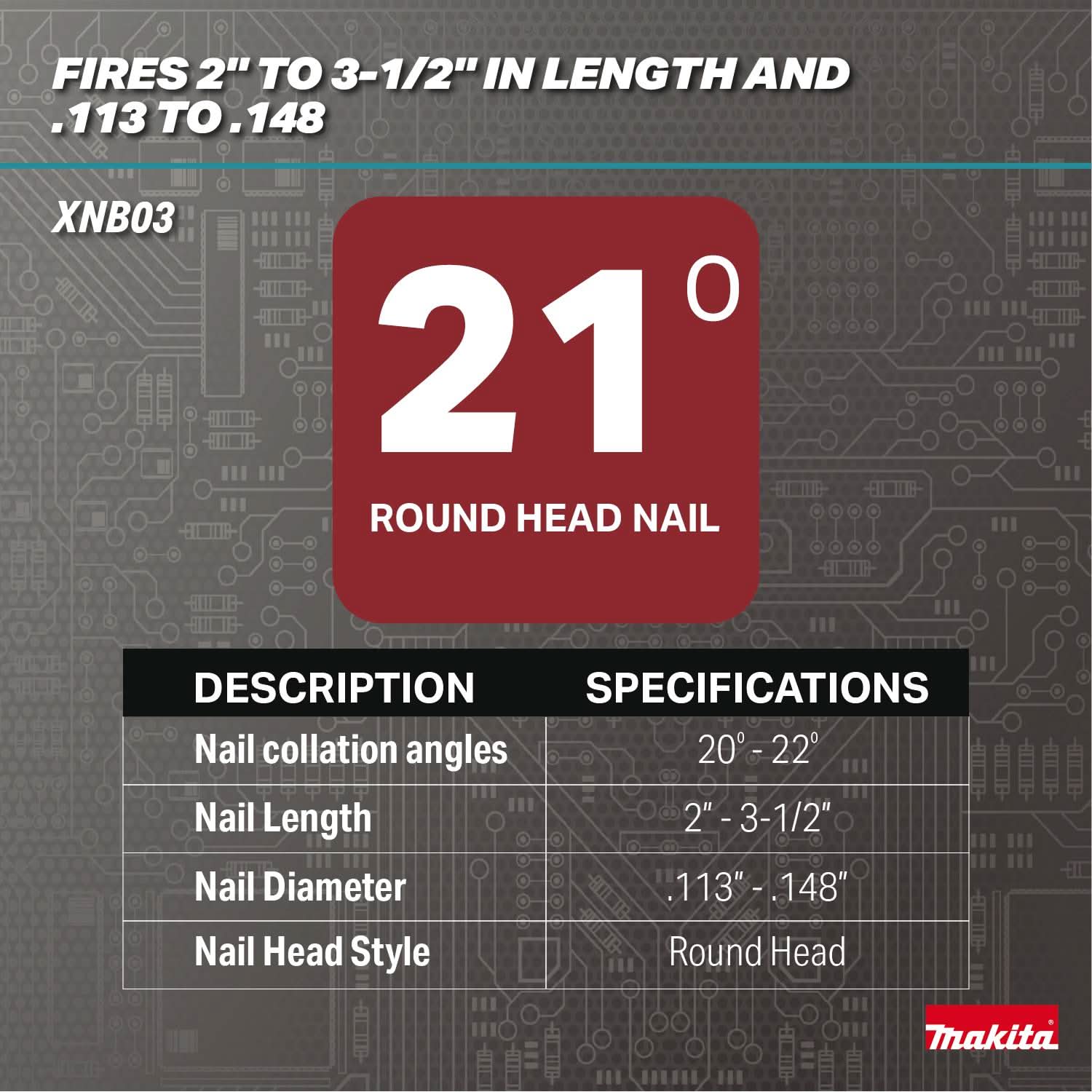

• Drives 21º plastic collated framing nails from 2" to 3-1/2" in length and .113 to .148 in diameter

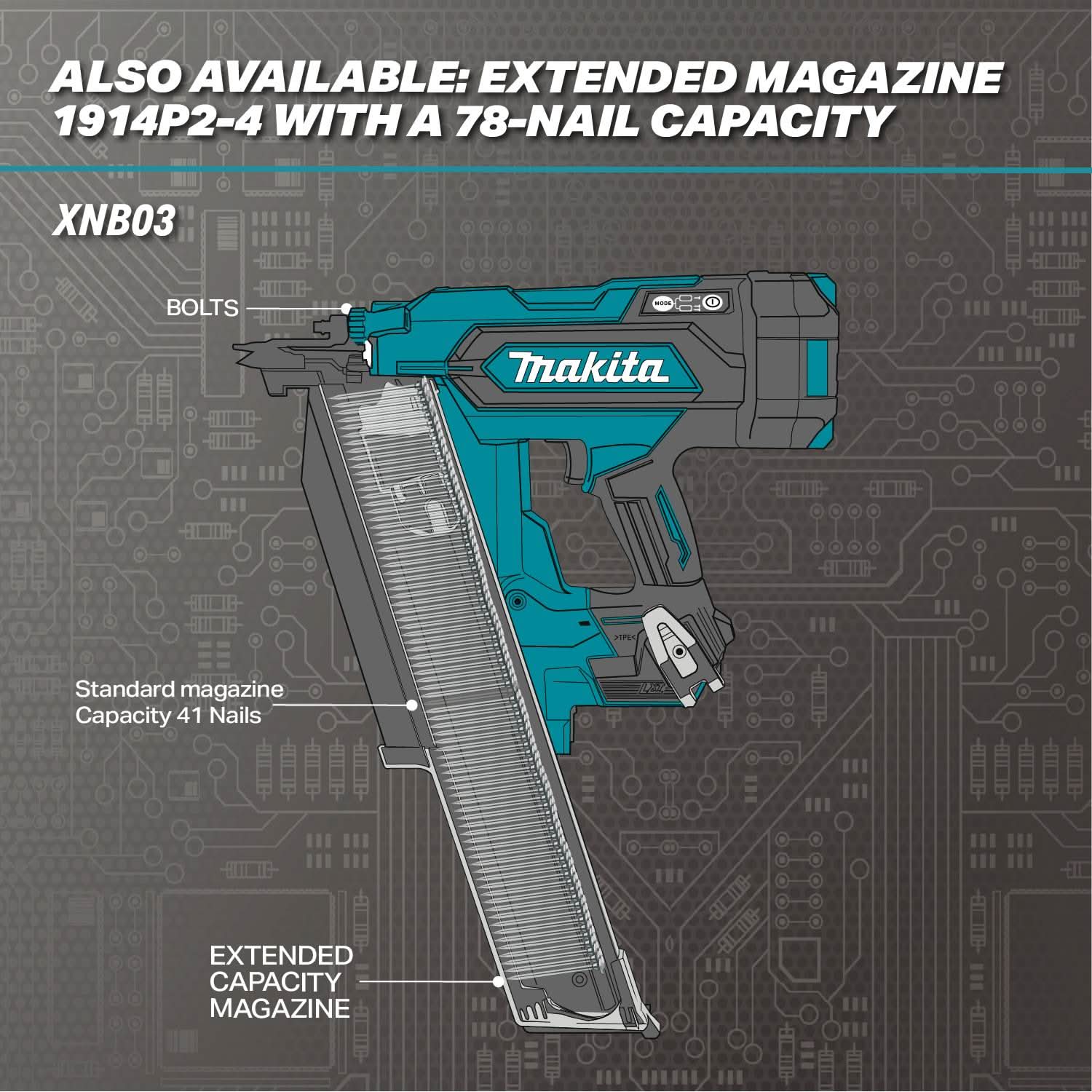

• Extended Capacity Magazine Set that holds 78 Nails part no.1914P2-4 available (sold separately)
• 18V LXT Lithium-Ion 4.0Ah battery BL1840B reaches a full charge in 55 minutes or less
• Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
• Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
• Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)

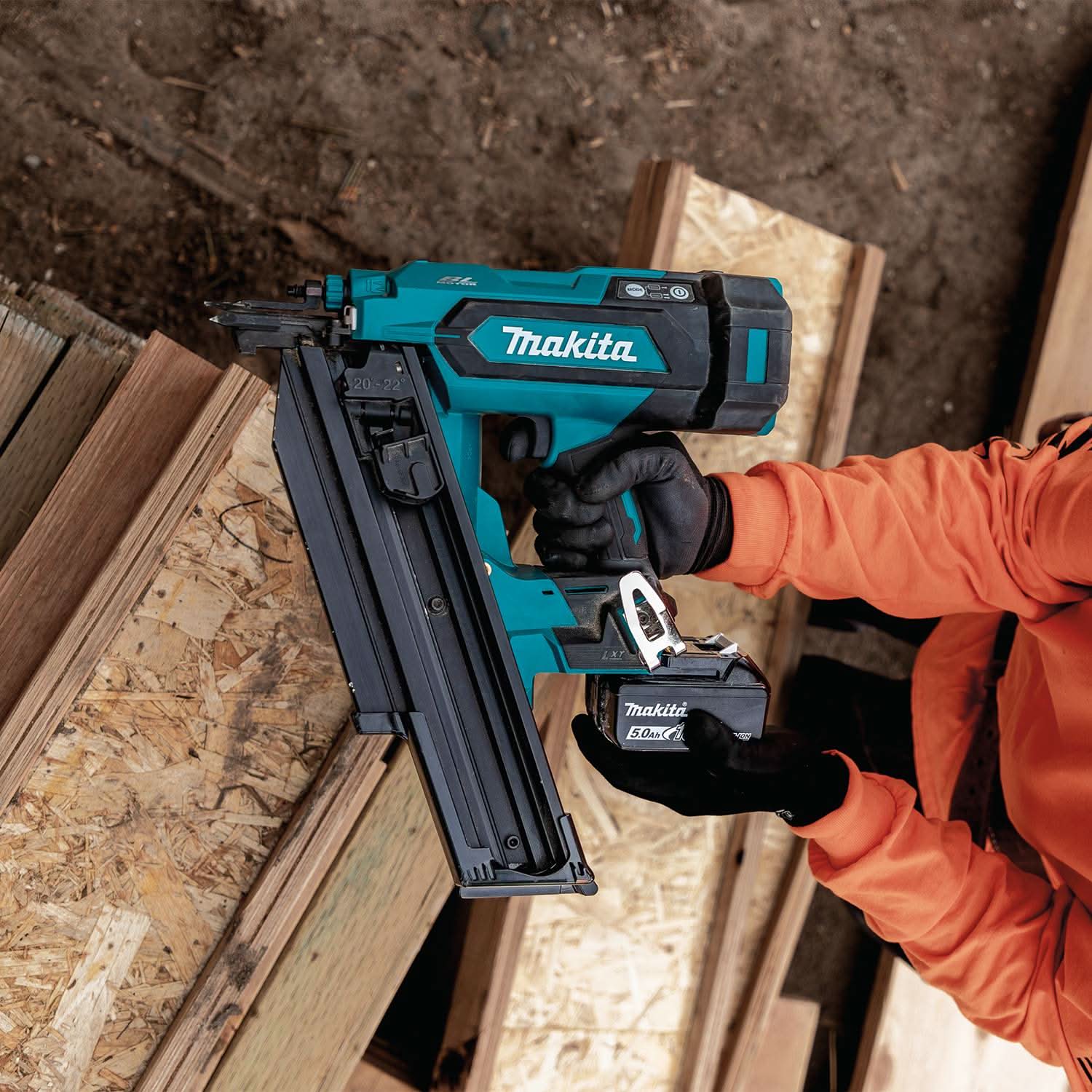

• Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
• 3-year limited warranty on tool, battery and charger
• Only use genuine Makita batteries and chargers
• *Using a 18V LXT 6.0Ah Battery

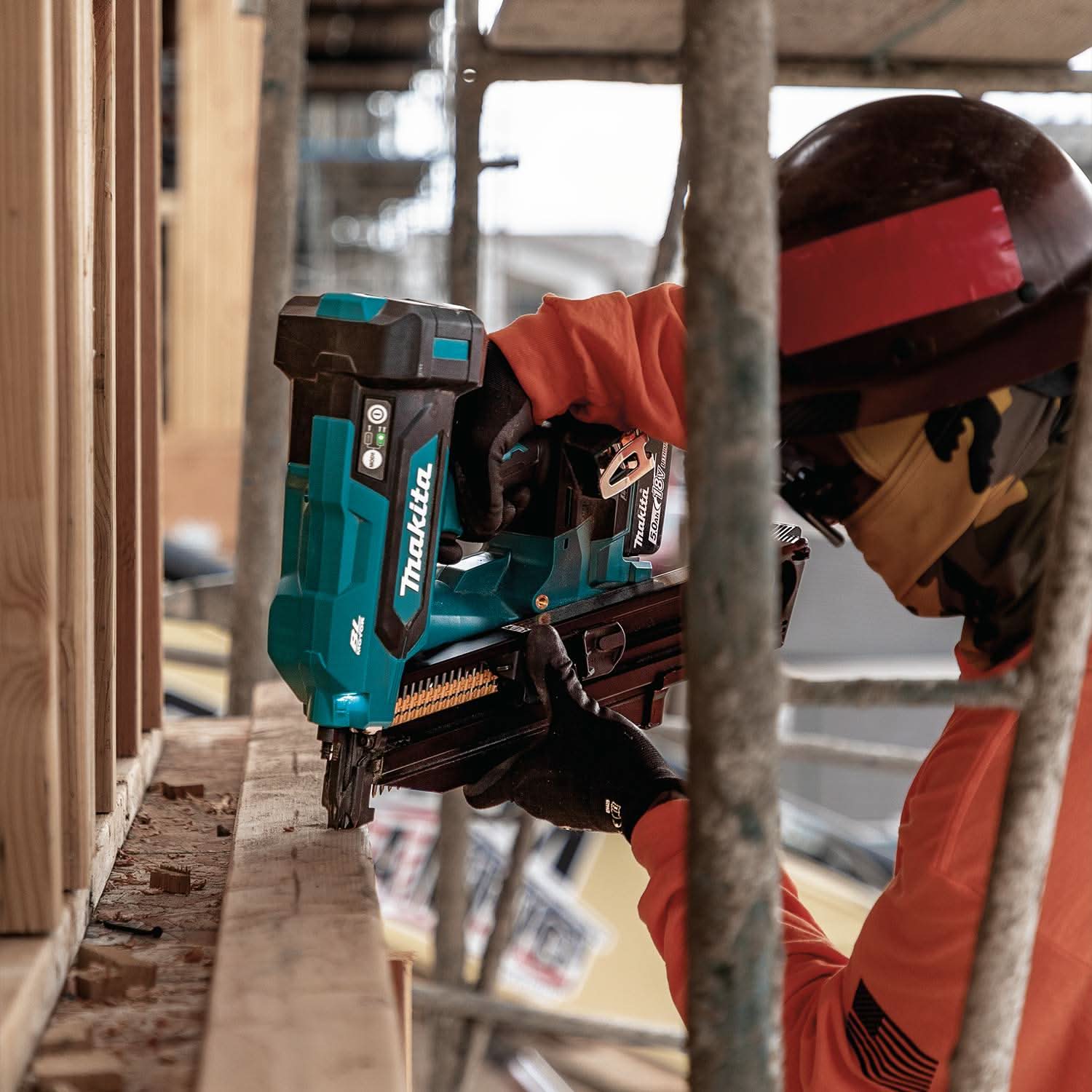

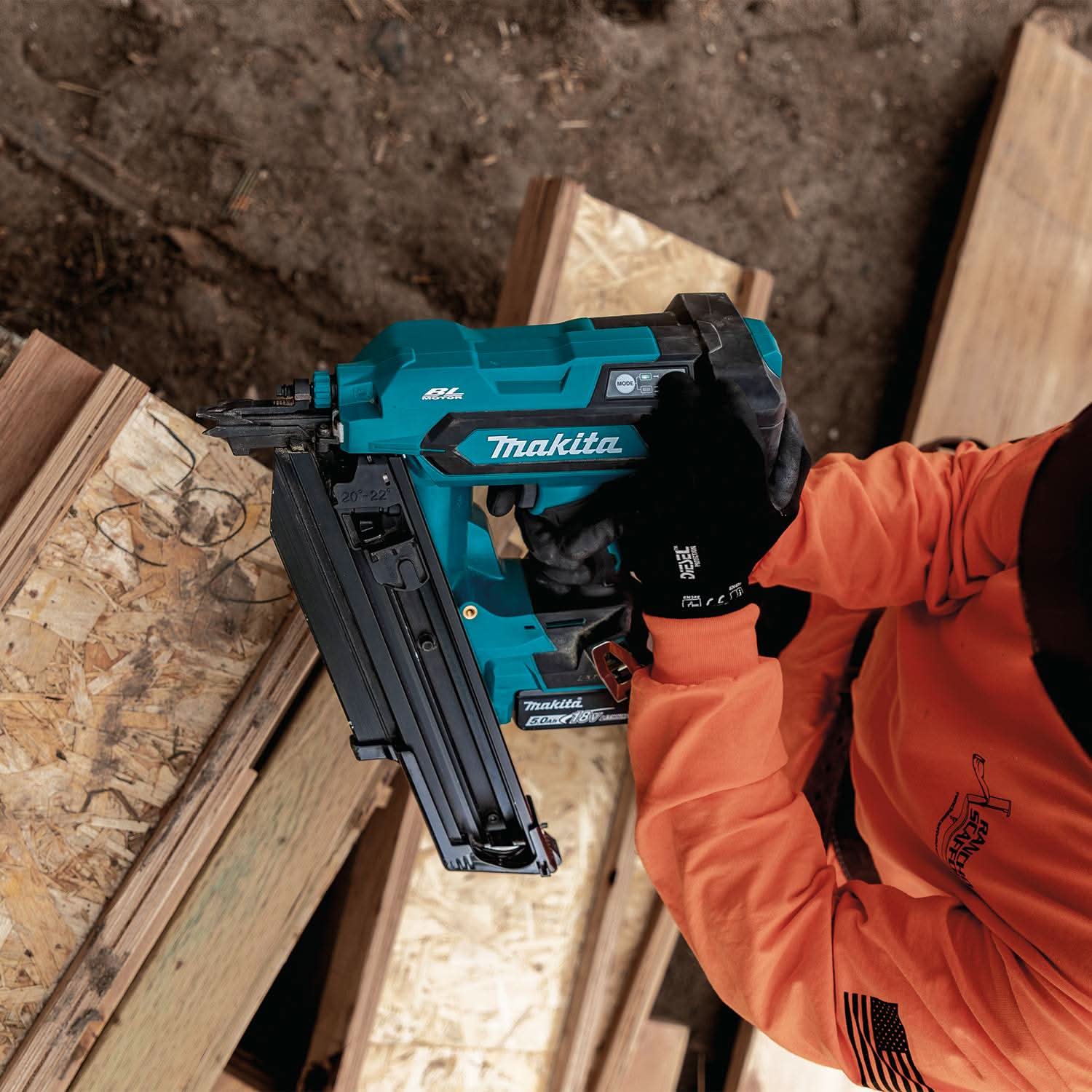

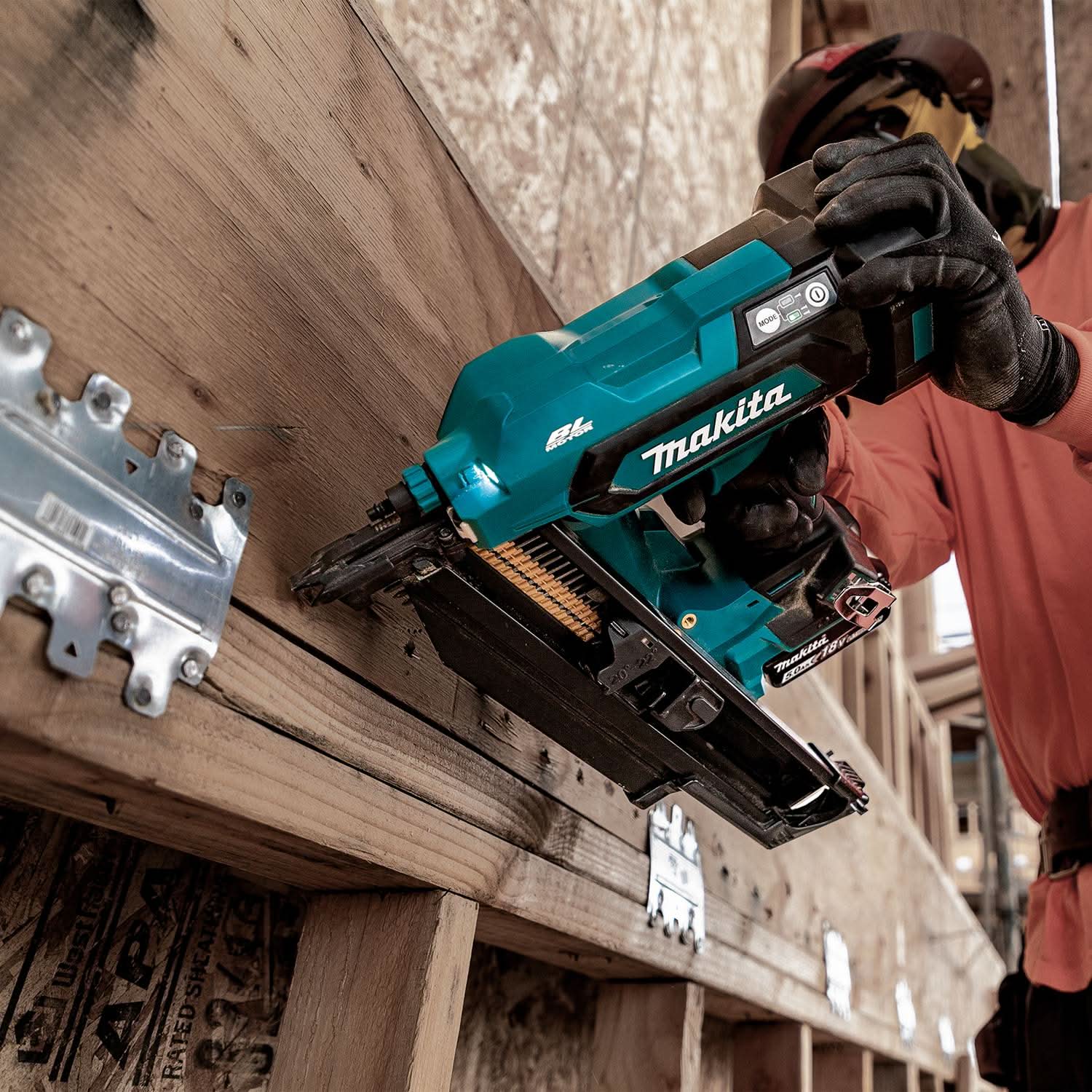

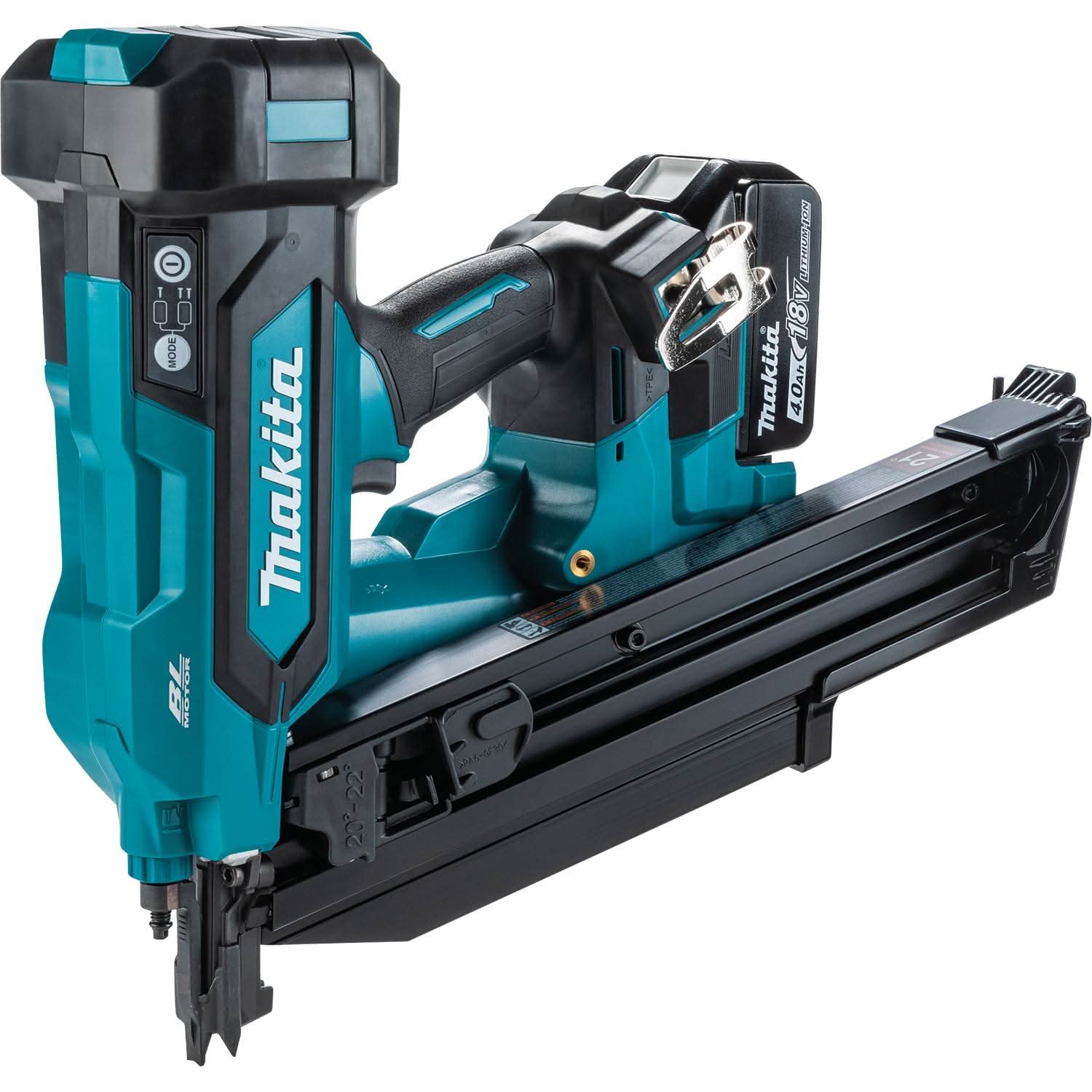

The Makita 18V LXT 21° Full Round Head 3 1/2" Framing Nailer (XNB03) drives full-round head nails into dense engineered lumber with the power of a pneumatic nailer. The XNB03 can drive up to 1,000 framing nails on a single charge of a 18V LXT 6.0Ah battery.

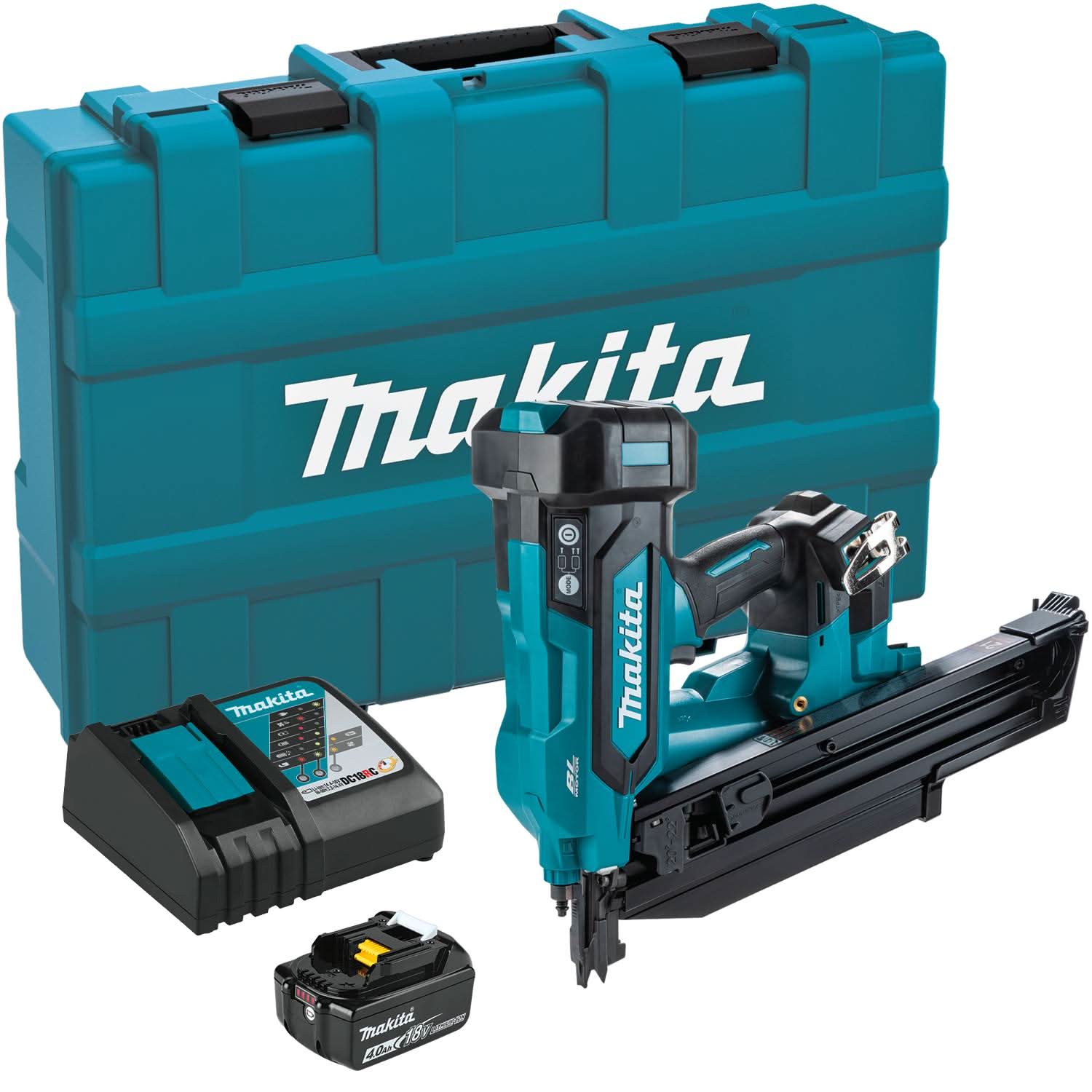

The Framing Nailer is also available as a kit (Framing Nailer (XNB03M1) that features the tool, a No‑Mar Tip (4130T1-3), a Hex Wrench (783202-0), a Belt Hook, XNB03Z, XNB07Z (347C14-9), a Rafter Hook (141X57-7), an 18V LXT Lithium-Ion 4.0Ah Battery (BL1840B), an 18V LXT Lithium-Ion Rapid Optimum Charger (DC18RC), and a Tool Case

The 21° Full Round Head 3 1/2" Framing Nailer features a two-mode selector switch that allows the operator to select sequential nailing or bump fire options. It features an anti-slip nose for controlled nailing at almost any angle. The Framing Nailer features a “tool-less" depth adjustment engineered for more precise flush and countersink nailing.

The XNB03 is equipped with an anti-dry fire mechanism engineered to help prevent driving blanks and the Nailer features a rear lock-and-load magazine with 41 nail capacity for maximum efficiency.

The Framing Nailer drives 21º plastic collated framing nails from 2" to 3-1/2" in length and .113 to .148 in diameter. It weighs only 11.9 lbs. with 18V LXT battery (battery not included) for reduced operator fatigue.

Convenience features include a built-in L.E.D. light that illuminates the work area, a belt hook with a retractable extra-wide tool hook that secures the tool when not in use, and an ergonomically designed handle with a rubberized soft grip that provides increased user comfort.

It’s part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.

Specifications:

• Nail Size : 2"-3-1/2" .113"-.148" shank diameter plastic collated
• Maximum Magazine Capacity : 41
• Power Type : Cordless
• Fastening category : Framing
• Max. nail/fastener length : 3-1/2"
• Tool-less depth adjustment : Yes
• Nailer Type : Framing Nailer
• Shipping Weight : 12.26 lbs.
• Packaged Depth (in) : 17.75"
• Packaged Height (in) : 7.3"
• Packaged Width (in) : 21.65"
• UPC Code : 197050-021557

Includes:

• 18V LXT Brushless 21º Full Round Head 3-1/2" Framing Nailer (XNB03Z)
• 18V LXT Lithium-Ion 4.0Ah Battery (BL1840B)
• 18V LXT Lithium-Ion Rapid Optimum Charger (DC18RC)
• No‑Mar Tip, XNB03Z, XNB07Z (4130T1-3)

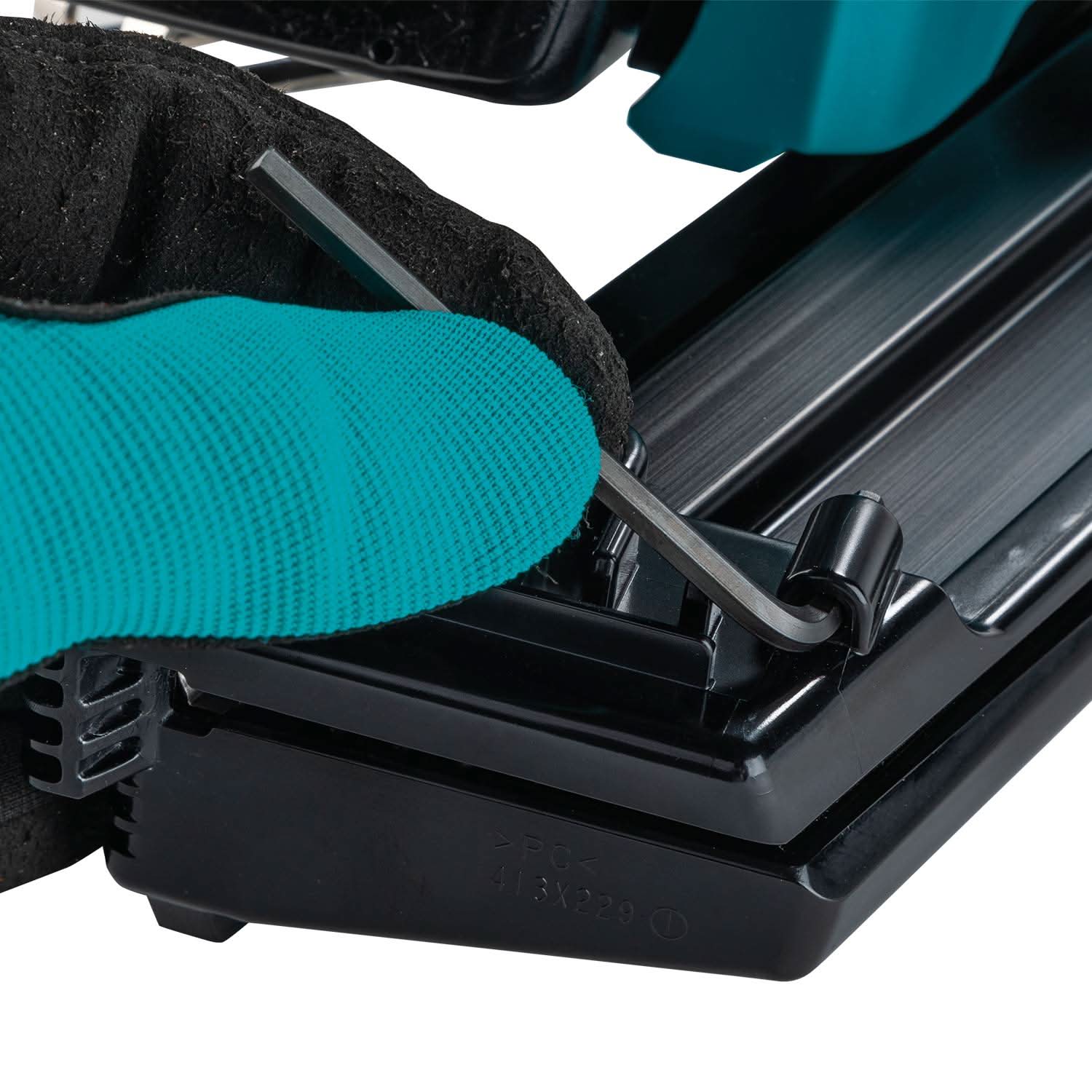

• Hex Wrench (783202-0)
• Belt Hook, XNB03Z, XNB07Z (347C14-9)

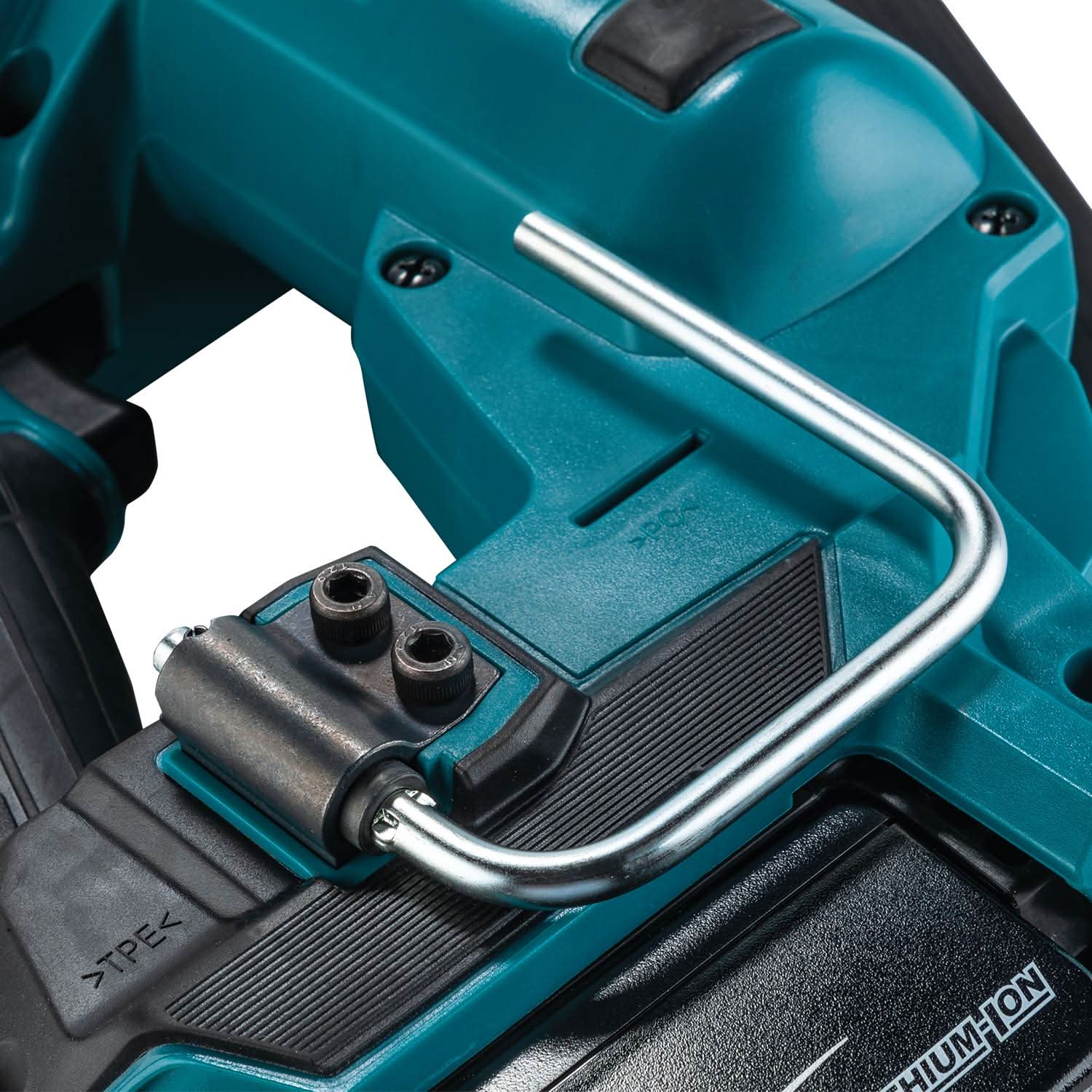

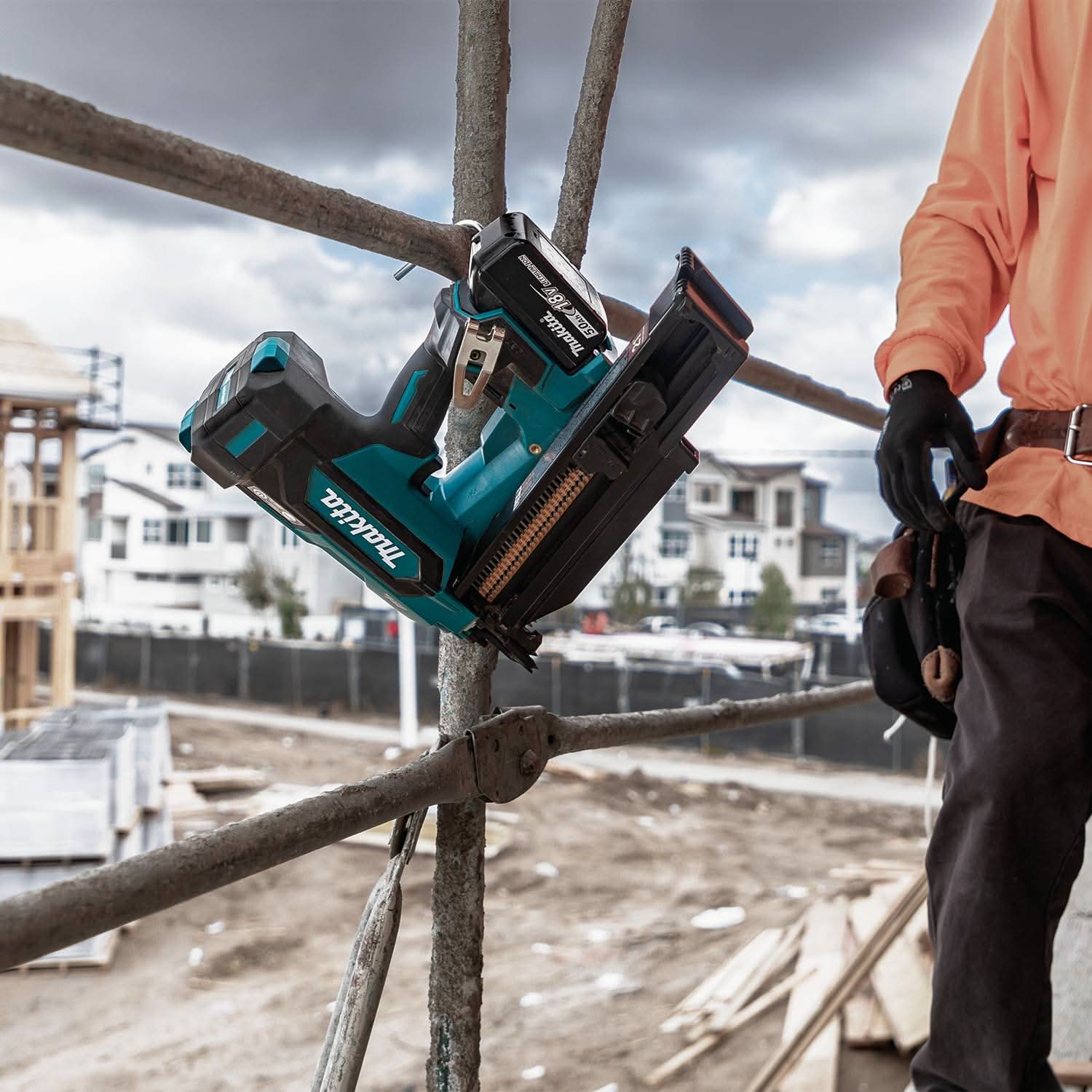

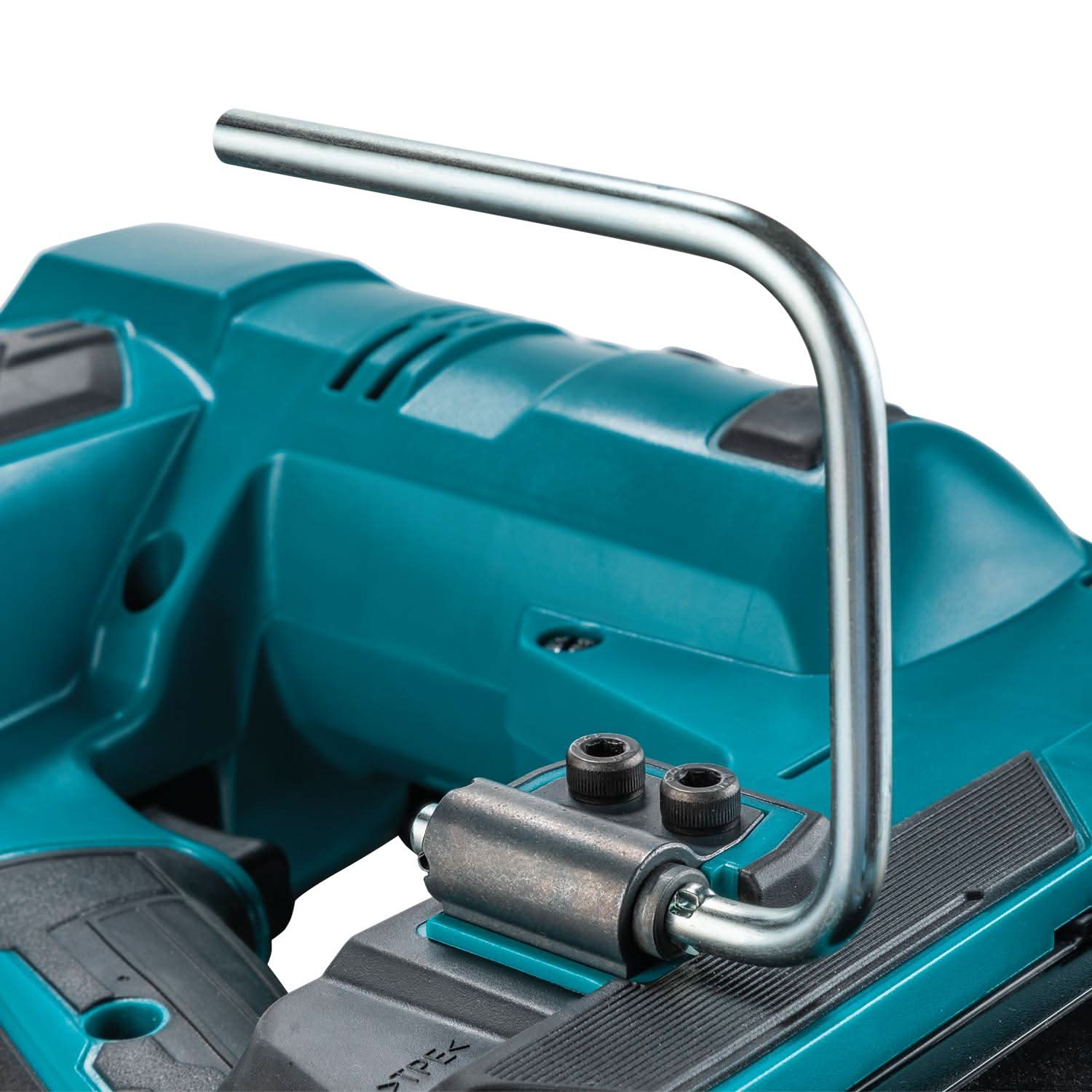

• Rafter Hook, XNB03Z, XNB07Z (141X57-7)
• Tool Case
