Makita XNB03Z 18V LXT Cordless 21-Degree Full Round Head 3-1/2-in. Framing Nailer w/ (1) 18V LXT 6.0Ah Battery
Makita XNB03Z 18V LXT Cordless 21-Degree Full Round Head 3-1/2-in. Framing Nailer w/ (1) 18V LXT 6.0Ah Battery
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

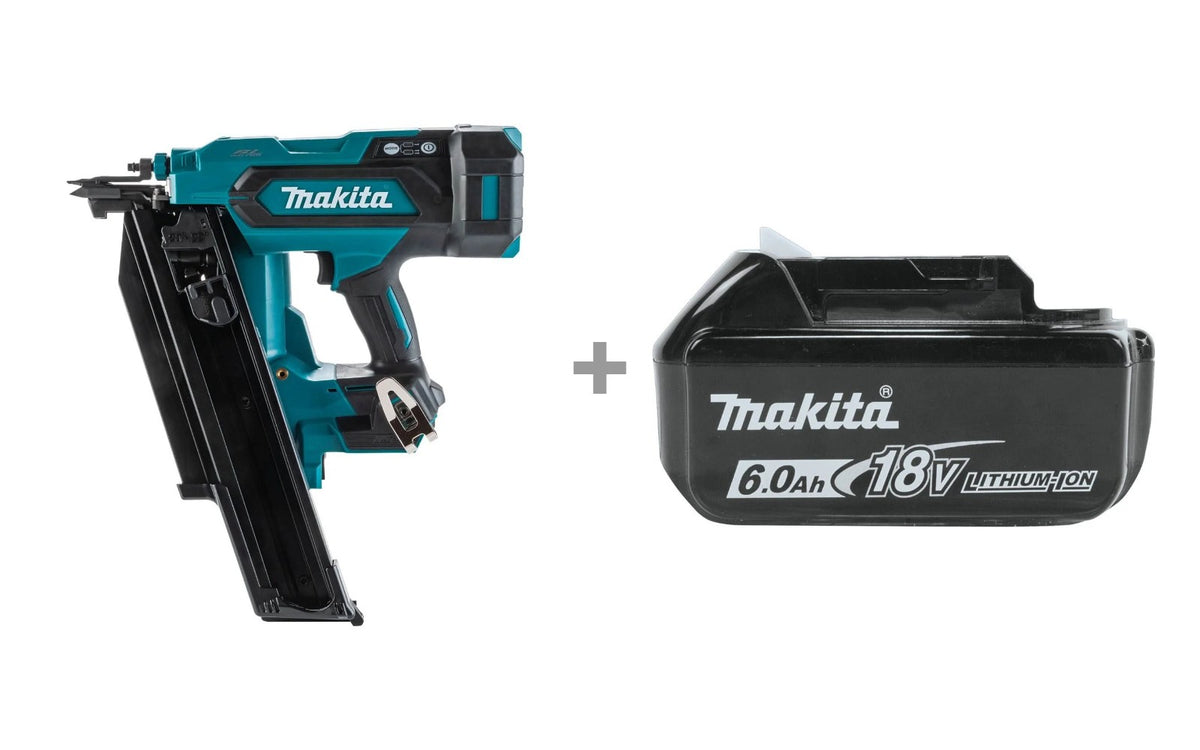

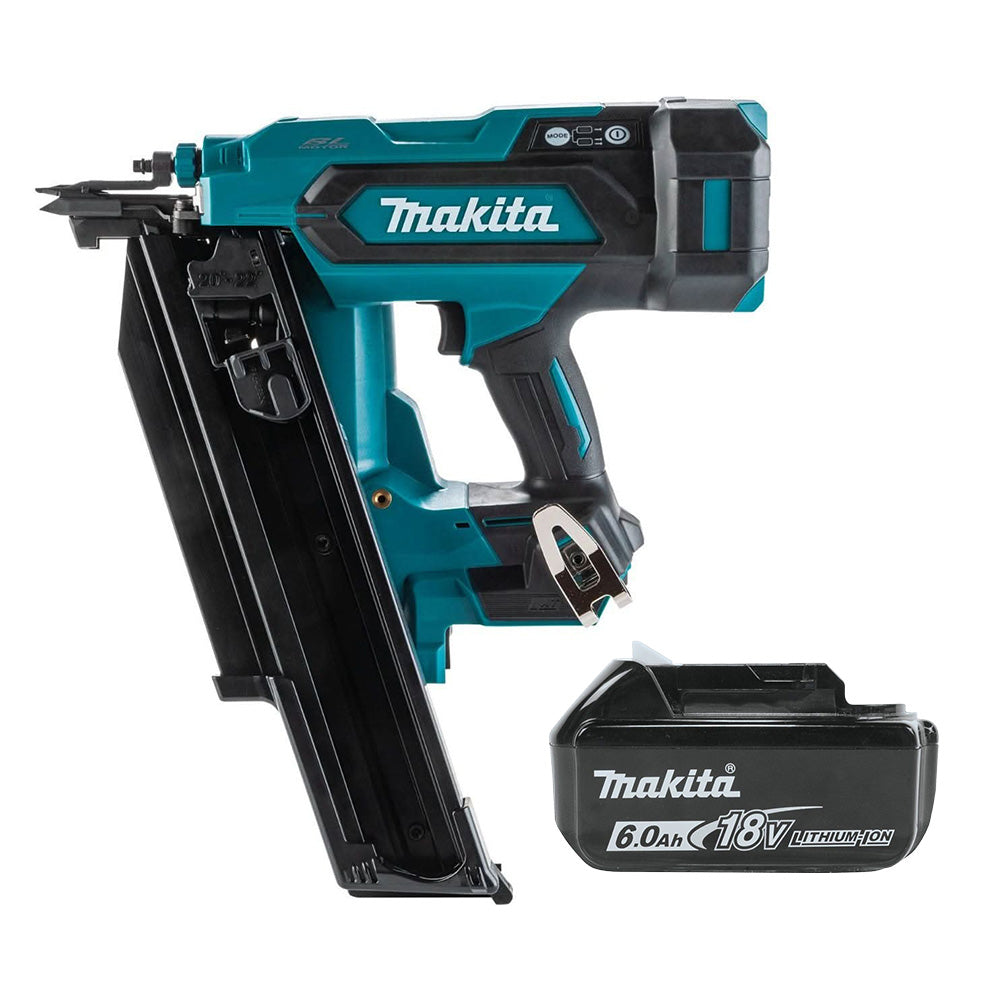

This bundle pairs the Makita XNB03Z 18V LXT Cordless 21-Degree Full Round Head 3-1/2 in. Framing Nailer with the Makita BL1860B 18V LXT 6.0Ah Battery, so the tool-only nailer comes with the battery Makita rates it on. Model Numbers: XNB03Z (cordless framing nailer, tool only), BL1860B (18V 6.0Ah lithium-ion battery).
The XNB03Z drives 21 degree plastic collated full round head framing nails from 2 in. to 3-1/2 in. long with .113 in. to .148 in. shank diameters into dense engineered lumber. It uses a brushless motor on Makita's 18V LXT platform, and Makita states it can drive up to 1,000 framing nails on a single charge with an 18V LXT 6.0Ah battery.
A two-mode selector switches between sequential nailing for placement and bump fire for speed. Tool-less depth adjustment handles flush or countersink nailing as material density changes, the anti-slip nose helps at an angle, and the anti-dry fire mechanism prevents blank drives when the magazine runs low. The rear lock-and-load magazine holds 41 nails, with Makita's 1914P2-4 extended capacity magazine set available separately for 78. A built-in LED light, retractable extra-wide hook, belt hook, and rafter hook round it out. Makita lists the tool at 11.9 lbs with battery.
The BL1860B is an 18V, 6.0Ah Makita battery pack, the high-capacity option for users who would rather keep working than swap packs.
Who should buy it? Framers, remodelers, deck builders, and contractors who want a cordless framing nailer and need a battery to run it. If you already own an 18V LXT charger, this is a ready-to-run setup.
What's in the Box
- (1) Makita XNB03Z 18V LXT Cordless 21 Degree Full Round Head 3-1/2 in. Framing Nailer
- (1) Hex Wrench
- (1) Belt Hook
- (1) Rafter Hook
- (1) Nose Adapter / Nose Cover
- (1) Tool Case
- (1) Makita BL1860B 18V LXT 6.0Ah Battery
Charger and nails not included.
Key Specifications
| Voltage | 18V |
|---|---|
| Motor Type | Brushless |
| Nailer Type | 21 Degree Full Round Head Framing Nailer |
| Nail Length Range | 2 in. to 3-1/2 in. |
| Nail Diameter Range | .113 in. to .148 in. |
| Magazine Capacity | 41 nails |
| Nails per Charge | Up to 1,000 (18V LXT 6.0Ah battery) |
| Dimensions (L x W x H) | 15-3/8 in. x 7-1/2 in. x 14-1/8 in. |
| Weight | 11.9 lbs with battery |
| Battery Capacity | 6.0Ah |
| Batteries Included | 1 |
| Charger Included | No |
Compatibility
Built For
Pro Tip
Set depth with a few test shots in scrap of the same material before you start a wall. Engineered lumber and standard framing lumber seat nails differently, and the tool-less depth adjustment makes it quick to dial in flush versus countersink.
Warranty & Support
Tool Nut's Take
Hose-Free Framing With the Battery It Is Rated On
Makita's 1,000-nails-per-charge figure is based on a 6.0Ah pack, and that is the battery in this box.
- Who it's for: Framers, remodelers, and deck builders who want full round head framing capacity without a compressor.
- Why it stands out: Brushless cordless framing, dual firing modes, tool-less depth, anti-dry fire, and the rated 6.0Ah battery in one package.
- Worth knowing: One battery, no charger, no nails. The standard magazine holds 41; the 78-nail extended magazine is a separate purchase.
Common Questions
- Does this bundle include a charger? No. It includes the XNB03Z nailer with its accessories and one BL1860B 6.0Ah battery. An 18V LXT charger is sold separately.
- What nails does it use? 21 degree plastic collated full round head framing nails, 2 in. to 3-1/2 in. long, .113 in. to .148 in. shank.
- How many nails per charge? Makita rates it at up to 1,000 framing nails on a single charge with an 18V LXT 6.0Ah battery.
- How many nails does the magazine hold? 41 in the standard magazine, or 78 with the separately sold 1914P2-4 extended magazine set.
- Does it have different firing modes? Yes. Sequential and bump fire.
