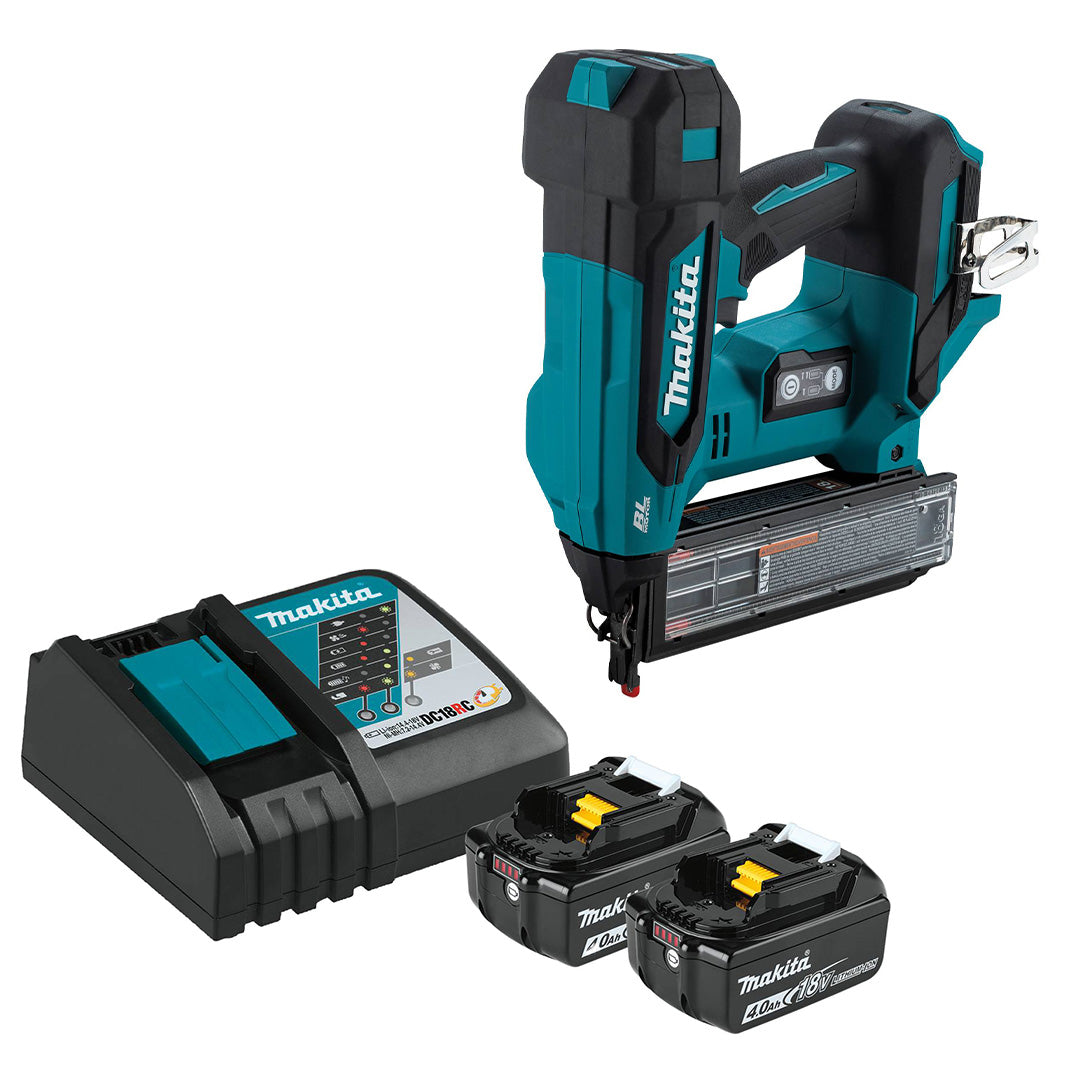

Makita XNB04Z 18V LXT Brushless Cordless 2-in. 18-Gauge Brad Nailer w/ (2) 4.0Ah Battery Starter Kit
Makita XNB04Z 18V LXT Brushless Cordless 2-in. 18-Gauge Brad Nailer w/ (2) 4.0Ah Battery Starter Kit
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
This bundle pairs the Makita XNB04Z 18V LXT Brushless Cordless 2 in. 18-Gauge Brad Nailer with the BL1840BDC2X 18V LXT 4.0Ah Battery and Rapid Optimum Charger Starter Pack — giving you a complete, ready-to-nail finish fastening kit with no additional purchases required. Model Numbers: XNB04Z (nailer), BL1840BDC2X (starter pack). If you do interior trim, cabinet work, or punch-list finish fastening and want compressor-free mobility without sourcing a battery and charger separately, this is the bundle that gets you working on day one.
The XNB04Z is built around speed and clean placement. Makita says it delivers up to 2× faster nailing speeds compared to the earlier XNB01Z and drives nails sub-flush in both hardwood and softwood. That matters on base, casing, crown, door trim, and light built-ins where proud heads mean more touch-up time. The 2-mode selector switch supports both sequential and bump fire operation, so you can dial in deliberate placement for visible finish work or run at production pace when the job calls for it. The slim nose improves access in tight corners and trim profiles, tool-free depth adjustment lets you switch between materials quickly, and the tool-free easy-clear nose cuts down stoppage time when a nail hangs up.
Surface protection is a practical strong point for finish work. The non-marring rubber nose and bumpers help protect finished wood, and the two included removable no-mar tips store on the tool so you are not hunting for them. At 6 lbs. with battery and 9-11/16 in. long, the compact footprint helps on ladder work and room-to-room punch-out jobs. A built-in LED light helps in dim interior spaces, and the belt hook keeps the tool within reach without setting it down on finished surfaces.
The BL1840BDC2X starter pack brings two BL1840B 4.0Ah LXT batteries and the DC18RC Rapid Optimum Charger. Each battery reaches a full charge in 40 minutes or less, delivers up to 35% more runtime per charge than the BL1830, and resists self-discharge so it stays ready even after storage. The integrated LED charge level indicator lets you check battery status before you start a run, climb a ladder, or move to the next room. The impact-resistant outer case and shock-absorbing inner liner protect the batteries through the transport and daily abuse that comes with real trim work.
The DC18RC Rapid Optimum Charger communicates with each battery's built-in chip throughout the charge cycle — actively controlling current, voltage, and temperature — and uses a built-in fan to cool the battery for faster, more efficient charging even in warm conditions. Star Protection Computer Controls allow the nailer and battery to exchange data in real time, helping protect against overload, over-discharge, and overheating. These batteries are compatible only with Star Protection tools identified by the Star Symbol and/or a yellow battery receiver under the tool.
Who should buy this bundle? Finish carpenters, remodelers, cabinet installers, and punch-list crews who are on the Makita 18V LXT platform or starting fresh and want a complete brad nailing kit — nailer, two batteries, and charger — without piecing it together separately.
Compressor-Free Finish Fastening, Ready from Day One
This bundle removes every reason to delay getting started. The nailer is set up for finish work where placement matters, and the two-battery starter pack means one pack is always charged and ready while the other is in the tool.
- Slim nose design improves access in tight corners and along detailed trim profiles
- Tool-free depth adjustment and easy-clear nose reduce setup and stoppage time
- Up to 4,250 nails per charge on a 5.0Ah battery — two 4.0Ah packs keep the work moving
- Two batteries charge to full in 40 minutes or less with the included DC18RC
- Non-marring rubber nose and two no-mar tips protect prefinished and painted trim surfaces
- LED charge level indicator on each battery — check status before the next run
What's in the Box
- (1) Makita XNB04Z 18V LXT Brushless Cordless 2 in. 18-Gauge Brad Nailer
- (1) Hook
- (1) Nose Adapter
- (2) Removable No-Mar Tips
- (2) Makita BL1840B 18V LXT 4.0Ah Lithium-Ion Batteries
- (1) Makita DC18RC 18V LXT Rapid Optimum Charger
Brad nails are not included. This bundle includes the nailer, two 4.0Ah batteries, and the Rapid Optimum Charger — no additional purchases needed to start nailing.
Key Specifications
| Nailer Type | Brad Nailer |
|---|---|
| Fastener Size Range | 5/8 in. to 2 in. brad nails |
| Fastener Gauge | 18 Gauge |
| Maximum Magazine Capacity | 110 nails |
| Power Source | Cordless |
| Voltage | 18V |
| Motor Type | Brushless |
| Weight | 6 lbs. with battery |
| Dimensions | 9-11/16 in. x 3-3/4 in. x 11-7/8 in. |
| LED Light | Yes |
| Tool-Free Depth Adjustment | Yes |
| Firing Modes | Sequential and bump fire (2-mode selector) |
| Made In | Japan |
| Included Battery Capacity | 4.0Ah per pack (×2) |
| Full Charge Time | 40 minutes or less (DC18RC Rapid Optimum Charger) |
| Operating Temperature | Down to -4°F (-20°C) |
Compatibility
Built For
Pro Tip
When you switch between softer trim stock and hardwood casing, take a second to re-dial the tool-free depth adjustment instead of forcing one setting to do everything. That is the quickest way to keep the XNB04Z from leaving proud heads in hard material or overdriving in softer wood. With two batteries in the kit, put one on the charger at the start of the day and rotate packs as needed — the DC18RC will have a dead pack back to full in 40 minutes or less.
Warranty & Support
Tool Nut's Take
A cordless brad nailer that actually earns its spot in a trim kit — and ships ready to work
The Makita XNB04Z is the right nailer for finish guys who want compressor-free mobility without giving up nail capacity, access, and depth control. Bundled with the BL1840BDC2X starter pack, it ships as a complete, immediately usable kit — no separate battery hunt required.
- Who it's for: Trim carpenters, remodelers, cabinet installers, and Makita LXT users doing interior finish fastening who want to start nailing without sourcing a battery and charger separately.
- Why it stands out: Slim nose access, tool-free depth adjustment, 110-nail magazine, and strong runtime — paired with two 4.0Ah batteries that charge in 40 minutes or less. That is a full trim kit in one purchase.
- Worth knowing: This nailer is built specifically for 18 gauge brad nail work, not heavier finish or framing applications. The included batteries are Star Protection compatible only — check your other Makita tools for the Star Symbol or yellow battery receiver before assuming universal compatibility.
Common Questions
- What's included in this bundle? The Makita XNB04Z 18V LXT Brushless Cordless 2 in. 18-Gauge Brad Nailer (with hook, nose adapter, and two no-mar tips), two BL1840B 4.0Ah LXT batteries, and the DC18RC Rapid Optimum Charger. Brad nails are not included.
- What size nails does this nailer use? It uses 18 gauge brad nails from 5/8 in. to 2 in.
- Does it support different firing modes? Yes. It has a 2-mode selector switch for sequential nailing or bump fire operation.
- How long does it take to charge the included batteries? The included DC18RC Rapid Optimum Charger brings each 4.0Ah battery to a full charge in 40 minutes or less.
- Can the included batteries be used with other Makita 18V LXT tools? Yes. The BL1840B batteries are compatible with Makita 18V LXT Star Protection tools across the platform — identified by the Star Symbol and/or yellow battery receiver under the tool.
- What battery platform does the nailer use? It is part of the Makita 18V LXT system and is compatible with Makita 18V Lithium-Ion batteries with the Star symbol.
- What is the magazine capacity? The magazine holds up to 110 nails.
- What is the warranty on this bundle? The nailer, batteries, and charger are all covered by Makita's 3-year limited warranty.
